Kingkraft Multibath SE User manual

Instructions for use
Multibath SE
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE

Contents
• General Description
• Important Safety Instructions
• Operating Instructions
• Tap options and Instructions
• Accessories
• Installation
• Maintenance
• Cleaning
• Sample Markings
• Guarantee

General Description
The Multibath SE is designed to be used in Hospitals, Nursing Homes, Residential Homes and
domestic properties.
The bath is used to assist carers in the bathing of a person who generally has some reduction
in mobility by raising and loweing the bath to a convenient height. The traversing seat allows
transfer in and out of the bath.
This user manual must be read throughly before use and we would recommend placing laminat-
ed user and safety instructions on the wall adjacent to the bath for the use of other carers/user.
Please ask Kingkraft if you would like copies.
Important Safety Instructions
WARNING!
ANY PERSON WHO IS INCAPABLE OF FULLY HELPING THEMSELVES MUST NEVER BE LEFT
ALONE IN THE BATH-EVEN FOR A SHORT WHILE
This manual contains information on the standard Multibath SE. Special bespoke baths by
Kingkraft may dier herein. Please contact Kingkraft if you have any queries on how to use your
product.
• Do not stand on or in the product at any time
• Provisions must be made to be able to remove the user from the bath safely in case of emer
gency or power failure. This must be feasable when the bath is in any of its raised positions.
(i.e a mobile hoist incase the ceiling track hoist fails.)
• Kingkraft products are intended for domestic and commercial use only
• Do not exceeed the maximum weight load specied (133kg/21st)
• Only one person should be in the bath at one time
• Only Kingkraft manufactured accessories have been tested by Kingkraft for safe use with this
bath under normal conditions of use
• The bath is tted with a handset, this should not be submerged in the water, if this happens
to fall in, quickly wipe it dry and seek further advice if unsure
• Your Multibath SE should have been tted at a safe distance from the wall to avoid trapping,
however always unsure that all limbs, head, ngers and toes are not on the outside of the
bath when it’s in motion
• When the seat is in use, always ensure that the person is securely seated and that they are
sat properly in the seat with their legs in front of them and that they are being watched at all
times
• Always check the temperature of the water before placing a person in the bath, this should
be ideally done with a calibrated thermometer
• Be aware when using bubble baths or foaming products, these can excessively froth, never
leave anyone unattended as there is a risk of drowning
• Never place anything or anyone underneath the bath - doing so could cause damage to
persons or the electronic mechanisms on the bath

• Be careful when removing the bath seat on the Multibath SE as this is extremely heavy
and will require at least two people to lift
RISK OF SCALDING Although safety devices are tted to minimise any risk of scalding, users
must be aware that these are not fail safe. The temperature of the unit must be independent-
ly veried on each occasion it is used-this should be tested, ideally with a calibrated ther-
momemeter.
Refer to Kingkraft if the water is too hot or too cold and do not used until the problem has been
corrected.
Operating Instructions
The bath is mains operated and has a short battery backup system in the event of power fail-
ure. This is for one time emergencies only. You can not operate the bath all the time on this
backup otherwise it will stop working after a few runs up and down.
Before using the bath, ensure that the bath will not cause any damage to persons or surround-
ing objects. If all clear, you can begin operating the bath.
To RAISE the bath:
Press the ‘up’ arrow on the handset as shown on the below
To LOWER the bath:
Press the ‘down’ arrow on the handset as shown on the below
Operating the seat:
The Multibath SE has a powered lift and traverse seat. To operate the seat, ensure the user is
comfortable and (if tted) the lap strap is secure around th euser. Ensure limbs are clear of any
trapping hazards.
1. Lower the bath to its lowest position
2. Press the handset as shown in the picture, the seat will rise automatically outwards to the
top of its stroke
3. It will continue to move through it’s cycle as long as the button is pressed down
4. Ensure the legs are helped clear of the bath as the seat moves into the bath
5. When the seat has reached the end of its travel in either direction, pressing the other seat
button will reverse the process.
NOTE: The bath will not operate until the seat is fully back in its lowest position and inside
the bath!
The seat will not operate until the bath is in its lowest position!
RAISE seat up LOWER seat down
RAISE bath up LOWER bath down

Operating the waste
The waste is operated by the silver knob placed on the inside of the bath near the taps. This
is also the overow, so once the water lls up to this, it will start to drain away. To empty the
water, turn the knob to the left which will then pop the waste up. To close the waste, turn to the
right.
To open the To close the
waste waste
Seat Aperture
The Multibath SE comes complete with an integral seat with aperture as below. (please note,
any bespoke chairs may dier as show herin)
Simply lift out the insert and
keep to one side when seat
is in use
and place back in slot when
not required.

Tap and Shower Instructions
RISK OF SCALDING
Please check the temperature each time you use the bath, ideally with a calibrated
thermometer.
#
Upon installation, your bath should have been commissioned (set the temperatures and check
installation)-please contact Kingkraft if you unsure The temperature will have been set between
42-44° for the bath ll and 37-39° for shower when the tap is fully turned to its maximum. Always
allow time for the mixed water to run through the systems.
With some boiler systems there can be some temperature uctuation when the tap is rst turned
on, let this stabalise before continuing to use.
If the bath has been tted with a Opac Bath Fill mixer tap-
Turn the right hand lever away from you to start the ow of water and regulate the pressure
that the water comes out the tap. Turn the left hand lever away from you to regulate the tem-
perature.
If the bath has been tted with a RADA Autotherm bath/shower tap-
Turn the main lever to the right, which will be begin the water ow. To stop the ow return the
lever to the centre. The temperature can be regulated by adjusting the control knob on top of
the tap.
To operate the shower, turn the main lever to the left which will begin the water ow. The lever
automatically reduces the maximum hot water temperature by 2-5° dependent on water pres-
sures from the bath ll maximum temperature. The temperature can be adjusted by using the
temperature control knob on the top of the mixer tap.
If the bath has been tted with a RADA Sense Infra Red tap-
The control panel can be mounted on the bath tub, a bracket or a wall mounted near to the
bath.
To operate the bath ll, move your hand in front of the ‘bath ll’ symbol to start the ow of the
water. The temperature of the water can be increased by holding/waving a hand in front of th
e red ‘hot’ sensor on the right of the control panel. The temperature of the water can also be
reduced by holding/waving a hand in front of the blue ‘cold’ sensor on the left of the control
panel. Lights will indicate where between the minimum and maximum temperature the water
is currently set. To stop lling the bath, hold/wave a hand in front of the ‘bath ll’ symbol.
To operate the shower with a RADA sense. Move/wave your hand over the ‘shower’ symbol
to start the ow of the water. The temperature can be increased by holding/waving a hand
in front of the ‘red’ sensor on the right of the control panel and holding/waving over the ‘blue’
control to reduce the temperature. Lights will indicate where between the minimum and max-
imum temperature the water is currently set. To stop the ow, hold/wave your hand back over
the ‘shower’ symbol.

Tap and shower options
Please note, you may have other tap options tted which do not match the below
, please always refer to manufacturing instructions.

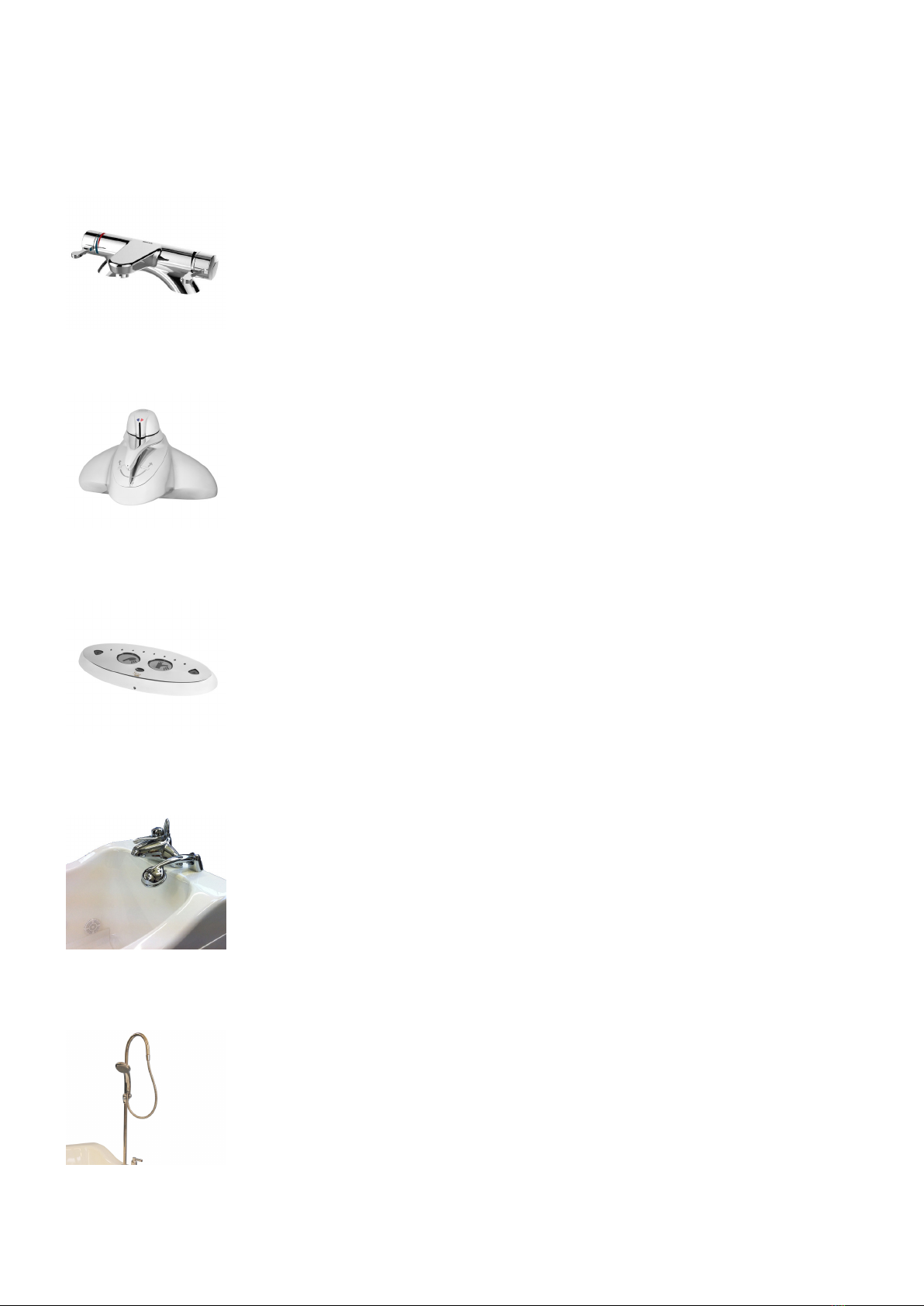

TMV3 OPAC Mixer Tap - Bath Fill
TMV3 RADA Autotherm Tap-Bath/Shower Fill
TMV3 RADA Sense (Infrared) Bath only/ Bath and Shower
Fill
Integral Shower System (Category 3)
Chrome Crook Shower System (Category 5)
Please note, if a shower is tted in a multi-user environment (eg. Care Home) then it must be tted
with a Category 5 Shower-please seek advice if unsure.

Accessories
The additional accessories below are standard Kingkraft accessories which are compatiable with
the Multibath SE., You may have bespoke/non standard items tted onto your bath, if this is the
case please seek further instructions supplied (if required)
Whirlpool, lights, music and cushions
To start the whirlpool:
Press down the on/o control button on the whirlpool button located (usually) behind where
the integral seat is.
To increase the pressure of the whirlpool in the bath, turn the control button either clockwise to
increase or anticlockwise to decrease.
Turn on/o
Adjusting the eye ball jets:
These can be adjusted by placing your nger in the jet hole and turning it to the desired posi-
tion.
Switch on/o:
Simply press the middle button for on/o
Whirlpool pump protection:
Should the whirlpool system be accidently operated at any time with insucient water, the dry
run protection until will automatically swicth the pump o. The whirlpool system can only only
then be started when there is sucient water in the bath. The whirlpool will automatically shut
o after 20 minutes. (You may restart it if required) Always have regard to the users medical
conditions and state of health when using the whirlpool.
NOTE: Normal bubble baths will froth excessively with whirlpools and can pose a major
safety risk to the user and potentially cause damage to surrounding ttings. It is essential
that a low foaming bubble bath mixture is used and no one is left in the bath unattended at
any time.
Please refer to cleaning instructions on how to keep your whirlpool clean.

Lights
Your bath may be tted with integral lights to help create a sensory experience whilst bathing.
There may be risk to some users, so always check with medicl experts before use if you are
unsure.
Press to turn on and o
Press to change sequence of lights
Music System
Your bath may be tted with the integral Bluetooth music system, if so simply connect via any
advice that has in built Bluetooth i.e Smartphone, Tablet etc. Search for ‘Soundbathe’ and con-
nect and listen away whilst you bathe.
Cushions
Kingkraft oer a range of supports and cushioning to make bathtime more relaxing. Seperate
instructions will be enclosed with your cushioning, however please see below information on
how to safely use your cushions.
Our cushions are made from PCV and foam ller or polysterene beads. Ensure that no person
is allergic to these materials before use.
There is a risk of oating, therefore please ensure that the cushions and supports are securely
fastened to the bath before use.
• Ensure that the bath bottom and mattresses/suckers are clean
• Place cushions/supports securely onto base/side of bath
• Run a small amount of water into the bottom of the bath
• Press the cushions/supports rmly onto the bath
Do not use any oil based bathing products as this could aect the suckers sticking to the bath.
When removing the cushions/supports, take care that each sucker is prised carefully away from
the bottom/side of the bath to avoid a tearing action. If the cushion rips around the suckers this is
not covered under any manufacturing warranty and you will be charged to replace it. Make sure
you clean your cushions and supports regularly.

Installation
Your Kingkraft bath should be installed and commissioned by a competent installer. If for any
reason you need to move your bath or re-install, installation guides are available from King-
kraft. Kingkraft are able to carry out removal and re-installs for you, please contact us for fur-
ther advice.
Units with electrical service must only be wired in accordance with the IEE wiring regulations,
especially as regards zoning and equipotential bonding. Kingkraft products are intended for
operation only in a bathroom type location where exposed mains connections and unsealed
switches are etc, are not permitted.
WARNING
The unit must not be connected via a plug and socket
Seperate instructions regarding installation and connections is available from Kingkraft, please
contact us if you need a copy of this.
Maintenance
Your Multibath SE comes with a 2 year manufacturing warranty, this is for labour and parts only.
Kingkraft recommend an annual service on the Multibath SE.
In addition to this, under LOLER regulations, a LOLER test should be done every 6 months on
this bath. Kingkraft can carry out both of these services, please get in touch to nd out further
information.
Fault Finding: If your bath is not going up and down but making a ‘beeping noise’
• Firstly check that the power supply has not been turned o to the bath.
• To check whether there is power, if possible and is safe to do so, remove the panels o the
bath and check whether there is a green light on the control box. Alternatively, if you know
where the main power source is for the bath, check that is not turned o
• If there is a green light, refer back to the instructions on how to operate the bath-ensuring
the seat and bath are in correct positions for operations.
• If your bath is still not going up and down and have you done all the checks, contact King
kraft for further advice.
Cleaning
Do not use any cleaning agents that contain bleach or other corrosives as this can cause stai-
ing and can invalidate the warranty. Use only water, normal soaps and approved cleaning
agents. We recommend using Chemgene which can be purchased via Kingkraft.
If your bath is tted with any cushions or supports, these should be removed ideally after each
use to ensure that no soap scum has built up underneath. If these are left in the bath for a
length of time, mould can quickly build up which can cause damage to health.

Cleaning the whirlpool (if tted)
It is important the whirlpool is cleaned regularly, if you are in a Multi-user environment then this
should be done after each use. Please follow the below guidelines on how to clean your whirl-
pool eciently.
• Remove all cushions and supports in the bath (if applicable)
• Rinse any debris from the bath
• Close drain by operating the pop-up waste
• Fill the bath with water to a level of 25mm (1”) above the whirlpool jets
• Put the whirlpool cleaner in (we recommend the Bronte Whirlpool 6 month care pack, but
you can pick up whirlpool cleaners from most hardware stores)
• Follow the instructions on the packet
• Run whirlpool for 15 minutes (this may dier to whichever cleaner you’re using)
• Drain bath
• Fill bath with clean water to measurements stated
• Run whirlpool for 5 minutes
Stickers and markings on your bath

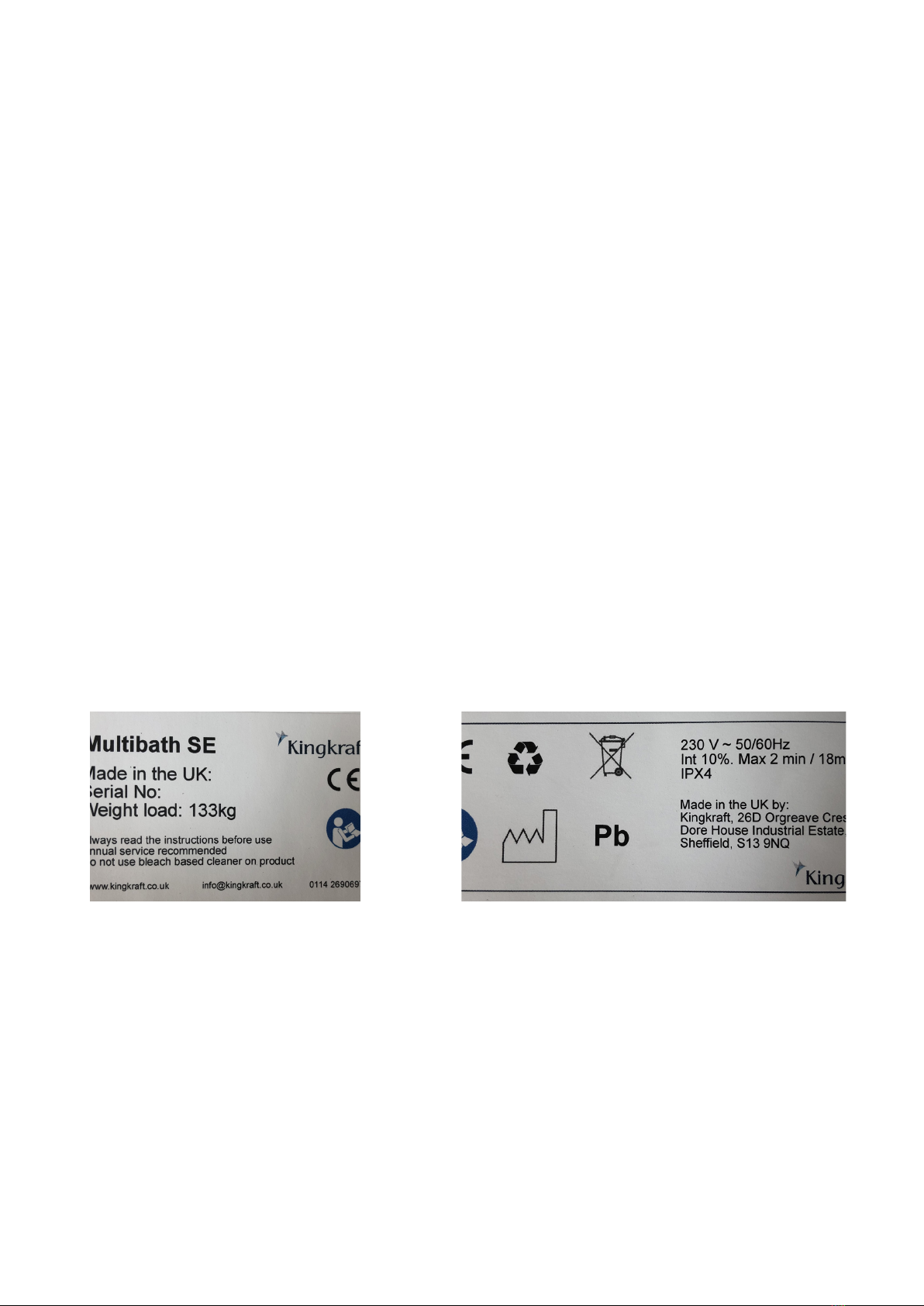

Your Multibath SE should have the following two stickers, if it doesn’t-please make Kingkraft
aware of this as soon as possible. You will nd your serial number on this sticker, ensure you
make a note of this and keep it safe for future reference.
WEEE (Waste Electrical and Electronic Equipment Regulations 2006)
The aim of this Directive is to minimise the impact of electrical and electronic equipment on
the environment when products become waste. All electrical components on this product
must be disposed of in accordance with the WEEE 2006 regulations, either through reuse, re-
covery, recycling or environmentally sound disposal.
If this Kingkraft product is at the end of its life cycle and is being disposed of by people other
than Kingkraft engineers, please contact Kingkraft to discuss arrangements regarding the dis-
posal of any electical equipment.

Guarantee
Your Kingkraft Multibath SE is guaranteed for two years, this covers any breakdowns and parts
for this period only. Full terms and conditions can be found on our website as to what the war-
ranty covers.
Your bath may have been purchased with a ve year warranty, if you are unsure please check
upon receiving your product whether you have an extended warranty as we can not oer this
once your item has been installed.
Please ensure you make a note of your serial number(s) which can be found either on the
product itself or on any paperwork left by the engineer when tted.
You should have been left a warranty card with your bath, to ensure we oer you the highest
customer service, please register your details to ensure we have up to date information. You
can do this by visiting www.kingkraft.co.uk/pages/register-your-product
We would also appreciate if you would also complete our short survey about your experience
with Kingkraft.
In the unfortunate event that you experience a breakdown and you think you are still covered
under warranty, please contact our main oce on 0114 2690697 or inf[email protected].
But don’t worry, if the product is out of warranty and having problems we can still attend, how-
ever charges will apply for our engineers visit, please ensure you know who would be funding
this charge when you call us as we can not attend a product without prior authorisation from
the bill payer.
Moving house or disposing of the bath?
If we don’t know already, we would appreciate it if you are moving house or disposing of the
bath that you let us know so we can update our records.

Multibath SE-MBSE -Issue 5-09/19
Kingkraft Ltd, 26D Orgreave Crescent, Dore House Industrial Estate, Sheeld, S13 9NQ
phone [phone] email inf[email protected] web www.kingkraft.co.uk
