USER MANUAL
SKU: AKTA-AWN270SQR_01
270° SQUARE SIDE AWNING
2V1.1
CONTENTS
1. GENERAL INFORMATION 3
WARNINGS/SAFETY INFORMATION 3
1.1 Conditions of Use 3
1.2 Inspections & Maintenance 3
2. FITTING INSTRUCTIONS 4
2.1 OPTION 1: Mounting Directly to a Roof Rack 4
2.2 OPTION 2: Mounting Directly to Roof Rack Mesh 5
2.3 OPTION 3: Mounting Directly to Roof Cross Bar or Canopy 6
2.4 OPTION 4: Mounting Directly to MT1 Camper Trailer Bracket 7
3. SETUP INSTRUCTIONS 7
4. PACK UP INSTRUCTIONS 10
5. CARE INSTRUCTIONS 10
6. WARRANTY 11
3V1.1
1. GENERAL INFORMATION
The Square Side 270° awning is a rotating 4x4 recreational awning suitable for outdoor use. It is designed to
provide UV & wet weather protection whilst being securely xed to the side of a stationary vehicle.
It is not designed to be setup in extreme weather events or whilst the vehicle is moving. The awning must
be correctly packed up before moving the vehicle.
See setup & pack away procedures for more detailed operational information.
1.1 CONDITIONS OF USE
Before & during trips regularly check that all fasteners securing your awning to your vehicle are tight and in
good condition.
Prior to traveling ensure that the awning bag is zipped shut and that the awning bag is in good condition.
Each time the awning is setup check that the pivot connections are tight and in good condition.
1.2 INSPECTIONS & MAINTENANCE
WARNINGS/SAFETY INFORMATION
• DO NOT ATTEMPT TO SETUP AWNING IN WINDY CONDITIONS OR EXTREME WEATHER
EVENTS.
• ALL GUY ROPES MUST BE ATTACHED AND PEGGED TO THE GROUND AT ALL TIMES.
• ALL VERTICAL POLES MUST BE PEGGED TO THE GROUND AT ALL TIMES.
• GUY ROPES ARE TRIP HAZARDS IN THE DAY AND NIGHT.
• KEEP HANDS AWAY FROM PIVOTING MECHANISMS WHEN SETTING UP OR PACKING
UP AWNING.
• KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THE AWNING MATERIALS.
• UNDER NO CIRCUMSTANCE SHOULD ANY NAKED FLAME SOURCES OR HEATING
DEVICES BE USED UNDER OR NEAR THE AWNING.
• KEEP A LOOK OUT FOR ANY AIRBORNE BURNING EMBERS THAT MAY COME INTO
CONTACT WITH THE AWNING.
• DO NOT OPERATE ANY DEVICE WHICH BURNS FUEL INSIDE OF THE AWNING. KEEP
EXIT CLEAR
• THE AWNING CANVAS IS NOT DESIGNED TO SUPPORT ANY WEIGHT.
4V1.1

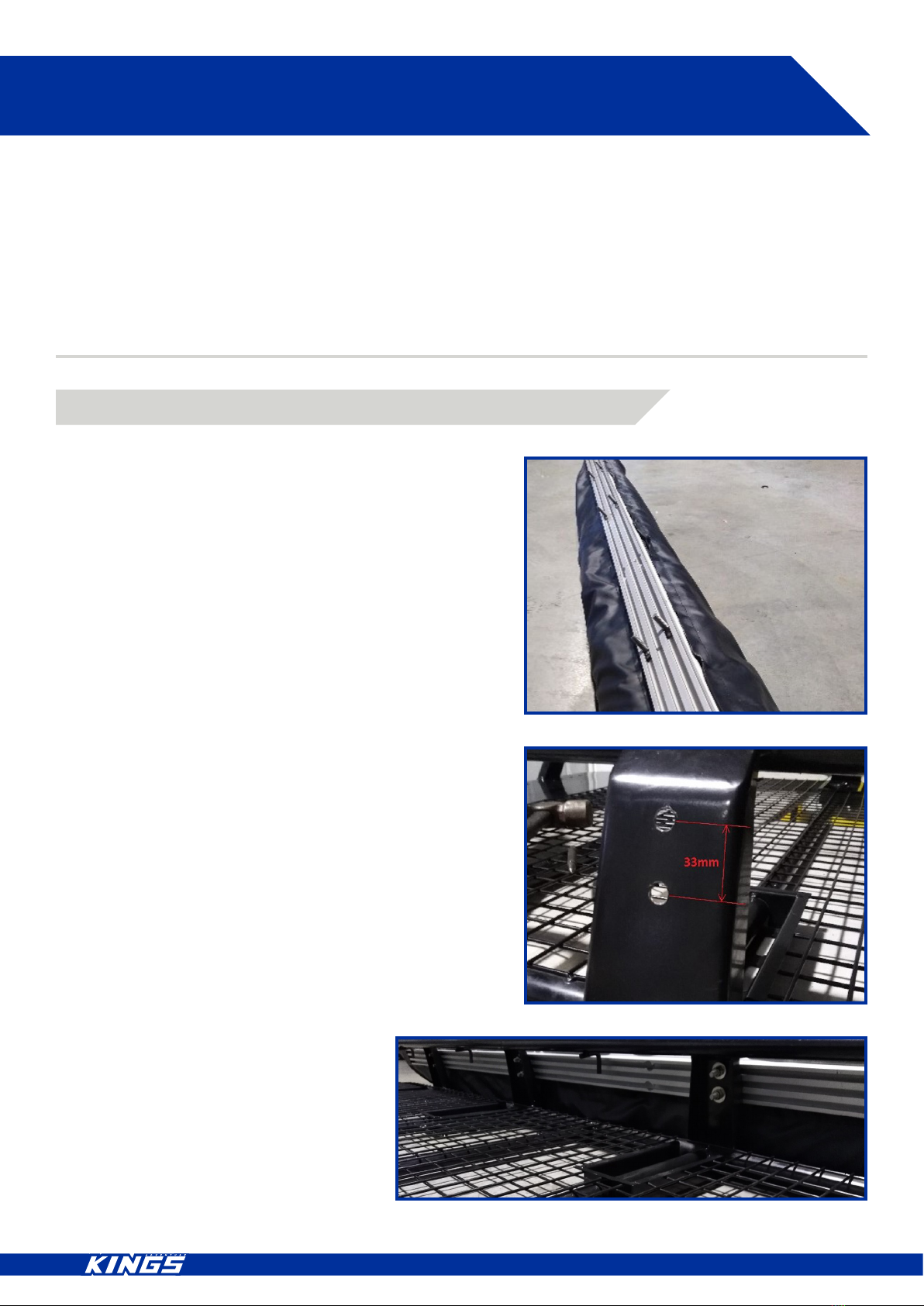

2. FITTING INSTRUCTIONS
Please read the following instructions which include four of the most common methods for tting the Square
Side 270° to your vehicle. It is the owner’s responsibility to ensure that the awning is securely fastened and
safe for use as well as vehicle travel. It is important when mounting the awning to ensure that all the mounting
brackets supplied are spaced far enough apart to adequately support the weight of the awning. When you
are positioning the awning check that there is enough clearance for the vehicle doors to open. Remember to
check vehicle roof and roof rack load capacities prior to tting accessories to your vehicle. Take into account
when mounting vehicle roof accessories that off-road travel increases the dynamic stresses on your vehicle.
For more information on load carrying capacities contact the applicable manufacturer.
2.1 OPTION 1: MOUNTING DIRECTLY TO A ROOF RACK
1. Slide the bolts supplied in the awning kit into
the top and bottom t-slots on the mounting rail
using the central clearance hole. See Figure 1.
2. With assistance from another person hold
the awning in the desired position and mark the
mounting holes in the roof rack. Check that the
vehicle doors can be opened and closed. The
mounting holes in the roof rack plates should be
vertically spaced 33mm apart to suit the awning
backing plate. Fit as many of the supplied bolts
as possible.
3. Ensuring that the hole marks are vertically
spaced 33mm apart then using a centre punch,
centre mark each hole.
4. Once centre marked, drill out the holes to suit
supplied bolts. Use correct PPE when operating
power tools. See Figure 2.
5. Align the awning in the desired position and
guide bolts through roof rack mounting holes.
Tighten the supplied nuts to secure awning. See
Figure 3.
6. Regularly recheck the nuts and bolts to ensure
they are tight and in good condition.
FIGURE 2
FIGURE 3
FIGURE 1
5V1.1

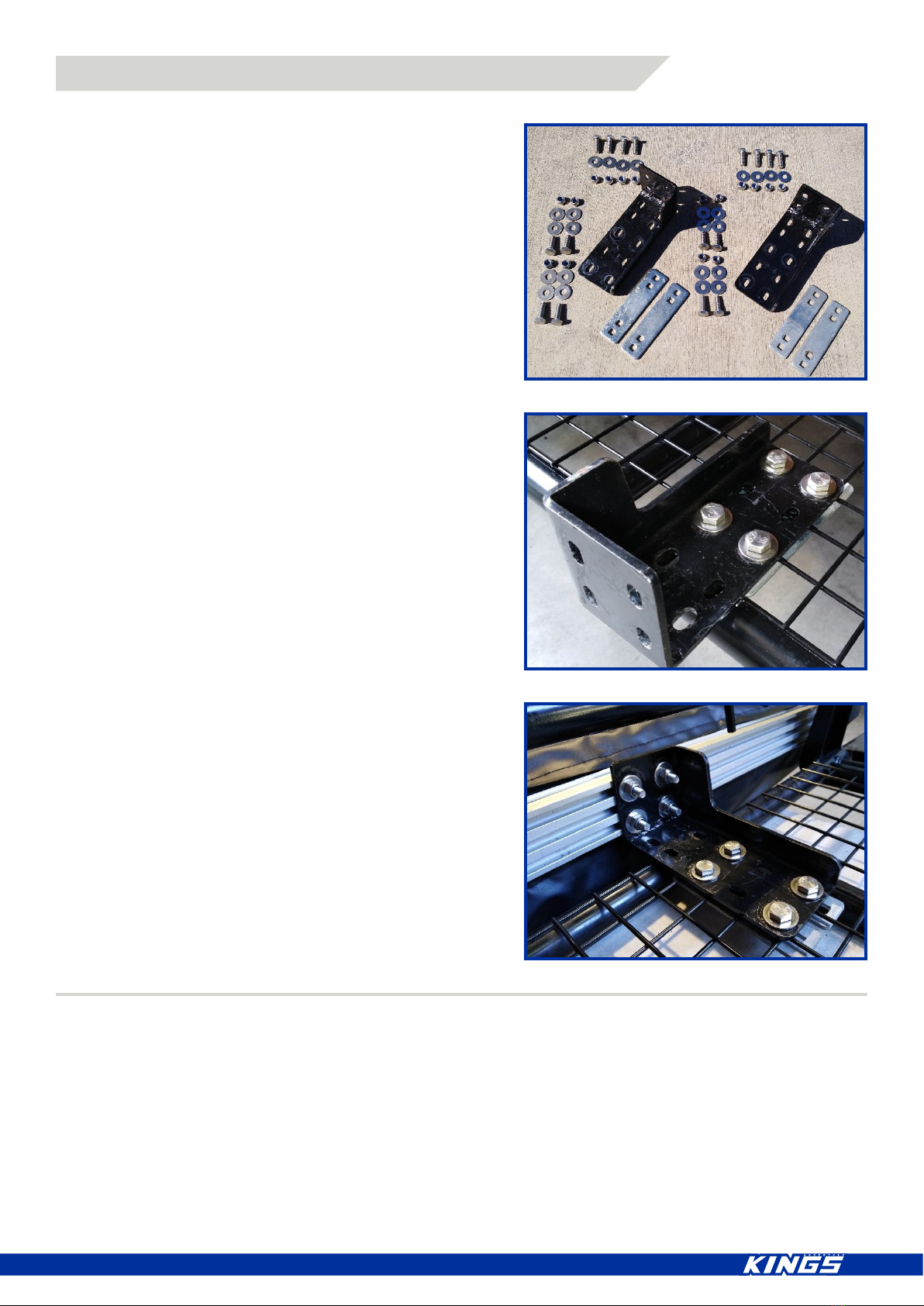

2.2 OPTION 2: MOUNTING DIRECTLY TO ROOF RACK MESH
1. Supplied in the awning kit is two fabricated
mounting brackets, four clamp plates and
required fasteners. See Figure 4.
2. Place the long edge of the supplied mounting
brackets on top of the roof rack mesh.
3. Position the clamp plates underneath the roof
rack mesh and align the holes with the respective
mounting bracket above. Ensure that the spacings
between the mounting brackets are suited to the
length and weight of the awning.
4. Bolt together the mounting brackets and the
clamp plates using the supplied fasteners with
the roof rack mesh in between. Ensure that the
bolted connection is tight and secure. See Figure
5.
5. Slide the supplied fasteners into the top and
bottom t-slots on the mounting rail. Bolt the
awning to the mounting brackets. Ensure that the
nuts are tight and secure. See Figure 6.
6. Regularly recheck the nuts and bolts to ensure
they are tight and in good condition.
FIGURE 4FIGURE 5FIGURE 6
6V1.1
2.3 OPTION 3: MOUNTING DIRECTLY TO ROOF CROSS BAR OR CANOPY
1. Supplied in the awning kit is two fabricated
mounting brackets and required fasteners. See
Figure 7.
2. Place the long edge of the supplied mounting
brackets on top of the roof cross bar.
3. Using suitable fasteners, bolt the awning
mounting brackets to the roof cross bars (may
require specic cross bar fasteners) or canopy.
Ensure that the mounting bolts are tight and
secure and that the brackets are suitably spaced
to support the length and weight of the awning.
See Figure 8.
NOTE: Check the load limit of any roof cross bars or
canopy before mounting the Square Side 270°. Roof
cross bars can vary in design and need their own
specic mounting bolts to suit the cross bar extrusion.
4. Slide the supplied fasteners into the top and
bottom t-slots on the mounting rail. Bolt the
awning to the mounting brackets. Ensure that the
nuts are tight and secure. See Figure 9.
5. Regularly recheck the nuts and bolts to ensure
they are tight and in good condition.
FIGURE 7FIGURE 8FIGURE 9
7V1.1

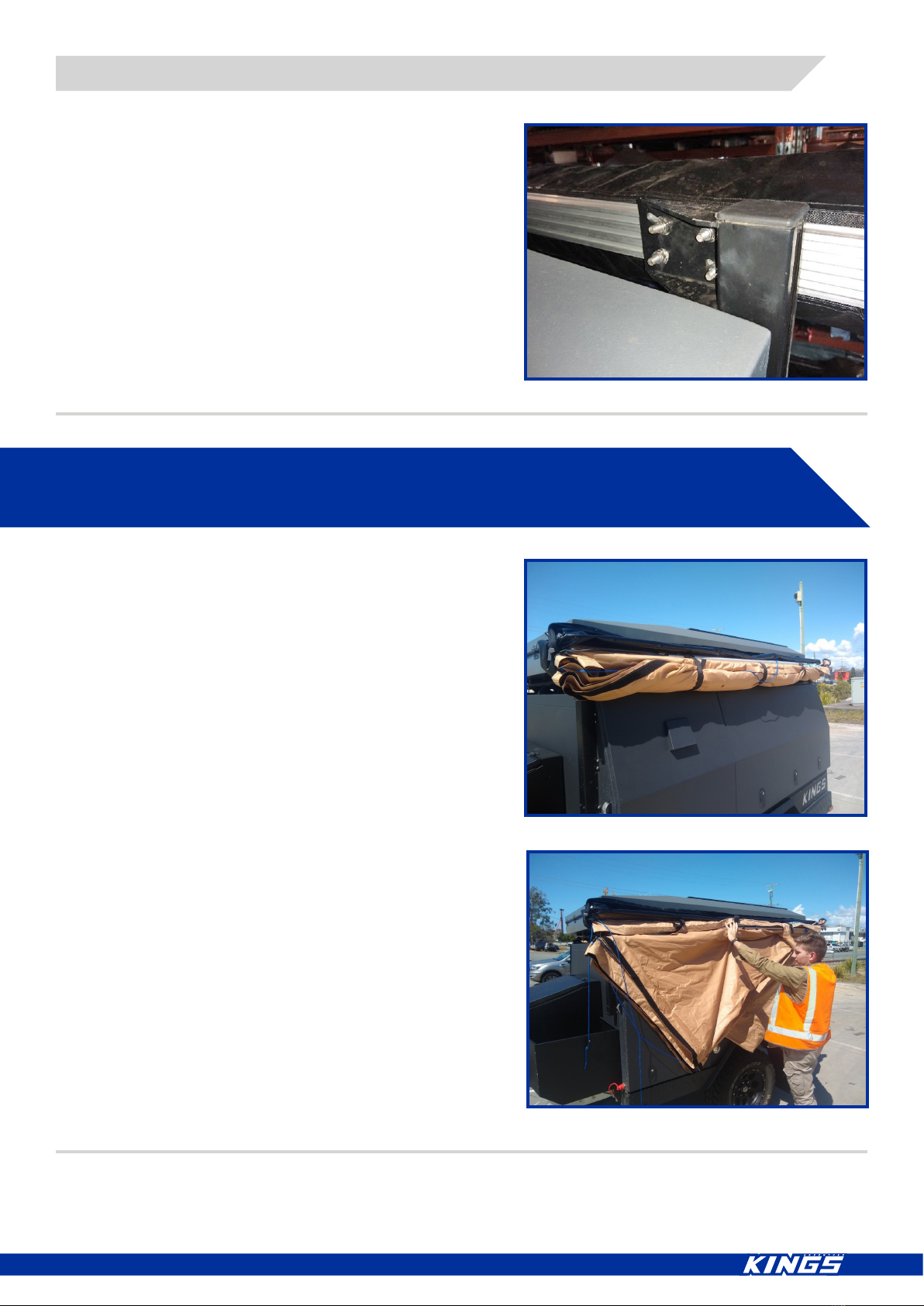

2.4 OPTION 4: MOUNTING DIRECTLY TO MT1 CAMPER TRAILER BRACKET
1. Slide the supplied bolts into the top and
bottom rail on the awning extrusion.
2. Align the bolts with MT1 camper trailer awning
brackets mounts.
3. Secure awning to awning bracket using the
supplied nuts. See Figure 10.
4. Regularly recheck the nuts and bolts to ensure
they are tight and in good condition.
Do not set up the 270° Square Awning in windy
conditions. Setting up the awning in strong winds or
adverse weather may cause damage to the product or
injury to persons. While it is possible for one person to
set up this awning, two people will make set up much
easier
1. Prior to setting up the Square Side 270° awning
ensure that the vehicle is stationary with the
handbrake applied and that the desired awning
setup area is suitable and safe.
2. Undo the zipper on the awning bag. Fold the
top section of the awning bag over the top of the
mounting plate. Allow the bottom section of the
awning bag to hang. See Figure 11.
3. With the weight of the awning supported, start
undoing all of the Velcro straps starting from the
rear of the awning, moving to the front. Unfold
the awning canvas and allow it to hang. Note that
two extra poles will be secured under the Velcro
straps. See Figure 12.
FIGURE 10
3. SETUP INSTRUCTIONS
FIGURE 11FIGURE 12
8V1.1
4. Whilst holding the awning poles and the canvas
at the front, begin to walk in an arc towards the
rear of the vehicle allowing the awning to rotate
around the rear pivot. Once the rst triangular
section of canvas is tight and the rst pole won’t
rotate anymore you can un-clip and lower the
vertical twist lock pole. See Figure 12 & 13.
FIGURE 13FIGURE 14FIGURE 15FIGURE 16

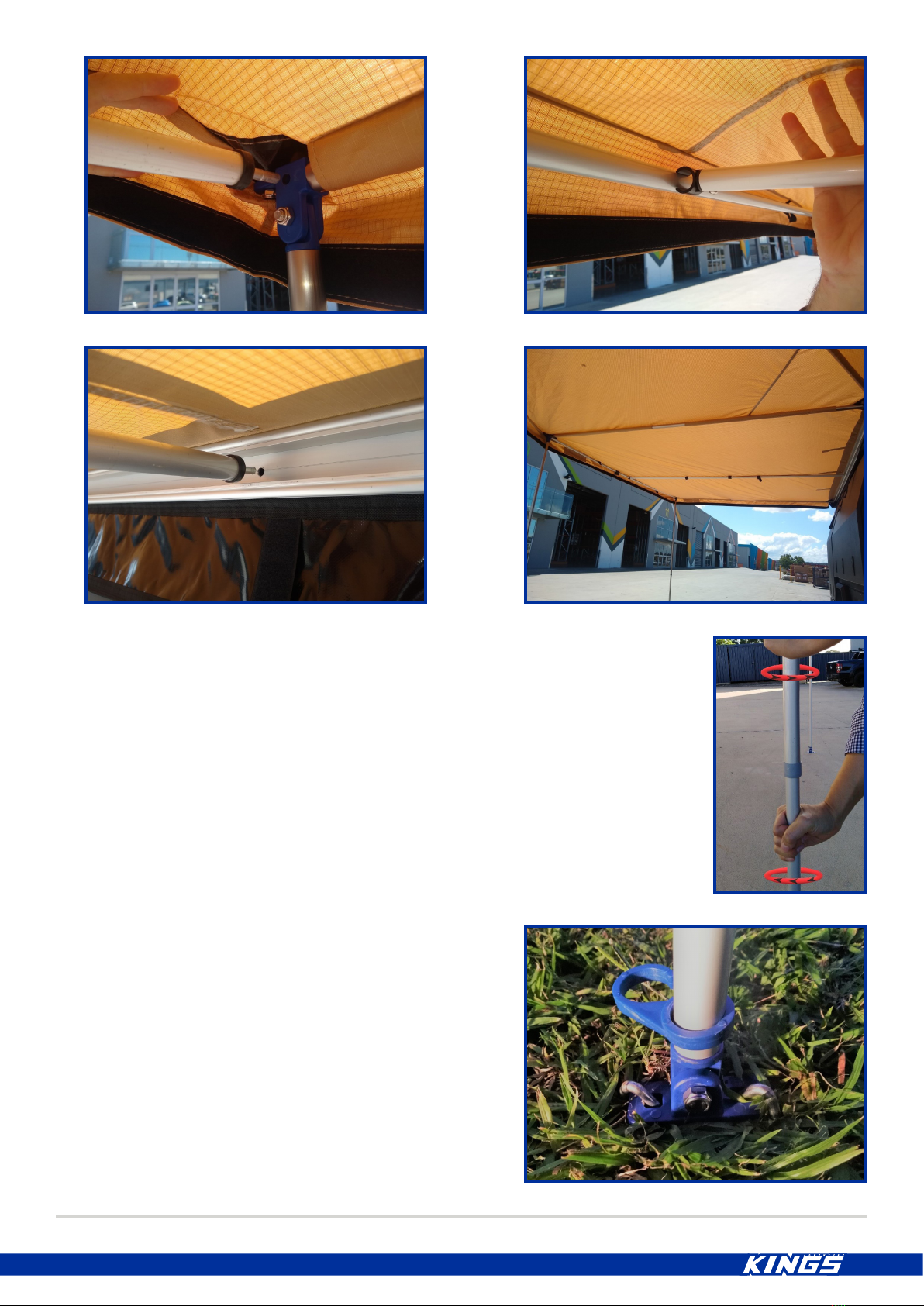

5. Continue to walk in an arc and lower each
vertical twist lock pole as each triangular canvas
section becomes tight. See Figure 14.
6. Once the awning is in its open position, hook
the tension strap onto a suitable spot on the
vehicle and pull tight. This will hold tension in the
awning canvas. See Figure 15.
7. Once the tension strap is tted and the awning
is tight, go back around to the front of the awning.
Find the square side horizontal pole and rotate
it out, opposite to the other horizontal poles to
complete the nal square side shape. After this
has been opened t in the two spreader poles to
keep the square corner tight. See Figure 16, 17,
18, 19 and 20.
9V1.1
FIGURE 17
FIGURE 18
8. Raise or lower the twist lock vertical poles to
adjust the height of the awning. See Figure 21.
FIGURE 19
FIGURE 20
FIGURE 21
FIGURE 22
9. Fully secure the awning by using two pegs
in the bottom of each vertical pole and pegging
out the supplied guy ropes. All vertical twist lock
poles, pegs and guy ropes must be used when
the awning is setup. See Figure 22.
NOTE: The pegs supplied are designed to be used
in hard soil. A different peg design and size may be
required to secure the awning depending on the type
of terrain.
10 V1.1
4. PACK UP INSTRUCTIONS
5. CARE INSTRUCTIONS
Prior to packing away the Square Side 270° awning ensure that the vehicle is stationary with the
handbrake applied and that the awning setup area has been cleared of any obstacles or trip hazards.
Packing up of the Square Side 270° is the reverse order of the setup instructions.
• While it is possible for one person to pack up this awning, two people will make set up much
easier.
• If strong winds or extreme weather are about to hit your camp, pack up the awning immediately
using two people.
• Avoid packing away the awning when wet. In the case that the awning has been packed up wet
then it is ideal to open it up and to allow the canvas to dry as soon as possible.
• Clean only with cold water and soft brush – do not use soap or detergent.
• Do not expose any part of the awning to petrol, oil or solvents.
• Avoid creating creases or a seam when packing up the awning.
• Always allow the awning to dry before packing away.
• Regularly check pivot fasteners.
11V1.1
6. WARRANTY
WARRANTY PERIOD:
Full 12 month warranty from date of purchase against all manufacturing defects.
WHAT DOES THE WARRANTY COVER?
Under normal usage conditions, this warranty covers:
a. Any defect in design or manufacture which results in the product failing to perform substantially as described
in authorised advertising or literature.
b. We will either repair or replace the product at our discretion providing that the fault is found to have been
caused by a design or manufacturing defect and not misuse or tampering.
Our goods come with guarantees that cannot be excludedunder the Australian ConsumerLaw. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a majorfailure. The benetsprovided to you as the
consumer by this warranty are in addition to other rights and remedies available to you under the law.
THE WARRANTY DOES NOT COVER:
a. Any damage resulting from improper use
b.
c. The cost of removing and reinstalling the product
d. Travel and /or other expenses due to customer’s remote location
e. Transport charges and damage in transit. It is your responsibility to deliver and pick up your product,
including any costs associated with the postage of your repair or replacement product. If you do freight your
product we recommend that you insure against loss or damage.
f. Any loss directly or indirectly associated with the product failing to operate.
g. Damage caused by mould, insects, animals, misuse, incorrect operation, adverse weather, accidents
and fair wear and tear
TO MAKE A CLAIM, PLEASE ENSURE YOU RETAIN YOUR SALES RECEIPT OF PURCHASE
1800 88 39 64
12 MONTH LIMITED
WARRANTY
OUTDOOR SUPACENTRE PTY LTD
2 Stanley St Silverwater NSW, 2128
PHONE: 1800 88 39 64
www.4wdsupacentre.com.au
Table of contents
Other Kings Adventure Tent manuals
