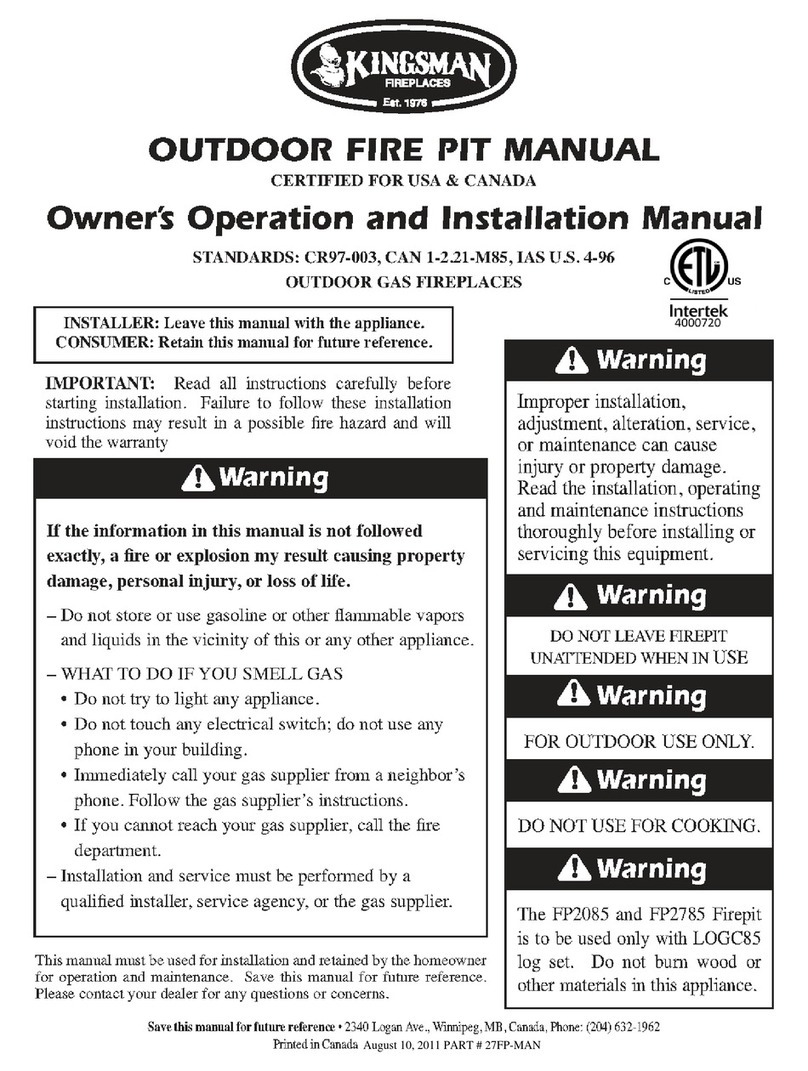

OUTDOOR FIRE PIT MANUAL
MODELS FP2085 ROUND FIRE PIT, FP2785 RECTANGULAR FIRE PIT
CERTIFIED FOR USA & CANADA
Owner’s Operation and Installation Manual
STANDARDS: CR97-003, ANSI Z21.97-2010
OUTDOOR DECORATIVE GAS APPLIANCES
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
!DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away
from the appliance and
immediately call your gas
supplier or fire department.
!WARNING
Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected
for use shall not be stored in the
vicinity of this or any other
appliance.
!WARNING
For Outdoor Use Only.
!WARNING
Improper installation,
adjustment, alteration, service
or maintenance can cause injury
or property damage. Read the
installation, operating and
maintenance instructions
thoroughly before installing or
servicing this equipment.
!DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can
kill you.
Never use this appliance in an
enclosed space such as a camper,
tent, car or home.
Kin
g
sman Fire
p
laces 2340 Lo
g
an Ave., Winni
p
e
g
, Mb Canada Ph: 204-632-1962 Printed in Canada P/N 27FP-MAN June 28, 2012
Table of Contents
Table Of Contents........................................................................................................... 2
Introduction..................................................................................................................... 3
Assembly And Installation.............................................................................................. 4
Gas Specifications.......................................................................................................... 5
Installation In Combustible Enclosure............................................................................. 6
Installing Rectangle Fire Pit Into A Wood Enclosure..................................................... 7
Installing Wall Clearance Shield...................................................................................... 8
FP2085 Fire Pit Assembly............................................................................................... 9
FP2785 Burner Assembly............................................................................................... 10
Log Placement Instructions............................................................................................. 11
Accessories For Your Fire Pit.......................................................................................... 12
30FPB-KWK Decorative Key Way Valve Kit................................................................... 13
Kingsman Outdoor Fire Pit Media Section...................................................................... 14-15
Operating Instructions..................................................................................................... 16
Maintenance Instructions................................................................................................ 16
High Elevation Installation............................................................................................... 16
Safety Information And Lighting Instructions................................................................... 17
FP2085/FP2785 Parts List.............................................................................................. 18
Kingsman Fireplaces Gas Fire Pit – Limited Warranty.................................................... 19
2
INTRODUCTION
Models FP2085/FP2785 are Decorative Gas Log Set for
outdoor use only. This appliance MUST NOT be used
for cooking.
WARNING: This appliance shall be used ONLY
outdoors in a well-ventilated space and shall NOT be
used inside a building, garage, or any other enclosed
area.
WARNING: This log set must NOT be installed in an
unvented appliance.
WARNING: THIS UNIT IS NOT FOR USE WITH
SOLID FUEL.
The installation must conform with Local codes ore in
the absence of local codes, with the National Fuel Gas
Code ANSI Z223.1 or CAN/CGA-B149.1, National Gas
Installation Code or CAN/CGA-B149.2, Propane
installation Code.
The appliance and its individual shut off valve must be
disconnected from the gas supply piping system during
any pressure testing of the system at test pressures in
excess of 1/2 psig (3.5kPa).
This appliance must be isolated from the gas supply
piping system by closing its individual manual shut off
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than 1/2
psig (3.5kPa).
The following clearances to combustible construction
must be maintained: Bottom - 0 inches Sides (all
around)-24 inches (610 mm), and Top-7 feet (2.12 m).
Always keep the appliance area clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
Do not locate appliance where it can get excessively
wet.
Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the unit and to replace any part of the control
system and any gas control which has been underwater.
When an appliance is for connection to a fixed piping
system, the installation must conform with local codes,
or in the absence of local codes with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, or International Fuel
Gas Code.
For appliances for fixed fuel piping system and equipped
with an appliance gas pressure regulator,
the appliance and its individual shutoff valve must be
disconnected from the gas supply piping
system during any pressure testing of that system at test
pressures in excess of 1/2 psi (3.5 kPa).
Children and adults should be alerted to the
hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
Young children should be carefully supervised
when they are in the area of the appliance.
Clothing or other flammable materials should not
be hung from the appliance, or placed on or near
the appliance.
Any guard or other protective device removed for
servicing the appliance must be replaced prior to
operating the appliance.
Installation and repair should be done by a
qualified service person. The appliance should be
inspected before use and at least annually by a
qualified service person. More frequent cleaning
may be required as necessary. It is imperative the
control compartment, burners and circulating air
passageways of the appliance be kept clean.
Inspect the fuel supply connection (including the
hose for LP models) before each use of the
appliance.
If it is evident there is excessive abrasion or wear,
or the hose is cut, it must be replaced prior to the
appliance being put into operation.
Cylinders must be stored outdoors in a well
ventilated area out of the reach of children.
Disconnected cylinders must have threaded valve
plugs tightly installed and must not be stored in a
building, garage or any other enclosed area.
Storage of this appliance indoors is permissible
only if it has been disconnected from its fuel supply
(natural gas line or LP gas cylinder).
LP GAS WARNINGS
The LP gas supply cylinder used with LP models
must be constructed and marked in accordance
with the specifications for LP-gas cylinders of the
U.S. Department of Transportation (DOT).
The pressure regulator and hose assembly supplied
with LP models must be used. Replacement
pressure regulators and hose assemblies must be
those specified in this manual.
The LP gas cylinder supply system must be
arranged for vapor withdraws.
The LP -gas cylinder used must include a collar to
protect the cylinder valve.
When an LP model is not in use, the LP-gas must
be turned off at the supply cylinder.
Fuel Supply line must not come into contact with
surfaces having temperatures in excess of 140°F. LP
gas cylinder must be kept a minimum of 4.5 feet from
the appliance.
You must use an approved LP cylinder retention
device (See Gas Specifications for an example).
For the state of Massachusetts a T-handle gas shut-off
valve must be used on a gas appliance. This T-handle gas
shut-off valve must be listed and approved by the state of
Massachusetts. This is in reference to the state of
Massachusetts state code CMR238.
3
ASSEMBLY
AND INSTALLATION
The log set (LOGC85) and the burner assembly
are
shipped
separately.
A. Remove the gas log set and burner assembly and
check for damage. DO NOT install damaged
components. The logs are fragile use care when
handling.
B. Place the burner assembly on a flat, stable surface in
an outdoor location such as a patio or a deck. This
location must be adjacent to the gas supply line
(natural gas) or LP-gas supply cylinder. NOTE:
Minimum clearances to combustible construction
must be maintained.
Remember, you must have easy access to the
gas valve control knob AFTER the appliance is
installed and connected to the gas supply.
THE ON/OFF GAS VALVE IS USED TO
TURN
THE BURNER ON AND
OF
F
.
C. NATURAL GAS MODELS: Connect the incoming
gas supply line to the on/off gas valve of the
appliance (Figure 1). Make certain ALL gas
connections are tight, turn the on/off valve at the unit
slowly to the on position and use soap water to test
for leaks. DO NOT USE AN OPEN
FLAME
.
LP-GAS
MODELS:
1. Make sure tank valve is in its full off position. (Turn
clockwise to stop).
2. Check tank valve features to ensure it has proper
external mating threads. (Tank Valve Marked: USE
WITH TYPE 1 )
3. Inspect hose shipped with the unit for damage. Never
attempt to use damaged or plugged equipment. See
your local LP Gas Dealer for
repairs.
4. After inspecting the LP hose shipped with the unit,
connect the end with the female fitting on the hose to
the male fitting on the on/off gas valve at the end of
the flex tube and make sure it is tight.
NOTE: Fuel Supply line must not come into contact
with surfaces having temperatures in excess of
140°F. LP gas cylinder must be kept a minimum
of 4.5 feet from the appliance. You must use an
approved LP cylinder retention device (See Gas
Specifications for an example).
5. When connecting regulator assembly to the tank
valve, hand tighten nut clockwise to a positive stop.
DO NOT use a wrench to tighten. Use of a wrench
may damage quick closing coupling nut and result in
a hazardous condition.
6. Locate the hose out of pathways where people may
trip over it or in areas where the hose may be subject
to accidental damage.
7. Open tank valve fully (counter-clockwise). Turn the
on/off valve at the unit slowly to the on position and
use a soapy water solution to check all connections
for leaks before attempting to light the appliance. If a
leak is found, turn tank valve off and do not use the
appliance until repairs can be made by a local LP Gas
Dealer. DO NOT attempt to make repairs yourself.
8. Never
attempt
to use this appliance or
any
components that have been damaged or exposed
to
an accidental
fir
e.
ENCLOSURES FOR SELF-CONTAINED LP-GAS
SUPPLY SYSTEMS
If you build an enclosure for an LP gas cylinder you must
follow these specifications. You must also follow local
codes.
An enclosure for an LP-gas cylinder shall be ventilated by
openings at both the upper and lower levels of the
enclosure. This shall be accompanied by one of the
following:
a. One side of the enclosure shall be completely open; or
b. For an enclosure having four sides, a top, and a
bottom:
1. At least two ventilation openings shall be provided in
the sidewalls of the enclosure, located within 5 in (217
mm) of the top of the enclosure, equally sized, spaced at
a minimum of 90 degrees (1.57 rad), and unobstructed.
The opening(s) shall have a total free area of not less
than 1 in2Clb (14.2 cm2Ckg) of stored fuel capacity.
2. Ventilation opening(s) shall be provided at floor level of
the enclosure and shall have a total free area of not less
than 1/2 in2Clb (7.1 cm2Ckg) of stored fuel capacity. If
ventilation openings at floor level are in a side wall, there
shall be at least two openings. The bottom of the
openings shall be 1 in (25.4 mm) or less from the floor
level and the upper edge no more than 5 in (127 mm)
above the floor level. The openings shall be equally
sized, spaced at a minimum of 90 degrees (1.57 rad),
and unobstructed.
3. Every opening shall have minimum dimensions so as
to permit the entrance of a 1/8 in (3.2 mm) diameter rod.
4. Ventilation openings in sidewalls shall not
communicate directly with other enclosures of the
appliance.
The cylinder valve shall be readily accessible for hand
operation. A door on the enclosure to gain access to the
cylinder valves is acceptable, provided it is non-locking
and can be opened without the use of tools. Designs
using a cover to gain access to the cylinder and cylinder
valve shall be provided with handles or equivalent at a
minimum of 180 degrees apart to facilitate lifting of the
cover.
4
The enclosure for the LP-gas cylinder shall isolate the
cylinder from the burner compartment to provide:
a. Shielding from radiation;
b. A flame barrier; and
c. Protection from foreign material.
There shall be a minimum clearance of 2 in (50.8 mm)
between the floor of the non-disposable LP-gas cylinder
enclosure and the ground.
The design of the appliance shall be such that:
a. A non-disposable LP-gas cylinder can be connected,
disconnected, and the connections inspected and tested
outside the cylinder enclosure; and
b. Those connections which could be disturbed when
installing the cylinder in the enclosure can be leak tested
inside the enclosure.
!Warning
DO
NOT LEAVE
FIREPIT
UNATTENDED WHEN
IN
USE
Be certain to mount or set the LP-gas cylinder on a flat
stable surface and retain it to prevent it from tipping.
Purge the gas supply line of any trapped air prior to the
first firing of the unit.
WARNING: During the initial purging and subsequent
lightings, NEVER allow gas valve to remain in
"OPEN" position without first placing a burning match
on the top of the burner.
Place the logs on the burner assembly. See log
placement instructions.
Test fire the unit after referring to the SAFETY
INFORMATION and LIGHTING INSTRUCTIONS.
If
LP-Gas outdoor firepits
are usedcontinuously after
a
couple
of
hours,
you
could
seethe possibility of
the
flame decreasing
in size. If this
happens,
turn
off the
control valve
andthe tank
valve
andwaita
couple
of
hours before lighting again
or switch
propane
tanks. The
propane
tankis
freezing
up due
to the
volume
of gas
being taken
outof thetank.
GAS
SPECIFICA
TIONS
FP2085N FP2085LP
FP2785N FP2785LP
Fuel Natural Gas Liquid Propane
Maximum Supply Pressure 10 IN. W.C./2.47 KPa 13 IN. W.C./3.24 KPa
Figure 1
SS FLEX
4.5’ MIN
The above photo shows an
example of an approved LP
cylinder retention device.
!WARNING:
DO NOT LEAVE
FIRE PIT UNATTENDED
WHEN IN USE
5
CLEARANCES FOR ROUND FIREPIT (FP2085)
1. The round firepit (FP2085) cannot be built into a
combustible cabinet of any type. Only non-
combustible materials may be placed around firepit.
(eg. bricks, concrete, river rock, etc.)
2. Clearance to combustible side wall is 24” minimum.
Non-combustible walls 14” to side wall.
3. Minimum clearance to any ceiling with no overhang
is to be 7 feet from top of firepit.
4. Clearance to a combustible floor is 0”.
CLEARANCES FOR RECTANGLE FIREPIT (FP2785)
1. The rectangle firepit (FP2785) may be built into a
combustible enclosure. You must maintain minimum
enclosure dimensions of 321/2” x 391/2” I.D. The top
of enclosure must be of a non-combustible material
such as concrete board or wonder board.
2. Clearance to combustible side wall is 24” minimum.
Non-combustible walls 14” to side wall.
3. Minimum clearance to any ceiling with no overhang
is to be 7 feet from top of firepit.
4. Clearance to a combustible floor is 0”.
INSTALLATION IN COMBUSTIBLE ENCLOSURE
6
1. Minimum size of wood enclosure must be no less
than 32.5” I.D. x 39.5” I.D.
2. Non-combustible material (eg. Wonder Board) for the
top of enclosure must be used, along with using metal
gussets.
3. Non-combustible materials such as tile or brick may
be used to finish on top of Wonder Board. Do not use
any combustible materials to finish top, eg. wood or
plastic products.
4. You must have an opening in the enclosure to have
access to the on/off valve.
INSTALLING RECTANGLE FIREPIT INTO A WOOD ENCLOSURE
7
1. Using a non-combustible material (eg. Wonder Board)
cut two shields, 1 Large 44” x 30 min. and 1 Small 37”
x 30” min.
2. Mount six 1” non-combustible spacers to wall, this
will maintain a 1” air space behind shields Fig:1Ref:F.
Non-combustible spacer (eg. Metal Bracket, Wonder
Board) should be no wider than 1” and 30” long.
3. Screw non-combustible shield to spacer. Shield must
be placed 1” below top of firepit Fig:2-Ref:D. Inside
corners of shields should not touch combustible wall.
Shield must extend 3” past end of firepit Fig:1-Ref:E.
4. Note: Firepit cabinet or other structures must NOT
obstruct wall shield air space on ends, top or bottom.
If a cabinet is built around firepit, the end face of
cabinet must not extend past bottom face of clearance
shield by more than 1/2” Fig:2-Ref::D.
INSTALLING WALL CLEARANCE SHIELD
SINGLE CLEARANCE SHIELD
NON-COMBUSTIBLE CORNER CLEARANCE SHIELD
1. Side of unit must be more than 24” from a
combustible wall for a single shield to be used, and
can have a distance of no less than 14” to a wall shield.
2. All specifications as in corner installation must be
used, including shield must extend a minimum of 3”
past sides of firepit Fig:1-Ref:E.
8
Item No.
Qty
.PartNo.
Description
711000-255 Orifice
81125 x 375 Flare
9127FP-104 Orifice Retainer
10 28-32 x 1.00 Screw
11 210-32 x .500 Screw
12 210-32 Locknut
13 2
8-18
x
.312 TC
Screw
14 2
8-18
x
.500 DT
Screw
15 2
8-32 Locator
Pin
FP2085
FIREPIT
ASSEMBLY
Item No.
Qty
.Part No.
Description
1127FP-106 Burner
2120FP-102 Burner Pan
3120FP-101
Frame
4120FP-103 Heat Shield
5127FP-115 Gasket
6127FP-200 Mixing Tube Asm
127FP-201
14000-208
1Air Shutter
SS FLEX (27FP-902FF)
#26
#40
9
Item No.
Qty
.PartNo.
Description
61125 x 375 Flare
7127FP-104
Orifice Retainer
Brkt
8210-32 x .500 Screw
928-32 Locator Pin
10 28-32 x 1.00 Screw
11 210-32 Locknut
12 2
8-18
x
.312 TC
Screw
13
2
8-18
x
.500 TC
Screw
FP2785
BURNER
ASSEMBLY
Item No.
Qty
.Part No.
Description
1127FP-106 Burner
2127FP-105 Burner Pan
3127FP-115 Gasket
4127FP-200 Mixing Tube Asm
127FP-201
14000-208
1Air Shutter
511000-255 Orifice
SS FLEX (27FP-902FF)
#26
#40
10
After setting up your model and hooking up the gas connection, make sure that logs are not broken. Identify
the logs using the pictures below and place logs as indicated, lining up with mounting pegs in logs.
LOG PLACEMENT INSTRUCTIONS
STEP 1 STEP 2
STEP 3
STEP 5
STEP 4
This picture depicts the typical flame pattern of this
burner system.
11
Accessories For Your Fire Pit
Fire Pit Covers:
27FP-113A For FP2785 Rectangular Fire Pit
(SUPPLIED WITH UNIT)
FP20COV For FP2085 Round Fire Pit
Non-Combustible Enclosures For Firepits
NOTE: Any non-combustible enclosure must have a minimum of [5] 1-1/2” holes for drainage.
Fire Pit Bowl for FP2085 Round Fire Pit:
30FPB-KWK Decorative Key Way Valve Kit
This Valve Kit can be used when installing your Fire Pit In a non-Combustible enclosure.
KINGSMAN OUTDOOR FIRE BOWLS FOR THE 2085 FIRE PIT
Fire Bowl Includes:
Key Way Valve and Connectors
1/4 Lava Rock (10 Lbs)
Leg Extension & Filler Strip Ring
SS Flex Connector
Fire Pit not included
FPB30SG Fire Bowl - Smooth Grey
FPB30TB Fire Bowl -Textured Black
FPB30COVB Cover for Fire Bowl - Charcoal
MUST BE INSTALLED BY A
QUALIFIED SERVICE
TECHNICIAN.
12
30FPB-KWK Decorative Key Way Valve Kit
This Valve Kit can be used when installing your Fire Pit in a Non-Combustible Enclosure.
!WARNING
THE INSTALLATION OF THIS KIT MUST ONLY BE UNDERTAKEN BY A QUALIFIED AND CERTIFIED GAS
APPLIANCE INSTALLER.
PARTS LIST:
1. 90° Ball Valve c/w Key Way Assembly (27FP-
CPBVS)
2. 1/2” MPT x 1/8” FPT Bushing (30FPB-
P110DA)
3. Tee 1/8” NPT (30FPB-P107A)
4. Hex Plug 1/8” MPT (30FPB-P118A)
5. Brass Connector 3/8” Tube OD x 1/8” MPT
(27FP-P904FF)
6. Valve Mount Bracket (20FP-117)
7. Key Way Installation Tool (20FP-116)
8. SS Flex Connector (27FP-902FF)
9. 3/8” Tube OD Union Coupling (30FPB-P426)
PROCEDURE:
1. Determine a suitable location for Valve if not supplied.
NOTE: Mounting surface of Valve should be
approximately 1” to 1-1/2” thick if you wish to use
supplied Valve Mount Bracket.
2. Drill a 1-1/8” hole (preferably with a core style masonry
bit) at this location.
3. Remove Key Way and Valve Mount Bracket from
Valve Body.
4. Remove existing valve from Fire Pit assembly.
5. Connect Key Way Valve Body to Fire Pit Connector.
6. Place Key Way into 1-1/8” hole.
7. Place Valve Mount Bracket onto Valve.
8. Manually start threads of Key Way onto Valve body.
9. Using supplied tool, tighten Key Way onto Valve.
10. Proceed with installation of Fire Pit and Fuel Supply.
To Fire Pit
Fuel Supply
(LP Hose Shown)
1 (Key) 1 (Key Way)
1 (Valve Body)
2
3
4
5
6
7
To Fire Pit
Remove Existing Valve on Fire Pit
8
9
!WARNING
Always check for gas leaks with a soap and water
solution. DO NOT USE OPEN FLAME FOR LEAK
TESTING.
USE PIPE THREAD SEALANT
Kingsman Outdoor Fire Pit Media Section
REQUIRED AMOUNT OF MEDIA
ACCESSORY ITEM FP2785 Rectangular
Fire Pit FP2085 Round Fire
Pit Only FP2085 Round Fire
Pit With Fire Bowl
ROCKS
*MLR1410 - 1/4" Lava
Rock 10 LBS 10 LBS
(1 BAG) 10 LBS
(1 BAG) 20 LBS
*(2 BAGS)
*Fire Bowl Includes: ¼” Lava Rock – 10LBS
-MQ DEALERS ONLY-
MQSTONE -
Decorative Stones 1 BAG 1 BAG 2 BAGS
NOTE: The MQSTONE requires a Glass or Lava Rock Base.
GLASS
MQG5W -1/2” White
Glass 5LBS 20LBS
(4 BAGS) 20LBS
(4 BAGS) 30-35LBS
(6-7 BAGS)
MQG5C - 1/2”Bronze
Glass 5LBS 20LBS
(4 BAGS) 20LBS
(4 BAGS) 30-35LBS
(6-7 BAGS)
MQG5A - 1/2”Cobalt
Blue Glass 5LBS 20LBS
(4 BAGS) 20LBS
(4 BAGS) 30-35LBS
(6-7 BAGS)
MQG5B -1/2” Black
Glass 5LBS 20LBS
(4 BAGS) 20LBS
(4 BAGS) 30-35LBS
(6-7 BAGS)
MQG10C - 1/4"
Reflective Bronze
Glass 10 LBS
20LBS
(2 BAGS) 20LBS
(2 BAGS) 30-35LBS
(3-4 BAGS)
MQG10B - 1/4" Black
Glass 10 LBS 20LBS
(2 BAGS) 20LBS
(2 BAGS) 30-35LBS
(3-4 BAGS)
Media Examples Shown Below.
FP2085 Without Media
¼” Lava Rock (1 Bag – 10LBS)
MEDIA REQUIREMENTS OPTIONS: (When not using LOGC85 Log Set)
20 LBS of Glass Required for Fire Pits, if using the Fire Bowl add an additional 10 - 15LBS
One bag of MQSTONE may be used for the Fire Pit, if using the Fire Bowl an additional bag may be used.
One bag of 1/4" Lava Rock is required for the Fire Pit and an additional bag for the Fire Bowl may be used to fill the
entire Bowl with the same material.
14
¼” Lava Rock & ¾” Lava Rock (Supplied with Fire Pit).
(1/4” Lava Rock is used as Base.)
¼” Reflective Bronze Glass - (20LBS)
MQSTONE with ¼” Lava Rock Base – (10LBS)
MQSTONE with ¼” Bronze Glass Base – (20LBS)
NOTE: MQSTONE Requires a Glass or Lava Rock Base.
15
1. The appliance should be inspected before initial use
and inspected and cleaned at least annually by a
qualified field service person.
2. Tampering is DANGEROUS and voids all
warranties. Any component that is found to be faulty,
must be replaced with an approved component.
3.
To obtain proper operation, it is imperative that the
burner flame characteristics are steady, not lifting or
floating. Check the burner flame patterns with
Log Placement Instructions Section.
OPERATING INSTRUCTIONS
MAINTENANCE INSTRUCTIONS
4. Periodically remove the logs and examine the burner.
If dirty, clean with a soft brush. Also examine the
area around the burner air shutter. Any dirt or lint in
this area should be removed. This will ensure long
life and trouble free operation. Re-install the logs as
shown in the log placement instructions. When the
appliance is put back in service, check the burner
flame patterns with Log Placement Instructions Section.
5. Periodically check the hose connecting the LP-gas
cylinder to ensure it is not damaged in any way.
U.L. Listed gas fireplaces are tested and approved for
elevations from 0 to 4,500 feet in Canada and U.S.A.
When installing this fireplace at an elevation above 4,500
feet (in Canada), check with local authorities.
HIGH ELEVATION INSTALLATION
Consult your local gas utility for assistance in
determining the proper orifice for your location.
Upon completing the gas line connection, a small amount
of air will be in the lines. When first lighting the burner,
it will take a few minutes for the lines to purge
themselves of this air. Once the purging is complete, the
burner will light and operate as indicated in the
instruction manual. Subsequent lighting of the appliance
will not require such purging.
WARNING: Read and follow the Safety and Lighting
Instructions page in this manual and on labels on the
appliance. IF YOU DO NOT FOLLOW THESE
INSTRUCTIONS PRECISELY, A FIRE OR
EXPLOSION MAY RESULT AND YOU MAY BE
SERIOUSLY INJURED!
16
SAFETY INFORMATION AND LIGHTING INSTRUCTIONS
1. Turn the on/off valve to the off position at the unit
for natural gas unit. For LP unit, turn the on/off
valve to the off position at the unit and then turn the
valve on the LP tank to the off position clockwise.
2. Replace the top cover.
TO TURN OFF GAS APPLIANCE
5. If the burner does not light before the match goes
out, immediately turn the gas to off.
6. Wait at least five (5) minutes to clear out any gas.
If you have unsuccessfully tried to light the burner,
wait longer. Then smell for gas, including near the
floor. If you smell gas, STOP! Follow “B” in the
safety information above. If you don’t smell gas,
repeat step 4.
1. STOP! Read the safety information above.
2. Remove the top cover.
3. Find the manual gas control valve.
4. Place a burning match on top of burner in the
middle where ports are present. DO NOT HOLD
THE MATCH IN HAND. For Natural Gas unit
turn on the on/off valve slowly at the unit. For LP
unit turn the valve on the LP tank counter-
clockwise all the way and then turn on the on/off
valve slowly at the unit.
• If you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to turn the gas control knob or
valve. Never use tools. If the valve will not turn by
hand, don’t try to repair it, call a qualified service
technician. Force or attempted repair may result in
a fire or explosion.
D. Do not use this appliance if any part has been
underwater. Immediately call a qualified service
technician to inspect the appliance, and to replace
any part which has been underwater.
A. This appliance must be lit by hand. When lighting,
follow these instructions exactly.
B. Before LIGHTING, smell all around the appliance
area for gas. Be sure to smell next to the floor,
because some gas is heavier than air and will settle
on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbours
phone. Follow the gas suppliers instructions.
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
17
FP2085/FP2785 Parts List
KINGSMAN FIRE PITS:
Listed for Canada and USA
NUMBER DESCRIPTION
FP2085N Round 20” Diameter - 65,000 BTU - Natural Gas c/w 10LBS ¾” Lava Rock
FP2085LP Round 20” Diameter - 65,000 BTU - Liquid Propane c/w 10LBS ¾” Lava Rock
FP2785N Rectangular 27” x 20” - 65,000 BTU - Natural Gas c/w Cover & 10LBS ¾” Lava Rock
FP2785LP Rectangular 27” x 20” - 65,000 BTU - Liquid Propane c/w Cover& 10LBS ¾” Lava Rock
LOG SET
LOGC85 Log Set - Four piece Cast oak
MEDIA OPTIONS
MLR1410 Media - 1/4" Lava Rock 10 lbs
MEDIA OPTIONS – MQ DEALER ONLY
MQSTONE Decorative Stones
MQG5W Decorative Glass 1/2” White
MQG5A Decorative Ember Glass 1/2” Cobalt Blue
MQG5C Decorative Ember Glass - 1/2” Bronze
MQG5B Decorative Ember Glass - 1/2” Black
MQG10C Media - 1/4" Reflective Bronze Glass 10 lbs
MQG10B Media - 1/4" Black Glass 10 lbs
FIRE PIT ACCESSORIES OPTIONS
FP20COV Cover for Round Fire Pit
27FP-113A Cover for Rectangular Fire Pit (SUPPLIED WITH UNIT)
30FPB-KWK Decorative Key Way Valve and Connectors
MUST BE INSTALLED BY A QUALIFIED SERVICE TECHNICIAN
OUTDOOR FIRE BOWLS FOR THE 2085 FIRE PIT
Fire Bowl Includes Key Way Valve and Connectors, 1/4 Lava Rock (10 Lbs), Leg Extension, Filler Strip Ring and SS
Flex Connector. Fire Pit not included.
FPB30TB Fire Bowl - Textured Black
FPB30SG Fire Bowl - Smooth Grey
FPB30COVB Cover for Fire Bowl - Charcoal
FPB30COVG Cover for Fire Bowl - Grey
KINGSMAN FIRE PITS REPLACEMENT PARTS
27FP-900FF LP Reg & 5ft Hose (I4T60GRQC)
27FP-901FF Ball Valve with Manometer (BVTM5042-6)
27FP-902FF SS Gas Connector 16” (ACS-375-16)
27FP-P904FF Brass Connector 48-6A
27FP-P486D Connector 3/8 to ½ 48-6D
1000-255 Brass Orifice
27FP-115 Gasket
REPLACEMENT PARTS FOR MANOMETER SUB-ASSEMBLY OF 30FPB-KWK KEY WAY VALVE KIT
30FPB-P107A Tee 1/8 107-A @ 1.280
30FPB-P110DA Bushing ½-1/8 110-DA @ .72
30FPB-P118A Plug 118-A @ .22
18
Kingsman Fireplaces Gas
Fire Pit
–
Limited Warranty
Save this certificate. It
gives
you
specific
legal rights, and you may also have other rights which may vary from
state
to
state.
In the
event
yourunit
needs servicing contact
your
dealer
or
contractor
who
installed
or
service
your
unit. When
requesting
service, please
havethe
model
and
serial number from
eachunit
readily available.
If your
dealer needs assistance,
the
distributor
is
available
for
support
andwe,in turn
support
the
distributor's
efforts.
Fillin the
installation
dateand
model
and
serial numbers
of theunitin the
space provided below
and
retain
thislimited
warranty
for yourfiles.
GENERAL TERMS
This
limited warranty applies
only
while
theunit
remains
at thesiteof the
original installation
andonlyif theunit
is installed
inside
the
continental United States, Alaska, Hawaii
and
Canada.
The
warranty applies
onlyif the unitis installed and
operated
in
accordance
withthe
printed instructions
andin
compliance
with
applicable
installation,
building codes
and good
trade
practices.
During
thefirstyearafter
installation,
we will
provide
a
replacement
for any
component
partof yourunit
found
to be
defective
in
materials
or
workmanship.
Thepartto be
replaced must
be
returned
to our
distributor
in
exchange
for the
replacement
part.
In lieuof
providing
a
replacement
part,we
may,
at our
option, provide
the
distributor's component purchase price from
us
or
a
credit equal
to the
distributor’s component purchase price from
us
toward
the
purchase
of anynewunit
which
we
distribute.
If
a
credit
is
given
in lieuof a
replacement
part,the
rating plate from
the unit
being replace must
be
submitted
on
a
warranty claim
andthe unit
being replaced must
be
made available
to our
distributor
for disposition.
In
establishing
thedateof
installation
for any
purpose including determination
of the
starting
datefor the termof this limited
warranty, reasonable
proofof the
original installation
date
must
be
presented*, otherwise
the
effective
datewillbe
based
upon
thedateof
manufacture
plus
thirty
(30)days.
Any
labor, material, freight and/or handling charges associated
withany
repair
or
replacement pursuant
to thislimited
warranty
willbe your
responsibility.
In this
warranty
the word
"installation" means original
installation.
Wewillnot be
responsible
for andyou theuser willpay for:(a)
damages caused
by
accident, abuse, negligence, misuse,
riot. fire,
flood,
orActsof God(b)
damages caused
by
operating
theunit
where there
is a
corrosive atmosphere
containing
chlorine, fluorine,
or any
other damaging chemicals (other
thanin a
normal residential environment)
(c)
damages caused
by
any
unauthorized alteration
or
repair
of the unit
affecting
its
stability
or
performance
(d)
damages caused
by improper
matching
or
application
of the unitor the unit's
components
(e)
damages caused
by
failing
to
provide proper
maintenance
and
service
to the unit(f) any
expenses incurred
for
erecting disconnecting
or
dismantling
theunit(g)
parts
or
supplies
used
in
connection
with
service
or
maintenance
(h)
damage repairs, inoperation
or
inefficiency resulting from faulty installation
or
application
(i)
electricity
or fuelcostsor any
increase
in
electricity
or fuelcost
whatsoever including additional
or unusual
useof
supplemental electric
heat.
We shallnotbe
liable
for any
incidental, consequential,
or
special damages
or
expenses
in
connection
withanyuse or failure
of this
unit.
We
have
not
made
anddo not
make
any
representation
or
warranty
of
fitness
for a
particular
useor
purpose
and
there
is no
implied condition
of
fitness
for a
particular
useor
purpose.
We
make
no
express warranties except
as
stated
in
this
limited warranty.
No oneis
authorized
to
change
this
limited warranty
or to
create
for us any
other obligation
or liability in
connections
withthis
unit.
Any
implied warranties
shalllast for oneyearafterthe
original installation. Some states
and
provinces
do not
allow
the
exclusion
or
limitation
of
incidental
or
consequential damages
or do not
allow limitations
on how
longan
implied Warranty
or
condition
lastsso the
above limitations
or
exclusions
maynot
apply
to you.The
provisions
of
this
limited warranty
arein
additions
to andnota
modification
of or
subtraction from
an
statutory warranties
and
other
rights and
remedies provided
by law.
Model
No.:
Serial
No.:
Date
Installed:
*You
must retain
the
original records
thatcan
establish
the
installation
dateof yourunit.
Other manuals for FP2085
1
This manual suits for next models
1
Table of contents
Other Kingsman Outdoor Fireplace manuals
