KingSmith WPA1F Pro User manual

WalkingPad User Manual
For security purpose, please read the User Manual carefully.
Model No. : WPA1F Pro
Manufacturer: Beijing Kingsmith Technology Co., Ltd.
Address: Floor 4, Building 25, Area 18, ABP Park, Fengtai, Beijing, China.MADE IN CHINA

Content
1. Product and Accessories
2. Function schematic diagram
3. Guide for initial operation
4. Learn to use WalkingPad
5. Safety Notice
6. Maintenance and Service
7. Trademark and Legal Declaration
8. Replacement and Disposal
02
03
07
09
13
16
17
18
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Correct Disposal of this product. This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To
return your used device, please use the return and collection systems or contact the retailer where the product
was purchased. They can take this product for environmental safe recycling.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
WARNING: keep young children away from this machine at all times. Contact with the moving surface may
result in severe friction burns.

Welcome to use 01 Product and Accessories
Thank you for choosing the WalkingPad Walking device, hereinafter referred to as a walkingpad, which possess various
advantages including exquisite, foldable, innovative integral design. From now on, enjoy the quality life of walking at home.
Please carefully check whether the contents of the package are complete and intact. If there is any missing or damaged, please
contact the seller.

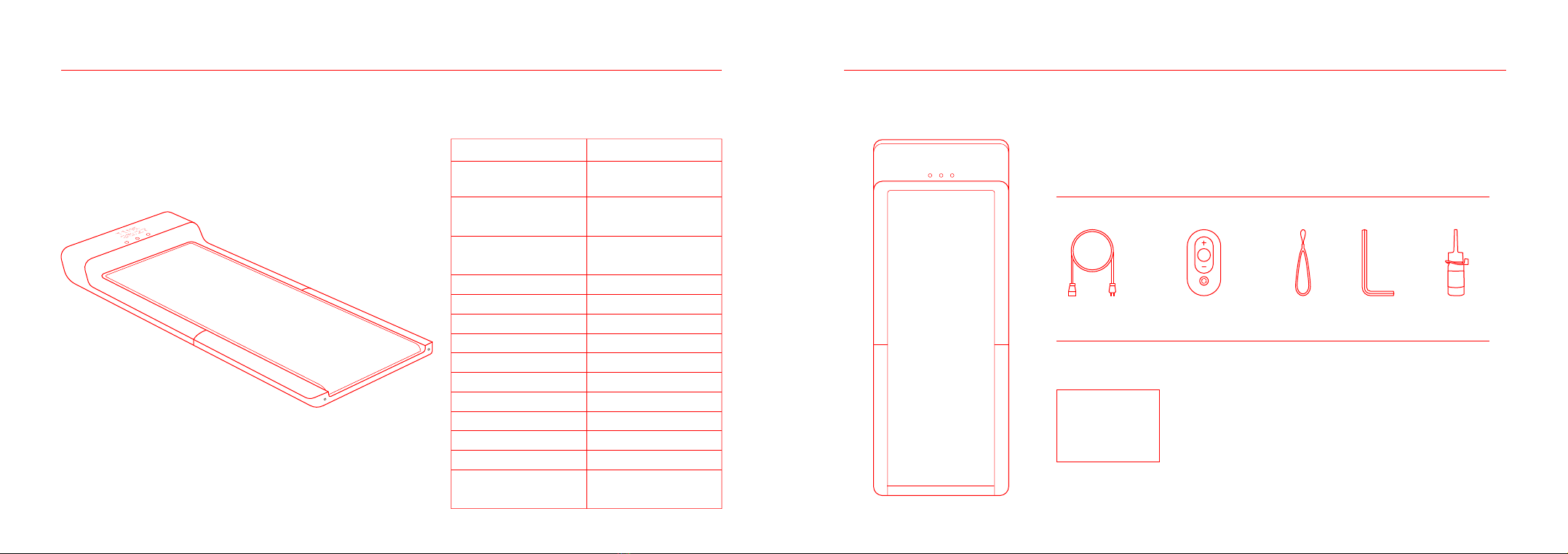

Performance &indicators
Expansion dimensions
Folding dimensions
Walking Area
Gross weight
Net weight
Maximum load
Applicable age
Applicable height
Minimum speed
Maximum speed
Power Input
Frequency
Sport mode
Main Product
Other accessoriesParts
Detailed parameters
1432 x 547 x 129 mm
56.5'' x 21.5'' x 5''
822 x 547 x 129 mm
32.5" x 21.5" x 5"
1200 x 415 mm
47" x 16.5"
30 kg / 66.0 lbs
27 kg / 59.4 Ibs
100 kg / 220 lbs
14 ~ 60 years old
Unlimited
0.5 km/hr 0.5 mi/hr
6 km/hr 3.75 mi/hr
918 W
50 Hz
Rated voltage 220 V ~
Standby mode/ Manual
mode/ Automatic mode
Remote Controller Lanyard Wrench Silicone OilPower Cable
User Manual
User Manual
01 02

1. Product main body

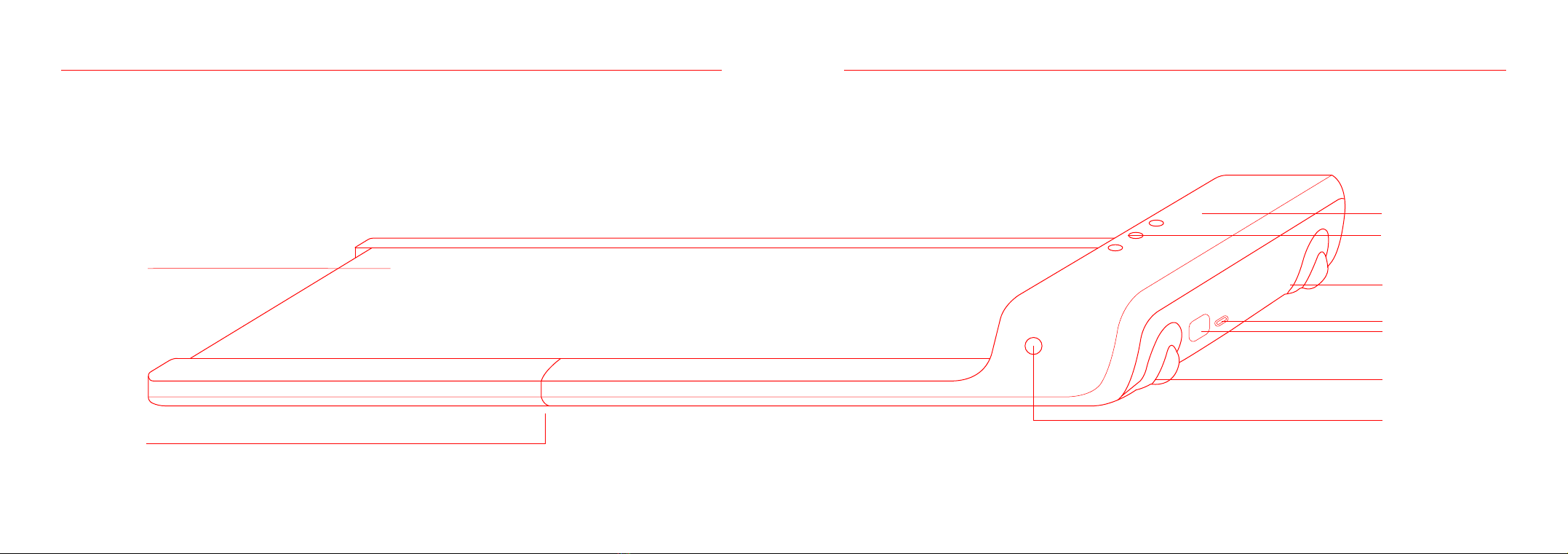

02 Function schematic diagram
Walking Belt
Display Panel
Mode Indicator Light
Roller
Power Switch
Power Plug
Roller
Fold Hinge
03 04
Mode Switch

Standby Mode Manual Mode Automatic Mode
Fault Warning Light

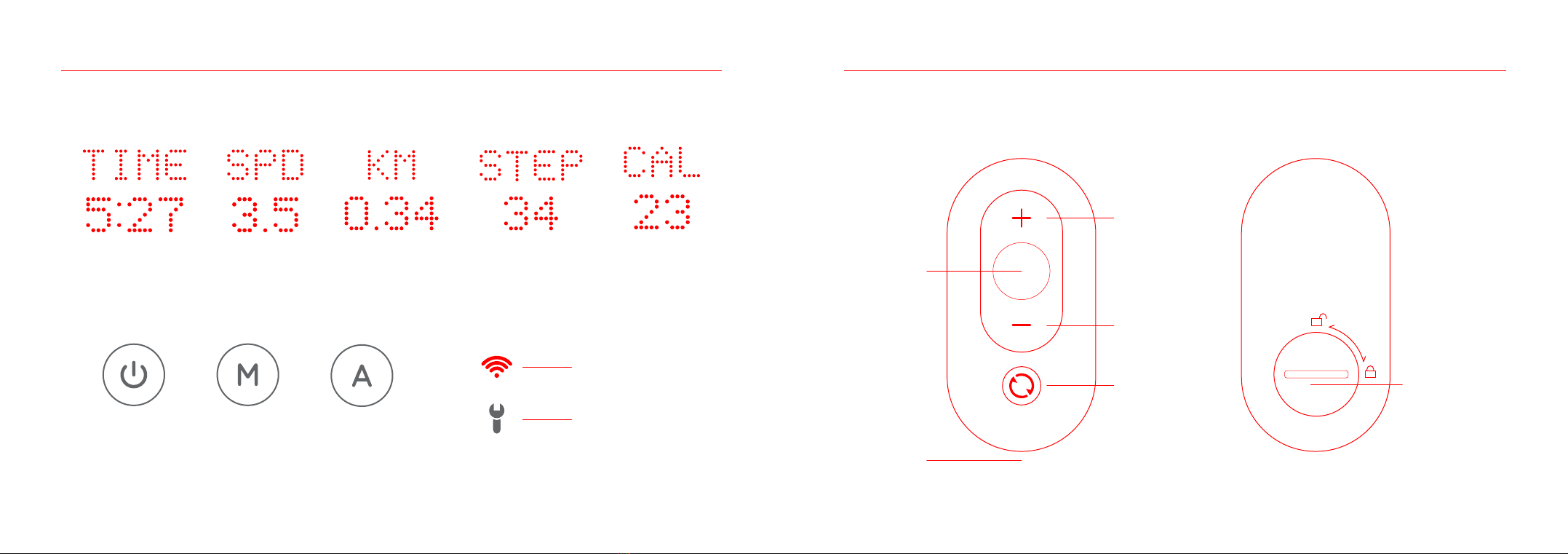

2. lntroduction of the function of the indicator panel 3. Walkingpad remote control
02 Function schematic diagram
05 06

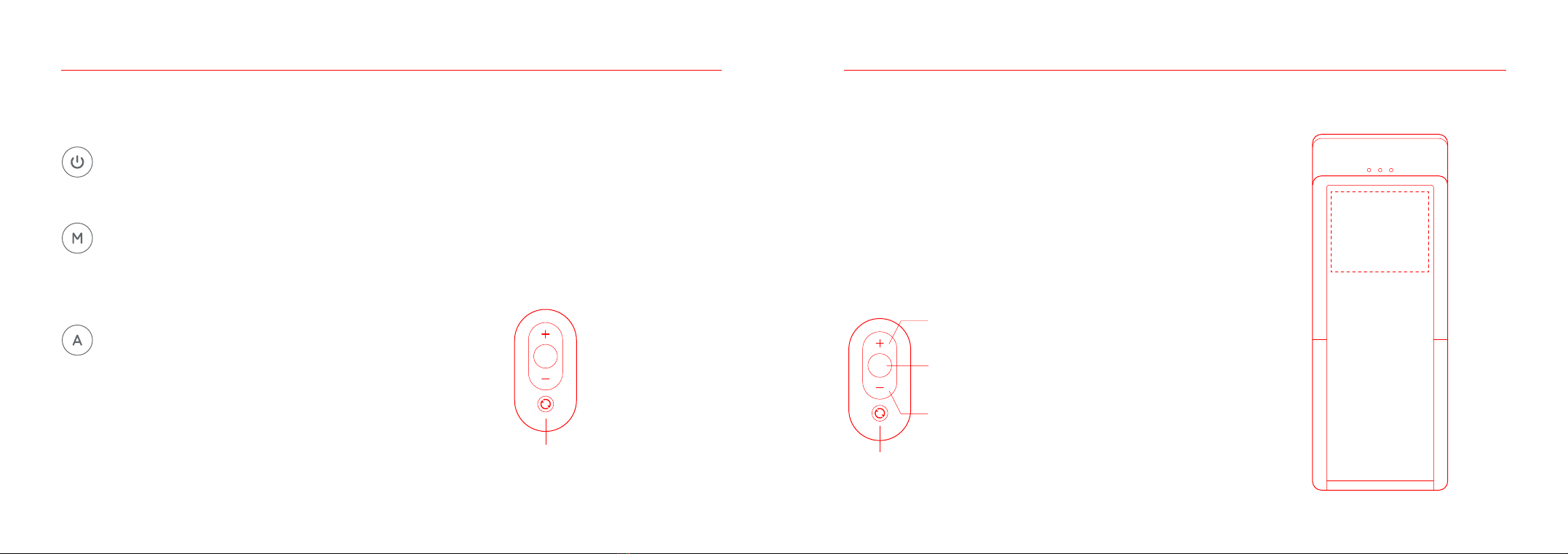

START/STOP
LANYARD
ACCELERATION
DECELERATION
BATTERY COVER
Wi-Fi Warning Light
Display Time Display Speed Display Distance Display Steps Display Calorie
MODE SWITCH

03 Guide for initial operation
07 08

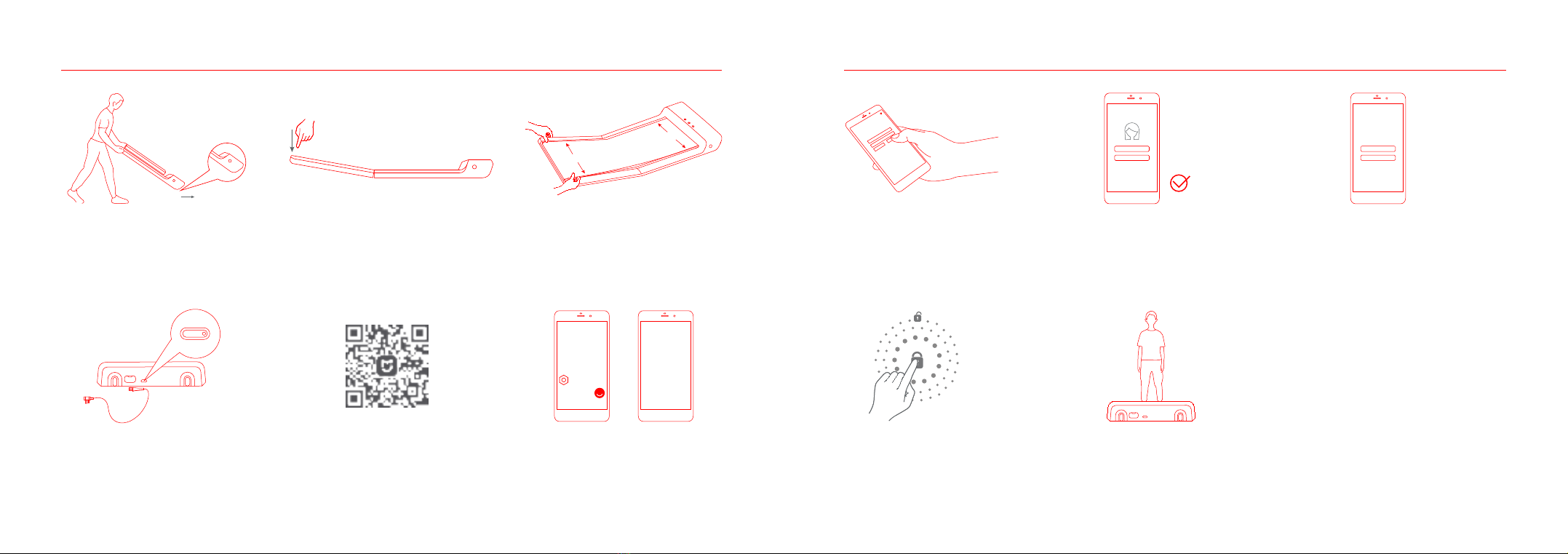

1. Choose flat ground to place the
WalkingPad. It is forbidden to
place it on thick and soft cushion.
Please note: Don't connect the
power before the WalkingPad
is fully unfolded.
4. Connect the power cord and
press the button to switch on.
2. Unfold the walkingpad slowly and
press it down to completely flat.
3. Check and adjust the walking belt
to make sure it's centered.
5. Search ''Mi Home" APP from
Apple Store or Google Play and
complete installation.
6. Set the address to China.（APP
→ 
Chinese mainland）10. After completing the novice
mode, unlock all functions.
9. Complete Novice Guide to
unlock all Functions ( maximum
speed 6 km/hr ). Otherwise the
speed limit remains at 3 km/hr.
8. Enter novice guide.7. Open the APP, add
walkingpad as prompted.11. Start to use the walkingpad.
Novice Guide
Me
Set up >
Set up
Area China >
<
①
②
③
>>>>

1. Mode instruction 2. Instructions of the standby
mode control
Standby Mode
3. Instructions of manual mode control (primary mode)
04 Learn to use WalkingPad
09 10
Standby Mode
Light of the Standby mode is on;
Motor and sensor stop responding.
Manual Mode
Light of the manual mode is on;
Control the speed through the remote
control or APP.
Automatic Mode
Light of the automatic mode is on;
Speed is automatically controlled by
intelligent algorithm.
It follows the speed of walking.
The motor and sensor stop responding
in this mode to prevent nonusers from
accidentally triggering the walkingPad.
In this mode, the speed of the walkingpad can be controlled by the remote
control. It is recommended that beginners use the manual mode first and
then use the automatic mode after being skilled in using the walkingpad.
The manual mode is controlled by remote control by default, that is, the
START/STOP button of the remote control is used to start or stop the walk-
ingPad, which can be modified in the client "Personalized".
Mode Switch
Short press: return to the previous mode.
Manual Mode
MODE SWITCH
Short press: switch to automatic mode.
Long press: switch to tandby mode.
ACCELERATION
Short press: increase speed by 0.5 km/h.
START/STOP
Short press: tart or top the WalkingPad.
DECELERATION
Short press: reduce speed by 0.5 km/h.
In the manual mode, set as
the intelligent start and stop,
the WalkingPad will start
automatically to the target
speed (default is 3 km/h )
while entering this area.

alkingPad.
Mode Switch
Short press: switch to manual mode.
Long press: switch to tandby mode.

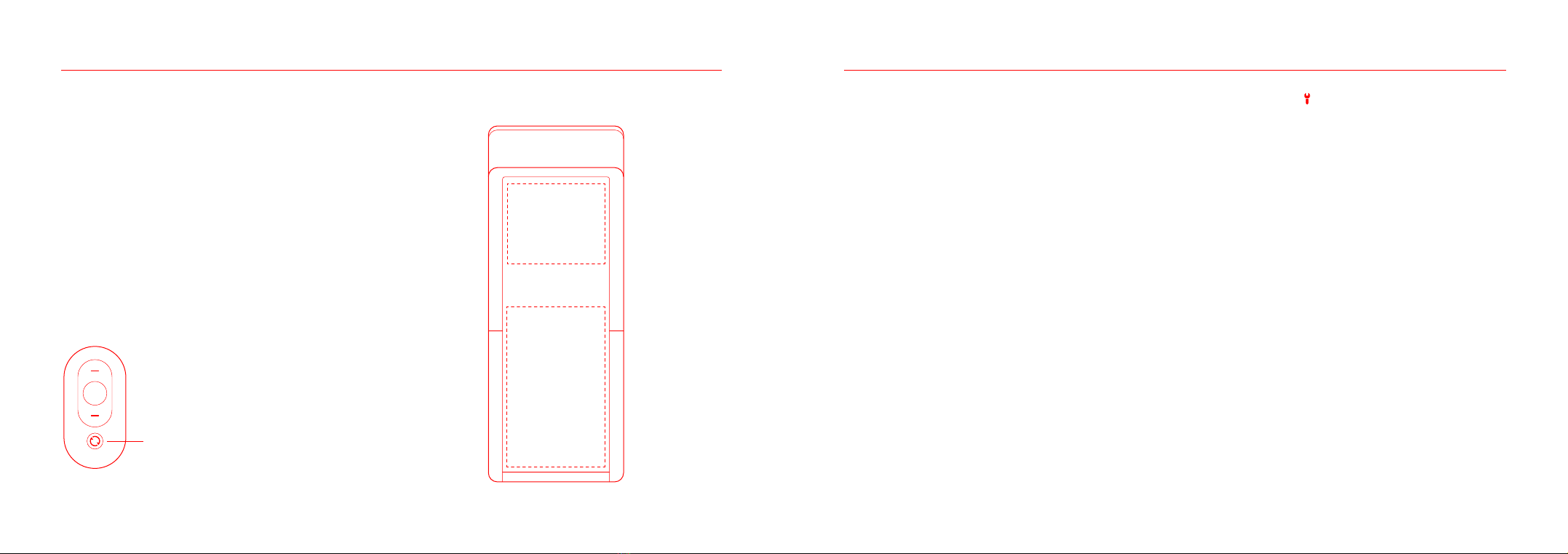

5. Remote Controller Notice 7. Error Warning Light
11
12
If the remote controller has no response
or you change a new one, the remote
controller and walking device need to
re-establish communication.
Remote control pairing method:
Restart the WalkingPad, press and hold
down the mode switch button on the
remote control immediately, hearing the
sound of "Beep" indicates the success of
pairing. Note: During the operation, the
remote control should be close to the LED
display panel of WalkingPad.
Error Warning Light on the display panel is off when WalkingPad works well.
When error occurs, Error warning light turns on and shows its error code.
6. Wi-Fi Warning Light
Long-term Lighting Mode: Indicates that
the machine is not connected to the cloud
server.
Long-term Lighting Out Mode: Successful
Connection between "Machine" and
"Cloud".
Flash Mode: Indicates that the machine is
networking or that the chip is being
upgraded.
8. Networking and firmware upgrade
By default, the factory is in the state of waiting for networking and can
directly use customer bundles.
When you need to enter the networking state again, you can press the
mode button on the walking machine for a long time in standby mode, make
a "Di" sound directly from WalkingPad, and the Wi-Fi warning light begins to
flicker.
OTA firmware upgrade, in the "MI Home" APP can receive update prompts,
see the update instructions, according to the prompts on the phone to
operate, automatically complete the firmware upgrade. In firmware upgrade,
Wi-Fi warning lights enter blinking status prompt.
Automatic mode
4. Description of automatic mode control (advance mode)
04 Learn to use WalkingPad
This is a challenging and higher-class mode, User can walk
on the walkingpad completely out of remote controller. We
only recommend those who have good sports skills or
walking-device experience to take the challenge.
Entering this area, the
walkingpad will start or
accelerate under the
automatic mode.
Entering this area, the
walkingpad will slow down
automatically under the
automatic mode.
E01: Communication fault;
E02: Voltage Protection;
E03: IPM Overheating;
E05: Overcurrent protection;
E06: Motor Protection;
E08: Sensor Fault;
E09: Wi-Fi Communication Fault.

05 Safety Notice
13 14
Please keep a rear distance of
1000 mm or more.
Please keep a distance of 500 mm
or more for both sides.

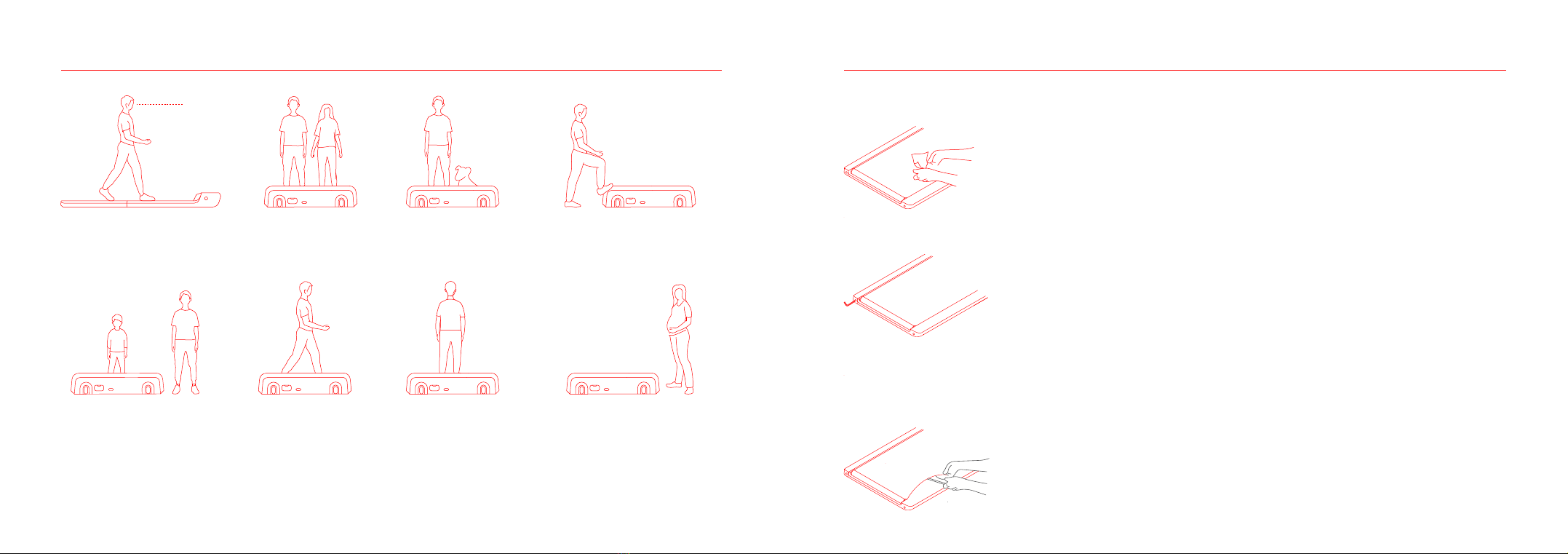

Please choose sport shoes. Please do not stand up on the
walking machine when it is
under auto calibration situation.
Anti-pinch.
Anti-involved, please do not
trample.
Please pull out the plug when you
are not using it.
Using on uneven ground is
prohibited.
It is strictly forbidden to walk up
and down the walking pad while
walking. When an emergency
occurs, please press the remote
control START/STOP and step
away from the walking pad from
one side.
Turn the power off before fold up
the walkingpad.
Prohibition of vertical placement.
Prohibition of lateral placement.
START/STOP

1. Clean the walking machine - Turn off the machine and unplug the power cord.
- Add several drops of detergent on cotton rag or towel. Don't pour the detergent on the
belt directly, and don't use acid or corrosive cleaners.
- Wipe off dust and stains on the frame, front panel and belt. Do not wipe backside of the
belt.
- After using for a period, dust and stains may appear on the back part, that is normal
situation, and just clean them up.
- Press and hold both Mode Switch Button and Acceleration Button on the remote control
over 3 seconds.
- Front panel shows "CALI" and the speed is 4 km/hr ( 2.5 mi/hr ).
- If belt deviates to the left: Turn the left adjusting screw for a half-circle clockwise.
- If belt deviates to the right: Turn the right adjusting screw for a half-circle clockwise.
- If belt is slipping: Turn both left and right adjusting screw for a half-circle clockwise at
same time.
- Keep the machine running for 1-2 minutes and check whether it needs to readjust.
- Turn off the machine and unplug the power cord.
- Lift up the belt and apply silicone oil on the backside of the belt.
- Turn on the machine again
- Keep the machine running under 4 km/hr ( 2.5 mi/hr ) for 10-20 20 seconds.
- Only apply 5 ml ~ 10 ml lubricant oil each time, too much lubricant oil makes the belt
become slipping.
- Apply for silicone oil once every 3 months.
05 Safety Notice 06 Maintenance and Service
15 16
2. Adjust the belt
3. Lubricate the Belt
Children should be
supervised to ensure that
they do not play with the
walkingpad.
Please use this product
reasonably according to your
physical condition (the elderly
and pregnant women should
use it cautiously). If you feel
unwell, stop exercising
immediately. If necessary,
please seek medical attention.
Please keep your sight
horizontal to avoid
dizziness.
More than one person
on the walkingp`ad is
prohibited.
Using machine with
pet is prohibited.Walking sideways on
the machine is
prohibited.
Walking backwards
on the machine is
prohibited.
Trampling the machine head
is prohibited.
Horizon

Beijing Kingsmith Technology Co., Ltd holds the patents of KingSmith Walkingpad Walking Device series products. Kingsmith
edits and owns the copyright of this manual book. Without Kingsmith's written permission, any form of unauthorized distribution,
reproduction, publication, release or quotation by any institution or individual is prohibited. This manual contains as many as
possible of all the functions and instructions for use. However, due to product imperfections, design changes, etc., the description
may still have discrepancies with what you have purchased. In view of product updates, description in this manual book may differ
from what you have purchased in color, appearance, etc. Actual supplies prevail. This appliance is not intended for persons
(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance. Children aged from 8 years and above and persons can use
this appliance with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understood the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Product performance standard : Q/FTSMS0001-2017
08 Replacement and Disposal
07 Trademark and Legal Declaration
17 18
The battery contained in this appliance must be removed for or disposal.
When replacing the battery, use only original battery, available from our online parts shop.
The battery compartment is located on the underside of the appliance. Open the compartment by removing the
screw in the cover using a suitable screwdriver, and then press the lower end of the locking catch on the
connectors. In that way, both sides of the connection can be separated by pulling them apart.
When inserting a new battery, push together the two connectors and ensure that the catch locks over the stop.
Never dispose of old battery in domestic garbage, but only through the proper public collection points. This also
applies to the battery of defective appliances.

08 Replacement and Disposal
Devices marked with this symbol must be disposed of separately from your household waste, as they contain
valuable materials which can be recycled. Proper disposal protects the environment and human health. Your
local authority or retailer can provide information on the matter.
19
