Kingsun Aurora Series User manual

Warning: The luminaire cannot be mounted directly on the surface of ordinary flammable materials under any circumstances.
agent or a similarly qualified person to avoid a hazard.
Warning: In order to prevent accidents that threaten personal safety such as lamp breakage, falling, electric shock and fire, please install and use
them strictly in accordance with the instructions. You can not change and exchange parts by yourself.
Warning: Storage condition temperature < 70 degree C, humidity 10% - 85%. Ambient temperature: TA 50 degree C. Warning: the light source
of this lamp is not replaceable; when the light source reaches its end of life, the whole lamp should be replaced.
Warning: Before installation, power supply must be cut off to prevent electric shock.
Warning: All 220V power supply lamps, power supply and ground wires of controllers must be grounded reliably.
Warning: Electrical shock hazard
Warning: If the external flexible cable or cord of the luminaire is damaged, the cord should be replaced by the manufacturer or its service
Unit：mm
(H)
(L)(W)
Product
specifications
Product specifications
1000/500
1000/500
1000/500
1000/500
WW1K
WW1K
WW1K
WW1K
37
37
48
48
72
52
72
52
Note: Photo is shown WW1K model in the manual,
Non-standard product length according to project requirements

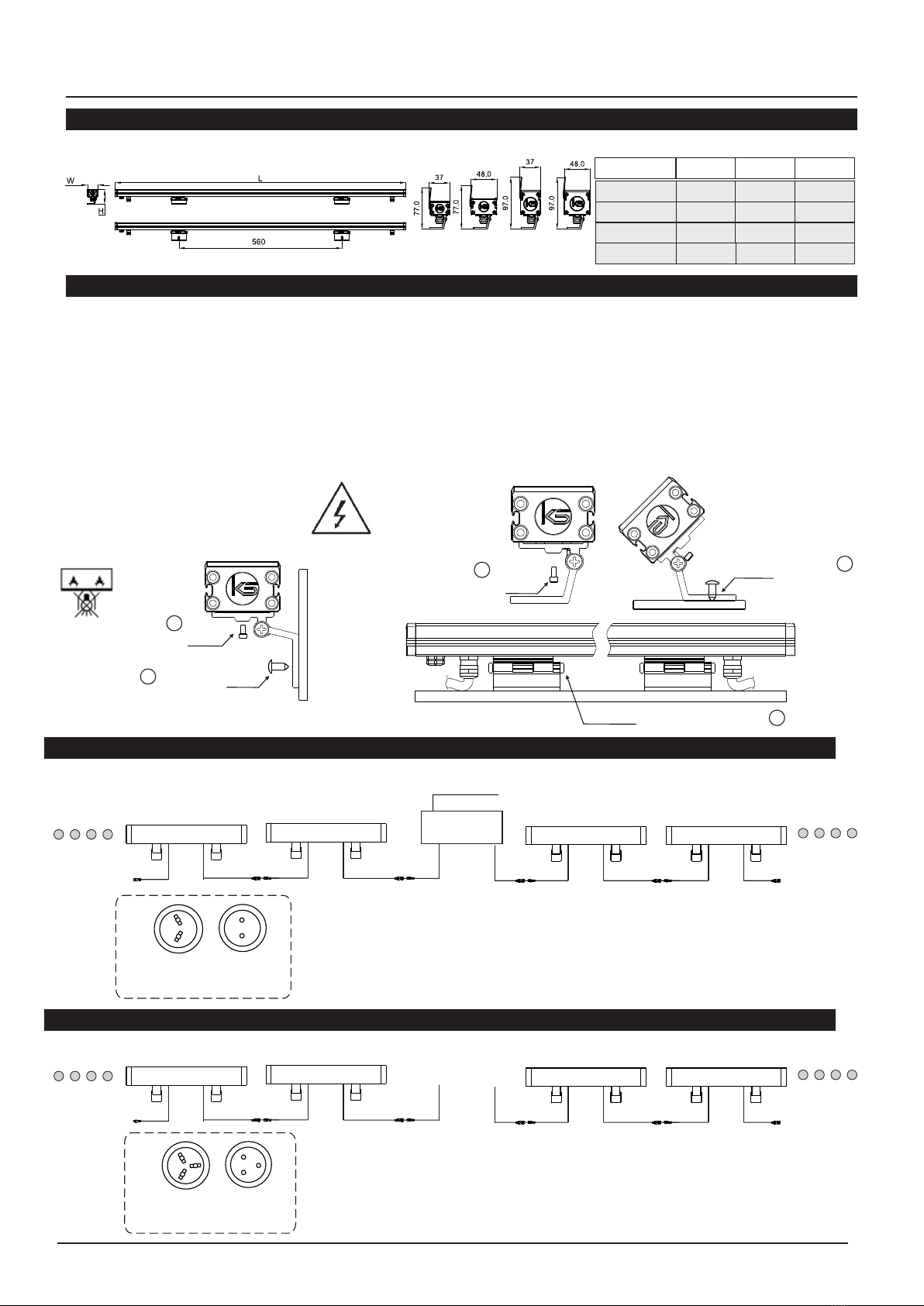

Installation diagram：
WW1K Wall Washer Series Instruction Manual
This drawing is for reference only. Please design the system plan according to the project on the site.
Uncontrolled (24V monochrome constant brightness) connection mode
Uncontrolled (220V monochrome constant brightness) connection mode
Notes
1、Voltage range of driving power supply (rated AC 100-240V-50/60Hz
2、When inspecting and repairing lamps and lanterns, please entrust electrical professionals to do the operation
3、When abnormal phenomena occur in lamps , power should be swiftly cut off and contacted with agents or manufacturers.
Signal output
from the female
Signal output
from the male
POWER
SUPPLIER DC24V
INPUT AC100-240V
320W
INPUT AC100-240V
DC24V
... ...
Locking screw
M5 stainless steel screw
1
2
Side mount
Adjust lamp angle and lock screw 3
12
Bottom mounting
1
18W
7PCS
24W
5PCS
36W
3PCS
48W
3PCS
54W
2PCS
////
18W
8PCS
24W
6PCS
36W
4PCS
48W
4PCS
54W
3PCS
////
18W
14PCS
24W
10PCS
36W
7PCS
48W
5PCS
54W
4PCS
////
Size
Product Size
Installation Notes
M5 stainless steel screw
Locking screw
Fixed luminaire
Fixed luminaire
Connection mode
This drawing is for reference only. Please design the system plan according to the project on the site.
Notes
1、Voltage range of driving power supply (rated AC 100-240V-50/60Hz
2、When inspecting and repairing lamps and lanterns, please entrust electrical professionals to do the operation
3、When abnormal phenomena occur in lamps , power should be swiftly cut off and contacted with agents or manufacturers.
Signal output
from the female
Signal output
from the male
Connection mode

1、For safe and efficient use, it is recommended to clean it every 6 months. To clean the lamps, use a soft cloth to wipe off the oil,
then wipe it off with a dry cloth. Do not use other cleaning.Agent, otherwise it will cause discoloration or damage to the lamp.
2、When the lamp is to be maintained or replaced, please cut off the power before repairing.
1、The power supply and controller used with this product must
be our approved brands and specifications.
2、The installer of the luminaire must hold the "Electrical Certificate"
3、Please follow the wiring diagram of this manual for wiring, reasonably
select the wire diameter and wiring to avoid excessive pressure drop.
4、Do not cut off the original waterproof joint of the lamp. When the wire length
is not enough, we must use our customized extension cable with waterproof joint.
5、Pay attention to the light and light, do not pull the light outlet
6、The lamps shall not be dismantled without the permission of our company;
7、After the installation is completed and the inspection is passed,
the test light can be energized, and the operation is prohibited.
8、The power supply and controller must be installed in a waterproof
box to protect them from water.
9、The installation surface of the luminaire must be fireproof, and the installation
surface must be able to carry more than 10 times the weight of the luminaire;
10、The original installation brackets and accessories of the lamps shall not be
replaced or cancelled without the permission of our company.
11、The supply voltage must match the input voltage of the luminaire.
If the above terms are violated, our company is not responsible for it.
Main techinical specification
Maintenance and repairing
Notes
Products Model
Rated power
IP grade
WW1K
Input voltage DC24V/AC220V
18W/24W/36W/48W/54W(Non-standard product power reference sticker)
Notes： 1. One main controller can cascade up to 32 sub-controllers
2. One loop can connect up to 170 led wall washer lights
3. Using CAT5 network wire to connect the main controller and sub controller as well as the the subcontrollers
4. The output of the sub controller to the first lamp distance shall not exceed 60m, and the signal amplifier shall
be added if it exceeds 60m.
5. The main controller supports up to 8G SD card and can be used offline.
6.The male end of the waterproof connector is the signal/power input; the female end is the signal/power output.
If the connection is wrong, the lamp may be damaged.
8.This figure is only the schematic diagram of the control system. The actual scheme needs to be
configured according to the situation on site.
7.If the load power of the 320W switching power supply does not exceed 80%, such as the 24W/support of the
luminaire, the maximum load is 10, and the wiring is from the middle to the both ends.
Sub controller
Sub controller
Sub controller
Main controller
INPUT AC100-240V
INPUT AC100-240V
1
1
20
20
21
21
Max512
Max512
INPUT AC100-240V
INPUT AC100-240V
INPUT AC100-240V
INPUT AC100-240V
DC24V
Signal repeater
Signal repeater
Connection mode of color (DMX512 control
IP65/IP66/IP67
3306001863
Brown line+
Blue line-
Red, Black and Yellow
Connection Signal Line
Connection mode
Signal output
from the female
Signal output
from the male
