Kioti CS2520 Series User manual

Kioti CS2520 Series Cab
This ROPS cab is designed and built to fit the Kioti CS2520 and CS2220
tractor.
Designed and Built by:
Tektite Manufacturing Inc:
427 Buffalo Street
P.O. Box 639
Winkler, MB
R6W 4A8
Canada
PH: 204-331-3463
Fax: [phone]
[email protected]
www.tektite.ca
One year standard product warranty provided by Tektite.
November 2021© Kioti CS2520 ROPS Cab Operation Manual

DO NOT PROCEED FURTHER UNTIL YOU HAVE READ THE INFORMATION BELOW
1) Always wear personal protective equipment
2) A minimum of two people is necessary to safely install the cab
3) This ROPS cab is heavy. A lift assist device such as an overhead
hoist or high lift forklift is required.
4) Ensure your work area is well ventilated. The installation
requires the starting of the tractor which will produce
dangerous carbon monoxide fumes.
5) Read through the entire installation manual first.
6) Follow the installation instructions in order.
7) Reading the operators manual prior to using the ROPS cab.

Tektite Manufacturing Incorporated thanks you for purchasing a Kioti CS2520 ROPS cab!
Tektite has worked very hard to design and build this ROPS product and we hope that it
provides you with many years of ROPS protection.
Tektite’s ROPS products are designed to provide safe and dependable service during operation
when they are properly maintained according to the instructions. Please read this operator
manual carefully before using this ROPS product.
The photos/illustrations provided in this manual may not provide all the detail needed and are
for reference only.
All directions provided are from the reference point of the tractor seat facing the steering
wheel. All left and right references are from this view point.
For reference, please fill in the information below. This will assist your dealer in providing
service for this ROPS. It is advisable that this information be provided to your insurance
company as well in the event that the tractor is lost or damaged.
Vehicle Model: _________________________________________________________
ROPS Serial Number: ___________________________________________________
Date of Purchase: _______________________________________________________
Dealer Name: ___________________________________________________________
November 2021© Kioti CS2520 ROPS Cab Operation Manual

Limited Warranty
Tektite Manufacturing Inc. (Tektite) warrants to the original purchaser (the “Claimant”), that Tektite products will be free
from defective materials or workmanship, under normal use and service, for a period of (1) full year (or 1500 hours,
whichever is less) from the original invoice date. Tektite’s liability under this Limited Warranty is limited to the repair or
(at the discretion of Tektite) the replacement of those components of its products, which were manufactured by Tektite
that are defective in materials or workmanship. Tektite shall have no liability under this Limited Warranty unless Tektite
is notified of the defect during the stated Warranty Period.
All returns require a Returned Material Authorization Number (RMA#). Warranty claims must be submitted to Tektite at
1-204-331-3463 prior to written authorization. All warranty work not pre-authorized by Tektite will not be covered by
this warranty agreement. Claimant must arrange shipping of the returned and repaired or replaced product or
component from Tektite plant in Winkler, Manitoba at the Claimant’s own risk and expense. Tektite must receive all
returns within (30) days of issuance of a RMA#. Limitations and Exclusions: Tektite has no responsibility to a Claimant
under this Limited Warranty or on any other basis for any of the following:
a) defects caused, in whole or in part, by accident or misuse, negligence or failure to maintain the product or
component;
b) products or components sold to a customer on an “as is” basis;
c) wiper blades, light bulbs, fuses, clear vinyl or other consumables;
d) glass where the point of failure has not been preserved intact and delivered to Tektite for analysis of the cause of the
failure;
e) products or components which have been modified after shipping from Tektite to its customer;
f) transportation charges for returned, repaired or replacement items;
g) defects that are subject of a Tektite initiated recall where the Claimant fails to comply with the terms of the recall
notice that comes to the attention of the Claimant;
h) components of Tektite products that are manufactured by third parties (Tektite’s only obligation in relation to such
components shall be to accord to the Claimant the benefit of any transferable warranty accorded to Tektite by third
party manufacturer);
i) defects in workmanship or materials in products or components that are repaired or replaced by Tektite unless Tektite
is notified of the new defect within the Warranty Period that applied to the original product or component that has been
repaired or replaced;
j) defects that result, in whole or in part, from inadequate engineering or specifications provided to Tektite by its
customer;
k) any actual or alleged deficiency in technical or engineering services or advice provided by Tektite to its customer
whether provided for valuable consideration or otherwise;
l) consequential damages, or any other damages whether foreseeable or not, resulting from the defect or any delay in
remedying the defect; and
m) any breach or alleged breach of any implied warranty of merchantability or fitness for particular purpose of use;
n) defects or part failure due to misuse or failure to follow recommended cab installation procedures;
o) travel expenses, including mileage.
This Limited Warranty expresses the entire obligation of Tektite, its officers, directors, agents and employees, to its
customer or any Claimant in respect of any defect in workmanship, or materials of any product or component sold or
manufactured by Tektite whether on grounds of breach of contract, negligence or other tortuous liability, breach of
express or implied warranty or other basis in law of any jurisdiction.
Acceptance by a customer of delivery of products of Tektite constitutes acceptance of this Limited Warranty in lieu of all
other warranties express or implied including without limitation all implied warranties of merchantability or fitness for
particular purpose or use and constitutes acceptance by customer of the exclusions and limitations of the liability of
Tektite set out above. Once received, the cab should have ALL exterior cardboard, Styrofoam wrapping removed for
immediate inspection of product to ensure that no damages have occurred during transportation. Outer coverings
should stay off the cab and the cab be stored indoors in a controlled environment.
*Labor rate fixed at a maximum of $75.00 per hour (U.S.) and $75.00 per hour (CDN) based on Tektite determination
of applicable hours. All payments to customer will be in the form of credits applied to their account, no exceptions.
November 2021© Kioti CS2520 ROPS Cab Operation Manual

Safety Precautions
Safety First
Read these instructions carefully. It is essential that you read the instructions and safety
regulations before you attempt to assemble or use the features that are on this cab/ROPS.
Danger: Indicates an immediate hazardous situation which, if not avoided, will result in death
or serious injury.
Warning: Indicates a potentially hazardous situation which, if not avoided, may result in death
or serious injury.
Caution: Indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
Important: Indicates that cab or property damage may result if instructions are not carefully
followed.
NOTE: All products are designed to give safe, dependable service if they are operated and
maintained according to instructions. It is the owner’s responsibility to be certain anyone
operating this product reads this manual, and all other applicable manuals, to become familiar
with this cab and all safety precautions. Failure to do so could result in serious personal injury
or cab damage. If you have any questions, consult your dealer. Read and understand this
manual before operation.
NOTE: A safe operator is the best assurance against accidents. All operators, no matter how
experienced they may be, should read this operator manual and all other related manuals
before attempting to operate features in this cab/ROPS and operate the base tractor. Please
read the following section and pay particular attention to all safety recommendations
contained in this manual and those labelled on the cab and on the tractor.
November 2021© Kioti CS2520 ROPS Cab Operation Manual

General Safety
1. Never let an unqualified or untrained driver operate the tractor.
2. Keep a fire extinguisher, with ABC rating securely fastened in the ROPS. Maintain it and be
familiar with its use.
3. Do not carry passengers.
4. Never operate the tractor in a closed building for a prolonged period. Ensure adequate
ventilation is present, as engine exhaust fumes are poisonous and can kill.
5. Always keep sleeves, jackets or other loose clothing relatively tight and belted. Loose clothing
may catch on moving parts and result in severe personal injury or death.
6. Provide a first-aid kit, securely attached inside of the ROPS for use in case of accident.
7. Never jump from the tractor. There is a danger of tripping or falling on protruding parts.
8. Use steps and hand holds when mounting and dismounting the tractor, or for servicing
components too high to reach from the ground.
9. When seated in the ROPS, fasten seat belt before starting the engine. A proper seat belt must
be worn at all times when using a ROPS.
10. Safety devices and shields are intended to protect operators from injury or death. Under no
circumstances should they be modified, disabled or removed.
Operating Safety
1. Always operate the tractor controls while sitting in the operator’s seat.
2. Lock seat in position and buckle seat belt before operating the tractor.
3. Avoid abrupt sharp turns at high speeds.
4. On sloped terrain, do not make sharp turns as machine stability could be compromised.
5. Operate the tractor smoothly, avoid abrupt starts and stops.
6. Keep all shields in place when operating the tractor.
7. Do not operate the tractor when you are tired, sick, or impaired.
8. Never operate the tractor in confined areas; visibility next to the tractor is reduced. Injury to
bystanders or damage to the ROPS or equipment may result.
Safety
Carefully review the procedures given in this manual and the tractor operator’s manual with all
operators annually. It is important that all operators become familiar with and follow safety
precautions. Operating instructions must be given to everyone using the tractor before
operation and at least once yearly thereafter in compliance with OSHA Regulations 1928.57
(United States).
November 2021© Kioti CS2520 ROPS Cab Operation Manual

Safe Operation on Rough Terrain
1. Drive the tractor slowly on hillsides and curves to eliminate the danger of tipping. Avoid
slopes which are too steep for safe operation. Avoid sharp uphill turns.
2. Always drive slowly enough over rough ground or obstructions. Drive at speeds slows enough
to ensure your safety.
3. When driving out of a ditch, gully, or up a steep hillside, engage the clutch slowly. Avoid
sharp uphill turns.
4. When descending steep grades, select a sufficiently low gear to maintain control with
minimum use of braking.
5. Use caution when driving near the edge of a ditch or gully. It may cave in, causing the tractor
to roll over.
6. Be alert when operating near trees, slopes and around obstructions. Tree branches can cause
damage to ROPS components.
Maintenance Safety
1. Remove mud, crop residue, chains, and tools from steps and operator’s platform. They may
interfere with pedal operation or entry/exit from tractor.
2. When servicing components are too high to reach from the ground use steps and handholds.
Do not use fenders or shields that are not designed as steps.
Safe Highway Operation
1. Before operating the tractor on, or near, public roadways check with your local authorities
for any local regulations that will affect you.
2. Equip towed implements with slow moving vehicle (SMV) signs when traveling on public
roads.
3. Install additional lights on implement rear to safeguard against rear end collisions.
4. Use hazard warning flashers as required by law when transporting or driving on public roads.
If the tractor had warning flashers removed when mounting the ROPS, they must be replaced
prior to operation on public roads.
5. Keep to the right, yielding right-of-way traffic, especially if pulling implements. Pull off the
road and stop to allow motorists to pass. Drive on the road shoulder, if permitted by law.
6. Use extreme caution when pulling heavy loads at road speeds. Avoid hard application of the
tractor brakes at high speed.
7. Always drive slowly near curbs, approaches or ditches.
8. If equipped, ensure headlights are aligned so they will not blind the operators of oncoming
vehicles. If the tractor is not equipped with turn signals and law requires them, install them
prior to operating on or near public roads.
November 2021© Kioti CS2520 ROPS Cab Operation Manual

9. Use your turn signals, checking for traffic well in advance of turning. If the tractor is not
equipped with turn signals and law requires them, install them prior to operating on or near
public roads.
Safety Decals
1. Keep decals clean. Remove dirt with a wet clean cloth when necessary.
2. Replace safety decals if destroyed, missing, painted over or unreadable. If any safety decals
are covered or obscured when the ROPS is mounted, it is recommended that you purchase
replacement decals from the tractor manufacturer. Mount them in a readable location at, or
near, their original location before operating the tractor.
3. New ROPS decals and tractor decals are available from your tractor dealer.
ROPS Safety
1. Install the ROPS in accordance with Tektite mounting instructions. Failure to do so may affect
the ROPS ability to withstand a roll over.
2. If the ROPS is subjected to alteration, structural damage or involved in an over turn accident,
the entire structure must be replaced. Failure to do so may result in injury or death in the event
of a roll over.
3. If the tractor in not equipped with seat belts, purchase approved seat belts from the tractor
manufacturer or Tektite prior to operating the tractor.
4. Always fasten seat belts prior to operating the tractor.
5. Always operate the tractor from the operator’s seat.
6. Remove mud, crop residue, chains and tools from steps and operator’s platform. They may
interfere with pedal operation or entry/exit from the tractor.
7. Remove all loose chains, tools, and equipment from the operator’s platform. Failure to do so
may cause injury or death in the event of a roll over.
8. Do not install the ROPS on a tractor model that the ROPS is not designated for (compatible
tractor designations are printed on the ROPS serial number plate). The ROPS is designed
specifically for individual models to ensure ROPS requirements will be met. Installing the ROPS
on a non designated tractor may result in injury or death.
Emergency Exits
The ROPS cab has two doors, either one can be used during an emergency.
November 2021© Kioti CS2520 ROPS Cab Operation Manual

Operating Instructions
Important
The following section locates, identifies and briefly describes the functions of all cab controls.
All operators should familiarize themselves with control location and function prior to operating
the tractor. Failure to do so may result in unsafe operation of the tractor and possible injury or
death to operators and bystanders.
There is one switch plate located in the cab.The following switches are available and their
functionality is described.

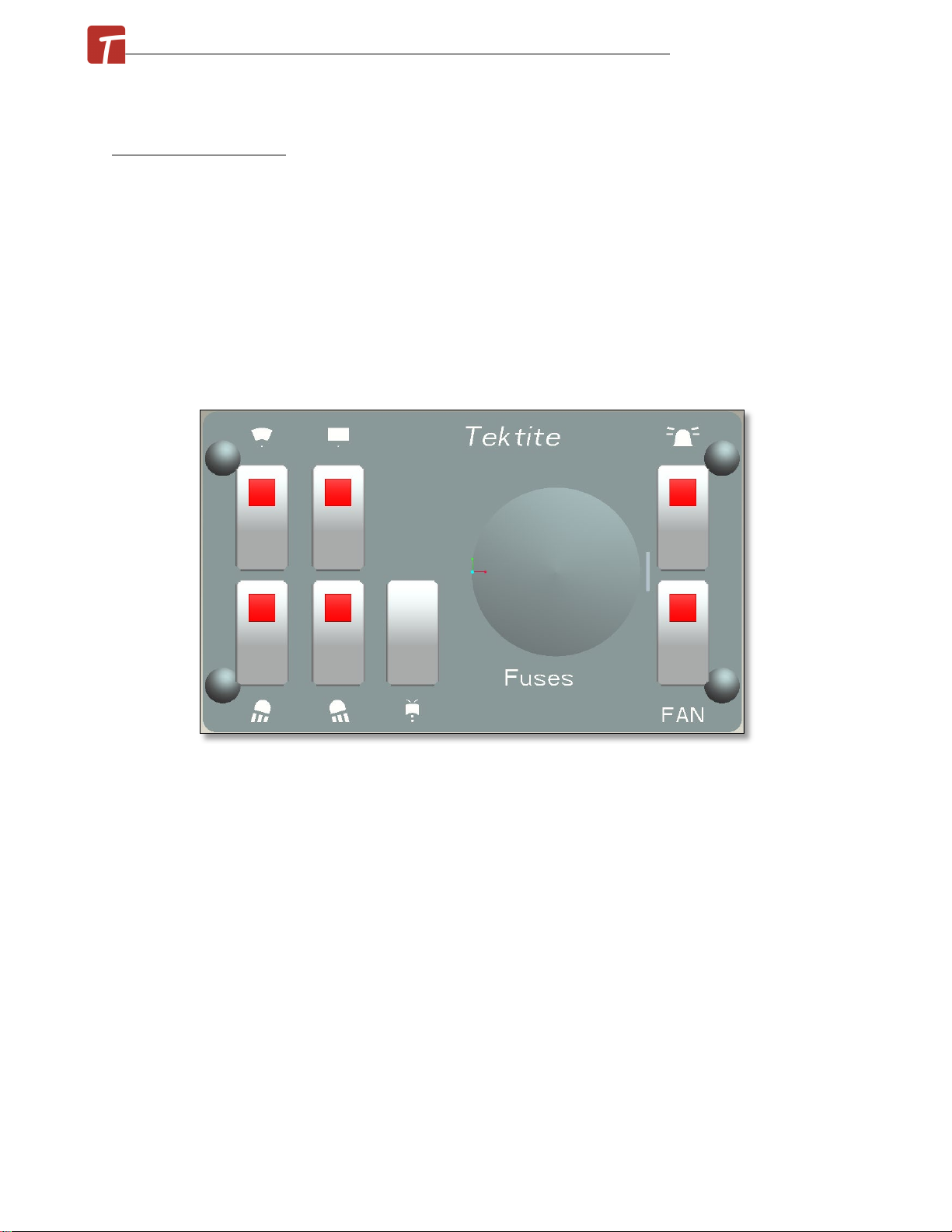

Cab Switch Plate
1. Front Wiper Rocker Switch (standard)
Low position: Off
High position: On
Note: indicator light activates when wiper is on.
2. Rear Wiper Rocker Switch (not available on all models)
Low position: Off
High position: On
Note: indicator light activates when wiper is on.
3. Front Work Light Rocker Switch (optional)
Low position: Off
High position: On
Note: indicator light activates when work lights are on.
November 2021© Kioti CS2520 ROPS Cab Operation Manual

4. Rear Work Light Rocker Switch (optional)
Low position: Off
High position: On
Note: indicator light activates when work light is on.
5. Washer Momentary Switch (Front and Rear optional)
Low position: On
Mid position: Off
High Position: On
6. Beacon Rocker Switch (optional)
Low position: Off
High position: On
Note: indicator light activates when work lights are on.
7. Water Heater Fan Rocker Switch (optional)
Low position: Off
High position: On
Note: indicator light activates when work lights are on.

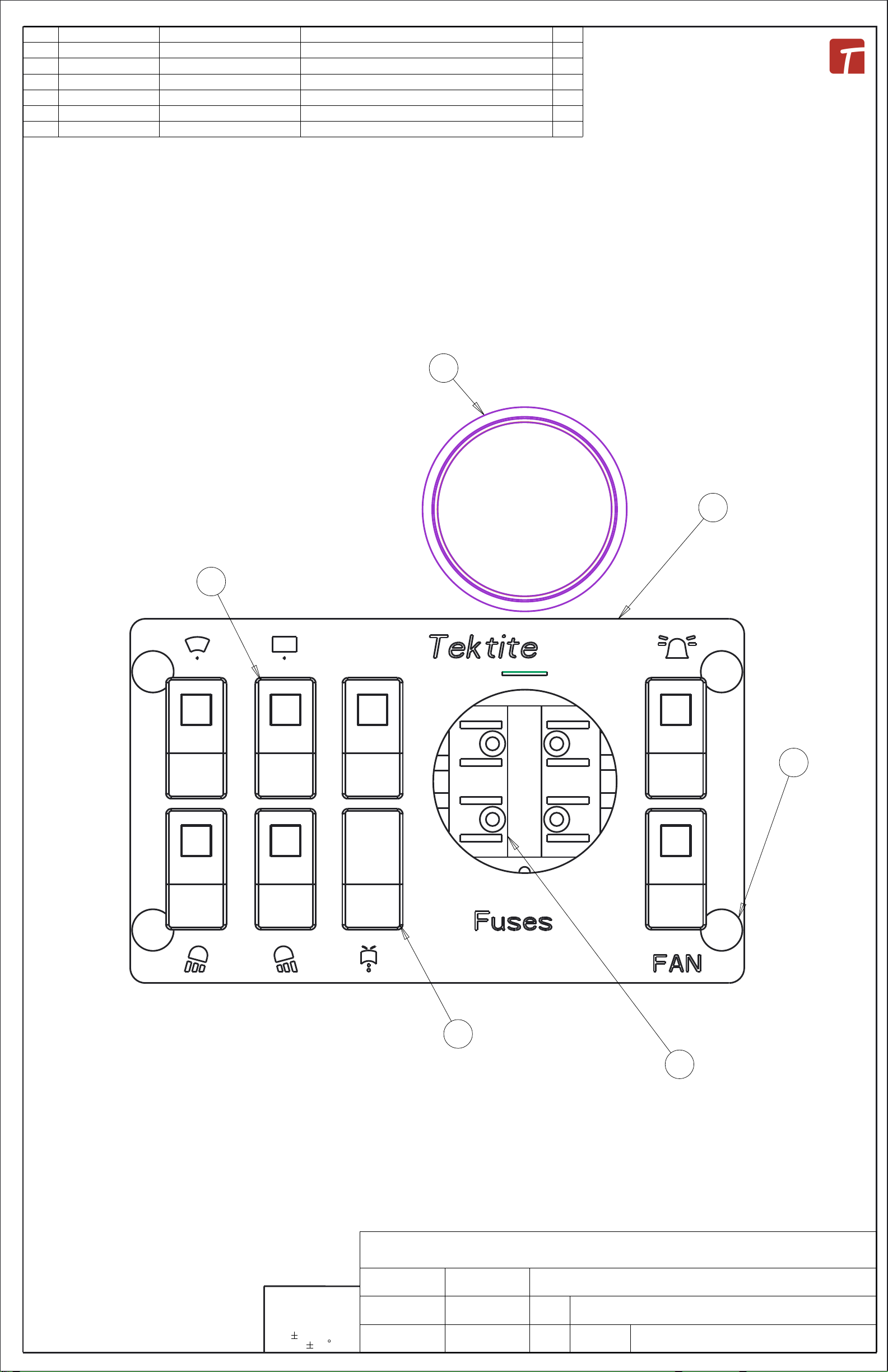

Standard and optional features are individually fused, and the fuses can be accessed behind the
plug in the middle of the switch-plate.
Cab Circuit Protection
The Tektite ROPS cab is wired to provide maximum protection against individual circuit
overload. All optional components are fused internally behind the cab switch plate.
After your ROPS Cab has been installed:
Before starting a tractor equipped with a Tektite ROPS cab:
1. Clear the operator platform of all tools. Tools left in or around the ROPS and tractor can
cause operator interference which could lead to bodily injury and/or damage the machine.
2. Inspect the ROPS and tractor to ensure all bolts are tight and re-tighten if required.
3. Ensure that all pedals, levers, and controls have adequate clearance for normal operation.
4. Ensure that all electrical components of both the ROPS and tractor operate normally.
5. Ensure your door latches properly onto the striker pin. Immediately after installation, the
ROPS frame may flex slightly from installation, and the door latch will need to be re-aligned for
November 2021© Kioti CS2520 ROPS Cab Operation Manual

proper operation. Loosen the striker pin, striker mounting plate and door latch as necessary to
get a proper alignment of the door striker.

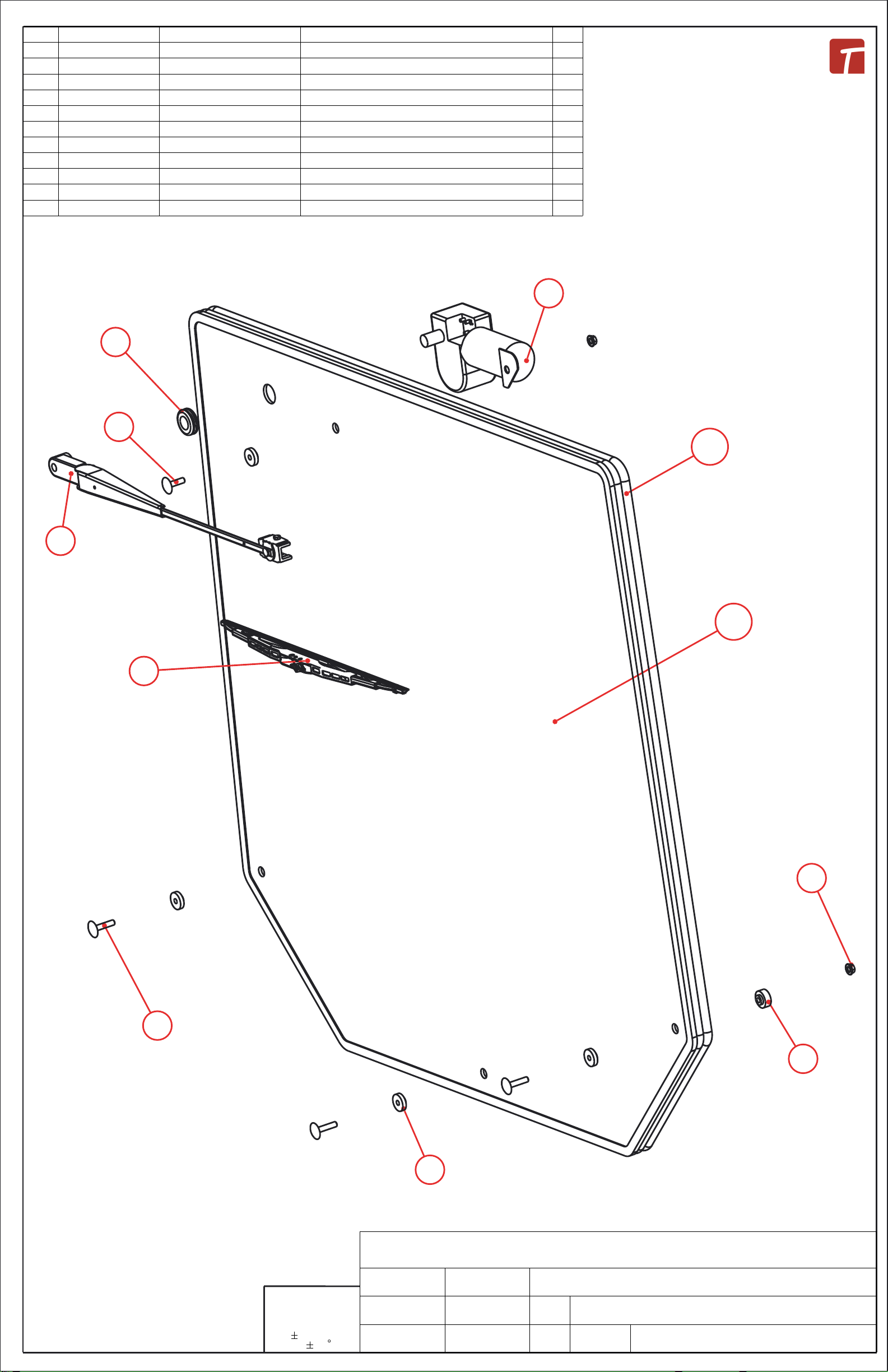

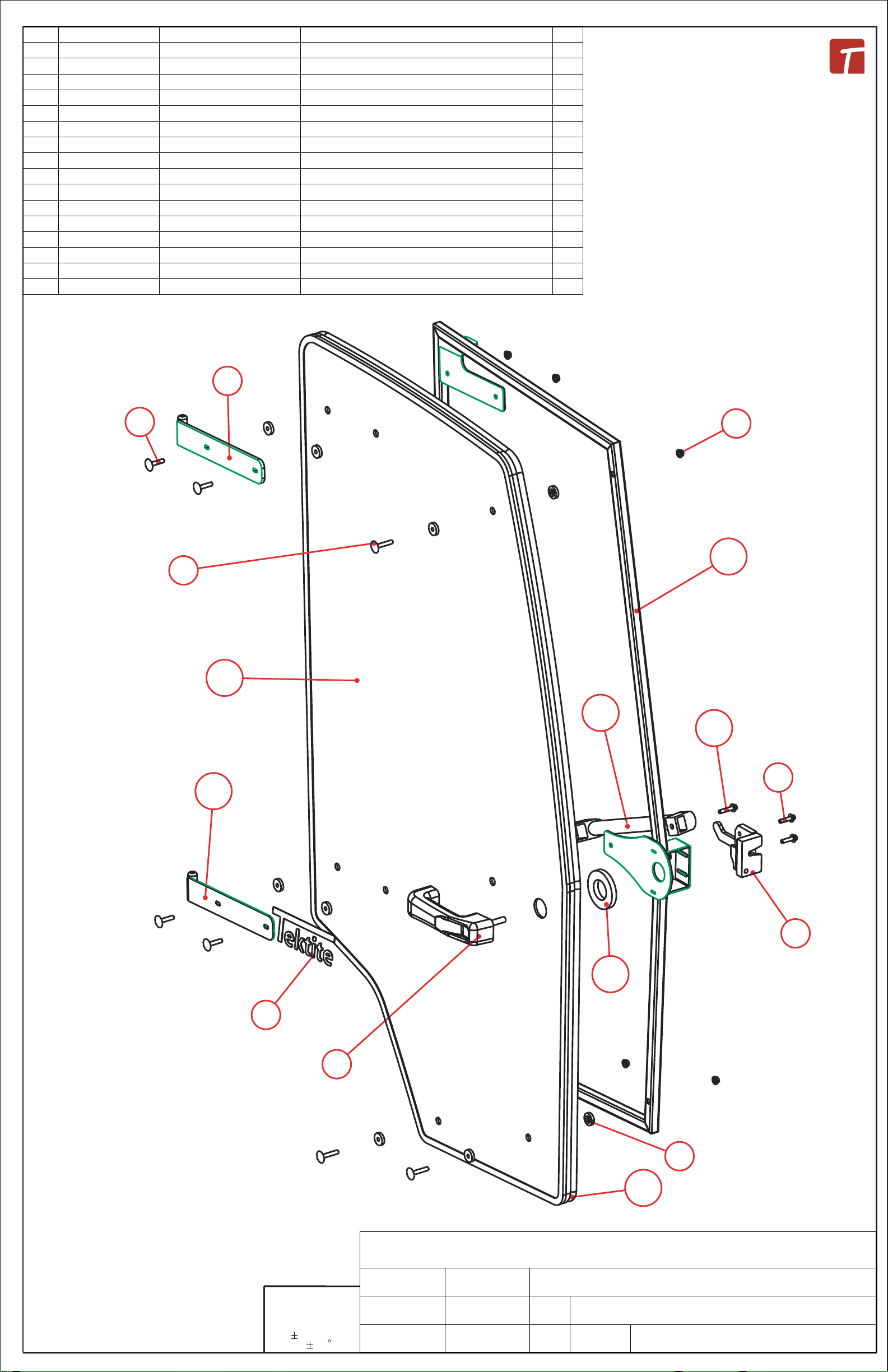

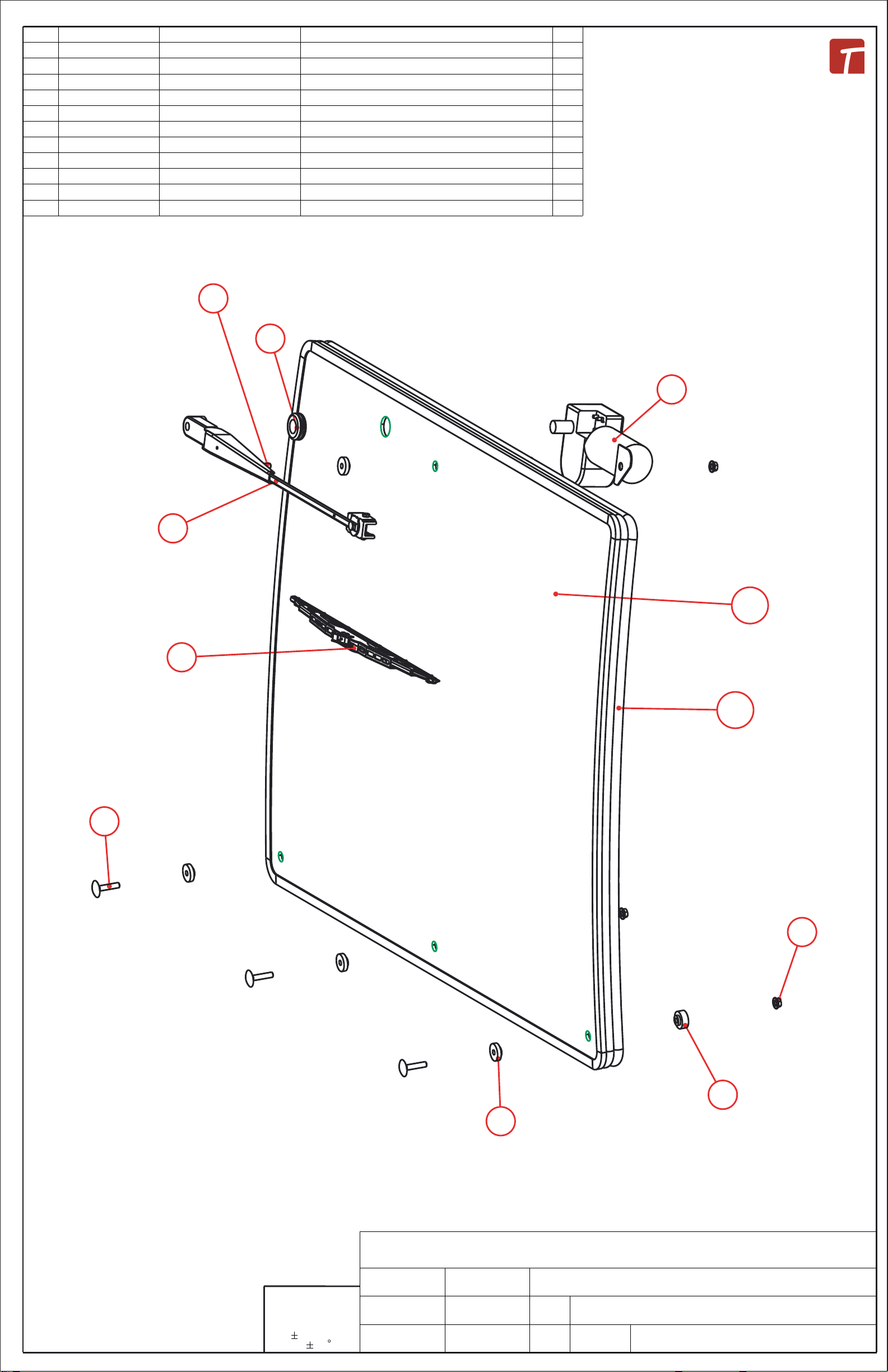

Service Parts Breakdowns:
Following are parts breakdowns for components that may require service parts replacement
during the life of the ROPS. If you require replacement parts, please contact the dealer that
you purchased the ROPS from and indicate which parts you require.
November 2021© Kioti CS2520 ROPS Cab Operation Manual

Notice of Confidentiality
This material is property of Tektite Manufacturing
Inc and is not to be used by the recipient for any
purpose other than the purpose for which it was
transmitted. The material remains the property of
Tektite and shall be returned upon request. The
material may not be reproduced or disclosed to third
parties without the written consent of Tektite.
Tolerances:
Unless otherwise
specified
X.X = 1/16"
Angular = 1.0
Drawn By:
Checked By: Size:
File Name:
Units:
Date:
Date:
Req'd: Description:
Tektite Manufacturing Inc.
427 Buffalo Street, Winkler MB, R6W 4A8, Canada
CNC:
Index Service Part # File Name Description Qty
1 A00-0013 TEKT-0009 5MM Bushing 5
2 A00-0014 TEKT-0092 Thick Bushing 3
3 A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB 1
4 A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB 3
5 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 4
6 A00-0033 315-080 Rear Wiper Shaft Grommet 1
7 A00-0043 WWF-MOTOR WWF Wiper Motor, 1" Shaft 1
8 A00-0108 TEKT-ASM-037 WWF, Adjustable Radial Arm, 15" to 19" 1
9 A00-0339 NAPA_6-1565 Deluxe 16" WWF 1
10 M06-0001 MFGC1725M-107 Windshield Glass 1
11 M06-0005 MFGC1725M-114- Windshield Seal 1
1 req Windshield Assembly
Daryl Furkalo 2019-06-03 Imp. MFGC1725M-ASM-18_OP
B
M06-0025
SCALE 0.250
1
2
3
4
5
6
7
8
9
10
11

Notice of Confidentiality
This material is property of Tektite Manufacturing
Inc and is not to be used by the recipient for any
purpose other than the purpose for which it was
transmitted. The material remains the property of
Tektite and shall be returned upon request. The
material may not be reproduced or disclosed to third
parties without the written consent of Tektite.
Tolerances:
Unless otherwise
specified
X.X = 1/16"
Angular = 1.0
Drawn By:
Checked By: Size:
File Name:
Units:
Date:
Date:
Req'd: Description:
Tektite Manufacturing Inc.
427 Buffalo Street, Winkler MB, R6W 4A8, Canada
CNC:
Index Service Part # File Name Description Qty
1 A00-0001 DLP-HANDLE Outside Push Button Handle 1
2 A00-0003 RIGHT-LATCH Suicide Door Right Latch 1
3 A00-0013 TEKT-0009 5MM Bushing 15
4 A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB 3
5 A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB 4
6 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 9
7 A00-0041 TEKTITE-DECAL Tektite Cab Decal - Solid White 1
8 A00-0042 TEKT-ASM-001R Right Cab Door Hinge Weldment, Upper 1
9 A00-0118 FLANGE_BOLT_1-4X1 Flange Bolt, 1/4" x 1", YD 2
10 A00-0177 TEKT-0068 Handle Washer Spacer 1
11 A00-0229 TEKT-ASM-029R Right Door Hinge Weldment, Lower 1
12 A00-0295 FLANGE_BOLT_M6X30 Flange Bolt, M6x30, YD 1
13 M06-0003 MFGC1725M-109 Door Glass 1
14 M06-0007 MFGC1725M-111R Door Weatherstripping 1
15 M06-0010 MFGC1725M-ASM-08R Right Door Frame Weldment 1
16 M06-0023 MFGC1725M-110 Door Handle 1
1 req Right Door Assembly
Daryl Furkalo 2019-06-03 Imp. MFGC1725M-ASM-09R_OP
B
M06-0012
SCALE 0.180
1
2
3
5
4
6
7
8
9
10
11
12
13
14
15
16

Notice of Confidentiality
This material is property of Tektite Manufacturing
Inc and is not to be used by the recipient for any
purpose other than the purpose for which it was
transmitted. The material remains the property of
Tektite and shall be returned upon request. The
material may not be reproduced or disclosed to third
parties without the written consent of Tektite.
Tolerances:
Unless otherwise
specified
X.X = 1/16"
Angular = 1.0
Drawn By:
Checked By: Size:
File Name:
Units:
Date:
Date:
Req'd: Description:
Tektite Manufacturing Inc.
427 Buffalo Street, Winkler MB, R6W 4A8, Canada
CNC:
Index Service Part # File Name Description Qty
1 A00-0013 TEKT-0009 5MM Bushing 5
2 A00-0014 TEKT-0092 Thick Bushing 3
3 A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB 1
4 A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB 3
5 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 4
6 A00-0033 315-080 Rear Wiper Shaft Grommet 1
7 A00-0043 WWF-MOTOR WWF Wiper Motor, 1" Shaft 1
8 A00-0108 TEKT-ASM-037 WWF, Adjustable Radial Arm, 15" to 19" 1
9 A00-0339 NAPA_6-1565 Deluxe 16" WWF 1
10 M06-0002 MFGC1725M-106 Rear Window Glass 1
11 M06-0006 MFGC1725M-113- Rear Window Seal 1
1 req Rear Window Assembly
Daryl Furkalo 2019-06-03 Imp. MFGC1725M-ASM-17_OP
B
M06-0024
SCALE 0.250
1
2
3
4
5
6
7
8
9
10
11

Notice of Confidentiality
This material is property of Tektite Manufacturing
Inc and is not to be used by the recipient for any
purpose other than the purpose for which it was
transmitted. The material remains the property of
Tektite and shall be returned upon request. The
material may not be reproduced or disclosed to third
parties without the written consent of Tektite.
Tolerances:
Unless otherwise
specified
X.X = 1/16"
Angular = 1.0
Drawn By:
Checked By: Size:
File Name:
Units:
Date:
Date:
Req'd: Description:
Tektite Manufacturing Inc.
427 Buffalo Street, Winkler MB, R6W 4A8, Canada
CNC:
Index Service Part # File Name Description Qty
1 A00-0001 DLP-HANDLE Outside Push Button Handle 1
2 A00-0002 LEFT-LATCH Suicide Door Left Latch 1
3 A00-0013 TEKT-0009 5MM Bushing 15
4 A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB 3
5 A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB 4
6 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 9
7 A00-0039 TEKT-ASM-001 Left Door Hinge Weldment, Upper 1
8 A00-0041 TEKTITE-DECAL Tektite Cab Decal - Solid White 1
9 A00-0118 FLANGE_BOLT_1-4X1 Flange Bolt, 1/4" x 1", YD 2
10 A00-0177 TEKT-0068 Handle Washer Spacer 1
11 A00-0228 TEKT-ASM-029 Left Door Hinge Weldment, Lower 1
12 A00-0295 FLANGE_BOLT_M6X30 Flange Bolt, M6x30, YD 1
13 M06-0003 MFGC1725M-109 Door Glass 1
14 M06-0007 MFGC1725M-111- Door Weatherstripping 1
15 M06-0009 MFGC1725M-ASM-08 Left Door Frame Weldment 1
16 M06-0023 MFGC1725M-110 Door Handle 1
1 req Left Door Assembly
Daryl Furkalo 2019-06-03 Imp. MFGC1725M-ASM-09_OP
B
M06-0011
SCALE 0.180
1
2
16
3
4
5
67
8
9
10
11
12
13
14
15

Notice of Confidentiality
This material is property of Tektite Manufacturing
Inc and is not to be used by the recipient for any
purpose other than the purpose for which it was
transmitted. The material remains the property of
Tektite and shall be returned upon request. The
material may not be reproduced or disclosed to third
parties without the written consent of Tektite.
Tolerances:
Unless otherwise
specified
X.X = 1/16"
Angular = 1.0
Drawn By:
Checked By: Size:
File Name:
Units:
Date:
Date:
Req'd: Description:
Tektite Manufacturing Inc.
427 Buffalo Street, Winkler MB, R6W 4A8, Canada
CNC:
Index Service Part # File Name Description Qty
1 A00-0013 TEKT-0009 5MM Bushing 8
2 A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB 4
3 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 4
4 A00-0044 TEKT-ASM-002 Side Window Hinge Weldment 2
5 A00-0045 TEKT-0004 Side Window Slider Bracket, 1" tube 1
6 A00-0057 TEKT-0020MIR Side Window Latch, L60776 1
7 A00-0058 CARRIAGE_BOLT-5-16X1 Bolt, Carriage, 5/16"x 1", YD 1
8 A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD 1
9 A00-0119 WASHER_1-4 Washer, Flat, 1/4" 2
10 M06-0004 MFGC1725M-108 Side Window Glass 1
11 M06-0008 MFGC1725M-112- Side Window Seal 1
1 req Complete Left Side Window Assembly
Daryl Furkalo 2019-06-03 Imp. MFGC1725M-ASM-10_OP
B
M06-0013
SCALE 0.250
1
2
3
4
5
6
7
8
9
10
11

Notice of Confidentiality
This material is property of Tektite Manufacturing
Inc and is not to be used by the recipient for any
purpose other than the purpose for which it was
transmitted. The material remains the property of
Tektite and shall be returned upon request. The
material may not be reproduced or disclosed to third
parties without the written consent of Tektite.
Tolerances:
Unless otherwise
specified
X.X = 1/16"
Angular = 1.0
Drawn By:
Checked By: Size:
File Name:
Units:
Date:
Date:
Req'd: Description:
Tektite Manufacturing Inc.
427 Buffalo Street, Winkler MB, R6W 4A8, Canada
CNC:
Index Service Part # File Name Description Qty
1 A00-0013 TEKT-0009 5MM Bushing 8
2 A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB 4
3 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 4
4 A00-0045 TEKT-0004 Side Window Slider Bracket, 1" tube 1
5 A00-0046 TEKT-ASM-002R Side Window Hinge Right 2
6 A00-0056 TEKT-0020 Side Window Latch, L60775 1
7 A00-0058 CARRIAGE_BOLT-5-16X1 Bolt, Carriage, 5/16"x 1", YD 1
8 A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD 1
9 A00-0119 WASHER_1-4 Washer, Flat, 1/4" 2
10 M06-0004 MFGC1725M-108 Side Window Glass 1
11 M06-0008 MFGC1725M-112R Side Window Seal 1
1 req Right Side Window Assembly
Daryl Furkalo 2019-06-03 Imp. MFGC1725M-ASM-10R_OP
B
M06-0014
SCALE 0.250
1
2
3
4
5
6
7
8
9
10
11

Notice of Confidentiality
This material is property of Tektite Manufacturing
Inc and is not to be used by the recipient for any
purpose other than the purpose for which it was
transmitted. The material remains the property of
Tektite and shall be returned upon request. The
material may not be reproduced or disclosed to third
parties without the written consent of Tektite.
Tolerances:
Unless otherwise
specified
X.X = 1/16"
Angular = 1.0
Drawn By:
Checked By: Size:
File Name:
Units:
Date:
Date:
Req'd: Description:
Tektite Manufacturing Inc.
24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada
CNC:
Index Service Part # File Name Description Qty
1 A00-0024 BUSS-15600-08-11 Power Block/Ground 1
2 A00-0055 TEKT-0019 Fir Tree Fastener 4
3 A00-0065 TEKT-ASM-005 On-Off Switch w/Lens 7
4 A00-0067 TEKT-ASM-007 Mom-Off-Mom Rocker Switch 1
5 A00-0223 TEKT-ASM-013 Steel Top Switchplate w/Decal 1
6 A00-0224 TEKT-0104 3" Plug, Steel Top 1
Steel Top Switchplate Assembly
Daryl Furkalo 2013-07-05 Imp. TEKT-ASM-027
B
SCALE 0.750
4
5
2
1
6
3

This material is property of Tektite Manufacturing
Inc and is not to be used by the recipient for any
purpose other than the purpose for which it was
transmitted. The material remains the property of
Tektite and shall be returned upon request. The
material may not be reproduced or disclosed to third
parties without the written consent of Tektite.
Tolerances:
Unless otherwise
specified
X.X = 1/16"
Angular = 1.0
Drawn By:
Checked By: Size:
File Name:
Units:
Date:
Date:
Req'd: Description:
CNC:
IndexService Part #File Name Description Qty
1 CS2520-ASM-11 1
2 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 2
3 A00-0023 FLANGE_BOLT_1-4X3-4 Flange Bolt, 1/4" x 3/4", YD 4
4 A00-0061 TEKT-0021 Striker Mounting Plate 2
5 A00-0084 TEKT-0070 Gas Shock 2
6 A00-0085 TEKT-0069 Gas Shock Stud 2
7 A00-0101 STRIKER-PIN Striker Pin 2
8 A00-0103 HEX-NUT-M12X1 Hex Nut, M12 x 1.0, YD 2
9 A00-0141 ROUND_MIRROR_6_INCH External 6" Mirror 2
10 A00-0179 FLANGE-NUT-1-2 1/2" Nut 2
11 A00-0202 TEKT-ASM-009R Right Mirror Bracket Weldment 1
12 A00-0203 TEKT-ASM-009 Left Mirror Bracket Weldment 1
13 A00-0371 TEKT-0175 New LED Work Light (Blazer Intl) 4
14 A00-0389 KUBX2380-NOSTRIL Plastic Light Nostril 2
15 A00-0413 FLANGE-NUT-5-16 Flange Nut, 5/16", YD 2
16 Ki2-0001 CS2520-029 Lower Front Window Glass 2
Accessories Breakdown
2021-10-27 Imp.
B
SCALE 0.140
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Notice of Confidentiality
Tektite Manufacturing Inc.
24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada
Daryl Furkalo CS2520-ASM-14
