KIP 75 Series User manual

75 Series
User Manual
Version A.3
November 24, 2020

(1)
Thank you for purchasing the Multi-Function Printer KIP 7570 Series.
This Hardware Operation Guide contains functional and operational explanations for the KIP 7570
Series.
Please read this Hardware Operation Guide carefully before using the printer.
Please keep this Hardware Operation Guide for future reference.
1. When this product is installed in North America.
This product complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This product may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the product.
Note: This product has been tested and found to comply with the limits for a Class A digital
equipment, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the product is operated in a
commercial environment. This product generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual,, may cause
harmful interference to radio communications. Operation of this product in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
This product complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this product may not cause
interference, and (2) this product must accept any interference, including interference that may
cause undesired operation of this product.
Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d’Industrie
Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes : (1) I’appareil ne doit pas produire de brouillage, et (2) I’utilisateur
de I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en comprometter le fonctionnement.
Contains FCC ID: VP8-13551 Contains IC: 7391A-13551
2. When this product is installed in Europe
This product complies with the requirements in CISPR 32 for a Class A computing equipment.
Operation of this product in a residential area may cause unacceptable interference to radio
and TV reception requiring the operator to take whatever steps are necessary to correct the
interference.
Do not install product around other electronic equipment or other precision instruments.
Other equipment may be effected by electrical noise during operation.
If the product is installed near other electronic equipment, such as a TV or a radio,
interference to said equipment, such as noise or flickering, may occur.
Use a separate power line and install the PRINTER as far as possible from said equipment.

(2)
The International ENERGY STAR ® Office Equipment Program is an international program that
promotes energy saving through the penetration of energy efficient computers and other office
equipment. The program backs the development and dissemination of equipment with functions
that effectively reduce energy consumption. It is an open system in which business proprietors can
participate voluntarily. The targeted products are office equipment such as computers, monitors,
printers, facsimiles, copiers, scanners, and multifunction devices. Their standards and logos are
uniform among participating nations.
Das Gerät ist nicht für die Benutzung am Bildschirmarbeitsplatz gemäß BildscharbV vorgesehen.
The product shown with available options. May vary from the actual product.
The symbol shown indicates that this product conforms to Directive
2012/19/EU of the European Parliament and the council of 4 July
2012 on waste electrical and electronic equipment (WEEE) and does not
apply to countries outside of EU.
KIP 7570 Series is an ENERGY STAR qualified Wide Format Printer / MFP
equipment.
The symbol shown indicates that this product conforms to
SJ/T11364-2006 of People’s Republic of China Electronic
Industry Standard and does not apply to countries outside of
People’s Republic of China.
The symbol shown indicates that this product conforms to GB
18455-2001, SJ/T 11364-2006 of National Standard of the
People’s Republic of China and does not apply to countries
outside of People’s Republic of China.

(3)
The following warnings are very important in order to safely use this product.
These notes are important in preventing danger to the operator or operation of the printer.
The following symbols are found throughout the USER’S Manual and have the following meaning:
CAUTION
This CAUTION mark means that there is a possibility of injury or physical
damage if you ignore or do not follow the said instruction.
When marked with this symbol, “DO NOT ATTEMPT”.
When marked with this symbol, “pay close attention to”.
Safety Warning
WARNING
This WARNING mark means that there is a possibility of death or serious
injury if you ignore or do not follow the said instruction.
There are extremely hot parts inside.
Do not touch any parts, or you will be burnt.

(4)
WARNING
1. The Power source should be as follows:
220 to 240V plus 6% or minus 10%, 50/60Hz, 16A or higher
2. Use a circuit with a dedicated breaker.
3. Install the product as close to the wall outlet as possible.
4. If you wish to move the printer, please contact your service personnel.
Ground the product with a correct ground source or you may be electrically
shocked.
1. Do not plug in the printer into a multi-wire connector in which some other
equipment is plugged into.
It may cause a fire due to outlet overheating.
2. Do not damage the Power Cord by stepping on or placing heavy items
on it.
If the Power Cord is damaged, it may cause a fire or you may receive
an electric shock. REPLACE THE CORD IF DAMAGED!
1. Do not put a flower vase, a flowerpot or any water-filled item on the
product.
Spilt water could cause a fire or an electric shock.
2. If the product generates an abnormal smell or noise, turn it off and
unplug it from the wall electrical outlet immediately.
1. Do not remove the screw and do not open the cover if not instructed to
do so in this User’s Manual. If you ignore this warning, you may be burnt
or receive an electric shock due to a hot item or electrically charged part
inside of the printer.
2. Do not disassemble or tamper with the printer.
It may result in a fire or an electrical shock.
Do not throw the toner into a fire or other sources of heat, as it can
explode.

(5)
CAUTION
There are hot items inside of the printer.
Take great care not to touch these items when you remove mis-fed media.
Do not pull the cord when you unplug the printer as you may damage the
Power Cord.
1. Unplug the printer before you move it.
The power cord may be damaged and it may result in a fire or electric
shock.
2. If you do not use the printer for a long duration (holidays, company
shutdown) turn off and unplug the printer from the outlet for safety.
Ventilate the room well if you print in a small area.
1. Do not install the printer in a humidified room or a dusty room.Also, do
not install the printer on an unstable floor as injuries may occur.
2. This equipment is not suitable for use in locations where children are
likely to be present.

(6)
POWER CORD INSTRUCTION
The installation of (or exchange to) a power plug which fits in the wall outlet of the installation
location shall be conducted in accordance with the following:
WARNING
Select a power plug which meets the following criteria;
- The plug has a voltage and current rating appropriate for the product’s rating marked on
its name plate.
- The plug meets regulatory requirements for the area.
- The plug is provided with a grounding pin or terminal.
If the appropriate plug does not fit the wall outlet in the installation, the customer shall install an
appropriate outlet.
Connector Type:
Configuration Standard Rating Usually found in
IEC60320:C19 20A 250V (UL)
16A 250V (IEC)
Plug Type: Model Rating 220-240V
Configuration Standard Rating Usually found in
NEMA6-20 20A 250V North America
(UL Listed)
CEE7/7 16A 250V European countries
KS C 8305 16A 250V Korea
AS/NZS 3112 16A 250V Australia
New Zealand
GB1002
GB2099.1
16A 250V China
IRAM 2073 16A 250V Argentina
Cord Type
Standard Rating Usually found in
SJT 3X12AWG Long <4.5m 20A 250V North America
(UL Listed)
HO5VV-F 3X1.5mm216A 250V European countries
Argentina
RVV 3X1.5mm216A 250V China

Chapter 1 Before Use1-1
Chapter 1
Before Use
Page
.
1. 1 Installation Requirements 1-2
1. 2 Originals Prohibited from Duplication 1-3
1. 3 Features 1-4
1. 4 Specifications 1-5
1. 4. 1 General 1- 5
1. 4. 2 Printer Part 1- 6
1. 4. 3 Scanner part (for MFP Model) 1- 8
1. 5 Appearance 1-9

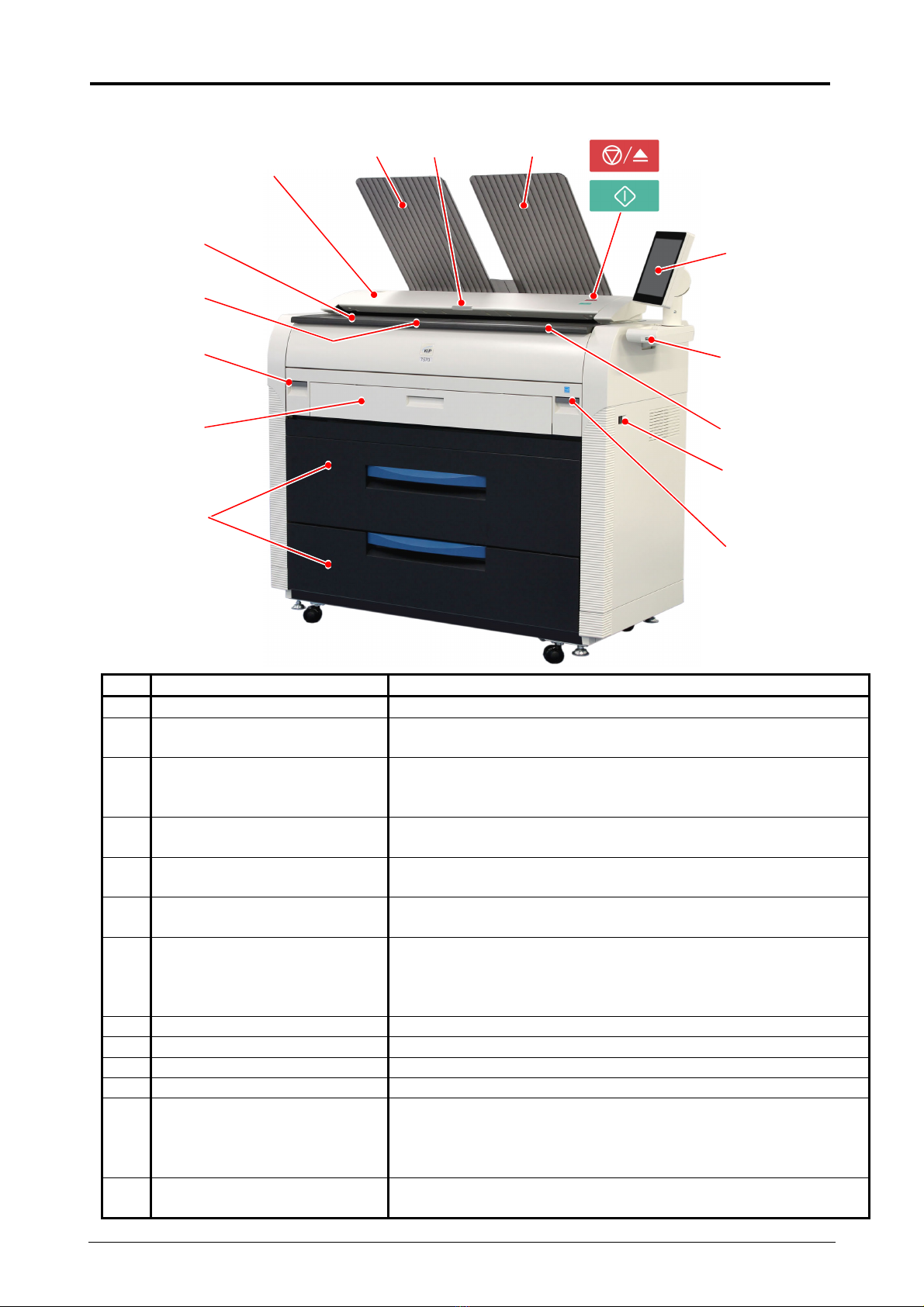

1. 5. 1 Front view 1- 9

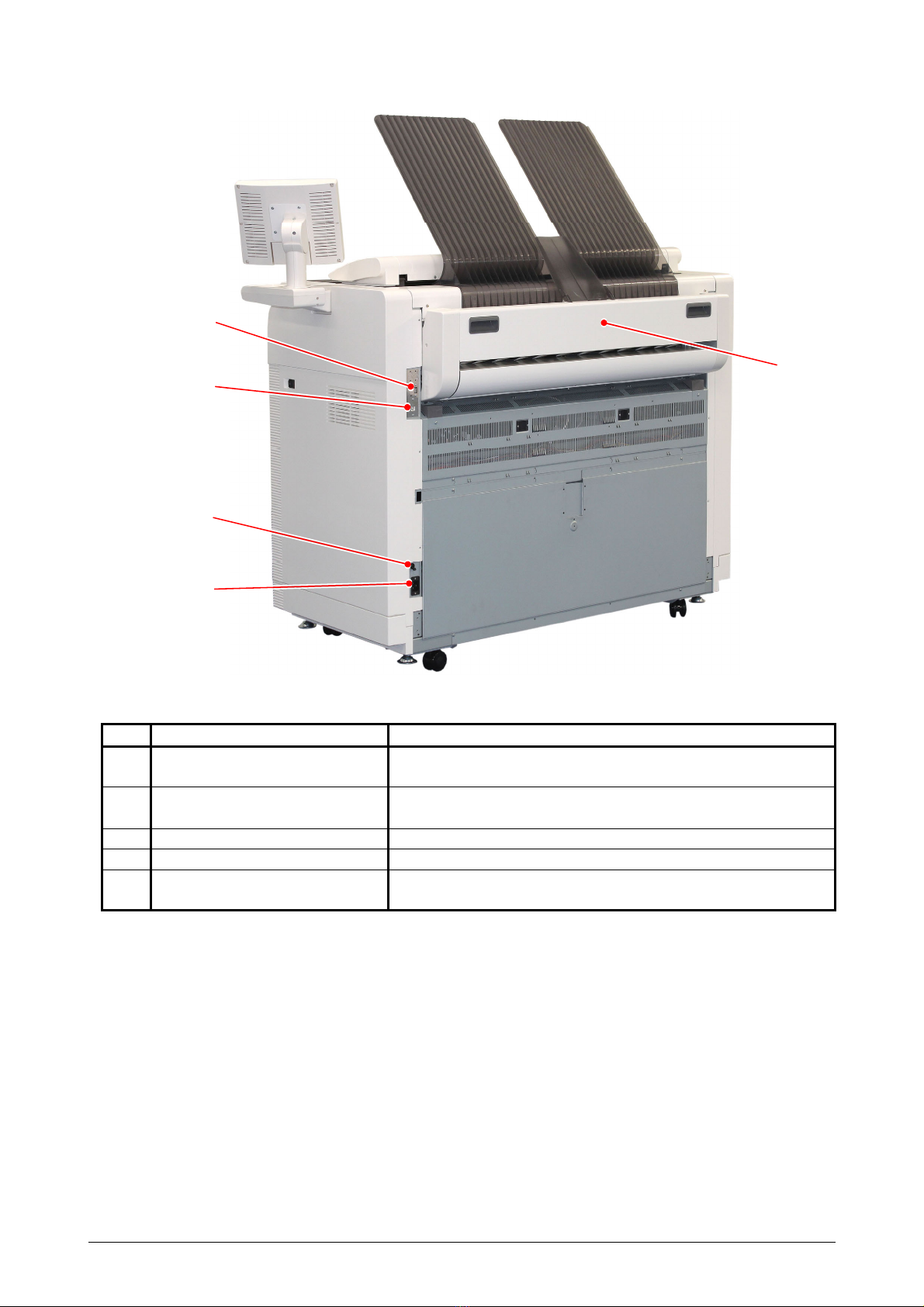

1. 5. 2 Rear view 1-10
1. 6 Specifications for Scan Original (for MFP Model) 1-11
1. 6. 1 Original - Standard 1-11
1. 6. 2 Special Documents 1-11

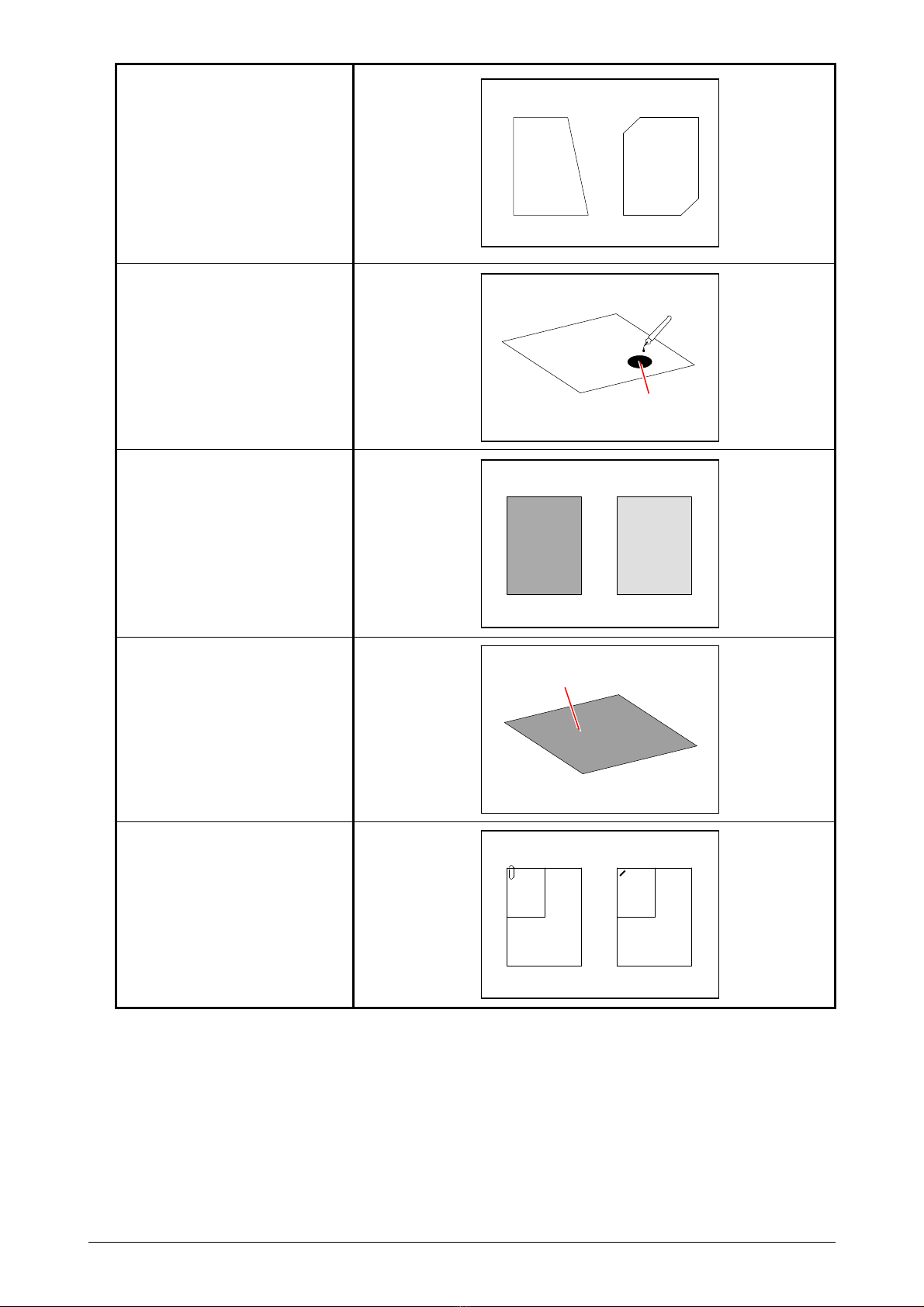

1. 6. 3 “Do Not Scan” Originals 1-12
1. 7 Specifications for the Printing Media 1-15
1. 7. 1 Papers not available to use 1-15
1. 7. 2 Keeping the paper in the custody 1-16

Chapter 1 Before Use1-2
1. 1 Installation Requirements
The following conditions are required for installation of the equipment.
1. POWER SOURCE should be rated as follows.
220V to 240V plus 6% or minus10%, 50/60Hz, 16A or higher
2. The equipment must be on an exclusive circuit.
3. The outlet must be near the equipment and easily accessible.
1. Make sure to connect this equipment to a grounded outlet.
2. For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near
the equipment and shall be easily accessible.
The site temperature range = 10 to 32 degrees Centigrade, with the humidity between
15% to 85% RH. (NON CONDENSING)
Keep the printer away from water sources, boilers, humidifiers, refrigerators or kerosene
(oil) stove.
1. The installation site must not have open flames, dust or ammonia gases.
2. The equipment must not be exposed to the air vents from air conditioners.
It may affect the image quality.
3. The equipment should not be exposed to the direct sunlight.
Please draw curtains to block any sunlight.
When you open the Movable Unit, do not expose the Photoconductive Drum
to strong (intense) light as this will damage the Drum.
Ozone will be generated while this equipment is use, although the quantity generated
is within safe levels. (see certifications)
Ventilate the room, if required.
Keep ample room around the equipment to ensure comfortable operation.
(Refer to the following figure.)
The equipment must be leveled and the floor strength must be ample to sustain the
weight of the equipment.
* L + R = 35cm/14” or larger
(R must be larger than L)
(L = 5cm/2” or larger
recommended)
R*
30cm/12” or larger
(Rear)
L*
(Front)
80cm/32” or larger
1560mm / 62”
720mm / 29”
KIP 7570
Series

Chapter 1 Before Use1-3
1. 2 Originals Prohibited from Duplication
It is not necessarily allowed to copy every kind of original.
You may be punished by the law if only you possess the copy of some kind of original.
We recommend you to consider enough before you copy such original.
[Originals prohibited from copying by the law]
1. It is not allowed to copy Currency (Bill, Money, Bank Note, etc.), Government issued
Negotiable Instruments (National Bonds, Security, Local Debt Bonds, etc.).
2. It is not allowed to copy Foreign Currency or Foreign Negotiable Instruments.
3. It is not allowed to copy unused postal stamps or government postcards without permission
to make replica from Government.
4. It is not allowed to copy Government issued revenue stamps, certificate stamps which are
prescribed by Liquor Tax Act or the Commodity Tax Act.
[Special items to be cared]
1. It is warned by the government to copy private issued securities (stock certificate, draft,
check, goods ticket, etc.), commutation ticket or book of tickets, excluding that some specific
company copies such originals as many as it requires for its own business.
2. We recommend you not to copy freely such originals as government issued passport, public
or private issued licenses, automobile inspection certification, IDs and tickets like pass or
meal.
Reference Law Prohibited items to copy
Regulations to control fake currency and
Bond.
Currency (Bill, Money, Bank Note, etc.),
Government issued Negotiable Instruments
(National Bonds, Security, Local Debt Bonds,
etc.)
Control Law against Forged & faked
Foreign Currency, Bill, Bank Note and Bond
Foreign Currency or Foreign Negotiable
Instruments
Forged postal stamps control law Unused postal stamps or government postcards
Forged revenue stamps control law Government issued revenue stamps, and
certificate stamps prescribed by Liquor Tax Act
or Commodity Tax Act
Currency similarity securities Control Law Private issued securities (stock, draft, check,
goods ticket, etc.), commutation or book tickets
[Originals protected by the copyright]
It is prohibited to copy such originals as book, music, paintings, printed copy, maps, drawings,
movie and pictures which are protected by the copyright, except for personnel or family use or
similar purpose.

Chapter 1 Before Use1-4
1. 3 Features
(1) KIP 7570 Series is an Electro Photographic wide format LED printer/MFP.
Advanced drivers and comprehensive print utilities make the KIP 7570 an advanced, easy to
use system. (some functions may be optional)
(2) Selection from 4 models are available according to the requirement.
- 4 rolls wide format MFP model
- 4 rolls wide format printer model
- 2 rolls wide format MFP model
- 2 rolls wide format printer model
(3) KIP HDP technology generates no waste toner.
(4) The KIP HDP Plus imaging system produces high definition lines, distinctive greyscale and
consistent blacks.
(5) Density Compensation Process provides consistent image density in various environments.
(6) KIP 7570 Series Printer can make a print in a speed of 100mm per second.
- E : 5.2 prints/minute, D (Landscape) : 10 prints/ minute
- A0 : 4.9 prints/minute, A1 (Landscape) : 9.5 prints/ minute
(7) The maximum paper width is 36” (914mm) wide, and the minimum is 11” (279mm).
The maximum paper length is 6m (with 36” paper) or, and the minimum is 8.5” (210mm).
(8) Flange type loading mechanism eases operator’s media loading work.
(9) Up to 600dpi print resolutions with an enhanced scanning system produces the highest quality
images controlled by an advanced KIP Image Process System.
(10) Easy access to USB port allows users to provide efficient productivity by using “File to Print” /
“Scan to USB” (option).
(11) 2-way print delivery (front, up to 50 sheets of plain paper / rear) suits the preference of the
user’s print handling. (rear stacking requires a stacking device, option)
(12) Use of optional hardware finisher devices helps handling of the finished prints.
Available optional finisher are;
- Auto Stacker : About 200 prints (Bond/PPC) can be stacked.
- Online Folder
(13) Contactless IC card reader for more efficient accounting management (option)
(14) 12" multi-touch panel allows for tablet-like operation and image viewing.

Chapter 1 Before Use1-5
1. 4 Specifications
1. 4. 1 General
Subject Specification
Model KIP 7570 Series
-KIP 7570M : Wide Format MFP with 2 Roll / 4 Roll
-KIP 7570P : Wide Format Printer with 2 Roll / 4 Roll
Configuration Console
Power consumption Maximum : 3000W or less
Copy / Printing : 1500Wh (Ave.)
Ready : 430Wh (Ave.)
Power consumption
(Low power mode)
Conformity with International Energy Star Program.
Acoustic noise Ready Max. 50db
Printing Max. 57db
(impulse sound excluded) EN ISO 7779
Ozone Max. 0.05ppm (Measurement method under UL Standard)
Dimensions KIP 7570 MFP Model (In case of excluding UI, Tray)
-1356mm (Width) x 720mm (Depth) x 1185mm (Height)
KIP 7570 MFP Model (In case of including UI, Tray)
-1560mm (Width) x 720mm (Depth) x 1580mm (Height)
KIP 7570 Printer Model (In case of excluding UI, Tray)
-1356mm (Width) x 720mm (Depth) x 1095mm (Height)
KIP 7570 Printer Model (In case of including UI, Tray)
-1560mm (Width) x 720mm (Depth) x 1580mm (Height)
Weight KIP 7570 MFP Model
-about. 281kg (620lb) (4 Roll Model)
KIP 7570 Printer Model
-about. 263.5kg (581lb) (4 Roll Model)
Environmental condition
for usage
(Temperature)
10 to 32 degrees Centigrade / 50 to 89.6 F
(Humidity)
15 to 85% RH
Interface Network Interface (10 BASE-T / 100 BASE-TX / 1000 BASE-T)
USB2.0 (5VDC max)
Rating 220V to 240V plus 6% or minus 10%, 50/60Hz, 13A
NOTE
The above specifications are subject to change without notice.

Chapter 1 Before Use1-6
1. 4. 2 Printer part
Subject Specification
Printing method LED Array Electro photography
Photoreceptor Organic Photoconductive Drum
Print speed 100mm per second
(Inch) 5.2ppm / E 10 ppm / D Landscape
(Metric) 4.9ppm / A0 9.5ppm / A1 Landscape
Print head LED Array
Resolution of print head 600dpi x 2400dpi
Print width Maximum 914mm / 36”
Minimum or 297mm / 11” (roll media)
or 210mm / 8.5” (cut sheet)
Print length Maximum
(Standard) 6,000mm / 19.7ft for 36” / A0 wide (plain paper / bond)
or “5 x Standard length” (plain paper / bond)
“2 x Standard length” (tracing paper / vellum)
“1 x Standard length” (film)
(Option) 200,000mm
Minimum 210mm / 8.5”
Paper feeding method 2 Roll Decks / 4 Roll Decks
Manual Feeder (single cut sheet)
Warm up time Shorter than 4 minutes
(At 23oC, 60%RH, the rated voltage, and plain paper is used)
First print time 22 seconds (D Landscape, Rear Stacking)
24 seconds (A1 Landscape, Rear Stacking)
(At 23oC, 60%RH, the rated voltage, and plain paper is used)
Fusing method Heat and Pressure Rollers
Development method Dry type non-magnetic mono-component toner
NOTE
If the print is longer than the mentioned above, its image
quality or the reliability of paper feeding is not guaranteed.

Chapter 1 Before Use1-7
Subject Specification
Media (Recommended Media)
US model:
Bond 64g/m2to 80g/m2, US Bond (PB-20)
Vellum US Vellum (XV-20)
Film 4MIL (PF-4DME)
UK / EU / Asia model:
Plain Paper 64g/m2to 80g/m2
Diamond Plain Paper (80 g/m2 )
Tracing Paper Gateway Tracing Paper (73g/m2 )
Film NSF4mil
Storage of consumables (Toner cartridge)
Store the cartridge within the temperature range from 0 to
40 degrees Centigrade and within the humidity range from 10
to 85% RH.
NOTE
The above specifications are subject to change without notice.

Chapter 1 Before Use1-8
1. 4. 3 Scanner part (for MFP Model)
Subject Specification
Scanning method Contact Image Sensor (CIS)
(5 pieces of A4 sized CIS)
Light source LED (R/G/B)
Scanning speed
(600 dpi, normal quality)
(max)
Monochrome : 65mm/s
Grayscale : 65mm/s
Color : 22mm/s
NOTE : The actual speed may vary by the scan software.
Setting of original Face up
Starting point of scan Center
Scan width Max: 914.4mm / 36”
Min : 210mm
Scan length Max: 6,000mm / 19.7ft (Including the margin area)
Min : 210mm / 8.5” (Including the margin area)
NOTE :
If the print is longer than 6,000mm, its image quality or the reliability of paper feeding is not
guaranteed.
Optical resolution 600dpi
Digital resolution 200 / 300 / 400 / 600 dpi
Original transportation Sheet through type
Transportable original
thickness
Max: 1.60mm
Min : 0.05mm
NOTE :
Suggest to change “It does not guarantee both scan/copy image quality and original feeding
reliability in case the original is non-standard size one of which thickness is 0.25mm or thicker.
NOTE
The above specifications are subject to change without notice.

Chapter 1 Before Use1-9
1. 5 Appearance
1. 5. 1 Front view
No. Name Function
1 Main Switch You can turn ON/OFF the KIP 7570.
2 Original Guides Feed the original under the Scanner Unit along the Original
Guides.
3 User Interface This is a Touch Screen, and many kinds of user operation
are available.
PLEASE DO NOT push the LCD area too strong.
4 Scan Abort Button While scanning: emergency stop
At Standby position: eject
5 Start Button Starts scanning if the controlling software requires user
intervention.
6 Scanner Unit
(MFP Model Only)
Read the original with this unit when you make scan or copy.
7 Toner Hatch
(Original Table)
Open the Toner Hatch when you replace the Toner
Cartridge.
Also put the original here and then feed it into the Scanner
Unit when you make scan or copy.
8 Engine Unit Open Lever Pull up these levers when you open the Engine Unit.
9 Bypass Feeder Feed a cut sheet paper from the Bypass Feeder.
10 Roll Deck Roll media can be loaded here.
11 Print Tray These trays catch ejected prints.
12 LED Indicator Indicates the status of Scanner Unit.
green: Ready red: Error
green to-and-fro: Scanning red flashing:Scanner Unit Open,
Jam
13 USB Port (USB 2.0) Your USB flash memory storage can be installed here.
5VDC max.
1
4
6
10
3
8
2
8
11
9
11 12
7
5
13
2

Chapter 1 Before Use1-10
1. 5. 2 Rear view
No. Name Function
1 Paper Exit Door Open the Paper Exit Door when you remove the paper
misfed inside the Fuser Unit.
2 LAN Port Connect the LAN Cable to connect the KIP 7570 to the
network. (Do not connect a telephone line)
3 Breaker It is possible to shut off supplying the AC power.
4 Inlet Socket Connect the Power Cord here.
5 USB Port (USB 2.0) For an optional device
Service Use. 5VDC max.
1
2
3
4
5

Chapter 1 Before Use1-11
1. 6 Specifications for Scan Original (for MFP Model)
A scan original must satisfy the following specifications.
Thickness 0.05mm to 1.60mm
Width 210mm to 914.4mm
Length 210mm to 6,000mm
NOTE :
1. Suggest to change “It does not guarantee both scan/copy image quality and original feeding reliability in case the original is non-
standard size one of which thickness is 0.25mm or thicker.
2. Image quality for an original over 6,000mm in length is not guaranteed.
1. 6. 1 Original Standards
(1) The width of original must range from 8.5” to 36” (210mm to 914.4mm).
(2) The length of original must range 8.5” (210mm) to 6,000mm
(3) The thickness of original must range from 0.05mm to 0.25mm.
(4) The shape of original must be square, and it must be standard sized.
(5) The type of original must belong to any of the followings.
Plain paper
Coated paper (High or middle class plain paper is coated with the paint.)
Tracing paper
Pansy Trace Paper (Both sides of the film is sandwiched between Tracing paper.)
Film
Newspaper
Cardboard paper
1. 6. 2 Special Documents
The following kinds of originals are “special”. It is possible to scan them, but the image quality
and feed reliability are not guaranteed.
(1) The type of original is acceptable, but the thickness and type may not be:
Booklets
Original with a Hanger
Cut and Pasted originals
(2) These original may not damage the scanner, but these types are NOT recommended:
following ones.
Cloth
Aluminium Kent Paper

Chapter 1 Before Use1-12
1. 6. 3 “Do Not Scan” Originals
It is impossible to use the following types of originals because they are likely to damage the
scanner.
Do not scan the following kinds of original, because you may damage the original or scanner itself!
Sticked with paste
Torn
Folded (Leading edge)
So much curled
(Diameter is smaller than
80mm.)
Paste

Chapter 1 Before Use1-13
Not square
Wet image
Made of metal or fabric
Rough surface
(Carbon paper for example)
Clipped or stapled
Wet
Metal Fabric
Clipped Stapled
Rough surface
