KitchenAid KXA42 User manual

Brasil
KXA42
W11032845A_EN_Final.indd 1 2/17/17 2:37 PM

W11032845A_EN_Final.indd 2 2/17/17 2:37 PM

ENGLISH
| 3
COFFEE MAKER SAFETY �������������������������������������������������������������������������������������4
Important safeguards �������������������������������������������������������������������������������������4
Electrical requirements�����������������������������������������������������������������������������������6
PARTS AND FEATURES�����������������������������������������������������������������������������������������7
Parts and accessories��������������������������������������������������������������������������������������7
Display and control panel features�����������������������������������������������������������������8
OPERATING THE COFFEE MAKER ���������������������������������������������������������������������9
Installing the water filter���������������������������������������������������������������������������������9
Setting the clock�������������������������������������������������������������������������������������������11
Setting brew strength�����������������������������������������������������������������������������������11
Filling the Coffee Maker with water for brewing �����������������������������������������12
Pause and pour feature ��������������������������������������������������������������������������������12
Filling the filter basket����������������������������������������������������������������������������������13
Coffee dosage guide������������������������������������������������������������������������������������14
Programming the auto feature���������������������������������������������������������������������15
Using the previously programmed auto time�����������������������������������������������16
Brewing coffee����������������������������������������������������������������������������������������������17
CARE AND CLEANING���������������������������������������������������������������������������������������18
Cleaning the Coffee Maker ��������������������������������������������������������������������������18
TROUBLESHOOTING������������������������������������������������������������������������������������������20
TABLE OF CONTENTS
W11032845A_EN_Final.indd 3 2/17/17 2:37 PM

4 | COFFEE MAKER SAFETY
COFFEE MAKER SAFETY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety
precautions should always be followed, including
the following:
1. Read all instructions. Misuse of appliance may result in
personal injury.
2. The heating element surface is subject to residual heat
after use. Do not touch hot surfaces. Use handles or
knobs.
3. To protect against re, electric shock, and personal
injury do not immerse cord, plugs, or appliance in
water or other liquids.
4. This appliance can be used by children aged from 8
years and above, and persons with reduced physical,
sensory, or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they
are older than 8 years and are supervised.
W11032845A_EN_Final.indd 4 2/17/17 2:37 PM

ENGLISH
COFFEE MAKER SAFETY | 5
COFFEE MAKER SAFETY
5. Keep the appliance and its cord out of reach of
children under 8 years of age.
6. Unplug Coffee Maker from outlet when not in use and
before cleaning. Allow to cool before putting on or
taking off parts and before cleaning the appliance.
7. Do not operate any appliance with a damaged cord
or plug or after the appliance malfunctions or has
been damaged in any manner. Return appliance to the
nearest Authorised Service Centre for examination,
repair, or adjustment.
8. The use of accessory attachments not recommended
by the appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or
touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or
in a heated oven.
12. Do not use appliance for other than intended use.
Misuse of the appliance may result in personal injury.
13. Do not use appliance without lid properly placed on
carafe.
14. The carafe is designed for use with this appliance. It
must never be used on a range top or in a microwave
oven.
15. Do not set a hot carafe on a wet or cold surface.
16. Do not use a cracked carafe or a carafe having a loose
or weakened handle.
17. Do not clean carafe with abrasive cleaners, steel wool
pads, or other abrasive material.
18. Scalding may occur if the brew basket is opened
during the brew cycles.
SAVE THESE INSTRUCTIONS
THIS PRODUCT IS DESIGNED FOR HOUSEHOLD USE ONLY.
W11032845A_EN_Final.indd 5 2/17/17 2:37 PM

6 | COFFEE MAKER SAFETY

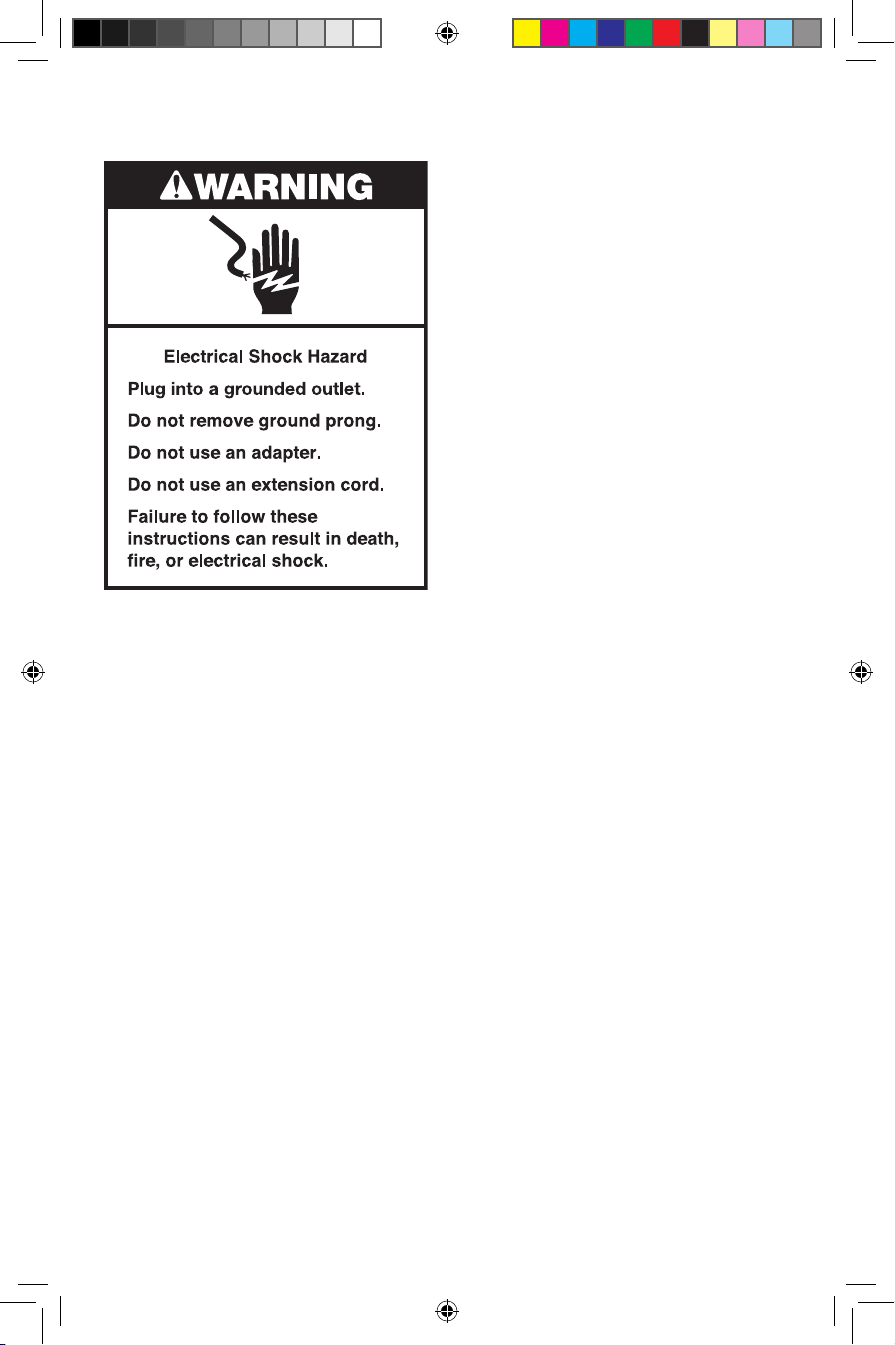

ELECTRICAL REQUIREMENTS
NOTE: This Coffee Maker has a grounded
plug� To reduce the risk of electrical
shock, this plug will fit in an outlet only
one way� If the plug does not fit in the
outlet, contact a qualified electrician�
Do not modify the plug in any way�
Do not use an extension cord� If the
power supply cord is too short, have
a qualified electrician or service personnel
install an outlet near the appliance�
COFFEE MAKER SAFETY
W11032845A_EN_Final.indd 6 2/17/17 2:37 PM

ENGLISH
PARTS AND FEATURES | 7
PARTS AND FEATURES
PARTS AND ACCESSORIES
Programmable display
Glass carafe
Charcoal filter
Filter assembly
Carafe lid
Filter basket
Water tank window
Brew basket
Brew head
Gold Tone permanent filter Water tank lid
Water tank
Cord storage in base
(not shown)
Warming plate
W11032845A_EN_Final.indd 7 2/17/17 2:37 PM

8 | PARTS AND FEATURES
Control panel
PARTS AND FEATURES
DISPLAY AND CONTROL PANEL FEATURES
Programmable display
Brewing status icon
Auto indicator
Clock
Bold strength indicator
Regular strength indicator
Warming status icon
Clean indicator
Small batch indicator
W11032845A_EN_Final.indd 8 2/17/17 2:37 PM

ENGLISH
OPERATING THE COFFEE MAKER | 9
INSTALLING THE WATER FILTER
IMPORTANT: Every time you install a new
water filter, run the Coffee Maker through
a complete brew cycle without coffee�
Use a full carafe of clean, cool water�
OPERATING THE COFFEE MAKER
1
Place the charcoal filter in a
container filled with fresh, cool
water� The charcoal filter should
remain submerged in the water
for 10 minutes� Rinse the charcoal
filter under running water for
5 seconds after soaking�
Before first use
Wash the Gold Tone permanent filter, filter
basket, and carafe in hot, soapy water; then
rinse with clean water and dry� Do not use
abrasive cleansers or scouring pads�
NOTE: These parts can also be washed
in the top rack of the dishwasher�
Installing the charcoal filter
Using the filter is optional but strongly
recommended� The Coffee Maker will
operate normally without the filter, but it
reduces contaminants that can impair
coffee flavour�
The filter is for use only with municipally
treated tap water or well water that is
regularly tested for contaminants; it is not
intended to remove contaminants in water
that is not suitable for drinking�
3Lift the water tank lid using
the tab at the front of the lid�
2Put the charcoal filter into the filter
assembly� Snap to close�
W11032845A_EN_Final.indd 9 2/17/17 2:37 PM

10 | OPERATING THE COFFEE MAKER
4
Place the filter assembly in the well
at the bottom of the water reservoir�
Push the filter assembly slightly to
make sure it fits snugly�
OPERATING THE COFFEE MAKER
5
Cord is stored in base� If needed,
gently pull cord outwards until
fully extended or just long enough
to reach the outlet� Plug into a
grounded outlet�
W11032845A_EN_Final.indd 10 2/17/17 2:37 PM

ENGLISH
OPERATING THE COFFEE MAKER | 11
NOTE: When the Coffee Maker is first plugged in or when power is restored after
an interruption, the display will initially show 12:00�
OPERATING THE COFFEE MAKER
SETTING THE CLOCK
1
To set the hour: Press HOUR�
The Hour setting will begin to blink�
The Hour digits will change with
each press; or press and hold to
scroll rapidly�
2
To set the minutes: Press MINUTE�
The Hour setting will switch to a
solid display and the Minute setting
will begin to blink� The Minute digits
will change with each press; or press
and hold to scroll rapidly�
To save the current displayed time
and exit clock setup: Wait for
10 seconds, or press any button
(, , , , )�
SETTING BREW STRENGTH
1
To switch between Regular ( ) and
Bold ( ) brew strengths: Press
to toggle between Regular and Bold
until you reach the strength desired�
NOTE: Regular is the default setting�
W11032845A_EN_Final.indd 11 2/17/17 2:37 PM

12 | OPERATING THE COFFEE MAKER
OPERATING THE COFFEE MAKER
FILLING THE COFFEE MAKER WITH WATER FOR BREWING
TIP: Brew two pots of fresh, cool water and discard before brewing the first
pot of coffee�
1
Lift the water tank lid and fill
with enough fresh, cool water to
make the desired amount of coffee�
Use the cup indicators on the water
tank window to view water input�
Close the water tank lid�
2
Place the carafe in the Coffee Maker�
Make sure the bottom of the carafe
is fully seated; otherwise, the Pause
and pour feature may not engage,
causing water and coffee to overflow
the filter basket�
The Pause and pour feature enables you to remove the carafe from the Coffee Maker
and pour a cup of coffee before brewing is finished� When the carafe is removed,
a special valve stops the flow of coffee from the filter basket� However, brewing
does not stop� If the carafe is not placed back in the Coffee Maker within 25 seconds,
water and coffee grounds will overflow the filter basket�
PAUSE AND POUR FEATURE
NOTE: When using the Small Batch brew cycle, make sure to fill the tank with
only the amount of water needed to brew your desired number of cups� If you
put in 1,84 litres of water, the Coffee Maker will brew all 1,84 litres�
W11032845A_EN_Final.indd 12 2/17/17 2:37 PM

ENGLISH
OPERATING THE COFFEE MAKER | 13
OPERATING THE COFFEE MAKER
FILLING THE FILTER BASKET
1
Open the brew basket� Make sure
the filter basket and filter are placed
inside of the basket door before
adding coffee�
NOTE: Do not operate the Coffee Maker without the filter basket in place�
NOTE: If you do not wish to use the
Gold Tone permanent filter, you may
use a flat bottom paper coffee filter
instead; do not use both together�
When using a paper coffee filter,
place the filter inside the filter basket,
pressing the filter into the sides of the
filter basket� Pre-wetting the paper
filter is not required� The paper coffee
filter needs to be placed in the filter
basket before adding ground coffee�
If using the Gold Tone permanent
filter, you may remove the filter from
the filter basket to add ground coffee,
if desired�
AM PM
Auto
Bold
Regular
Small Batch
Clean
2
Use the “Coffee dosage guide”
to add the appropriate amount of
ground coffee to the filter basket�
Shake the filter basket slightly to
even out the bed of coffee, then
close the brew basket�
W11032845A_EN_Final.indd 13 2/17/17 2:37 PM

14 | OPERATING THE COFFEE MAKER
For best results, use a kitchen scale and the chart below when
filling the filter basket with coffee grounds� As a baseline, use
medium ground coffee (see picture to the left)� Alter grind and/or
dosage to taste�
OPERATING THE COFFEE MAKER
COFFEE DOSAGE GUIDE
CUPS* WATER LITRES COFFEE GRAMS
4 MIN 0,61 19
50,76 24
60,92 29
71,07 33
81,22 38
91,38 43
10 1,53 48
11 1,68 52
12 MAX 1,84 57
*Assumes 0,15 litres per cup�
W11032845A_EN_Final.indd 14 2/17/17 2:37 PM

ENGLISH
OPERATING THE COFFEE MAKER | 15
3
To save the current displayed
time and exit Auto: Wait for
10 seconds, or press any button
(, , , , )�
The Auto indicator will remain lit and
the time display will go back to the
current time�
PROGRAMMING THE AUTO FEATURE
1
To program the Coffee Maker to
brew coffee at a preset time: Press
one time� The Auto indicator
light will flash and the time display
will change to the currently set Auto
time (0:00 is the default time�)
2
To set the time the Coffee Maker
should begin brewing: Press HOUR�
The hour digits will change with
each press; or press and hold to
scroll rapidly�
Next, press the MINUTE button� The
Hour setting will stay solid, and the
Minute setting will begin to blink�
The minute digits will change with
each press; or press and hold to
scroll rapidly�
OPERATING THE COFFEE MAKER
4To cancel the Auto time after
programming is complete:
Press again; or press �
W11032845A_EN_Final.indd 15 2/17/17 2:37 PM

16 | OPERATING THE COFFEE MAKER
USING THE PREVIOUSLY PROGRAMMED AUTO TIME
OPERATING THE COFFEE MAKER
1Press � The Auto indicator will
flash and the time display will show
the previously set Auto time�
2
To save the current displayed time
and exit Auto: Wait for 10 seconds,
or press any button ( , ,
, , )� The Auto
indicator will remain lit and the
time display will go back to the
current time�
These steps can be followed to save the Auto time after following the steps in the
“Programming the Auto feature” section�
W11032845A_EN_Final.indd 16 2/17/17 2:37 PM

ENGLISH
OPERATING THE COFFEE MAKER | 17
BREWING COFFEE
TIP: Brew two pots of fresh, cool water and discard before brewing the first
pot of coffee�
1
Press to begin brewing coffee�
The Coffee Maker will beep once,
and the “Brew” icon will light up
when the Brew cycle is started�
To brew 1-4 cups of coffee instead
of an entire pot, press before
pressing � The “Small Batch”
indicator will light up�
2
The Coffee Maker will beep
three times when the Brew cycle
is complete, then will automatically
initiate the 30-minute Warm mode�
The Brewing icon will turn off and
the Warming icon will light up�
After the Warm mode completes,
one long beep will sound�
NOTE: Opening the brew basket while coffee is brewing will interrupt the brew
process and impair flavour�
OPERATING THE COFFEE MAKER
NOTE: Repeat steps 1 and 2 to brew
additional carafes of coffee� Allow the
Coffee Maker to cool for 5 minutes
before starting the next brew cycle�
3
To cancel the Brew cycle or Warm
mode: Press once� The Brew
cycle or Warm mode will be
cancelled�
IMPORTANT: The outside of the carafe may be warm to the touch
after brewing� Use discretion when placing the carafe on uncovered
surfaces immediately after brewing�
W11032845A_EN_Final.indd 17 2/17/17 2:37 PM

18 | CARE AND CLEANING
CARE AND CLEANING
CLEANING THE COFFEE MAKER
Calcium deposits (scale) from water will build up in the Coffee Maker over time and
impair brewing efficiency and coffee quality� If you notice that it takes longer than
usual to brew or that the Coffee Maker is making unusual noises, then it is time to
descale� The “Clean” indicator will flash when the Coffee Maker has completed
100 brew cycles� Descaling should be done as soon as possible to preserve the
performance and life of your Coffee Maker�
1
Before descaling, always remove
the water filter (see the “Installing
the water filter” section) and make
sure the filter basket contains no
coffee or coffee filters�
NOTE: The Coffee Maker can be
descaled using a vinegar and water
solution or by using a packaged
descaling agent� Always mix the
descaling solution using cool water�
When using vinegar, fill the carafe
with a solution consisting of 1/2 vinegar
and 1/2 water�
When using a descaling agent, follow
the directions on the package for
the recommended ratios of descaling
agent and water to use�
The Coffee Maker should be run
through a complete Clean cycle using
a full tank of the descaling solution�
W11032845A_EN_Final.indd 18 2/17/17 2:37 PM

ENGLISH
CARE AND CLEANING | 19
2
When the “Clean” indicator
begins to flash on the display,
run a clean cycle: Press � The
“Clean” indicator will stop flashing�
Then press the BREW button to
begin the Clean cycle�
When the Clean cycle is complete
(approximately 15 minutes), three
beeps will sound, and the “Clean”
indicator will turn off�
4
Reinstall or replace the water filter�
Replace the filter every 3 months
under normal use� Replace it more
often under heavy use�
Auto
Bold
Regular
Small Batch
Clean
5Reinstall the coffee filter�
IMPORTANT: The Clean cycle can be completed at regular intervals, if desired,
without the “Clean” indicator needing to light up� Follow these directions to
clean the Coffee Maker whenever desired�
3Run at least two water-only cycles
after the Clean cycle is complete�
x 2
CARE AND CLEANING
W11032845A_EN_Final.indd 19 2/17/17 2:37 PM

20 | TROUBLESHOOTING
TROUBLESHOOTING
If your Coffee Maker should fail to
operate as expected, please check
the following:
1� If the display is not illuminated:
• Check to see whether the Coffee
Maker is plugged into a grounded
outlet� If it is, check the fuse or circuit
breaker on the electrical circuit the
Coffee Maker is connected to and
make sure the circuit is closed�
2� If only a portion of the water added to
the Coffee Maker actually brews:
• The Coffee Maker requires immediate
descaling� Please refer to the “Care
and cleaning” section�
3� If you hear three rapid tones:
• There is no water in the water tank�
The Coffee Maker will not brew� Fill
the water tank with fresh, cool water
and continue with the brewing cycle
as described in the “Brewing coffee”
section�
4� If “Er1” flashes on the display and you
hear one tone:
• A button may be jammed� Unplug
the Coffee Maker and press each
button several times� Plug the Coffee
Maker into a grounded outlet� If “Er1”
appears again on the display, repeat
this procedure�
5� If coffee overflows the filter basket:
• The brew basket is not completely
closed� Close the brew basket and
ensure it clicks firmly into place�
• Too much coffee was placed into the
filter basket�
6� If water exits from the back of the
Coffee Maker:
• Too much water was poured into the
water tank�
Do not return the Coffee Maker to the
retailer as they do not provide service�
©2017 All rights reserved�
Specifications subject to change without notice�
W11032845A_EN_Final.indd 20 2/17/17 2:37 PM
