30" (76.2 CM) AND 36" (91.4 CM) CLASSIC COMMERCIAL-
STYLE DUAL FUEL CONVECTION RANGE WITH STEAM-ASSIST
®

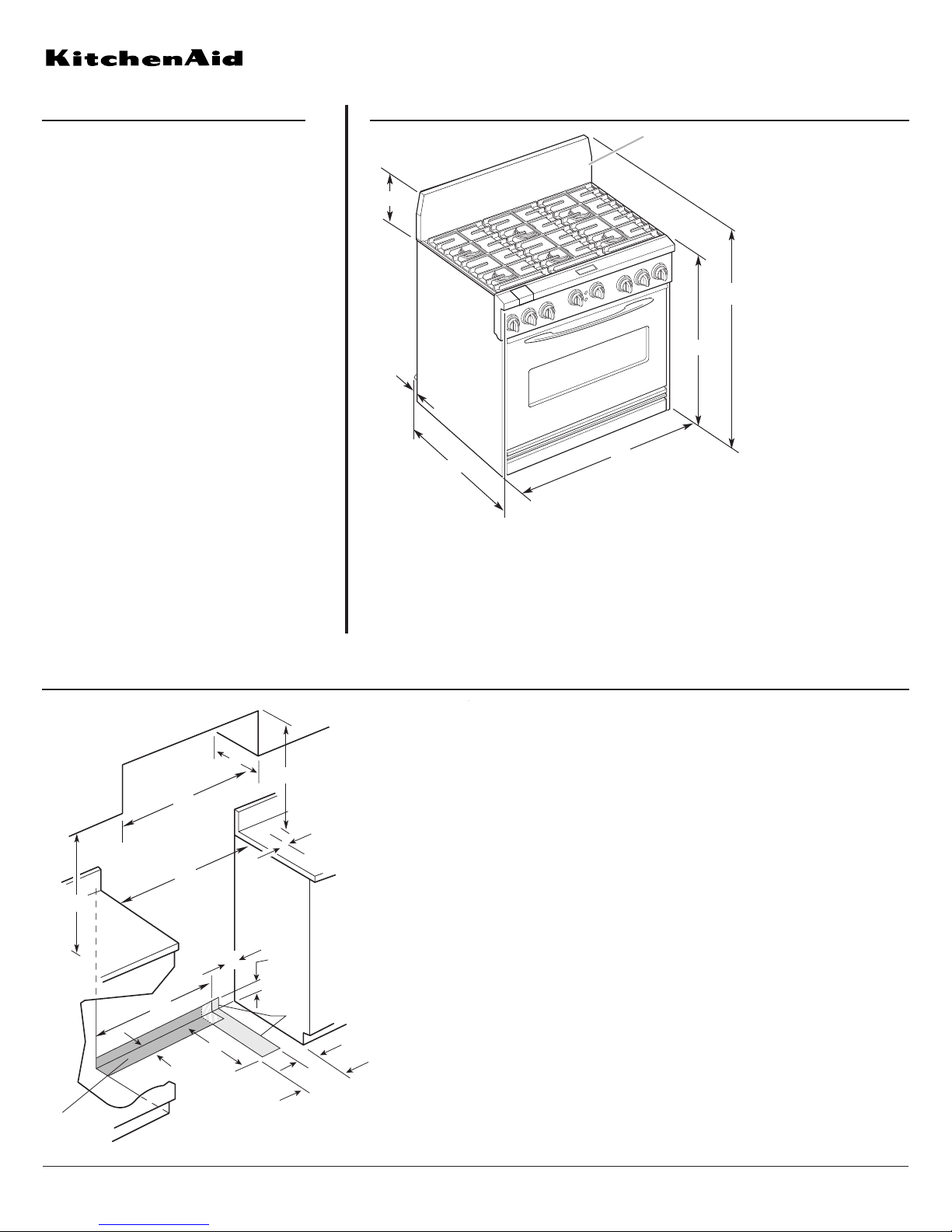

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS
CABINET OPENING DIMENSIONS
KDRP707R
KDRP767R
Gas supply: This range is design-certified by
CSA International for use with Natural gas or, after
proper conversion, for use with LP gas. This range
is factory set for use with Natural gas. The model/
serial rating plate located on the right vertical
surface of the oven door frame has information on
the types of gas that can be used. If the types of
gas listed do not include the type of gas available,
check with the local gas supplier.
Provide a gas supply line of ³⁄₄" (1.9 cm) rigid pipe
to the range location. With LP gas, piping or
tubing size can be ¹⁄₂" (1.3 cm) minimum.
If local codes permit, a new CSA design-certified,
4 - 5 ft (122 - 152.4 cm) long, ⁵⁄₈" (1.6 cm) or ³⁄₄"
(1.9 cm) I.D., flexible metal appliance connector
may be used for connecting range to the gas
supply line. A ¹⁄₂" (1.3 cm) male pipe thread is
needed for connection to the female pipe threads
of the inlet to the appliance pressure regulator.
Electrical: A 4-wire or 3-wire, single phase,
240 volt, 60 Hz., AC only electrical supply is
required on a separate, 30-amp circuit, fused on
both sides of the line. A time-delay fuse or circuit
breaker is recommended. The range can be
connected directly to the fused disconnect (or
circuit breaker box) through flexible, armored or
nonmetallic sheathed, copper or aluminum cable.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 9758978
08-23-05
OFF
F
F
O
OF
F
F
F
O
OFF
F
F
O
OF
F
F
F
O
OF
F
F
O
OFF
F
FO
F
F
O
F
F
O
F
F
O
F
F
O
B
C
D
E*
F
G
A
30" (76.2 cm) model: D= 30" (76.2 cm) width
A. Backguard (required for some installations)
B. 45" (114.3 cm) overall height
C. 36" (91.4 cm) cooktop height with feet loosened ¾ turn
D. 36" (91.4 cm) model: D= 36" (91.4 cm) width
E. 26½" (67.3 cm) width with control panel, See NOTE*
F. ¼" (6.4 cm) spacer
G. 9¼" (23.5 cm) backguard height
F
F
*When installed in a 24" (61 cm) base cabinet with
25" (63.5 cm) countertop; front of oven door protrudes
1⁷⁄₈ " (4.8 cm) beyond 24" (61 cm) base cabinet.
F
B
C
DE
F
G
H
I
M
K
N
O
*
A
J
L
F
A. 18" (45.7 cm) upper cabinet to countertop
30" (76.2 cm) model: B = 22" (55.9 cm)
C. Junction box to be located in this shaded area
D. 4" (10.2 cm)
E. 20" (50.8 cm)
F. 12" (30.5 cm)
G. 5½" (14 cm)
H. Gas line opening to be located in this shaded area
I. 3½" (8.9 cm)
J. 8" (20.3 cm)
30" (76.2 cm) model: K = 30¼" (76.8 cm)
L. 4" (10.2 cm) min. clearance from both sides of range to side
wall or other combustible material
M. For minimum clearance to top of range, see NOTE*
N. 30" (76.2 cm) model: 30" (76.2 cm) min. upper cabinet width
O. 13" (33 cm) max. upper cabinet depth
B. 36" (91.4 cm) model: B = 28" (71.1 cm)
K. 36" (91.4 cm) model: K = 36¼" (92.1 cm)
F
*NOTE: Minimum Clearances
30" (76.2 cm) models: 36" (91.4 cm) minimum clearance
36" (91.4 cm) models: 42" (106.7 cm) minimum clearance
When bottom of wood or metal cabinet is protected by not less than ¹⁄₄" (0.64 cm) flame
retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) models: 42" (106.7 cm) minimum clearance
36" (91.4 cm) models: 48" (121.9 cm) minimum clearance
Between the top of the cooking platform and the bottom of an unprotected wood or
metal cabinet.
If installing a hood or a microwave hood combination above the range, follow the hood
instructions for dimensional clearances above the cooktop surface.
