KitchenAid KOMP 6610 User manual

KOMP 6610

Product description 4
Accessories 5
Control panel 5
Oven functions table 6
Table for Grill-Turbogrill cooking 7
Table for Static and Fan cooking 8
Description of the control panel 10
First use 10
Settings 11
Resetting the language 11
Showroom Mode 12
Safety Characteristics 12
Timer 13
Special Functions 14
Professional Functions 15
Using the heat probe 16
Professional and special cooking table 17
Pyrolytic Cleaning Functions (Self Cleaning) 18

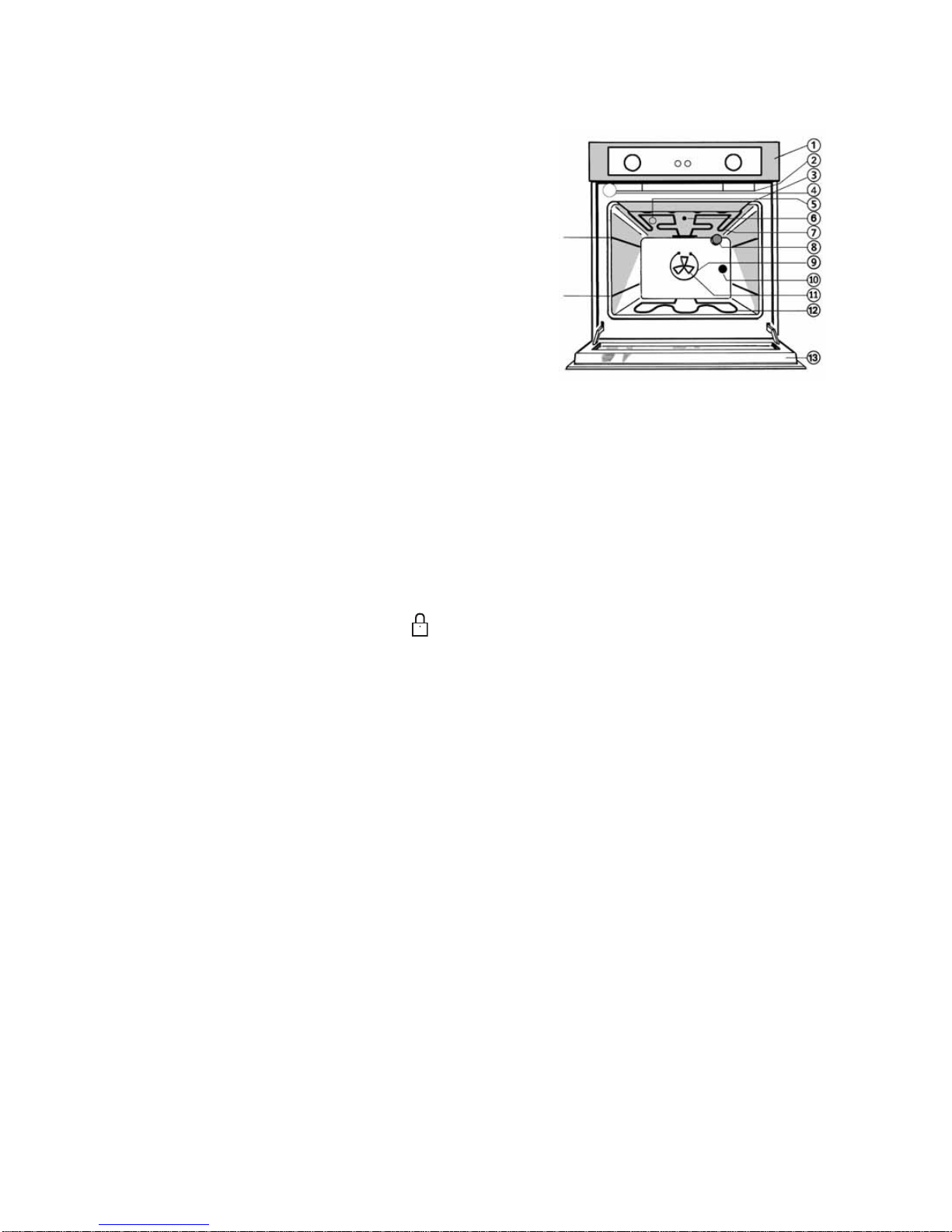

1. Control panel.
2. Cooling fan
1) (not visible).
The fan may continue to operate even after you have
turned the appliance off. This is in order to cool the oven
down.
3. Grill protection
2).
4. Door lock
3).
5. Catalyser.
6. Grill protection.
7. Grill element.
8. Back light
4).
9. Circular element (not visible).
10. Slot for the turnspit.
11. Oven fan.
12. Lower element (not visible).
13. Cold oven door.
1) The activation of the fan is linked to the temperature
level reached by the oven and it can keep running for a
few minutes even after the oven has been turned off.
During Pyrolysis, the fan speed becomes faster than its
speed during cooking.
2) Blocks direct contact with the grill. We would therefore
advise you not to touch the protection when the oven is
on.
3) During Pyrolysis, an automatic
“door lock” device is activated and the symbol
lights up on the display. During cooking, the temperature
of the door increases while still staying at about 40°C, so
keep children away from the oven.
4) When the oven is off, the light comes on automatically
when the door is opened.
Product description
4

Drip tray Baking tray Wire shelf
Heat probe Turnspit Dehydration rack
(optional)
Accessories
5
1. On/Off – Function Selection control knob
2. Cancel selection or return to previous selection button
3. Confirmation button
4. Control knob for changing predefined levels (temperature/time/levels) and moving from one function to
another.
When you have finished cooking, turn the control knob to 0.
Control panel

Function Pre-set Adjustable Function description
temperature temperature
Rapid heating 200°C 50°C - 250°C To pre-heat the oven quickly.
When the set temperature is reached, the function automatically
turns off and a signal is emitted to indicate the automatic change
of the oven to STATIC function.
Static 200°C 50°C - 250°C To cook meat, fish and poultry on the middle shelf.
Pre-heat the oven to the required temperature and put in the
food when the signal sounds indicating the oven is now at the
required temperature.
To grill chops, kebabs, sausages, cook vegetables au gratin
and brown bread. The GRILL function can be adjusted from 1 to
5 for different power levels. Pre-heat the oven for 3-5 mins.
The oven door must stay shut when cooking. When cooking
meat, pour a little water into a dripping pan placed on the first
shelf, to reduce the smoke and fat splatters. Turn the food during
cooking.
To grill large pieces of meat (roast beef, roasts).
The TURBOGRILL function can be adjusted from 1 to 5 for
different levels of heat. Pre-heat the oven for 3-5 mins.
The oven door must stay shut when cooking. When cooking
meat, pour a little water into a drip tray placed on the first shelf,
to reduce the smoke and fat splatters. You should turn the meat
when cooking.
Air heated 160°C 50°C - 250°C To cook the food that requires the same cooking temperature
without preheating, on one or more shelves
(e.g.: fish, vegetables, cakes).
Special functions See the programme sheet (below).
Settings See the programme sheet (below).
Autocleaning See the programme sheet (below).
Professional bread baking function See the programme sheet (below).
Professional cake baking function See the programme sheet (below).
Professional roasting function See the programme sheet (below).
Oven functions table
6
Grill/Turbogrill 3 1-5

FOOD Function Pre-heating Shelf position Heat Level Cooking time
(5 minutes) (from the bottom) (Max) (minutes)
Steaks X 3 - 4 5 30 - 40
Cutlets X 3 - 4 5 30 - 40
Sausages X 3 - 4 5 30 - 40
Chops X 3 - 4 5 35 - 45
Fish (slices) X 3 - 4 5 30 - 40
Chicken thighs X 3 - 4 5 40 - 50
Kebabs X 3 - 4 5 35 - 45
Small ribs X 3 - 4 5 35 - 45
1/2 chicken X 3 5 45 - 55
FOOD Function Pre-heating Shelf position Heat Level Cooking time
(5 minutes)
(from the bottom) (Max) (minutes)
1/2 chicken X 3 - 4 5 45 - 55
Whole chicken X 3 - 4 5 60 - 70
Beef or Pork roast X 3 - 4 5 60 - 70
Duck X 3 - 4 5 70 - 80
Leg of lamb X 3 - 4 5 70 - 80
Roast beef X 3 - 4 5 50 - 60
Roast potatoes X 3 - 4 5 50 - 60
Whole fish
Gilthead-trout X 3 - 4 5 50 - 60
Table for Grill-Turbogrill cooking
7

Food Function Pre-heating Shelf position Extra Temperature Cooking time
(from the browning (°C) (minutes)
bottom) level
X 2 2 200 95 - 110
- 2 2 200 100 - 110
X 2 2 200 95 - 110
- 2 3 200 100 - 110
X 2 3 200 80 - 90
- 2 3 200 80 - 90
X 1 3 200 160 - 180
- 1 3 200 160 - 180
X 2 3 210 100 - 130
- 2 3 200 100 - 130
X 2 1 200 45 - 55
- 2 1 200 45 - 55
X 2 2 190 40 - 50
- 2 2 190 40 - 50
X 2 - 220 50 - 60
- 2 - 200 50 - 60
X 2 3 220 50 - 60
- 2 3 200 50 - 60
X 2 - 180 40 - 50
X 1 - 170 40 - 50
Table for Static and Fan cooking
8
Lamb, kid, mutton
Roasts (veal, pork,
beef) (1 kg)
Chicken, rabbit,
duck
Turkey (4-6 kg) +
level 3 burnishing
Goose (2 kg)
FISH (WHOLE) (1-2
kg) Gilthead, bass,
tuna, salmon, cod
FISH (IN SLICES)
(1kg.) Swordfish,
tuna
VEGETABLES
Stuffed peppers
and tomatoes
Roast potatoes
DESSERTS, CAKES,
ETC. Rising cakes

9
Food Function Pre-heating Shelf position Extra Temperature Cooking time
(from the browning (°C) (minutes)
bottom) level
X 2 - 180 80 - 90
- 2 - 170 70 - 80
X 2 - 190 40 - 50
- 2 - 180 40 - 50
X 2 - 200 50 - 55
- 1 - 3 - 200 50 - 55
X 2 - 180 20 - 30
- 1 - 3 - 170 20 - 30
X 2 - 180 35 - 45
- 1 - 3 - 180 35 - 45
X 2 - 200 40 - 50
- 2 - 190 40 - 50
X 2 1 200 45 - 60
- 2 1 200 45 - 60
X 2 - 190 50 - 60
- 2 - 190 40 - 50
- 2 - 90 120 - 150
- 1 - 3 - 90 120 - 150
X 2 - 220 35 - 45
- 1 - 3 - 200 35 - 45
X 2 - 190 40 - 50
- 2 - 180 45 - 55
Table for Static and Fan cooking
Filled pastries
(cheese)
Tart
Strudel
Biscuits
Cream puff
Savoury pastries
Lasagne
Filled fruit cakes
e.g. pineapple,
peaches
Meringues
Vol-au-vent
Soufflé

The Functions selection control knob is used to
select the different oven functions.
Each turn of the control knob corresponds with a
function:
Turn the Fcontrol knob four clicks to the left. The
words SETTINGS appears.
By pressing the cancellation button “<<”, you can
cancel the set operation and return to the previous
display.
Once the required setting appears, highlighted in
the display, you can confirm by pressing the “OK”
button and move on to the next programming
stage.
Depending on the selected function, the navigation
control knob “-/+” has different uses:
• To navigate between the menus and sub-menus.
• To increase/reduce the levels indicated.
• To navigate between the cooking functions.
• To increase/reduce cooking time and
temperature.
Description of the control panel
10
Clock setting
The clock appears on the display.
Set the required time using the “-/+” control
knob and confirm the choice by pressing the “OK”
button.
First use

Turn the function control button five clicks to the left.
In sequence, it is possible to set:
• LANGUAGE (Available languages: ENGLISH (factory setting), GERMAN, FRENCH, ITALIAN, SPANISH,
PORTUGUESE, DUTCH, SWEDISH, NORWEGIAN, DANISH, FINNISH).
• CLOCK
• ALARM
• SHARPNESS
• BRIGHTNESS
Reset brightness and sharpness settings.
To reset brightness and sharpness to factory settings:
Turn the F control knob to OFF.
Turn the F control knob to settings.
Keep the OK control button pressed for 5 seconds.
The factory settings will be restored.
Settings
To change a wrongly set language, proceed as follows:
1. Set the Functions control knob to the “SETTINGS” position, rotate to “Language” and confirm by
pressing “OK”.
2. Select the required language using the “-/+” control knob and confirm the choice by pressing “OK”.
Resetting the language
11

If the word "KitchenAid" appears on the display, the oven is in the Showroom or demonstration mode
and the oven elements will not heat up.
1. Unplug then reconnect the oven from the mains within 60 seconds:
2. Rotate the On/Off – Functions Selection control button to “Rapid preheating” position
3. Press the “<<” button
4. Rotate the On/Off – Functions Selection control button to “0” position
5. Press the “OK” button.
Do the same to enter the showroom mode sequence.
Showroom mode
Child safety control panel lock.
To turn the “child safety” device on or off:
Simultaneously press the “<<” and “OK” buttons for at least 5 seconds.
If turned on, the Function control knob and push buttons are locked and the icon appears on the
display.
Note: This function can be activated when you are cooking.
Automatic turn off device
For safety purposes, the oven will automatically turn off after 4h 30mins of continuous running (except for
Special Functions).
Door locking device during Pyrolysis
For safety purposes, when the Pyrolysis cycle is on, the door is automatically locked by a mechanical
device that keeps the door locked as long as the display shows “Locked door”. For safety purposes, if the
door locking device is not working, it is impossible to run the Pyrolysis cycle. The symbol appears
on the display. If this is the case, you must call out the Customer Care Centre before you run the Pyrolysis
cycle again. The oven can, however, be used normally.
Request for confirmation when the settings are changed
Bringing the control knob back to the original position, the display will once again show the current
cooking settings. In any case, until the user confirms their desire to change the settings, the oven continues
with the cooking. If the Functions control knob is rotated during cooking, the oven asks for confirmation of
this choice in order to prevent accidentally changing the cooking settings.
Stand by
To save energy you can turn the display off (OFF display method) by pressing the “<<” button with the
Functions control knob in the “0” position. To make the display visible again, press the “<<” key again
with the Functions control knob in the “0” position.
Safety Characteristics
12

13
The timer can only be used when the oven is not on and allows you to set a maximum time of 3 hours and
59 minutes.
To set the timer:
1. Keep the Functions control knob in the “0” position.
2. By turning the “+/-” control knob, the flashing word “TIMER” appears.
3. Turn the “+/-” control knob to set the required time.
4. Press the “OK” key to confirm the setting and activate the timer.
The timer starts to run down; when the set time runs out a signal is heard and the word “END” appears
on the display. By pressing the “OK” button for confirmation, the timer function turns off and the present
time appears on the display.
The timer can, however, be turned off at any time by pressing the “<<” button twice.
Select the cooking duration/delayed start (with the exception of the professional functions):
The cooking time allows the oven to work for a set period. The maximum cooking time that can be
programmed is 3 hours and 59 minutes.
Once the cooking has started, you can set the cooking time by pressing the “OK” button.
The flashing symbol appears on the display.
1. Turn the “+/-“ control knob until the required cooking time appears. Confirm by pressing “OK”.
2. At this stage you can set the end of the cooking so that the dish is ready at the required time.
3. By pressing the “OK” control knob, the flashing symbol appears on the display.
4. Turn the “+/-“ control knob until the required cooking end time appears.
Timer

• KEEPING WARM
Keep the temperature constant inside the oven at 60ºC to heat the food through before eating it. It is
best to use the first level. Both the end and duration of the function can be set.
• DEFROST
To defrost food at room temperature. Leave the food in its packaging to prevent it drying out.
• DOUGH PROVING
Keep the temperature constant inside the oven: to leaven pasta, bread, pizza.
• DRIED FRUITS
To dry any kind of fruit. Use the dehydration rack, if provided among the Accessories, or a steel net
with small holes, positioned over the wire shelf provided, in order to allow the air flow and prevent
small pieces of food falling as it gradually reduces in size while drying out.
• DRIED VEGETABLES
To dry any kind of vegetable, for example in the preparation of preserves. Use the dehydration rack, if
provided among the Accessories, or a steel net with small holes, positioned over the wire shelf
provided, in order to allow the air flow and prevent small pieces of food falling as it gradually reduces in
size while drying out.
• DRIED MUSHROOMS
To dry mushrooms and preserve them for use over time. Use the dehydration rack, if provided among
the Accessories, or a steel net with small holes, positioned over the wire shelf provided, in order to
allow the air flow and prevent small pieces of food falling as it gradually reduces in size while drying out.
• YOGHURT
To prepare homemade yoghurt (see Recipes). It is best to use a ceramic dish with ceramic or tempered
glass lid, not a plastic one.
• SLOW MEAT
To delicately cook meat for the best results.
• SLOW COOKING FISH
To delicately cook fish for the best results.
• SABBATH
This is a function dedicated to the prolonged cooking of recipes (see Recipes).
N.B. It is best not to interrupt cooking that requires you to insert the food into a cold oven, or
an oven that is on a very low operating temperature as the oven will try to restart the cooking
from the beginning and will wait until the temperature in the oven has returned to room
temperature. If the cooking should be interrupted and you cannot wait for the oven to cool
down we advise that you should restart the cooking process using the static function and by
setting a suitable temperature (see the cooking table on page 8).
Special Functions
14

By positioning the “Functions Selection” control knob on one of professional functions “PRO”, you will be
able to access the preset professional cooking functions. You can select the recipe you want from amoung
the 15 memorised recipes using the "+/-" control knob. Press “OK” to select the function and start
cooking.
Consult the Recipes for information on the use of these functions.
The available functions are shown below. The cooking times and temperatures of each function are shown
in the following tables.
For the recipes found in the Professional Roasting Function, you can use the Heat Probe (see paragraph) or
to cook by setting the required cooking time.
Professional bread making functions
Tradit. bread
Malt bread
Pan pizza
Thin pizza
Focaccia
Bread sticks
Professional cake baking functions
Choux Pastry
Croissant
Sponge cake
Plum cake
Short pastry
Professional roasting functions
N.B. With the roasting functions, you can use the heat probes (see paragraph).
Veal - Pork
Roast beef rare
Roast beef med.
Roast chicken
Roast turkey
Personalising Functions
Use of the functions that can be personalised:
• Select the cooking temperature.
• Wait for the oven to pre-heat.
• Once the required temperature has been reached, the oven will ask if you want to use the heat probe:
1. If you want to use the the probe (refer to page 16 'Using the heat probe'. Put the food in the oven
with the probe piercing the meat and connect the probe to the oven on the right wall of the oven
USING AN OVEN GLOVE TO AVOID GETTING BURNT. At this point the letter “P” appears on
the display as well as the message “probe connected” followed by “+/- to set the probe
temperature”: set the temperature required and press “OK” (it is possible to set a temperature of
between 45°C and 90°C). The cooking starts and will end when the probe displays the selected
temperature. When cooking is complete, you will be asked if you wish further cooking time (if so, set
the additional time using the “+/-” control knob).
2. If you do not wish to use the probe, press 'OK' to start the cooking The message 'Probe not
connected' appears and cooking starts manually. It is therefore possible to change the cooking
duration, or cooking end time ( refer to page 13 'Select cooking duration).
Professional Functions
15

In all the functions found in the “Professional Roasting Functions” you
can use the heat probe in the following way:
• Set the required functions by rotating the “+/-” control knob.
• Wait for the oven to pre-heat.
• Once the required temperature has been reached, you will be
asked if you want to use the heat probe: if you do, place the food
in the oven with the probe piercing the meat (preferably in the
meatiest part-see diagram) and connect the probe to the oven on
the right wall of the oven USING AN OVEN GLOVE TO AVOID
GETTING BURNT (see diagram).
• At this point the letter “P” appears on the display as well as the
message “probe connected”. The cooking starts and will end when
the probe shows the temperature indicated on the display
(different for each function). When cooking is complete, you will
be asked if you wish further cooking time (if so, set the additional
time using the “+/-” control knob).
• If you do not wish to use the probe, press “OK” to start the
cooking. The message “Probe not connected” appears and you are
asked to set the cooking time using the “+/-” control knob. Select
the required cooking time (see the cooking tables dedicated to the
Professional Functions page 17), and press “OK”: the cooking
starts manually with the cooking parameters already pre-set as per
the professional function cooking tables on page 17.
Using the heat probe
16

Professional function Pre-heating Shelf position Temperature Cooking time
BREAD BAKING (from the bottom) (°C) (minutes)
Tradit. bread Automatic 2° 190 40-50
Malt bread Automatic 2° 195 40-50
Pan pizza Automatic 2° 195 30-40
Thin pizza Automatic 2° 230 12-20
Focaccia Automatic 2° 205 35-40
Bread sticks Automatic 2° 180 20-30
Professional function Pre-heating Shelf position Temperature Cooking time
CAKE BAKING (from the bottom) (°C) (minutes)
Choux Pastry Automatic 2° 170 30-40
Croissant Automatic 2° 160 20-30
Sponge cake Automatic 2° 170 30-40
Plum cake Automatic 2° 160 75-85
Short pastry Automatic 2° 170 25-35
Professional function Pre-heating Shelf position Temperature Cooking time Meat heat
ROASTING
(from the bottom) (°C) (minutes) probe (°C)
Veal - Pork Automatic 2° 205 60 - 90 68
Roast beef rare Automatic 2nd grid + 215 35 - 45 48
1st baking tray
Roast beef med. Automatic 2nd grid + 215 50 - 60 54
1st baking tray
Roast chicken Automatic 2° 205 55 - 65 83
Roast turkey Automatic 2° 185 140- 180 80
Special Functions Pre-heating Shelf position Temperature Cooking time
(from the bottom) (°C) (hours)
Dough proving no 2° 40 1- 2
Slow cooking no 2° 85 - 95 3 - 5
Yoghurt no 2° 65 - 47 6 - 8
Dried fruit no all levels 80 8
Dried vegetables no all levels 60 7
Dried mushrooms no all levels 50 7
Professional and special cooking table
17

Using the Pyrolysis functions
IMPORTANT!! Before starting the Pyrolysis cycle, REMOVE ALL THE ACCESSORIES FROM THE
OVEN, INCLUDING THE SHELF RUNNERS, to avoid them getting damaged. You should also remove the
enamelled side panels because their handles could get discoloured.
Rotate the “Function selection” knob to “Pyrolysis” and select the following self-cleaning functions using
the “+/-” control button:
• “Pyrolysis” : runs for a set 3 hours and can be regulated to a minimum of 2 hours.
• “Pyrolysis Express” : runs for a set 1.5 hours.
Thanks to the guided navigation, the oven allows you to adjust the end time for the Pyrolysis (delayed
start). The oven will wait to start the Pyrolysis according to the end time you set.
Pyrolytic Cleaning Functions (Self Cleaning)
18

5019 710 01030
Printed in Italy n
02/07
GB
