KitchenAid KERS202B Parts list manual

30" (76.2 cm) Freestanding Electric Range
PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS
KERS202B
KERS303B
KERS306B
KIRS608B
Because Whirlpool Corporation policy includes a continuous commitment to improve our
products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.
Electrical: To properly install your range, you must determine the type
of electrical connection you will be using and follow the instructions
provided for it here.
● Range must be connected to the proper electrical voltage and frequency
as specified on the model/serial number rating plate. The model/serial
number rating plate is located on the left side frame behind the storage
drawer panel or behind the top right side of the oven door. Refer to the
figures in the “Product Dimensions” section of the “Location
Requirements” section.
● This range is manufactured with the neutral terminal connected to the
cabinet. Use a 3-wire, UL listed, 40- or 50-amp power supply cord
(pigtail) (see following Range Rating chart). If local codes do not permit
ground through the neutral, use a 4-wire power supply cord rated at
250 volts, 40 or 50 amps and investigated for use with ranges.
Range Rating* Specified Rating of
Power Supply Cord Kit
and Circuit Protection
120/240 Volts 120/208 Volts Amps
8.8 - 16.5 KW 7.8 - 12.5 KW 40 or 50**
16.6 - 22.5 KW 12.6 - 18.5 KW 50
*The NEC calculated load is less than the total connected load listed on
the model/serial rating plate.
**If connecting to a 50-amp circuit, use a 50-amp rated cord with
kit. For 50-amp rated cord kits, use kits that specify use with a
nominal 1³⁄₈" (34.9 mm) diameter connection opening.
● A circuit breaker is recommended.

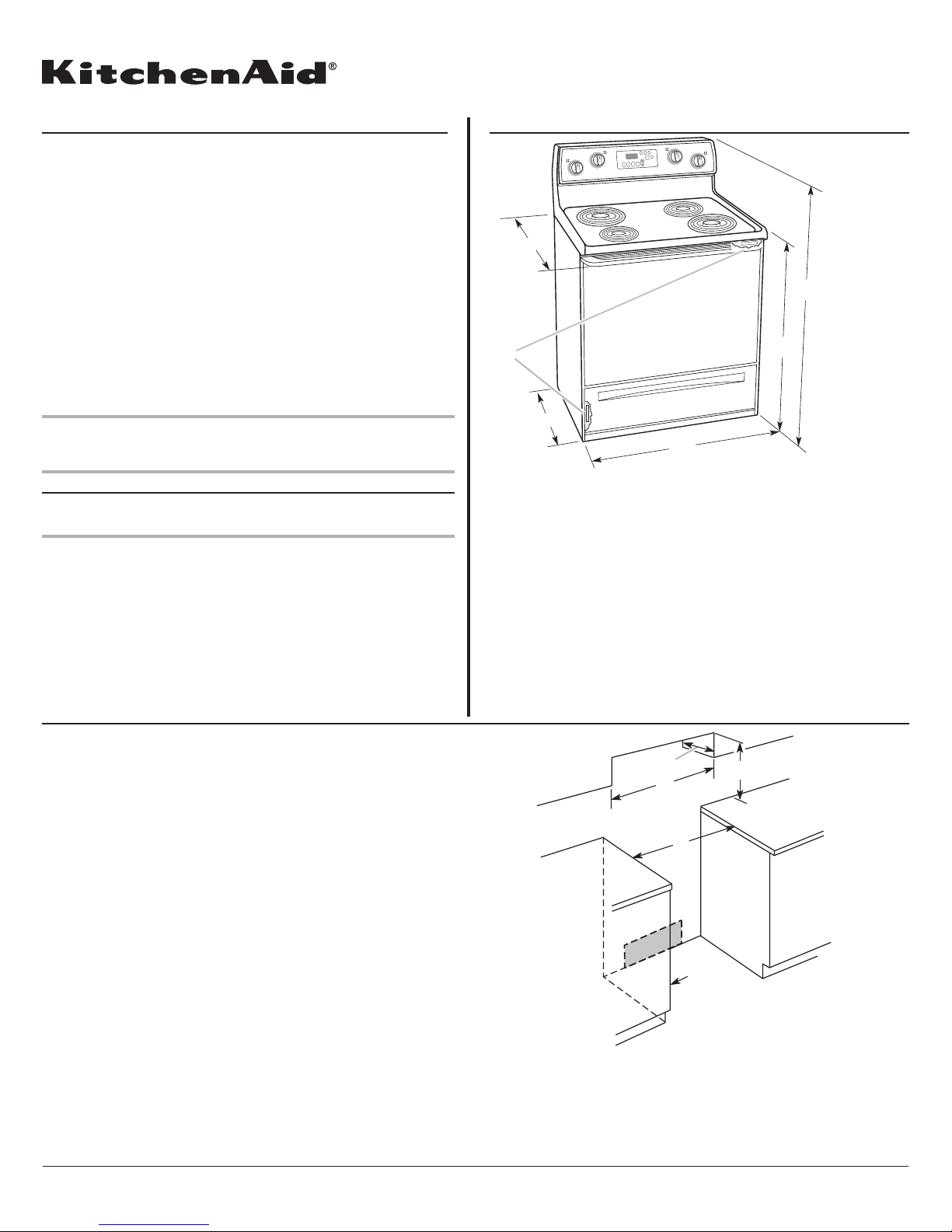

CABINET OPENING DIMENSIONS
Ref. W10403811B
7/26/12
A. 27
³⁄₄
" (70.5 cm) max. depth with handle
B. 46
⁷⁄₈
" (119.1 cm) overall height (max.) with leveling legs
screwed all the way in*
C. 36" (91.4 cm) cooktop height (max.) with leveling legs screwed
all the way in*
D. 29
⁷⁄₈
" (75.9 cm) width
E. 25
⁵⁄₁₆
" (64.3 cm) depth - back of range to front of cooktop**
F. Model/serial rating plate (located on the left side frame behind
storage drawer or right side of frame behind the oven door)
A
B
C
D
E
F
A. 13" (33.0 cm) max. upper cabinet depth
B. 30" (76.2 cm) min. opening width
C. For minimum clearance to top of cooktop, see NOTE*
D. 30
¹⁄₈
" (76.5 cm) min. opening width
E. Outlet - 8" (20.3 cm) to 22" (55.9 cm) from either cabinet,
5
¹⁄₂ " (14.0 cm) max. from floor
F. Cabinet door or hinges should not extend into the cutout
A
B
D
F
E
C
IMPORTANT: Range must be level after installation. Follow the instructions
in the “Level Range” section. Using the cooktop as a reference for leveling
the range is not recommended.
** Range can be raised approximately 1" (2.5 cm) by adjusting the leveling
legs.
** Front of door and drawer may extend further forward depending on
styling.
Cabinet opening dimensions shown are for 25" (64.0 cm) countertop depth,
24" (61.0 cm) base cabinet depth and 36" (91.4 cm) countertop height.
IMPORTANT: If installing a range hood or microwave hood combination
above the range, follow the range hood or microwave hood combination
installation instructions for dimensional clearances above the cooktop
surface.
A freestanding range may be installed next to combustible walls with zero
clearance.
* NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet is
covered by not less than ¹⁄₄" (0.64 cm) flame retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel,
0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.
* 24" (61.0 cm) minimum when bottom of wood or metal cabinet is covered
by not less than ¹⁄₄" (0.64 cm) flame retardant millboard covered with not
less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024"
(0.6 mm) aluminum or 0.020" (0.5 mm) copper.
