KitchenAid YKGRT500 User manual

TO THE INSTALLER: PLEASE LEAVE THIS
INSTRUCTION BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND
KEEP THIS BOOK FOR FUTURE
REFERENCE.
KITCHENAID®
Gas Freestanding and Slide-In Ranges
9753312A
Models: KGRT500 KGST300
YKGRT500 YKGST300
Use and Care Guide
A Note to You ..........................................2
Range Safety...........................................3
Parts and Features .................................5
Using and Caring for Your Cooktop .....9
Using the surface burners.....................9
Energy saving tips...............................11
Cookware tips .....................................12
Caring for your cooktop.......................13
Cleaning your cooktop ........................15
Using and replacing the surface light....16
Using and Caring for Your Oven.........17
Using the electronic oven control.........17
Setting the clock..................................25
Using the timer....................................26
Cooking tips ........................................28
Bake or Roast .....................................29
Broil.....................................................31
Adjusting oven temperature................33
Timed cooking.....................................35
Cleaning your oven and controls..........42
Oven lights..........................................44
Using the Self-Cleaning Cycle.............45
Before you start...................................45
Before setting the controls..................46
Setting the controls .............................46
For best cleaning results.....................49
How the cycle works...........................49
Troubleshooting....................................50
Requesting Assistance or Service......54
Warranty ................................................56
In the U.S.A. for assistance or service,
call the Consumer Assistance center:
1-800-422-1230
In Canada for assistance or service,
see page 55.
®
®
www.kitchenaid.com
9753312Av13c80 12/4/98 3:37 PM Page 1

2
– Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in
your building.
•Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified install-
er, service agency or the gas supplier.
WARNING: If the information in this manual is not followed
exactly, a fire or explosion may result causing property damage,
personal injury or death.
ANote to You
Thank you for buying a KITCHENAID®appliance!
KITCHENAID®designs the best tools for the most important room in your house. To
ensure that you enjoy many years of trouble-free operation, we developed this Use and
Care Guide. It contains valuable information concerning how to operate and maintain
your new appliance properly and safely. Please read it carefully. Also, please complete
and mail the enclosed Product Registration Card.
Please record your model’s information.
Whenever you call our Consumer
Assistance Center at 1-800-422-1230 (in
Canada, 1-800-461-5681) or request
service for your appliance, you need to
know your complete model number and
serial number. You can find this information
on the model and serial number plate (see
diagram on pages 5-6 for location of plate).
Please also record the purchase
information.
NOTE: You must provide proof of purchase
or installation date for in-warranty service.
Keep this book and the sales slip together in a safe place for future reference.
Model Number __________________________
Serial Number __________________________
Purchase/
Installation Date ________________________
Builder/Dealer
Name __________________________________
Address ________________________________
Phone__________________________________
9753312Av13c80 12/4/98 3:37 PM Page 2

3
Anti-Tip Bracket Making sure the anti-tip bracket is installed:
•Slide range forward.
•Look for the anti-tip bracket securely attached to floor.
•Slide range back so rear range foot is under anti-tip bracket.
Range Foot
wWARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or
serious burns to children and adults.
Range Safety
You will be killed or seriously injured
if you don’t follow instructions.
You can be killed or seriously injured
if you don’t follow instructions.
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the
word “DANGER” or “WARNING.” These words mean:
All safety messages will identify the hazard, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.
wDANGER
wWARNING
The anti-tip bracket
The range will not tip during normal use. However, tipping can occur if you apply too much
force or weight to the open door without the anti-tip bracket properly secured.
9753312Av13c80 12/4/98 3:37 PM Page 3

4
Range Safety
WARNING: To reduce the risk of fire,
electrical shock, injury to persons, or
damage when using the range, follow
basic precautions, including the following:
•WARNING – TO REDUCE THE
RISK OF TIPPING OF THE RANGE,
THE RANGE MUST BE SECURED BY
PROPERLY INSTALLED ANTI-TIP
DEVICES. TO CHECK IF THE
DEVICES ARE INSTALLED PROPERLY,
SLIDE RANGE FORWARD, LOOK FOR
ANTI-TIP BRACKET SECURELY
ATTACHED TO FLOOR, AND SLIDE
RANGE BACK SO REAR RANGE
FOOT IS UNDER ANTI-TIP BRACKET.
•CAUTION – Do not store items of
interest to children in cabinets above a
range or on the backguard of a range –
children climbing on the range to reach
items could be seriously injured.
•Proper Installation – The range, when
installed, must be electrically grounded
in accordance with local codes or, in the
absence of local codes, with the National
Electrical Code, ANSI/NFPA 70. Be sure
the range is properly installed and
grounded by a qualified technician.
IMPORTANT SAFETY INSTRUCTIONS
•This range is equipped with a three-prong
grounding plug for your protection against
shock hazard and should be plugged
directly into a properly grounded
receptacle. Do not cut or remove the
grounding prong from this plug.
•Disconnect the electrical supply before
servicing the appliance.
•Never Use the Range for Warming or
Heating the Room.
•Injuries may result from the misuse of
appliance doors or drawers such as
stepping, leaning, or sitting on the
doors or drawers.
•Maintenance – Keep range area clear and
free from combustible materials, gasoline,
and other flammable vapors and liquids.
•Storage in or on the Range –
Flammable materials should not be
stored in an oven or near surface units.
•Top burner flame size should be
adjusted so it does not extend beyond
the edge of the cooking utensil.
For self-cleaning ranges –
•Before Self-Cleaning the Oven – Remove
broiler pan and other utensils. Wipe off all
excessive spillage before initiating the
cleaning cycle.
– SAVE THESE INSTRUCTIONS –
9753312Av13c80 12/4/98 3:37 PM Page 4

5
OFF
REAR
REAR
OFF
FRONT
FRONT
OFF
FRONT
FRONT
OFF
REAR
REAR
H
I
M
E
D
L
O
H
I
M
E
D
L
O
H
I
M
E
D
L
O
H
I
M
E
D
L
O

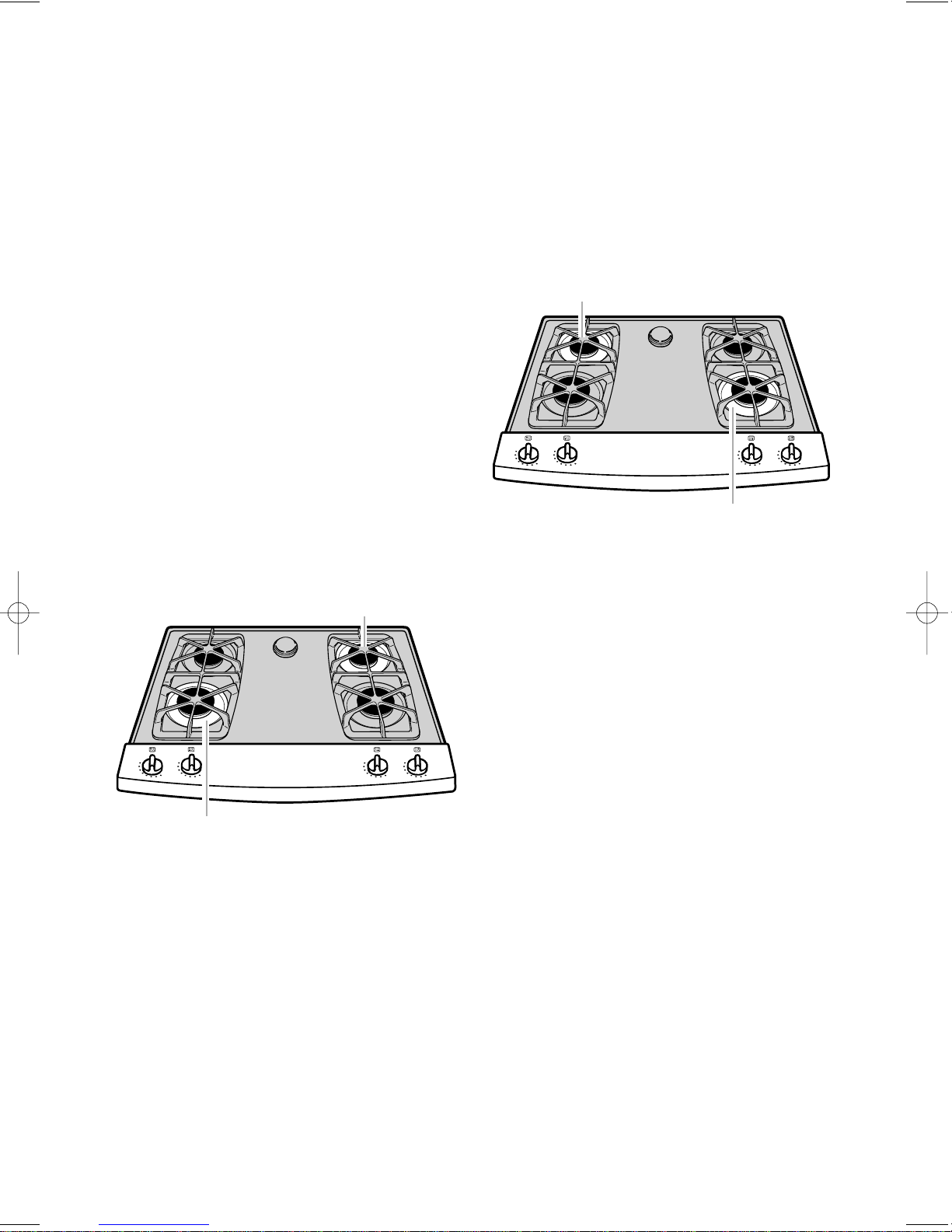

Surface burner controls
Left rear
control knob Left front control knob Right front
control knob Right rear
control knob
P arts and Features
Surface burners
(the style of your
grates may vary)
(pp. 9, 10)
Surface burner
controls
(pp. 10, 11)
Anti-tip bracket
(p. 3)
Model and serial
number plate
(p. 2)
Removable
storage drawer
(containing
broiler pan
and grid)
(p. 8)
Feature locations
(Slide-in models)
Oven vent
(p. 7)

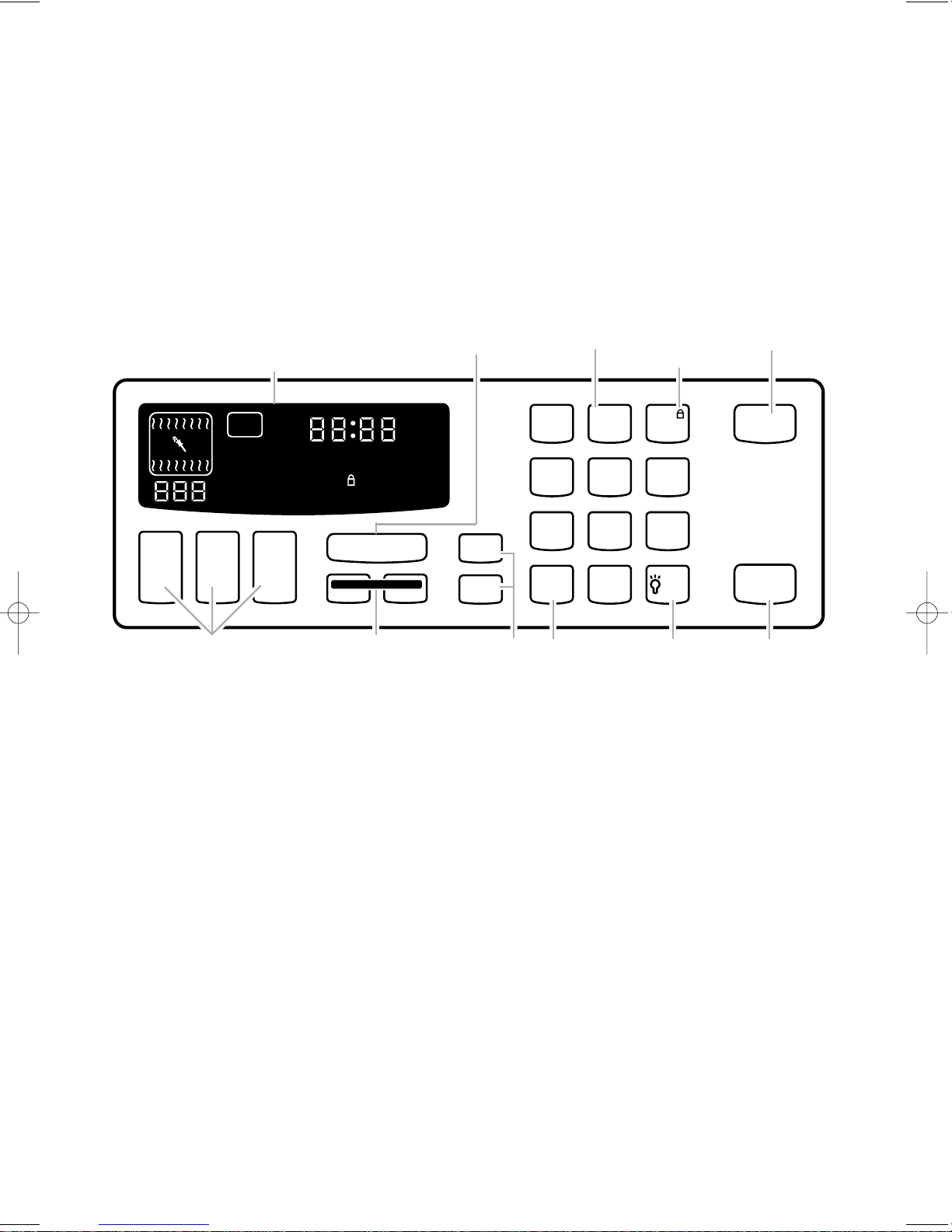

Electronic oven control
(p. 17)
Automatic
oven light
switch
(p. 44)
Broil burner
(not shown)
Bake burner
(not shown)
Vent guard
piece
9753312Av13c80 12/4/98 3:37 PM Page 5

6
Surface light
(some freestanding
models)
(p. 16)
Surface burner
(the style of your
grates may vary)
(pp. 9, 10)
Surface
burner
controls
(pp. 10,11)
Anti-tip
bracket
(p. 3)
Model and serial
number plate
(p. 2)
Removable
storage drawer
(containing broiler
pan and grid)
(p. 8)
Oven vent
(p. 7)
Electronic
oven control
(p. 17)
Automatic
oven light
switch
(p. 44)
Broil burner
(not shown)
Bake burner
(not shown)
Feature locations
(Freestanding models)
OFF
REAR
REAR
OFF
FRONT
FRONT
OFF
FRONT
FRONT
OFF
REAR
REAR
H
I
M
E
D
L
O
H
I
M
E
D
L
O
H
I
M
E
D
L
O
H
I
M
E
D
L
O
Surface burner controls
Left rear
control knob Right front
control knob Right rear
control knob
Left front
control knob
Parts and Features
9753312Av13c80 12/4/98 3:37 PM Page 6

7
Parts and Features

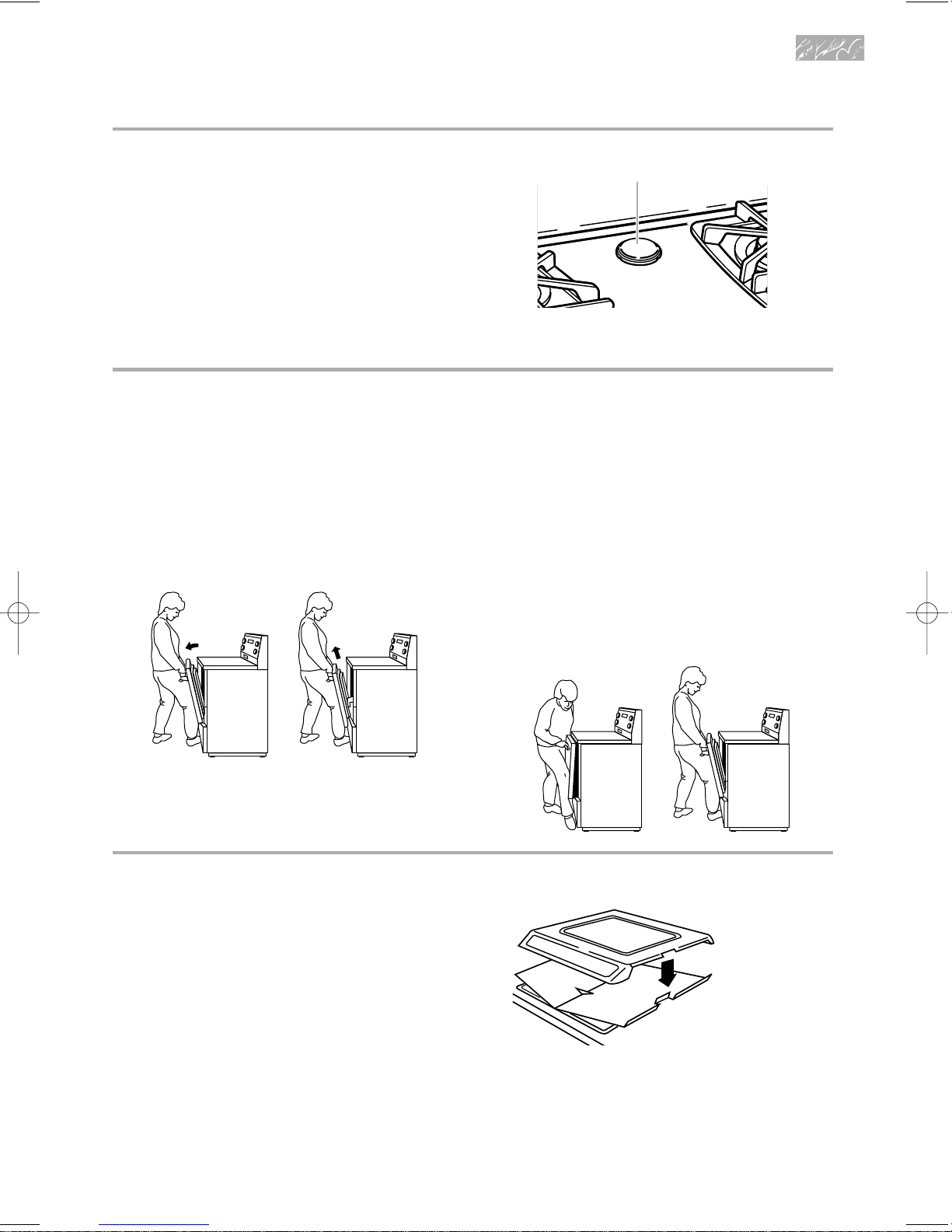

The oven door
The oven vent
Hot air and moisture escape from the oven
through a vent in the center rear of the
cooktop. The vent lets air circulate properly.
Be careful not to block the vent, or you will
get poor baking/roasting results.
NOTE: Never store plastics, paper, or other
items that could melt or burn near the oven
vent, or any of the surface burners.
4"
Replacing the oven door:
1. Holding the door by the handle, place the
top of the door under the cooktop overhang
and use your leg to apply pressure to slide
hinges into the slots as far as possible.
2. Open door to the broil position or slightly
past it.
3. Using the side of your leg, apply pressure
to the bottom of the door front. Lift the
door slightly while applying pressure to
push, until the hinges have gone in fully.
Removing the oven door:
1. Open the door to the Broil Stop position
(open about 4" [10 cm]).
2. Lift door slightly and pull out and back until
hinges come out to the catch position.
3. Push door down and pull straight out to
remove door completely.
Oven ventOven vent
Positioning the pan over the bake burner
To position the pan over the bake shield, the
two guides on the pan should be placed
over the notches on the shield. The position
is important to maintain an even heat in the
oven.
4" (10 cm)
9753312Av13c80 12/4/98 3:37 PM Page 7

8
Removing the storage drawer:
1. Empty drawer of any pots and pans
before removing drawer. Use recessed
area on top edge of drawer to pull drawer
straight out to the first stop. Lift front and
pull out to the second stop.
2. Lift back slightly and slide drawer all the
way out.
The storage drawer
Replacing the storage drawer:
1. Fit ends of drawer slide rails into the
drawer guides on both sides of
opening.
2. Lift drawer front and press in until metal
stops on drawer slide rails clear white
stops on drawer guides. Lift drawer front
again to clear second stop and slide
drawer closed.
Drawer slide
rail
Parts and Features
You can remove the storage drawer to make it easier to clean under the range. Use care
when handling the drawer.
9753312Av13c80 12/4/98 3:37 PM Page 8

9
Using and Caring for Your
Cooktop
Your cooktop has sealed gas burners with
an auto-reignition system. The sealed
burners spread the heat evenly across the
bottom of the cookware and provide infinite
heat control. The auto-reignition system
senses when a burner flame has gone out
and will automatically reignite that burner.
IMPORTANT: Your cooktop is factory-set
for use with Natural Gas. If you wish to
use L.P. gas, an L.P. Gas Conversion Kit
is included with your new range. See the
appropriate section of the Installation
Instructions for details on making this
conversion.
When to use the right rear and left
front burners:
Use these burners for cooking large quanti-
ties of food, deep-fat frying, or cooking with
large cookware.
Using the surface burners
OFFOFF
REARREAR
OFFOFF
FRONTFRONT
OFFOFF
FRONTFRONT
OFFOFF
REAR
H
I
M
E
D
L
O
H
I
M
E
D
L
O
H
I
M
E
D
L
O
H
I
M
E
D
L
O
6,000 BTU burner
When to use the left rear and right
front burners:
Use these burners for simmering or for
cooking smaller quantities of food requiring
small cookware.
OFF
REAR
OFF
FRONT
OFF
FRONT
OFF
REAR
H
I
M
E
D
L
O
H
I
M
E
D
L
O
H
I
M
E
D
L
O
H
I
M
E
D
L
O
10,000 BTU burner
10,000 BTU burner
6,000 BTU burner
9753312Av13c80 12/4/98 3:37 PM Page 9

10
Using and Caring for Your Cooktop
Using the surface burners
1. Grasp the control knob.
2. Push down and turn to HI. The electric
spark ignitor will ignite the gas flowing
into the burner. When you hear a clicking
sound, you know that the ignitors are
working. Gas is flowing as long as knob
is not set at OFF.
3. When the burner is lit, turn the control
knob to the desired flame setting. (See
the guide under “Burner heat settings”
later in this section.) You can turn the
knobs to any of the marked settings. The
ignitor will turn off and the clicking will
stop when the burner ignites.
NOTES:
•The ignitors may click a number of times
before burner lights. This is normal.
•All four burner ignitors will spark
regardless of which burner you are using.
•Visually check that burner has lit. If the
burner does not ignite, listen for the clicking
sound. If you do not hear the ignitor click,
TURN THE BURNER OFF. Check that the
service cord is placed firmly in the wall re-
ceptacle. Check for a tripped circuit breaker
or blown fuse.
Check that the control knob is pressed com-
pletely down on valve shaft. If the spark
ignitor still fails to operate, call your
nearest designated servicing outlet.
Proper grounding and polarity is neces-
sary for correct operation of the electric
ignition system. If the wall receptacle does
not provide correct polarity, the ignitor will
become grounded and click every once in
awhile, even after the burner has ignited.
A qualified electrician should check the wall
receptacle to see if it is wired with correct
polarity.
wWARNING
OFF
REAR
REAR
H
I
M
E
D
L
O
Control Knobs
Fire Hazard
Do not let the burner flame extend
beyond the edge of the pan.
Turn off all controls when not cooking.
Failure to follow these instructions
can result in death or fire.
Burner heat settings
Use correct burner heat settings (later in
this section). If the heat setting is too high, it
can:
•Char bacon and cause curling.
•Make eggs tough and crisp at the edges.
•Toughen liver, fish, and seafood.
•Scorch delicate sauces and custards.
•Cause a boilover.
Until you get used to the settings, use
the following as a guide.
SETTING
HI • To start food cooking.
• To bring liquid to a boil.
Between
MED and
HI
• To hold a rapid boil.
• To quickly brown or
sear meat.
MED • To maintain a slow boil.
• To fry poultry or meat.
• To make pudding, sauce,
or gravy.
Between
MED and
LO
• To stew or steam food.
LO • To simmer food.
• To keep food warm.
RECOMMENDED USE
• To melt chocolate or butter.
9753312Av13c80 12/4/98 3:38 PM Page 10

11
Using and Caring for Your Cooktop
In case of a prolonged power
failure
Surface burners can be manually lighted.
1. Hold a lit match near a burner and turn
the control knob to the HI position.
2. After the burner lights, turn the
control knob to the desired setting.
NOTE: Do not leave the cooktop unattend-
ed when cooking during a power failure.
The auto-reignition feature of your cooktop
will not operate during a power failure.
OFF
REAR
REAR
H
I
M
E
D
L
O
9753312Av13c80 12/4/98 3:38 PM Page 11

12
Cookware tips
Using and Caring for Your Cooktop
Home canning information
The large diameter of most water-bath or
pressure canners combined with high heat
settings for long periods of time can cause
damage to the cooktop.
The pan material affects how fast heat transfers from the surface cooking area through the pan
material and how evenly heat spreads over the pan bottom. Choose pans that provide the
best cooking results.
Aluminum • Heats quickly and evenly.
• Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
Cast iron • Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
Ceramic or
ceramic glass • Heats slowly and unevenly.
• Use on low to medium settings.
• Follow manufacturer’s instructions.
Copper • Heats very quickly and evenly.
• Used as a core or base in cookware to provide even heating.
Earthenware • Can be used for cooktop cooking if recommended by the
manufacturer.
• Use on low settings.
Porcelain enamel-on-steel
or enamel-on-cast iron • See cast iron and stainless steel.
Stainless steel • Heats quickly but unevenly.
• A core or base of aluminum or copper on the cookware
provides even heating.
• Can be coated with porcelain enamel.
Characteristics of cookware materials
To protect your range:
•Center the canner over the surface
burner. Do not extend more than 1 inch
outside the burner area.
•Do not place your canner on two
surface burners at the same time.
•Start with hot water, cover with a lid and
bring to a boil; then reduce heat to
maintain a boil or required pressure
levels in a pressure canner.
• Refer to your canner manual for specific
instructions.
For up-to-date information on canning,
contact your local U.S. Government Agricul-
tural Department Extension Office or
companies who manufacture home canning
products.
Using the right cookware makes a
big difference
•The pan should have a flat bottom, straight
sides, and a well-fitting lid.
•Choose medium to heavy gauge (thick-
ness) cookware.
•The pan material (metal or glass) affects
how quickly and evenly the pan heats.
•When using glass or ceramic cookware,
check to make sure it is suitable for use on
surface burners.
•To avoid tipping, make sure pots and pans
are centered on the grates.
9753312Av13c80 12/4/98 3:38 PM Page 12

13
Using and Caring for Your Cooktop
Caring for your cooktop
Your cooktop is designed for easy care.
You can do most cleaning with items found
around the home. Cleaning your cooktop
whenever spills or soiling occurs will help to
keep it looking and operating like new.
NOTES:
•Before cleaning make sure all controls
are off and the cooktop is cool.
•Do not obstruct the flow of combustion
and ventilation air.
•If knobs are removed while cleaning, be
careful not to spill liquids through holes in
the control area.
•Be careful not to allow moisture to collect
in control area. Moisture could cause igni-
tor switches to fail.
Surface burners
•The burner caps should be routinely re-
moved and cleaned. Always clean burner
caps after a spillover. Keeping the burner
caps clean prevents improper ignition and
an uneven flame.
•For proper flow of gas and ignition of the
burner, DO NOT ALLOW SPILLS, FOOD,
CLEANING AGENTS, OR ANY OTHER
MATERIAL TO ENTER THE GAS TUBE
OPENING.
•Occasionally check the burner flames for
proper size and shape as shown later in
this section. A good flame is blue in color.
If flames lift off ports, are yellow, or are
noisy when turned off, you may need to
clean the burners.
NOTE: To check oven burner flames for
proper size and shape, see the Installation
Instructions also included with the range.
To clean burners and burner caps:
1. Lift the burner cap straight up from the
burner base.
2. Clean burner cap with warm, soapy water
and a sponge. For stubborn stains, clean
with a mildly abrasive plastic scrubbing
pad and powdered cleanser. Wipe dry. Do
not clean burner cap in dishwasher.
3. If the gas tube opening or the orifice,
located inside the opening, has become
soiled or clogged, use a cotton swab or
a soft cloth to clean the area.
4. If ports are clogged, clean with a
straight pin. Do not enlarge or distort
port. Do not leave anything stuck in
the ports.
5. After cleaning the gas tube opening and
ports, replace the burner cap. To replace
burner cap, make sure cap is properly
aligned and leveled.
6. Check the burner after cleaning for
proper lighting.
Gas tube
opening
(orifice)
Ignitor
Burner cap
9753312Av13c80 12/4/98 3:38 PM Page 13

14
Adjusting the height of top burner
flames
The LO burner flame should be a steady
blue flame approximately 1⁄4inch (6 mm)
high. It can be adjusted using the
adjustment screw in the center of the valve
stem. The valve stem is located directly
underneath the control knob.
To adjust the flame height follow the
instructions below:
1. Turn control knob to “LO.”
2. Remove the control knob. (If there is not
an adjustment screw underneath the
knob the flame height is not adjustable.)
3. Hold the valve stem with a pair of pliers.
The screw is located in the center of the
valve stem. Use a small flat head screw-
driver to turn the screw until the flame is
the proper size.
4. Replace the control knob.
5. Test the flame by turning the control from
“LO” to “HI,” checking the flame at each
setting.
Using and Caring for Your Cooktop
Adjustment screw
Valve stem
Low flame
High flame
Port
Port
9753312Av13c80 12/4/98 3:38 PM Page 14

15
Using and Caring for Your Cooktop
PART
Control
knobs
Tempered
glass
surface
Surface
burner
grates
and caps*
Surface
burners
Cleaning your cooktop
HOW TO CLEAN
•Turn knobs to OFF and pull straight away from
control panel.
•Wash, rinse, and dry thoroughly. Do not soak.
•Do not use steel wool or abrasive cleansers.
They may damage the finish of the knobs.
•Replace knobs. Make sure all knobs point to OFF.
•Remove grates.
•Wash, wipe with clean water, and dry thoroughly.
•Use nonabrasive, plastic scrubbing pad on heavily
soiled areas.
•Do not use steel wool, abrasives, or harsh
cleansers. They may damage the finish.
•If you use soap or detergent solutions, rinse
thoroughly to prevent filmy residue.
NOTE: When cleaning cooktop with knobs removed,
do not allow water to run down inside unit.
•Replace grates.
•Clean as soon as they become dirty and when they
are cool enough to handle.
•Wash with a mildly abrasive plastic scrubbing pad
and warm, soapy water.
•For stubborn stains, clean with a scrubbing pad
and/or a powdered cleanser and water. Repeat
these cleaning steps as needed.
•Do not put in oven during self-cleaning cycle.
•Do not clean in dishwasher.
See “Caring for your cooktop” earlier in this section
for cleaning instructions.
WHAT TO USE
Sponge and warm,
soapy water
Sponge and warm,
soapy water
OR
Paper towel and
spray glass cleaner
Warm, soapy water
and a mildly abrasive
plastic scrubbing
pad and/or powdered
cleanser
Explosion Hazard
Do not store flammable materials such as gasoline near this
appliance.
Doing so can result in death, explosion, or fire.
wWARNING
* When the cooktop is cool, remove all spills and clean. Food spills containing acids, such
as vinegar and tomato, may affect the finish.
9753312Av13c80 12/4/98 3:38 PM Page 15

16
Using and replacing the surface light
(Some freestanding models)
The surface light is in the backguard. It is
controlled by the SURFACE LIGHT pad on
the control panel. (See “Using the electronic
oven control” section for location
information.)
To turn the surface light on or off:
PRESS
Replacing the surface light:
1. Unplug range or disconnect power.
2. Flip up the top of the backguard.
3. Pull up glass on front of backguard.
4. Grasp the fluorescent light tube at both
ends. Turn the tube approximately 90°
in either direction until both ends come
out of the receptacles. Replace with a
20-watt cool-white fluorescent light tube.
5. If the surface light still does not work,
you may need to replace the starter. The
starter is a knob-shaped part located on
the right side of the backguard, under the
light tube. To remove and replace the
starter, first remove light tube. Push
starter in and turn approximately 90°
counterclockwise. Pull starter out of
recessed area. You can find replacement
starters at stores that sell fluorescent
light tubes.
6. Replace glass and close the top panel.
7. Plug in range or reconnect power.
Using and Caring for Your Cooktop
9753312Av13c80 12/4/98 3:38 PM Page 16

17
Using and Caring for Your
Oven
This section tells you, step by step, how to operate all oven functions controlled by the
electronic control. Carefully follow these instructions, along with the cooking tips and
cleaning information, for successful use of your range.
Using the electronic oven control
(Freestanding models)
1 23
CANCEL
OFF
START
CLOCK
SET START
•
SET START
•
CANCEL
TIMER
COOK
TIME
STOP
TIME
BROILBAKE CLEAN
456
78
0
9
OVEN
LIGHT
HR MIN MIN SEC
ON
O
F
DELAY
TIMEDCLEAN
STOP
COOK TIMER
START?
LOCKEDDOOR
CONTROL
PROBEPROBETEMPTEMP
O
SURFACE
LIGHT
Oven setting
pads Timer pads (p. 26) Oven light pad
(p. 44)
Cancel/off
pad
Display
(see below) Number pads Start
pad
Display/clock
•When you first plug in the range, a tone
will sound, the display will be fully lit for a
few seconds, and the display will show the
last time set and “PF” (power failure). If,
after you set the clock (see “Setting the
clock” later in this section), the display
again shows “PF,” your electricity was off
for a while. Reset the clock.
•The time display will show “Err” and
3 short tones will sound if a time or
temperature is incorrectly entered.
Surface light
pad
(some
freestanding
models)
(p. 16)
Clock set/start pad
(p. 25)
NOTE: You have to hold down the pad a
short time to get it to work, and you have to
allow a short time between each pad entry. If
you press a command pad several times,
the pad can stop working. If you wait a few
seconds, you can use the pad again.
Timed and
delayed
cooking
pads
Control Lock
(p. 21)
Location of Control
lock will differ on
stainless steel and
some slide-in models
9753312Av13c80 12/4/98 3:38 PM Page 17

18
Fahrenheit/Celsius
To set your oven to cook in Celsius instead
of Fahrenheit:
1. Open the door.
2. Press CANCEL/OFF.
3. Press the Number Pads 1, 2,
and 3, in that order.
4. Press BROIL.
5. Start oven.
NOTES:
•Press BAKE to confirm that you are
using Celsius.
•Only the temperature and a flashing
degree symbol will appear in the tem-
perature display area when you
set your oven to cook in Celsius.
Repeat the steps above to change
from Celsius to Fahrenheit.
Using and Caring for Your Oven
PRESS
START
PRESS
PRESS
CANCEL
OFF
PRESS
BROIL
1
2
3
9753312Av13c80 12/4/98 3:38 PM Page 18

19
If you need to convert temperatures from
Celsius to Fahrenheit or vice versa, you
can refer to this chart:
Disable/enable audible signals
Audible signals tell you if a function is
entered correctly or not. They also tell you
when a cycle is completed. To turn off key
entry tone, end-of-cycle tone, and reminder
tones, follow these steps:
1. Open the door.
2. Press CANCEL/OFF.
Using and Caring for Your Oven
38°C=100°F
60°C=140°F
66°C=150°F
77°C=170°F
93°C=200°F
121°C=250°F
135°C=275°F
149°C=300°F
163°C=325°F
177°C=350°F
191°C=375°F
204°C=400°F
218°C=425°F
232°C=450°F
246°C=475°F
260°C=500°F
Temperature replacement values
PRESS
CANCEL
OFF
continued on next page
9753312Av13c80 12/4/98 3:38 PM Page 19

20
Using and Caring for Your Oven
3. Press the Number Pads 1, 2,
and 3, in that order.
4. Press TIMER SET/START.
5. Start oven.
“Snd” and “Off” will appear on the
display.
Repeat Steps 1-5 to turn the sig-
nals back on.
“Snd” and “On” will appear on the display.
PRESS
PRESS
START
PRESS
1
2
3
9753312Av13c80 12/4/98 3:38 PM Page 20
