GUIDE TO
PROFESSIONAL
RESULTS
PRO LINE
™SERIES
Model KPTT890 & KPTT780 Toasters

INTRODUCTION
PRO LINE
™SERIES
MODEL
KPTT890
& KPTT780
TOASTERS
1
Table of Contents ...............................3
Toaster Safety .....................................4
Important Safeguards.........................5
Proof of Purchase & Registration.........6
Electrical Requirements.......................7
Introduction
Section Contents

2
KitchenAid®PRO LINE™ Series Toasters
are engineered to be a near perfect blend of
commercial durability, classic style, and
contemporary performance for the home. We
began the design process by looking at the essence of toasting in the commercial
kitchen – and quickly discovered that simplicity, dependability, and craftsmanship
were the things most valued by the professionals. At that point, our goal became
clear: we needed to build those essential qualities into a machine that offered a
level of performance that couldn’t be found anywhere else.

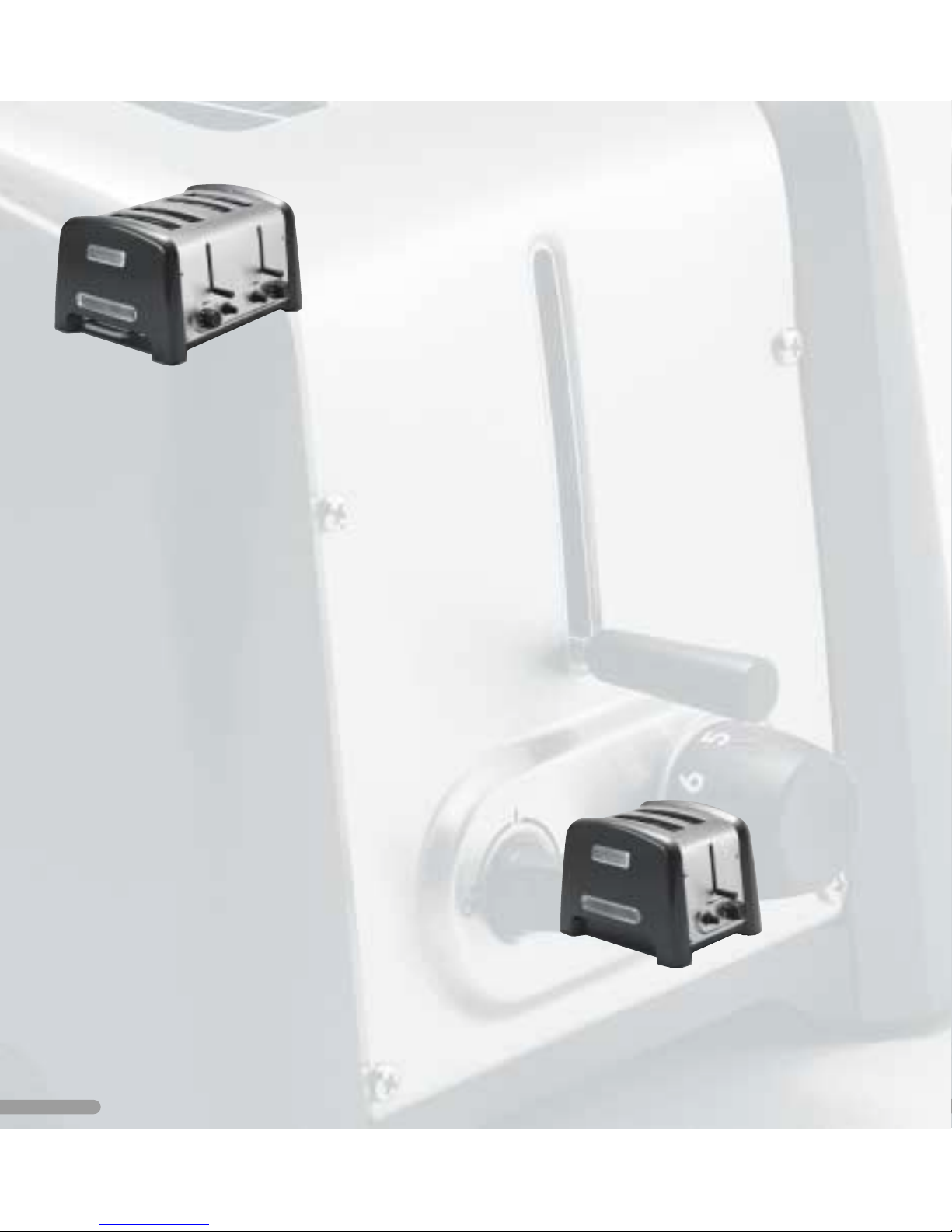

The result is the PRO LINE™ Series 2 and 4 slice toasters.
The stainless steel and die-cast metal construction will withstand the toughest
kitchen environment – and look terrific doing so. A tone sounds when your
toast is ready, but the toast will remain within the warm toasting cavity until
you’re ready to remove it. Nine shade levels provide toast for every taste, and a
heat sensor and microprocessor ensure beautifully consistent results slice after
slice. Dual controls on the 4-slice Toaster speeds preparation when toasting
different breads or making toast for particular tastes.
The KitchenAid®PRO LINE™ Series: commercial quality
for the discriminating home chef. From the company
distinguished by its legendary craftsmanship.

3
INTRODUCTION
INTRODUCTION
Introduction.....................................................................................................2
Toaster Safety ..................................................................................................4
Important Safeguards......................................................................................5
Proof of Purchase & Product Registration........................................................6
Electrical Requirements....................................................................................7
FEATURES AND OPERATION
Toaster Features ...............................................................................................10
Using the Toasters
Before First Use.........................................................................................13
Dual Controls of the KPTT890...................................................................13
Toaster Operation .....................................................................................13
Checking the Toasting Progress ................................................................15
Canceling the Toasting Cycle ....................................................................15
Toasting Tips....................................................................................................16
Using the Sandwich Rack & Bun Warmer Accessories .....................................17
Care & Cleaning...............................................................................................19
Troubleshooting...............................................................................................20
Recipes for Flavored Butter..............................................................................21
WARRANTY AND SERVICE INFORMATION
Warranty for the 50 United States & District of Columbia...............................26
Warranty for Puerto Rico .................................................................................27
Arranging for Hassle-Free Replacement...........................................................28
Ordering Accessories & Replacement Parts ......................................................28
Arranging for Service After the Warranty Expires ............................................29
Arranging for Service Outside the 50 United States & Puerto Rico..................29
TABLE OF CONTENTS

4
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you
and others.
All safety messages will follow the safety alert symbol and either
the word “DANGER” or “WARNING.”These words mean:
You can be killed or seriously injured
if you don’t immediately follow
instructions.
You can be killed or seriously injured
if you don’t follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to
reduce the chance of injury, and tell you what can happen if the instructions are
not followed.

!

WARNING
!

DANGER
!
TOASTER SAFETY

INTRODUCTION
5
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plugs, or
Toaster in water or other liquids.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug Toaster from outlet when not in use and before cleaning.
Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug, or after the
appliance malfunctions or has been damaged in any manner. Return appliance
to the nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. To disconnect, turn any control to “Off”, then remove plug from outlet.
12. Do not use appliance for other than intended use.
13. Oversize foods, metal foil packages, or utensils must not be inserted in
Toaster as they may involve a risk of fire or electric shock.
14. A fire may occur if Toaster is covered or touching flammable material,
including curtains, draperies, walls and the like, when in operation.
15. Do not attempt to dislodge food when Toaster is plugged in.
16. This product has been UL Listed for household and commercial use.
SAVE THESE INSTRUCTIONS
IMPORTANT
SAFEGUARDS

6
PROOF OF PURCHASE
& PRODUCT REGISTRATION
Always keep a copy of the sales receipt showing the date of purchase of your
Toaster. Proof of purchase will assure you of in-warranty service.
Before you use your Toaster, please fill out and mail your product registration
card packed with the unit. This card will enable us to contact you in the
unlikely event of a product safety notification and assist us in complying with
the provisions of the Consumer Product Safety Act. This card does not verify
your warranty.
Please complete the following for your personal records:
Model Number: 2-Slice Toaster – KPTT780
4-Slice Toaster – KPTT890
Serial Number ____________________________________________________
Date Purchased ___________________________________________________
Store Name ______________________________________________________

INTRODUCTION
7
Volts: 120 V.A.C. only.
Hertz: 60 Hz
NOTE: This Toaster has a
3 prong grounded plug. To
reduce the risk of electrical
shock, this plug will fit in an
outlet only one way. If the
plug does not fit in the
outlet, contact a qualified
electrician. Do not modify
the plug in any way.
Do not use an extension cord. If the power supply cord is too short, have a
qualified electrician or serviceman install an outlet near the appliance.
ELECTRICAL
REQUIREMENTS
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong
outlet.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
Do not use an extension cord.
Do not use an adapter.
Do not remove ground prong.

FEATURES AND OPERATION
PRO LINE
™SERIES
FEATURES
AND
OPERATION
9
Toaster Features................................10
Using the Toasters
Before First Use.............................13
Dual Controls (Model KPTT890) ....13
Toaster Operation .........................13
Checking the Toasting Progress .....15
Canceling the Toasting Cycle .........15
Toasting Tips ....................................16
Toaster Accessories ............................17
Care & Cleaning ...............................19
Troubleshooting................................20
Flavored Butter Recipes......................21
Features and Operation
Section Contents

10
MODEL KPTT890 & KPTT780
TOASTER
FEATURES
Model KPTT890
4-slice Toaster
Model KPTT780
2-slice Toaster

11
Stainless Steel and Die-Cast
Metal Construction
Designed to withstand the commercial
environment, the rugged metal
construction will last for years.
Outstanding Performance
Heavy gauge heating elements held flat
on extra-thick mica boards ensure even
browning. A heat sensor and
microprocessor yield consistent toasting
slice after slice, without pre-heating.
Flexible Operation
On the 4-slice KPTT890, each pair of
slots features its own shade dial, lift
lever, and on/off switch. Speeds
preparation when making toast for
different tastes.
Wide, Deep Slots
1" wide slots handle
bagels, English muffins,
thick breads, and
toaster pastries easily.
Extra-deep toasting cavity enhances
even browning.
Stay Warm™ Feature
After toasting is
complete, bread remains
in the warm toasting
cavity until it is raised
manually. Raising the lift lever doesn’t
cancel a toasting cycle, so the toasting
progress can be checked anytime. Lift
levers are motion-damped for smooth
operation.
True Vertical Lift
Lift lever raises bread vertically, not in
an arc – so specialty breads are less
likely to tear or jam in slots.
Shade Dial
9 shade levels provide
consistent browning for
every taste.
On/Off Switch
Turn switch momentarily
to “On” to start toasting,
or to “Off” to stop a
toasting cycle.
Continued…
FEATURES AND OPERATION

Function Light
Indicates when toaster is operating.
Toasting Finished Tone
Tone sounds when a toasting cycle
is complete.
Removable
Crumb Tray
Full-width, polished
stainless steel tray is
dishwasher-safe. Model
KPTT890 has two trays, one for each
pair of slots.
Under Base
Cord Wrap
Keeps extra cord out of
sight and out of the way.
Overtemp Protection
Toasting cycle is electronically
controlled. Toaster will not remain on
and overheat due to a mechanical jam
or failure.
12
MODEL KPTT890 & KPTT780
TOASTER FEATURES

13
Before First Use:
Before using your toaster, check the
slots and remove any packing or
printed material that may have fallen
inside during shipping or handling.
The toaster may emit a pungent
odor or light smoke the first time
you use it. This is a normal result of
the manufacturing process. The odor
or smoke is harmless and will
dissipate quickly.
Dual Controls of the KPTT890:
The 4-slice KPTT890 toaster has
separate controls for each pair of
toasting slots, so you can prepare toast
for different tastes – or toast different
breads – simultaneously. Follow the
same operating steps regardless of
which slot pair you are using.
Toaster Operation:
1. Shorten the cord, if necessary, by
wrapping it under the base.
USING THE
PRO LINE™SERIES TOASTERS
MODEL KPTT890 & KPTT780
Model KPTT780
2-slice Toaster
Model KPTT890
4-slice Toaster
Continued…
FEATURES AND OPERATION

14
2. Plug toaster cord into a grounded
3 prong electrical outlet. A tone will
sound when the toaster is
connected.
3. Insert bread or other food to be
toasted into the slots. If you have
only 1 or 2 slices to toast, it makes
no difference which pair of slots, or
individual slot, you use.
4. Turn the Shade Dial to select the
degree of darkness you want.
Rotate the Shade Dial clockwise for
darker toast, counter-clockwise for
lighter. Shade settings 1-3 are light,
4-6 are medium, and 7-9 are dark.
5. Push the lift lever down until the
bread is lowered as far as possible,
then turn the On/Off Switch
momentarily to the “On” position.
The switch will spring back to the
middle position and the function
light will glow, indicating the
toasting cycle has started.
USING THE
PRO LINE™SERIES TOASTERS
MODEL KPTT890 & KPTT780
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong
outlet.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
Do not use an extension cord.
Do not use an adapter.
Do not remove ground prong.

15
NOTE: Toaster will automatically shut
off if the On/Off Switch is held in the
“On” position more than 15 seconds.
6. When the toasting cycle is complete,
a tone will sound and the function
light will stop glowing. The toast will
remain in the warm toasting cavity
until the lift lever is raised.
To Check Toasting Progress:
To check the progress of your toast
during a toasting cycle, raise the
manual lift lever. Raising the lift lever
will not cancel the toasting cycle,
enabling you to simply lower the bread
if additional browning is required. If
you remove the bread before a
toasting cycle is complete, don’t forget
to cancel the cycle by turning the
On/Off Switch momentarily to the
“Off” position. If you forget to cancel
the cycle, the toaster will automatically
shut off at the end of the cycle time.
NOTE: Operating the toaster without
bread will not harm the toaster.
To Cancel Toasting Cycle:
To cancel the toasting cycle at
anytime, turn the On/Off Switch
momentarily to the “Off” position.
The function light will stop glowing
and the toasting cycle will end.
FEATURES AND OPERATION

16
PRO LINE™SERIES
TOASTING TIPS
For best results, toast only one
bread type and thickness at a time
in a given pair of toasting slots.
1Different types of bread and their moisture levels may require
different shade settings. For example, dry bread will brown more
rapidly than moist bread and will require a lighter setting. Bagels
and English muffins usually require higher shade settings due to
their firm texture and high density.
2

17
Sandwich Rack
Model KTSR
The sandwich rack is the perfect way
to toast sandwiches quickly and easily.
To use:
1. Open the rack by spreading the
handles apart.
2. Place one edge of the sandwich
against the bottom channel of
the rack.
3. Press the sandwich rack handles
together to grip the sandwich.
4. Lower the toaster lift lever as far as
possible and insert the sandwich
rack into the slot.
5. Select a shade level and turn the
On/Off Switch momentarily to the
“On” position to begin toasting.
6. Remove sandwich rack when
toasting is complete. Remember:
the rack will be hot immediately
following a toasting cycle.
7. Remove the sandwich from the
rack. You may want to use a spatula
or tongs when doing so.
USING THE OPTIONAL
SANDWICH RACK & BUN WARMER
ACCESSORIES
Continued…
FEATURES AND OPERATION

Sandwich Toasting Tips
•Do not overfill the sandwich. Thinly
sliced ingredients – like ham, turkey,
and cheese – work best.
•Lightly butter the outside of the
sandwich bread – do not butter the
side which faces the filling. Buttering
the outside of the bread slows
browning and helps warm the filling.
Bun Warmer
Model KTBW2 – 2-slice
Model KTBW4 – 4-slice
Conveniently warm buns on the top of
your toaster with the bun warmer
accessory.
To use:
1. Lower the toaster lift lever or levers
as far as possible. Place bun warmer
on top of the toaster, making sure
the formed wire loops on the
bottom of the warmer fit into the
toaster slots.
2. Place buns on top of the warmer,
select a shade level, and turn the
On/Off Switch momentarily to the
“On” position to begin warming.
Remember: the bun warmer will be
hot immediately following a
toasting cycle.
USING THE OPTIONAL
SANDWICH RACK & BUN WARMER
ACCESSORIES
18

19
Always unplug the toaster and
let it cool before cleaning.
Slide out the crumb tray (the
KPTT890 has two trays, one for
each pair of slots) and shake the
crumbs into a waste container. It is
recommended that the crumb tray be
emptied after each use. Remember: the
tray will be hot immediately following
a toasting cycle.
NOTE: Lifting the crumb tray handle
locks the crumb tray inside the toaster,
preventing removal. Always pull the
crumb tray straight from the toaster
without lifting the handle.
The crumb tray can be washed in the
top rack of a dishwasher, or by hand in
warm soapy water. If hand washing,
be sure to rinse the tray and dry it
thoroughly with a soft cloth.
Be sure to insert the crumb tray into
the toaster as far as possible. For best
toasting results, do not use the
toaster without the crumb tray in its
proper position.
The optional sandwich rack and
bun warmer accessories can be
washed in the top rack of a
dishwasher, or by hand in warm soapy
water. If hand washing, be sure to
rinse the accessory and dry it
thoroughly with a soft cloth.
Wipe the toaster with a soft,
damp cotton cloth. Do not use
abrasive cleansers, scrubbers, or liquid
cleaning products. Do not immerse the
toaster in water.
KitchenAid does not recommend
the use of a toaster cover.
CARE AND CLEANING
1
2
3
4
5
FEATURES AND OPERATION

20
TROUBLESHOOTING
The toaster may emit a pungent odor or light smoke the first time you use it.
This is a normal result of the manufacturing process. The odor or smoke is
harmless and will dissipate quickly.
•If the function light remains dark and the toaster fails to heat when
the On/Off Switch is turned to “On”:
Check to see if the toaster is plugged in; if it is, unplug the toaster, then plug
it back in again. A tone will sound when the toaster is plugged into a live
electrical outlet. If no tone sounds, check the electrical circuit the toaster is
connected to – is a fuse blown or a circuit-breaker tripped in your home?
If the problem cannot be corrected, see the KitchenAid Warranty and Service
section on page 25 for service information.*
•If you have difficulty removing the crumb tray:
Lifting the crumb tray handle locks the crumb tray inside the toaster,
preventing removal. Always pull the crumb tray straight from the toaster
without lifting the handle.
•If the function light next to the On/Off Switch flashes:
A flashing function light signals a fault in the toaster electronics. Unplug the toaster
and refer to the KitchenAid Warranty and Service section on page 25 for service
information.*
*Do not return the Toaster to the retailer – they do not provide service.
