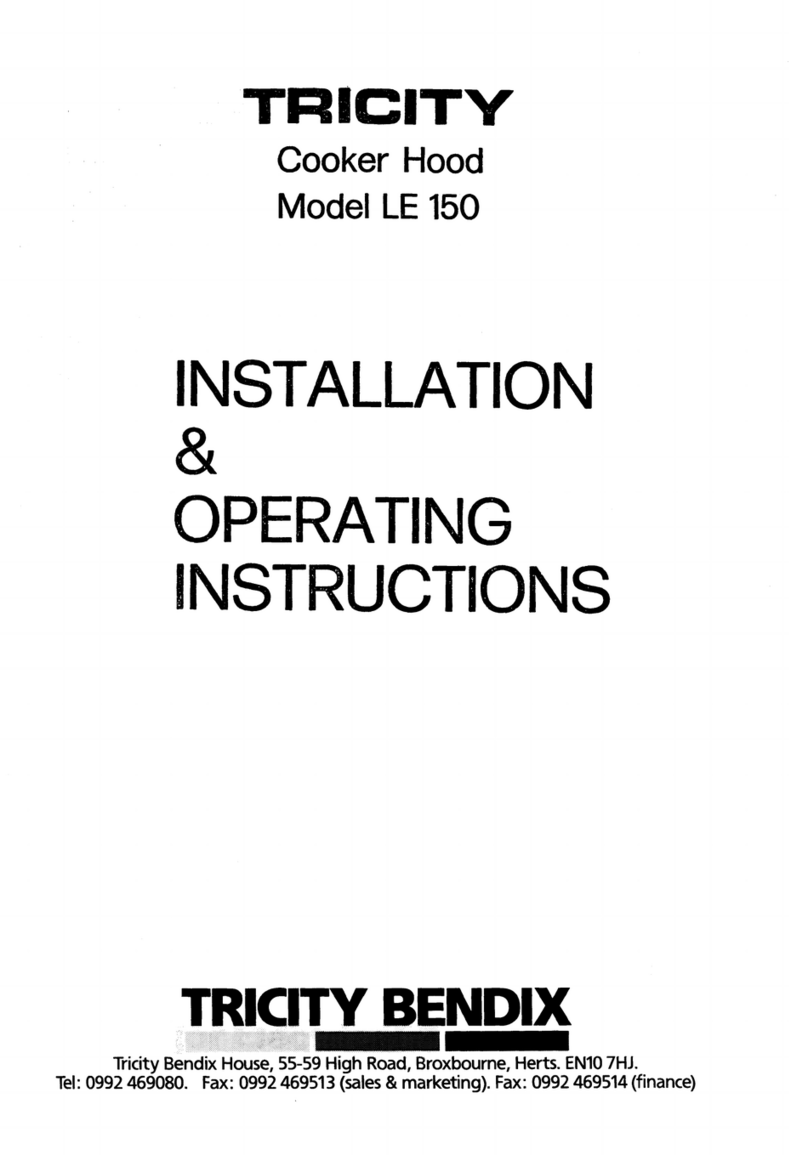

Tricity Bendix LE 150 Installation & operating instructions

Tricity Bendix

Tricity Bendix LE 150 Installation & operating instructions

AEG X68163BV1 user manual

AEG

AEG X68163BV1 user manual

AEG 125 D operating instructions

AEG

AEG 125 D operating instructions

Smeg KSEV97X instruction manual

Smeg

Smeg KSEV97X instruction manual

https://manuals.online logo
https://manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2026 Manuals.Online. All Rights Reserved.

HOUSING AND CONTROL PARTS
1
For Models: KIRD802HSS1, KIRD862HSS1
(Stainless) (Stainless)
11−05 Litho in U.S.A. (jac) Part No. 8191100
30" AND 36"
RETRACTABLE DOWN DRAFT
VENT SYSTEM
HOUSING AND CONTROL PARTS
2
For Models: KIRD802HSS1, KIRD862HSS1
(Stainless) (Stainless)
8191100
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
9763381 Use & Care Guide/
Install Instructs
2 4360216 Button, Push
3 4360134 Housing, Switch
4 4360135 Switch, Fan
5 Bracket, Shield
4360136 Left Hand
4360387 Right Hand
6 4360137 Knob
7 4360138 Panel, Control
8 End Cap
4360381 Left Hand
4360382 Right Hand
9 4360140 Plate, Support
(Upper) (2)
10 Housing,
Non−Serviceable
11 Bracket, Support
4360141 Lower R.H.
4360170 Lower L.H.
12 4360142 Nut
13 4360143 Arm, Gear Motor
14 4360144 Arm, Cavity
15 4360145 Bolt
16 4360062 Strain Relief
17 4360006 Screw
18 4360146 Nut
19 4360147 Strain Relief
20 4360148 Screw
21 Cover, Housing
Non−Serviceable
22 4360149 Cover, Wiring Box
23 4360150 Nut
24 Guide, Housing
Non−Serviceable
25 4360152 Box, Wiring
26 4360153 Clamp
27 4360156 Nut
28 4360157 Spring
29 4360158 Washer
30 4360159 Bolt
31 4360160 Trim, R.H.
32 Cavity
Non−Serviceable
33 Filter, Grease
4360193 KIRD802
4360194 KIRD862 , KIRD822
34 4360005 Washer
35 4360165 Terminal
36 4360361 Micro Switch (2)
37 4360166 Actuator,
Micro Switch (2)
38 4360167 Spring (2)
39 4360168 Cover, Switch (2)
40 4360169 Housing, Switch (2)
41 Support
4360171 L.H.
4360172 R.H.
42 4360173 Guide,
Housing (Back)
43 4360174 Spacer, Cavity (2)
44 4360044 Clamp, Cable
45 4360211 Connection, Wire
46 4360210 Switch
47 4360385 Connector (3)
48 4360272 Spring (3)
49 4360229 Box, Microswitch
50 4360230 Cover, Box
51 4360155 Bracket, Motor
52 Cover, Top
4360374 30"
4360375 36"
53 4360386 Screw
Following Parts Not Illustrated
4360198 Installation Kit
814380 Kit, Motor Mount
8171304 Trim Kit−White
(KIRD802)
8171305 Trim Kit−Black
(KIRD802)
8171306 Trim Kit−Biscuit
(KIRD802)
8171310 Trim Kit−White
(KIRD862)
8171311 Trim Kit−Black
(KIRD862)
8171312 Trim Kit−Biscuit
(KIRD862)
8171316 Trim Kit−White
(KIRD822)
8171317 Trim Kit−Black
(KIRD822)
8171318 Trim Kit−Biscuit
(KIRD822)
EXTERIOR VENTILATION PARTS
3
For Models: KIRD802HSS1, KIRD862HSS1
(Stainless) (Stainless)
8191100
Illus. Part
No. No. DESCRIPTION
1 Power Unit
Complete
Model KPED890T
2 Roof Mounting Kit
(Not Serviced)
5 4173414 Motor (Includes
Capacitor & Cap)
6 4173415 Blade, Fan
7 4173417 Cover, Motor
(Wall Mount)
8 Impeller
(Not Serviced)
9 Plate, Adaptor
(Not Serviced)
10 Housing,
(Non−Serviceable)
11 Housing, Ring
(Non−Serviceable)
13 9" Elbow
(Not Included,
Purchase Locally)
VENTILATION PARTS
4
For Models: KIRD802HSS1, KIRD862HSS1
(Stainless) (Stainless)
8191100
Illus. Part
No. No. DESCRIPTION
1 4360191 Box, Blower
2 4360154 Motor, Gear
3 4360362 Micro Switch (3)
4 4360155 Bracket,
Motor Gear
5 4360059 Bracket, Capacitor
6 4360192 Cover, Blower Box
