KITIDEA VT-FD001 User manual
2
Table of Contents Package Contents
Specifications
Package Contents
Specifications
Important Safeguards
·General Safety
·Plug & Cord
Getting to Know Your Dehydrator

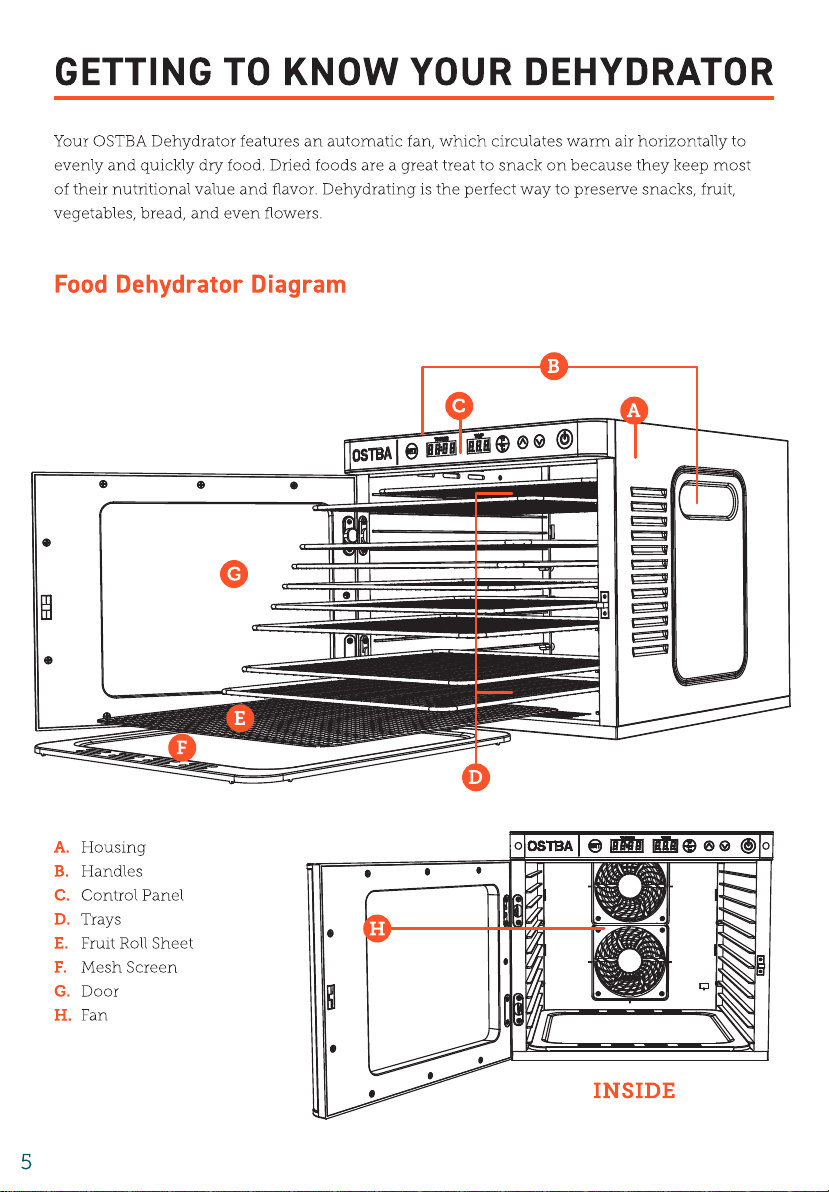

·Food Dehydrator Diagram
Display
Before First Use
Using Your Dehydrator
·Operation
·Tray Liners
·Overheat Protection
·Tips
Care & Maintenance
Troubleshooting
Warranty Information
Customer Support
2
2
3
3
4
5
5
6
6
7
7
8
8
8
8
9
10
11
Power Supply AC 120V, 60Hz
Rated Power 1000W
Temperature
Range
95°F–165°F
(35°C–74°C)
Dimensions 15.9 x 13.4 x 12 in /
405 x 340 x 305 mm
1 x Stainless Steel Food Dehydrator
9 x Trays
1 x Fruit Roll Sheets
2 x Mesh Screens
1 x Recipe Book
1 x User Manual
1 x Warranty Card
Basic safety measures should always be followed when using Food Dehydrator
Using accessories which are not recommended by the appliance manufacturer may cause injury.
Do not use this device for unsended purposes.
The device has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, the plug
can only be plugged into a polarized socket in one way. If the plug is not fully plugged into the socket, reverse the
plug. If it is still not appropriate, contact a qualified electrician. Do not attempt to modify the plug in any way.
No warm-up equipment is required.
DO NOT IMMERSE INTO WATER
HOUSEHOLD USE ONLY
The device has a polarized plug (one blade is wider than the other)
Press
Press
to start or stop the dehydrator.
to choose ℃or ℉
Press once and use the and buttons to change the temperature.
Press a second time and use the and buttons to change the time.
Press again，to choose time，The
time will blink on the display, Use or
to change the time (0:30–48:00)
After finish setting all time and
temperature , wait for 3 seconds , the
product will start working automatic.
When the timer finishes, the display will
show “--:--” and heat will turn o. The
dehydrator will beep 5 times, and the fan
will stop, and after 30 minutes, the power
will be o .
Use a kitchen towel, heat-resistant glove,
or oven mitt to handle the trays.
Place food on trays. Rearrange the trays to
fit thicker food items.
To avoid scratching the inside of your
dehydrator, insert the mesh screen with the
smooth side of the frame facing down.
Time changes in 30-minute increments.
Press and hold or to change the time rapidly.
After you finish choose the temperature ,
The dehydrator will switch to time mode after
3 seconds automatic too if you don’t press
again
The dehydrator will always remember
your previous temperature and time settings.
Temperature changes in 1°F increments.
Press and hold or to change the
temperature rapidly.
Plug in. The dehydrator will beep, and the
display will show “--:--”And then press ,
the display will show 35℃，30 minutes，
and the temperature & time will blink 3
seconds in turn .When the time or
temperature light blink, you can set the
time and temperature,if you don't do any
operation , then the dehydrator will start
work.
Press to choose to choose ℃or ℉,
Temperature
Range:35℃-70℃and 95 ℉-158℉
Press once，to choose temperature，
The temperature will blink on the display,
Use or to change the temperature
(95°F–158°F / 35–70°C).
8
Tray Liners
Overheat Protection
Sounds
Tips
The dehydrator comes with 2 types of tray
liners: 1 fruit roll sheets and 2 mesh screens.
1. Place a tray liner on a dehydrator tray.
Place food on the liner.
2. Once the food is dehydrated, remove
the tray and lift the tray liner out of the
tray.
3. Remove food. Bending the screen is
helpful for removing sticky foods.
• Use for making fruit rolls and strips from
fresh, frozen, or canned fruit. You can
also use this liner for pouring purée onto
a tray.
• Use for foods that shrink when dried.
This liner will prevent them from falling
through tray grates.
• Overheating is rare. If the dehydrator
overheats, it will automatically shut down
as a safety feature, and the dehydrator can
no longer be used. Contact Customer
Support (see page 11).
• To turn sounds on/o, wait for the display
to show “--:--” and press and hold +for
5 seconds.
• Fruit and vegetables dried in the food
dehydrator will look dierent from those
sold in stores. This is because homemade
dried foods do not use preservatives,
artificial coloring, or artificial additives.
• Check out the Recipe Book for more tips
on dehydrating foods.
Fruit Roll Sheet
Mesh Screen
CARE & MAINTENANCE
1. Unplug the dehydrator and allow it to
cool before cleaning.
2. Soak trays in hot, soapy water for easy
removal of food residue.
3. If needed, use a soft brush to clean.
4. Clean the dehydrator housing with a
damp cloth.
5. Dry all parts before storing or using the
dehydrator.
Note: This liner can also be placed on the bottom
of the dehydrator to catch any dripping liquids, to
make cleaning easier.
Note: The trays are dishwasher safe. Do not wash
the mesh screen or fruit roll sheet in a dishwasher.
Note: Do not clean any part of the dehydrator with abrasive chemicals, as this will damage the surface.
9
TROUBLESHOOTING
Problem Possible Solution
The dehydrator will not turn
on, or the fan is not working.
Unplug the dehydrator and plug it in again.
The dehydrator may be damaged or malfunctioning.
Contact Customer Support (see page 11).
“E1”, “E2”, or “E3” appears on
the display.
The dehydrator may be damaged or malfunctioning.
Contact Customer Support (see page 11).
Foods are dried unevenly.
Cut foods evenly to ensure that they all finish drying at
the same time. Avoid overlapping the food.
Follow the recipes and tips in the Recipe Book.
If your problem is not listed, please contact Customer Support (see page 11).
10
WARRANTY INFORMATION
Product Name Premium Stainless
Steel Food Dehydrator
Model VT-FD001
Default Warranty
Period 2 year
For your own reference, we strongly recommend
that you record your order ID and date of purchase.
Date of Purchase
Order ID
TERMS & POLICY
Arovast Corporation warrants all products to be of
the highest quality in material, craftsmanship, and
service, eective from the date of purchase to the
end of the warranty period.
Arovast Corporation will replace any product
found to be defective due to manufacturer flaws
based on eligibility. Refunds are available within
the first 30 days of purchase. Refunds are only
available to the original purchaser of the product.
This warranty extends only to personal use and
does not extend to any product that has been
used for commercial, rental, or any other use for
which the product is not intended. There are no
warranties other than the warranties expressly set
forth with each product.
This warranty is non-transferrable. Arovast
Corporation is not responsible in any way for any
damages, losses, or inconveniences caused by
equipment failure or by user negligence, abuse,
or use noncompliant with the user manual or any
additional safety or use warnings included in the
product packaging and manual.
This warranty does not apply to the following:
• Damage due to abuse, accident, alteration,
misuse, tampering, or vandalism.
• Improper or inadequate maintenance.
• Damage in return transit.
• Unsupervised use by children under 18 years
of age.
Arovast Corporation and its subsidiaries assume no
liability for damage caused by the use of the product
other than for its intended use or as instructed in the
user manual. Some states do not allow this exclusion
or limitation of incidental or consequential losses so
the foregoing disclaimer may not apply to you. This
warranty gives you specific legal rights and you may
also have other rights which may vary from state to
state.
ALL EXPRESSED AND IMPLIED WARRANTIES, INCLUDING
THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO
THE PERIOD OF THE LIMITED WARRANTY.
Extend Your Warranty by 1 Year
to extend your 1-year warranty by an additional
year.
Please fill out all required fields and include your
order ID, place of purchase, and purchase date, if
applicable.
Defective Products & Returns
If you discover your product is defective within the
specified warranty period, please contact Customer
of your invoice and order ID. DO NOT dispose of
your product before contacting us. Once our
Customer Support Team has approved your
request, please return the product with a copy of
the invoice and order ID.
11
CUSTOMER SUPPORT
If you have any questions or concerns about your new product, please contact our helpful
Customer Support Team.
*Please have your invoice and order ID ready before contacting Customer Support.
Email: [email protected]
Support Hours
Mon–Fri, 9:00 am–5:00 pm PST/PDT
