Kittec Clay Separator AB User manual

1
Clay Separator AB
Installation
Remove the packing and fix the parts as shown:

Users Manual
2
The working process

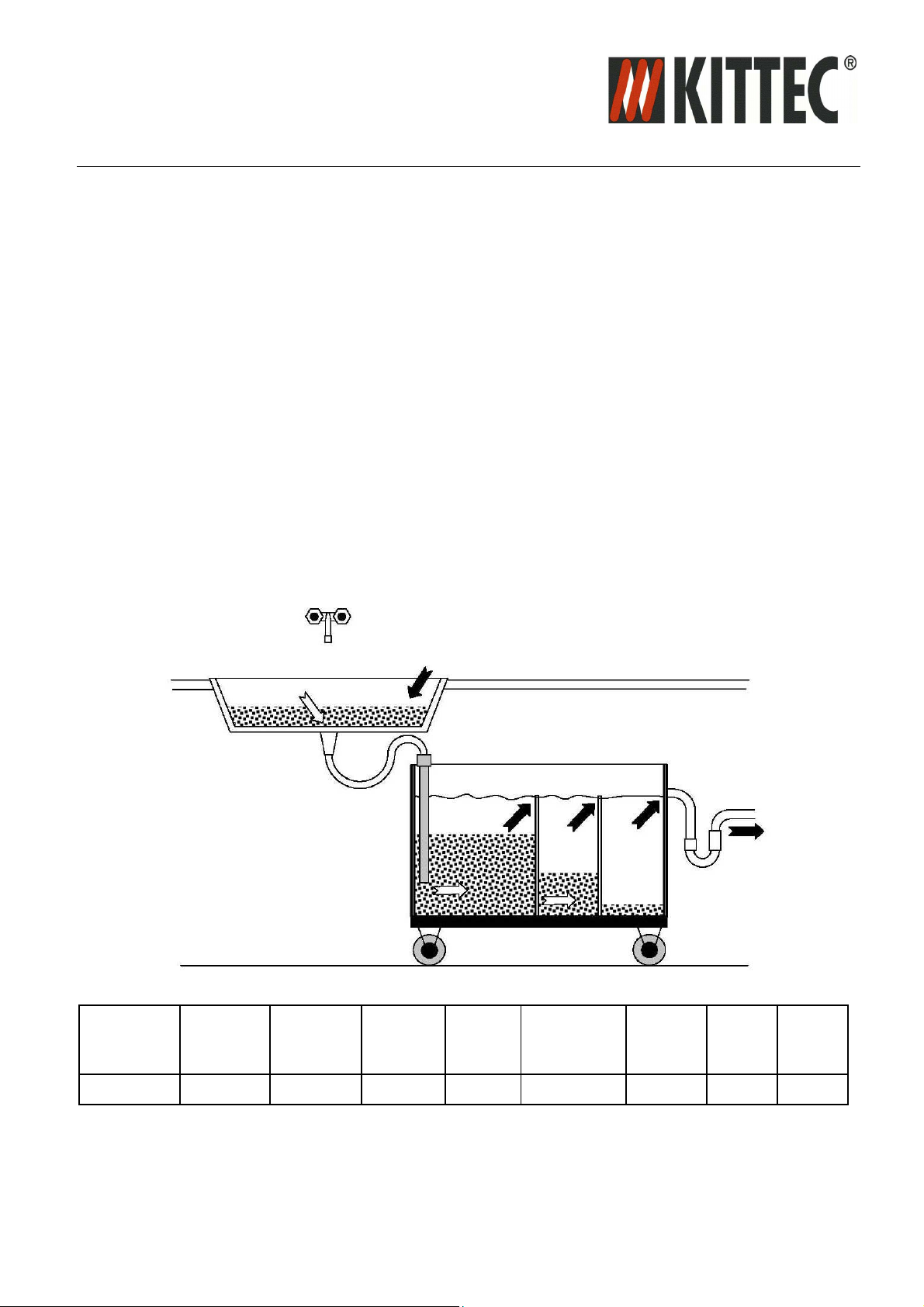

The KITTEC® Clay separator, which is also called glaze- and clay settling tank, acts to keep
away glaze, clay and rests of engobes off the canalisation. Therefore the clay separator is
mounted under the wash basin.
lay- or plaster waste, which is floated into the washing basin, block with the time the hole
house sewerage. The material sticks on the tube-walls and will resist also higher water
pressure. Here the KITTEC® Clay separator prevents efficiently.
The deductible materials in the sewage deposit by the easy, but highly efficient 3 chamber
system on the ground of the clay separator. This prevents pipe blockage and protects the
environment, so that the observance of the sewage directives is no more problem.
Fitting
The KITTEC® Clay separator fits under every standard wash basin.
Take the existing flow set from the wash basin. onnect now the provided discharge pipe to
your wash basin and to the clay separator.
onnect the drain with your house connection. Pay attention to proper and tight connections.
For questions please contact our KITTE ® service or to your sanitary plumber.
Clay-
separator
ength
[mm]
Width
[mm]
Height
incl.
castors
[mm]
Chambers Inflow
and Outlet
ø
[mm]
Height
Inflow
[mm]
Height
Outlet
[mm]
Weight
approx.
[kg]
AB 600 440 525 3 40 445 340 5

3
Starting-up
Fill the KITTEC® Clay separator slowly with fresh water, until all chambers are filled with
water. heck the connections and pipes on tightness and increase the water pressure slowly.
Now you can find out the best water pressure for a trouble-free procedure. The less water
pressure, the better the effect.
Safety tips
The use of the product prescribes the use of water mixed with clay, glazes and plaster.
Warranty
We grant three years guarantee with proper use.
Maintenance and Care
heck from time to time the deposed masses. We recommend a total cleaning approx. all 6 to
12 month, depends on intensity of use. The deposed masses can be dried and disposed as
construction waste at the next recycling depot.
Kittec GmbH
Uhlandstr. 5a
D-83024 Rosenheim
Tel.:[phone] Fax.: [phone]
Internet: www.kittec.de eMail: [email protected]
