Kivic SM HUD User manual

www.kivic.co.kr
SM HUD
Virtual HUD Image at 2m ahead
Android and iOS support
Access to all noti󽗉cation
Support Backup Camera
User Manual

1
Kivic SM HUD beams the various contents on the roads in front of the driver by
connecting with Android Smartphone and iPhone wirelessly. Hence, the driver can
check the information such as time, vehicle speed, message, incoming call and GPS
information while driving. Kivic SM HUD is a must-have item for safe driving to make
the driver focus on the front road without handling the Smartphone.
Also, Kivic SM HUD support interface for Backup Camera(Purchase separately) and
driver can monitor rear side of the car by Kivic SM HUD combiner.
Gel pad
for rear
󽗉xing
Mount
bracket
Wire clip User Manual Backup
camera
(Purchase
separately)
Power cable
with cigar
charger
Each part name
Accessories
Inside the Box
Locking lever
Mount bracket
Display engine
Combiner
Light
sensor
Power
jack
Backup
camera
Interface
www.kivic.co.kr
2m󱮦전방에󱮦10인치󱮦허상거리󱮦구현
무선󱮦Android/iOS󱮦화면󱮦전송
BLE󱮦를󱮦통한󱮦완벽한󱮦Notification󱮦지원󱮦
pj=
era
사용설명서

2
Installation
The ideal location of Kivic SM HUD is on your
dashboard in the middle of the cluster panel.
For more secure installation, use wire clip.
In Kivic SM HUD, a small plastic lens called
“Combiner” is used instead of windshield
itself.
The distance between the display engine
and the combiner can be adjusted up to 30
mm. When the distance is adjusted to the
shortest, the driver’s eye have to be adjusted
more to the short distance.
Kivic SM HUD support Backup camera interface. Backup camera can be separately
purchased and be connected with Backup camera interface in Kivic SM HUD.
Best Kivic SM HUD Position
Backup camera connection
Clean and
dry the
dashboard
1
Select a
location for
your HUD
2
Place the
mount
bracket
3
Plug the
power cable
4
Adjust
viewing
angle
5
Remove
display engine
protection sheet
6

3
Using Kivic SM HUD with App
Search “Kivic HUD” in iPhone “App Store” or Google “Play Store” and Install “Kivic HUD”
App on your smartphone. Then the App will be created on your smartphone screen.
"HUD Control" App Installation
Android App iPhone App
www.kivic.co.kr

4
In order to make wireless screen mirroring/casting from your smartphone to Kivic SM
HUD, your smartphone should support Airplay Mirroring.
Turn on “Bluetooth” on your iPhone and activate “HUD Control” App. Run 1) and 2)
in order. Then “HUD Control” App screen changes as shown below in 3).
The “noti󽗉cation mode” is displayed on the HUD combiner.
In case displaying the same screen of iPhone on the HUD combiner, mirroring of
iPhone onto HUD combiner is necessary.
In case using Bluetooth audio embedded in car or standalone Bluetooth speaker, activate “BT Sound”
on the screen (refer article 3).
3) “HUD Disconnected”
is changed into “HUD
Connected” on the screen
3) Choose “KIVIC”, then
the same screen on
iPhone is displayed on
the HUD combiner.
Kivic SM HUD connection procedures(iPhone)
1. “HUD Control” App execution and “noti󽗉cation mode” display
2. Mirroring procedures
2) Choose connectable
HUD on the screen
2) Choose “AirPlay
mirroring”
1) Turn on “HUD” button
in “HUD Control” main
screen
1) Turn on “Wi-Fi” in the
iPhone “Setting” and
choose “Kivic Hud”.
Password : 87654321

5
Upon connecting mirroring between iPhone and HUD, sound can be heard with
Bluetooth audio embedded in car or with a standalone Bluetooth speaker.
3) “Connected” popped
up and sound can be
heard with Bluetooth
audio embedded in car
or a standalone Bluetooth
speaker.

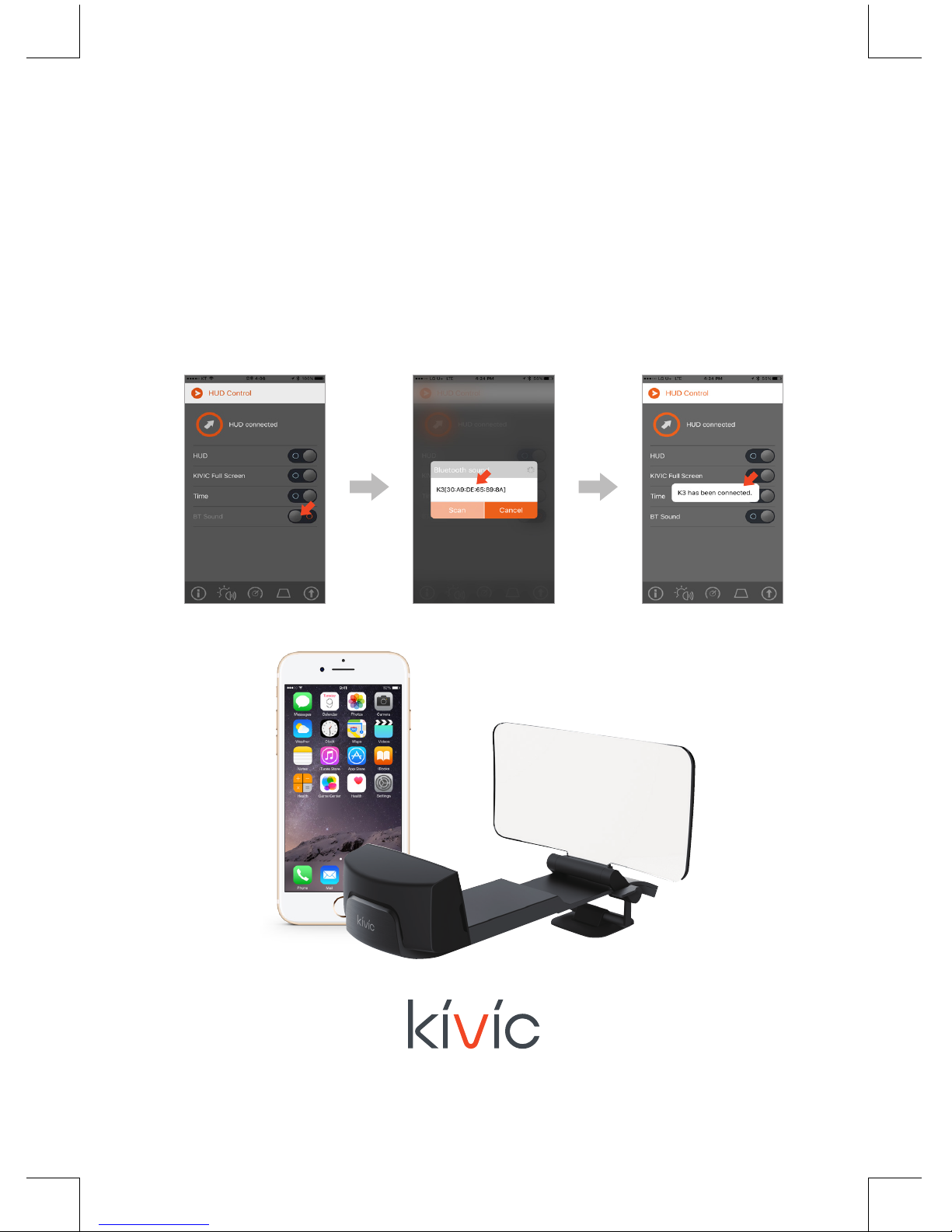

3. Bluetooth speaker connection
2) First, Bluetooth audio
embedded in car should
not be connected into
another Bluetooth device.
Then choose connectable
Bluetooth speaker on the
“HUD Control” screen.
1) Turn on Bluetooth
audio embedded in car
or a standalone Bluetooth
speaker. Then turn on “BT
Sound” button in “HUD
Control” screen.
www.kivic.co.kr

6
In case of Android smartphone with OS version is higher than 5.0, follow the
procedures 1)~3) and the same screen on smartphone is displayed on the HUD
combiner.
Run 1) and 2) in order, then “HUD Control” App screen changes as shown below
in 3) within ten seconds with vibration sound. The same screen on smartphone is
displayed on the HUD combiner.
In case user prefers “notification mode” screen on the combiner, please turn off
“KIVIC CAST” button. For using Mirroring, please do “KIVIC CAST” mode ON.
Settings → Connections → Mobile hotspot and tethering → Mobile hotspot
Choose “Allowed devices” and turn o󽗈 “Allowed devices only”
3) “HUD Disconnected”
is changed into “HUD
Connected” on the screen.
Kivic SM HUD connection procedures(Android)
1. “HUD Control” App execution and Mirroring screen display
2) Choose connectable
HUD on the screen.
1) Turn on “HUD” button
in “HUD Control” main
screen.
For Samsung smartphone, please do the following procedures

7
Kivic SM HUD displays various types of information from your smartphone, such as
OS mode of your smartphone, time, speed, and notification as below. All the data
displayed on HUD screen is serviced via BLE(Bluetooth Low Energy).
Also Kivic SM HUD basically o󽗈ers wireless screen mirroring/casting through mobile
hotspot. By using screen mirroring/casting feature of Kivic SM HUD, you can use any
navigation App on your HUD screen.
1. Smartphone OS mode : Android or iOS
2. Current time
3. Speed of the vehicle
4. Noti󽗉cation of incoming call, SMS, Kakao Talk and various SNS

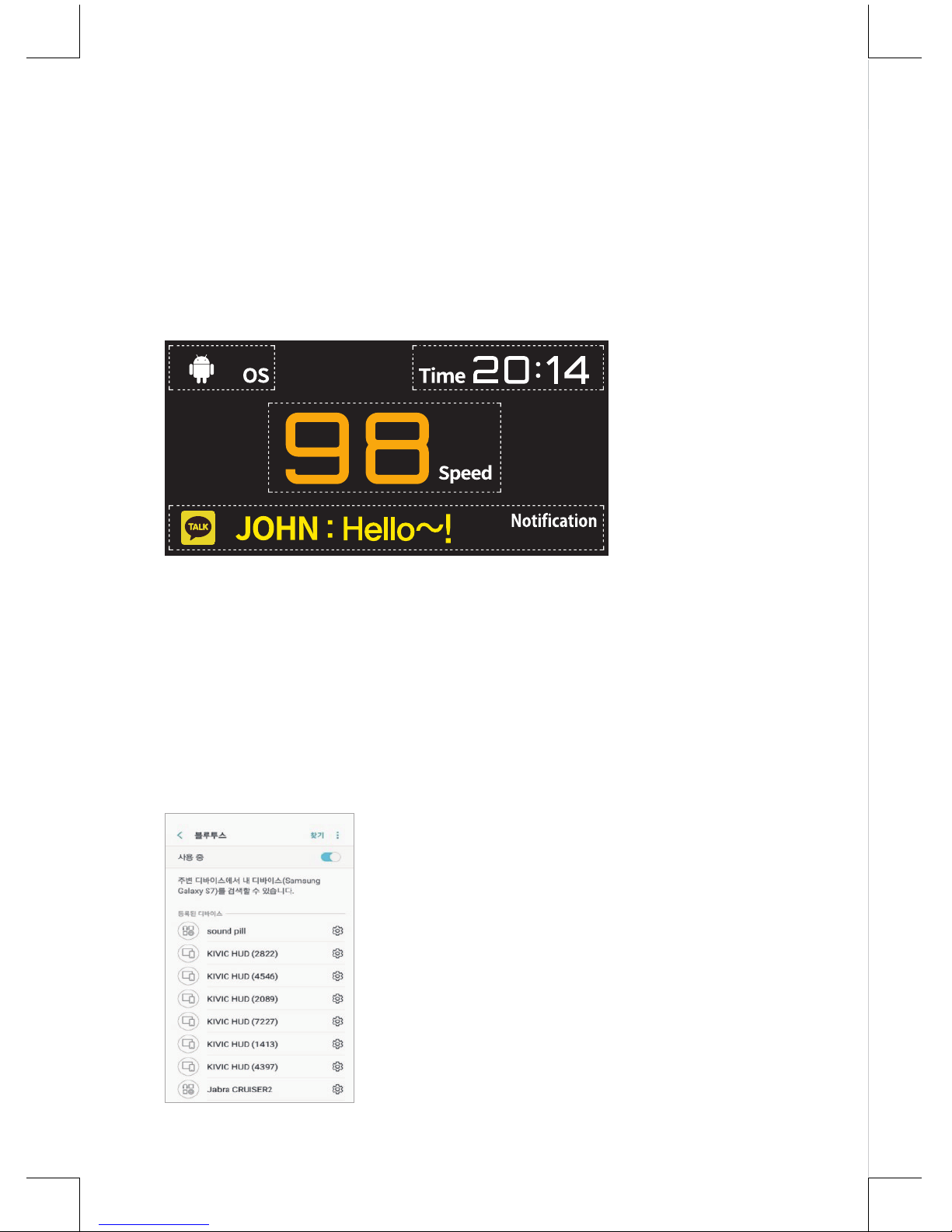

Kivic SM HUD “noti󽗉cation mode”
The con󽗉guration of the “noti󽗉cation mode” screen
on the HUD combiner consists of
For Android smartphone, when connected to the
HUD, in principle, sound is not connected to the
HUD. When using the HUD, sound can be heard
with smartphone's own speaker or Bluetooth
audio embedded in car or with a standalone
Bluetooth speaker.
Audio connection(for Android smartphone)
※ Note: The layout of HUD display can be changed by Kivic Inc.
anytime without notices.

Warnings & Safety Information
9

10
www.kivic.co.kr

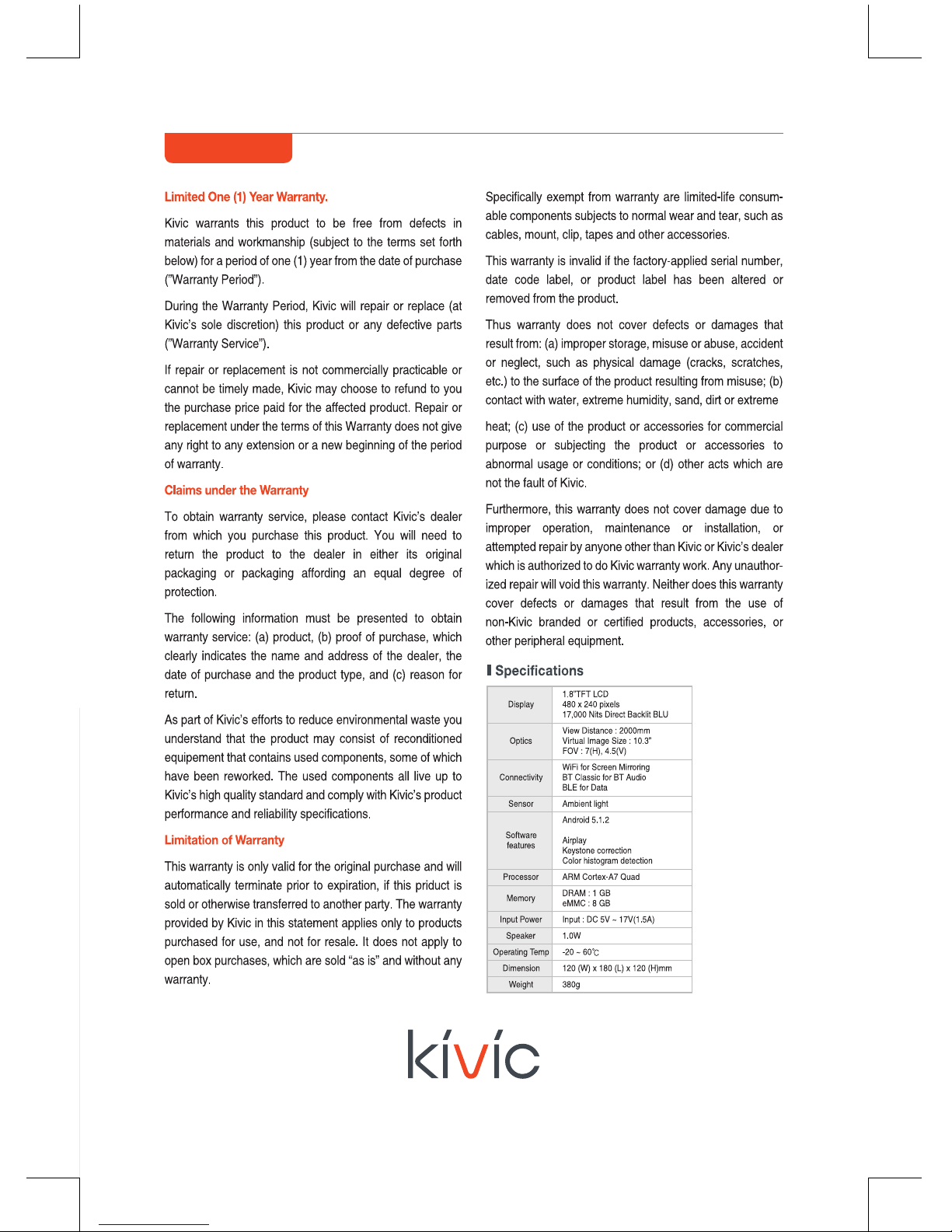

Warranty
Kivic Cast

www.kivic.co.kr
Contact : [email protected]o.kr
