kmda ICE RUNNER FISH HOUSE User manual

EXPLORER ICE RUNNER FISH HOUSE 1
Assembly Instructions

EXPEDITION ICE RUNNER FISH HOUSE 2
Thank you for purchasing one of the newest, lightest and most versatile
houses on the market. We feel you will be completely satisfied with your
purchase.
WARRANTY
This product comes with a 30 day warranty for any manufacturer’s
defects. This warranty does not cover damage or wear from unintended
use of the product. Warranty is non-transferable and all claims must be
accompanied with an original, dated receipt.
Free replacement windows are provided for the life of the house.
For warranty help please contact KMDA, Inc. by one of the following
methods.
By Phone:
[phone], Mon-Fri, 9am to 4pm CST
By Mail:
KMDA, Inc.
PO Box 509
Bovey, MN 55709
LIMITATION OF LIABILTY
KMDA, Inc. is not liable for any injury, loss, damage or expense, direct or
consequential, from the use or misuse of this product. Liability is limited
to repair and replacement of parts as stated by the terms in the
warranty.

EXPLORER ICE RUNNER FISH HOUSE 3
TOOLS NEEDED
HARDWARE
APPROXIMATE ASSEMBLY TIME:
45-60 minutes.

STEP 1: Attaching Brackets to Sled
EXPLORER ICE RUNNER FISH HOUSE 4
STEP 1 ASSEMBLY
PART # 130
INSTALLING BRACKETS ONLY NEEDS TO BE DONE
ONCE (NOTE THE ORIENTATION OF THE BRACKET)
ATTENTION: IF YOU PLAN TO INSTALL THE OPTIONAL
HYFAX KIT, DO THIS BEFORE STARTING STEP 1.

EXPLORER ICE RUNNER FISH HOUSE 5
INSTALLING CENTER POLES ONLY NEEDS TO BE DONE ONCE
NOTE: SHORTER BOLT
THIS RING ONLY
STEP 2: Installing Center Poles

EXPLORER ICE RUNNER FISH HOUSE 6
PUSH BUTTON FOR
POLE COLLAPSE
POLE IS COLLAPSIBLE FOR
TAKE DOWN AND PLACEMENT
IN SLED
STEP 3: Installing Support Bars

EXPLORER ICE RUNNER FISH HOUSE 7
NOTE THE ORIENTATION
OF THESE BRACKETS
VELCRO STRAPS ON INSIDE
OF COVER ATTACH TO POLES
OPEN UNATTACHED
CLOSED ATTACHED
Door this side
STEP 4: Attaching the Canvas

EXPLORER ICE RUNNER FISH HOUSE 8

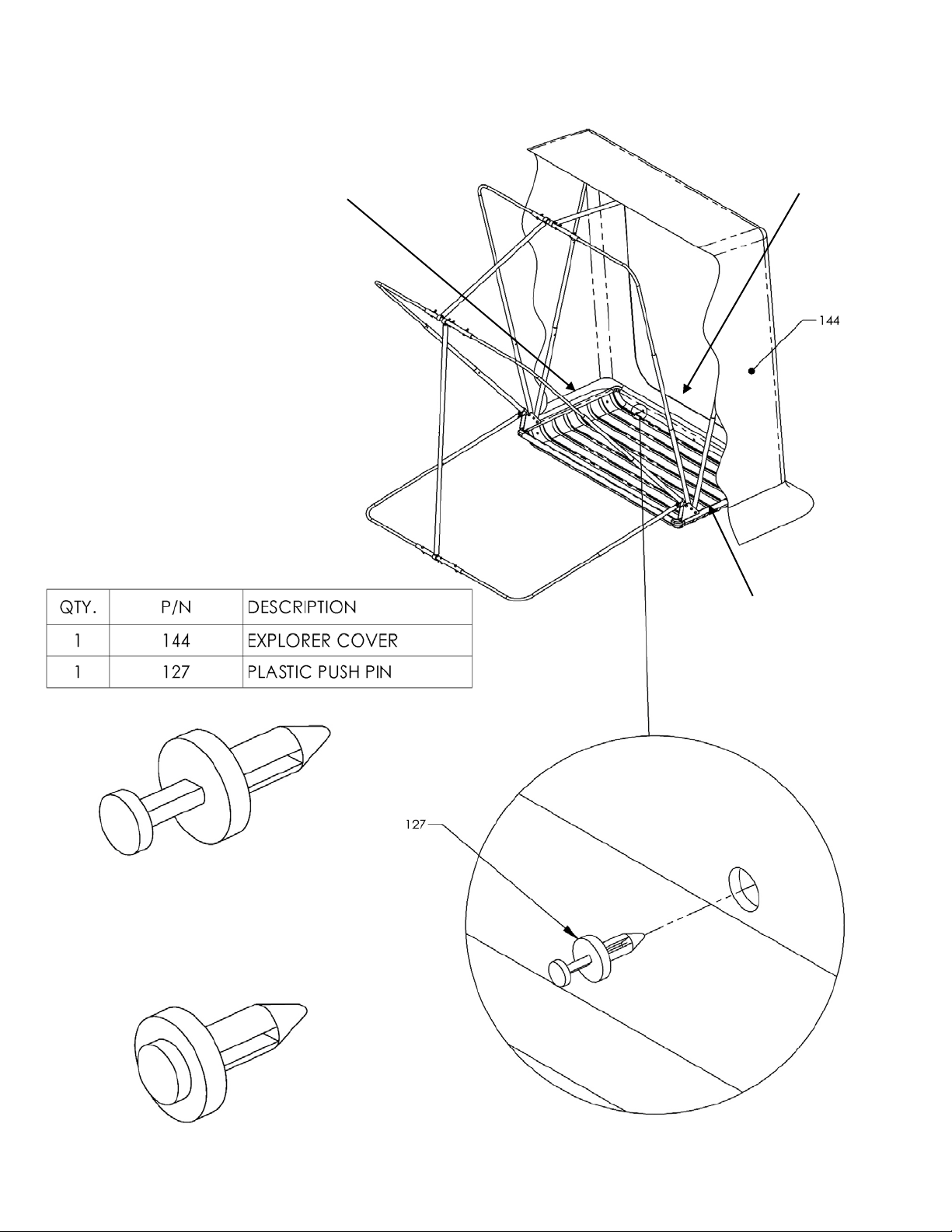

FLAPS ON 3 EDGES PLACE TO
INSIDE OF SLED AND LOCATE
HOLES. PUSH IN PLASTIC PINS
EDGE 1
EDGE 2
EDGE 3
DOOR
BEFORE INSERTING
AFTER INSERTING
FLAP
STEP 5: Connecting the Skirt

EXPEDITION ICE RUNNER FISH HOUSE 9
TAKING DOWN THE FISH HOUSE
1. With the support bars still in place, unlock all of the push button pins,
and partially collapse each pole.
2. Remove the support bars starting with the one nearest the door. Store
the support bars in the sled. Zip the door closed if it is open.
3. Starting with the frame poles nearest the door, collapse each pair
to get h er.
4. Tuck all of the canvas fabric and the skirt into the sled.
5. Place the cover over the fish house and sled, and make sure that no
fabric is hanging out before dragging or moving the house.
SAFE USE and WARNINGS
Read and follow all instructions for safe use. Failure to do so
could result in serious injury or death.
DO NOT USE OPEN FLAME HEATERS IN THIS ICE SHELTER. THE FABRIC IS
NOT FIREPROOF AND CAN MELT IF IT CONTACTS A HOT SURFACE.
ASPHYXIATION MAY RESULT FROM OXYGEN DEPLETING HEATERS. MAKE
SURE FISH HOUSE VENTS ARE OPEN WHEN IN USE.
DO NOT LEAVE SHELTER UNATTENDED. IF USED AT NIGHT, MAKE SURE
THERE ARE REFLECTORS VISIBLE ON ALL SIDES OF THE SHELTER TO
PREVENT COLLISIONS.

EXPEDITION ICE RUNNER FISH HOUSE 10
PRECAUTIONS
To protect your fish house and insure a long life it is important to following these
guidelines:
1. Do NOT pack gear on top of the fabric cover. Sharp edges and the substantial
weight of items like: ice augers, heaters, propane tanks, and chisels can damage
the fabric.
2. Do NOT allow gear to sit on the fabric inside of the sled. Gear should only be
placed on the bottom of the sled when transporting.
3. Keep the fabric out of the framework and hinge brackets when putting up or
taking down the shelter. The fabric can be damaged if it is pinched in between.
4. Make sure the canvas and skirt of the fish house is tucked into the sled and
under the sled cover. This is especially important when dragging or hauling the
sled behind an ATV or snowmobile. THE SKIRT WILL BE DAMAGED IF IT HANGS
OUT!
5. Use caution and common sense when pulling the shelter behind an ATV or
snowmobile on roads, trails, and the frozen lake. The rough nature of the terrain
can lead to major damage if the shelter is abused.
6. Keep heat sources away from the fabric. The nylon fabric can melt or lose its
protective coating if a heater is too close.
7. Be extremely careful with any fabric that becomes frozen to the ice. Pulling
fabric that is frozen to the ice will most likely tear. Loosen carefully before pulling.
8. Dry out the shelter after each use and before storing. Moisture will reduce
the lifespan of any fabric, whereas, a well cared for and dried canvas will last for
years.

EXPEDITION ICE RUNNER FISH HOUSE 10
PRECAUTIONS
To protect your fish house and insure a long life it is important to following these
guidelines:
1. Do NOT pack gear on top of the fabric cover. Sharp edges and the substantial
weight of items like: ice augers, heaters, propane tanks, and chisels can damage
the fabric.
2. Do NOT allow gear to sit on the fabric inside of the sled. Gear should only be
placed on the bottom of the sled when transporting.
3. Keep the fabric out of the framework and hinge brackets when putting up or
taking down the shelter. The fabric can be damaged if it is pinched in between.
4. Make sure the canvas and skirt of the fish house is tucked into the sled and
under the sled cover. This is especially important when dragging or hauling the
sled behind an ATV or snowmobile. THE SKIRT WILL BE DAMAGED IF IT HANGS
OUT!
5. Use caution and common sense when pulling the shelter behind an ATV or
snowmobile on roads, trails, and the frozen lake. The rough nature of the terrain
can lead to major damage if the shelter is abused.
6. Keep heat sources away from the fabric. The nylon fabric can melt or lose its
protective coating if a heater is too close.
7. Be extremely careful with any fabric that becomes frozen to the ice. Pulling
fabric that is frozen to the ice will most likely tear. Loosen carefully before pulling.
8. Dry out the shelter after each use and before storing. Moisture will reduce
the lifespan of any fabric, whereas, a well cared for and dried canvas will last for
years.
EXPEDITION ICE RUNNER FISH HOUSE 11
ICE RUNNER ACCESSORIES
KMDA, Inc. provides many accessories to help you get the most out
of your new fish house. We recommend the following items:
LAKCO Ice Anchors
SA1 SA2
Find these items at your local retailer, or visit:
www.kmdainc.com
For a complete selection of all our great products.
