Intended use
The product is designed to activate a KNOP 900 series wireless receiver when a user presses the
button.
PU901 can be used when the user cannot activate an alarm with a pull cord or push button.
PU901 must be coded into the receiver and the receiver must be switched on for the system to
work.
Pay attention to the range as described in the section "Checking the coverage area".
Testing and commissioning
After installation, it is important that the user tests the product by blowing against the propeller.
Staff should receive an alarm to their alarm system/receiver.
Refer to the instruction manual of the receivers used.
Check the coverage area
One person activates PU901 (as described above), while another person systematically walks
around the area and makes a sketch of the building and the area where there is coverage. The
sketch is placed in the office so that everyone who needs to use the system can see where there is
coverage. Outside the coverage area, alarms cannot be received.
The coverage area can be increased by using a repeater system from KNOP Elektronik.
Contact your retailer for more information.

Blow switch PU901P V1.2
©KNOP Elektronik A/S
Fabriksvej 20DK-7600 Struerkn[email protected]kknop.dk[phone]
5
Location
PU901 should be positioned so that the user can easily blow straight into the propeller.
The push contact can be mounted on e.g. a gooseneck, contact your retailer for more information.
Service
When the user blows hard enough on the propeller to activate PU901, it will flash a green light.
The receiver will give an acknowledgement, after which PU901 will glow steady green, indicating
that the transmission was successful.
If the transmission fails, PU901 repeats the transmission up to 2 times at 30 second intervals.
Battery alarm
If the battery in PU901 is low, the receiver will display "Low battery" when an alarm is received
from PU901.
Changing the battery

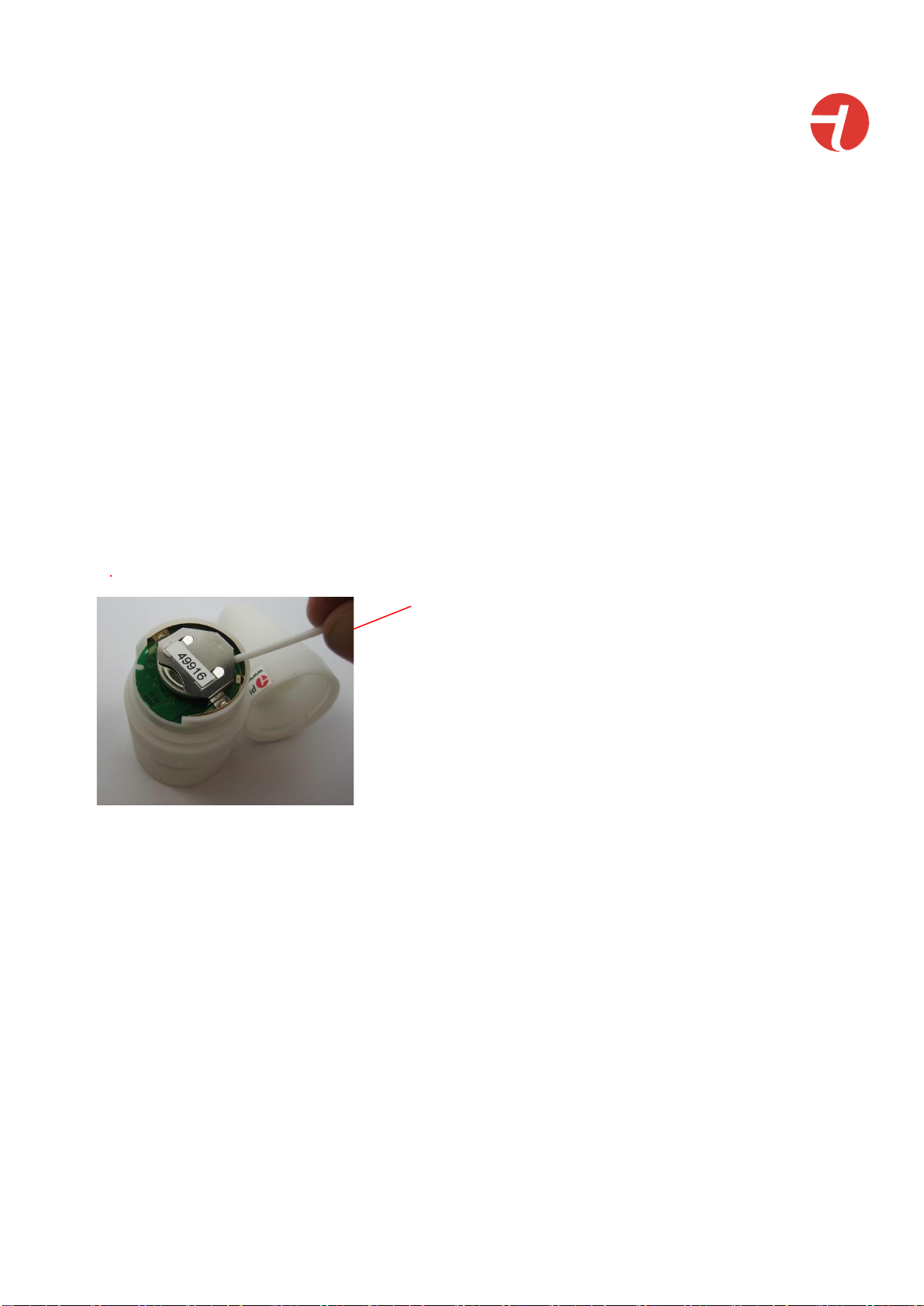

The top and bottom of the PU901 can be unscrewed without tools.
The battery is gently pressed out of the holder,
for example with a cotton swab or a match.
Never use a metal object.
Carefully insert the new battery into the holder
WITHOUT
using tools, as this may short-circuit the battery.
Use a CR2477 battery.
IMPORTANT + must be facing up.
After replacing the battery, check PU901 as described under "Testing and commissioning".
It takes about 1 minute after battery replacement before it can be activated.
Main menu
Use the head

Blow switch PU901P V1.2
©KNOP Elektronik A/S
Fabriksvej 20DK-7600 Struerkn[email protected]kknop.dk[phone]
6
Cleaning
The product can be cleaned with a moist cloth or tissue.
The propeller can be gently pulled out with pliers or other tools and cleaned.
The product is then thoroughly tested.
If necessary, the propeller can be replaced with a new one. See section "Accessories".
Spare parts and accessories
Spare parts and accessories can be ordered from Knop Elektronik A/S at www.knop.dk.

Blow switch PU901P V1.2
©KNOP Elektronik A/S
Fabriksvej 20DK-7600 Struerkn[email protected]kknop.dk[phone]
7
Technical data
Frequency HF: 869.2125 MHz
Range: Up to 500 m of unobstructed view to an RX901B (1)
Battery type: CR2477, lithium 3V 950 mAh
(PU900/901 before serial number 57024 used CR2354)
Battery life (expected): Up to 5 years with 5 activations per day. (2)
Low battery alarm: At approx. 1/3 of residual capacity
Surrounding environment: Indoor use. ≤ 90% non-condensing
Ambient temperature: 0°C to +40°C
Cabinet type: White polyoxymethylene
Cabinet dimensions: Ø: 43mm L: 106mm
Density: IP65
Connections: None, wireless communication.
Weight: 115g
The right to make changes is reserved.
All rights reserved.
©KNOP Elektronik A/S
(1) Measured outdoors with unobstructed view between transmitter and receiver. In buildings the
range is reduced.
(2) Expected battery life depends on usage and battery brand.

Blow switch PU901P V1.2
©KNOP Elektronik A/S
Fabriksvej 20DK-7600 Struerkn[email protected]kknop.dk[phone]
8
Explanation of symbols and approvals
This product complies with:
Directive 2017/745/EU MDR
Directive 1907/2006/EU REACH
Directive 2011/65/EU RoHS
ISO 14971:2019 Risk Management for Medical devices
EN 301 498-1 V2.2.3 Electro Magnetic Compatibility
EN 301 489-3 V3.1.1 Electro Magnetic Compatibility
EN 50130-4:2011 + 2014 Immunity alarm systems
EN 300 220-1 V3.1.1 Short Range Devices
EN 300 220-2 V3.1.1 Short Range Devices
EN 300 220-3 V2.1.1 Short Range Devices
EN 60601-1-2:2014 + 2015 Electromagnetic compatibility (Medical)
EN 62368-1:2020 Electrical safety
EN 50581:2012 Hazardous substances
The product must not be used if the packaging is damaged.
Medical Device
Class 1
Manufacturer
KNOP Elektronik A/S, Fabriksvej 20, DK-7600 Struer, Denmark
Read the manual(s) before installation and commissioning.
Interference may occur in an environment with equipment marked with this symbol.
Must be protected against liquids.
0 °C to +40 °C, temperature limit for transport/storage and use.
The product must not be disposed of with normal household waste.
Single Registration Number
DK-MF-000025631
Unique Device Identifier
PU901: 05744002850403
PU901P: 05744002850380
Product reference
PU901: Blow switch
PU901P: Blow switch with position
Serial number
Placed on the product
Ingress Protection Code
IP40
