KOBE CH2730SQ3 Series Troubleshooting guide

KOBE Range Hoods
Premium Series
Milo CH27 Series
Model No.:
Under Cabinet:
CH2730SQ3-XX (30”)
CH2736SQ3-XX (36”)
Wall Mount:
CH2730SQ3-WM-XX (30”)
CH2736SQ3-WM-XX (36”)
CH2748SQ3-WM-XX (48”)
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

IMPORTANT
READ THIS FIRST
READ BEFORE INSTALLATION
1. Carefully check all contents of packages.
2. Thoroughly inspect the unit for any shipping damages, cosmetic
damages or defects.
3. Have a certified contractor/electrician test the unit before installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial
number ready.
3. Contact your merchant for product replacement due to shipping
damages, cosmetic damages or defects.
4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to
[e-mail] .
NO RETURN, NO REFUND, NO EXCHANGE IF:
1.PRODUCT HAS BEEN INSTALLED
2.KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3.MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.........................................................................1
COMPONENTS OF PACKAGE.......................................................................................3
INSTALLATION ...............................................................................................................5

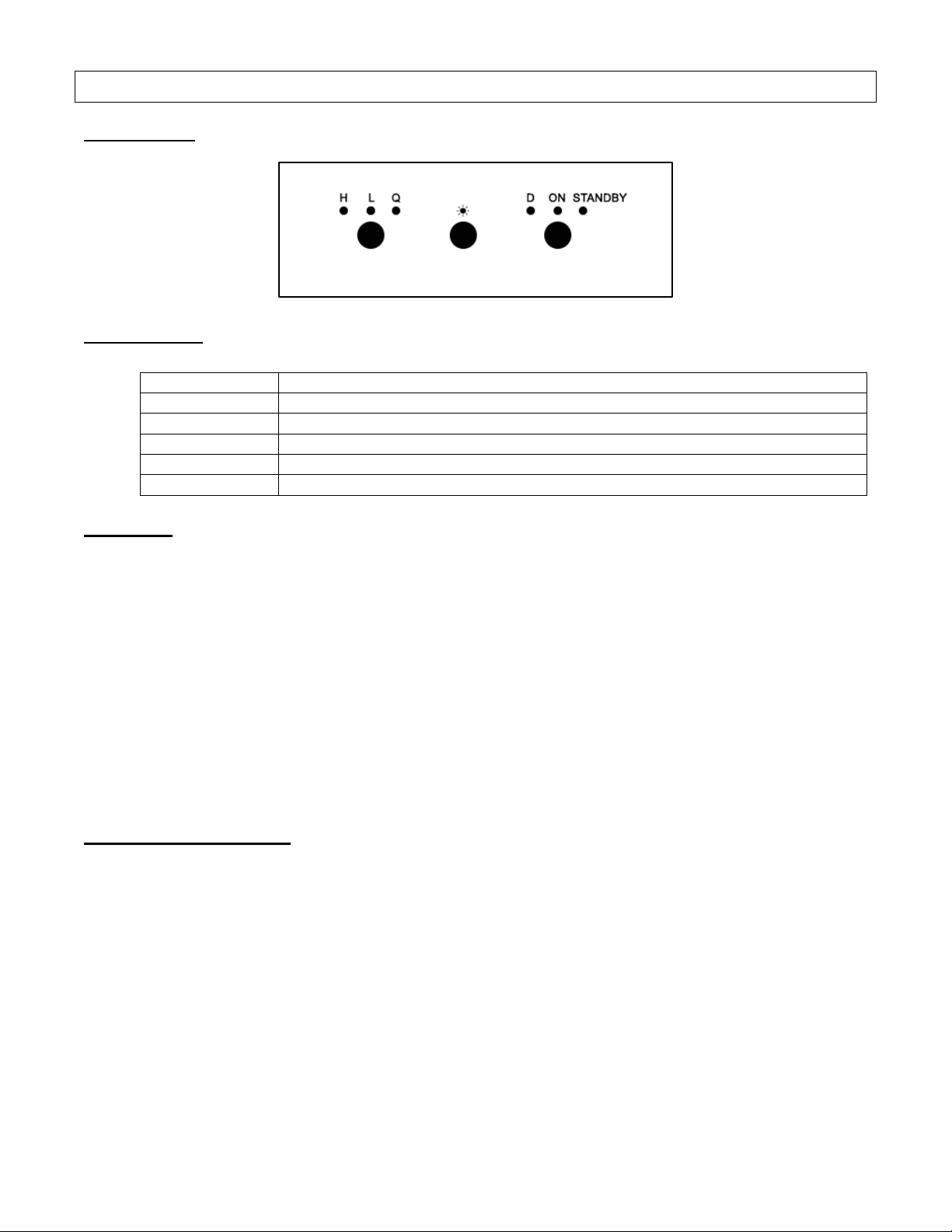

OPERATING INSTRUCTIONS......................................................................................11
MAINTENANCE ............................................................................................................13
SPECIFICATIONS.........................................................................................................14
MEASUREMENTS & DIAGRAMS.................................................................................15
PARTS LIST..................................................................................................................17
CIRCUIT DIAGRAM ......................................................................................................21
TROUBLE SHOOTING.................................................................................................22
WARRANTY..................................................................................................................23
WARRANTY INFORMATION FORM.............................................................................25
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MU S T BE DONE BY A PROFE SSI ONAL AN D I N
ACCORDANCE WI T H NA T I ONAL AND LOCAL ELE C TRICAL CODES

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING.
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE
-
This warranty is void without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
-
KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1) Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2) Always turn hood ON when cooking.
3) Use high settings on cooking range ONLY when necessary.
4) Do not leave cooking range unattended when cooking.
5) Always use cookware and utensils appropriate for the type and amount of food prepared.
6) Use this unit only in the manner intended by the manufacturer.
7) Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8) Clean ventilating fan frequently.

2
What to Do In The Event Of a Range Top Grease Fire
•SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
•NEVER PICK UP A BURNING PAN –You May Get Burned.
•DO NOT USE WATER, including wet dishcloths or towels –a steam blast will result.
•Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
•Extinguish any open flame.
•Do not try to turn on the lights or any type of appliance.
•Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, installation by 2 persons is recommended.
ELETRICAL SHOCK HAZARD –Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amount of mercury, which must
be recycled or disposed of according to Local, State, and Federal Code.

3
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
For Under Cabinet Application
CH2730SQ3-XX (30”) / CH2736SQ3-XX (36”)
Range Hood Box
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} Airflow Efficiency Panel x 1 (30” hood)
x 3 (36” hood)
{E} 6” Round Plastic Collar
{F} Wire Cap x 3
{G} Screws Package
{H} Stainless Steel Filter x 1
{A}
{B}
{C}
{D}
{E}
*Pre-Installed
{F}
{G}
{H}
*Pre-Installed
•FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com
OR CONTACT KOBE RANGE HOODS AT [phone].
Wire caps (3)
M4 x 1-1/2” (4)

4
(Must keep all material for returns or refunds)
For Wall Mount Application
CH2730SQ3-WM-XX (30”) / CH2736SQ3-WM-XX (36”) / CH2748SQ3-WM-XX (48”)
Range Hood Box
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} Airflow Efficiency Panel x 1 (30” hood)
x 3 (36” & 48” hood)
{E} 6” Round Plastic Collar
{F} Duct cover Mounting Bracket
{G} Adjustable Duct Cover
{H} Screws Package
{I} Wire Cap x 3
{J} Screws Package
{K} Stainless Steel Filter x 1
{A}
{B}
{C}
{D}
{E}
*Pre-Installed
{F}
{G}
{H}
{I}
{J}
{K}
*Pre-Installed
•FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com
OR CONTACT KOBE RANGE HOODS AT [phone].
3/16 “x 3/8” (8PCS)
Wire Caps (3)
M4 x 1-1/2” (4)

5
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculation in inches).
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to
Hood Bottom (Minimum 26” to 30”)
D = Height of Hood
E = Height of the Cabinet
- FOR WALL MOUNT (WITH OPTIONAL DUCT COVER) -
TABLE 2
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to
Hood Bottom (Minimum 26” to 30”)
D = Height of Hood
E = Height of Duct Cover [F –D]
F = Height of the Hood Installation
[A –(B+C)]

6
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: DO NOT USE AN ELECTRIC SCREWDRIVER. USE HAND TOOLS ONLY. DO NOT
OVER TIGHTEN SCREWS AS THIS MAY CAUSE DAMAGE TO THE HOOD.
Installation Contents
UNDER CABINET INSTALLATION
WALL MOUNT INSTALLATION
7
9

7
UNDER CABINET INSTALLATION
Applicable Model: CH2730SQ3-XX (30”) / CH2736SQ3-XX (36”)
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.
- Decide the location of the venting pipe from thehood
to the outside. (Figure 1)
- A straight, short vent run will allow the hood to
perform more efficiently.
- Try to avoid as many transitions, elbows, and long
run as possible. This may reduce the performance
of the hood.
- Temporarily wire the hood to test for proper
operation before installing. If the hood does not
operate, check the circuit breaker or house fuse. If
the hood is still not working, disconnect power
supply and check the continuity of all wire
connections.
- Peel protective film off the hood (if any).
- Use duct tape to seal joints between pipe sections.
- Make sure the cabinet has full access opening for
the hood as shown on Figure 2.
- Using reference on Page 15 to measurement and
create access opening for electrical wire and
exhaust under the cabinet.
Hood Installation
CAUTION: Do not use an electric screwdriver.
Use hand tools only. Do not over tighten screws
as this may cause damage to the hood.
CAUTION: If moving the cooking range is
necessary to install the hood, turn off the power
in an electric range at the main electrical box.
SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE. And use a protective covering to protect
cooktop and/or countertop from damage.
1. Using references on TABLE 1 and measurements
on page 15 mark the leveling point for hood-
mounting bracket inside the cabinet.
2. Secure two hood mounting screws (provided)
inside the cabinet leaving 1/8” away from the
cabinet as shown on Figure 3.
3. Loosen hood-mounting brackets atthe back of the
hood, adjust brackets and tighten screws as
shown in Figure 4.
4. Refer to Figure 5. Align hood-mounting bracketto
the mounting screws inside the cabinet and hook
hood into place. Secure and tighten the mounting
screws.
CAUTION: MAKE SURE THE HOOD IS
SECURE BEFORE RELEASING.
Figure 1
Figure 2
Figure 3
Figure 4

8
Ductwork Installation
5. Use steel pipe to connect the 6” round plastic
collar {F} on the hood to the ductwork above.
Use duct tape to make all joints secure and air
tight. Refer to Figure 6.
Wiring to Power Supply
THIS RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE BY
QUALIFIED ELECTRICIAN IN ACCORDANCE
WITH ALL APPLICABLE NATIONAL AND
LOCAL ELECTRICAL CODES. BEFORE
CONNECTING WIRES, SWITCH POWER OFF AT
SERVICE PANEL AND LOCK SERVICE PANEL
TO PREVENT POWER FROM BEING SWITCHED
ON ACCIDENTALLY.
6. If hood is operating normally, connect three
wires (black, white and green) to house wires
and cap with wire connections.
7. Store wires in the wiring box.
Install / Uninstall Accessories
8. Place the airflow efficiency panel underneath
the hood. (Figure 7)
Final Assembly
9. Turn power ON in control panel. Check all lights
and fan operation.
10. Leave this Installation Instructions and
Operation Manual for the homeowner.
Figure 5
Figure 6
Figure 7

9
WALL MOUNT INSTALLATION
Applicable Model: CH2730SQ3-WM-XX (30”) / CH2736SQ3-WM-XX (36”) / CH2748SQ3-WM-XX (48”)
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.
- Decide the location of the venting pipe from thehood
to the outside. Refer to Figure 8.
- A straight, short venting run will allow the hood to
perform more efficiently.
- Try to avoid as many transitions, elbows, and long
run as possible. This may reduce the performance
of the hood.
- Temporarily wire the hood to test for proper
operation before installation. If the hood does not
operate, check the circuit breaker or house fuse. If
the hood is still not working, disconnect power
supply and check the continuity of all wire
connections.
- Peel protective film off the hood (if any).
- Use duct tape to seal the joints between pipe
sections.
- If necessary, prepare back wall frame with cross
framing lumber for secure installation. Using
references on TABLE 2 and measurements on page
15-16, decide the level of the lumber. Refer to
Figure 9.
Hood Installation
CAUTION: Do not use an electric screwdriver.
Use hand tools only. Do not over tighten screws
as this may cause damage to the hood.
CAUTION: If moving the cooking range is
necessary to install the hood, turn off the power
in an electric range at the main electrical box.
SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE. And use a protective covering to protect
cooktop and/or countertop from damage.
1. Use reference on TABLE 2 and measurements on
page 15-16, mark the leveling point of the hood.
Position mounting screws (provided) on the wall,
leaving 1/8” away from the wall as shown in Figure
10.
2. Optional step for adjusting hood-mounting bracket
height:
- Loosen hood-mounting brackets at the back of
the hood, adjust brackets and tighten screws as
shown in Figure 11.
3. Align hood-mounting bracket to the two screws on
the wall and hook hood into place. Tighten screws
to secure hood to the wall.
CAUTION: MAKE SURE THE HOOD IS
SECURE BEFORE RELEASING.
Figure 8
Figure 9
Figure 10
Figure 11
Mounting Screws

10
Wiring to Power Supply
THIS RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE BY
QUALIFIED ELECTRICIAN IN ACCORDANCE
WITH ALL APPLICABLE NATIONAL AND
LOCAL ELECTRICAL CODES. BEFORE
CONNECTING WIRES, SWITCH POWER OFF AT
SERVICE PANEL AND LOCK SERVICE PANEL
TO PREVENT POWER FROM BEING SWITCHED
ON ACCIDENTALLY.
4. If hood is operating normally, connect three
wires (black, white and green) to house wires
and cap with wire connectors.
5. Store wires in wiring box.
Ductwork Installation
6. Use steel pipe to connect the exhaust on the
hood to the ductwork. Use duct tape to make
all joints secure and air tight.
Duct Cover Installation
7. Mark the position of the Duct Cover-Mounting
Bracket {G}. Use reference Efrom TABLE 2
and measurements on page 15-16. Attach and
secure Duct Cover-Mounting Bracket {G} with
two screws (provided). Refer to Figure 12.
NOTE: Inner duct cover will cover the Duct
Cover-Mounting Bracket.
8. Position the entire duct cover up onto the hood.
9. Secure the inner duct cover with two (3/16” x
3/8”) screws {I} to the Duct Cover-Mounting
Bracket {G}. Shown in Figure 13.
10. Secure the outer duct cover with two (3/16” x
3/8”) screws {I} to the Blower Housing.
Install / Uninstall Accessories
11. Place the airflow efficiency panel underneath
the hood. (Figure 14)
Final Assembly
12. Turn power ON in control panel. Check all lights
and fan operation.
13. Leave this Installation Instructions and
Operation Manual for the homeowner.
Figure 12
Figure 13
Figure 14
Attach Together

11
OPERATING INSTRUCTIONS
Control Panel
Light Indicator
Q
QuietMode™ speed
L
Low speed
H
High speed
D
Delay Shut-Off
ON
On Mode
Standby
Auto Mode
Auto Mode
•The hood has advanced built-in temperature sensors. When the sensor detects by ~7°F degrees**
of temperature differential between the hood and the surrounding environment, the fan and lights on
the hood will turn on automatically.
•The hood has 3 speeds - QuietMode™ (Q), Low (L), and High (H). The speed will automatically
adjust to the higher and lower speeds depending on ~7°F degrees** of temperature differential
between the hood and the surrounding environment.
•Auto Mode is always enabled on this unit. You can still manually control functions such as speed,
light, and delay shut-off. However, if the hood detects any lingering heat even after the range has
been turned off, the Auto Mode function will turn the hood back on even if you manually shut off the
fan and lights, so that it can continue to refresh the air quality.
Automatic Delay Shut-Off
•When your hood is on and the temperature of the hood equals the surrounding room temperature,
the hood will automatically activate the delay shut-off and the fan speed will go into QuietMode(lowest
speed).
•The fan and the lights will automatically shut-off after 3 minutes.
•Once the delay shut-off has been activated, the D and ON lights will both be on and you will hear a
single audible beep. While the 3-minute countdown is running, the speed level can still be adjusted
by pressing the fan speed button.
•To override the Automatic Delay Shut-Off, press and hold the power button for 3 seconds, which will
turn off the hood immediately.

12
*Please note the sensor will override this automatically when the sensor detects the 7°F-degree**
temperature differential; and the hood and lights will turn on again.
Power Button
•To manually turn on the hood, press the power button once.
•To Manually Activate the delay shut-off:
When the ON light is green, you can manually activate the delay shut-off by pressing the
power button and you will see the D + ON light turn on to indicate delay shut-off is activated.
OR
If the hood is on STANDBY mode, you can activate the delay shut-off by pressing the power
button twice (once to turn it on and second time to activate delay shut-off).
•To manually turn off the hood, press and hold the power button for 3 seconds to put on standby.
•*Please note the sensor will override this automatically when the sensor detects the 7°F-degree**
temperature differential between the hood and the surrounding environment, and the hood and lights
will turn on again. When manually setting the delay shut-off, the fan and the lights will automatically
shut-off after 5 minutes.
Light Button
•Press once for On/Off Light button control
*Please note that when you manually turn on the hood, the lights will turn on as well.
Speed Button
•Press the speed control button to adjust the speed after the hood is on.
•The fan cycle speeds are: QuietMode™ (Q) -> Low (L) -> High (H)
**Please note: ~7°F degrees vary depending on the condition of your environment and stove/range you
use.

13
MAINTENANCE
For optimal performance, clean the range hood surface and filters regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
***Regular care will help preserve its fine appearance.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of
the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the
stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, orcleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful to the hood. Rinse with water after exposure and wipe dry with a clean lint free
cloth.
To Clean Stainless Steel Filter / Airflow Efficiency Panel
CAUTION: DRAIN OIL FROM STAINLESS STEEL FILTER & AIRFLOW EFFICIENCY PANEL
REGULARLY TO PREVENT OVERFLOW.
1. Remove all the filters and panels.
RECOMMENDED USAGE OF GLOVES WHILE REMOVING
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
***Note: Stainless Steel Filters & Airflow Efficiency Panels are top rack dishwasher safe.

14
SPECIFICATIONS
MODEL / SIZE
Under Cabinet Application Wall Mount Application
CH2730SQ3-XX (30”) CH2730SQ3-WM-XX (30”)
CH2736SQ3-XX (36”) CH2736SQ3-WM-XX (36”)
CH2748SQ3-WM-XX (48”)
COLOR
18-Gauge Commercial Grade Stainless Steel
CONSUMPTION / AMPERE
420W / 3.5A
Power Rating
120V / 60Hz
NUMBER OF BLOWER
1
DESIGN
Seamless / Satin Finish
BLOWER TYPE
Single Horizontal Squirrel Cage
EXHAUST
Top 6” Round
CONTROLS
3-Speed Push Button with Temperature Sensor
LIGHTS
3-Watt LED Light x 2 (30” , 36”)
3-Watt LED Light x 4 (48”)
HOOD DIMENSION
(W x D x H)
CH2730SQ3-XX / CH2730SQ3-WM-XX (30”)
29-3/4” x 19-11/16” x 13-1/4”
CH2736SQ3-XX / CH2736SQ3-WM-XX (36”)
35-3/4” x 19-11/16” x 13-1/4”
CH2748SQ3-WM-XX (48”)
47-3/4” x 19-11/16” x 13-1/4”
DUCT COVER DIMENSION
(W x D x H)
1) Standard Duct Cover (2pc. Adjustable)
CH02DC-1 (11-15/16” x 12-7/16” x 18-7/8”~37-3/8”)
2) Inner Duct Extension (Sold Separately)
CH02DC30-1 (11-15/16” x 12-7/16” x 30”)
OPTIONAL ACCESSORIES
(W x D x H)
1) 30” Stainless Steel Back Panel
SSP30 (30” x 1/10” x 32”)
2) 36” Stainless Steel Back Panel
SSP36 (36” x 1/10” x 32”)
WEIGHT (lbs)
NET
GROSS
CH2730SQ3-XX (30”)
34.5 lbs
44.0 lbs
CH2736SQ3-XX (36”)
40.0 lbs
50.0 lbs
CH2730SQ3-WM-XX (30”)
42.0 lbs
53.5 lbs
CH2736SQ3-WM-XX (36”)
48.5 lbs
60.0 lbs
CH2748SQ3-WM-XX (48”)
55.0 lbs
69.5 lbs
SPEED
QuietMode™
Low
High
Air Capacity (CFM)
250
430
600
Sone* (dB)
2.0
5.0
7.0
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.

15

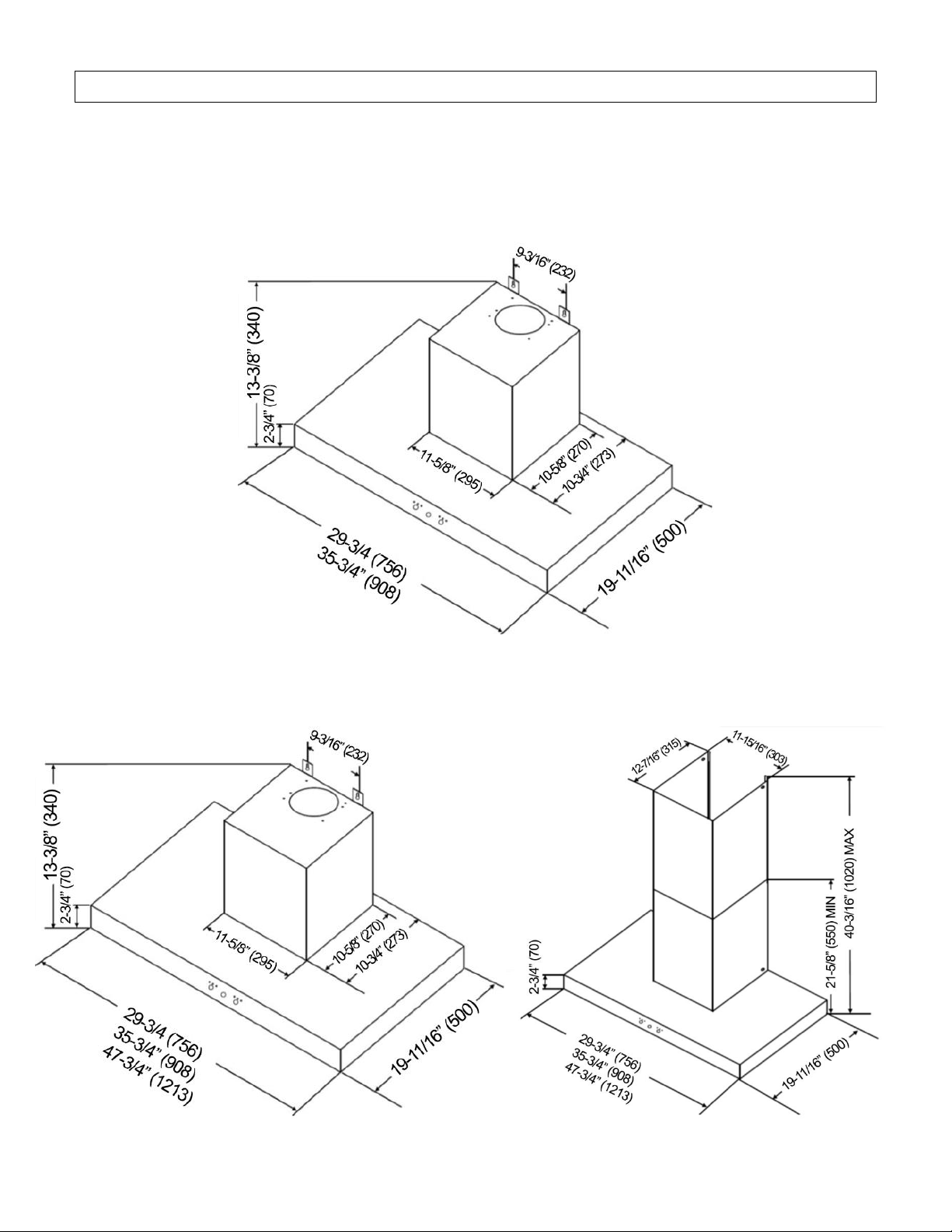

MEASUREMENTS & DIAGRAMS
***All inch measurements are converted from millimeters. Inch measurements are estimated.
***All measurements in ( ) are millimeters.
- FOR UNDER THE CABINET –
MODEL NO.:
CH2730SQ3-XX (30”) / CH2736SQ3-XX (36”)
- FOR WALL MOUNT –
MODEL NO.:
CH2730SQ3-WM-XX (30”) / CH2736SQ3-WM-XX (36”) / CH2748SQ3-WM-XX (48”)

16
***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket

17
PARTS LIST
MODEL NO.:
CH2730SQ3-XX (30”)
CH2736SQ3-XX (36”)
NO.
DESCRIPTION
MODEL / SIZE
PART NO.
1
6” Round Plastic Exhaust
L1-0505-0007
2
Blower System
L1-0302-0120-590RO
3
Stainless Steel Filter
B101-27300-09-M
4
Control Unit
L1-0404-3001-A
5
Capacitor x 1PCS
L1-0401-0120-24
6
LED Light Driver
L1-0402-D001
7
Temperature Sensor
L1-0404-3001-C
8
Processor Board
L1-0404-3001-B
9
Light Panel Support
CH2730SQ3-XX
B101-N2730-06
CH2736SQ3-XX
B101-N2736-06
10
LED Light (3W)
L1-0403-0301
11
Airflow Efficiency Panel (14-5/8” x 12-7/16”)
CH2730SQ3-XX
B010-27900-09-30
Airflow Efficiency Panel (10-3/8” x 12-7/16”)
CH2736SQ3-XX
B010-27900-09-36
