KOBE Brand Range Hood
Model No. / Nos de modèles / Modelo No.
IS2336SQ
IS2342SQ
IS-123 SERIES – 7” HEIGHT
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
MANUEL D'INSTALLATION
ET MODE D'EMPLOI
INSTRUCCIONES DE INSTALACIÓN
Y MANUAL DE OPERACIÓN
www.goedekers.com

1
[ENGLISH] ....................................................................................................................................1
[FRENCH] ...................................................................................................................................24
[SPANISH] ..................................................................................................................................48
www.goedekers.com

1
READ BEFORE INSTALLATION
1. Carefullycheckallcontentsofpackages;
2. Thoroughlyinspecttheunitforanycosmeticdamagesor
defects;
3. Testtheunitbeforeinstallation;
4. Haveacertifiedcontractor/electriciandotheinstallation.
IF THERE IS ANY PROBLEM:
1. DONOTINSTALLTHEUNITANDKEEPALLORIGINAL
PACKAGINGMATERIAL.
2. Haveyouroriginalproofofpurchaseandproductserial
numberready.
3. Call1877BUYKOBE(2895623);oremailto
[email protected]toreporttheproblem.
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCTHASBEENINSTALLED
2. KNOCKOUTHOLESHAVEBEENPUNCTURED
3. MISSINGORIGINALPACKAGINGMATERIALAND/OR
PARTS
IMPORTANT
READ THIS
FIRST
www.goedekers.com

2
[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ......................................................................................3
COMPONENTS OF PACKAGE ....................................................................................................5
INSTALLATION.............................................................................................................................6
OPERATING INSTRUCTION......................................................................................................10

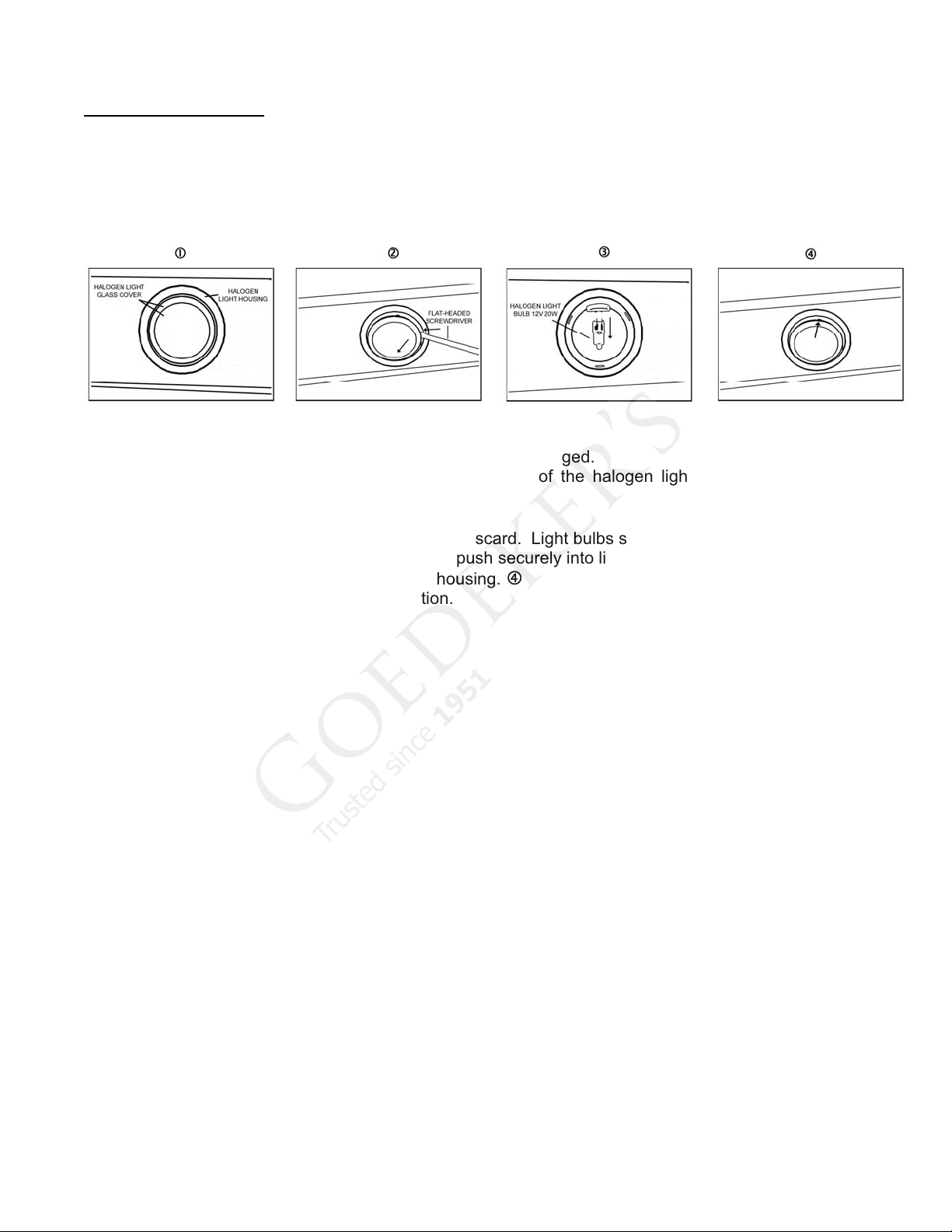

MAINTENANCE..........................................................................................................................11
SPECIFICATIONS ......................................................................................................................13

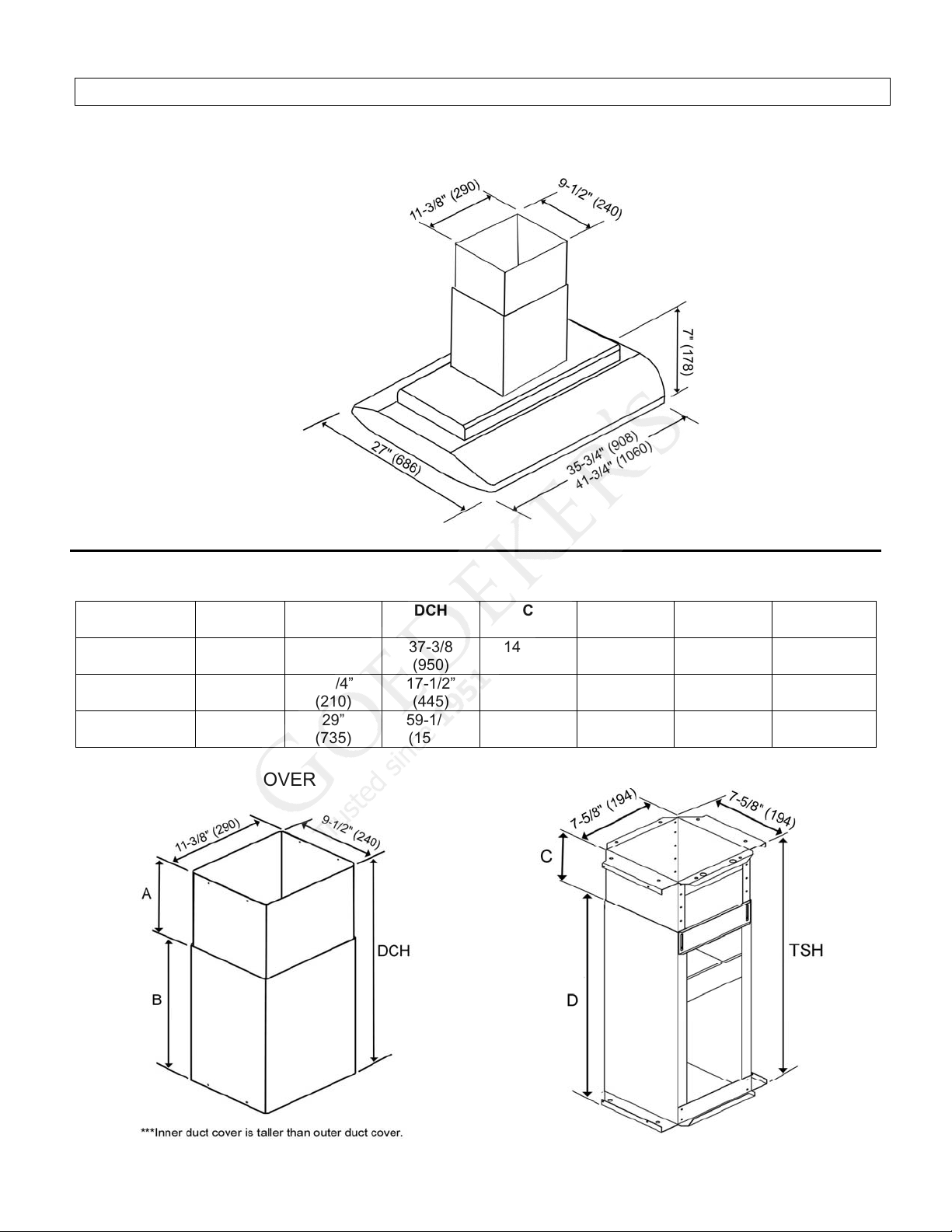

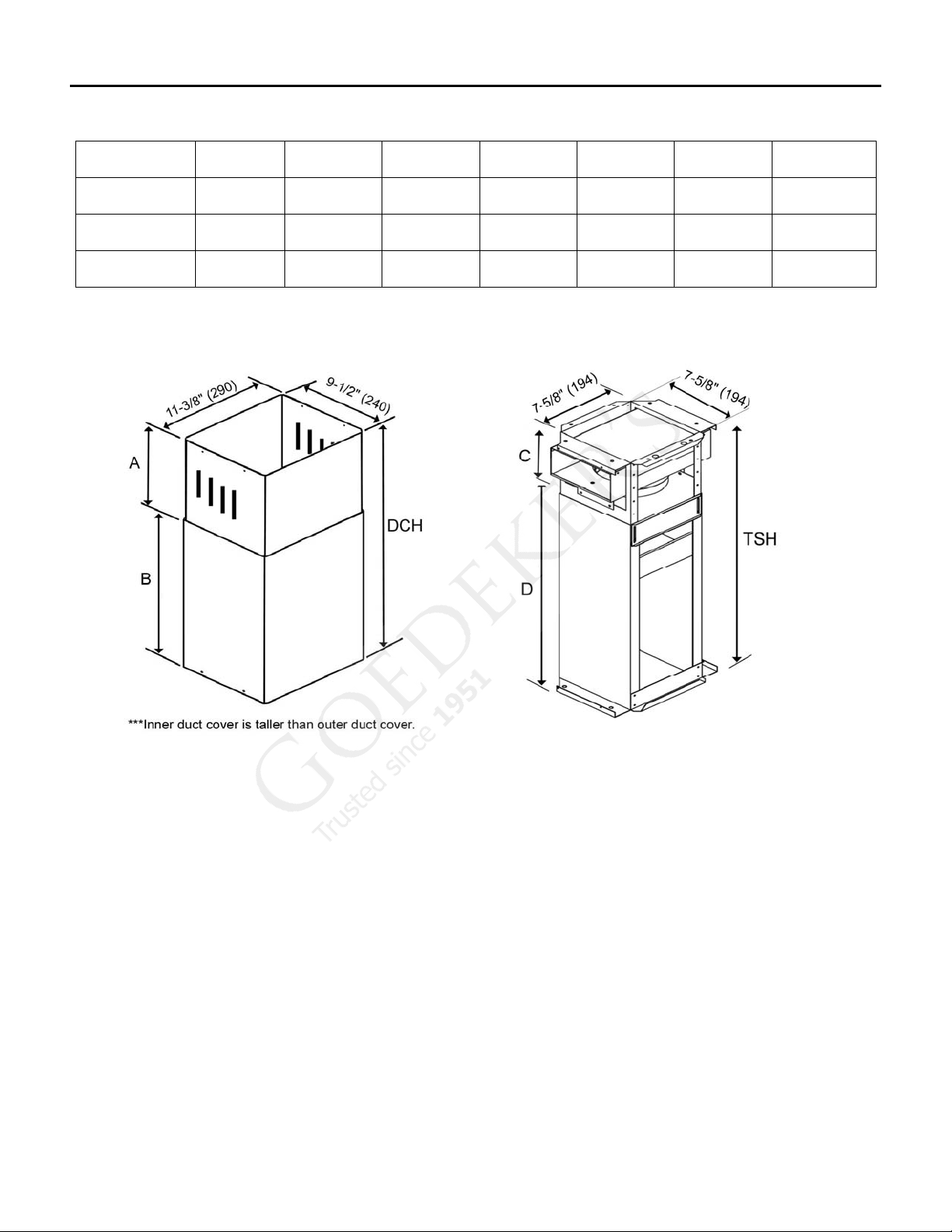

MEASUREMENTS & DIAGRAMS ..............................................................................................14
PARTS LIST................................................................................................................................16
CIRCUIT DIAGRAM....................................................................................................................19
TROUBLE SHOOTING...............................................................................................................20
WARRANTY................................................................................................................................21
PRODUCT REGISTRATION.......................................................................................................23
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES
www.goedekers.com

3
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
-
KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING
: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A
RANGE TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.
www.goedekers.com

4
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go
out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
-Extinguish any open flame.
-Do not try to turn on the lights or any type of appliance.
-Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which
must be recycled or disposed of according to Local, State, and Federal
Codes.
www.goedekers.com

5

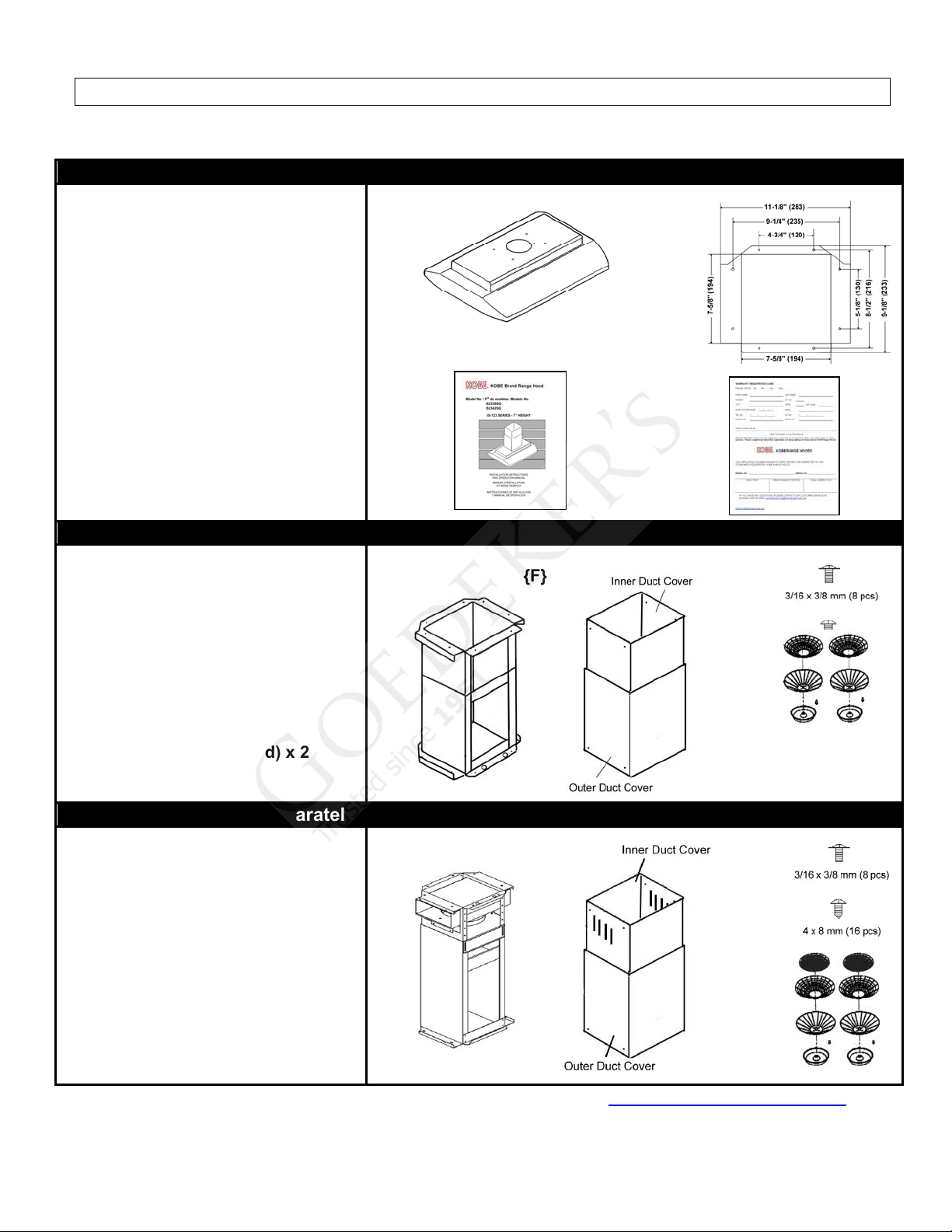

COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box (Box 1 of 2)
{A} KOBE Range Hood
{B} Mounting Template
{C} Warranty Registration Card
{D} Instructions Manual
{A} {B}
{C} {D}
Duct Cover Box (Sold Separately) Box 2 of 2
ORIGINAL KIT
BOX 2 (SOLD SEPARATELY):
{E} Telescopic Stack
{F} Two-Piece Duct Cover
{G} Screws Package
{H} Filter Set
(Model No. IS123F)
- Mesh Filter x 2
- Safety Screen x 2
- Oil Container (Round) x 2
- Screw x 2
{G}
{E} {F}
{H}
Duct Cover Box (Sold Separately) Box 2 of 2
RECIRCULATING KIT
BOX 2 (SOLD SEPARATELY):
{E} Telescopic Stack
{F} Two-Piece Duct Cover
{G} Screws Package
{H} Charcoal Filter Set
(Model No. RH-CH01)
- Charcoal Filter x 2
- Mesh Filter x 2
- Safety Screen x 2
- Oil Container (Round) x 2
- Screw x 2
{G}
{E} {F}
{H}
-FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].
www.goedekers.com

6
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

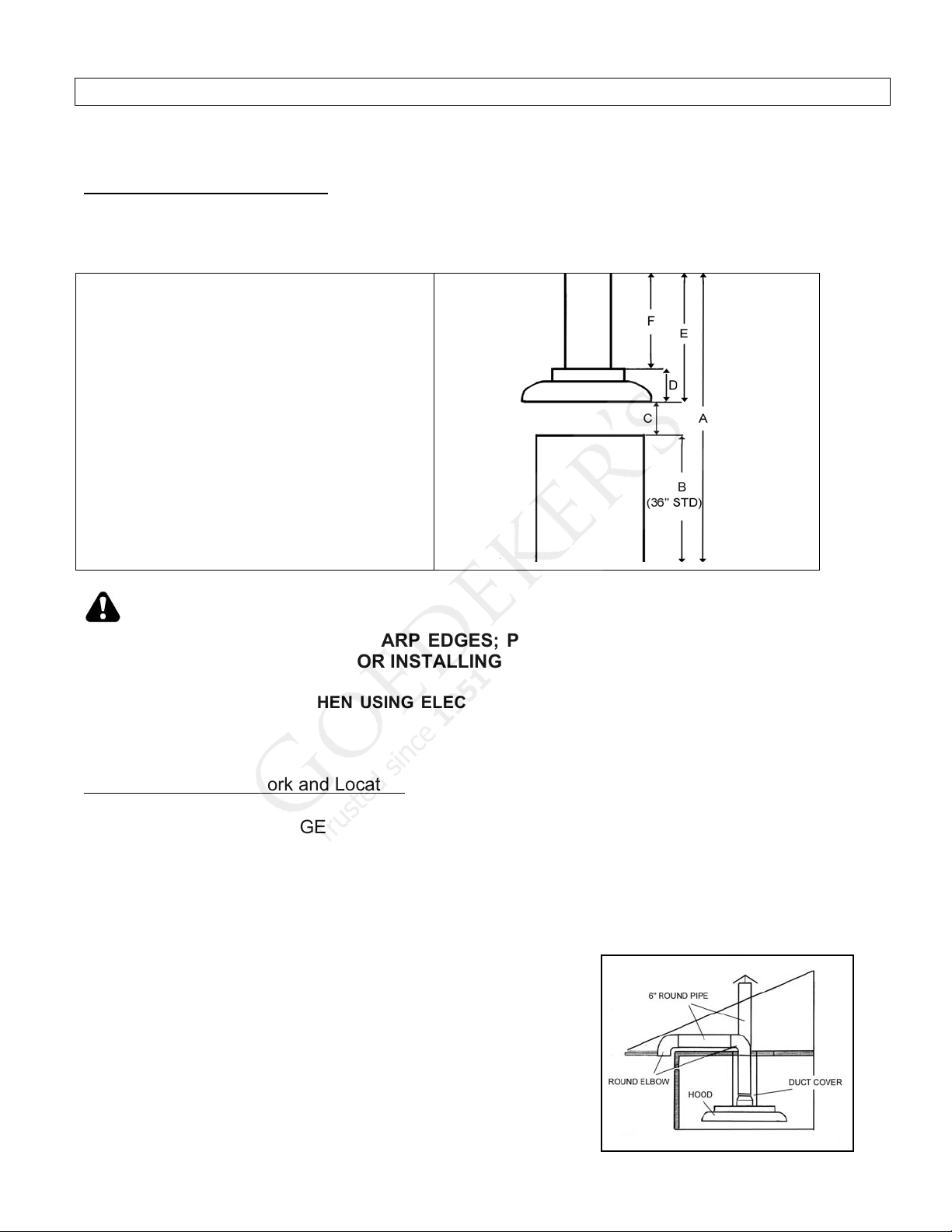

Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top
to Hood Bottom (Recommended
30” to 36”)
D = Height of Hood
E = Height of the Hood Installation
[A – (B+C)]
F = Height of Duct Cover
[E – D]
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.
Preparations of Ductwork and Location
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.
- Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.
- A straight, short venting run will allow the hood to perform more efficiently.
- Try to avoid as many transitions, elbows, and long run as possible. This may reduce the
performance of the hood.
-Use duct tape to seal the joints between pipe sections.
Figure 1
www.goedekers.com

7
Telescopic Stack Installation
Note: Duct cover with telescopic stack sold separately.
1. Mark centerlines of cook top or range on ceiling above. Use centerlines marked on ceiling
to position the mounting template as shown in Figure 2.
2. Remove and save template. Cut and remove ceiling drywall. Install 2” x 4” cross framing
lumber (not provided) between ceiling joists. Refer to Figure 3. Consult a professional if
you have difficulty or your installation is unique.
3. Finish the ceiling surface. Be sure to mark the location of the ceiling joists and cross
framing, or replace the mounting template in the position of the ceiling joists & cross
framing.
4. Attach the telescopic stack to the ceiling and securely fasten to the joists and cross framing
with eight screws (not provided) as shown in Figure 3. Make sure screws are driven into
center of joists and cross framing for maximum support.
5. Adjust the telescopic stack using reference Fcalculated in Table 1 and measurements on
page 12. Tighten from the side with eight (4x8 mm) screws (provided) as shown in Figure
4.
Figure 2
Figure 3
Figure 4
www.goedekers.com

8

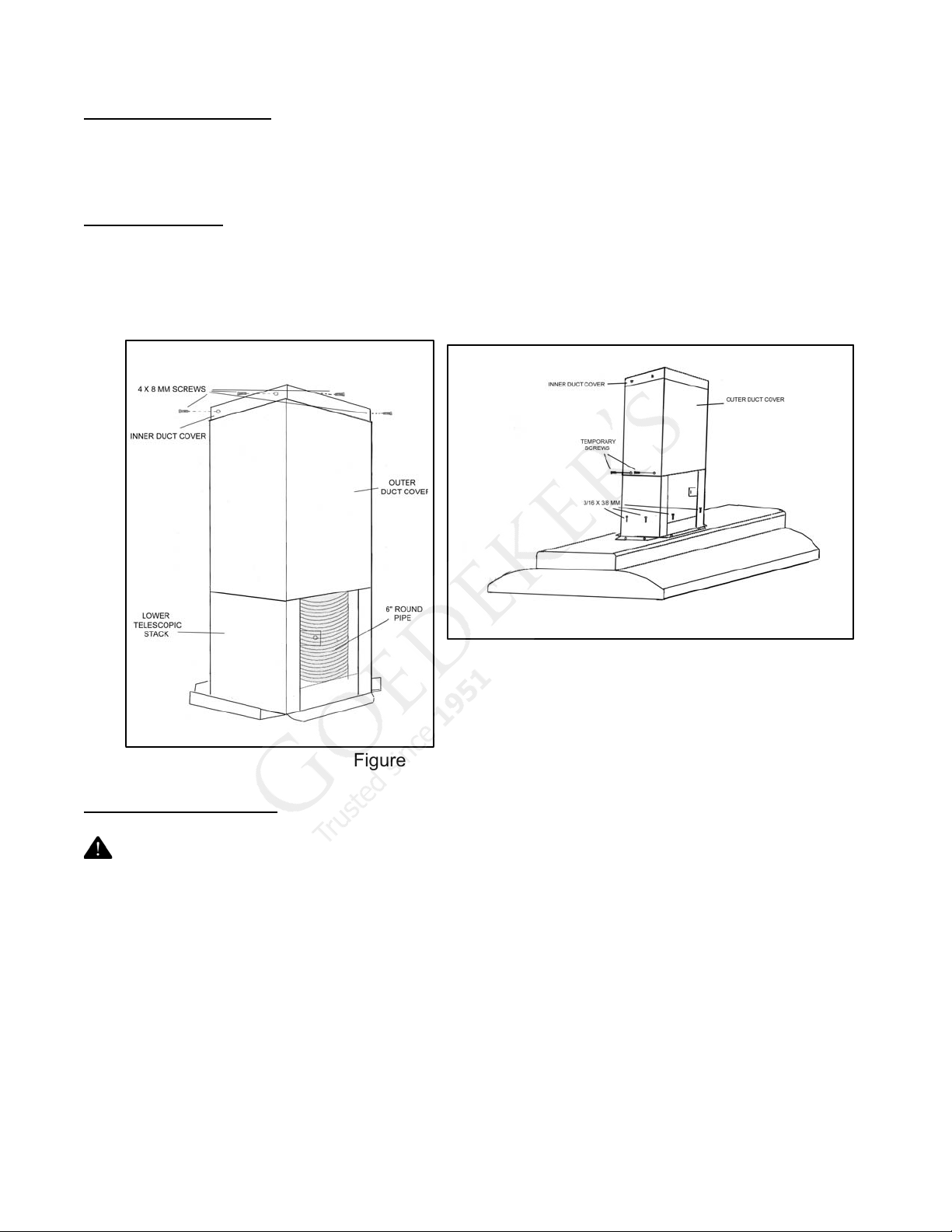

Duct Cover Installation
6. Slide the duct cover up and secure the inner duct cover to the telescopic stack with four
(4x8 mm) screws (provided). Refer to Figure 5.
Hood Installation
7. Place temporary screws to hold the duct cover up. Install the hood as shown in Figure 6.
8. Use eight (3/16x3/8 mm) screws (provided) to secure hood to telescopic stack. Make sure
to tighten screws securely. Refer to Figure 6.
Figure 6
Figure 5
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
9. Remove the wiring box cover as shown in Figure 7. Remove the knockout from the wiring
box.
10. Connect three wires (black, white and green) to house wires and cap with wire connectors
11. Connect according to color. Black to black, white to white, and green to green.
12. Close the wiring box cover and make sure that wires are not pinched between cover and
box.
www.goedekers.com

9
13. Test the operation of the hood before moving on to next step. Make sure power is supplied
to the hood.
Ductwork Installation
Note: Skip this step if installing recirculating kit.
14. Use 6” round pipe to connect the plastic exhaust on the hood to the ductwork above.
15. Use duct tape to make all joints secure and air tight.
Final Assembly
16. Remove the temporary screws and slide the outer duct cover downward so that it sits
properly on the hood.
17. NOTE: Be careful when using electrical screwdriver, damage to the hood may occur.
Secure the duct cover to hood with four (4x8 mm) screws (provided) as shown in Figure 8.
18. Turn power ON in control panel. Check all lights and fan operation.
19. Make sure to leave this manual for the homeowner.
Figure 7 Figure 8
www.goedekers.com

10
OPERATING INSTRUCTION
This KOBE hood is equipped with four electronic controls with a 10-second standby startup &
30-second delay shutoff, two powerful centrifugal turbine impellers, and four bright 12-volt 20-
watt halogen lights.
The four control buttons are Light Control, Speed Control A (cycles through Low, Medium, High,
QuietMode¥), Speed Control B (cycles through Low, QuietMode¥, High, Medium) and the
Power Control (On/Off). Refer to Figure 9.
Figure 9
Turn On:
- Press Power Control (On/Off) button once. (If any Control button is not pressed within
10 seconds, power will be automatically turned off).
- The KOBE hood will start on Low speed. Each press of the Speed Control button will
cycle through the various speeds.
- Press Speed Control A button to cycle from Low, Medium, High, or QuietMode¥.
Press Speed Control B button to cycle from Low, QuietMode¥, High or Medium.
- Press Light Control button to turn halogen light on.
Turn Off:
- Press Power Control (On/Off) button once, panel lights will flash and power will be
completely shut off after 30 seconds.
OR
- Press Power Control (On/Off) button twice, all power will be shut off immediately.
- If only the lights are on, pressing Power Control (On/Off) button once will turn power
off after 30 seconds.
www.goedekers.com

11
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS
OPERATING.
To Clean Hood Surface
CAUTION:NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT USE
PAPER TOWEL ON STAINLESS STEEL.
For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly.
*** Regular care will help preserve the appearance of the hood.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of
the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the
stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
To Clean Filter Sets and Oil Containers
CAUTION:DRAIN OIL CONTAINER BEFORE OIL CAN OVERFLOW.
1) Normal Cleaning
- Spray a mild degreaser into the fan and turn on high speed. Liquid residue will accumulate in
the oil containers (round).
2) Cleaning Oil Containers
- Remove the oil container by turning counter-clockwise.
- Wash with warm soapy water. Dry completely before returning into place.
-Top rack dishwasher safe.
3) Cleaning Filter Set or Charcoal Filter Set
- Remove the safety screen screw and slide the filter set or charcoal filter set out.
- Remove oil container by turning counter-clockwise.
- Wash with warm soapy water.
- Dry completely before returning into place.
-Top rack dishwasher safe.
www.goedekers.com

12
To Replace Light Bulb
CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.
NOTE: DO NOT TOUCH HALOGEN LIGHT WITH BARE HANDS, WHICH MIGHT CAUSE OVER
HEAT AND SHORTEN THE LIFT OF LIGHT BULBS.
1. Make sure all controls are off, and range hood is unplugged.
2. Place the flat-headed screwdriver into the groove of the halogen light glass covering and the
housing.
c
3. Pop out the halogen light glass covering.
d
4. Gently pull out the defective light bulb and discard. Light bulbs should be 12V 20W maximum.
e
5. Using a cloth, hold the new light bulb and push securely into light socket.
6. Return halogen light glass cover to the housing.
f
7. Turn range hood ON to test for operation.
www.goedekers.com

13
SPECIFICATIONS
MODEL / SIZE IS2336SQ / 36”
IS2342SQ / 42”
COLOR Commercial Grade Stainless Steel
VOLTAGE 120V 60Hz
NUMBER OF MOTORS 2
DESIGN 18-Gauge Seamless
FAN TYPE Twin Turbine Impeller
EXHAUST 6” Round
CONTROLS Electronic Control (4 Buttons) –
10-Second Standby Startup
30-Second Delay Shutoff
HALOGEN LIGHTS 12V 20W x 4
HOOD
DIMENSION (W x D x H)
(IS2336SQ) 35-3/4” x 27” x 7”
(IS2342SQ) 41-3/4” x 27” x 7”
TELESCOPIC STACK
DIMENSION (W x D x H)
Two-Piece Adjustable Telescopic Stack
1) Original Kit (Sold Separately):
(IS123DC) 11-1/8” x 9-1/8” x (22-5/8”~36-3/8”)
(IS123-16DC) 11-1/8” x 9-1/8” x (16”)
(IS123-59DC) 11-1/8” x 9-1/8” x (33-5/8”~58-1/2”)
2) Recirculating Kit (Sold Separately):
(IS123DCD) 11-1/8” x 9-1/8” x (22-5/8”~36-3/8”)
(IS123-16DCD) 11-1/8” x 9-1/8” x (16”)
(IS123-59DCD) 11-1/8” x 9-1/8” x (33-5/8”~58-1/2”)
DUCT COVER
DIMENSION (W x D x H)
Two-Piece Adjustable Duct Cover
1) Original Kit (Sold Separately):
(IS123DC) 11-3/8” x 9-1/2” x (18-1/8”~37-3/8”)
(IS123-16DC) 11-3/8” x 9-1/2” x (9-1/4”~17-1/2”)
(IS123-59DC) 11-3/8” x 9-1/2” x (30-1/4”~59-1/4”)
2) Recirculating Kit (Sold Separately):
(IS123DCD) 11-3/8” x 9-1/2” x (18-1/8”~37-3/8”)
(IS123-16DCD) 11-3/8” x 9-1/2” x (9-1/4”~17-1/2”)
(IS123-59DCD) 11-3/8” x 9-1/2” x (30-1/4”~59-1/4”)
HOOD WEIGHT (lbs)
NET GROSS
IS2336SQ 53.0 73.0
IS2342SQ 55.0 77.0
SPEED QuietMode
¥
Low Medium High
Air Capacity (cfm)
(Original / Recirculating) 330 / 150 480 / 200 600 / 330 760 / 400
Sone (Original /
Recirculating)*
1.2* / 1.0* 3.0 / 3.0 4.5 / 4.5 4.8 / 4.8
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.
www.goedekers.com

14
MEASUREMENTS & DIAGRAMS
All measurements in ( ) are millimeters.
All inch measurements are converted from millimeters. Inch measurements are
estimated.
ORIGINAL KIT (Sold Separately)
MODEL NO. A B DCH C D TSH MAX. HT.
INTSALLED
IS123DC 18-1/8”
(460)
19-1/4”
(490)
37-3/8
(950)
14-5/8”
(370)
22-5/8”
(575)
37-1/4”
(946)
36-3/8”
(925)
IS123-16DC 9-1/4”
(235)
8-1/4”
(210)
17-1/2”
(445)
- - 16”
(405)
16”
(405)
IS123-59DC 30-1/4”
(770)
29”
(735)
59-1/4”
(1505)
25-5/8”
(650)
33-5/8”
(854)
59-1/4”
(1505)
58-1/2”
(1485)
DUCT COVER TELESCOPIC STACK
www.goedekers.com

15
RECIRCULATING KIT (Sold Separately)
MODEL NO. A B DCH C D TSH MAX. HT.
INTSALLED
IS123DCD 18-1/8”
(460)
19-1/4”
(490)
37-3/8
(950)
14-5/8”
(370)
22-5/8”
(575)
37-1/4”
(946)
36-3/8”
(925)
IS123-16DCD 9-1/4”
(235)
8-1/4”
(210)
17-1/2”
(445)
- - 16”
(405)
16”
(405)
IS123-59DCD 30-1/4”
(770)
29”
(735)
59-1/4”
(1505)
25-5/8”
(650)
33-5/8”
(854)
59-1/4”
(1505)
58-1/2”
(1485)
DUCT COVER TELESCOPIC STACK
www.goedekers.com

16
PARTS LIST
MODEL NO.: IS2336SQ
IS2342SQ
KEY NO. DESCRIPTION MODEL /SIZE PART NO.
1 Power Cord C1-0406-0120-01
2 6” Round Plastic Exhaust C1-0505-0001
3 Round Head Screw (TS 4 x 6) C1-0708-0006
4 Hood Roof B101-1242-13
5 Hood Casing IS2336SQ B101-1236-02
IS2342SQ B101-1242-02
6 Transformer Bracket C1-0202-1242
7 Transformer (Light) C1-0402-0120-40
8 Transformer Bracket Screw (3/16” x 3/8”) C1-0707-0001
9 Halogen Light (12V 20W Max.) C1-0403-0101
10 Transformer Support (Light) C1-0201-1242
11 Screw (3/16” x 3/8”) C1-0707-0001
12 Capacitor C1-0401-0120-01A
13 Round Head Screw (TS 4 x 6) C1-0707-0001
14 Processor Board Box C1-0501-0102
15 Processor Board C1-0404-0401-B
16 Flat Head Screw (M 2 x 8) C1-0704-0003
17
A
B
Air Chamber
Air Chamber (Top) C1-0102-1242
Air Chamber (Side) C1-0101-1242
18 Motor (Left) C1-0301-0120-07A
19 Motor (Right) C1-0301-0120-08A
20 Turbine Impeller (Left) C1-0251-0092-01
21 Turbine Impeller (Right) C1-0251-0092-02
22 Oil Tunnel C1-0502-0201
23 Bottom Casing IS2336SQ B101-1236-09
IS2342SQ B101-1242-09
24 Impeller Plastic Cover C1-0251-0001
25 Motor Position Screw (3/16” x 5/8”) C1-0703-0001
26 Bottom Casing Screw (3/16” x 5/8”) C1-0704-0001
27 Transformer Screw (3/16” x 3/8”) C1-0707-0001
28 Control Board C1-0404-0401-A
29 Control Unit C1-0501-0101
30 Round Head Screw (TS 1/8” x 3/8”) C1-0708-0003
31 Transformer (Motor) C1-0402-A120-02
www.goedekers.com

17
MODEL NO.: IS123DC
IS123-16DC
IS123-59DC
ORIGINAL KIT (Sold Separately)
MODEL NO.: IS123DCD
IS123-16DCD
IS123-59DCD
RECIRCULATING KIT (Sold Separately)
KEY NO. DESCRIPTION MODEL /SIZE PART NO.
01 Duct Cover IS123DC 12-04000-304-51
IS123-16DC 12-04016-304-51
IS123-59DC 12-04059-304-51
02 Round Head Screw (3/16” x 3/8”) C1-0707-0001
03 Telescopic Stack IS123DC C1-0203-1242-36
IS123-16DC C1-0203-1242-16
IS123-59DC C1-0203-1242-59
04 Round Head Screw (3/16” x 3/8”) C1-0708-0001
05 Duct Cover Screw (3 x 8 mm) C1-0707-0001
06 Round Head Screw (TS 4 x 6) C1-0101-0001
07
A
B
C
D
Filter Set IS123F
Mesh Filter MF-0201 C1-0604-0201
Safety Screen C1-0602-0202
Oil Container (Round) C1-0503-0201
Safety Screen Screw C1-0705-0001
KEY NO. DESCRIPTION MODEL /SIZE PART NO.
01 Duct Cover (Recirculating) IS123DCD 12-04000-304-51F
IS123-16DCD 12-04016-304-51F
IS123-59DCD 12-04059-304-51F
02 Round Head Screw (3/16” x 3/8”) C1-0707-0001
03 Telescopic Stack IS123DCD C1-0203-1242F36
IS123-16DCD C1-0203-1242F16
IS123-59DCD C1-0203-1242F59
04 Round Head Screw (3/16” x 3/8”) C1-0708-0001
05 Duct Cover Screw (3 x 8 mm) C1-0707-0001
06 Round Head Screw (TS 4 x 6) C1-0101-0001
07
A
B
C
D
E
Charcoal Filter Set RH-CF01
Charcoal Filter C1-0603-0302
Mesh Filter MF-0201 C1-0604-0201
Safety Screen C1-0602-0202
Oil Container (Round) C1-0503-0201
Safety Screen Screw C1-0705-0001
www.goedekers.com

18
MODEL NO.: IS2336SQ
IS2342SQ
www.goedekers.com
