KOBE IN-027 Series Troubleshooting guide

KOBE Brand Range Hood
Model No. / N
os
de modèles / Modelo No.
IN-027 SERIES
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
MANUEL D'INSTALLATION
ET MODE D'EMPLOI
INSTRUCCIONES DE INSTALACIÓN
Y MANUAL DE OPERACIÓN

[ENGLISH] ...................................................................................................................... 1 
[FRENCH] ..................................................................................................................... 23 
[SPANISH] .................................................................................................................... 45 

1
[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS................................................................................... 2 
COMPONENTS OF PACKAGE................................................................................................. 4 
INSTALLATION......................................................................................................................... 5 
OPERATING INSTRUCTIONS.................................................................................................. 9 
MAINTENANCE ...................................................................................................................... 10 
SPECIFICATIONS................................................................................................................... 12 

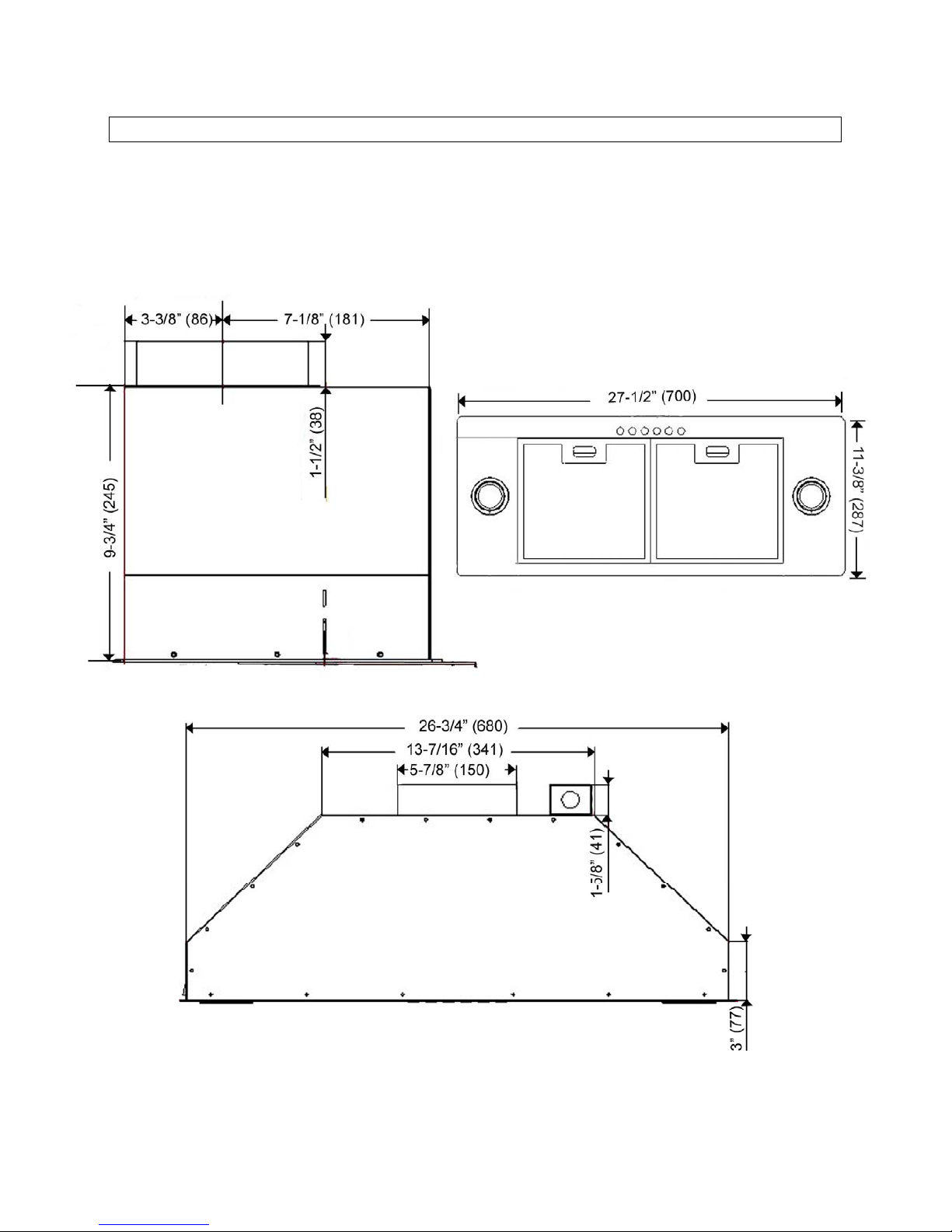

MEASUREMENTS & DIAGRAMS........................................................................................... 13 

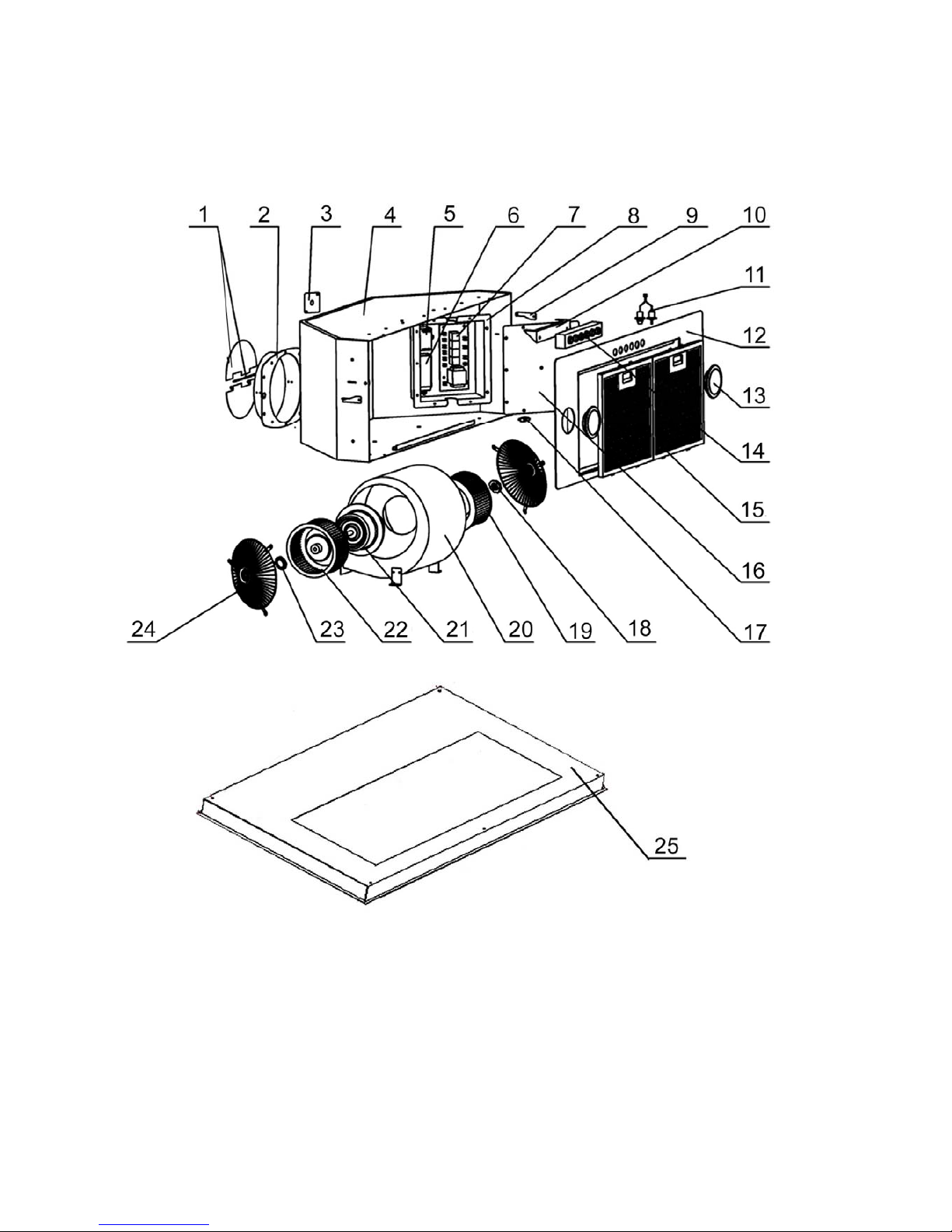

PARTS LIST ............................................................................................................................ 15 

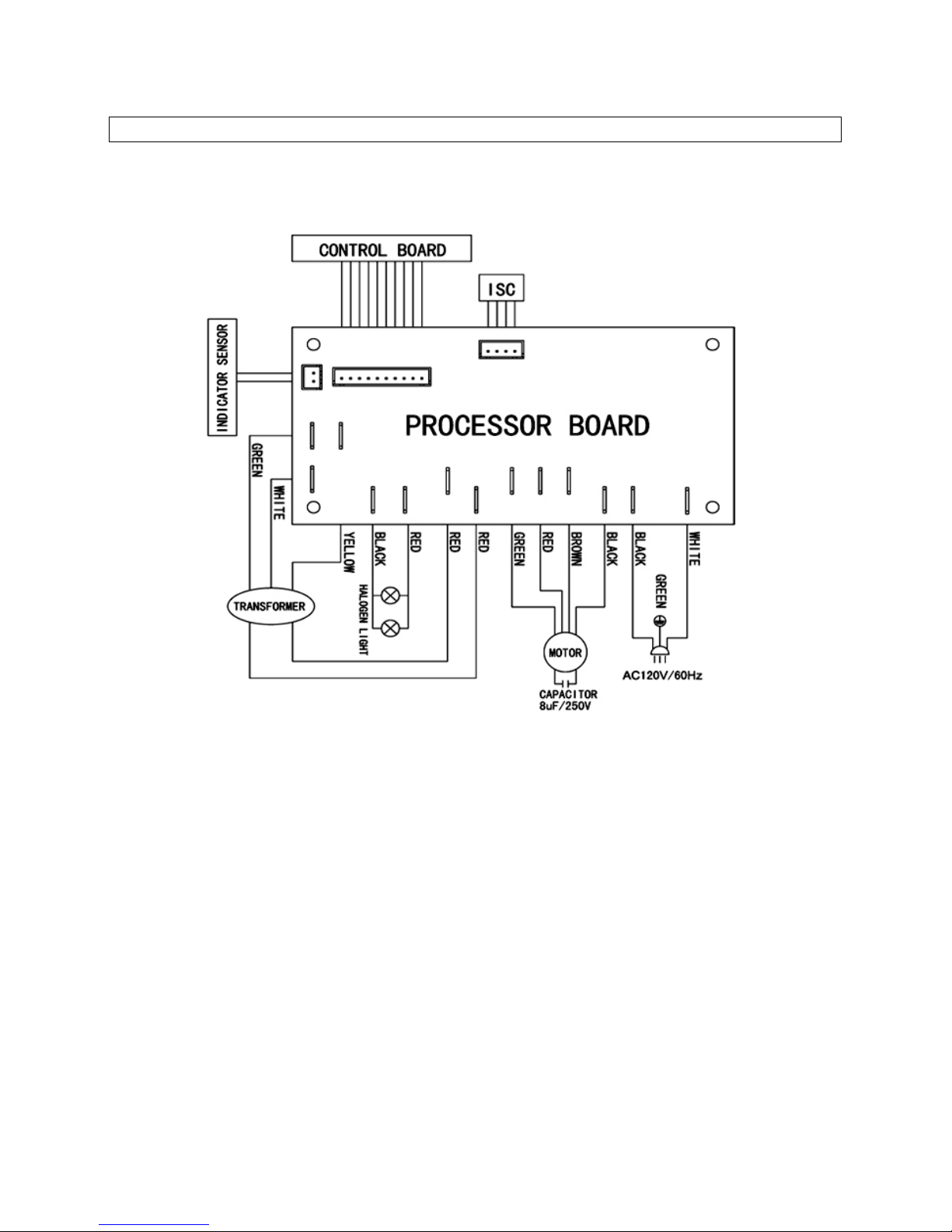

CIRCUIT DIAGRAM ................................................................................................................ 17 
TROUBLE SHOOTING............................................................................................................ 18 
DISCLAIMER........................................................................................................................... 19 
WARRANTY............................................................................................................................ 20 
PRODUCT REGISTRATION ................................................................................................... 22 
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

2
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
- Always turn hood ON when cooking.
- Use high settings on cooking range ONLY when necessary.
- Do not leave cooking range unattended when cooking.
- Always use cookware and utensils appropriate for the type and amount of food prepared.
- Use this unit only in the manner intended by the manufacturer.
- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
- Clean ventilating fan frequently.

3
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD
–
Can result in serious injury or
death. Disconnect appliance from electric power before servicing.
If equipped, the fluorescent light bulb contains small amounts of
mercury, which must be recycled or disposed of according to
Local, State, and Federal Codes.

4

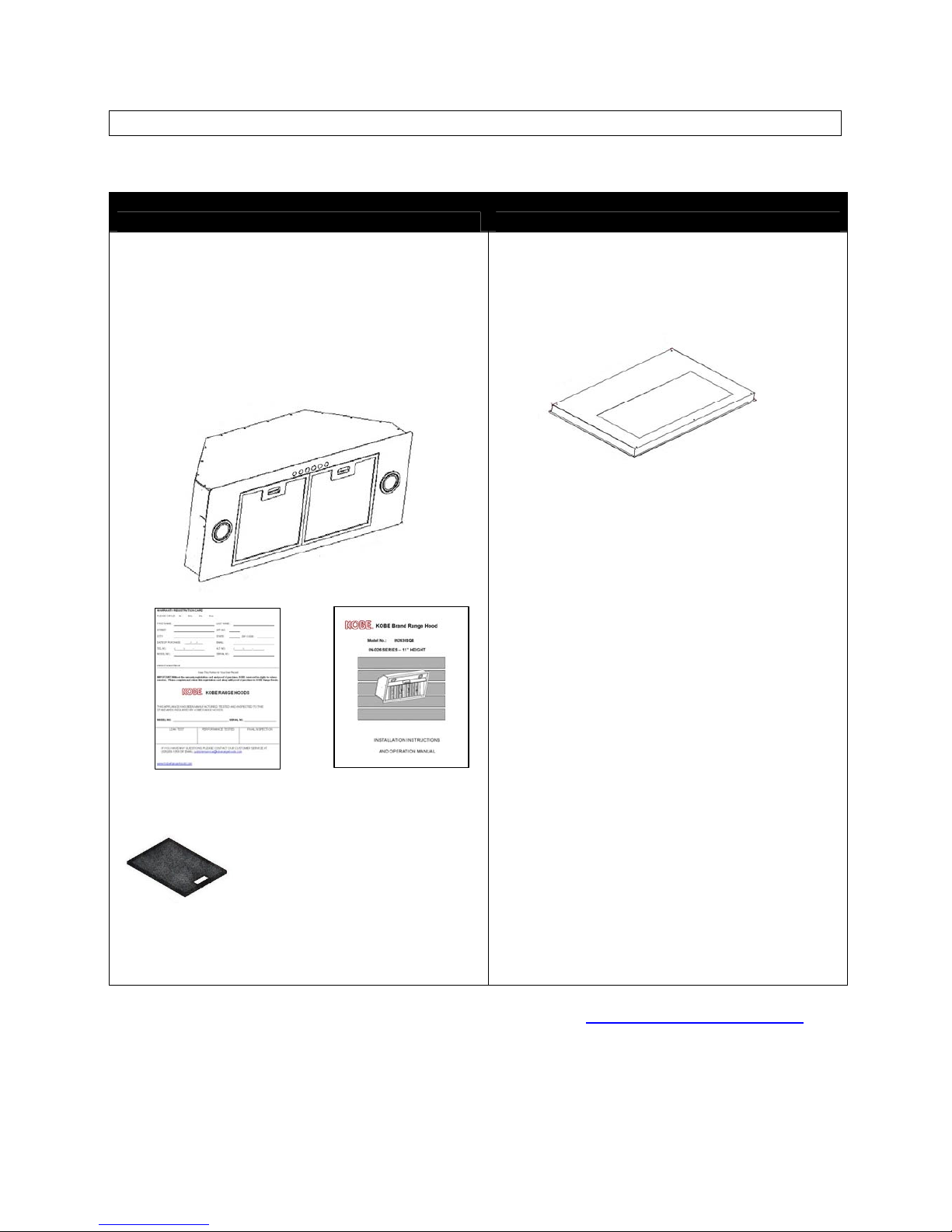

COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].
Range Hood Box Liner (Sold Separately)
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Instruction Manual
{D} Aluminum Filter – 2
{A}
{B} {C}
{D}
{E} Liner

5
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36")
C = Height of Counter Top to Wood Frame
Bottom (Recommended 27"to 30")
D = Height of Wood Frame
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.

6
- For Insert installation -
Preparation Before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT
DEBRIS FROM ENTERING THE VENT OPENING.
• Decide the location of the venting pipe from the hood to
the outside. Refer to Figure 1.
• A straight, short vent run will allow the hood to perform
more efficiently.
• Try to avoid as many transitions, elbows, and long run
as possible. This may reduce the performance of the
hood.
• Temporarily wire the hood to test for proper operation
before installing.
• Important: Peel protective film off the hood, if any.
• Use duct tape to seal joints between pipe sections.
CAUTION : If moving the cooking range is
necessary to install the hood, turn off the power in an
electric range at the main electrical box. SHUT OFF
THE GAS BEFORE MOVING A GAS RANGE. And use a
protective covering to protect cooktop and/or
countertop from damage.
Custom Hood Preparation
1. The custom hood frame must be sized to shape and the
weight of the insert. Refer to Measurements and
Diagrams on Page 13.
2. It must have a sturdy base (1/2 inch thick plywood
recommended) to sustain the weight of insert.
3. If an optional liner will be installed, the side of the wood
cabinet must be sturdy (1/2 inch thick plywood
recommended).
4. It is recommended to install a rear and front stud
support. Refer to Figure 2. The stud supports are
located 1-1/2” up from the base of the wood frame.
Liner Installation
5. The custom/wood hood must have a sturdy base to
accommodate the cut-out for the inset. The base must
be recessed to accommodate the height of the liner (See

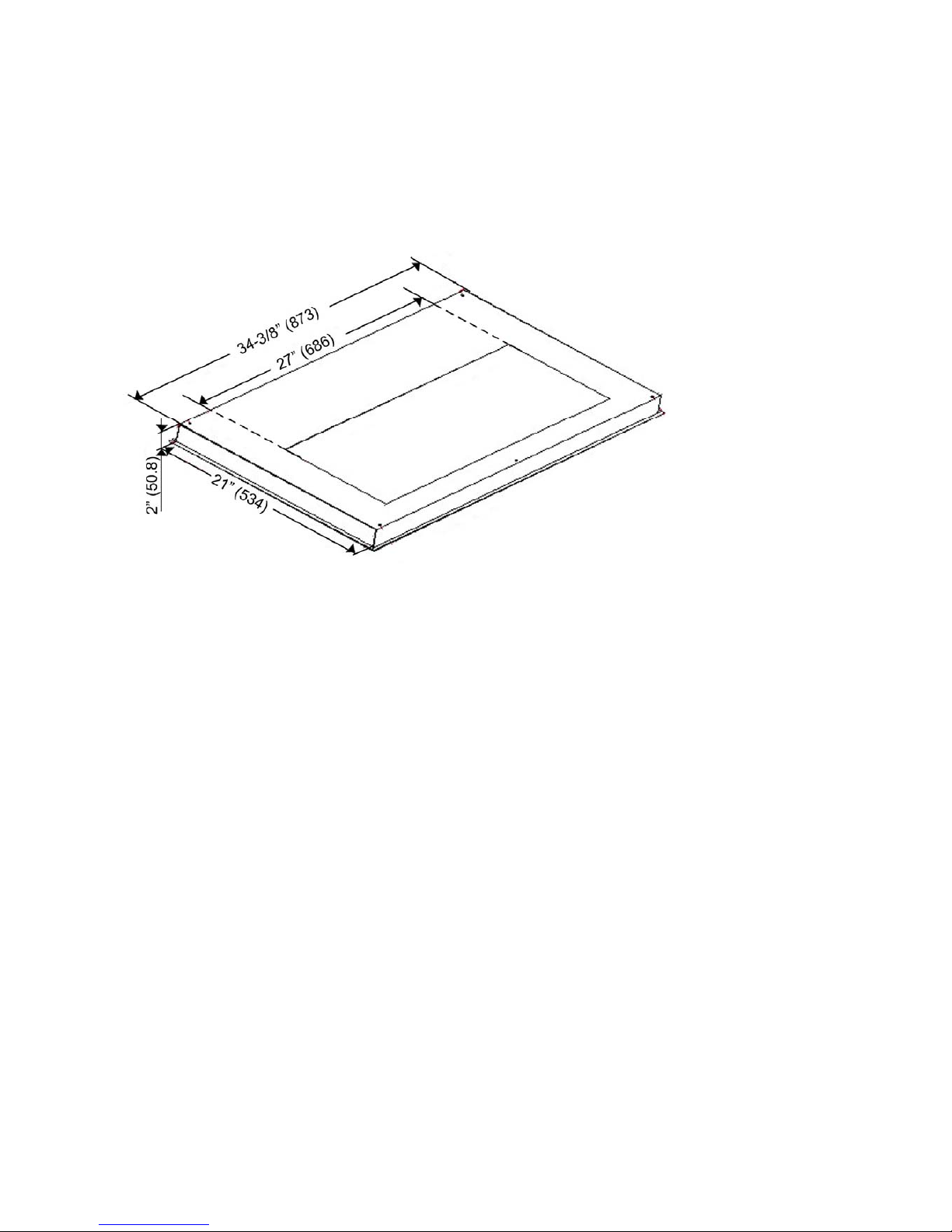

liner dimension on Page 14)
6. Secure the liner to the bottom of the base using screws
(not included) appropriate for the size and material of
your wood frame.
7. Position the rear section of the liner so that it aligns with
the back edge of the custom wood frame. Use a pen to
trace the outline of the pre-cut area. Remove the liner
and proceed to Hood Preparation Before Installation on
Page 6.
8. Install the liner with 5 screws (not provided).
Figure 1
Figure 2
Figure 3

7
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST
BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE
BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES, SWITCH POWER
OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
9. Temporarily wire the hood to test for proper operation
before installing. If the insert does not operate, check
the circuit breaker or house fuse. If the insert is still not
working, disconnect the power supply and check the
continuity of all wiring connections.
10. Connect electrical wires.
11. Connect three wires (black, white and green) to house
wires and cap with wire connectors. Connect wires
according to their colors (i.e. black to black, white to
white, and green to green). See Figure 3.
12. Store wires in the wiring box.
13. Determine the proper location for the Power Supply
Cable. Make a wiring access hole using a drill bit.
Install the wire cable and seal the gap around hole.
Note: Connect all electrical wires before installing insert.
DO NOT turn on the power until installation is complete.
Duct Work Installation
14. Use 6” steel pipe (follow building codes in your area) to
connect the ducting on the hood to the ductwork above.
Use duct tape to seal and secure joints as shown in
Figure 4.
15. Please refer to local codes for the usage of the damper
(included). If necessary, remove the damper
mechanism and install as exhaust connector.
Hood Preparation Before Installation
CAUTION : If moving the cooking range is
necessary to install the hood, turn off the power in
an electric range at the main electrical box. SHUT
OFF THE GAS BEFORE MOVING A GAS RANGE.
16. Determine and mark the centerlines on the base of the
wood frame where the insert will be installed.
17. Determine and make all necessary cuts in the wall or
ceiling for the ductwork. Note: Install the duct work
before installing the insert.
18. Cut out the opening where the insert will be installed.
(Figure 5)
Figure 4
Figure 5

8
Hood Installation
19. Release the screws located on each side of the insert.
Adjust the level of the hood casing support according to
the thickness of the base (1/2 thickness plywood
recommended). Tighten the screws to secure as shown
on Figure 6.
20. Install the insert inside the custom wood frame.
21. Make sure the hood casing support is secure before
releasing.
22. For a more secure installation, use the mounting holes
for the rear support which are located at 1-1/2” (38mm)
up from the insert base (screws not provided).
CAUTION : MAKE SURE HOOD IS SECURE BEFORE
RELEASING.
Figure 6
Final Assembly
23. Install Aluminum Filters. Insert the filters towards the
back of the unit and push up.
24. Make sure the Aluminum Filters are secure before
releasing.

9
OPERATING INSTRUCTIONS
This KOBE hood is equipped with five electronic push buttons with LED indicator, double powerful
centrifugal squirrel cage with aluminum filter, two bright 12-volt 20-watt halogen lights.
The five control buttons are Power Control (On/Off), Speed Control (High, Medium, & Low), and Light
Control. Refer to Figure 7.
Figure7
Note: For best results, turn hood to Low prior to any preparation or cooking. Adjust speed as needed.
Power Control
Press Power Control to turn On/Off the hood.
This unit equipped with 3-minute delay shutoff. To activate this feature, press Power
Control button once, panel LED lights will flash and power will be completely shut off after 3
minutes.
Press Power Control button twice, the fans will be shut off immediately.
Speed Control
Press Speed Control to activate Low, Medium, & High Speed.
Light Control
(Light control is separate from ON/OFF control. Turning power off will not turn lights off.)
Press Light control to turn lights ON.
(Each press of Light Control will cycle the light intensity through high, low, and off.)
Change Filter
Indicator
Halogen Light
Control
Speed
Control Power Control

10
Aluminum Filter Change Indicator
The indication under symbol will indicate when aluminum filter needs cleaning.
Remove to clean the aluminum filter.
(To purchase replacement filters, please contact your local KOBE dealer or call 626-350-1355)
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS
OPERATING.
Cleaning Hood Surface
CAUTION : NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT
USE PAPER TOWEL ON STAINLESS STEEL.
For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly.
*** Regular care will help preserve the appearance of the hood.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface
of the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of
the stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods. Many of these compounds contain chemicals,
which may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
To Clean Aluminum Filter
1. Remove all the aluminum filters.
2. Wash with warm soapy water. Dry thoroughly before returning into place.

11
Replacing Light Bulb
CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.
   
1. Make sure all controls are off, and range hood is unplugged.
2. Place the flat-headed screwdriver into the groove of the halogen light glass covering and the
housing.

3. Pop out the halogen light glass covering. 
4. Gently pull out the defective light bulb and discard. Light bulbs should be 12V 20W maximum.

5. Using a cloth, hold the new light bulb and push securely into light socket.
6. Return halogen light glass cover to the housing.

7. Turn range hood ON to test for operation.

12
SPECIFICATIONS
MODEL / SIZE IN2730SF
COLOR 16-Gauge Commercial Stainless Steel
CONSUMPTION / AMPERE 120W / 1.0A
VOLTAGE 120V 60Hz
NUMBER OF MOTORS 1
FAN TYPE: CENTRIFUGAL Double Horizontal Squirrel Cage
EXHAUST Top 6"Round w/ Damper
5 Push-ButtonCONTROLS
- 3-Minute Delay Shutoff
HALOGEN LIGHTS 12V 20W Max. x 2
HOOD DIMENSION
(W X D X H)
27-1/2” x 11-3/8” x 9-3/4”
OPTIONAL ACCESSORIES
(W X D X H)
Liner: INL36211A (36” X 21” X 2”)
HOOD WEIGHT (lbs) Net Gross
IN2730SQB 24 32
Low Medium HighBlower Air Capacity (cfm)
200 310 400
Sone 3.0 4.3 6.6
dB 56 61 67
Specifications subject to change without notice.

13
MEASUREMENTS & DIAGRAMS
All ( ) are in millimeter.
All inch measurements are converted from millimeters. Inch measurements are estimated.
MODEL NO: IN2730SF
Side View Bottom View
Front View

14
Stainless Steel Liner (Sold Separately)
Model No. INL36211A

15
PARTS LIST
MODEL NO: IN2730SF
NO. DESCRIPTION MODEL/SIZE PART NO.
1 Damper Hardware IN2730-05-06
2 Exhaust Connector IN2730-05-02
3 Wiring Box Cover IN2730-04-01
4 Hood Casing IN2730-01-01
5 Transformer IN2730-16-01
6 Capacitor IN2730-07-02
7 Processor Board IN2730-04-03
8 Processor Board Box IN2730-03-01
9 Hood Casing Support IN2730-09-01
10 Control Unit Support IN2730-01-06
11 ISC IN2730-13-01
12 Bottom Casing IN2730-02-01
13 Halogen Light Housing IN2730-17-01
14 Control Unit IN2730-15-00
15 Aluminum Filters IN2730-10-01
16 Electronic Support Panel IN2730-03-02
17 Indicator Sensor IN2730-06-01
18 Right Locknut IN2730-19-02
19 Right Squirrel Cage IN2730-08-02
20 Air Chamber IN2730-18-01
21 Motor IN2730-07-01
23 Left Squirrel Cage IN2730-08-01
23 Left Locknut IN2730-19-01
24 Safety Screen IN2730-20-01
Optional Liner
Model No.
25 Liner INL36211A IN2730-11-01

16

17
CIRCUIT DIAGRAM
MODEL NO.: IN2730SF

18
TROUBLE SHOOTING
Issue Possible Cause Solution
The power is not on. Make sure the circuit breaker and the unit’s power is
ON. Use a voltage meter to check the power supply.
The wire connection is not secure. Check and tighten wire connection.
The control panel and processor board
wiring are disconnected.
Check wire continuity from control panel to processor
board.
The motor transformer is defective. Check the power input and power output on the
motor transformer.
If it’s needed, replace the motor transformer.
After Installation,
both motors and
lights are not
working.
The control panel and processor board is
defective.
Replace the control panel or processor board.
The motor(s) is defective. Replace the motor.
The capacitor(s) is defective. Replace capacitor(s).
Lights are
working, but
motor(s) is not. The control panel or processor board is
defective.
Replace the control panel or processing board.
The blower system is not secure. Tighten the turbine impeller/squirrel cage and air
chamber.
The turbine impeller/squirrel cage is
not balanced.
Replace the turbine impeller/squirrel cage.
The range
hood is
vibrating.
Hood is not secured in place. Check the installation of hood, tighten the
mounting bracket.
Halogen Light bulb(s) is defective. Try placing the trouble light bulb(s) to a working
socket, if the bulb(s) still doesn’t work; replace
the halogen light bulb(s).
The light wiring(s) is loose. Check wire continuity from processor board to
light transformer to halogen light housing(s).
Light transformer is defective. Check power input and power output on the light
transformer. If it’s needed, replace the light
transformer.
The motor is
working, but
the lights are
not working.
The control panel or processor board is
defective.
Replace the control panel or processing board.
The range hood is installed outside of
the manufacture recommended
clearance.
Adjust the clearance between the range hoods
and cook top to 27” to 30”. For Island range
hood, the clearance between the range hoods
and cook top is 30” to 36”.
There is no make-up air inside the
house.
Open the window to enhance the performance
of the range hood by creating a sufficient make-
up air.
Obstacle blocking the pipe work. Remove all obstacles from the duct work.
The range
hood is not
venting out
correctly.
The pipe size is smaller than the
suggested pipe size.
Change the ducting according to the
manufacture suggestion.
The pipe connection is not properly
sealed.
Check the pipe installation.
The damper is not properly installed or
is missing from the installation.
Check the damper installation.
Cold air is
coming into the
home.
The damper is not installed. By installing the damper, it will help to eliminate
air backflow.
