KOBE IS2336SQB-1 Troubleshooting guide

KOBE Brand Range Hood
Model No.
IS2336SQB-1 (36”)
IS2342SQB-1 (42”)
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

READ BEFORE INSTALLATION
1. Carefully check all contents of packages.
2. Thoroughly inspect the unit for any shipping damages, cosmetic damages
or defects.
3. Have a certified contractor/electrician test the unit before installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial number
ready.
3. Contact your merchant for product replacement due to shipping damages,
cosmetic damages or defects.
. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to
[email protected] .
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS
IMPORTANT
READ THIS FIRST

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 2
COMPONENTS OF PACKAGE.................................................................................................. 4
INSTALLATION.......................................................................................................................... 5
OPERATING INSTRUCTION....................................................................................................10
MAINTENANCE........................................................................................................................13
SPECIFICATIONS....................................................................................................................13

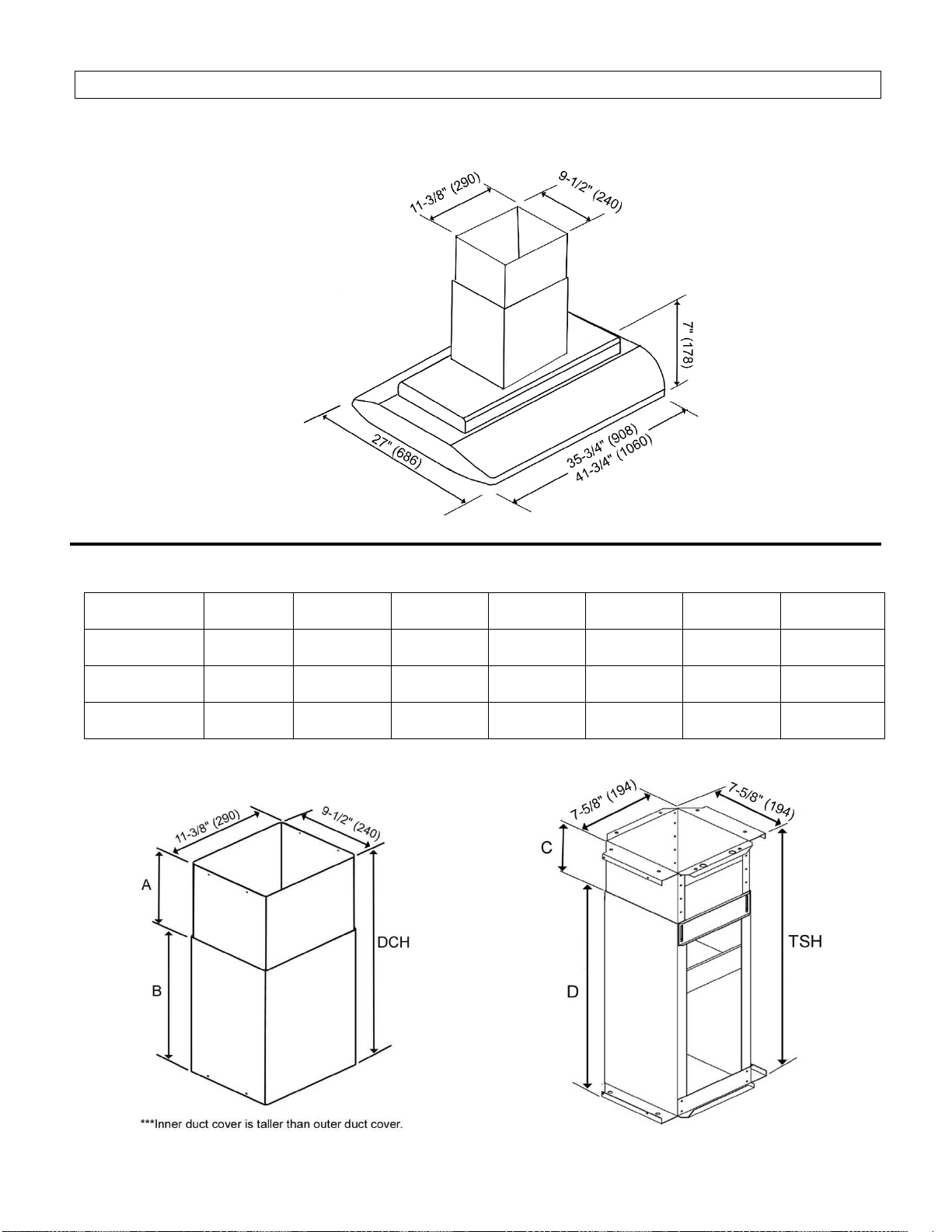

MEASUREMENTS & DIAGRAMS.............................................................................................13

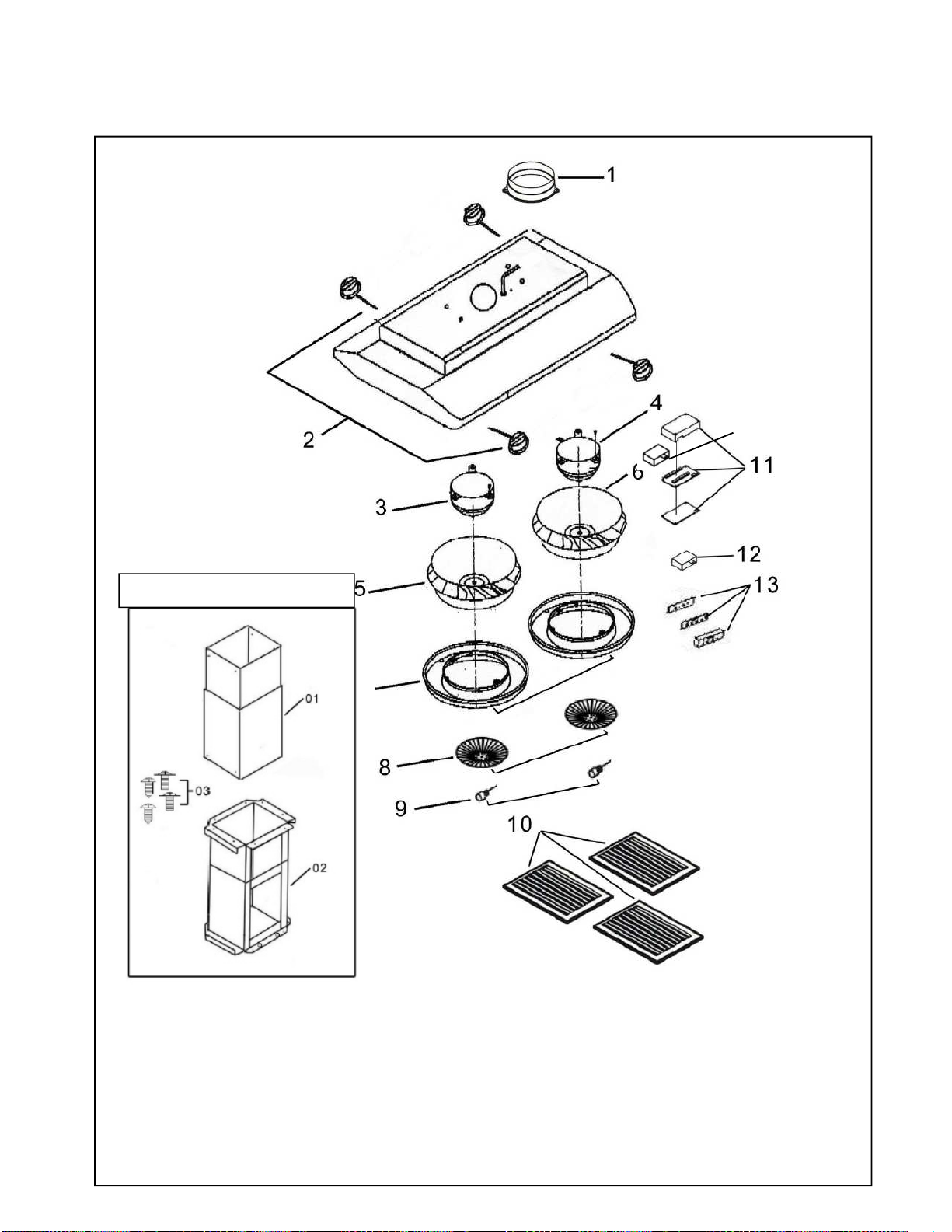

PARTS LIST..............................................................................................................................16

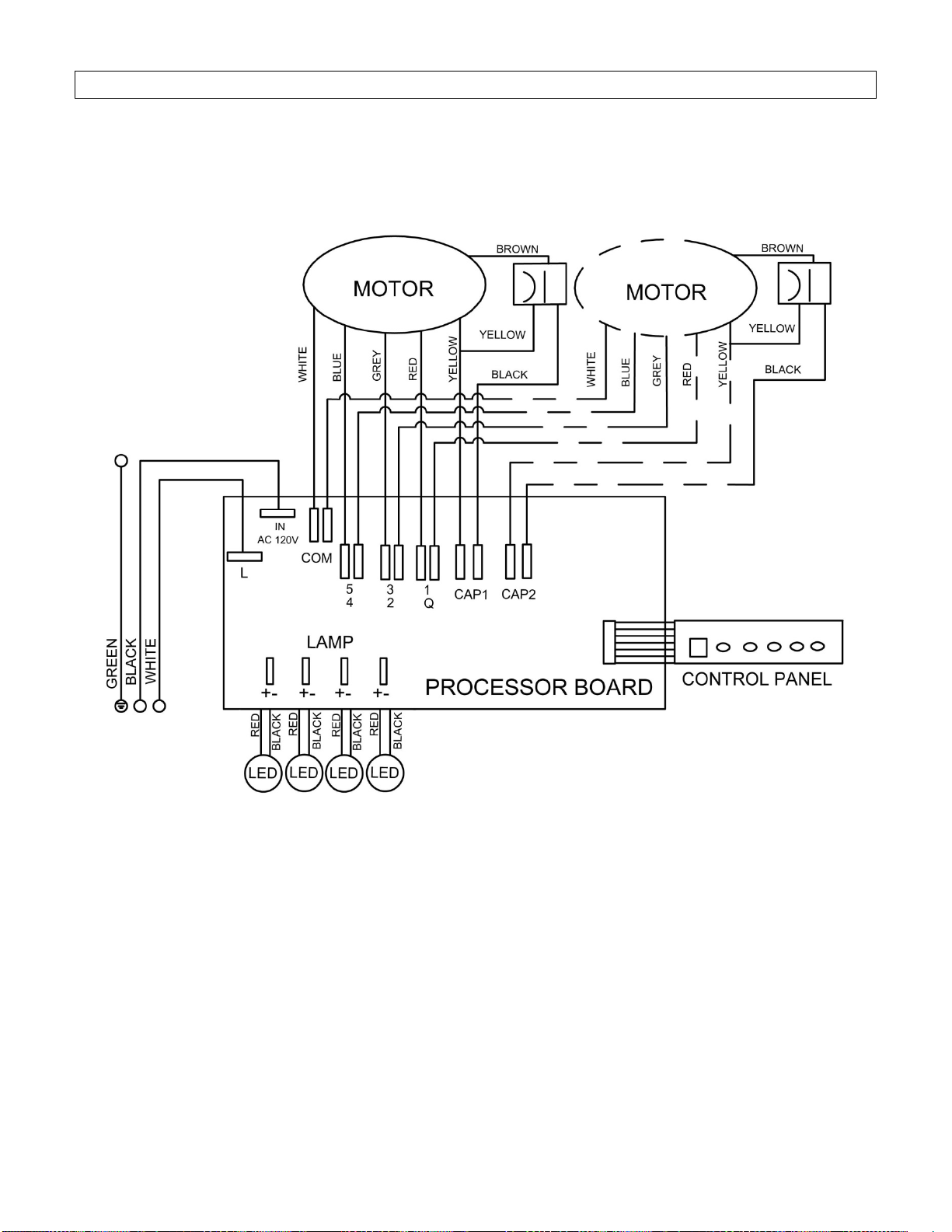

CIRCUIT DIAGRAM..................................................................................................................18
TROUBLE SHOOTING.............................................................................................................19
WARRANTY .............................................................................................................................20
PRODUCT REGISTRATION.....................................................................................................22
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
A L L W I R I N G M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N
A C C O R D A N C E W I T H N A T I O N A L A N D L O C A L E L E C T R I C A L C O D E S

IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE
-
This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
-
KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A
RANGE TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.
3

What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go
out immediately, EVACUATE THE AREAAND CALLTHE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
• Use an extinguisher ONLY if:
a) You have a ClassA, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which
must be recycled or disposed of according to Local, State, and Federal
Codes.
4

COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box (Box 1 of 2)
{A} KOBE Range Hood
{B} Baffle Filters
{C} Warranty Registration Card
{D} Mounting Template
{E} Quick Reference Guide
{A}
{
B
}
Pre-installed
{C} {D} {E}
Duct Cover Box (Sold Separately) Box 2 of 2
{F} Telescopic Stack
{G} Two-Piece Duct Cover
{H} Screw Package
{F} {G} {H}
5

INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

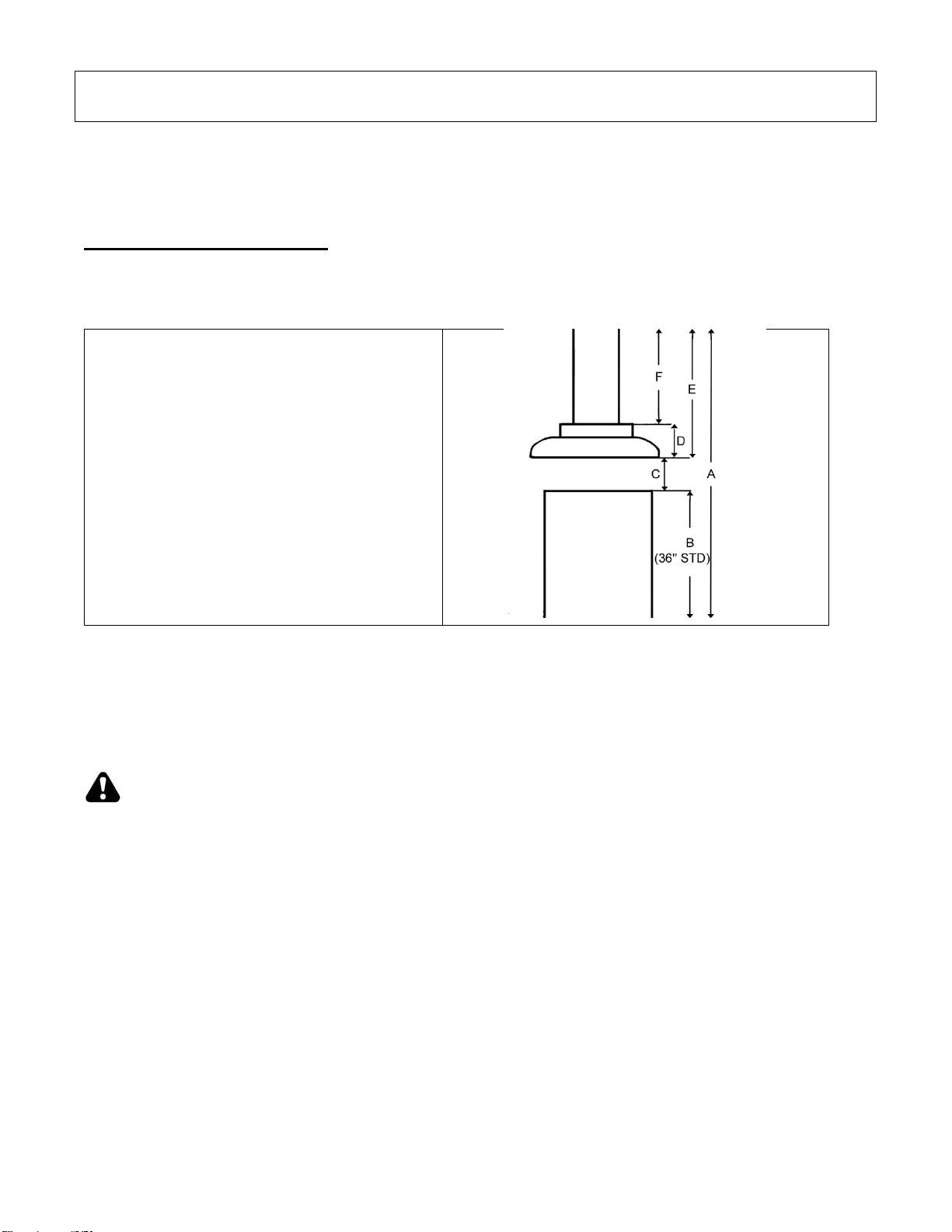

Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top
to Hood Bottom (Recommended
30” to 36”)
D = Height of Hood
E = Height of the Hood Installation
[A – (B+C)]
F = Height of Duct Cover
[E – D]
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE:BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.
6

Preparations of Ductwork and Location
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT
OPENING.
- Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.
- A straight, short venting run will allow the hood to perform more efficiently.
- Try to avoid as many transitions, elbows, and long run as possible. This may reduce the
performance of the hood.
-Use duct tape to seal the joints between pipe sections.
Figure 1
Telescopic Stack Installation
Note: Duct cover with telescopic stack sold separately.
1. Mark centerlines of cook top or range on ceiling above. Use centerlines marked on ceiling to
position the mounting template as shown in Figure 2.
2. Remove and save template. Cut and remove ceiling drywall. Install 2” x 4” cross framing lumber
(not provided) between ceiling joists. Refer to Figure 3. Consult a professional if you have
difficulty or your installation is unique.
3. Finish the ceiling surface. Be sure to mark the location of the ceiling joists and cross framing, or
replace the mounting template in the position of the ceiling joists & cross framing.
4. Attach the telescopic stack to the ceiling and securely fasten to the joists and cross framing with
eight screws (not provided) as shown in Figure 3. Make sure screws are driven into center of
joists and cross framing for maximum support.
5. Adjust the telescopic stack using reference Fcalculated in Table 1 and measurements on page
15-16. Tighten from the side with eight (4x8 mm) screws (provided) as shown in Figure 4.
7

Figure 2
Figure 3
Figure 4
8

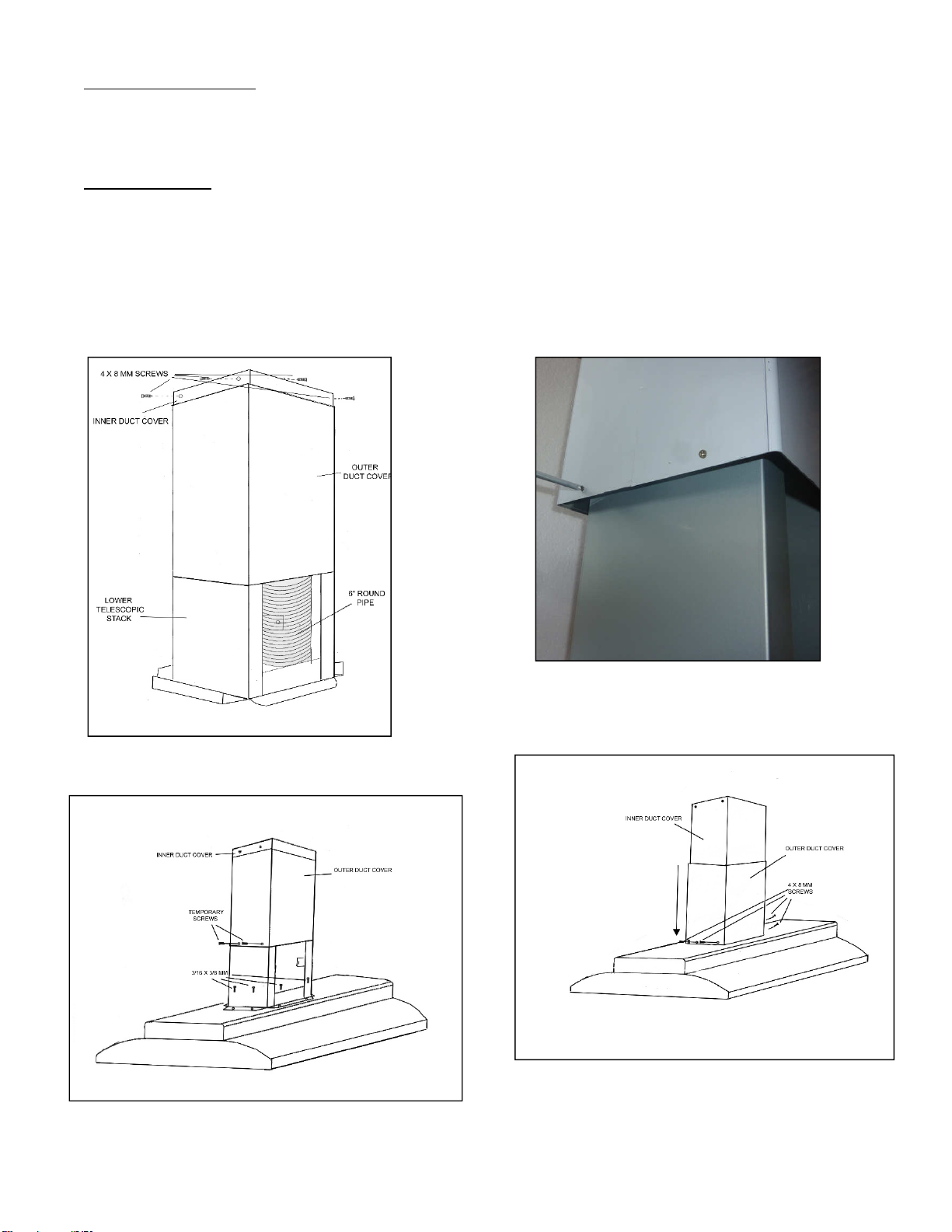

Duct Cover Installation
6. Slide the inner duct cover up and secure with four (4x8 mm) screws (provided) to the upper
telescopic stack. Refer to Figure 5.
Hood Installation
7. Slide outer duct cover up and place 4 temporary screws to hold the duct cover. Refer to Figure 6.
8. Install the hood using eight (3/16x3/8 mm) screws (provided) to secure hood to telescopic stack.
Make sure to tighten screws securely. Refer to Figure 7.
Figure 5 Figure 6
Figure 8
Figure 7
9

Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE
SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE
NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER
OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING
SWITCHED ON ACCIDENTALLY.
9. Connect three wires (black, white and green) to house wires and cap with wire connectors. Connect
according to color: black to black, white to white, and green to green.
10. Test the operation of the hood before moving on to next step. Make sure power is supplied to the
hood.
Ductwork Installation
Note: Skip this step if installing recirculating kit.
11.Use 6” round pipe to connect the plastic exhaust on the hood to the ductwork above.
12.Use duct tape to make all joints secure and air tight.
Final Assembly
13. Remove the temporary screws that hold the outer duct cover up and slide the duct cover
downward and secure it to the telescopic stack.
NOTE: Be careful when using electrical screwdriver, damage to the hood may occur. Secure the
duct cover to hood with four (4x8 mm) screws (provided) as shown in Figure 8.
14. Turn power ON in control panel. Check all lights and fan operation.
15. Make sure to leave this manual for the homeowner.
10

OPERATING INSTRUCTION
Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while
cooking. Adjust speed as needed.
Power Control
Press Power Control to turn On/Off the range hood.
Speed Control
The fan will start on Speed #3. Press button to decrease the speed level.Press button to
increase the speed level.
To activate 3-minute delay shutoff, press and hold button. Once the delay shutoff has been
activated the LED Display will flash and fan speed will change to Speed #3. Speed level can be
adjusted by pressing or button during the 3-minute countdown.
To turn fan off immediately, press button a second time.
Light Control
Press button to turn LED lights ON. Each press of button will cycle the light intensity
through Bright, Medium Bright, Dim, and OFF.
Lights are controlled independently from Power Control and delay shutoff. Turning the power off
will not turn lights off.
11

ECO Mode Control
ECO Mode is set to turn fan on QuietMode™ setting for 10 minutes every hour to remove excess
moisture, microscopic particles and odors for better kitchen air quality.
ECO Mode is independent from the Power Control and delay shutoff.
ECO Mode can be activated while fan is running or off. Press and hold button until icon
briefly appears in the LED Display. While fan is running you can change the speed, use delay
shutoff or turn off fan without disabling ECO Mode. When fan is off and ECO Mode has been
activated, the icon will appear in the LED Display. The icon will flash while ECO Mode
is operating on QuietMode™. To deactivate, press and hold button until icon no longer
appears in the LED Display.
NOTE: Pressing button while ECO Mode is active will activate the regular fan function and
the speed will be displayed in LED Display.
Note: Must open door or windows to create sufficient make-up air when ECO Mode has been
activated.
12

MAINTENANCE
For optimal performance, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of
the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the
stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to hood
finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots. Use
dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.
For Baffle Filter models only: to Clean Baffle Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM BAFFLE FILTERS, SPACERS & OIL TUNNEL REGULARLY TO
PREVENT OVERFLOW.
1. Remove all the baffle filters, spacers and oil tunnel.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
CAUTION: SHARP EDGES
(Note: Baffle Filters are top rack dishwasher safe.)
13

SPECIFICATIONS
MODEL / SIZE
IS2336SQB-1 (36”)
IS2342SQB-1 (42”)
COLOR
Commercial Grade Stainless Steel
VOLTAGE
120V 60Hz
NUMBER OF MOTORS
2
DESIGN
18-Gauge Seamless
FAN TYPE
Twin Vertical Turbine Impeller
EXHAUST
Round 6” Round
CONTROLS
6-Speed Electronic Button Control with LED Display
LIGHTS
3-Level Lighting
4 x LED Lights (3W)
HOOD
(IS2336SQB-1) 35-3/4” x 27” x 7”
DIMENSION (W x D x H)
(IS2342SQB-1) 41-3/4” x 27” x 7”
DUCT COVER
Two-Piece Adjustable Telescopic Stack
DIMENSION (W x D x H)
Duct Cover Sold Separately
(IS123DC-1) 11-3/8” x 9-1/2” x (22-5/8” ~ 36-3/8”)
(IS123DC-16-1) 11-3/8” x 9-1/2” x (16” non-adjsutable)
(IS123DC-59-1) 11-3/8” x 9-1/2” x (33-5/8” ~ 58-1/2”)
HOOD WEIGHT
(lbs)
NET
GROSS
IS2336SQB
-
1
53 73
IS2342SQB
-
1
55 77
CFM / Sone
CFM
Sone
Speed
280 1.0 QuietMode™
350 1.4 Speed 1
420 2.8 Speed 2
510 3.5 Speed 3
610 4.2 Speed 4
720 4.5 Speed 5
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.
14

MEASUREMENTS & DIAGRAMS
All measurements in ( ) are millimeters.
All inch measurements are converted from millimeters. Inch measurements are
estimated.
Duct Cover Sold Separately
MODEL NO.
A
B
DCH
C
D
TSH
MAX. HT.
INTSALLED
IS123DC
-
1
18-1/8”
(460) 19-1/4” (490) 37-3/8 (950) 14-5/8” (370) 22-5/8” (575) 37-1/4” (946) 36-3/8” (925)
IS123
DC
-
16
-
1
9-1/4”
(235) 8-1/4” (210) 17-1/2” (445) - - 16” (405) 16” (405)
IS123
DC
-
59
-
1
30-1/4”
(770) 29” (735) 59-1/4” (1505) 25-5/8” (650) 33-5/8” (854) 59-1/4” (1505) 58-1/2” (1485)
DUCT COVER TELESCOPIC STACK
15

PARTS LIST
MODEL NO.: IS2336SQB-1
IS2342SQB-1
BOX 1of 2
NO. DESCRIPTION MODEL /SIZE PART NO.
1 6” Round Plastic Exhaust L1-0505-0003
2 LED Light (3W) L1-0403-0301
3 Motor (B) L1-0301-0120-102B
4 Motor (A) L1-0301-0120-102AL
5 Turbine Impeller (B) L1-0251-0737-B
6 Turbine Impeller (A) L1-0251-0737-A
7 Plastic Oil Tunnel L1-0502-0102
8 Safety Screen L1-0602-0101
9 Safety Screen Screws L1-0705-0001
10 Baffle Filter L1-0214-0122
11 Processor Board L1-0404-6001-B
12 Capacitor x 2PCS L1-0401-0120-6
13 Control Unit L1-0404-6001-A
BOX 2 of 2
NO. DESCRIPTION MODEL /SIZE PART NO.
1 Duct Cover
12-23360-61
2 Telescopic Stack
L1-0203-23360A/B
3 Screws (3/16”x3/8”)
L1-0707-0002
16

MODEL NO.: IS2336SQB-1
IS2342SQB-1
Box 2 of 2 (Duct Cover)
17

CIRCUIT DIAGRAM
MODEL NO.:
IS2336SQ
B
-
1
IS2342SQB-1
18

TROUBLE SHOOTING
Issue
Possible Cause
Solution
After
Installation,
both motors
and lights are
not working.
The power is not on. Make sure the circuit breaker and the unit’s
power is ON. Use a voltage meter to check
the power supply.
The wire connection is not secure. Check and tighten wire connection.
The control panel and processor
board wiring are disconnected. Check wire continuity from control panel to processor board.
The control panel and processor
board is defective. Replace the control panel or processor board.
Lights are
working, but
motor(s) is
not.
The motor(s) is defective. Replace the motor.
The capacitor(s) is defective. Replace capacitor(s).
The control panel or processor
board is defective. Replace the control panel or processing board.
The range
hood is
vibrating.
The blower system is not secure.
Tighten the turbine impeller/squirrel cage and air chamber.
The turbine impeller/squirrel cage is
not balanced. Replace the turbine impeller/squirrel cage.
Hood is not secured in place. Check the installation of hood, tighten the
mounting bracket.
The motor is
working, but
the lights are
not working.
LED light fixture(s) is defective.
Replace LED light fixture(s)
The light wiring(s) is loose.
Check wire continuity from processor board to LED light driver to LED light fixture(s).
The control panel or processor
board is defective.
Replace the control panel or processing
board.
The range
hood is not
venting out
correctly.
The range hood is installed outside
of the manufacture recommended
clearance.
Adjust the clearance between the range
hoods and cook top to 26” to 30”. For Island
range hood, the clearance between the
range hoods and cook top is 30” to 36”.
There is no make-up air inside the
house. Open the window to enhance the performance of the range hood by creating
a sufficient make-up air.
Obstacle blocking the pipe work.
Remove all obstacles from the duct work.
The pipe size is smaller than the
suggested pipe size. Change the ducting according to the manufacture suggestion.
Cold air is
coming into
the home.
The pipe connection is not properly
sealed. Check the pipe installation.
The damper is not properly installed
or is missing from the installation. Check the damper installation.
The damper is not installed. Installing the damper will help eliminate air
backflow.
19
