KOBE IN2630SQB-700-1 Troubleshooting guide

KOBE Brand Range Hood
Model No. IN2630SQB-700-1
PREMIUM SERIES IN26 SERIES
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

READ BEFORE INSTALLATION
1. Carefully check all contents of packages.
2. Thoroughly inspect the unit for any shipping damages, cosmetic
damages or defects.
3. Have a certified contractor/electrician test the unit before installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial
number ready.
3. Contact your merchant for product replacement due to shipping
damages, cosmetic damages or defects.
4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to
[email protected] .
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3.MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS
IMPORTANT
READ THIS FIRST

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 1
COMPONENTS OF PACKAGE................................................................................................. 3
INSTALLATION ......................................................................................................................... 4

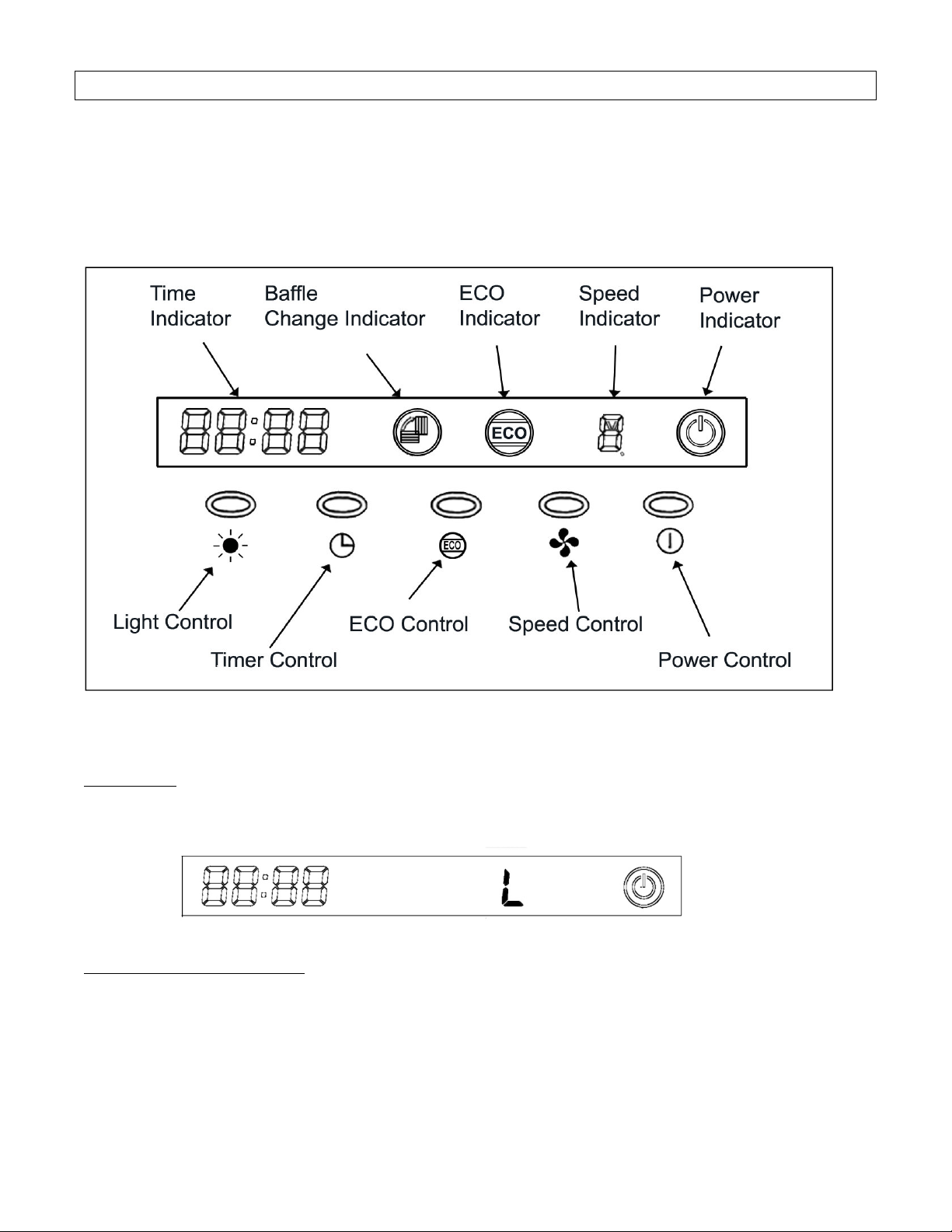

OPERATING INSTRUCTIONS.................................................................................................. 9
MAINTENANCE........................................................................................................................12
SPECIFICATIONS....................................................................................................................13

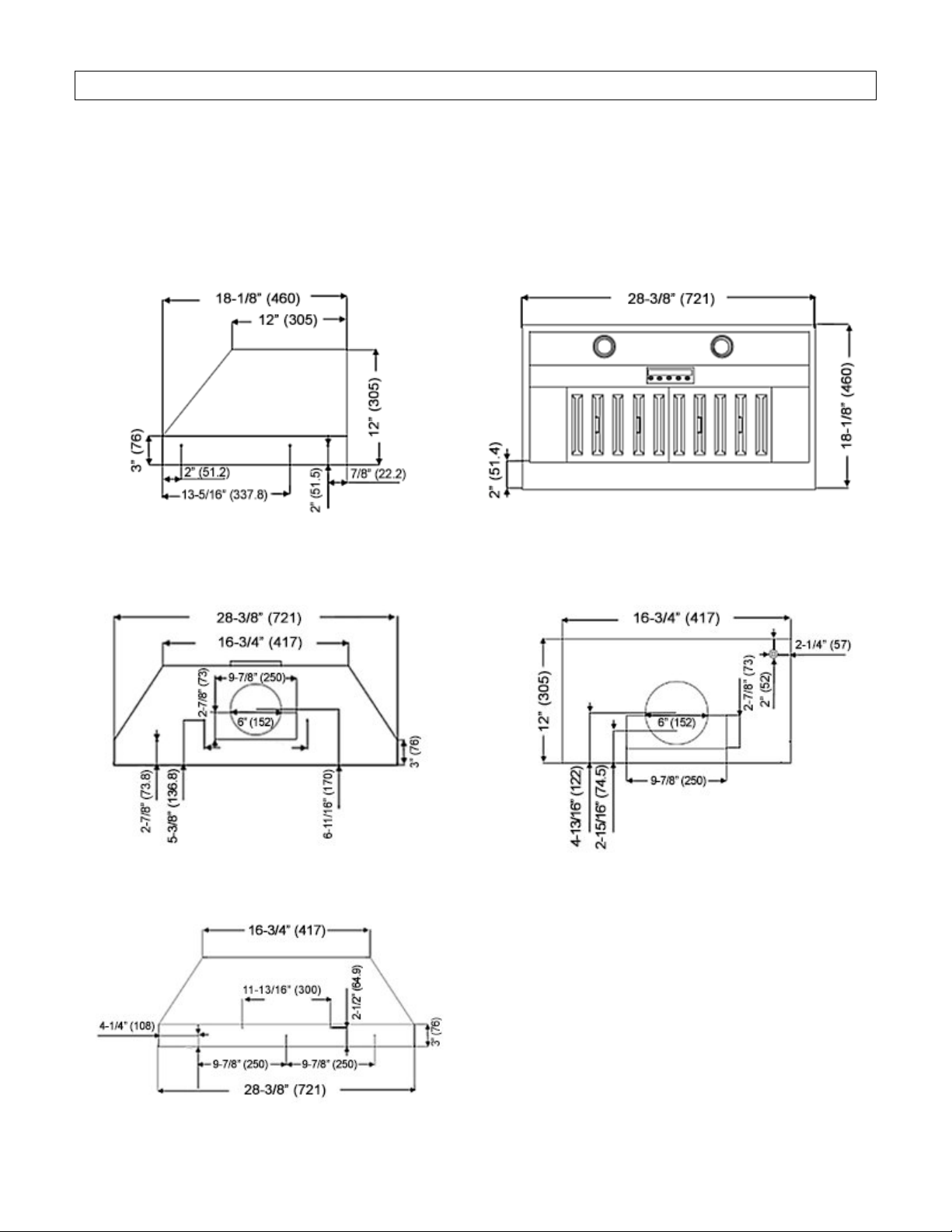

MEASUREMENTS & DIAGRAMS.............................................................................................14
PARTS LIST.............................................................................................................................15

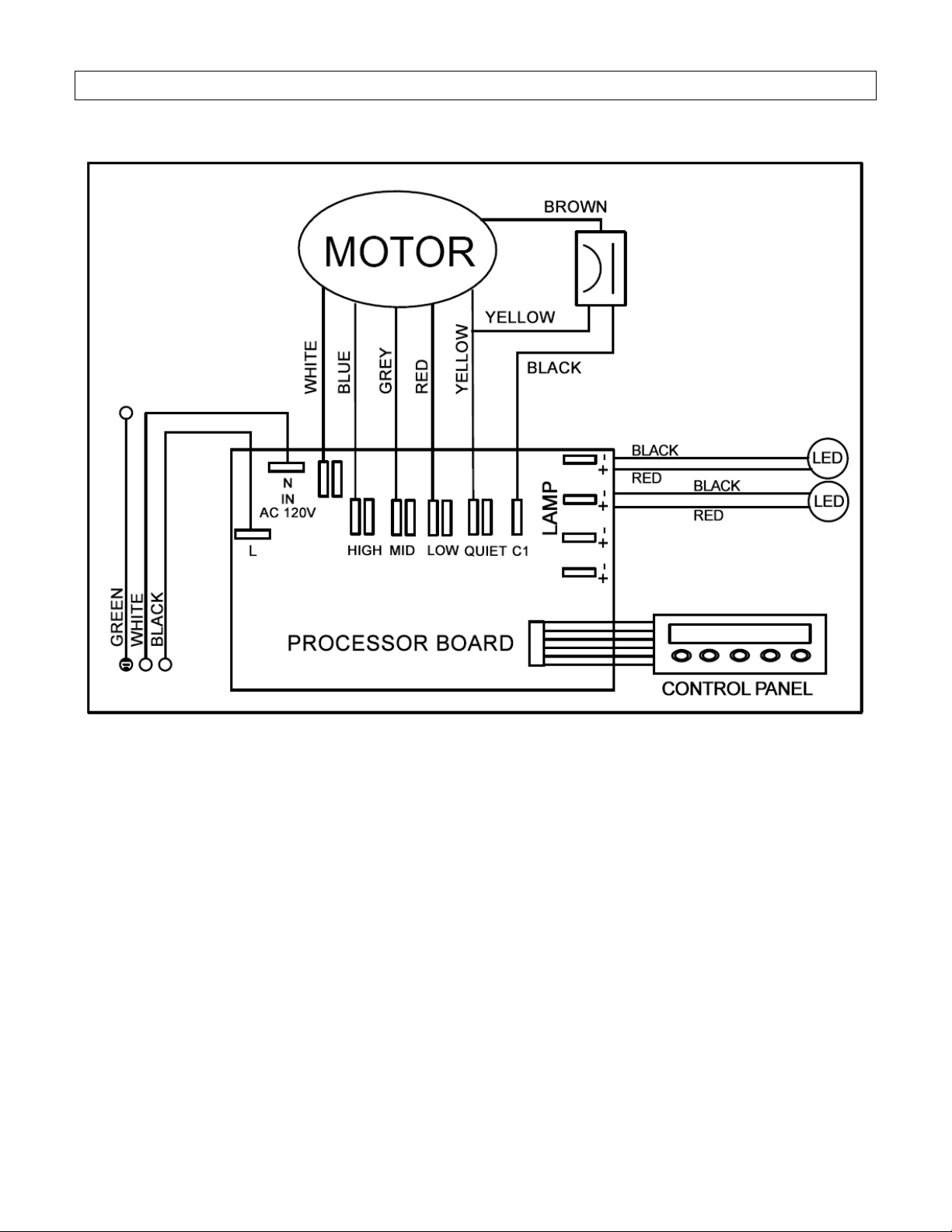

CIRCUIT DIAGRAM..................................................................................................................17
TROUBLE SHOOTING.............................................................................................................18
WARRANTY.............................................................................................................................19
WARRANTY INFORMATION FORM........................................................................................21
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
A L L W I RI NG M U S T B E D O N E B Y A P R O F E S S I O N A L A N D I N
A C C O R D A N C E W IT H N A T I O N A L A N D L O C A L E L E C T R I C A L C O D E S

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE PROCCEDING WITH INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE - This warranty is void without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.

2
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go
out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
1. Extinguish any open flame.
2. Do not try to turn on the lights or any type of appliance.
3. Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1. For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To reduce the risk of fire, use metal ductwork only. Sufficient air is needed for proper combustion and
exhaustion of gases through the flue (chimney) to prevent back drafting.
3. Follow the heating equipment manufacturer’s guideline and safety standards such as thosepublished
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4. Activating any switch may cause ignition or an explosion.
5. Due to the size and weight of this hood, installation by 2 persons is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which must
be recycled or disposed of according to Local, State, and Federal Codes.

3
COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].
Range Hood Box
{A} KOBE Range Hood –1
{B} Warranty Registration Card – 1
{C} Quick Ref Guide – 1
{D} Baffle Filters – 2 (for 30” hood)
{E} Oil Tunnel – 1
{F} Spacer – 2 (for 30” hood)
{G} Baffle Handle Package – 1
{A}
{B} {C}
{D} {E}
{F} {G}
{H} Remote Control – 1
{I} Rectangular Exhaust Plate – 1
{J} Rectangular Exhaust Adapter – 1
{K} Power cord – 1
{L} 6” round Plastic Exhaust – 1
{M} Twist-on wire connector – 3
{N} Screws – 2
{H} {I}
{J} {K}
{L} {M}
{N}
4 x 6mm (2PCS)

4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

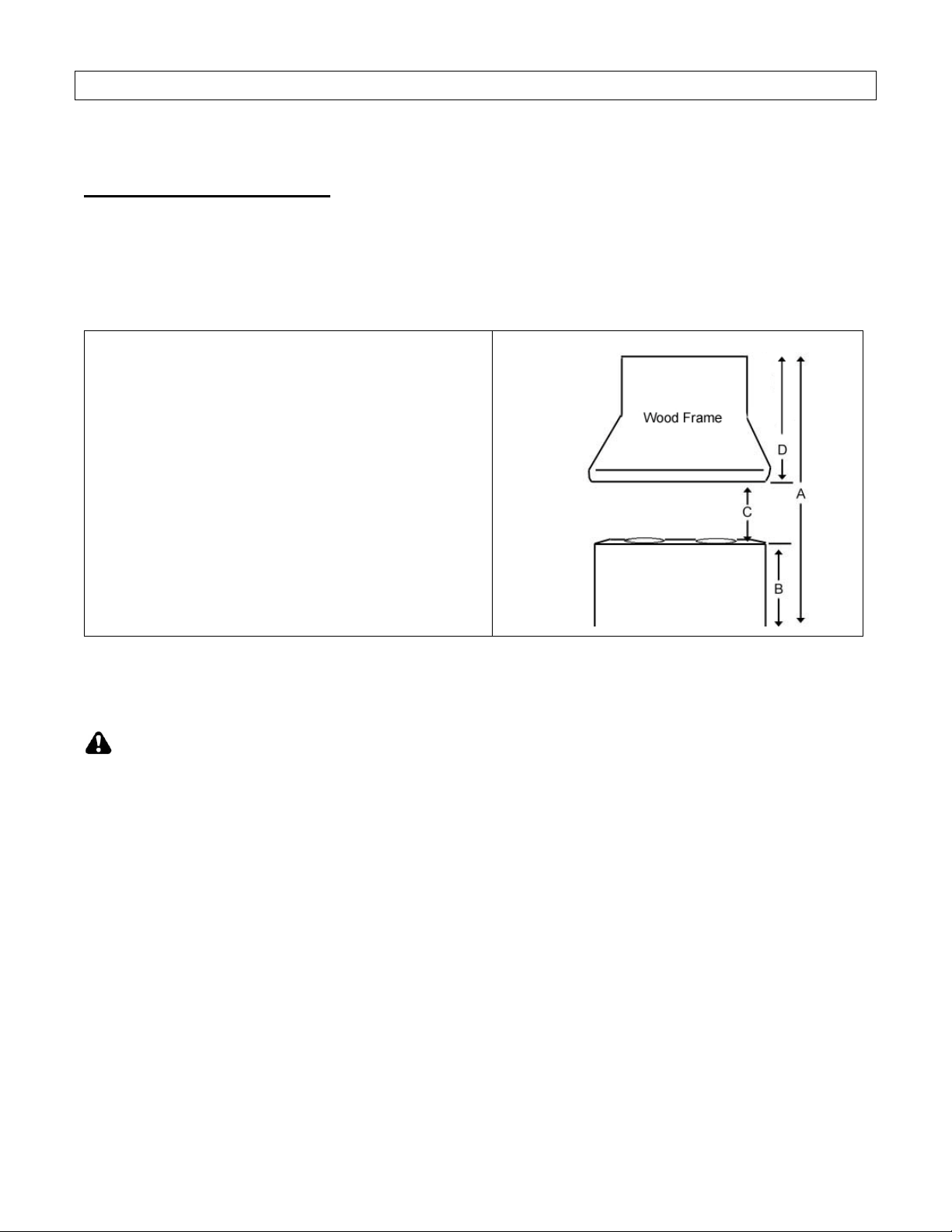

Calculation Before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36")
C = Height of Counter Top to Wood Frame
Bottom (Minimum 26" to 30")
D = Height of Wood Frame
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY
OCCUR.

5
NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS
FROM ENTERING THE VENT OPENING.
•Decide the location of the venting pipe from the hood to the
outside. Refer to Figure 1.
•A straight, short vent run will allow the hood to perform more
efficiently.
•Try to avoid as many transitions, elbows, and long run as
possible. This may reduce the performance of the hood.
•Temporarily wire the hood to test for proper operation before
installing.
•Important: Peel protective film off the hood, if any.
•Use duct tape to seal joints between pipe sections.
CAUTION: If moving the cooking range is necessary to
install the hood, turn off the power in an electric range
at the main electrical box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE. And use a protective covering
to protect cooktop and/or countertop from damage.
1. The custom hood frame must be designed according to the
shape and the weight of the hood. Refer to Measurements
and Diagram on Page 14.
2. A sturdy base (3/4 inch thick plywood recommended) is
needed to sustain the weight of hood.
3. It is recommended to install front & rear stud support (not
included). Refer to Figure 2. For safety purposes, extra
installation holes on the side of the hood are provided.
Prepare the side stud support if needed.
4. Determine and mark the centerlines on the base of the wood
frame where the hood will be installed.
5.
Location the proper location for the Power Supply Cable.
Make a wiring access hole using a drill bit. Install the wire
cable and seal the gap around hole.
6. Cut out the opening where the hood will be installed. (Figure
3)
CAUTION: If moving the cooking range is necessary to
install the hood, turn off the power in an electric range
at the main electrical box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE.
7. Choose the required vent option. The Round Exhaust Plate
is pre-installed for top vent.
8. For Top 3-1/4” x 10” rectangular installation only:
- Remove the pre-installed Round Exhaust Plate (Refer
to Figure 5). Keep screws to attach Rectangular
Exhaust Plate and Rectangular Exhaust Adapter.
- Place Rectangular Exhaust Plate over vent and secure
with 2 screws (Refer to Figure 6). Place Rectangular
Exhaust Adapter over the Rectangular Exhaust plate
and secure with 10 screws (Refer to Figure 6).
- Use remaining screws to secure exhaust plate.

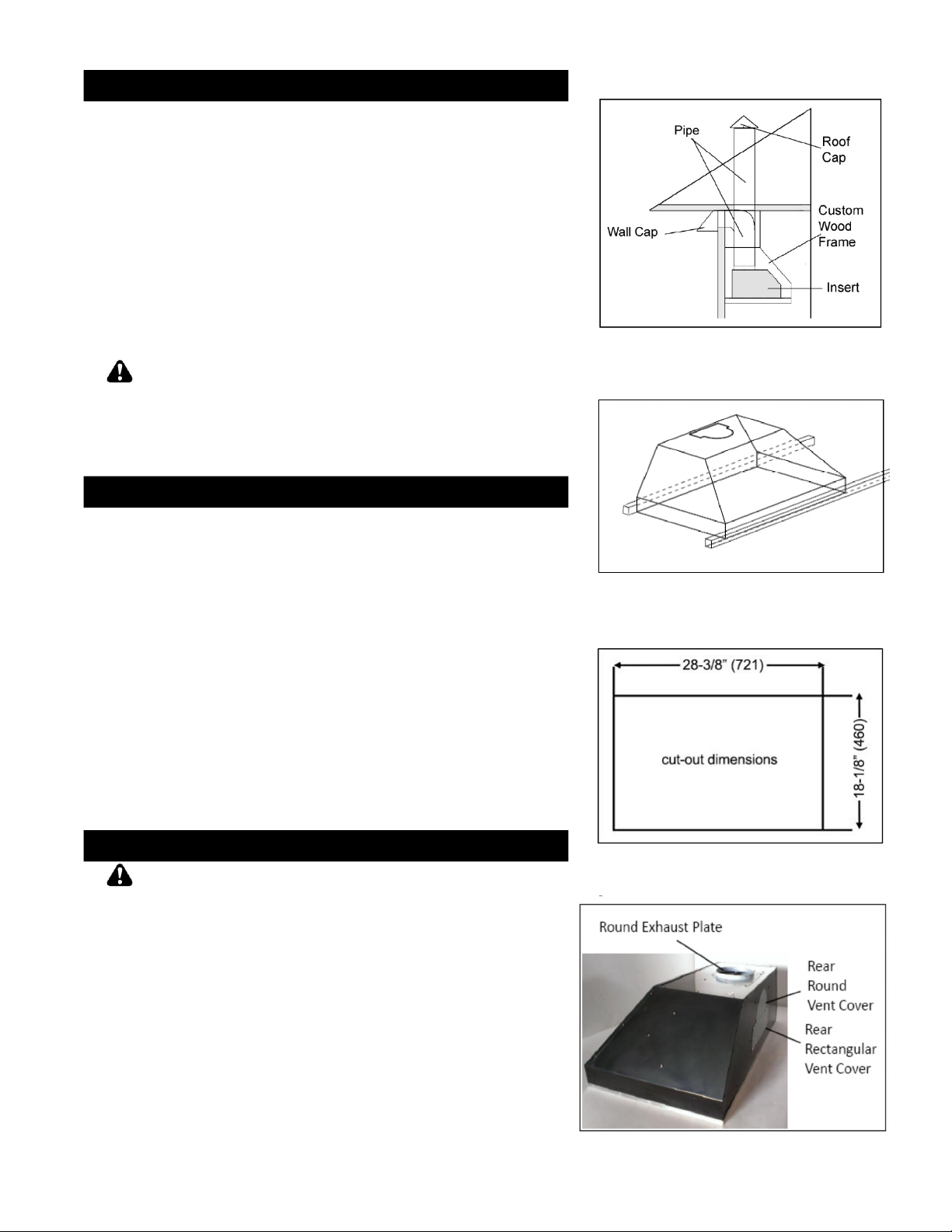

Figure 1
Figure 2
Figure 3
Figure 4
Hood Preparing Before Installation
Custom Hood Preparing
Preparation
Before Installation

6

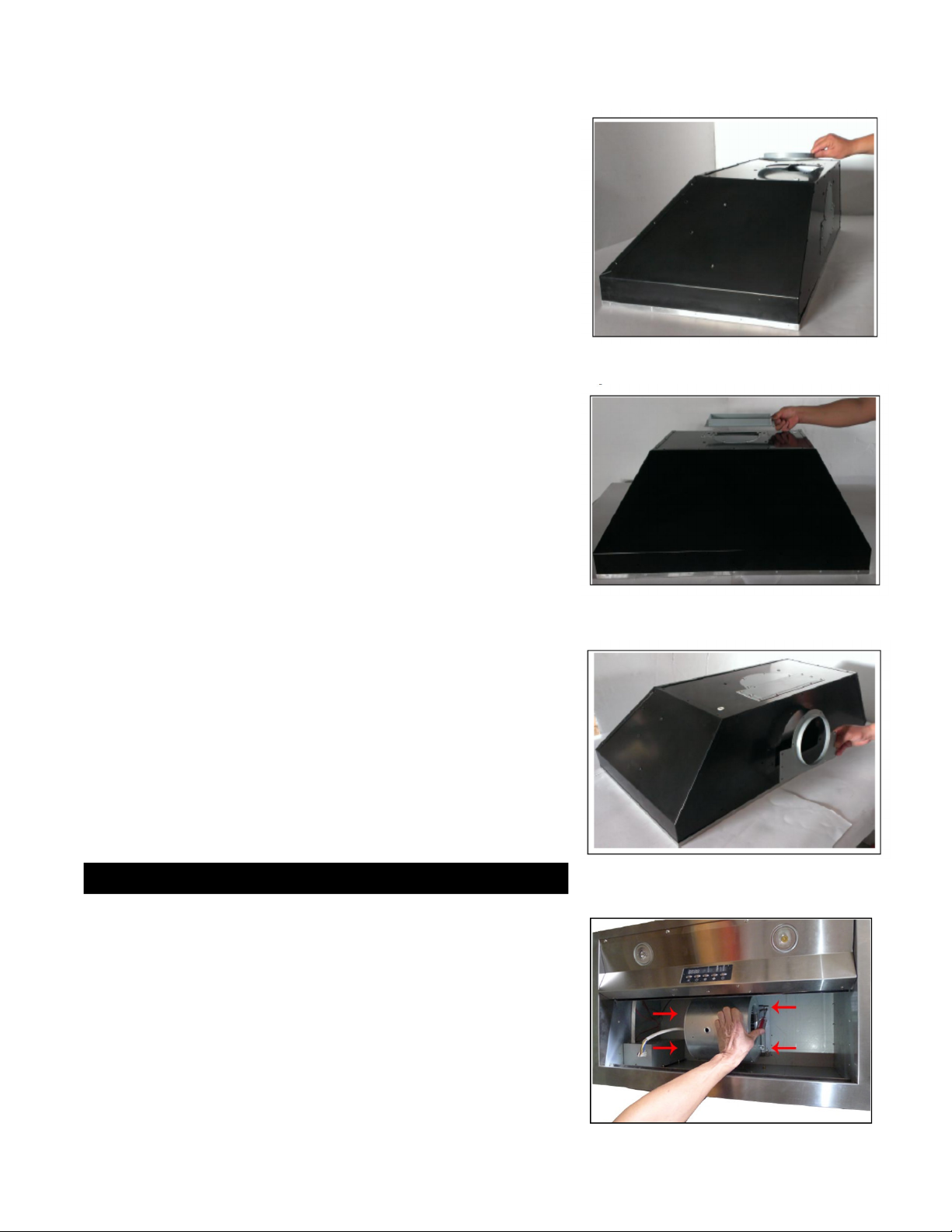

For Rear Vent Options only:
NOTE: The blower is pre-installed for top vent. If installing
as rear vent, follow the steps below:
9. For Rear 6” round installation only:
- Remove the Rear Round Vent Cover and Rear
Rectangular Vent Cover (Refer to Figure 4). Keep
screws to attach Round Exhaust Plate to rear vent.
- Remove the pre-installed Round Exhaust Plate from top
vent (Refer to Figure 5). Attach it to the rear vent (Refer
to Figure 7) using the screws removed from vent
covers.
- Use the Round and Rectangular vent covers removed
from rear vent to seal top vent.
- Remove the 4 screws that secure the blower system
(Refer to Figure 8). Hold the blower to keep it from
dropping as you remove screws. Keep screws to
reattached blower. Slowly rotate blower system to align
with mounting holes at the back of the hood. Secure
blower using 4 screws (Refer to Figure 9).
10. For Rear 3-1/4” x 10” rectangular installation only:
- Remove the Rear Round Vent cover and Rear
Rectangular Vent Cover (Refer to Figure 5). Keep
screws to attach Rectangular Exhaust Plate and
Rectangular Exhaust Adapter.
- Place the Rectangular Exhaust Plate over vent and
secure with 2 screws (Refer to Figure 10). Place
Rectangular Exhaust Adapter over the Rectangular
Exhaust Plate and secure with 10 screws (Refer to
Figure 10).
- Use remaining screws to secure exhaust plate.
- Remove the pre-installed Round Exhaust Plate from top
vent and keep screws (Refer to Figure 4). Use the
Round and Rectangular vent covers removed from rear
to seal top vent.
- Remove the 4 screws that secure the blower system
(Refer to Figure 8). Hold the blower to keep it from
dropping as you remove screws. Keep screws to
reattach blower. Slowly rotate blower system to align
with mounting holes at the back of the hood. Secure
the blower using 4 screws (Refer to Figure 9).
11. Determine and make all necessary cuts in the wall or ceiling
for the ductwork. Note: Install the ductwork before installing
the hood
12. Use steel pipe to connect the exhaust on the hood to the
ductwork above. Use duct tape to make all joints secure
and air tight.
13. Please refer to local building codes for the usage of a
damper (not included).
Figure 5
Figure 6
Figure 7
Figure 8
Duct Work Installation

7
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST
BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY
QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES.
BEFORE CONNECTING WIRES, SWITCH POWER OFF AT
SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON ACCIDENTALLY.
14. Connect electrical wires.
15. Connect three wires (black, white, and green) to house
wires and cap with wire connectors. Connect wires
corresponding to their colors (i.e. black to black, white to
white, and green to green).
16. Store wires in a wiring box.
NOTE: USE HAND TOOLS ONLY. DO NOT OVER TIGHTEN
SCREWS AS IT MAY CAUSE DAMAGE TO THE HOOD.
17. Remove the light panel by removing 10 screws located at
the bottom of the hood (Refer to Figure 11). Carefully
remove the light support panel.
18. Position the hood inside the custom wood frame, and
secure the hood to the front and rear stud support (Refer to
Figure 2) by using the front and rear mounting holes
(Screws not included).
19. For a more secure installation, use the mounting holes
located on the side of the hood.
20. Make sure hood is secure before releasing.
21. Re-install the light support panel. (Do not over tighten
screws.)
CAUTION : MAKE SURE HOOD IS SECURE BEFORE
RELEASING
Figure 9
Figure 10
Figure 11
Hood Installation
Wiring to Power Supply

8
22. The oil tunnel is already installed into recess support near
rear of hood. Refer to Figure 12.
23. Install baffle filters. Angle baffle filter toward back of hood
①. Push baffle filter up until almost level ②. Slide forward
into recess behind the front of hood ③. Lower baffle filter
④. Slide back until it fits into resting position ⑤. Refer to
Figure 13.
Figure 12
Figure 13
Hood Installation

9
OPERATING INSTRUCTIONS
This KOBE hood is equipped with five electronic push buttons with LED display, a wireless remote control, a double
horizontal squirrelcage blower with stainless steel baffle filters and two LED lights.
The five control buttons are Power Control (On/Off & 3-Minute Delay Shut-Off), Speed Control (High, Medium, Low &
QuietMode™), ECO Control, Timer Control and Light Control. Refer to Figure 14.
Figure 14
Note: For best results, turn the range hood to QuietMode™ prior to any preparation or cooking. Adjust speed as
needed.
Power Control
Press Power Control to turn On/Off the range hood. Hood will power on at Low speed.
Output Display:
3-Minute Delay Shut-Off Control
Delay Shut-Off Control powers down the range hood after 3 minutes. Press the Power Control to activate
Delay-Shut off. The Timer Indicator will automatically begin to count down from the default 3 minutes. When
the time is up, the unit will completely power off.
To bypass the 3-Minute Delay Shut-Off, press the Power Control again to completely power down the unit.

10
Speed Control
(Each press of Speed Control will cycle the fan through Low, Medium, High and QuietMode™.)
Output Display will indicate:
= QuietMode™ Speed
= Low Speed
= Medium Speed
= High Speed
ECO Control
The ECO function is set to turn on the range hood on QuietMode™ setting for 10 minutes every hour
to remove excess moisture, microscopic particles and odors for better kitchen air quality.
ECO is independent from the power function.
To activate ECO when the unit is powered off, press the ECO Control. The ECO icon will be displayed
to show that it is active. To deactivate it, press the ECO Control again. The icon will turn off, indicating
it has been deactivated.
To activate ECO when the unit is powered on, press the ECO Control. The ECO icon will be displayed
to show that it has been activated. In order for ECO to take effect, the unit must be turned off. If
the fan is running, power it off by pressing the Power Control. The unit will automatically shut down in
3 minutes. To power down immediately, Press the Power Control again to power down the unit. Once
the unit is powered off, the ECO icon will remain displayed, indicating that it is active. To deactivate it,
press the ECO Control again. The icon will turn off, indicating it has been deactivated.
NOTE: Must open door or windows to create sufficient make-up air when ECO is operating.
Output Display when ECO is active:
Light Control
(Lights are controlled independently from Power Control. Turning the power off will not turn the lights off.)
Press Light Control to turn lights ON. Press Light Control again to DIM the lights. Press Light Control
again to turn lights OFF.
Timer Control
The Timer Control allows users to set their range hood to automatically turn off. The timer ranges from 1
min. to 99 mins.
To activate the timer, the fan must be on (High, Medium, Low, or QuietMode™). As the fan is running,
toggle the timer by pressing the Timer Control. The Timer Indicator will flash, indicating it is ready to be set.
Press the Timer Control to set desired time, starting from 1 min. up to 99 mins. When finished setting time,
the timer will begin to automatically count down.

11
Baffle Change Indicator
The display will indicate when baffle filter needs cleaning. Press and hold the Power Control for 5
seconds to reset the Baffle Change Indicator.
Remote Control
The six control buttons for the wireless remotecontrol are Power Control(On/Off & 3 Minute DelayShut-Off), Light Control,
ECO Control, Timer Switch Control and Speed Controls (High, Medium, Low & QuietMode™).
NOTE: Requires 2 AAA Batteries. Batteries not included.
Power Control
Press Power Control to turn hood ON and OFF. Hood will power on at Low speed.
3-Minute DelayShut-Off Control
Delay Shut-Off Control powers down the range hood after 3 minutes. Press the Power Control to activate
Delay-Shut off. The Timer Indicator will automatically begin to count down from the default 3 minute setting.
When the time is up, the unit will completely power down. To bypass the 3 minute Delay Shut-Off, press
the Power Control again to completely power off the unit.
Light Control
(Lights are controlled independently from Power Control. Turning the power off will not turn the lights off.)
Press Light Control to turn lights ON. Press Light Control again to DIM the lights. Press Light Control
again to turn OFF lights.
Speed Control
Press the Speed Control to activate the fan. The fan will start on Low speed. Each press of the Speed
Control button will cycle through the various speeds.
Press to cycle from High, Medium, Low and QuietMode™
Press to cycle from Low, Medium, High and QuietMode™.
Press Power Control to activate 3-Minute Delay

12
Timer Control
While the fan is running, press the Timer Control to activate the Timer. The Time Indicator will flash,
indicating it is ready to be set. Use the arrow keys to set the desired time.
Press of will decrease the time by 1 minute. Each press of will increase the time by 1 minute.
When finished setting desired time, the timer will automatically begin to count down or press the Timer
Control to immediately begin the countdown.
If the timer is not set ( OR ) within 6 seconds, the unit will automatically exit Timer Control Mode
and arrow keys will return to speed function control.
ECO Control
To activate ECO when the unit is powered off, press the ECO Control. The ECO icon will be displayed
to show that it is active. To deactivate it, press the ECO Control again. The icon will turn off, indicating
it has been deactivated.
To activate ECO when the unit is powered on, press the ECO Control. The ECO icon will be displayed
to show that it has been activated. In order for ECO to take effect, the unit must be turned off. If
the fan is running, power it off by pressing the Power Control. Then press the Power Control again to
power down the unit. Once the unit is powered off, the ECO icon will remain displayed to indicate that
it is active. To deactivate it, press the ECO Control again. The icon will turn off, indicating it has been
deactivated.
MAINTENANCE
For optimal performance, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1.Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2.If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood.
Avoid getting cleaning solution onto or into the control panel. Follow directions of the stainless steel cleaner.
Caution: Do not leave on too long as this may cause damage to hood finish. Use soft towel to wipe
off the cleaning solution, gently rub off any stubborn spots. Use dry soft towel to dry the hood.
3.DO NOT allow deposits to accumulate or remain on the hood.
4.DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and cause
rusting.
5.DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with
stainless steel for extended periods. Many of these compounds contain chemicals, which may be harmful.
Rinse with water after exposure and wipe dry with a clean lint free cloth.
To Clean Baffle Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM BAFFLE FILTER, SPACERS & OIL TUNNEL REGULARLY TO PREVENT
OVERFLOW.
1.Remove all the baffle filters, spacers and oil tunnel.
2.Using a sponge, wash with warm soapy water. Dry completely before returning into place.
CAUTION: SHARP EDGES
(Note: Baffle Filters are top rack dishwasher safe.)

13
SPECIFICATIONS
MODEL / SIZE
IN2630SQB-700-1 / 30”
COLOR
Commercial Stainless Steel
CONSUMPTION / AMPERE
290W / 2.5A
VOLTAGE
120V 60Hz
NUMBER OF BLOWERS
1
BLOWER TYPE: CENTRIFUGAL
Single Horizontal Squirrel Cage
EXHAUST
Top:
6” Round
3-1/4” x 10” Rectangular
Rear:
6” Round
3-1/4” x 10” Rectangular
CONTROLS
5 Push-Button with LED Display
- Variable Delay Shutoff
LIGHTS
LED Lights 3W x 2
HOOD DIMENSION
(W X D X H) 28-3/8” x 18-1/8” x 12”
HOOD WEIGHT (lbs)
Net Gross
IN2630SQB-700-1 37.5 46.0
Blower Air Capacity (cfm)
QuietMode™ Low Medium High
300 420 590 750
Sone*
1.0 2.0 5.0 6.0
dB
40.0 50.0 63.5 66.0
* One Sone is equivalent to 40 decibels.
**Specifications subject to change without notice.

14
MEASUREMENTS & DIAGRAMS
All ( ) are in millimeter.
All inch measurements are converted from millimeters. Inch measurements are estimated.
MODEL NO: IN2630SQB-700-1
Side View Bottom View
Back View Top View
Front View

15
PART LIST
MODEL NO: IN2630SQB-700-1
NO. DESCRIPTION MODEL/SIZE PART NO.
1 Rectangular Exhaust Plate
L1-0241-0001B
2 Rectangular Vent Cover
L1-0241-0002A
3 Round Exhaust Plate
L1-0241-0001A
4 Rectangular Exhaust Adapter
L1-0241-0002B
5 Electric Component Support
L1-0201-2630-1
6 Processor Board
L1-0404-2636-B
7 Capacitor
L1-0401-0120-10
8 Oil Tunnel IN2630SQB-700-1
B101-2630-14A1
9 Blower System
L1-0302-0120-802RE
10 Bottom Casing (Attached to the hood)
B101-2630-09-2
11 Stainless Steel Spacer x 2
B101-2630-14B2
12 Baffle Filter x 2
B101-2630-15
13 Control Unit
L1-0404-2636-A
14 Light Panel Support
B101-2630-06-2
15 LED Light (3W) x 2
L1-0403-0301

16
MODEL No.: IN2630SQB-700-1

17
CIRCUIT DIAGRAM
MODEL NO.: IN2630SQB-700-1
