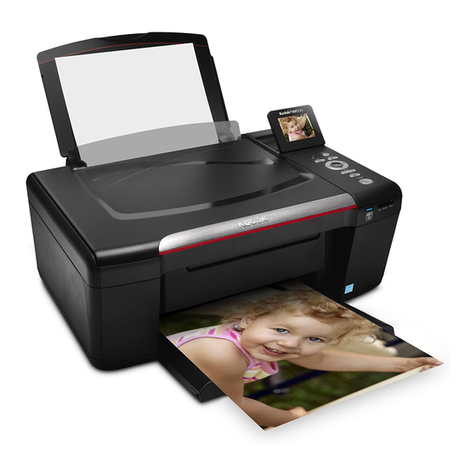

Kodak ESP 7 ALL-IN-ONE PRINTER - SETUP BOOKLET Instruction Manual

Note: For a USB cable connection, a USB 2.0 cable
is required to connect your KODAK All-in-One
Printer to your WINDOWS or MACINTOSH OS
computer. Available in the KODAK store or see
your local retailer.
All-in-One Printer
Print Copy Scan
Start Here
7

2www.kodak.com/go/aiosupport
10
ColorInk Car tridge
10
ColorInk Car tridge
Inkjet Printer Software
FOR MACINTOSH
Inkjet Printer Software
FOR WINDOWS
a) Remove all orange shipping tape and any foam pieces
from the outside of the printer.
b) Lift the printer access door.
c) Remove all orange shipping tape and any foam
pieces from the inside of the printer.
d) Pull out the top paper tray and remove the orange
shipping tape and foam from the top paper tray.
Close the top paper tray.
e) Close the printer access door.
Power Cord
and Adapter
Included with your KODAK All-in-One Printer:
Printhead Black & Color
Ink Cartridges
Sample Paper Software CDs
with User Guide
Unpacking the Printer
1
Bottom paper tray .
Printer access door .
Scanner lid .
Top paper tray .

3
www.kodak.com/go/aiosupport
2
a) 1. Connect the power cord to the adapter.
2. Connect the adapter to the printer.
3. Connect to the power source.
b) Remove the plastic film from the LCD display and raise
the control panel.
c) Press ON .
d) Select your language and press OK.
e) Select your country/region and press OK.
Connecting the Power

4www.kodak.com/go/aiosupport
3
a) Lift the printer access door.
b) Carefully remove the printhead from its bag.
Remove the 3 plastic protective shields.
Do not touch the copper-colored contacts.
c) Place the printhead into the carriage.
Insert at the angle shown.
d) Push firmly against the target label of the printhead
until you hear a loud snap.
Inserting the Printhead
Carriage .

5
www.kodak.com/go/aiosupport
4
a) Remove the black ink cartridge from its bag.
Carefully remove and discard the orange cap.
Handle ink cartridges carefully to avoid ink transfer.
b) Insert the black ink cartridge into the printhead.
c) Press down on the ink cartridge until you hear it click
into position.
d) Repeat steps 4a - 4c with the color ink cartridge.
e) Close the printer access door and press OK.
Inserting the Ink Cartridges
10
Black Ink Cartridge
10
Black Ink Cartridge
10
Cartouche d'encre noire
10

6www.kodak.com/go/aiosupport
5
a) Raise the paper output tray and pull the bottom paper
tray out.
b) Load plain paper and slide the 2 paper edge guides
against the left and front edge of the paper.
c) Close the bottom paper tray.
NOTE: If the bottom paper tray will not close all the
way, press the bottom paper tray extender tab on the
front left edge of the tray while pushing the tray in.
d) Pull out the top paper tray and insert 4x6 in. (10x15 cm)
photo paper face down.
Slide the paper edge guides, close the top paper tray.
Lower the paper output tray.
e) Press START. Calibration will take 2-3 minutes.
Loading Paper and Calibrating
OK
Bottom
paper tray
.
Bottom paper tray
extender tab
Paper
output tray
.

7
www.kodak.com/go/aiosupport
6
Connecting to a Computer or Network
Choose 1of the following options to connect your new printer to your computer. Refer to the
corresponding sections for more information on connecting to a computer or network.
Use this option if you will be connecting to your printer using
a USB cable.
Use this option if you will be connecting to your printer using
a wireless network.
Use this option if you will be connecting to your printer using
a wired network.
Use this option if you will not be connecting to a computer or
network at this time.
Do not connect the USB cable to the printer
until instructed during software install.
a) Select USB cable from the LCD display
and press OK.
b) Proceed to step
7
.
USB
NONE (CAN CONNECT LATER)
ETHERNET CABLE CONNECTION
USB CABLE CONNECTION
WIRELESS (Wi-Fi) CONNECTION
USB CABLE CONNECTION- WAIT TO CONNECT
NOTE: You can switch your connection type at a later date. See the chapter Setting Up Your Printer in the
User Guide for detailed instructions.

8www.kodak.com/go/aiosupport
6
You will need your wireless router settings:
Network Name (SSID): _______________________________
Security String: _____________________________________
The security string is unique to your network’s access point.
Check with whomever set up your access point, your internet
provider, or check the access point documentation for this
information.
a) Select Wireless from the LCD display and press OK.
b) Select your wireless network from those listed and
press OK.
If the name (the SSID) of your network is not listed,
make sure your wireless access point (wireless router)
is turned on and within range.
If your access point does not broadcast its SSID, then
select Connect to Unlisted Network and press OK.
c) Use the arrow keys and the OK button to enter your
security string now.
NOTE: To use the virtual keyboard, select the letter
you want and press OK. Select BKSP and press OK
to clear any mistakes you may make. When you are
finished, select Done and press OK.
d) If successfully connected, your Wi-Fi indicator should
be solid blue. Proceed to step
7
.
If you are unable to connect to your wireless network, go
to www.kodak.com/go/inkjetnetworking or refer to the
User Guide for troubleshooting information. Detailed
instructions on where to locate the User Guide can be
found in step
7
of this guide.
WIRELESS (Wi-Fi) CONNECTION
OK
Enter Security String
123
abc/123 !@#
4567890
ABCDEFGH I J
KLMNOPQRST
U V W X Y Z SP DONE
BKSP
Connecting to a Computer or Network
(continued)
For additional Wi-Fi/Networking setup
information, please go to:
www.kodak.com/go/inkjetnetworking

9
www.kodak.com/go/aiosupport
6
You can connect your printer at a later time.
a) Select None from the LCD display and press OK.
b) Proceed to step
7
.
ETHERNET CABLE CONNECTION (WIRED)
NONE (CAN CONNECT LATER)
a) Select Ethernet cable from the LCD display
and press OK.
b) Connect the Ethernet cable into the Ethernet port
on the back of the printer.
c) Connect the other end of the Ethernet cable into an
available port on your Ethernet router or hub.
d) Proceed to step
7
.
b)
c)
Connecting to a Computer or Network
(continued)

www.kodak.com/go/aiosupport
10
7Installing Software on WINDOWS OS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
WINDOWSWINDOWS
Do not connect the USB cable to the printer
until instructed during software installation.
WINDOWS
a) Load the KODAK Inkjet Printer Software CD for
WINDOWS OS into the CD-ROM drive. Follow the
on-screen prompts when the instructions appear.
If the KODAK Inkjet Printer Software installer window
does not open, click Start, then click Computer or My
Computer, and double-click on your CD-ROM drive.
b) If instructed, connect the USB cable to the USB port
on the printer and to your computer. Continue to
follow the on-screen prompts until installation is
complete.
NOTE: If you are prompted by your firewall during
software installation, be sure to allow access. For
additional information go to
www.kodak.com/go/inkjetnetworking.
NOTE: If you have additional computers on your
network, install the KODAK Inkjet Printer Software on
each computer.
The User Guide is installed with your KODAK Inkjet
Printer Software and is located here:
Start Programs Kodak User Guide
Start Printers and Faxes.
Right-click the icon for the printer you want to use as the default printer, and
then click Set As Default Printer.
Start Control Panel Hardware and Sound Printers.
Right-click on the printer you want to use, and then click Set As Default Printer.
Setting your KODAK All-in-One Printer as the default on your WINDOWS OS
WINDOWS XP:
WINDOWS VISTA:
