THE KODAK SYA'CHRO-RAP'D 8OO SHUTTSR
This new Kodok Tourist Comero with its superb lens
ond shutter opens new doors to extend your picture opPorlunities.
The shorp culling, color-corrected, Kodok f/4.5 Anostor Lens is
mounled in lhe new Kodok Synchro-Ropid Shutferwith speeds uP to
l/800 second, twice os fosl os ony previous Kodok between-the-
lens shutfer,Synchronizotion for oll types of flosh is built in. Closs F
flosh lomps con be synchronized up to ond including I /400 second;
ClossM lomps up to ond including l/800 second.Speedflosh con
olso be used. High-speed oction shots of qlmost unlimited voriety
ore possible. They will odd zesl to your picture collection.
THE KODAK IOURIST ADAPTER, KIf
The versotility of your Tourisf con be increosed still further with the
Kodck Tourist Adopier Kit. Additionol negolive sizesol lVa x 2Vc
inches
ond 2% x2% inches con be mode with the some Kodok 620
Film.With Kodqk 828 Film,28 x 4omm Kodochromelronsporencies
con be mode. Thesemoke brilliqni,full-colorKodqslidetronsporen-
cies for proiection.
Thecompleie kil is contoined in o hondy pocket cose.A telephoto
effect isobfo ined with the smoller negotive sizes.The comerc con be
further from ihe subiect, wifhouf reducing fhe imoge size, resuliing
in improved perspective. Thisis of porticulor volue when moking
piclures of people.

o Read this instruction manual carefully-go through
the mechanical motions-to be sure you fully under-
stand the operation of your camera. Follow "the little
man" through the illustrations. Before taking a trip
or picturing that important event coming up, give
yourself some practice by shooting a roll or two of film
and taking a few flash pictures. You will give the
equipment a workout too. Ifthereare any questions in
your mind, your Kodak dealer will be glad to help you.
www.orphancameras.com

OPEIV'A'G fHE CAITERA
To open the comero, press the
opening button ond pull down the
front unlil it locks. Do not depress
the bed shutter releose while
opening the comero,
CIOs"VG THE CAITERA
Press
on the rqised knurled sec-
tions to fold lhe two brqces; fhen
push the froni until it snqps shut.

set
set i:t i'i
expo.$are tirng
Iens opening
foerr,*
,S:lFi
set lil
www.orphancameras.com

a
rs
3;:;
a
xo
e

c*;j -i
ttg

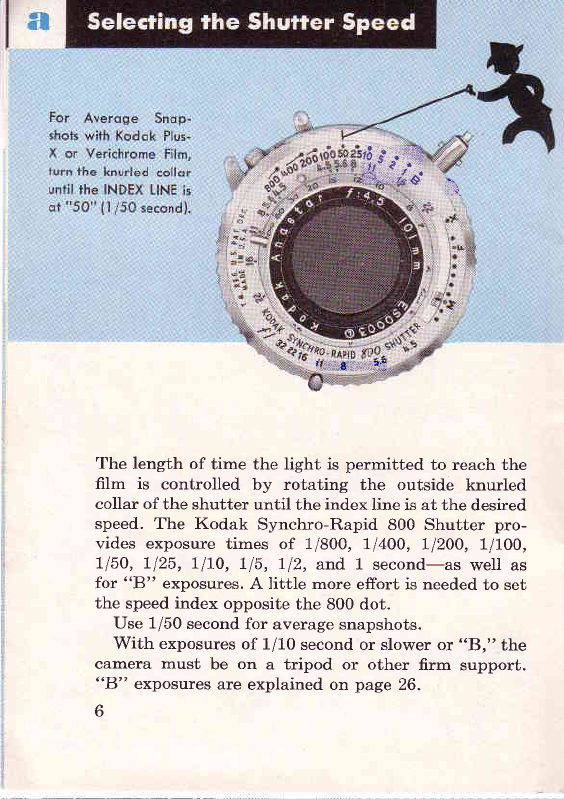

The length of time the light is permitted to reach the
fiIm is controlled by rotating the outside knurled
collar of the shutter until the index line is at the desired
speed. The Kodak Synchro-Rapid 800 Shutter pro-
vides exposure times of 1/800, 7l4OO,ll2OO, 7llOO,
7150,L125,7110,ll5, 712, and 1 second-as well as
the speed index oppositethe 800 dot.
Use 1/50second
for averagesnapshots.
With exposures
of 1/10secondor slower or "B," the
camera must be on a tripod or other firm support.
"B" exposures are explained on page 26.
o
www.orphancameras.com

The size of the lens opening, through which the light
passes
while the shutter is open, is changed by moving
the lever across the /-number scale at the bottom of
the shutter. For greater convenience, a dual /-number
scale is located on the top rim of the shutter.
The opening is largest when the lens opening lever
is set at f14.5and smallest when it is set at f 132.
Each
succeeding lens opening from f132 to f 15.6 admits
twice as much light as the one
before; for example, a setting
of ll22 lets through twice as
much light as f 132.

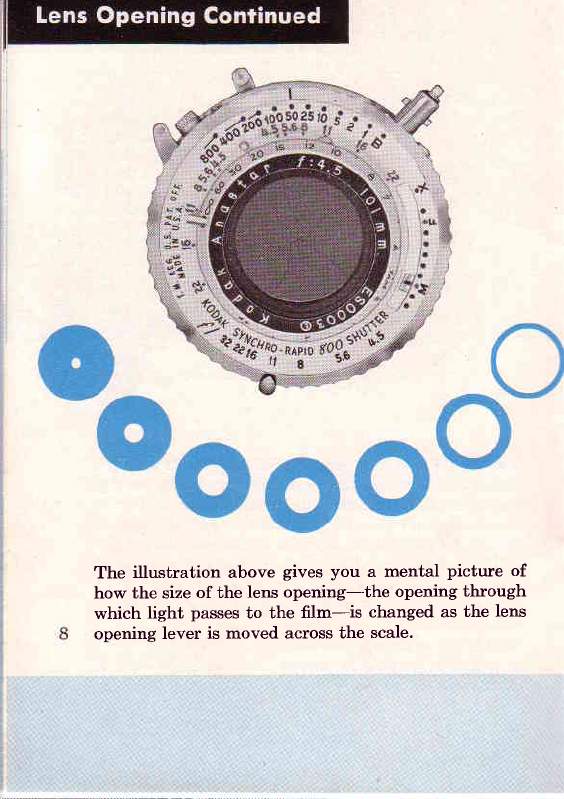

The illustration above gives you a mental picture of
how the size of the lens opening-'the opening through
which light passesto the film-is changed as the lens
opening lever is moved across the scale.
www.orphancameras.com

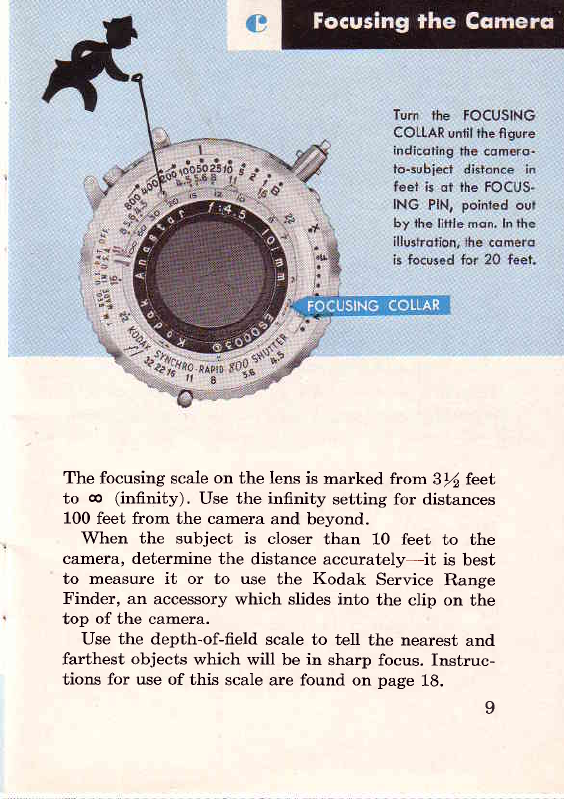

The focusing scale on the lens is marked frorn 3tl feet
to co (infinity). Use the infinity setting for distances
100 feet from the camera and beyond.
When the subject is closer than 10 feet to the
camera, determine the distance accurately-it is best
to measure it or to use the Kodak Service Range
Finder, an accessory which slides into the clip on the
top of the camera.
Use the depth-of-field scale to tell the nearest and
farthest objects which will be in sharp focus. Instruc-
tions for use of this scale are found on page 18.
I

// 4.rs.4 2232 oPEltlNcs
".;."
,
IOSHUTTIRI
-
Find ihe
Exposure
{ l-Sut for film used (line
up dots}
I e*S.t lightconditiondoi opposifesubjectdot
( €-neoa lens
opening qbove selecled shutterspeed
..
EXPOSUR,EGU'DE
The exposure guide on the back of the camera indi-
cates, quickly and easily, the correct exposure for
Kodak Films, with two common subject types under
the three most common lighting conditions.
Kodak black-and-white films have a wide latitude,
a built-in safety factor, which allows you to give as
little asonequarter the exposureindicated by the guide.
This should be relied on only when necessary at the
ltigher shutter speedsand under fauorable conditions.
The exposuref 111
at 1/50 second (C) is the basic
10
www.orphancameras.com

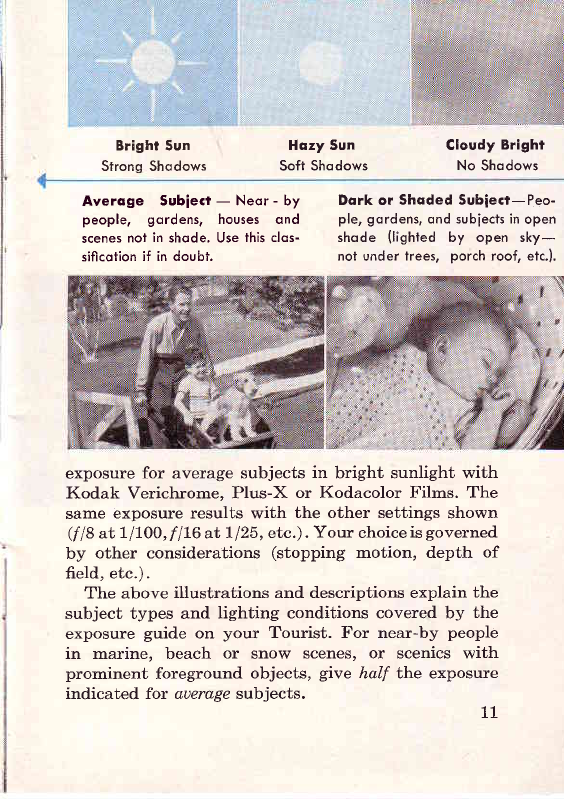

Brighl sun
StrongShodows Hczy Sun SofiShqdows Gloudy
Brighl
No Shodows
Averoge Subiecr - Neor - by
people. gordens, houses ond
scenes
nol in shode. Use
thiscrqs-
sificotion if in doubi.
Dork or Shoded Subiect-Peo-
ple, gordens,
ond subiectsin open
shode (lighted by open sky-
not under lrees, porch roof, etc.).
exposure for average subjects in bright sunlight with
Kodak Verichrome, Plus-X or Kodacolor Films. The
same exposure results with the other settings shown
(f
18
atL1L00,f 116at|125,
etc.). Your choice
isgoverned
by other considerations (stopping motion, depth of
field, etc.).
The above illustrations and descriptions explain the
subject types and lighting conditions covered by the
exposure guide on your Tourist. For near-by people
in marine, beach or snow scenes, or scenics with
prominent foreground objects, give half the exposure
indicated fot aueragesubjects. 11

Use
KodokFilmNo.620
KODAK VERICHROTI''EFTL'A
The film for general outdoor pic-
tures. It has wide latitude to help
you get a good negative even
though you slightly misjudge the
exposrue. High in speed,it is also
excellent for night photography
with flash lamps. 8 exposures.
KODAK PLUS-X
PANCHR,OITATICF'LM
Combined high speed and fne
grain make this film ideal for
outdoor work and for well-
lighted indoor subjects. 8 ex-
posures.
KODAK SUPER-XX
PANCHROMATTC
FILM
Because of its very high speed,
this film is the logical choice for
making snapshots indoors with
flood lamps. Indoors or out, it is
the flm to use when the lisht is
poor. 8 exposures.
L2
www.orphancameras.com

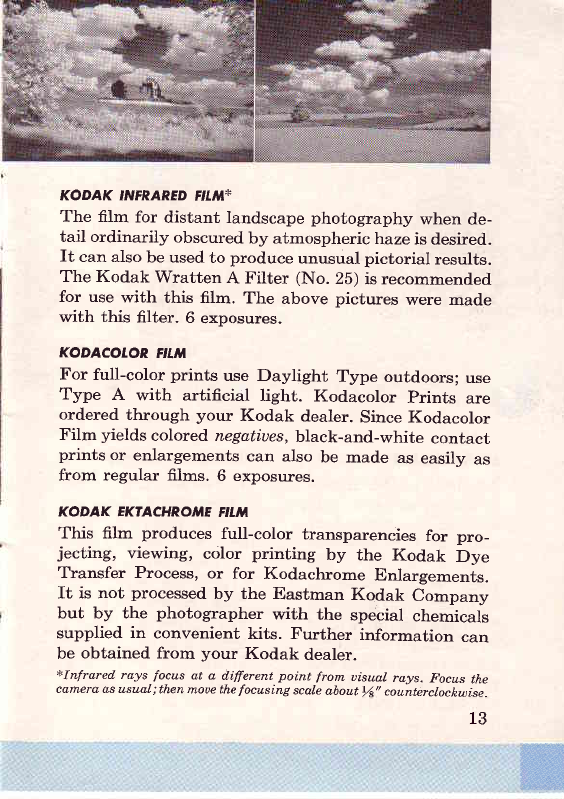

KODAK ,,NFR.AREDFILM*
The film for distant landscape photography when de-
tail ordinarily obscured by atmospherichaze is desired.
It can also be usedto produce unusual pictorial results.
The Kodak Wratten A Filter (No. 25) is recommended
for use with this film. The above pictures were made
with this filter. 6 exposures.
KODACOLOR.
F'LI[
For full-color prints use Daylight Type outdoors; use
Type A with artificial light. Kodacolor Prints are
ordered through your Kodak dealer. Since Kodacolor
Film yields colored negatiues,
black-and-white contact
prints or enlargements can also be made as easilv as
from regular films. 6 exposrues.
KODAK EKTACHP.OII',E
FTLTI
This film produces full-color transparencies for pro-
jecting, viewing, color printing by the Kodak Dye
Transfer Process, or for Kodachrome Enlargements.
It is not processed by the Eastman Kodak Company
but by the photographer with the special chemicals
supplied in convenient kits. Further information can
be obtained from your Kodak dealer.
*Infrared rays focus at a different point from uisual rays. Focus the
camera as usual; then mouethe
focusing scaleabout 11,,
counterclochwise.
13

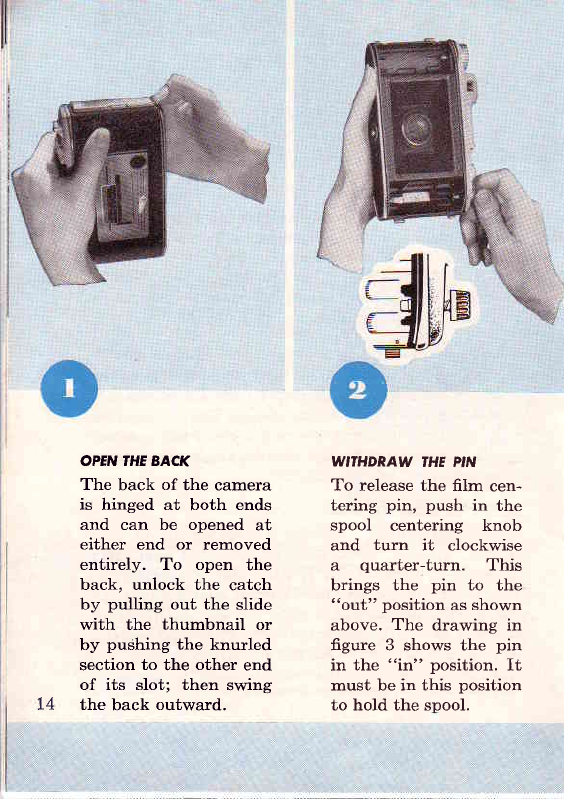

OPENTHEBACK
The back of the camera
is hinged at both ends
and can be opened at
either end or removed
entirely. To open the
back, unlock the catch
by pulling out the slide
with the thumbnail or
by puShing the knurled
section to the other end
of its slot; then swing
the back outward.
WITHDR,AW
fHE P/N
To release the film cen-
tering pin, push in the
spool centering knob
and turn it clockwise
a quarter-turn. This
brings the pin to the
"out" position asshown
above. The drawing in
figure 3 shows the pin
in the "in" position. It
must be in this position
to hold the spool.
1A
www.orphancameras.com

o,
,NSERIAIAKE-UP
SPOOL
If the take-up spool is
not in place in the cam-
era, turn and puII out
the wrNotNc KNoB as
far as it will go. Insert
an empty spool on the
bottom pin first. Turn
and push in the winding
knob to engage it with
the slot in the snool.
'NSER,T
TTTE
FTLIT
Insert the spool on the
bottom pin first so that
when the paper is drawn
off, the colored side will
be up. Press down the
spool while pushing in
the spoolcentering knob .
Turn the knobaquarter-
turn counterclockwise
and releaseit.
15

THR,EAD
IHE
PAPER

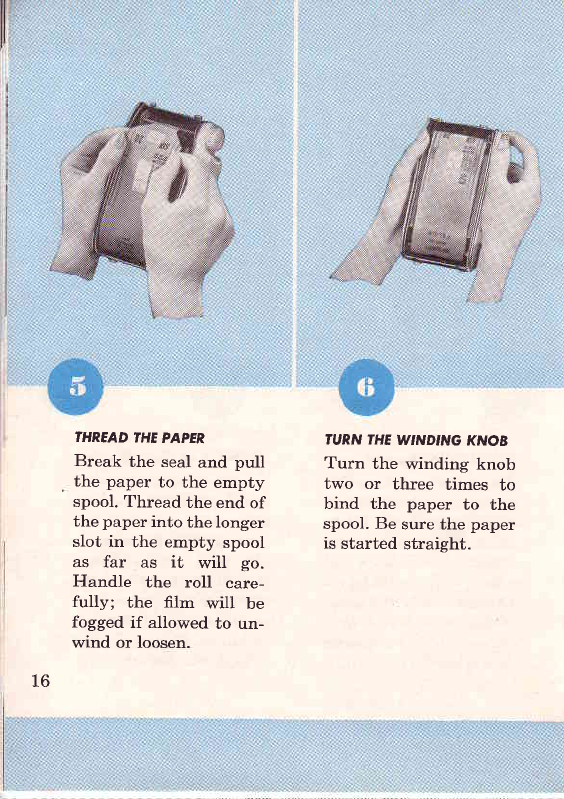

Break the seal and pull
the paper to the empty
spool. Thread the end of
the paper into the longer
slot in the empty spool
as far as it will go.
Handle the roll care-
fully; the film will be
fogged if allowed to un-
wind or loosen.
TUR,NTHE
WIND'NG
KNOS
Turn the winding knob
two or three times to
bind the paper to the
spool. Be sure the paper
is started straight.
t6
www.orphancameras.com

'].
t
CLOSE
THE
BACK
The back, if removed,
must be replaced with
the top of the exposure
guide toward the view
finder. It is locked in
place by pushing in the
ends of the catches. A
white dot on the window
cover warns you to un-
cover the red window
when film is wound.
ADVANCE
THE
F'LT[
Before winding, uncover
the red window by push-
ing the lever toward the
bottom of the camera.
Turn the winding knob
until a small hand ap-
pears. Continue turning
slowly untTl the figure
"1" is centered in the
window. Release the le-
ver to cover the window. 17

When the focusing collar is set at one of the distances
marked onit, objects at that distancewill be sharpest.
Sharpness extends to nearer and farther objects, but
with decreasing
sharpness.
The rangeofgood sharpness
is "depth of field". Its limits are shown by comparing
the red figures on each side of the focusing pin with the
figures on the focusing scale.The red fgures represent
lensopenings (/Tnumbers).
Example illustrated: Subject is at 20 feet. Exposure
callsfor a lens opening of f l1l..
Setfocusing scalewith 20opposite focusing pin. Look
for red figures 11f,
UllD, on the depth of field scale.
There is one on each side ofthe focusing pin. The one
to the right of the pin stands between 10and 12on the
focusing scale. The other, to the left of the pin, stands
at co,infinity. These show all objects from infinity to
about 11 feet from the camera will be sharp.
18
www.orphancameras.com
