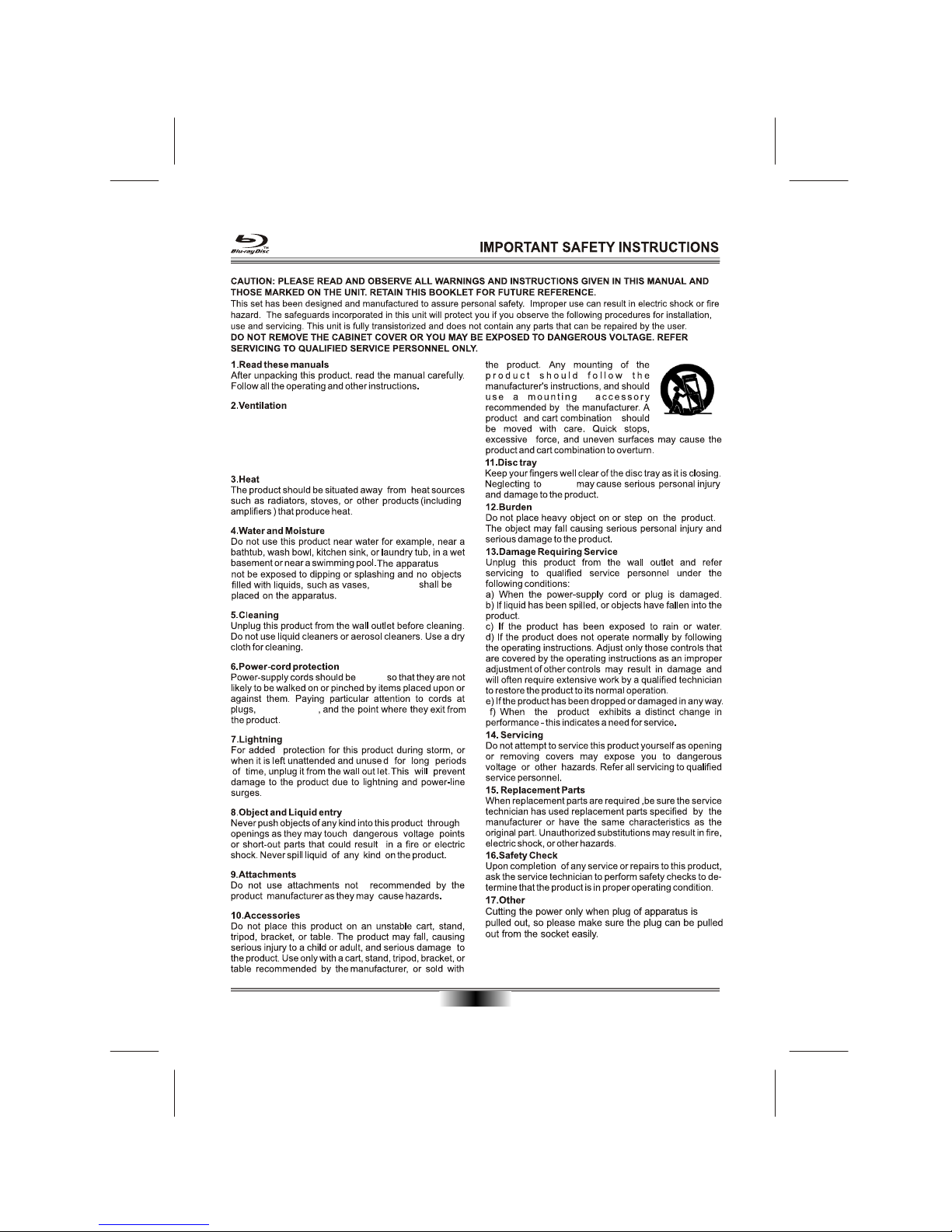

IMPORTANT SAFETY INSTRUCTIONS 03
NOTICE 04
PLAYABLE DISCS 05
ACCESSORIES AND PANEL 06
USING BD-LIVE FEATURES 14

SAFETY PRECAUTIONS
01
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
When replacing the unit's plug or power cord, the replacement must be the exactly
the same; or one recommended by the manufacturer.
The lightning flash with arrowhead symbol, within an equila-
teral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage " within the product's en-
closure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
This Digital Video Disc player employs a laser system.
The symbol for CLASS II (Double Insulation).
Use of controls, adjustments or the performance of procedures other than those
specified may result To prevent direct expo-
sure to laser beam, do not try to open the enclosure.
DO NOT STARE INTO BEAM.
in hazardous exposure to radiation.
WARNING:
CAUTION:
Laser radiated lable stick at the bottom of unit.
*

SAFETY PRECAUTIONS
02
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product, it means the
product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact
your city office, waste disposal service or the shop where you purchased the product.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
This item incorporates copyright protection technology that is protected by U.S. patents
and other intellectual property rights. Use of this copyright protection technology must
be authorized by Rovi Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or
disassembly is prohibited.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535
& other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and
the Symbol together are registered trademarks & DTS Digital Surround and the DTS
logos are trademarks of DTS, Inc. Product includes software. DTS, Inc. All Rights
Reserved.

03
Slots and openings in the cabinet are provided for ventilation
and to ensure correct operation of the product. These protect
it from overheating. These openings must not be blocked or
covered. The openings should never be blocked by placing
the product on a bed, sofa, rug or other.
must
must ever
placed
power boards
do this
18.where the MAINS plug or an appliance coupler is
used as the disconnect device, the disconnect device
shall remain readily operable.

04
an vehicle
ELECTRICAL DISTURBANCE
following situations.
suffer from condensation under the
connecting will ensure

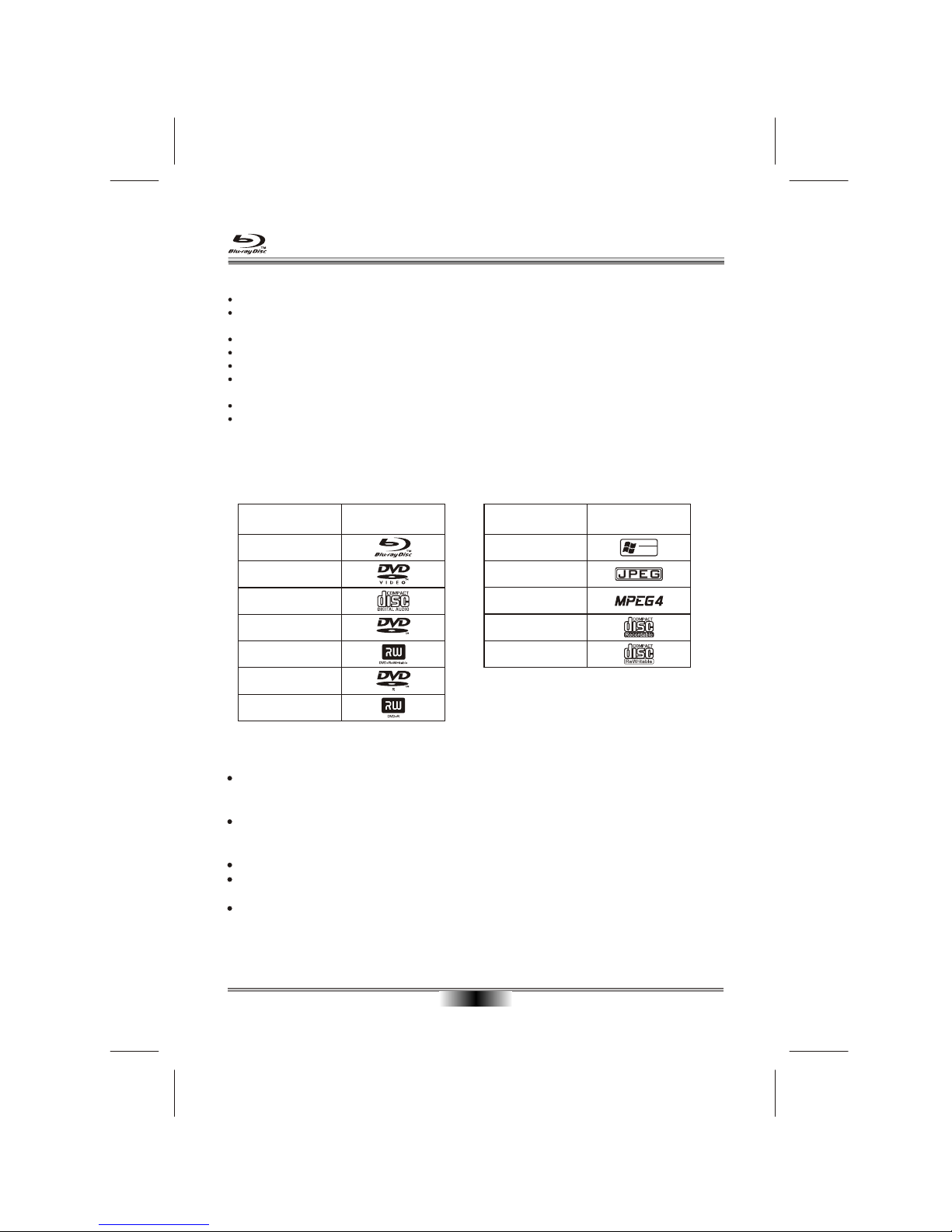

PLAYABLE DISCS
05
The following types of discs can play in the REF player:
Notes:
Writeable DVD discs (DVD-RW, DVD-R) must be finalized, VR-mode only.
Playback may not work for some types of discs, or when specific operations, such as angle change and
aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box.
Please refer to this if necessary.
Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust,
scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc
for playback.
CD-R/-RW, DVD-RW/-R recorded with UDF or ISO9660 format can be played back.
Windows Media Audio (WMA) files must be written to the disc with a .wma file extension in order to be
recognized and played back properly.
JPEG picture files must be written to the disk with an .jpeg or .jpg file extension in order to be recognized
and played back properly
Features
Full high-definition video playback at up to 1080p resolution for an amazing viewing experience.
Upconversion of standard definition DVDs for enhanced picture quality at up to 1080p over an HDMI
connection.
Rich multi-channel surround sound.
Easy and simple HDTV connection using a single HDMI cable (cable not included).
Multiple outputs for connecting your home theater system or amplifier.
PIP functionality that lets you display primary and secondary video at the same time (if available on the Blu-ray
Disc).
Pop-up menu display without interrupting playback (if available on the Blu-ray Disc).
HDMI 1080p/fps output (Blu-ray Disc only) that provides smooth playback of video with a frame rate of 50
frames per second (TV must be connected with an HDMI cable and be compatible with an HDMI cable and
be compatible with 1080p 50 frame).
Disc type Logo
Blu-ray Disc
DVD-video Disc
(DVD-ROM)
Audio CDs
(CDDA)
DVD-RW
DVD+RW
DVD-R
RW
Disc type Logo
DVD+R
WMA
MPEG4
CD-R
CD-RW
TM
Designed for
TM
Windows
Media
JPEG

ETHERNET HDMI VIDEO OUT / AUDIO OUT
VIDEO
COAXIAL
L
R
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Manufactured under license under
U.S. Patent Nos: 5,956,674; 5,974,380;
6,487,535 & other U.S. and worldwide
patents issued & pending. DTS, the
Symbol, & DTS and the Symbol
together are registered trademarks
& DTS Digital Surround and the DTS
logos are trademarks of DTS, Inc.
DTS, Inc. All Rights Reserved.
S/N:
POWER: 15W
MODEL: KABRP21SLMAA
BLU-RAY DISC PLAYER
MADE IN CHINA
AC: 110V-240V~ 50/60Hz
N15486
Blu-ray DVD-Video
4
Manufactured under license from Dolby Lab-
oratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
1
2 3 4 5 6

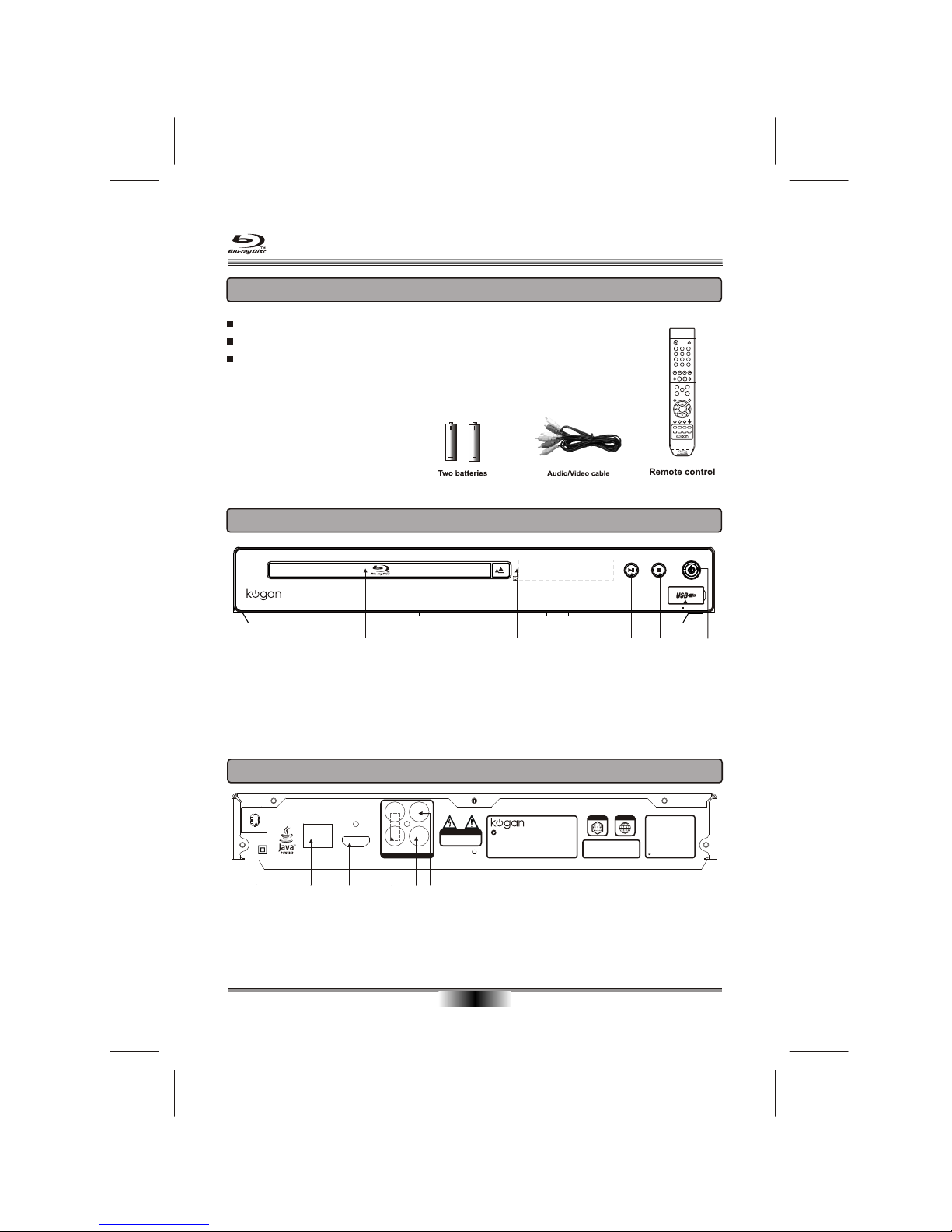

ACCESSORIES and PANEL
06
REAR PANEL
FRONT PANEL
1. POWER LINE INPUT
2. ETHERNET INTERFACE
3. HDMI OUTPUT
4. L/R AUDIO OUTPUT
5. COAXIAL OUTPUT
6. VIDEO OUTPUT
ACCESSORIES
1 2 3 4 5 6 7
5V 500mA
1. TRAY . STOP
2. OPEN/CLOSE 6. USB
3. REMOTE CONTROL SENSOR 7. STANDBY/ON
4. PLAY/PAUSE
5
Batteries......................................
Audio/Video cable .....................
Remote control ..........................
2
1
1
AUDIO
RETURN
MUTE
SECONDARY
AUDIO
ENTER
123
456
7 8 9
0
A B C D
DISCMENU
SEARCH
SETUP
POPUPMENU
TITLEMENU
REPEAT A-B
SUBTITLE
ANGLE
STANDBY/ON OPEN/CLOSE
RESOLUTION PIP
OSD
VOL

BASIC CONNECTION
07
BASIC CONNECTION
Connecting to a TV with Audio/Video cable
Connecting to a wired router with ethernet cable
BD Player
Wired router
Computer
BD Player
To video input(yellow)
To audio inputs(red, white)

BASIC CONNECTION
08
Connecting to a devices with HDMI terminal
Connecting to an amplifier equipped with a digital audio input and TV
HDMI (High-Definition Multimedia Interface) setup:
Can only be achieved using HDMI. HDMI is the only REF output capable of 1080i/1080p video, and the
highest definition audio codecs. Connect the HDMI output of the player to the HDMI input of the audio receiver.
(You will need to connect a second HDMI cable from the HDMI output of the audio receiver to the HDMI input
of the television)
Coaxial cable
To COAXIAL
type digital
audio input
To video input
BD Player
BD Player

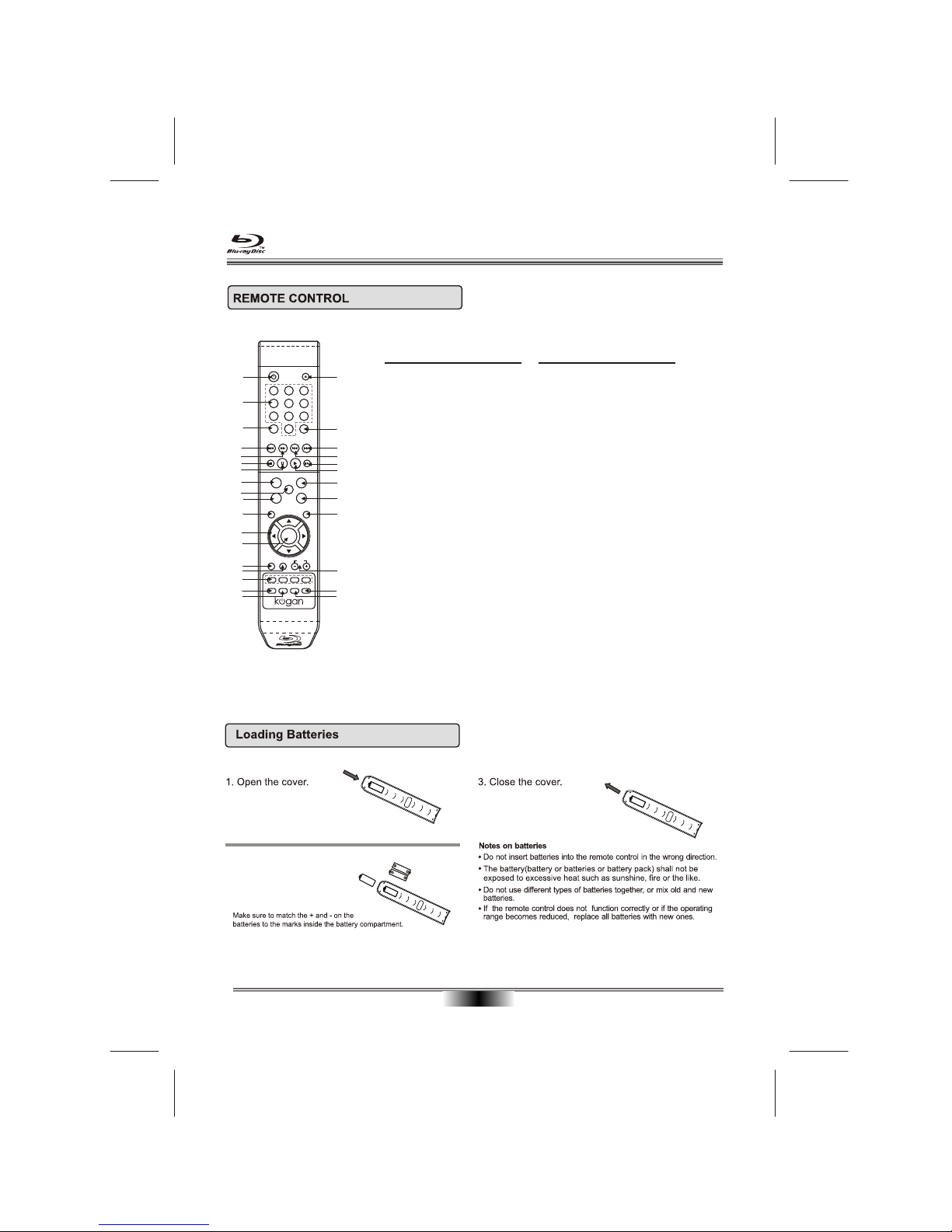

REMOTE CONTROL
09
2.Insert two AAA batteries.
FunctionFunction
1. STANDBY
2. DIGITS 0-9 BUTTONS
3. SEARCH
4. FAST REVERSE
5. FAST FORWARD
6. STOP
7. PAUSE
8. REPEAT
9. SUBTITLE
10. On Screen Display (OSD)
11. DISC MENU
12. CURSOR
13. ENTER
14. SETUP
15. AUDIO
16. COLOR Buttons:
RED(A),GREEN(B),YELLOW(C),BLUE(D)
17. RESOLUTION
18. Secondary Video (Picture-in-picture)
19. OPEN/CLOSE DISC TRAY
20. RETURN
21. NEXT
22. PREVIOUS
23. STEP
24. PLAY
25. A-B REPEAT
26. ANGLE
27. POPUP MENU/TITLE MENU
28. VOLUME+/- (Volume Control)
29. MUTE
30. SECONDARY AUDIO
123
456
789
0
ABCD
DISC MENU
SEARCH
SETUP
POPUP MENU
TITLE MENU
REPEAT A-B
SUBTITLE
ANGLE
AUDIO
RETURN
STANDBY/ON OPEN/CLOSE
RESOLUTION PIP MUTE
SECONDARY
AUDIO
OSD
VOL
ENTER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
27
28
29
18 30

10
BASIC PLAYBACK
Stop playback
1. Press STOP button to go to stop mode, the TV
screen will show the setup menu. As some disc
the player can recall the location where stopped,
such as DVD.
2. Press CURSOR button to select DVD, and then
Press ENTER to playback to resume playback from
the location where playback is stopped or from the
beginning of the disc.
3. Press STOP twice to stop completely.
Pause playback
1. Press PAUSE to pause playback . The sound
will be muted .
2. Press PAUSE or PLAY to resume normal playback.
Basic playback
1. Press STANDBY/ON switch on the front panel or
the remote, your player turns on.
2. Turn on the TV, then select the input setting on the
TV that matches the connection method you used to
connect your player.
3. Press OPEN/CLOSE to open the disc tray.
4. Place a disc on the disc tray with the label facing
up, then press OPEN/CLOSE to close the disc
tray. It may take a few seconds for the disc to load.
5. If a Blu-ray Disc or DVD menu opens, press
CURSOR button to select PLAY, then press ENTER.
6. To eject the disc, press OPEN/CLOSE .
Fast forward and Fast reverse
1. Press F.FWD to fast forward through the disc.
Each time the F.FWD button is pressed, the
fast forward motion speed changes. The speed will
increase through the following sequence: Fast x 2,
Fast x 4, Fast x 8, Fast x 16, Fast x32, Fast x 64,
Fast x 128.
2. Press PLAY to resume normal playback.
3. Press F.REV to fast reverse through the disc.
Each time the F.REV button is pressed, the
fast reverse motion speed changes. The speed will
increase through the following sequence: Fast x 2,
Fast x 4, Fast x 8, Fast x 16, Fast x 32, Fast x 64,
Fast x 128.
4. Press PLAY to resume normal playback.
Single step playback
1. Press STEP continuous to single step forward
to the next frame in the video.
2. Press PLAY to resume normal playback.
NOTES:
1.
Previous and Next
Within playing five seconds, press PREV key can
back to the previous of the chapter. After playing five
seconds, press PREV key can back to the start
of the chapter.
Each press of NEXT during playing will skip
the current chapter and play the next one.
key

IMPORTANT NOTE:
THE FOLLOWING FUNCTIONS ARE APPLICABLE ONLY TO BD DISCS. IF OTHER DISC FORMATS ARE
PLAYED, SCREEN DISPLAYAND OPERATION WILL BE DIFFERENT.
ADVANCED PLAYBACK
11
SEARCH
During playback,Press this button repeatedly to select
a search mode, then press digits button into menu,
for example:
first Go to Title - - -
twice Go to Chapter - - -
third Go to Time --: -- : --
Then press ENTER key on the remote, you could
choose point that you want to play. The fourth pressed
will cancel search.
A-B
Press " A-B " to begin start-point after two seconds,
press again to set an end point and complete
setting. The selected section A-B will be repeated.
The third press will cancel this function.
Note: this key is invalid to BD-JAVA disc.
SUBTITLE
Press this button and the screen will display inform-
ation menu. Press the RIGHT button to select subtitle
language. Such as: "01/08 ENG", and " Off " .
"01" indicates the current number of this language;
"08" indicates total number of languages;
"ENG" indicates the language.
(The number of language depends on disc).
the
OSD
Press this button and the screen will display some
information about disc, such as : " Type of Disc ",
"Current elapsed time in title ", "total amount of time
in title ", "current chapter " , " Total of chapters " and
so on.
Example:
Title 1 Chapter 1/13
0:10:00 Off Play 0:00:05
BD-ROM
REPEAT
Press one or more times to select a repeat mode.
Follow this operation :
Repeat off
Repeat Title
Repeat chapter
Press this button repeatedly to display circular the
above operation.
Note: this key is invalid to BD-JAVA disc.
POPUP MENU/TITLE MENU
During Blu-ray Disc playback, Press MENU.
To open the pop-up menu opens.
1. Press UP/DOWN/LEFT/RIGHT button to select an
option, then press ENTER.
2. Press POPUP MENU to close the menu.
During DVD playback, press TITLE MENU to open
the disc menu.
POP-UP
ANGLE
During playback, press this button to change the angle
of the picture. This screen will display
.
" Angle X of X "
the first "X" indicates the current number of angle;
the second "X" indicates total number of angle
COLOR BUTTONS(red, green,yellow,blue)
These buttons are used when operating a BD-Video
disc that includes JavaTM applications (BD-J). For
more information about operating this kind of disc,
please read the instructions that came with the disc.
RETURN
Press this button to return to the previous on-screen
menu.(The option is only used with WMA/JPEG/MP3
MPEG4 disc).
1. Press this button and the screen will display " Root
Menu ", select item according to your preference.
(This key is valid to DVD disc possessing multi-layer
menu.)
2. Press Disc Menu button on remote control during
picture playing, to open SLIDE SHOW selection menu,
then you can select “slide show effects” and “slide
show delay”.
DISC MENU
SETUP
Press this button to get back to the root menu.
Note: The root menu will display on the screen
automatically, under No Disc or Stop situations.
VOLUME and MUTE
Press " + " at the right of VOLUME to increase
volume, " - " to decrease to volume. Pressing MUTE
once will display VOLUME MUTE (no voice), the
second press will display VOLUME MUTE OFF (return
to normal playback).

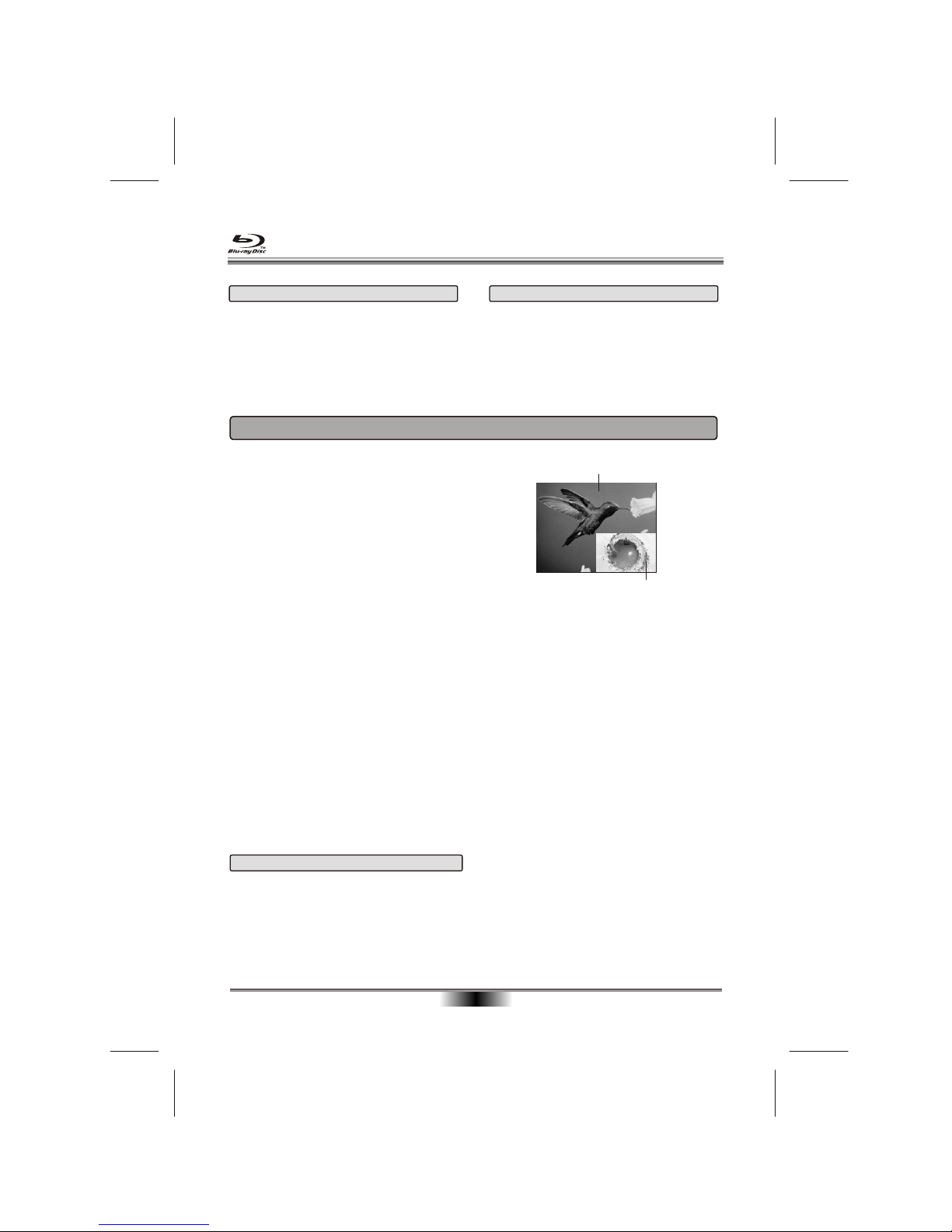

SPECIAL FUNCTION PLAYBACK
12
SPECIAL FEATURES OF BLU-RAY DISCS
INTRODUCTION
The massive storage capacity of a Blu-Ray (BD)
disc allows a far higher standard of picture and
audio quality and a wealth of special effects and
enhanced features.
BLU-RAY AND JAVA.
This player features Java support so enabling you
to get the most out of the latest Blu-Ray discs.
When a BD disc loads always explore the title
menu to enjoy these extra features.
BLU-RAY AND HDMI
HDMI is the only domectic medium capable of
transmitting the huge volumes of data required by
the very high picture resolutions and advanced
digital audio codecs that make Blu-Ray such an
exciting medium.
PLAYING A BLU-RAY DISC
Blu-Ray discs play very much like standard DVDs
but with a very much higher level of interactivity.
All the standard features of DVD play operate
exactly the same but there are some differences.
PLAY RESUME: This feature is not available on
BD-Java discs.
A-B repeat is disabled on some BD discs.
Primary video
Secondary video
ENHANCED FEATURES
SECONDARY VIDEO (PICTURE IN PICTURE)
During Play:
Press the PIP key to turn on Secondary Video
(Picture in picture)
SECONDARY AUDIO
To turn audio on/off with the secondary video,
Press the SECONDARY AUDIO button the screen
will display information menu, Use
Note: Only the primary video is played during
search or frame-by-frame play.
P-I-P functionality is also known as BonusView.
COLOUR BUTTONS
The RED, GREEN, YELLOW and BLUE buttons
are used with interactive menus when operating a
BD-Video disc that includes JavaTM applications
(BD-J). For more information about operating this
kind of disc,please read the instructions that came
with the disc.
CURSOR button
and then ENTER button to select ON and OFF.
RESOLUTION
This sets the video output resolution.
PAL: 576i, 576p, 720p,1080i, 1080p(HDMI),
HDMI AUTO
NTSC: 480i, 480p, 720p, 1080i, 1080p(HDMI),
HDMI AUTO
NOTE: Setting a resolution your TV cannot support
could result in an unstable picture or a loss of picture.
Check your TV manual for guidance.
AUDIO CHANNEL CHOOSE
Press the AUDIO button and the screen will display
information menu. Press the RIGHT button to select
the mode of audio. Such as: "01/03 Stereo" .
"01" indicates the current number of audio;
"03" indicates total number of audio;
"Stereo" indicates the description of the current audio.

Controlling audio CD playback
To start or pause playback, press .
The sound is muted when your player is in pause
mode. To resume normal playback, press or .
To stop playback completely, press To start
playback again, press . Playback starts at the
beginning of the CD.
To fast-forward, press . To resume normal
playback, press .
To fast reverse, press . To resume normal
playback, press .
To go to the previous track, press . To go to the
next track, press .
To select a track, press SEARCH, enter the track
number with the number buttons, then press
ENTER. Or, Enter the track number by pressing
the appropriate number buttons.
Repeating a CD track
To repeat a title or chapter, press REPEAT one or
more times to select a repeat mode. You can select
Off, Repeat track, Repeat all,or Random.
Creating a playback loop on a audio CD
1. Play the disc until you reach the point where you
want the loop to start, then press A-B.
2. Play the disc until you reach the point where you
want the loop to stop, then press A-B. Your player
plays the loop you created repeatedly.
3. Press A-B to cancel the loop and return to normal
playback.

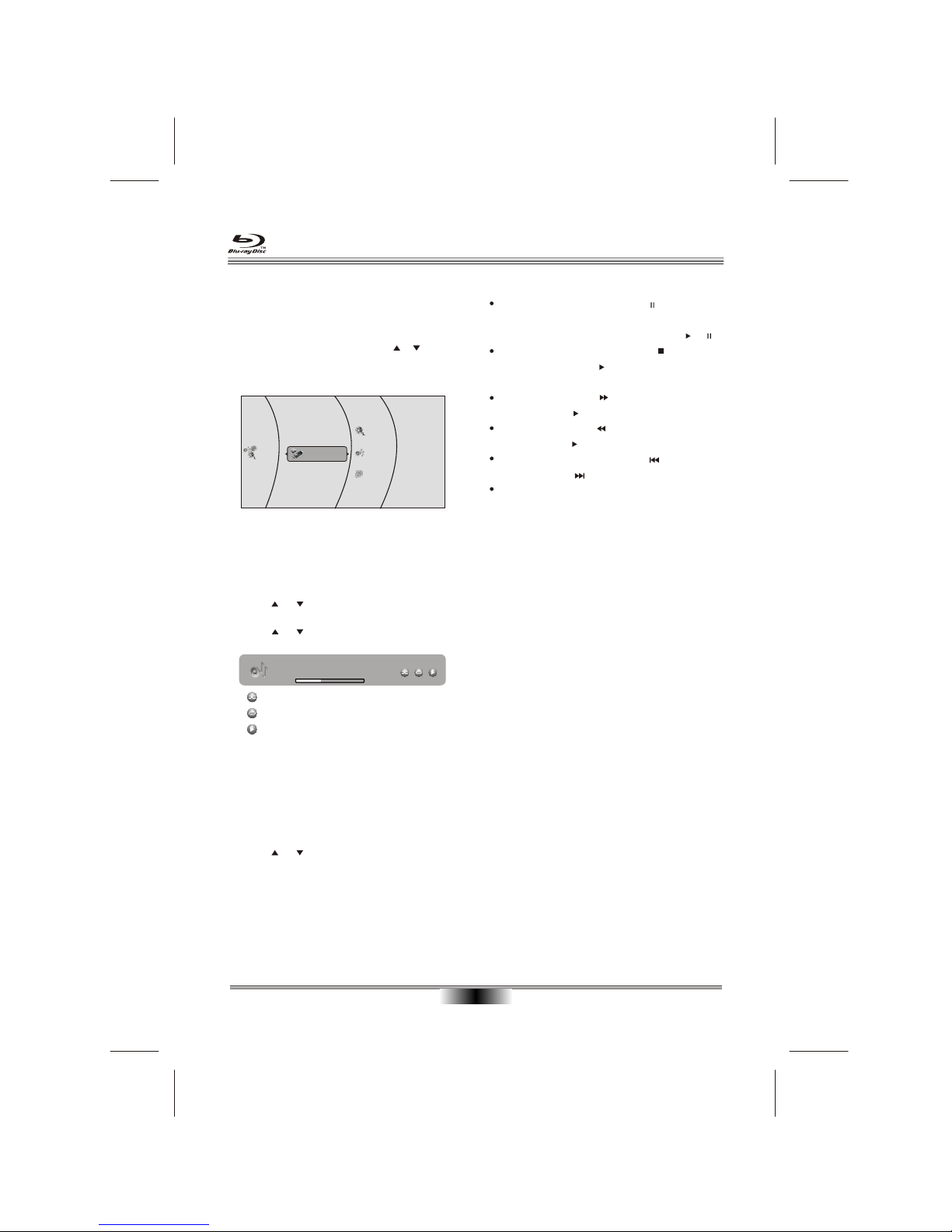

SPECIAL FUNCTION PLAYBACK
13
Insert a data disc or USB memory stick containing
picture, music, or video files into your player.
Within the setup menu, you can use or to move
the cursor to Media option, then press the ENTER
button to make your selection. The following menu
opens:
Playing files on a data disc or USB memory
stick
Random Indicator
Repeat Indicator
Play Indicator
File 1/5 song1.mp3
Title: Cool Track
Artist: Ricardo Funiccio
Album: Dead Dux
0:02:00 0:30:00 Off Off Play
To play audio or video files:
1. Press or to select Music, Pictures or
Videos. A menu opens.
2. Press or to select Play Files, then press
ENTER. The following display appears
Your player can display digital photograph files that
have been burned onto a data disc, DVD+/-R,
DVD+/-R/(W), or Blu-ray Disc.
To view photographs:
1. Insert the disc with photographs into your Blu-ray
player.
Viewing photographs
2. Press or to select Pictures, then press
ENTER. A menu opens.
Settings - to set slide show effects and slide show
delay.
Main Menu - Returns to the main menu.
Start slide show -to play all files at slide show.
Browse Music - Opens the music playing menu
where you can select music files to play while
you view photographs.
Note:
1. Above interface take reading USB for example.
2. Operation of reading data disc is same as reading
USB.
USB
Media
Muisc
Pictures
Videos

USING BD-LIVE FEATURES
14
Some (but certainly not all) BD discs contain additional
features that are made available to players that are
connected to the internet, and have additional memory
added.
These additional features may include things like
- the ability to download new movie trailers,
- additional ‘commentary’by actors and directors,
- multperson game play and chat
In order to access BD-Live functions, the player must
be properly configured for BD-Live internet access,
and it must be equipped with additional memory.
1. Adding additional BD-Live memory to the player
In order to set the player up for BD-Live Internet
Access, perform the following steps:
1) Obtain a 1Gbyte USB Stick. Insert it into a PC
drive, and make sure that it is formatted as FAT32
2) Insert the USB memory stick into the USB slot on
the player.
2. Setting up the player for BD-Live internet access
In order to set the player up for BD-Live Internet
Access, perform the following steps:
1) In the BD Player’s main setup menu, go to the
“BD-Live” menu choice; Then, choose “BD-Live
Internet Access”. Be sure that “Limit Access”or
“Always Allow Access”is checked.
2) Once the USB memory stick has been inserted,
if there is not at least 100Mbyte of free space on the
device, you should choose “Erase Blu-ray Storage”
from the “BD-Live”setup menu item.
3) In the BD Player’s main setup menu, go to the
‘Network’menu choice; Then, choose “IP mode”.
Set up the Network IP addresses per your router’s
or ISPs recommendations.
NOTE: The ‘Network Test’must pass, or you are not
connected to the internet, and cannot access BD-Live
Content on the web.
3. Example BD-Live usage
1) Select the BD-Live option from the Menu.
2) In a few minutes, you will get to the BD-Live Menu.
3) You can select the content to download from the
Previews sub menu. The download could take up to
10 minutes, depending on the content size and network
speed.
4) The downloaded content is stored under My
Downloads. You can choose to either play back or
delete the downloaded content.
4. BD-LIVE Notes
1) The Broadcom Reference system only supports
the connection of USB memory in order to fulfill the
BD 2.0 1GByte memory requirement.
Any externally connected drive will become the
default storage for BD-Live content, and the internal
storage will be ignored.
2) You must have the BD-Live disc in the player to
play any related (already downloaded) content.
3) Some BD-Live content could expire and will not play.
The user will occasionally need to manually delete the
contents in storage in order to free space. This can
be done from the BD player’s main setup menu, under
the “BD-Live”submenu item. (Select “Erase Blu-ray
storage”)
A clock is not used to manage the expiration of
downloaded BD-live content. Instead, time and
expiration of content is managed by the BD-Live
server on the internet.
USING BD-LIVE FEATURES

SYSTEM SETUP
15
1. DISPLAY MENU
The settings menu will be displayed automatically
on the screen, press ENTER button on the remote
control to next menu. It includes display, audio ,
speaker, language, parental, other, network menu.
1.Within the setup menu, you can use UP, DOWN,
LEFT and RIGHT buttons on the remote control
to move the cursor, and then press the
ENTER button to make your selection.
Press LEFT can return the previous menu.
1.1 HDMI Status
HDMI Status: to show if the HDMI is connected or
not
1.2 HDMI preferred Format
HDMI preferred Format: to show HDMI best format
of TV Set.
1.5 TV Aspect
TV Aspect: Select the picture size according to the
aspect ratio of the connected TV. You can select:
16:9 Pillarbox, 4:3 Pan & Scan, 4:3 Letter Box, 16:9
wide.
If your TV has a very rectangular (16:9) aspect ratio,
you will need to choose one of the 16:9 aspect ratios.
If your TV has a relatively square (4:3) aspect ratio,
you will need to choose one of the 4:3 aspect ratios.
Note: Setting the player for one of the 16:9 settings
when connected to a 4:3 TV, or setting the player for
one of the 4:3 settings when connected to a 16:9 TV
will result in unpredictable results.
In the standard-definition(480i/576i/576p/480p) mode,
the BD player have 16:9 and 4:3 aspect ratio.
In the high-definition(720p/1080i/1080p) mode, the
BD player have only 16:9 aspect ratio.
1.6 Film Mode(1080p24)
Film Mode(1080p24): Movies are recorded on film
at a rate of 24 pictures, or frames, per second. Many
of the movies on BD discs are placed on the disc at
this frame rate. However, not all TVs can display 24
progressive frames/second of video. The UP/DOWN
menu keys can then be used to select Off or On for
50 frames/second output format.
Note: Only the HDMI output of the player is capable
of supporting 1080p video output at any frame rate.
The component outputs are limited to 1080i, regardless
of the Film Mode setting.
1.4 Resolution
Resolution: select the output resolution based on
the type of TV connected to the player, as described
in the table below:
TV TYPE Correct Resolution
Setting
If your TV is a standard-definition
PAL TV (American, Asian SD TV)
If your TV is an enhanced-definition
TV (EDTV)
If your TV is a high-definition TV
(HDTV) capable of 720p only
If your TV is a high-definition TV
(HDTV) capable of 1080i only
If your TV is HDMI equipped, and if
your TV is a high-definition TV (HDTV)
capable of 1080p [any frame rate], and
you are connected to your TV via HDMI,
If your TV is HDMI equipped, and you
are connected to your TV via HDMI, and
you wish the BD player to set the output
based on information exchanged between
the TV and the player over the HDMI cable.
576i
576p
720p
1080i
1080p (HDMI)
HDMI auto
Note: Setting the player for an output resolution not
supported by your TV will result in unpredictable
results. Only the HDMI output of the player is capable
of supporting 1080p video output at any frame rate.
If the HDMI cable is not connected, the component
outputs are limited to 1080i.
Settings
Audio
Network
Display
Display
HDMI Status
HDMI preferred Format
TV Type
Resolution
TV Aspect
Film Mode(1080p24)
Deep Color
Connected
1080P
PAL
HDMI Auto
16:9 Wide
Off
Auto
System
Language
BD-Live
1.3 TV Type
TV Type: This player supports different TV output,
including NTSC and PAL systems.
Note: if playing the disc of the PAL type , please
select PAL option. If playing the disc of the NTSC
type, please select NTSC option.
Parental

SYSTEM SETUP
16
2.1 PCM Downsampling
PCM Downsampling: To set the player’s digital output
PCM sampling rate. Such as 48KHz, 96KHz,Off.
Note: Incorrectly setting the digital audio output’s
PCM sampling rate may result in unpredictable audio
playback.
2.2 Digital Output
Digital Output: set the digital audio outputs, such as
PCM: Mixed digital audio sent over HDMI in PCM
(if supported by HDMI device) and SPDIF in two-
channel PCM format.
Bitstream HD: Original bitstream from disc is passed
over HDMI and SPDIF using highest quality possible.
HDMI has higher quality capabilities with advanced
audio codecs like TrueHD and DTS-HD. BD audio
limited to soundtrack for main movie (i.e. no PiP audio,
no effects audio).
Bitstream Legacy: Original bitstream from disc is
passed over HDMI and SPDIF using legacy audio
formats. BD audio limited to soundtrack for main
movie (i.e. no PiP audio, no effects audio).
Bitstream mixed: BD audio streams are mixed and
encoded into a single bitstream. Primarily intended
for customers with SPDIF 5.1CH receivers who want
to enjoy mixed BD audio in surround sound.
PCM, Bitstream HD, Bitstream Legacy, Bitstream
mixed.
2.3 Dynamic Range Control
Dynamic Range Control: this is only active when
a Dolby Digital signal is detected.
Off: you can enjoy the movie with the standard
Dynamic Range.
On: When Movie soundtracks are played at low
volume or from smaller speakers, the system can
apply appropriate compression to make low-level
content more intelligible and prevent dramatic
passages from getting too loud.
Auto: the system turns on the Dynamic range
control for all BD movie soundtracks except Dolby
TruHD. If you have selected a Dolby TruHD track on
the BD disc, Auto tells the BD player to only turn on
dynamic range control if information embedded in
the Dolby TruHD sound track tells it to do so.
2. Audio Menu
Settings
Parental
Display
Audio
Network
Audio
Language
PCM Downsampling
Digital Output
Dynamic Range Control
Stereo Downmix
48 Khz
PCM
Off
Auto
BD-Live
2.4 Stereo Downmix
: Sets front speakers to Auto, Stereo
or Surround Encoded.
Stereo Downmix
1.7 Deep Color
Select Deep Color: Auto, 30 bits, and 36bits.
Note: HDMI 1.3 supports 10-bit, 12-bit and 16-bit
(RGB or YCbCr) color depths while 8-bit depths in
previous versions. This expands the colors displayed
from millions to billions, which is much more vivid
than the previous.
System
Settings
Language
Network
Display
Audio
Language
Parental
System
OSD
Menu
Audio
Subtitle
English
Auto
Auto
None
3.1 OSD Language
OSD Language: Users can select the whole setup
menu and on-screen display language.
3.2 Menu Language
Menu Language: Sets the preferred menu language
as the default language for the disc.
Note:
Not all languages are available on all discs.
Most discs only have one menu language available.
3. LANGUAGE MENU
BD-Live

SYSTEM SETUP
17
3.3 Audio Language
Audio Language: Sets the preferred audio language
as the default language for the disc.
Note:
Not all languages are available on all disc.
Some disc to not allow the user to select the audio
language from the BD-player setup menus. The audio
language can only be selected from the BD/DVD disc
setup menu. (The menu that appears after the disc
has been inserted)
3.4 Subtitle Language
Subtitle Language: Sets the preferred subtitle
language as the default language for the disc.
Note:
Not all languages are available on all disc.
Some disc to not allow the user to select the audio
language from the BD-player setup menus. The audio
language can only be selected from the BD/DVD disc
setup menu. (The menu that appears after the disc
has been inserted)
4.2 Parental Level
Parental Level: sets different censorship classes
assigned to DVDs.
1[Kid Safe] - Suitable for all children.
2[G] - General audiences.
3[PG] - Parental guidance suggested.
4[PG-13] - Not suitable for anyone under 13.
5[PGR] - Parental guidance recommended.
6[R] - Not suitable for anyone under 17 unless
supervised by a parent or adult guardian.
7[NC-17] - Not suitable for anyone under 17.
8[Adult] - All DVDs can be played.
4.3 Parental Password
Parental Password: You can change the password,
please type 4 numerals as new password.
Note: (Initial password : 0000)
Be sure remember new password. When set parental
control function you must input new password .
4.1 Parental Control
Parental Control: The parental control function works
inconjunction with the different censorship classes
assigned to BD. These classes help to control the
types of BD that the family watches, There are up
to 8 censorship classes for BD.
Note:
The PARENTAL is changeable when PASSWORD
MODE set to OFF.
After setting the level of parental control. please
set the password as ON to perform the lock of
changing.
5.1 Optical Disc AutoPlay
The two options for Optical Disc AutoPlay are:
Disable - Media Launcher must be used to select optical
discs .
Enable - Optical discs playback automatically without
use of Media Launcher
Settings
Parental
Parental Control
Parental Level
Parental Password
On
8[Adult]
Audio
Language
Parental
System
Network
4. Parental Control Menu
BD-Live
Display
5. System Menu
Language
Parental
System
Network
Display
Settings
System
Optical Disc AutoPlay
Screen Saver Duration
Auto Power Down
CEC
Update Via Network
Restore factory defaults
Enable
5 Minutes
20 Minutes
Off
BD-Live
Audio
System Information

SYSTEM SETUP
18
6. Network Menu
Language
Parental
System
Network
Display
Audio
Settings
BD-Live
Network
Interface
Link Status
MAC Address
IP Mode
IP Address
Subnet Mask
Gateway
Primary DNS
Secondary DNS
Wired
Link Down
00:22:84:fb:c6:65
Dynamic
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
6.1 Link Status
The link status menu items show if the current network
is connected or not.
6.2 IP Mode
The IP Mode option provides three configuration
modes for IP:
Dynamic - Enables DHCP .
Manual - Requires user to configure network settings
such as IP address, subnet mask, gateway, etc.
Off - Disables network interface.
IP address,
Note: it is able to show subnet mask, gateway,
primary DNS,secondary DNS and when
"IP MODE" set as "MANUAL".
IP address and other settings:
Please enter new IP Address
Valid range of each segment is 0 to 255
Current value 111.11.11.11
New Value
OK Cancel
Wired IP Settings
Link Status
MAC Address
IP Mode
IP Address
Subnet Mask
Gateway
Primary DNS
Secondary DNS
Link Down
00:22:84:00:00:01
Dynamic
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
Apply Cancel
Press ENTER button, the setting menu opens:
5.6 Restore Factory Defaults
Restore factory settings: reset your player to the
default factory settings.
Note:
This DOES reset the Parental Control Password.
5.4 CEC
This option is used to allow the TV remote control to
control certain functions of the Blu-Ray player; and
for the Blu-Ray player to control certain functions of
the TV.
On: Allow mutual control of devices through HDMI.
Off: Do not allow Inlink control.
Note: Not all TVs are compatible with your Blu-Ray
Player.
5.5 Update Via Network
Download and install product updates for your player.
5.3 Auto Power Down
Auto Power Down automatically turns the player off
if no settings are changed after a selected period of
time (5, 10, 20 or 30 minutes).
5.2 Screen Saver Duration
Sets the time of entering screen saver status(Black
screen), if the screen saver duration is off, there will
not be appear black screen.
7. BD-Live Menu
Parental
System
Network
Display
Settings
BD-Live
BD-Live Internet Access
BD-Live Storage
Erase Blu-ray Storage
Always Allow Access
USB (225.5MB Free)
BD-Live
Audio
Language
Select System Information, then press ENTER. The
System Information screen opens, showing the
relevant software version information.
5.7 System Information
