Kogan KHLAP15I78GFHA User manual

1
English
About this Concise User Guide
This quick guide is a brief introduction to getting your system started. This is a supplement, and not a substitute for the
expanded English language User’s Manual in Adobe Acrobat format on the Device Drivers & Utilities + User’s Manual
disc supplied with your computer. This disc also contains the drivers and utilities necessary for the proper operation of
the computer (Note: The company reserves the right to revise this publication or to change its contents without notice).
Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure
(or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s
Manual disc does not contain an operating system.
Regulatory and Safety Information
Please pay careful attention to the full regulatory notices and safety information contained in the expanded User’s Man-
ual on the Device Drivers & Utilities + User’s Manual disc.
© July 2015
Trademarks
Intel, Intel Core and Pentium are trademarks/registered trademarks of Intel Cor-
poration.

FCC Statement
This device complies with Part
15 of the FCC Rules. Operation
is subject to the following two
conditions:
1.This device may not cause
harmful interference.
2.This device must accept any
interference received, includ-
ing interference that may
cause undesired operation.

2
English
Instructions for Care and Operation
The computer is quite rugged, but it can be damaged. To pre-
vent this, follow these suggestions:
•Don’t drop it, or expose it to shock. If the computer falls, the
case and the components could be damaged.
•Keep it dry, and don’t overheat it. Keep the computer and
power supply away from any kind of heating element. This is an
electrical appliance. If water or any other liquid gets into it, the
computer could be badly damaged.
•Avoid interference. Keep the computer away from high capacity
transformers, electric motors, and other strong magnetic fields.
These can hinder proper performance and damage your data.
•Follow the proper working procedures for the computer. Shut
the computer down properly and don’t forget to save your work.
Remember to periodically save your data as data may be lost.
Servicing
Do not attempt to service the computer yourself. Doing so may
violate your warranty and expose you and the computer to
electric shock. Refer all servicing to authorized service person-
nel. Unplug the computer from the power supply. Then refer
servicing to qualified service personnel under any of the fol-
lowing conditions:
• When the power cord or AC/DC adapter is damaged or frayed.
• If the computer has been exposed to any liquids.
• If the computer does not work normally when you follow the
operating instructions.
• If the computer has been dropped or damaged (do not touch the
poisonous liquid if the LCD panel breaks).
• If there is an unusual odor, heat or smoke coming from your com-
puter.
Safety Information
• Only use an AC/DC adapter approved for use with this computer.
• Use only the power cord and batteries indicated in this manual.
Do not dispose of batteries in a fire. They may explode. Check
with local codes for possible special disposal instructions.
• Do not continue to use a battery that has been dropped, or that
appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it
may cause circuit damage, which may possibly result in fire.
• Make sure that your computer is completely powered off before
putting it into a travel bag (or any such container).
• Before cleaning the computer, make sure it is disconnected from
any external power supplies, peripherals and cables (including
telephone lines). It is advisable to also remove your battery in
order to prevent accidentally turning the machine on.
• Use a soft clean cloth to clean the computer, but do not apply
cleaner directly to the computer. Do not use volatile (petroleum
distillates) or abrasive cleaners on any part of the computer.
• Do not try to repair a battery pack. Refer any battery pack repair
or replacement to your service representative or qualified service
personnel.
• Note that in computer’s featuring a raised LCD electro-plated
logo, the logo is covered by a protective adhesive. Due to general
wear and tear, this adhesive may deteriorate over time and the
exposed logo may develop sharp edges. Be careful when handling
the computer in this case, and avoid touching the raised LCD
electro-plated logo. Avoid placing any other items in the carrying
bag which may rub against the top of the computer during trans-
port. If any such wear and tear develops contact your service cen-
ter.

3
English
Polymer Battery Precautions
Note the following information which is specific to polymer
batteries only, and where applicable, this overrides the general
battery precaution information.
• Polymer batteries may experience a slight expansion or swelling,
however this is part of the battery’s safety mechanism and is not a
cause for concern.
• Use proper handling procedures when using polymer batteries.
Do not use polymer batteries in high ambient temperature envi-
ronments, and do not store unused batteries for extended periods.

Battery Disposal & Caution
The product that you have purchased contains a recharge-
able battery. The battery is recyclable. At the end of its use-
ful life, under various state and local laws, it may be illegal
to dispose of this battery into the municipal waste stream.
Check with your local solid waste officials for details in your
area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Re-
place only with the same or equivalent type recommended
by the manufacturer. Discard used battery according to the
manufacturer’s instructions.

4
English

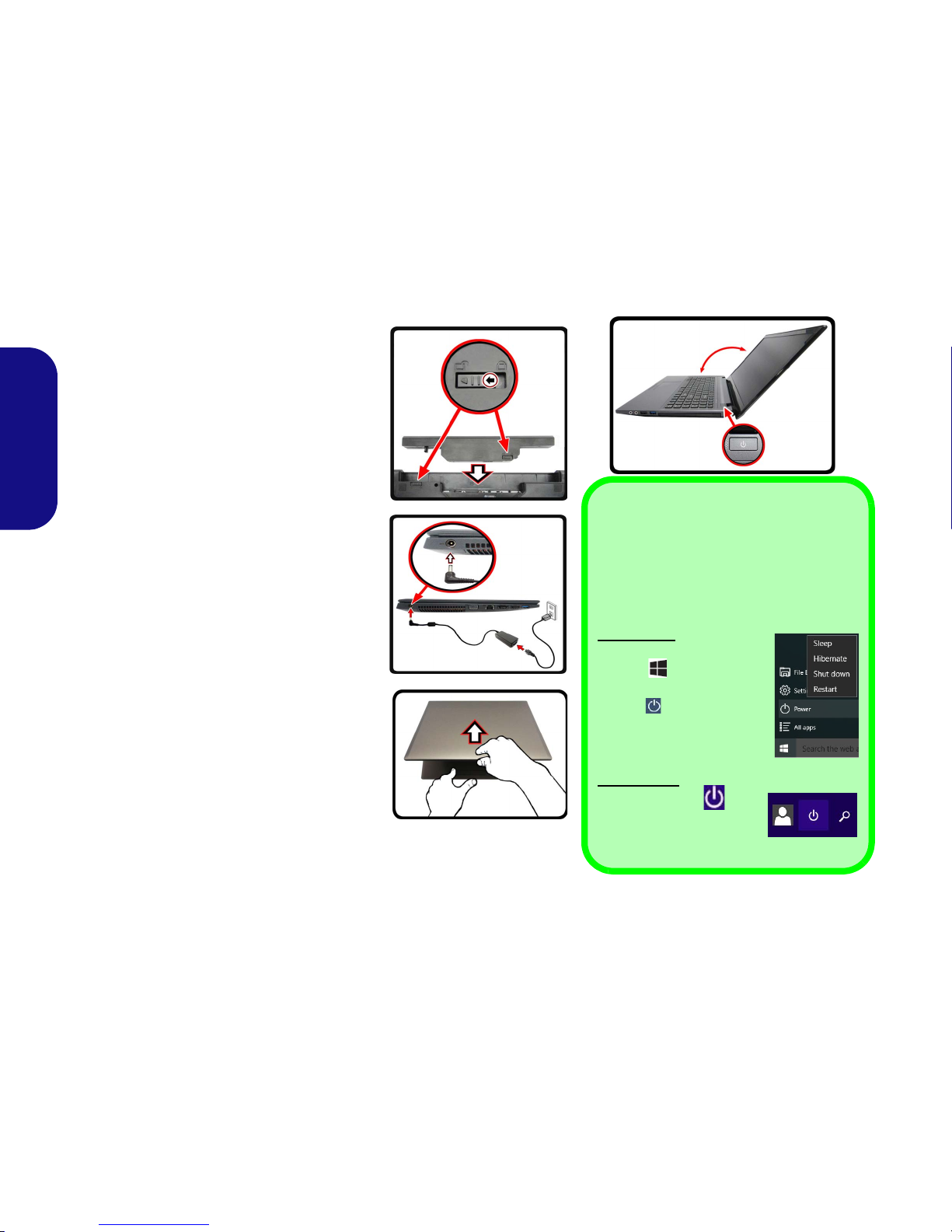

System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Insert the battery and make sure it is locked in
position.
4. Securely attach any peripherals you want to use
with the computer (e.g. keyboard and mouse) to
their ports.
5. Attach the AC/DC adapter to the DC-In jack on
the left of the computer, then plug the AC power
cord into an outlet, and connect the AC power
cord to the AC/DC adapter.
6. Use one hand to raise the
lid/LCD to a
comfortable viewing angle
(do not exceed 130
degrees)
; use the other hand (as illustrated in
Figure 1) to support the base of the computer
(Note: Never lift the computer by the lid/LCD).
7. Press the power button to turn the computer
“on”.
System Software
Your computer may already come with sys-
tem software pre-installed. Where this is not
the case, or where you are re-configuring
your computer for a different system, you will
find this manual refers to Microsoft Windows
8.1 and Windows 10.
Figure 1 - Opening the Lid/LCD/Computer with AC/DC Adapter Plugged-In
130°

Shut Down
Note that you should always shut your com-
puter down by choosing the Shut down
command in Windows (see below). This will
help prevent hard disk or system problems.
Windows 10
1. Click the Start Menu
icon .
2. Click the Power
item .
3. Choose Shut Down
from the menu.
Windows 8.1
1. Click the icon in
the Start Screen and
choose Shut down
from the menu.

5
English
Model Differences
This notebook series includes two different model types that mainly differ as indicated in the table below. Note that
your model may appear slightly different from those pictured in this manual.
Table 1 - Model Differences
Feature
Model A Model B
Design I Design II Design III Design I Design II Design III
Video
Adapter
Intel® Integrated
GPU (Intel® HD
Graphics 4600) and
NVIDIA® Discrete
GPU (NVIDIA®
GeForce 940M )
Intel® Integrated
GPU (Intel® HD
Graphics 4600) and
NVIDIA® Discrete
GPU (NVIDIA®
GeForce GTX 950M )
Intel® Inte-
grated GPU
(Intel® HD
Graphics 4600)
Intel® Integrated
GPU (Intel® HD
Graphics 4600)
and NVIDIA® Dis-
crete GPU
(NVIDIA®
GeForce 940M )
Intel® Integrated
GPU (Intel® HD
Graphics 4600)
and NVIDIA® Dis-
crete GPU
(NVIDIA®
GeForce GTX
950M )
Intel® Inte-
grated GPU
(Intel® HD
Graphics
4600)
Display 15.6" (39.62cm) HD/FHD 17.3" (43.94cm) HD+/FHD
Sound
Blaster
Cinema 2
Yes No Yes No
3G/4G
Module Option No
AC
Adapter
DC Output 19V,
4.74A
(90W)
DC Output 19.5V,
6.15A (120W)
DC Output 19V,
4.74A
(90W)
DC Output 19V,
4.74A
(90W)
DC Output 19.5V,
6.15A (120W)
DC Output
19V, 4.74A
(90W)

6
English
System Map: Front View with LCD Panel Open (Model A)
Note that the Touchpad and
Buttons valid operational area
is that indicated within the red
dotted lines.
Figure 2
Front View with LCD Panel Open
(Model A)
1. PC Camera
2. Built-In Microphone
3. *PC Camera LED
*When the PC camera is in use,
the LED will be illuminated in red.
4. LCD
5. Power Button
6. LED Indicators
7. Keyboard
8. Touchpad & Buttons
5
7
6
2
1
3
4

Wireless Device
Operation Aboard Aircraft
The use of any portable electronic
transmission devices aboard aircraft
is usually prohibited.
Make sure the WLAN, Bluetooth &
3G/4G module(s) are OFF if you are
using the computer aboard aircraft
by putting the system in to Airplane
Mode.
8
8

7
English

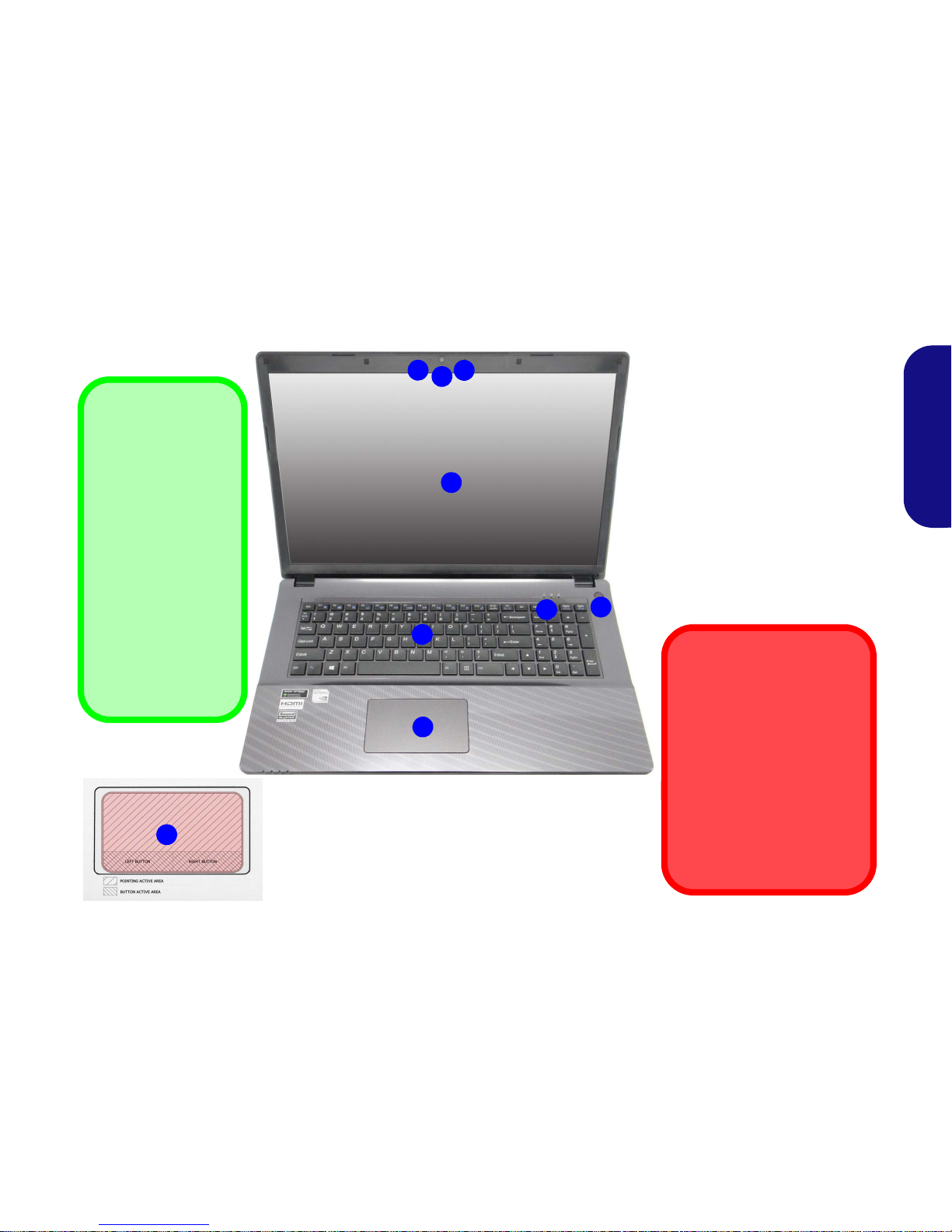

System Map: Front View with LCD Panel Open (Model B)
Figure 3
Front View with LCD Panel
Open (Model B)
1. PC Camera
2. Built-In Microphone
3. *PC Camera LED
*When the PC camera is in
use, the LED will be
illuminated in red.
4. LCD
5. Power Button
6. LED Indicators
7. Keyboard
8. Clickpad/Touchpad
5
7
6
2
1
3
4

Wireless Device
Operation Aboard Aircraft
The use of any portable elec-
tronic transmission devices
aboard aircraft is usually pro-
hibited.
Make sure the WLAN & Blue-
tooth module(s) are OFF if
you are using the computer
aboard aircraft by putting the
system in to Airplane Mode.
8

Clickpad/Touchpad
Sensitivity
The mouse button
zones at the bottom of
the pad measure
about 15mm from the
bottom of the pad,
and the left and right
buttons are divided
roughly down the mid-
dle as illustrated be-
low. Press the left
button zone for a left
click, and right button
zone for a right click
action.
8

8
English
LED Indicators
The LED indicators on the computer display helpful infor-
mation about the current status of the computer.
Table 2 - LED Power Indicators
Table 3 - LED Status Indicators
Icon Color Description
Orange The AC/DC Adapter is
Plugged In
Green The Computer is On
Blinking Green The Computer is in Sleep
Mode
Orange The Battery is Charging
Green The Battery is Fully Charged
Blinking Orange The Battery Has Reached
Critically Low Power Status
Green The Hard Disk/Optical
Device is in use
Green Airplane Mode is ON (the WLAN, Bluetooth & 3G/4G
Modules are OFF)
Icon Color Description
Blue Number Lock (Numeric Keypad) Acti-
vated
Blue Caps Lock Activated
Blue Scroll Lock Activated

9
English
Keyboard
The keyboard has a numeric keypad for easy numeric data input. Pressing Fn + Num Lk turns on/off the numeric key-
pad. It also features function keys to allow you to change operational features instantly.
Models A & B - Designs I & II
(Illuminated keyboards Only) The keyboard illumination level may be adjusted, or turned off/on, by using the Fn +
F4 keys.
Figure 4 - Keyboard (Models A & B - Designs I & II)
eric
ad
Function Keys Num Lk &
Scr Lk
Numeric
Keypad
Fn Key
Windows Logo Key

Windows Logo
Keyboard Shortcut
Use the Windows Logo
Key + D key combi-
nation to switch from the
Start screen to the Win-
dows Desktop.
Menu/Application
Keyboard Shortcut
When the Desktop app
is running you can use
the Menu/Application
key on the keyboard
to act as a mouse right-
click. In the Start screen
this function is useful to
quickly display the Cus-
tomize bar.
Menu/Application Key
Function Keys Num Lk &
Scr Lk
Numeric
Keypad
Fn Key
Windows Logo Key
Menu/Application Key
Model A - Designs I & II
Model B - Designs I & II

10
English
Models A & B - Design III
eric
ad
Function Keys Num Lk &
Scr Lk
Numeric
Keypad
Fn Key
Windows Logo Key

Windows Logo
Keyboard Shortcut
Use the Windows Logo
Key + D key combi-
nation to switch from the
Start screen to the Win-
dows Desktop.
Menu/Application
Keyboard Shortcut
When the Desktop app
is running you can use
the Menu/Application
key onthe keyboard
to act as a mouse right-
click. In the Start screen
this function is useful to
quickly display the Cus-
tomize bar.
Menu/Application Key
Function Keys Num Lk &
Scr Lk
Numeric
Keypad
Fn Key
Windows Logo Key
Menu/Application Key
Model A - Design III
Model B - Design III
Figure 5 - Keyboard (Models A & B - Design III)

11
English
Function Keys & Visual Indicators
Models A & B - Designs I & II
The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the
basic function key combinations, some visual indicators are available when the hot key driver/Control Center driver is
installed (after restart a control panel will pop-up to allow you to select the type of keyboard for your system).
Keys Function/Visual Indicators Keys Function/Visual Indicators
Fn + Play/Pause (in Audio/Video Programs) Fn + Airplane Mode Tog-
gle
Fn + Touchpad Toggle Fn + Sleep Toggle
Fn + Turn LCD Backlight Off
(Press a key to or use Touchpad to turn on) Fn + / Number Lock Toggle
Fn + Mute Toggle Fn + Scroll Lock Toggle
Fn +
Toggle Keyboard Illumi-
nation/Adjust Brightness
Level (Illuminated key-
boards only)
Caps Lock Toggle
Fn + Volume Decrease/
Increase Fn + Control Center Toggle (see page 12)
Fn + Change Display Configuration (see page 25)Fn+ Fan Automatic Con-
trol/ Full Power
Fn + Brightness Decrease/
Increase Fn + Disable/Enable
Flexikey® (see page
15)
Fn + PC Camera Power
Toggle Table 4 - Function Keys & Visual Indicators (Models A & B
- Designs I & II)

12
English
Models A & B - Design III
The function keys (F1 - F11 etc.) will act as hot keys when pressed while the Fn key is held down. In addition to the
basic function key combinations, some visual indicators are available when the hot key driver/Control Center driver is
installed (after restart a control panel will pop-up to allow you to select the type of keyboard for your system).
Table 5 - Function Keys & Visual Indicators (Models A & B - Design III)
Keys Function/Visual Indicators Keys Function/Visual Indicators
Fn + Play/Pause (in Audio/Video Programs) Fn + PC Camera Power
Toggle
Fn + Touchpad Toggle Fn + Airplane Mode Tog-
gle
Fn + Turn LCD Backlight Off
(Press a key to or use Touchpad to turn on) Fn + / Number Lock Toggle
Fn + Mute Toggle Fn + Scroll Lock Toggle
Fn + Sleep Toggle Caps Lock Toggle
Fn + Volume Decrease/
Increase Fn + Control Center Toggle (see page 12)
Fn + Change Display Configuration (see page 25)Fn+ Fan Automatic Con-
trol/ Full Power
Fn + Brightness Decrease/
Increase Fn + Disable/Enable
Flexikey® (see page
15)

13
English

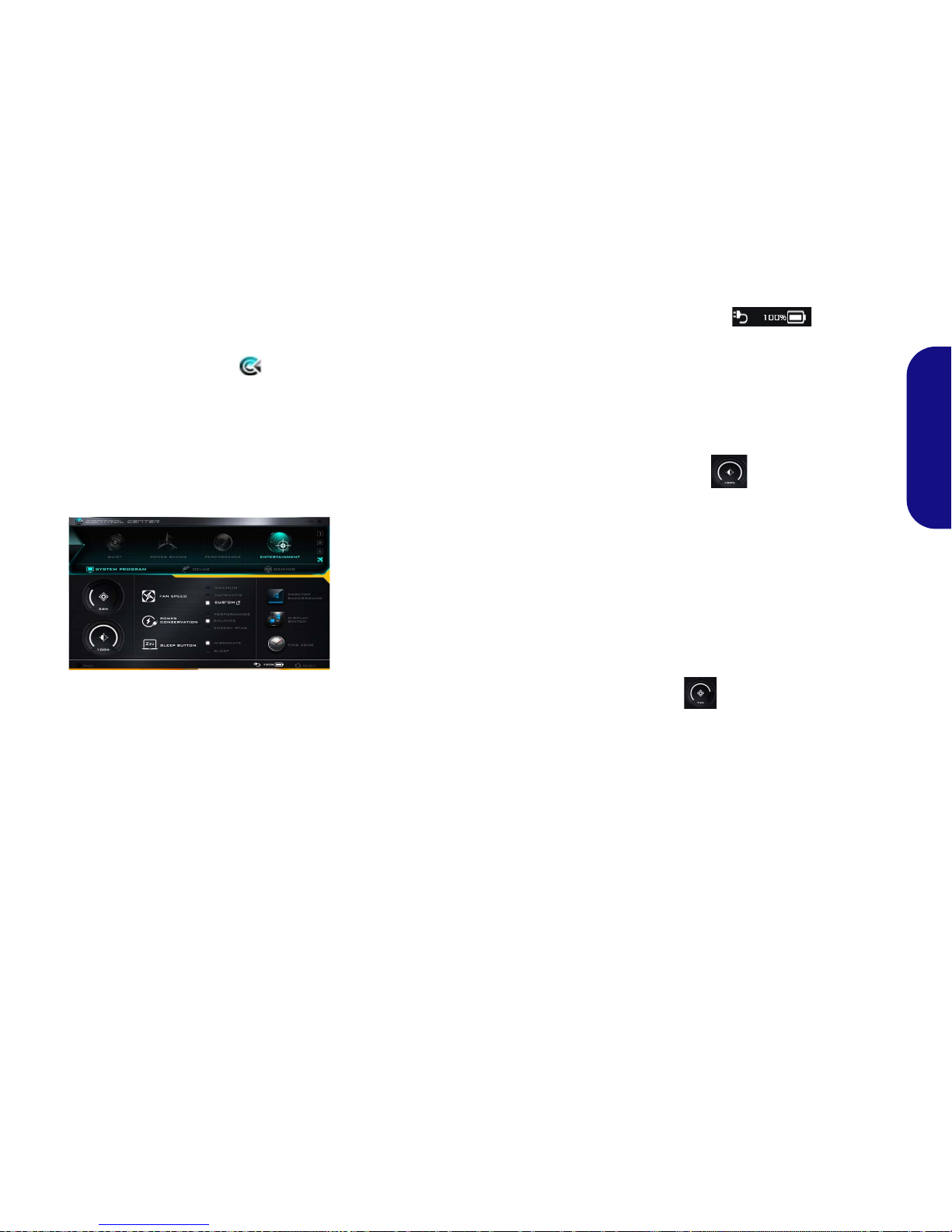

Control Center
Press the Fn + Esc key combination,
or double-click the icon in the no-
tification area of the taskbar to tog-
gle the Control Center on/off. The
Control Center gives quick access to
frequently used controls and enables
you to quickly turn the camera/Touch-
pad on/off.
Power Modes
You can set a Power Mode by click-
ing the appropriate icon at the top of
the Control Center. Each power
mode will affect the Power Conserva-
tion Mode, Airplane Mode, Power
Plan and PC camera power etc.
Control Center Menus
The Control Center contains 3 menu
headings (System Program, Device
and Gaming) under the Power Modes.
Click the Control Center icons to
toggle the appropriate function, or
hold the mouse button down and move
the dial control where applicable. Cer-
tain functions will automatically be
adjusted when a power mode is select-
ed. Click the menu headings and then
click any of the buttons.
Power Status
The Power Status icon will show
whether you are currently powered by
the battery, or by the AC/DC adapter
plugged in to a working power outlet.
The power status bar will show the
current battery charge state.
Brightness
The Brightness icon will show the
current screen brightness level. You
can use the slider to adjust the screen
brightness or the Fn + F8/F9 key com-
binations, or use the Fn + F2 key com-
bination to turn off the LED backlight
(press any key to turn it on again).
Note that screen brightness is also ef-
fected by the Power Mode selected.
Volume
The Volume icon will show the cur-
rent volume level. You can use the
slider to adjust the volume or the Fn +
F5/F6 key combinations, or use the
Fn + F3 key combination to mute the
volume.
Figure 6 - Control Center

14
English
Power Conservation
This system supports Energy Star
power management features that place
computers (CPU, hard drive, etc.) into
a low-power sleep mode after a desig-
nated period of inactivity. Click either
the Performance, Balanced or Ener-
gy Star button.

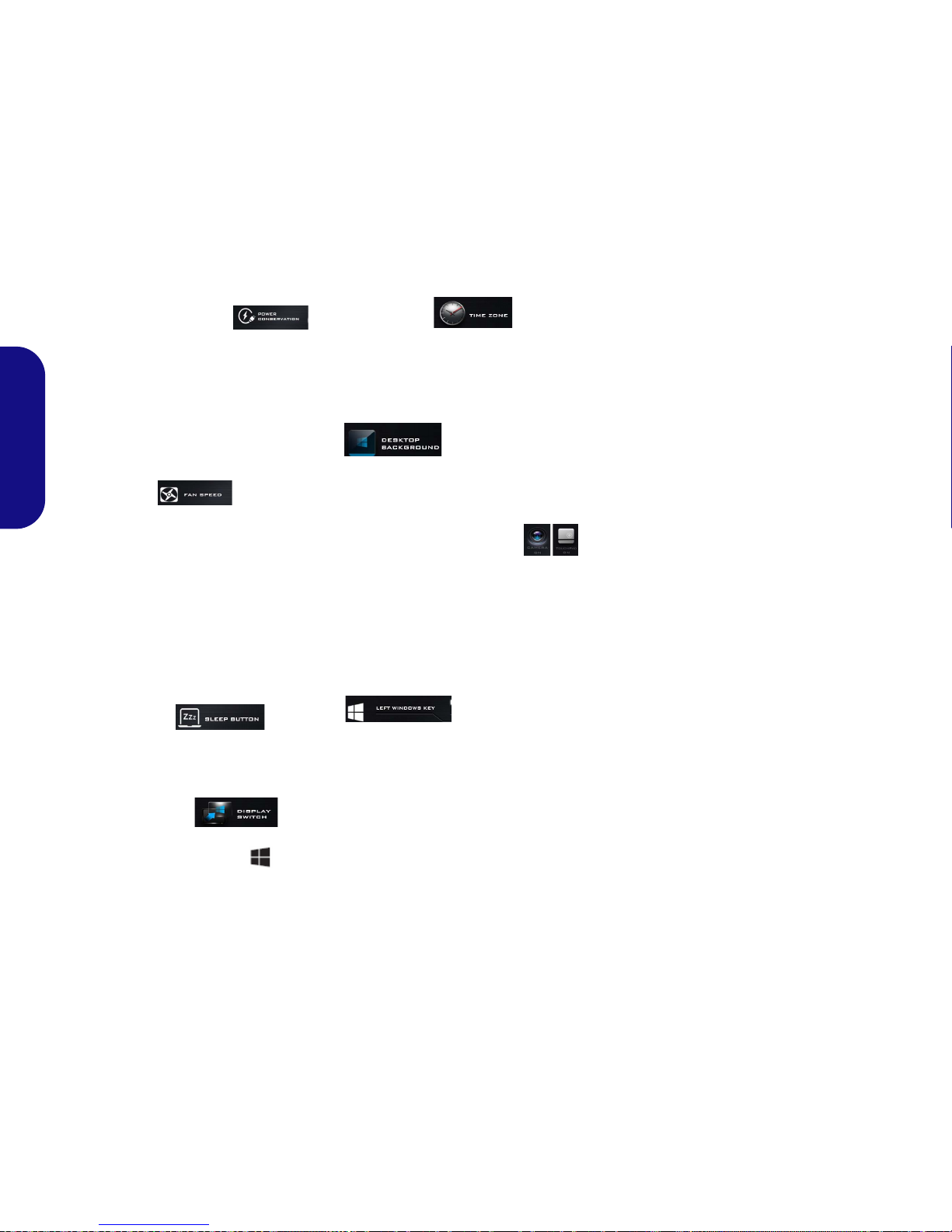

Fan Speed
The fan speed will adjust itself auto-
matically to control the heat of the
CPU. However you can adjust the set-
ting to maximum if you prefer. Select
Custom and click on the sliders to ad-
just the settings to your preference,
however these settings can be overid-
den by the system, as a safety precau-
tion, if it requires heavier use of the fan.
Sleep Button
Click either the Hibernate or Sleep
button to have the computer enter the
selected power-saving mode.
Display Switch
Click the Display Switch button to ac-
cess the menu (or use the + P key
combination) and select the appropri-
ate display mode.
Time Zone
Clicking the Time Zone button will
access the Date and Time Windows
control panel.
Desktop Background
Clicking the Desktop Background
button will allow you to change the
desktop background picture.
Touchpad/PC Camera
Click either of these buttons to toggle
the Touchpad or camera module’s
power status. Note that the power sta-
tus of the camera module is also ef-
fected by the Power Mode selected.
Left Windows Key
Click Disable to disable the Windows
Key on the left side of the keyboard.
This may be useful if you are using the
gaming keys (W, A, S & D) and wish
to avoid accidentally triggering menus
with the Windows Key.

15
English
Flexikey® Application
The Flexikey® application is a quick hotkey configura-
tion application, which allows you to assign a single key
to launch multiple key combinations, or to launch pro-
grams and applications, to create text macros and to
disable certain keys. The application can also be used to
configure the mouse buttons to create hotkeys for gam-
ing etc. All the configuration settings are retained under
(up to12) profiles to which the settings are applied.
The Flexikey® application can be accessed by clicking
the button in the Gaming section of the Control Cen-
ter or by clicking the icon in the notification area of
the desktop taskbar.
Profiles
The menus on the left side of the application relate to Pro-
files. You can Add or Delete profiles (you can maintain
12 active Profiles), Export and Import profiles from the
menus. If you double-click on a profile you can change the
Profile Name, and change an Image file (images created
using PNG files).
Keyboard and Mouse Settings
Click Enable to create settings for the keyboard and/or
mouse by clicking the button on the top left of the screen
(e.g. you may wish to create a profile with settings only
for the mouse or keyboard). Clicking on the keyboard or
mouse icons will allow you to access the settings page for
either the keyboard or mouse.
Figure 8 - Enable (Keyboard & Mouse)

Enabling or Disabling the Flexikey® Profile in Use
You can enable or disable any keyboard or mouse profile
functions currently in use by using the Fn + key
combination. Pressing this key combination will toggle you
between the currently selected keyboard or mouse profile
to the standard keyboard and/or mouse settings, and back
again.
Windows Logo Key and P key
Note that you can assign actions to any keyboard key ex-
cept the Windows Logo Key and P key.
Figure 7
Flexikey®
Applica-
tion

16
English

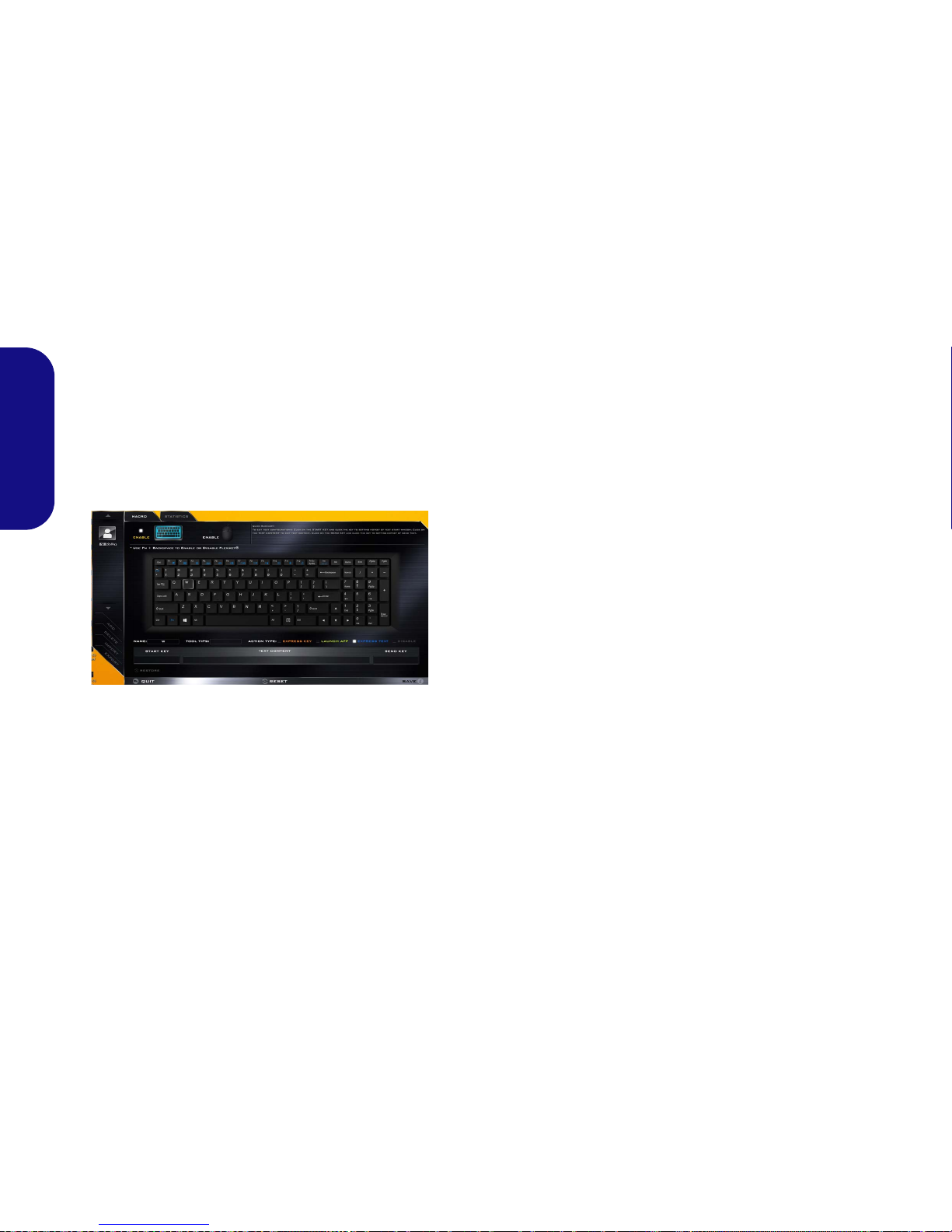

Keyboard Settings
The keyboard settings allow you to configure actions for
any single key (or a combination of keys). Click the key
and then select the Action Type (Express Key, Launch
App, Express Text or Disable) from the menu at the bot-
tom of the page. You can rename the action by clicking in
the Name box, and click in Tool Tips to type in a note to
remind you of the action’s function.
Figure 9 - Keyboard Configuration
Mouse Settings
The mouse settings allow you to configure actions for the
left , right and middle buttons of any attached
mouse, and also for any backward and forward
buttons if applicable (on a gaming type mouse). Click the
button number and then select the Action Type (Express
Key, Launch App, Express Text or Disable) from the
menu at the bottom of the page. You can rename the action
by clicking in the Name box, and click in Tool Tips to
type in a note to remind you of the action’s function.
Figure 10 - Mouse Configuration
Flexikey® Application Features:
•EXPRESS KEY - This feature allows you to configure a
single key (or mouse click) to send multiple key combina-
tions, or to create more useful shortcut keys This is useful
in gaming or when using applications which have a com-
plex set of keyboard shortcuts.
•LAUNCH APP - This simply assigns single keys (or
mouse clicks) to launch any program’s or application’s
executable file.
•EXPRESS TEXT - With this you can assign single keys
(or mouse clicks) to send commonly used strings of text.
•DISABLE - Use this function to disable any keyboard
keys or mouse buttons.
•STATISTICS - Use this to quickly record keys in use in
any application, and to disable unused keys.
1
2
3
4
5

17
English
Keyboard Settings - Express Key
To configure a single key to send multiple key combina-
tions, or to create more useful shortcut keys, use Express
Key.
1. Enable and select the keyboard under your chosen profile,
click on a key to select it, and then click to select Express Key
in Action Type.
2. In the following example we want to change an existing game
key configuration which uses the left shift key for sprinting, and
the Wkey for moving forwards, to use the left Ctrl key to
combine this movement to sprint forward.
3. Click on the chosen key for the shortcut action.
4. Click in the Tool Tips field and type to give the key combination
a name e.g. “Sprint Fwds”, then click back in the Name field (to
avoid adding the recorded keys to the Tool Tips name).
5. Click Start Record and then press the key or keys (in this case
we will press Left Shift and W) required (make sure you press
the key(s) required and do not click on them).
6. Click Stop Record to complete the process.
Figure 11 - Keyboard - Express Key
7. Click Save to save the settings within your chosen profile.
8. If you want to remove any individual key click to select it, and
then click Delete.
9. If you want to clear all the settings click Restore to return to the
default key setting.
10. Any assigned Express Keys will appear in orange.
Keyboard Settings - Launch App
You can configure keys to launch any application or pro-
gram as follows:
1. Enable and select the keyboard under your chosen profile,
click to select a key to launch the appllication, and then click to
select Launch App in Action Type.
2. Click Browse... at the bottom right of the application window.
Figure 12 - Keyboard - Launch App
3. Navigate to the executable file of the application and click
Open.
4. The key will now be configured to open the selected application
under your chosen Profile, and the key will appear in green.
5. If you want to remove any Launch App key, select it and click
on Restore.
6. Click Save to save the settings within your chosen profile.

18
English
Keyboard Settings - Express Text
A single key can be set to send a string of text within any
application using Express Text.
1. Enable and select the keyboard under your chosen profile,
click to select a key, and then click to select Express Text in
Action Type.
2. Click in Start key if required (the Start key is the key used in
your target program to open a text message), or you can leave
it blank if you prefer.
3. Click in the Click to type field and type in your message.
Figure 13 - Keyboard - Express Text
4. Click in Send key if required (the Send key is the key used in
your target program to send a text message e.g the Enter key
would be the most commonly used), or you can leave it blank if
you prefer.
5. The key will now be configured to send the text message in the
target program under your chosen Profile, and the key will
appear in blue.
6. If you want to remove any Express Text key, select it and click
on Restore.
7. Click Save to save the settings within your chosen profile.
Keyboard Settings - Disable
You can use the program to disable any keys not required.
1. Enable and select the keyboard under your chosen profile,
click to select a key to disable, and then click to select Disable
in Action Type.
2. The key will now be disabled.
3. If you want to enable the key again, select it and click on
Restore.
4. Click Save to save the settings within your chosen profile.
5. The key will be disabled under yourchosen Profile, and the key
will appear in gray.

19
English

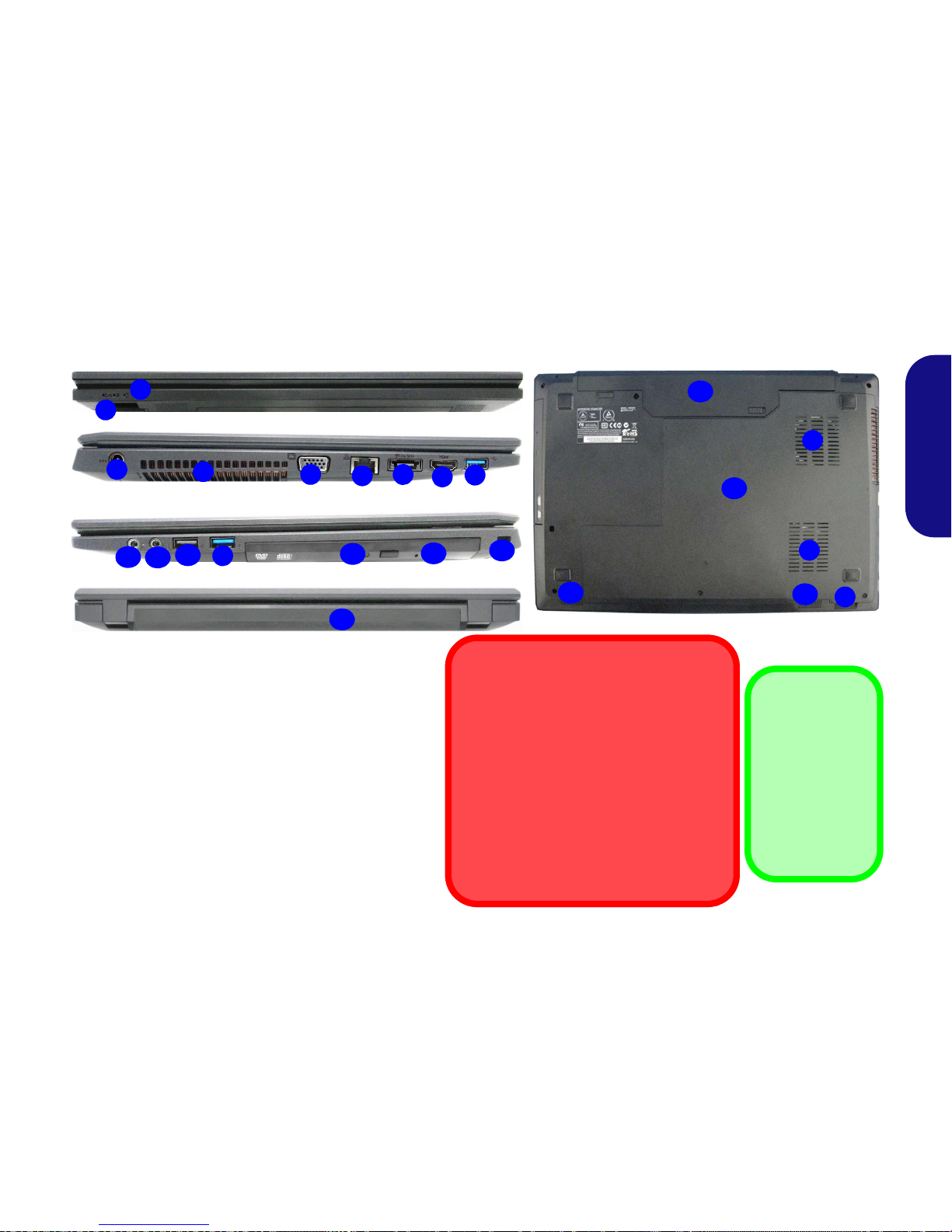

System Map: Front, Left, Right, Rear & Bottom Views
(Model A)
1Front
14
Bottom
16
Figure 14 - Front, Left, Right, Rear & Bottom Views
(Model A)
1. LED Indicators
2. Multi-in-1 Card Reader
3. DC-In Jack
4. Vent
5. External Monitor Port
6. RJ-45 LAN Jack
7. Combined eSATA/USB
3.0 Port
8. HDMI-Out Port
9. USB 3.0 Ports
10. Microphone-In Jack
11. Headphone-Out Jack
12. USB 2.0 Port
13. Optical Device Drive
Bay
14. Emergency Eject Hole
15. Security Lock Slot
16. Battery
17. Component Bay Cover
18. Speakers
2
8
46
3
Left
Right
5
Rear
10 12
9
7
13 15
17
18
18 2

Overheating
To prevent your computer from overheating
make sure nothing blocks any vent while the
computer is in use.
Disc Emergency Eject
If you need to manually eject a disc (e.g. due
to an unexpected power interruption) you
may push the end of a straightened paper
clip into the emergency eject hole. Do not
use a sharpened pencil or similar object that
may break and become lodged in the hole.

USB 3.0 Port
USB 3.0 will
transfer data
much faster than
USB 2.0, and is
backwards-com-
patible with USB
2.0.
16
11
4
4
9
