Kogan ATLAS User manual

ATLAS 11.6" FHD CELERON
L600 LAPTOP
KAL11L600PA

•This product is suitable for use in non-tropical areas below 2,000 metres.
•Ensure the notebook is not dropped or strongly impacted.
•Do not use the appliance for long periods in any environment where the air is too
cold or too hot (>45°C), too humid or too dusty. Do not expose it to direct sunlight.
•Avoid using the unit in strong magnetic or static environments as much as possible.
•If any water or other liquid splashes onto the notebook, close it immediately,
remove it from power and do not use it until it is completely dry.
•Do not clean the notebook with any chemical detergents or other liquids to avoid
causing damage to the product. If cleaning is necessary, clean it with a dry, soft
cloth or paper towel.
•Backup your important material regularly to avoid accidental data loss.
•Do not attempt to modify or disassemble the notebook.
•Replacing the battery with the incorrect type may cause an explosion. Make sure
to use original batteries only.
SAFETY & WARNINGS

Atlas 11.6” FHD Celeron L600 Laptop
Power Adapter
User Guide
Warranty Card
COMPONENTS

OVERVIEW
1
2
3
4
5
6
7
8

1. Camera
This built-in camera can be used to take photos, record video, or for use in video chats.
2. Display
High-definition LCD display panel.
3. Microphones
The built-in twin microphones can be used to record voice memos and for use in calls.
4. Indicator lights
Indicators for power on/off, caps lock on and digital key lock on notices.
5. Power button
Press to turn the laptop on. You can also use this button to enter sleep mode and to
wake it from sleep mode. If the laptop is unresponsive, holding down the power button
for an extended period will shut down the device.
6. Keyboard
QWERTY keyboard with Windows key and function options. Hold the ‘Fn’ key while
pressing function buttons (for example, Fn + F5 to mute audio playback).
7. Trackpad
The touchpad allows for onscreen navigation and use of gestures. Think of this as your
computer’s built-in mouse.
8. Left/right trackpad buttons
Much like the left and right buttons on a traditional mouse, the trackpad features the
same functionality.

9
10
11
12
13
14
17
16
15

9. SSD expansion slot
Slot for expandable storage. This laptop fits an M.2 2280 SSD
(22mm x 80mm) and is not compatible with other sizes.
10. Speakers
Two built-in speakers allowing for stereo audio output.
11. Charge indicator light
Lights up red when the charger is in use.
12. Power input port
DC charging base for 12V/2A power supply (adapter supplied). Do not use with any
other power supply or charger.
13. USB 3.0 input
Input for flash drives, additional keyboard and mouse, and any other devices with USB
3.0 connectivity. This input also supports USB 2.0 and below.
14. Mini HDMI output
Supports a mini HDMI cable (not supplied) for linking with a TV or external monitor.
15. microSD card slot
Card reader slot with microSD format support, ideal for important photographs.
16. 3.5mm audio out
Line audio out port for use with headphones, amplifier, external speakers of any other
audio device via an AUX cable (not included).
17. USB 2.0 input
Input for flash drives, additional keyboard and mouse, and any other devices with USB 2.0
connectivity. This input is not compatible with USB 3.0 or above.

1. Connecting the power supply
a. Plug the power adapter into a suitable power outlet.
b. Insert adapter into the laptop’s power input port. The indicator light will
show if power is being received.
GETTING STARTED
1b
When connected, the laptop will automatically
begin to charge.
Ensure the battery has been charged for at least 3
hours before using without a power supply for the
first time.

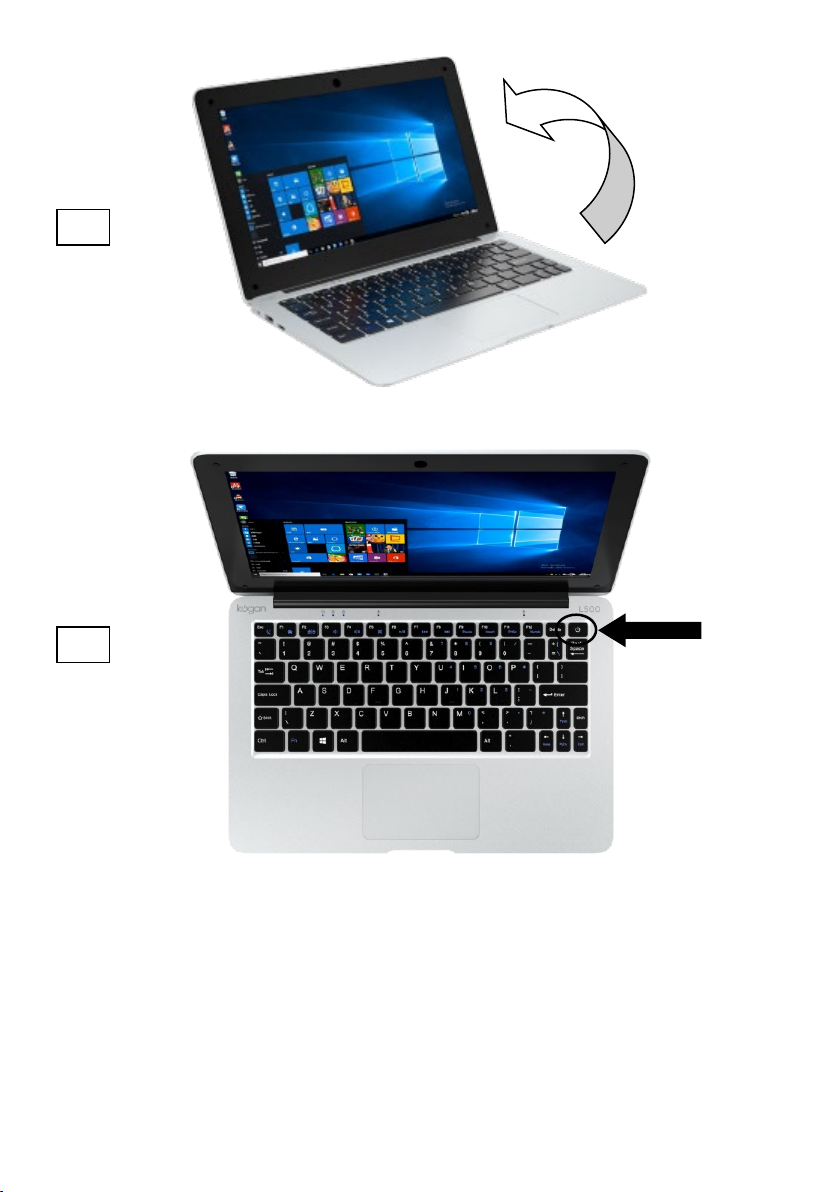

2. Power on the laptop
a. Lift to open the display panel.
b. Press the power button.
2a
2b

1. Windows 10 start screen
On the start screen, you may see icons on the desktop that serve as shortcuts to some
applications. You can easily open them by simply clicking on them. You may need to log
onto a Microsoft account before some programs will run with full compatibility.
You can also click on the Windows icon in the lower-left corner to bring up the Start Menu.
User icon. Allows you to change account settings, lock the notebook
or sign out.
Opens the Documents folder within ‘This PC’.
Opens the Pictures folder within ‘This PC’.
Opens the Windows Settings app. Allows you to change various
aspects of the computer including apps, linked devices, time &
language and account information.
Allows you to Sleep, Shut down or Restart the computer.
USING WINDOWS 10

2. Start Menu interface
Apps already installed on the computer can be accessed via the Start Menu. Some icons
will automatically be added to the right-side section for easier access.
More applications can be added to the computer via the Microsoft Store.
Apps can be uninstalled by right-clicking on the icon in the Start Menu and selecting
“Uninstall”.

3. Notification Menu
The notification menu is accessible via the icon in the lower-right corner of the task bar. It will
show notifications such as updates, emails received and calendar reminders, and allows for
quick access to settings like Wi-Fi, Bluetooth, brightness, etc.

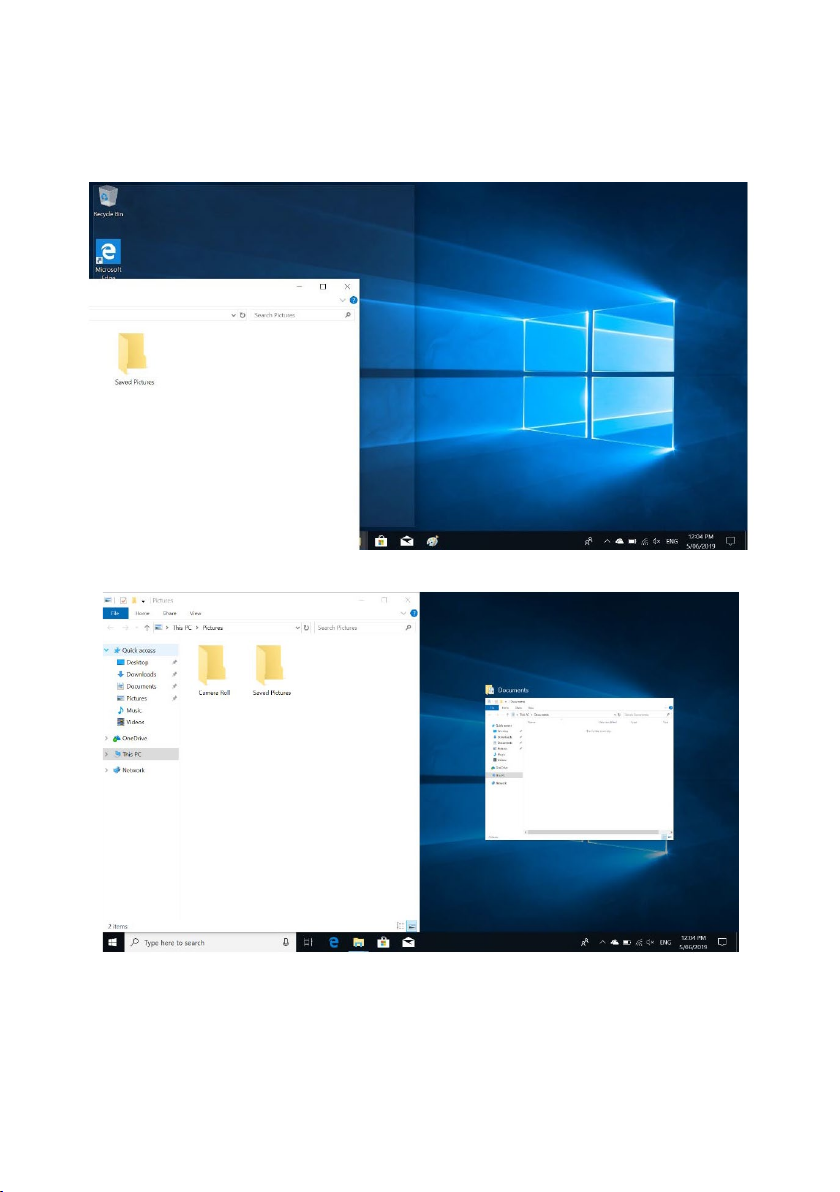

4. Multitasking
Drag windows to the left or right sides of the screen and let go when you can see an outline
of the window around half of the screen. You can then select another open window to fill the
free space on the other half of the screen.

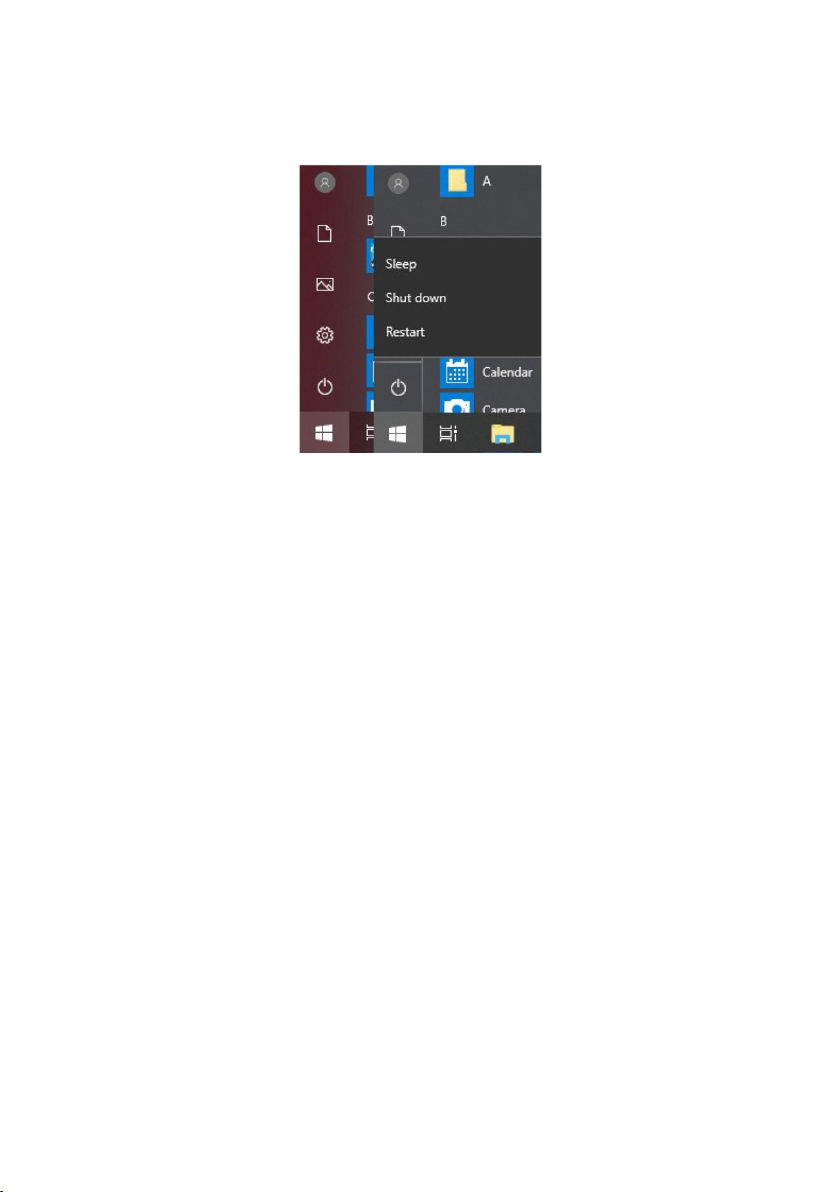

5. Sleep, Restart and Power Off
Select the Windows icon in the lower-left corner, then click on the power icon, then select
Sleep, Shut down or Restart.

My laptop is not turning on/is not charging
•Leave the unit on charge for at least an hour before attempting to turn the unit on.
•The battery may have naturally depleted and may take some time to recharge. If in
storage for extended periods of time, it is recommended to periodically charge the unit
to keep the battery capacity high, as batteries naturally deteriorate and eventually
completely die over time.
•Make note if any lights turn on, or if any internal components like fans turn on.
•Inspect the unit, charging port and power cord for any physical damage. If you notice
any damage to the power cord, please do not use it and contact help.kogan.com
Wi-Fi connection is not working
•Restart your modem/router, or both if you have separate units.
•Reconnect any range extenders that may be in use.
•Restart the device that is having issues.
•Try moving the device closer to the source.
•If you cannot connect at all, double check that all passwords are correct.
•If you can connect but are getting weak or slow data, try disconnecting the device from
the network manually and reconnect.
Screen gets dark when unplugged
•This will be occurring due to your power plan settings.
•You can set your power plan settings through the Control Panel.
I have forgotten my password
•There are several options to reset a Microsoft password.
•Use a password reset disc via USB.
•Reset Microsoft account password online with another device.
•Reset Windows back to the factory default. Please note, this will delete all personal files
and settings.
For further information and the most up-to-date product guides for this laptop,
please head online to help.kogan.com
BASIC TROUBLESHOOTING

Audio
Speaker 2 x 1W
Connectivity
Bluetooth Yes
Bluetooth Version 4.2
Wi-Fi Yes
Wi-Fi Protocols 2.4G, 5G
Dimensions
Dimensions 299.20 x 200.20 x 23.60mm
Weight 1.07KGS
Display
Screen Size 11.6"
Screen Resolution 1920 x 1080
Features
Built-In Webcam Yes
Inputs/ Outputs
Headphone Jack Yes
Mini HDMI 1 x 1.4a
USB 2.0 1
USB 3.0 1
microSD Yes | Max. 256GB
Performance
CPU Intel® Celeron® Processor N3350
CPU Speed 1.1 - 2.4GHz
GPU Intel® HD Graphics 500
Operating System Windows 10 Pro
System Memory (RAM) 4GB
Power
Battery Capacity 4000mAh
Battery Type Lithium-ion Polymer battery
Storage
SSD Slot M.2 2280 SATA
Storage Capacity 64GB
Storage Type eMMC
SPECIFICATIONS

NOTES

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
