Kogan KGN1080P-PRO32VAA User manual

KGNϭϬϴϬWWZKϯϮs
USER MANUAL

20
16

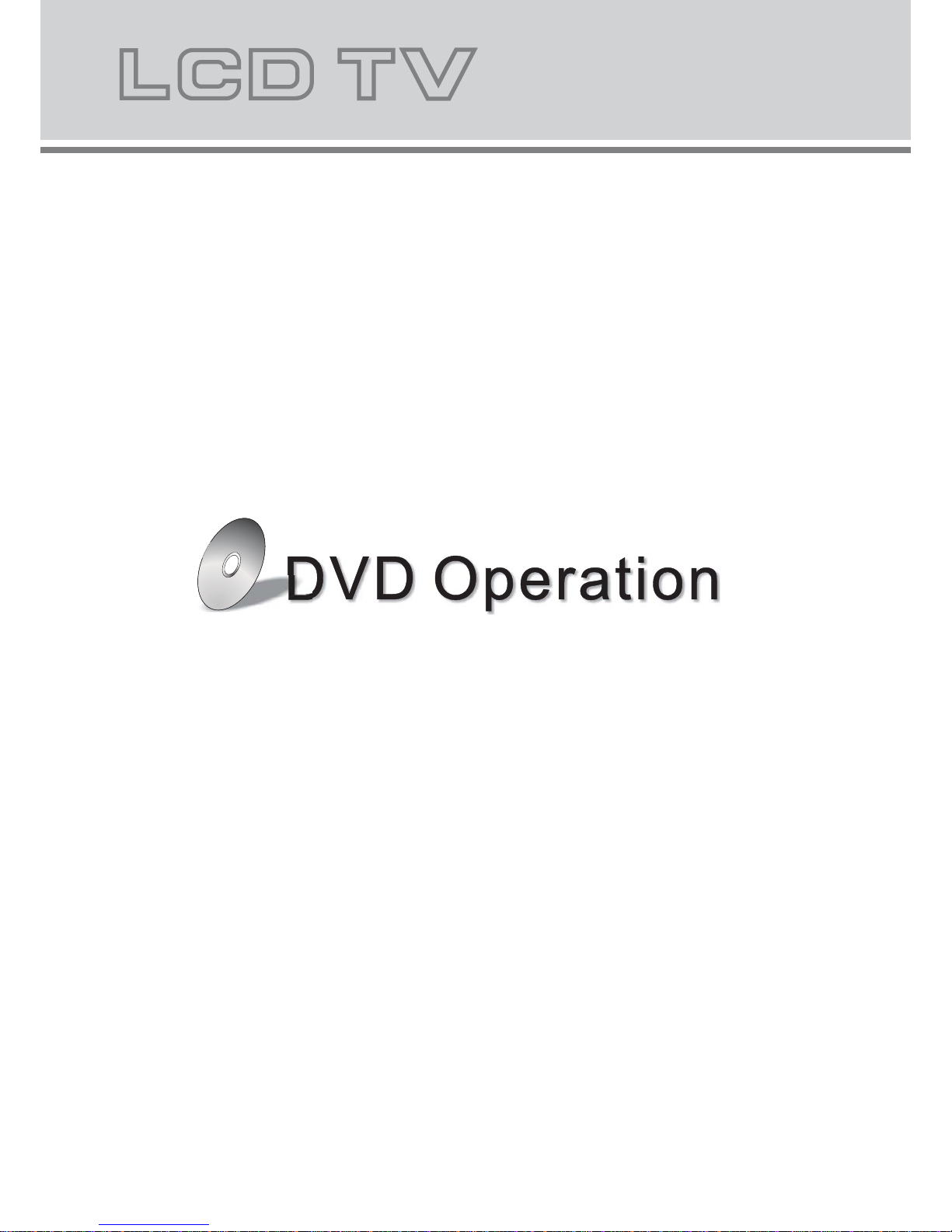

DVD Operation
21
22

Power cord
Remote control/batteries

$'79

5&7)*
0
123
456
789
OK
P.MODE S.MODE SLEEP
SOURCE MENU
INFO EXIT
MUTE
VOL CH
ASPECT
X
TITLE/SIZE
SUBTITLE
/TTX
/CANCEL
DVD.SETUP
/FAV
/EPG
MENU/SUBPAGE
/HOLD
/REVEAL
AUDIO/INDEX
USB
/SD
GOTO SLOW A-BREPEAT
/ADD/ERASE

Sound mode button
DVD stop / Favorite program button
Mute button
Channel list / USB/SD Card
function select buttton
Sleep function button
NICAM function button
Information display button
Numeric buttons
Confirm button
DVD A-B repeat / BLUE button
DVD repeat playback / YELLOW button
DVD title / Teletext size button
DVD previous / Teletext on/off / mix button
DVD rewind / Teletext cancel button
Volume adjusting button Channel select button
$'795&7)*
0
1 2 3
4 5 6
7 8 9
OK
P.MODE S.MODE
,,,
SLEEP
SOURCE MENU
INFO EXIT
MUTE
VOL CH
ASPECT
X
TITLE/SIZE SUBTITLE
/TTX
/CANCEL
DVD.SETUP /FAV
/EPG
MENU/SUBPAGE
/HOLD
/REVEAL
AUDIO/INDEX
CH.LIST
USB
/SD
/ADD/ERASE
Power/Standby button
Picture mode button
Remote control indicator
Return channel button
Menu button
Signal source select button
Navigation buttons (Up, Down, Left, Right)
Menu exit button
DVD setup menu button
Display mode select button
DVD open/close / Favorite
program add/delete button
DVD next / Teletext hold button
DVD goto / RED button
DVD slow / GREEN button
DVD play/pause / Electronic
program guide button
DVD forward / Teletext reveal button
Subtitle button
Disc menu / Teletext subpage button
Audio language select / Teletext index button
GOTO SLOW REPEAT A-B

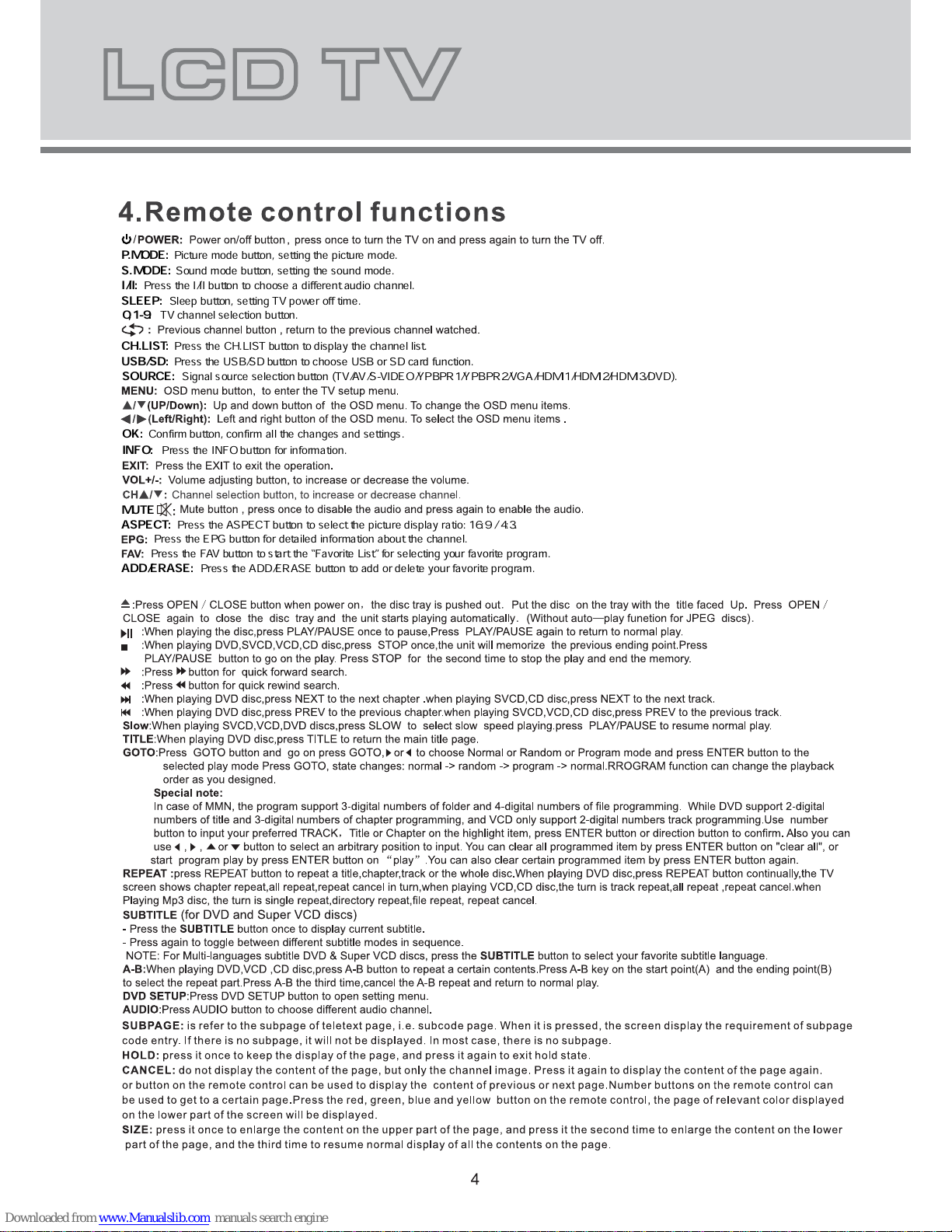

S.MODE:
Sound mode button, setting the sound mode.
P.MODE:
Picture mode button, setting the picture mode.
SLEEP:
Sleep button, setting TV power off time.
I/II:
Press the I/II button to choose a different audio channel.
ASPECT:
ADD/ERASE:
Press the ASPECT button to select the picture display ratio: 16:9 / 4:3.
INFO:
MUTE
Press the INFO button for information.
0,1-9:
TV channel selection button.
SOURCE:
Signal source selection button (TV/AV/S-VIDEO/YPBPR1/YPBPR2/VGA/HDMI1/HDMI2/HDMI3/DVD).
OK:
CH.LIST:
Confirm button, confirm all the changes and settings.
Press the EPG button for detailed information about the channel.
Press the CH.LIST button to display the channel list.
USB/SD:
Press the USB/SD button to choose USB or SD card function.
Press the FAV button to start the “Favorite List” for selecting your favorite program.
Press the ADD/ERASE button to add or delete your favorite program.

Remote sensor.
Power indicator.
Power on/off button.
8. SD/MMC/MS card slot.
9. USB port.
10. STOP button.
11. OPEN/CLOSE button.
12. PLAY/PAUSE button.
Insert DVD with Label to the Front
12
8
9
10
11
12

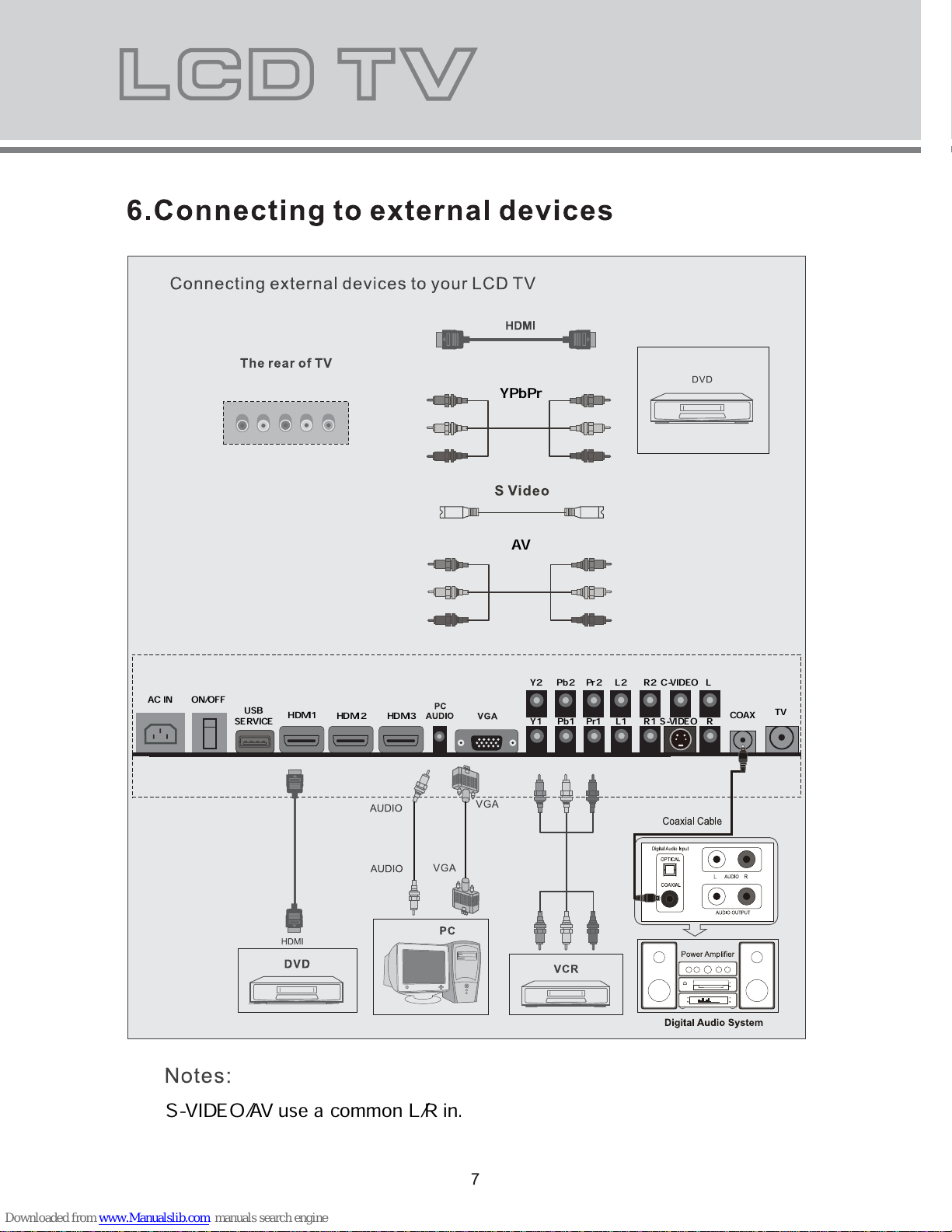

ON/OFF
AC IN
TV
COAX
S-VIDEOY1 Pb1 Pr1 RL1 R1
C-VIDEOY2 Pb2 Pr2 LL2 R2
HDMI2 HDMI3
HDMI1
Power on/off button.
AC power input terminal.
Component video & audio input terminals (Y Pb Pr/L/R 1/2).
S-VIDEO input.
Composite video & audio input terminals (AV).
9.
Coaxial audio signal out plug.
10.
11.
HDMI input.
USB SERVICE input (Serviceable only for updating the firmware).
USB
SERVICE
9
10 11

YPbPr
AV
ON/OFF
AC IN
TV
COAX
S-VIDEOY1 Pb1 Pr1 RL1 R1
C-VIDEOY2 Pb2 Pr2 LL2 R2
HDMI2 HDMI3
HDMI1
USB
SERVICE
S-VIDEO/AV use a common L/R in.

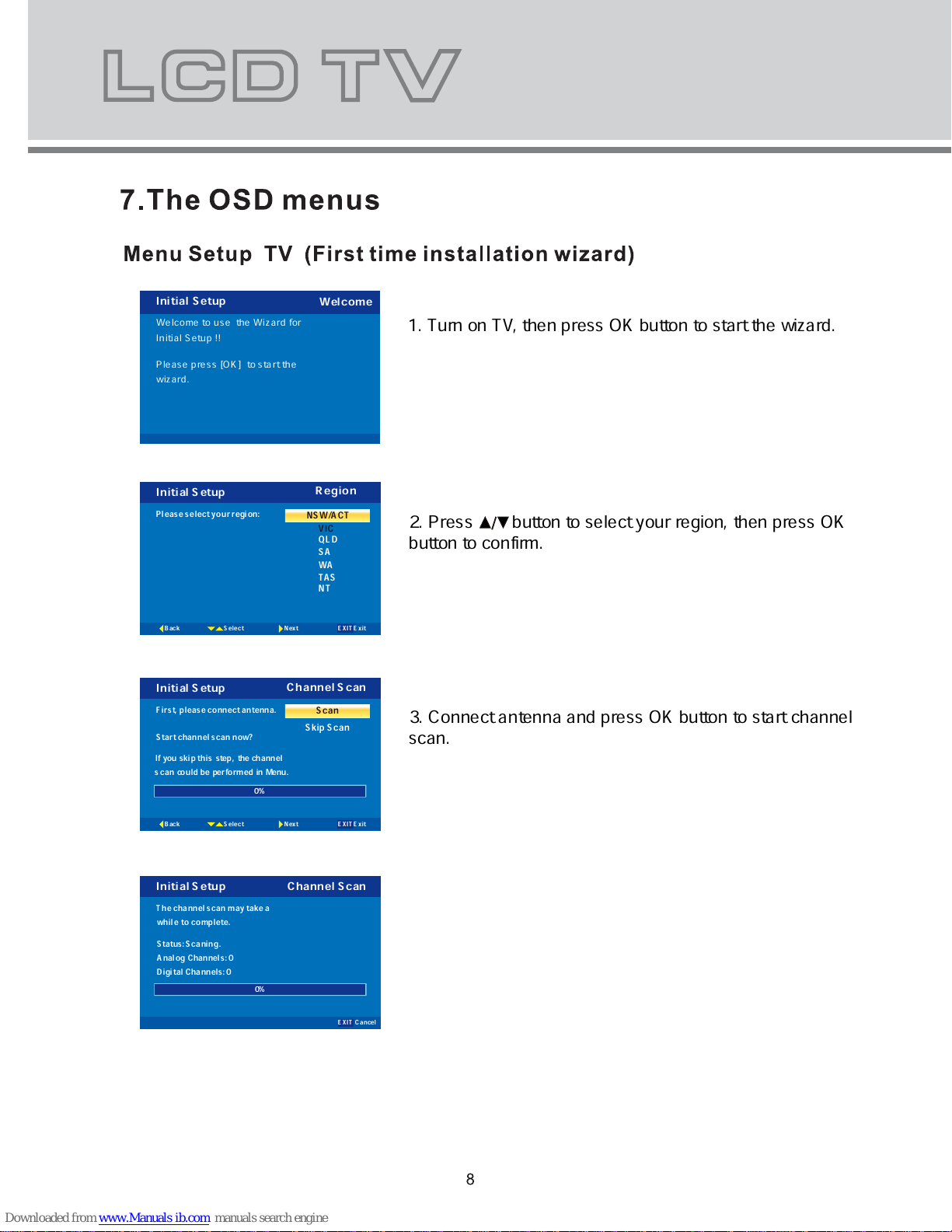

1. Turn on TV, then press OK button to start the wizard.
2. Press button to select your region, then press OK
button to confirm.
3. Connect antenna and press OK button to start channel
scan.
Initial Setup Welcome
Welcome to use the Wizard for
Initial Setup !!

Please press [OK] to start the
wizard.

Initial Setup
Please select your region:
Region
NSW/ACT
VIC
QLD
SA
WA
TAS
NT
Back Select Next EXIT Exit
Initial Setup
Back Select Next EXIT Exit
Channel Scan
First, please connect antenna.
Start channel scan now?
If you skip this step, the channel
scan could be performed in Menu.
Scan
Skip Scan
0%
Initial Setup
EXIT Cancel
Channel Scan
The channel scan may take a
while to complete.
Status:Scaning.
Analog Channels:0
Digital Channels:0
0%

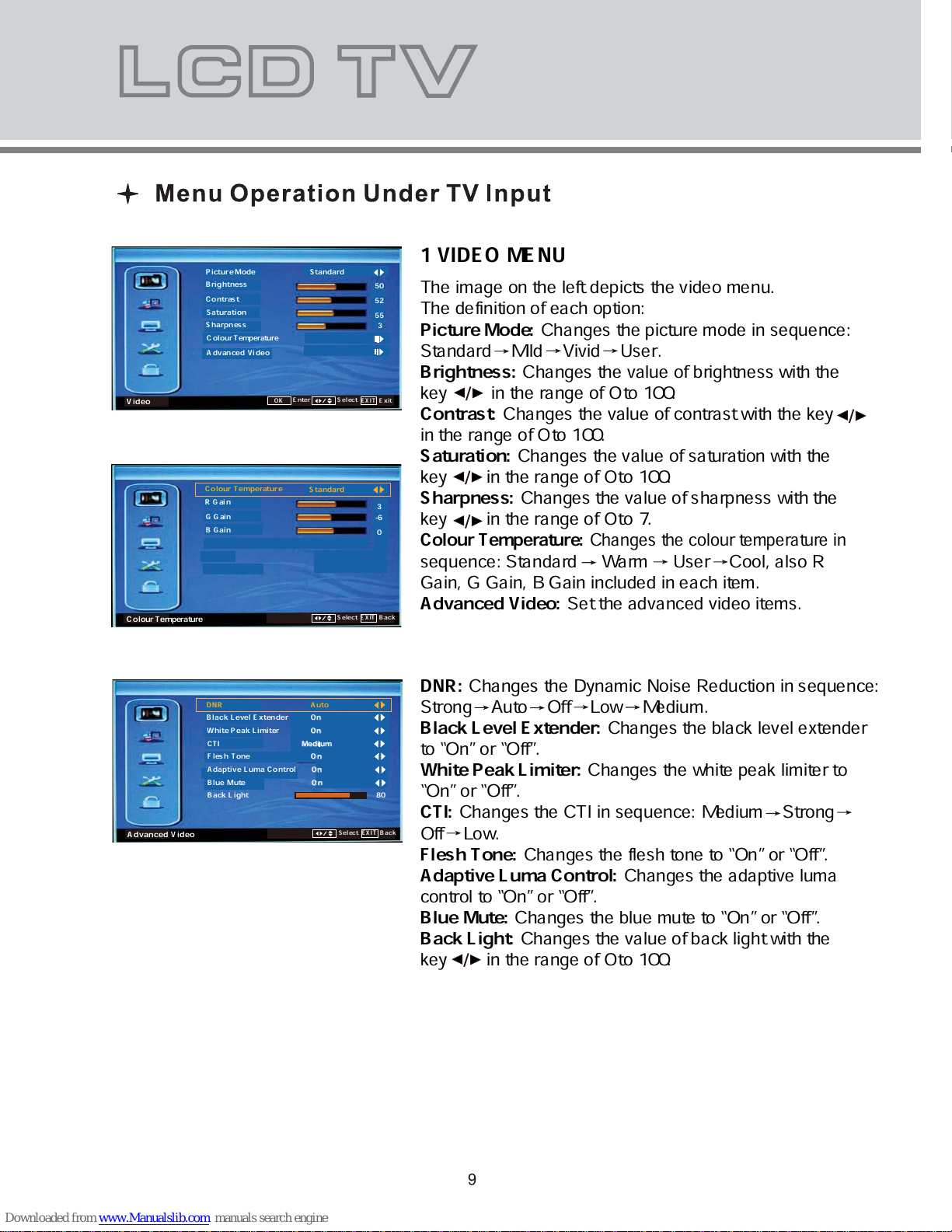

1 VIDEO MENU
The image on the left depicts the video menu.
The definition of each option:
Picture Mode: Changes the picture mode in sequence:
Standard Mild Vivid User.
Brightness: Changes the value of brightness with the
key in the range of 0 to 100.
Contrast: Changes the value of contrast with the key
in the range of 0 to 100.
Saturation: Changes the value of saturation with the
key in the range of 0 to 100.
Sharpness: Changes the value of sharpness with the
key in the range of 0 to 7.
Colour Temperature: Changes the colour temperature in
sequence: Standard Warm User Cool, also R
Gain, G Gain, B Gain included in each item.
Advanced Video: Set the advanced video items.
DNR: Changes the Dynamic Noise Reduction in sequence:
Strong Auto Off Low Medium.
Black Level Extender: Changes the black level extender
to “On” or “Off”.
White Peak Limiter: Changes the white peak limiter to
“On” or “Off”.
CTI: Changes the CTI in sequence: Medium Strong
Off Low.
Flesh Tone: Changes the flesh tone to “On” or “Off”.
Adaptive Luma Control: Changes the adaptive luma
control to “On” or “Off”.
Blue Mute: Changes the blue mute to “On” or “Off”.
Back Light: Changes the value of back light with the
key in the range of 0 to 100.
Video
Picture Mode
Brightness
Contrast
Saturation
Sharpness
Advanced Video
Colour Temperature
Standard
50
52
55
3
OK Enter Select EXIT Exit
Colour Temperature Select EXIT Back
B Gain
G Gain
R G
Colour Temperature
ain
Standard
3
-6
0
Advanced Video Select EXIT Back
DNR
CTI
Flesh Tone
Blue Mute
Back Light
Adaptive Luma Control
White Peak Limiter
Black Level Extender
Auto
On
On
On
On
On
Medium
80

10
2 AUDIO MENU
The image on the left depicts the audio menu.
The definition of each option:
Sound Mode: Changes the sound mode in sequence:
Standard Pop Rock News.
Balance: Changes the value of balance with the key
in the range of -50 to +50.
Bass: Changes the value of bass with the key in the
range of 0 to 100.
Treble: Changes the value of treble with the key
in the range of 0 to 100.
Sound Surround: Changes the sound surround to “On”
or “Off”.
Auto Volume Control: Changes the auto volume control
to “On” or “Off”.
Audio OK Adjust Select EXIT Exit
Balance
Bass
Treble
Sound Mode Standard
Sound Surround Off
Auto Volume Control Off
0
50
50
Channel Scan EXIT Cancel
82%
Status:Scanning
Analog Channels:0
Digital Channels:0
Channels OK Scan Select EXIT Back
Channel Scan
Manual Scan
Channel Edit
Analog Channel Fine Tune
TV OK Enter Select EXIT Exit
Country Region NSW/ACT
Channels
3 TV MENU
The image on the left depicts the TV menu.
The definition of each option:
Country Region: Changes the country region in sequence:
VIC, QLD, SA, WA, TAS, NT, NSW/ACT.
Channels: Press key to this position, then press
key to enter Channels submenu, the menu options include
Channel Scan, Manual Scan, Channel Edit and Analog
Channel Fine Tune.
Channel Scan: Press or OK button to enter channel scan.

11

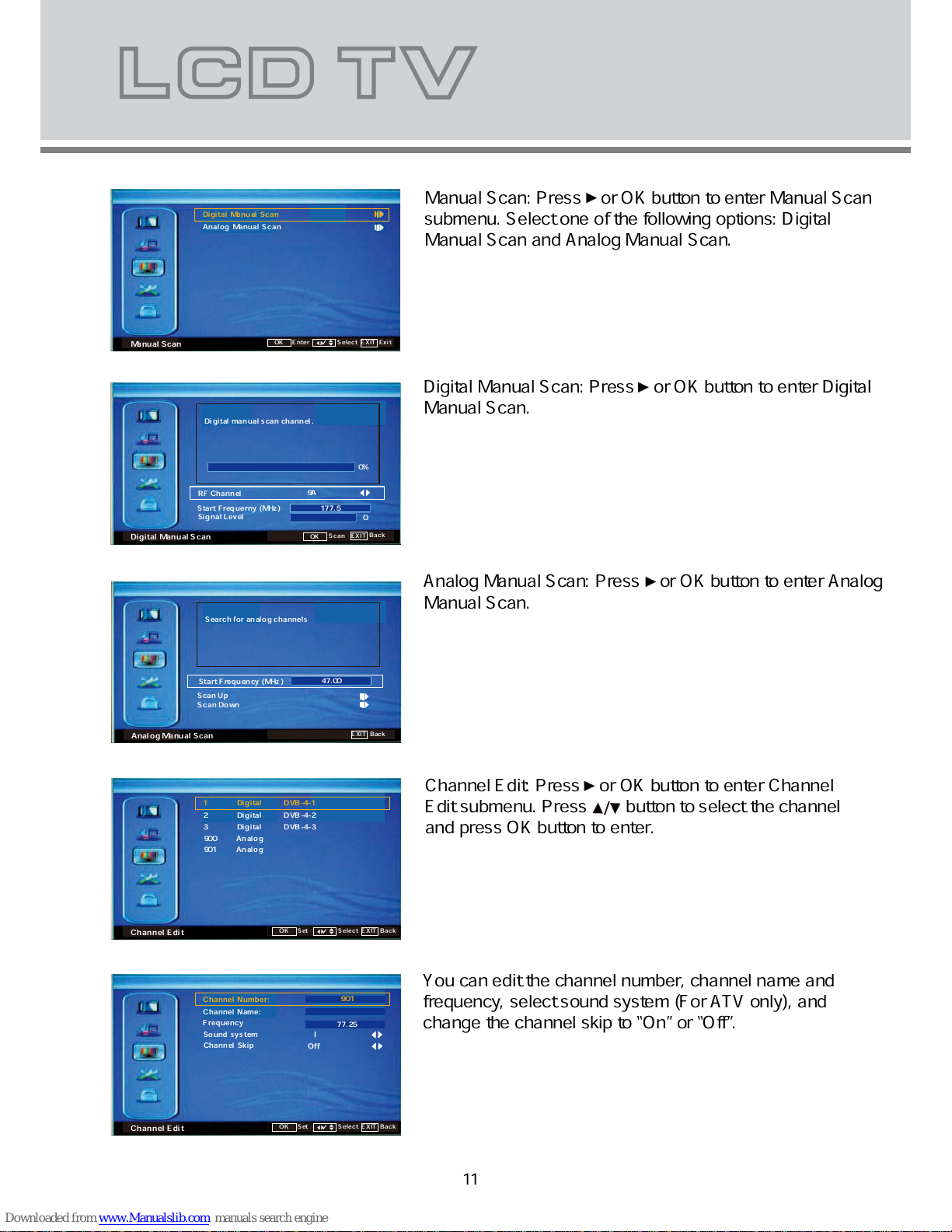

Manual Scan: Press or OK button to enter Manual Scan
submenu. Select one of the following options: Digital
Manual Scan and Analog Manual Scan.
Analog Manual Scan EXIT Back
Start Frequency (MHz)
Scan Down
Scan Up
47.00
Search for analog channels
Digital Manual Scan OK Scan EXIT Back
RF Channel
Signal Level
9A
0
Start Frequerny (MHz)
0%
177.5
Digital manual scan channel.
Digital Manual Scan
Analog Manual Scan
Manual Scan OK Enter Select EXIT Exit
Digital Manual Scan: Press or OK button to enter Digital
Manual Scan.
Analog Manual Scan: Press or OK button to enter Analog
Manual Scan.
1 Digital DVB-4-1
2 Digital DVB-4-2
3 Digital DVB-4-3
900 Analog
901 Analog
Channel Edit OK Set Select EXIT Back
Channel Number:
Channel Name:
Frequency
Sound system
Channel Skip
Channel Edit OK Set Select EXIT Back
Off
I
Channel Edit: Press or OK button to enter Channel
Edit submenu. Press button to select the channel
and press OK button to enter.
You can edit the channel number, channel name and
frequency, select sound system (For ATV only), and
change the channel skip to “On” or “Off”.
901
77.25

12
Analog Channel Fine Tune: Press or OK button to enter
Analog Channel Fine Tune submenu. Press button
to select the channel and press OK button to enter.
Press button to search forwards and backwards to
improve reception if necessary.
900 55.8 MHz
901 60.5 MHz
Analog Channel Fine T OK Adjust Select EXIT Back
Set EXIT Cancel
OK
Channel Number: 900
Channel Name:
Frequency: 55.8 MHz
4 SETUP MENU
The image on the left depicts the setup menu.
The definition of each option:
OSD Language: Changes the OSD language in
sequence as English, Spanish, French, German, Italian.
Screen Mode: Changes the screen mode in sequence
as 16:9, 4:3.
DPMS (For VGA only): Changes the DPMS to “On” or
“Off”.
Time Setup: Press key to this position, then press
key to enter Time Setup submenu, the menu options
include Time and Sleep Timer.
Time: Changes Auto Synchronization to “On” or “Off”.
Sleep Timer: Changes the sleep timer in sequence as
Off, 10 Minutes, 20 Minutes, 30 Minutes, 40 Minutes, 50
Minutes, 60 Minutes, 90 Minutes, 120 Minutes.
OK Enter Select EXIT Exit
Setup
Screen Mode
OSD Language
16:9
On
English
DPMS
Time Setup
Subtitle
Version Info
Reset Default
SelectEXIT Back
Time Setup
Time
Off
Sleep Timer
OK Enter
Select EXIT Back
Time
Auto Synchronization
2000/01/01
16:51:46
On
Date
Time

13
EXIT Back
Setup
Soft Version: HKTF_HD ver 1.00
Hard Version: Antlia VER 1.01

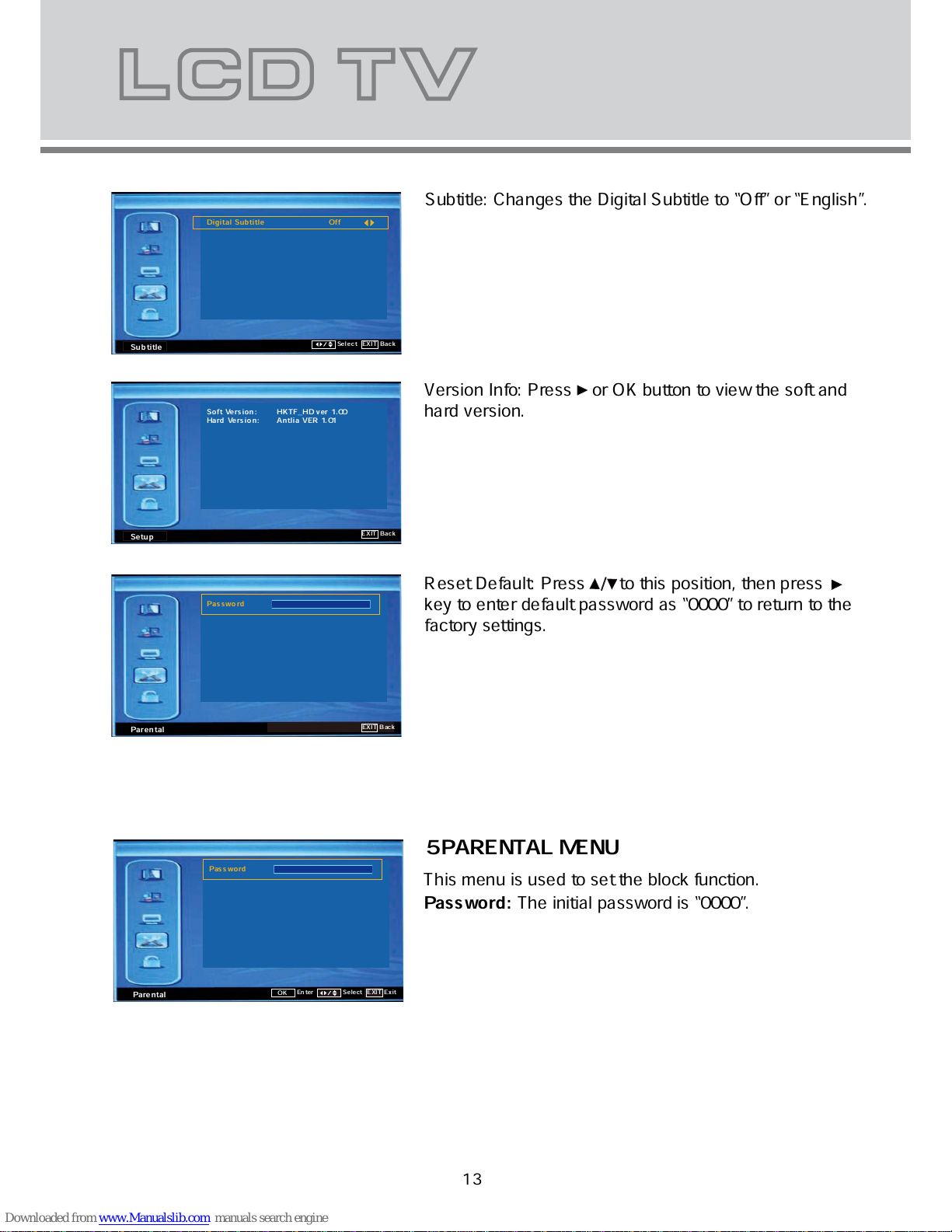

Subtitle: Changes the Digital Subtitle to “Off” or “English”.
Version Info: Press or OK button to view the soft and
hard version.
Select EXIT Back
Subtitle
Off
Digital Subtitle
Reset Default: Press to this position, then press
key to enter default password as “0000” to return to the
factory settings.
(;,7%DFN
Password
EXIT Back
Parental
5 PARENTAL MENU
This menu is used to set the block function.
Password: The initial password is “0000”.
(;,7%DFN
Password
EXIT Exit
Parental OK Enter Select

14
Hotel Block: Press key to this position, then press
key to enter Hotel Block submenu, the menu options
include Hotel Lock and Max Volume.
Hotel Lock: Changes the hotel lock to “On” or “Off”.
Max Volume: Set the maximum volume level.
BackEXIT
Select
Enter
OK
Change Password
Clear All Blocks
Hotel Block
Program Block
Input Block
Parental
No Block
Restriction of Access
Program Block Back
Select EXIT
BackEXIT
Select
Hotel Lock
Max Volume
Hotel Block
On
100
Program Block: Press key to this position, then press
key to enter Program Block submenu, the menu option
includes Restriction of Access (No Block, Block G, Block
PG, Block M, Block MA, Block AV, Block R, Block All).
Input Block: Press OK button to block any input source.
EXIT
t
Set
OK
S-VIDEO
YPBPR1
YPBPR2
HDM 1I
TV
AV
VGA
1
2
3
4
5
6
7
HDMI 28
HDMI 3
9
Input Block Back
Selec

15
Change Password: Change the parental password.
Clear All Blocks: To clear all the locks.
1. Press SOURCE button to change from TV to other
available inputs.
2. Press button to select signal source.
3. Press OK button to confirm.
4. Press EXIT button to exit signal souce menu.
Cancel
Are you sure?
OK
EXIT
Confirm Password
New Password
Change Password Back
TV
Source
AV
YPBPR1 
YPBPR2
VGA
HDMI 1
HDMI 2
HDMI 3
DVD
S-VIDEO

17

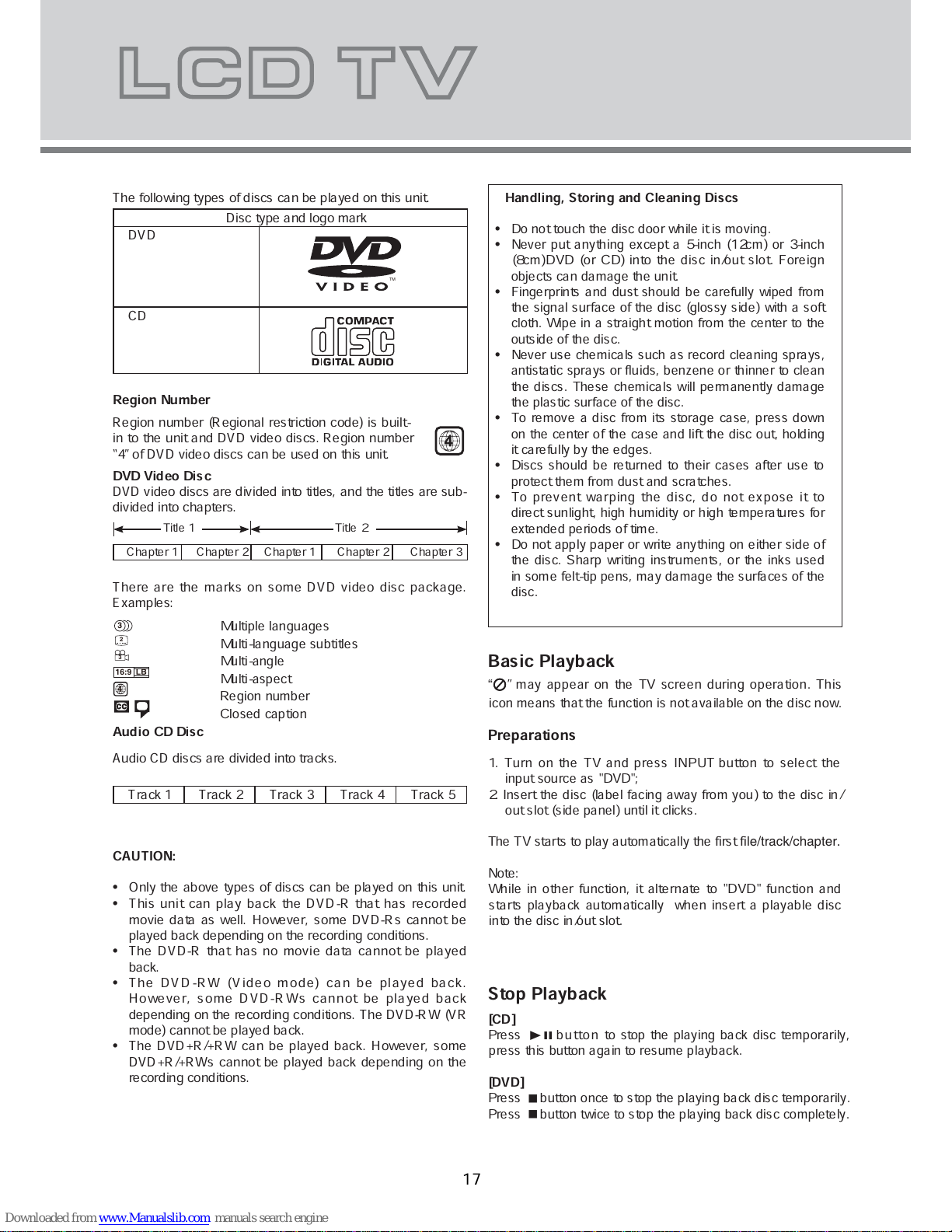

The following types of discs can be played on this unit.
Disc type and logo mark
DVD
CD
Region Number
Region number (Regional restriction code) is built-
in to the unit and DVD video discs. Region number
“4” of DVD video discs can be used on this unit.
DVD Video Disc
DVD video discs are divided into titles, and the titles are sub-
divided into chapters.
Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3
There are the marks on some DVD video disc package.
Examples:
Audio CD Disc
Audio CD discs are divided into tracks.
Track 1 Track 2 Track 3 Track 4 Track 5
TM
Only the above types of discs can be played on this unit.
This unit can play back the DVD-R that has recorded
movie data as well. However, some DVD-Rs cannot be
played back depending on the recording conditions.
The DVD-R that has no movie data cannot be played
back.
The DVD-RW (Video mode) can be played back.
However, some DVD-RWs cannot be played back
depending on the recording conditions. The DVD-RW (VR
mode) cannot be played back.
The DVD+R/+RW can be played back. However, some
DVD+R/+RWs cannot be played back depending on the
recording conditions.
•
•
•
•
•
Title 1 Title 2
4
3
2
3
LB16:9
Multiple languages
Multi-language subtitles
Multi-angle
Multi-aspect
Region number
Closed caption
CAUTION:
Do not touch the disc door while it is moving.
Never put anything except a 5-inch (12cm) or 3-inch
(8cm)DVD (or CD) into the disc in/out slot. Foreign
objects can damage the unit.
Fingerprints and dust should be carefully wiped from
the signal surface of the disc (glossy side) with a soft
cloth. Wipe in a straight motion from the center to the
outside of the disc.
Never use chemicals such as record cleaning sprays,
antistatic sprays or fluids, benzene or thinner to clean
the discs. These chemicals will permanently damage
the plastic surface of the disc.
To remove a disc from its storage case, press down
on the center of the case and lift the disc out, holding
it carefully by the edges.
Discs should be returned to their cases after use to
protect them from dust and scratches.
To prevent warping the disc, do not expose it to
direct sunlight, high humidity or high temperatures for
extended periods of time.
Do not apply paper or write anything on either side of
the disc. Sharp writing instruments, or the inks used
in some felt-tip pens, may damage the surfaces of the
disc.
•
•
•
•
•
•
•
•
Handling, Storing and Cleaning Discs
Basic Playback
“
” may appear on the TV screen during operation. This
icon means that the function is not available on the disc now.
Preparations
1. Turn on the TV and press INPUT button to select the
input source as "DVD";
2. Insert the disc (label facing away from you) to the disc in/
out slot (side panel) until it clicks.
The TV starts to play automatically the first fi le/track/chapter.
Note:
While in other function, it alternate to "DVD" function and
starts playback automatically when insert a playable disc
into the disc in/out slot.
Stop Playback
[CD]
Press
l
button to stop the playing back disc temporarily,
press this button again to resume playback.
[DVD]
Press
n
button once to stop the playing back disc temporarily.
Press
n
button twice to stop the playing back disc completely.

18
Designated Range Repeat Playback(A-B Repeat)
1. Press A-B button during playback at the beginning
of the section you want to repeat (Point A).
•“
A” appears on the TV screen.
2. Press A-B button again at the end of the section you
want to repeat (Point B).
•“
AB” appears brie y on the TV screen.
3. To return to normal playback, press A-B button again.
Selecting Subtitle Language [DVD]
Press SUBTITLE button repeatedly during playback until
the desired subtitle language appears on the TV screen.
Example:
SUBTITLE 01/03 ENG
Note:
Not all disc supports this function.
Selecting Audio Soundtrack Language (Multi-Language)
[DVD]
This operation works only with discs on which multiple
audiosoundtrack languages are recorded.
Press AUDIO button repeatedly during playback until the desired
language appears on the TV screen.
Notes:
• When the desired language is not selected even if the
button is pressed, the language is not available on the disc.
• When the power is turned on or the disc is replaced, select
the language again.
• If the language is not recorded on the disc, only the
available language on the disc will be heard.
Selecting On-Screen Information
Pr e ss INF O b u t t o n re pea ted ly t o sh ow t he d isc
information (Title, Chapter, Title elapsed playing time,
Language, etc.).
BtnioPAtnioP
Hello! Holà! ¡Hola!
Various disc playing functions
Selecting a DVD menu
Notes:
•The operation may differ depending on the disc used.
•Selecting a menu may not be possible on some discs.
1.Press MENU/SUBPAGE button during playback.
The main menu screen will appear.
2.Press
4/5/b/a
button (or the number buttons) to select
the desired menu.
3.Press OK button, the selected menu playback starts.
Chapter (Track) Skip
Skipping forward
Press
e
button during playback to skip to the next
chapter (or track).
Skipping backward
Press
f
button during playback to skip back to the
previous chapter (or track).
Note:
You can skip only through the chapters, not over the title on
the DVD disc.
Title search [DVD]
Press GOTO button.
Press the number buttons to enter the desired title number.
Example:
T: 01/01 C: 01/15
Repeat playback
Press REPEAT button during playback to activate repeat
mode:
[DVD]
If you want to.. Press REPEAT button ...
Repeat chapter ( CHAPTER) Once
Repeat title ( TITLE) Twice
Repeat all ( ALL) Three times
semitruoFffotaepeR
[CD]
If you want to... Press REPEAT button ...
Repeat current track Once
Repeat all tracks Twice
Repeat off Three times
