Kogan KALED55XXXZC User manual

Table of Contents
Safety Instructions.............................................................................................................................2
General Safety Instructions.......................................................................................................2
Installation........................................................................................................................................3
Cleaning............................................................................................................................................4
General Description..........................................................................................................................5
Specifications & Accessories.........................................................................................................5
Specifications..................................................................................................................................5
Accessories......................................................................................................................................5
Overview...............................................................................................................................................
Remote Control..............................................................................................................................7
Basic Operation..................................................................................................................................9
Changing the Input Source.......................................................................................................9
Navigating the Menu...................................................................................................................9
Menu Operation..................................................................................................................................9
Picture Menu...................................................................................................................................9
Sound Menu.....................................................................................................................................9
Channel Menu...............................................................................................................................10
Lock System Menu......................................................................................................................10
Setup Menu....................................................................................................................................10
Media Operating Interface......................................................................................................10
PVR........................................................................................................................................................10
Personal Video Recorder File System................................................................................10
Formatting the USB.....................................................................................................................11
PVR Guide........................................................................................................................................11
DTV EPG (Electronic Program Guide)................................................................................12
External Connection........................................................................................................................13
Assembling the Stand................................................................................................................13
Troubleshooting................................................................................................................................14
1

Safety Instructions
General Safety Instructions
Risk of electric shock. DO NOT OPEN!
Do not attempt to service the television yourself, as
opening or removing the covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
the Kogan customer support team.
To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture. The television should not be
exposed to dripping or or splashing, and no liquid filled objects
such as vases should be placed on the case.
In the event of smoke, strange noises or a strange smell from
the unit, you should follow these steps:
•Turn off the unit immediately.
•Disconnect the power plug from the power outlet.
•Contact the Kogan customer support team. Never
attempt to make repairs yourself.
Never push objects of any kind into the set through the
cabinet slots as they may touch dangerous voltage
points or short-circuit parts that could result in a fire or
electric shock. Never spill any liquids onto the set. Use
special caution in households where children are
present. The television is not suitable for children under
4 years old to operate.
Power supply cords should be routed safely to prevent
dangers due to damaged cords.
The mains plug is the main disconnect method, so it should
be easily accessible and not be obstructed during use.
To avoid fires, no naked flame sources such as lit candles or
burning incense should be placed onto the casing of the
television.
Do not pull the plug out of a power outlet by pulling on the
power cable. Always grasp the plug and pull.
Never touch the plug with wet hands.
2

An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits.
When installing an outside antenna system, extreme
care should be taken to keep from touching such power
lines or circuits, as contact with them may be fatal.
Always turn the set off when it is not being used.
Unplug the television from the power outlet when it will
not be used for a long time or when there is an
electrical storm.
Never touch the antenna cable during a lightning storm.
Excessive volume from earphones and headphones can
cause permanent hearing loss. Always monitor the volume of
noise from these devices, especially when children are using
them.
Installation
Ventilation should not be impeded or limited by
covering the ventilation slots with items such as
newspapers, tablecloths, curtains etc..
At least 10cm of space should be left around the
apparatus for sufficient ventilation.
The television should be situated away from heat
sources such as radiators, heaters, stoves or other
products that product heat.
Place the television in a position where the screen is
not exposed to direct sunlight. It is best to have soft
indirect lighting while watching, and you should avoid
a completely dark viewing environment and
reflections to avoid eye fatigue.
Keep the product away from high magnetic fields
(such as near an amplifier speaker) to avoid affecting
the tint.
Do not place the television on an unstable table, stand
or shelf. The set may fall, causing serious injury as well
as damage to the television itself.
If moving the television on a cart, move the unit with
care as sudden stops and starts may cause the
television to overturn.
3

Do not place this television near water, for example
near a bathtub, wash bowl, kitchen sink, laundry tub,
swimming pool or in a damp basement etc..
When moving the television to a warm location from
a cold location, allow some time for any dew or
condensation inside the television to evaporate fully
before you turn the unit on.
To prevent injury, the television must be securely
attached to the floor/wall in accordance to the
supplied installation instructions.
Cleaning
Unplug the television from the power supply before
cleaning. Do not use any liquid cleaners or harsh
chemicals. Use a soft, damp cloth.
4

General Description
•Zero X radiation complies to green environment protection requirements.
•Auto tuning and fine tuning.
•One PC VGA input socket.
•One YpbPr input socket.
•Three HDMI input sockets (HDMI 1.4)
•One composite video input socket.
•One audio input socket.
•USB support.
•Headphone support
Specifications & Accessories
Specifications
Model KALED55XXXZC
Display Screen Size 55” Diagonal
Maximum Resolution 1920 x 1080
Power Supply AC 110-240V ~ 50/ 0Hz
TV Receive System PAL/SECAM: BG, DK, I DVB-T
Frequency Range DTV:VHF(174MHz-230MHz)
UHF(474MHz-8 2MHz)
Video In PAL/NTSC
Antenna Input Impedance 75ohm
Sound Output 2 x 8W
Remote Power Input DC 3V (Two AAA batteries)
Power Consumption 110W
Operating Temperatures 0°C ~ 40°C
Accessories
Remote Control
5

Overview
The buttons on the lower-right panel control your TVs basic features, including the on-screen
menu. To use the televisions more advanced features, you must use the remote control.

Remote Control
7

8
ote:
Before turning off the main power, or turning off the power supply, you must
switch the television into standby mode by pressing the POWER button on
the remote control or on the television set itself.
Once the television is in standby mode, you may turn off the mains power
supply.

Basic Operation
Changing the Input Source
Press I PUT to select the input source.
Press to cycle through the input sources, and press ▲ ▼ E TER to
confirm your selection.
avigating the Menu
Before using the TV, follow the steps below to learn how to navigate the menu
in order to select and adjust different functions. The access steps may differ
depending on the menu you are in at the time.
1. Press ME U to display the main menu.
2. Press to cycle through the main menu.◀ ▶
3. Press to select the desired sub item.▲ ▼
4. Press E TER to access the submenu.
5. Press to select the desired value. The adjustment in the OSD may ▲▼◀▶
differ depending on the selected menu.
. Press ME U to return to the previous menu.
7. Press EXIT to exit from the menu.
Notes:
•When an item in the ME U is displayed in grey, it means the item is not
available or cannot be adjusted in the current menu or submenu.
•Buttons on the TV have the same function as the corresponding buttons
on the remote control. This manual will focus on the operations using the
remote control.
Menu Operation
Picture Menu
Select a type of picture to suit your viewing requirements.
You can choose to edit the Picture Mode, Brightness, Contrast,
Sharpness, Saturation, Hue, Colour Temp, Aspect Ratio and
Advanced Settings.
Sound Menu
Select the type of sound to suit your viewing requirements.
You can change the values of Treble, Bass and Balance.
You can change the status of Sound Mode, Surround Sound,
EQ Setting, AVL, SPDIF, Audio Description and Sound Type.
9

Channel Menu
Make changes to the channels to suit your viewing requirements.
You can edit Auto Scan, Manual Tuning, Auto Channel Update,
Channel Edit, Favourites and Signal Information.
Note: some adjustment options are only available in DTV mode.
Lock System Menu
Select the type of lock to suit your viewing requirements.
You can change the status of Enable, Channel Locks, Parental
Ratings, Lock Keypad, New Password and Clear Lock.
Default password: 0000
Setup Menu
Select the type of setup to suit your viewing requirements.
You can change the status of OSD Language, Audio Languages,
Subtitle, Teletext, Blue Screen, Mode Settings, Time Settings,
PVR Settings, First Time setup, OAD, Reset and Software
Update (USB).
Note: some adjustment options are only available in DTV mode.
Media Operating Interface
This screen is available in menu
mode.
You can access PHOTO, MUSIC
and MOVIE modes.
PVR
Personal Video Recorder File System
WAR I G
•Before connecting your USB device to the TV, please back up all of the
files on it to prevent them from being corrupted or lost.
•A USB disk must be formatted when first used for PVR. Any existing data
on the disk will be lost during the formatting process. Please back up the
disk if you do not want to lose the data on it. We recommend you use a
dedicated storage device for PVR storage. Do not remove or disconnect
the disk during formatting or during reading/writing.
•Do not modify the PVR files on a PC.
Note: make sure the USB device is compatible with the TV and is capable of
supporting PVR recording.
10

Formatting the USB
Press the LIST button to enter the PVR setting menu, then press to select the◀ ▶
Device list. Press ENTER to enter the submenu.
In the Device list menu, press to select the USB drive where you want to use ▲ ▼
for the PVR service, then press the RED button to start the formatting.
ote: the disk must be formatted when first used for PVR. Do not disconnect
the disk or turn the power off during the formatting. The larger your device, the
longer the format process will take. The formatting may take quite a few
minutes to perform. This is not a malfunction. Please wait for the process to
finish.

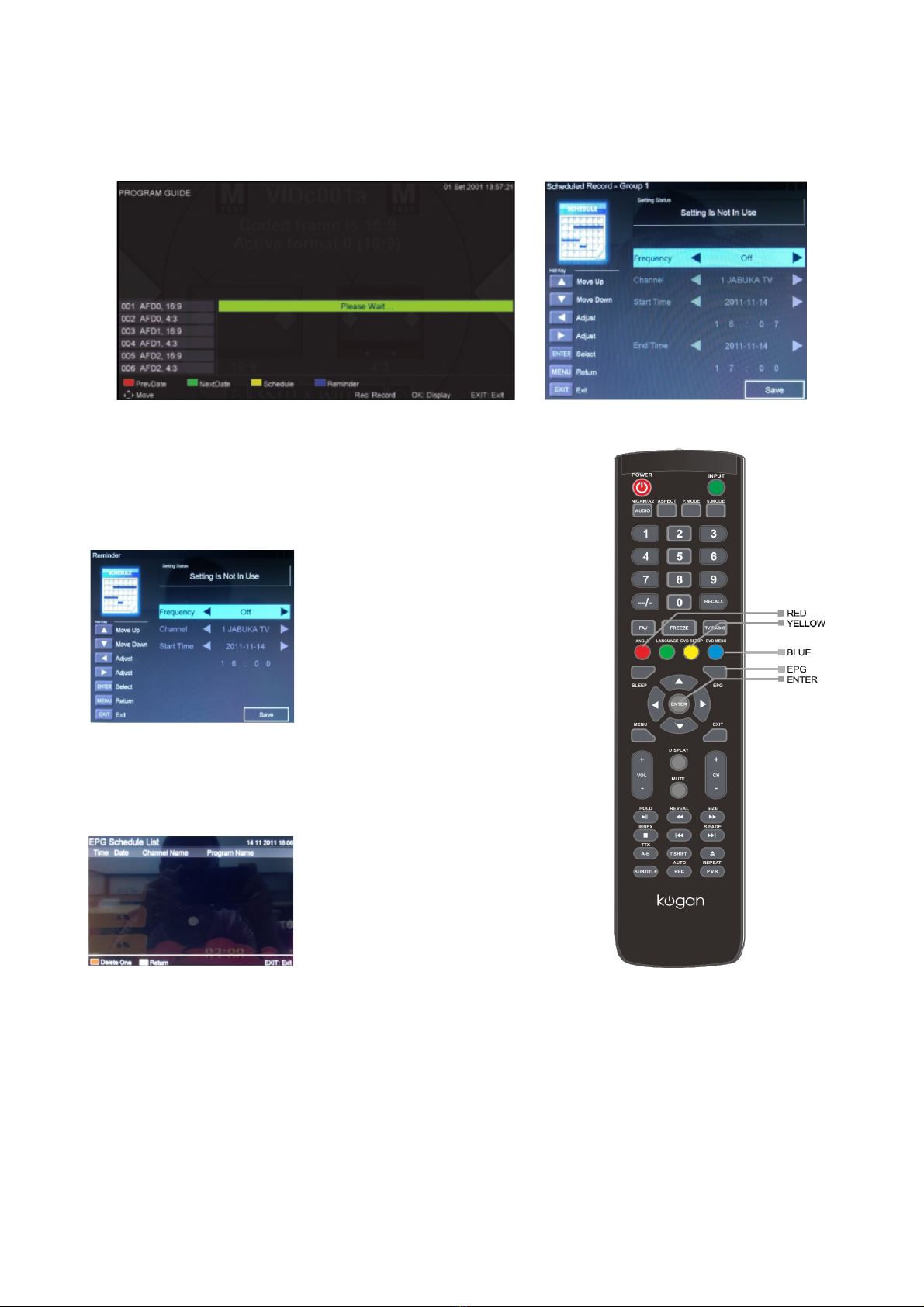

PVR Guide
If the disk for the PVR is ready, the programs can be recorded in
DTV mode.
Time Shift
In DTV mode, press “T.Shift” to pause the DTV program, then
press it again to resume play. The length of time a program can be
paused depends upon the setting in the PVR File System. Press ◼
to stop the Time Shift.
Press the PLAY button to continue playing the program from the
point where it was paused.
ote: Time Shift will stop if you change channels, change inputs or
go into standby mode while in Time Shift mode.
Instant Recording
1. Select the desired channel then press the REC button on the remote
control to start recording the current broadcast. A progress bar will be
shown at the bottom of the screen.
2. Recording stops when you press the button. The recorded file will be ◼
stored on the external USB device automatically.
ote: You can only watch channels on the same frequency as the program
being recorded. If you try to change to another channel or exit to the main
interface, a message will appear prompting you to continue or to stop the
recording.
11

DTV EPG (Electronic Program Guide)
In DTV mode, press EPG to enter the Electronic Program Guide.
In the Guide menu, press REC to set a recording.
In the Guide menu, press BLUE to enter the “Reminder”
menu.
Press the buttons to adjust the scheduled time,◀▶▲▼
then press ENTER to save the setting.
In the Guide menu, press YELLOW to enter the
“Schedule” menu.
Press the buttons to adjust the scheduled time,◀▶▲▼
then press ENTER to save the setting.
12

External Connection
Assembling the Stand
Before attaching/detaching the stand, be sure to turn the TV off.
Before performing any work, spread cushioning out over the base area to lay
the TV on. This will prevent it from being damaged.
Stand Installation Instructions
13

Troubleshooting
If you have any problems with your television, please check the suggested
solutions below, as these issues may be caused by improper adjustment/setup
rather than a malfunction with the unit. If the problem persists, please contact
the Kogan customer support team.
Problem Possible Solution
Poor picture and sound quality •Try a different channel
•Adjust the antenna
•Check all connections
No picture or sound in TV status •Try another channel
•Press the TV/AV button
•Make sure TV is plugged in
•Check the antenna connection
No sound, or sound is too low at maximum
volume
•Check the volume settings on any
external speakers connected to your
television
•Adjust the TV volume accordingly
•Check that MUTE hasn't been turned on
No colour, wrong colour or tints •Make sure the program itself is
broadcast in colour
•Select the picture menu, then adjust the
colour and tint submenus
Picture rolls vertically •Check all connections
Blurred or snowy picture, distorted sound •Check direction, location and
connections to your antenna
•Issues may be caused by use of an
indoor antenna
Remote control malfunctions •Replace remote control batteries
•Check battery terminals
•Remote is out of range, move closer to
TV
•Confirm there is no obstructions
between remote and TV
•Make sure power cord is plugged in
Image is not centered on the screen •Adjust the horizontal and vertical
position
14
