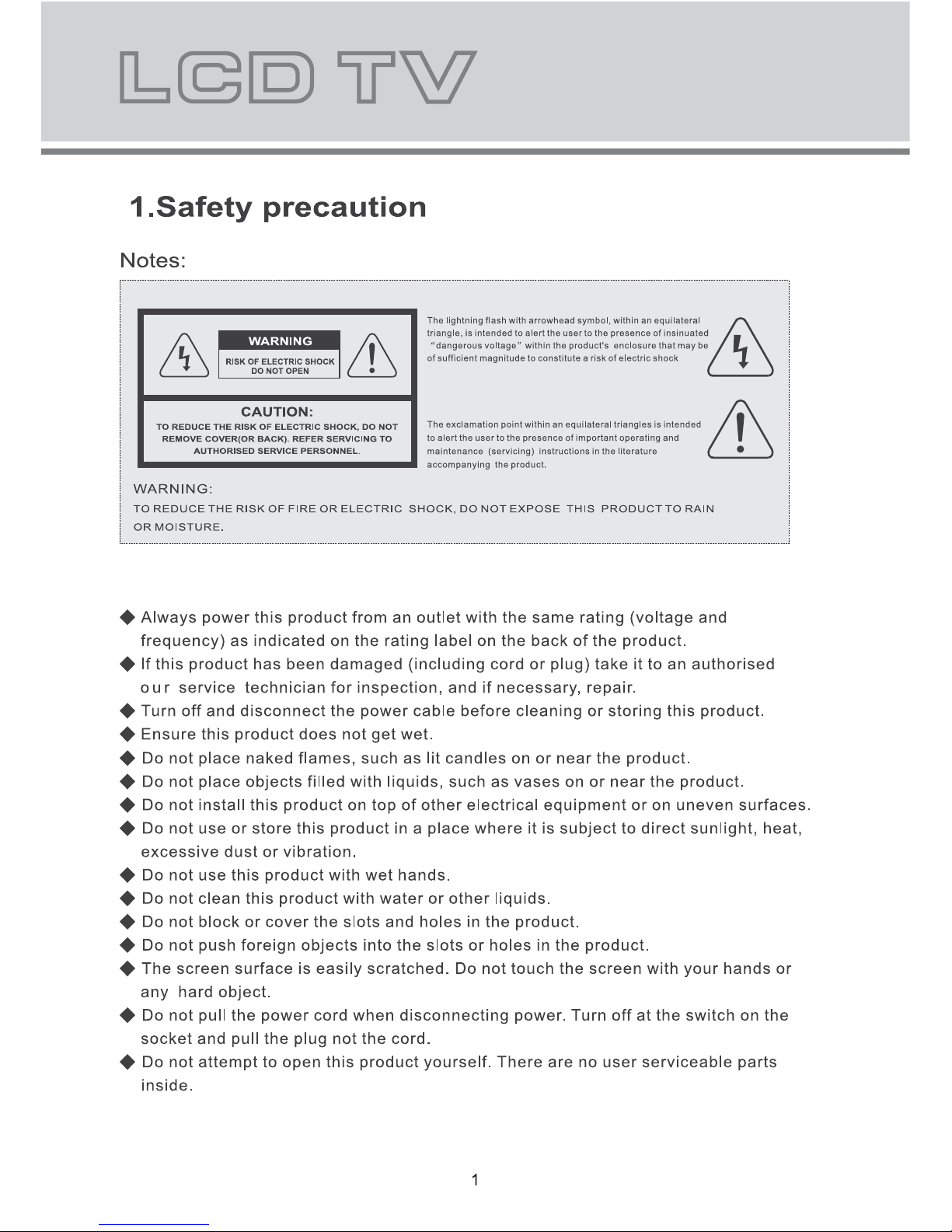

USER MANUAL

USB.....................................................................

Power cord
Remote control/batteries

Sound mode button
Favorite program button
Mute button
Multi-digits channel buttton
Recording buttton
Sleep function button
Picture frozen button
Information display button
Numeric buttons
Confirm button
Recording list / Teletext subpage button
Media play/pause / Teletext index button
Media stop / Teletext cancel button
Volume adjusting button Channel select button
0
123
456
789
A/DTV
+
RC-TFG019
0
123
456
789
OK
P.MODE S.MODE FREEZE SLEEP
SOURCE MENU
INFO
EXIT
VOL CH
I/II
X
REC.LIST
EPG FAV
ZOOM
TXT/MIX
-/--
SUBTITLE
Power/Standby button
Picture mode button
Remote control indicator
Return channel button
Menu button
Signal source select button
Navigation buttons (Up, Down, Left, Right)
Menu exit button
Media previous / Teletext hold button
Electronic program guide button
Media next / Teletext size button
Subtitle button
Media rewind / Teletext reveal button
Media forward / Teletext on/off / mix button
ATV: NICAM function button
DTV: Audio channel select button
TV: Display mode select button
Media: Zoom in/out button
GOTO SLOW REPEAT A-B
TV: RED button
Media: Goto button
TV: GREEN button
Media: No action
TV: BLUE button
Media: A-B repeat button
TV: YELLOW button
Media: Repeat playback button

Press the SUBTITLE button to display the subtitle function.
INDEX: Press it once to display the index for all the teletext page.
CANCEL: Do not display the content of the page, but only the channel image. Press it again to display the content of the page again.
SIZE: Press it once to enlarge the content on the upper part of the page, and press it the second time to enlarge the content on the lower part of the
page, and the third time to resume normal display of all the contents on the page.
SUBPAGE: It is refer to the subpage of teletext page, i.e. subcode page. When it is pressed, the screen display the requirement of subpage code
entry. If there is no subpage, it will not be displayed. In most case, there is no subpage.
HOLD:
SUBTITLE:
Press it once to keep the display of the page, and press it again to exit hold state.
REVEAL: Press it once to display the hide text, press it again to close the display of hide text.
TXT/MIX: Press it to enter teletext state and display teletext page; press this button again, display both image and teletext page at the same time. If you
want to exit teletext state, press this button again.
Number buttons 0~9 on the remote control can be used to get to a certain page. “ ” button on the remote control can be used to display the content
of previous or next page. Press the RED, GREEN, YELLOW & BLUE buttons on the remote control, the page of relevant color displayed on the lower
part of the screen will be displayed.
FAST TEXT: The RED, GREEN, YELLOW & BLUE buttons are used for quick access to color coded pages transmitted by FAST TEXT broadcast.
Example:
RED selects CITY INFORMATION,
GREEN selects WEATHER INFORMATION,
YELLOW selects TV PROGRAMMING,
BLUE selects TRAVEL INFORMATION.
S.MODE: Sound mode button, setting the sound mode.
P.MODE: Picture mode button, setting the picture mode.
SLEEP: Sleep button, setting TV power off time.
FREEZE: Press the FREEZE button to freeze the picture on the screen at current frame.
I/II:
EPG:
FAV:
TV mode--Press to choose different audio languages; DVD mode--Press to choose a different audio channel.
INFO: Press the INFO button for information.
Press the EXIT button to exit the operation.
0,1-9: TV channel selection button.
SOURCE: Signal source selection button (ATV/DTV/Media/AV1/AV2/S-Video/PC/Component1/Component2/HDMI1/HDMI2).
OK:
-/--:
Confirm button, confirm all the changes and settings.
Press the EPG button for detailed information about the channel.
Press to select a channel number higher than 9.
: Press to start recording programme.
REC.LIST: Press the REC.LIST button to display the recording list.
Press the FAV button to start the “Favorite List” for selecting your favorite program.
Media operation
l:Press to play or pause the Media display.
d: Press to move backward.
c:Press to move forward.
n:Press to stop the Media display.
f: Press to play last item.
e:Press to play next item.
ZOOM: Press to zoom in the picture.
SUBTITLE: Press to display current sub-title.

VOL CH MENU SOURCE
Remote sensor.
Power indicator.
Power on/off button.
8. USB2 input (Available for performing Media or PVR function).

ON/OFF
AC IN
COAXIAL
S-VIDEO
PC AUDIO
Pr VIDEO RLRL VIDEO
PbPb YRPrLY
HDMI2
HDMI1
USB1
9
13
12
11
10
RF(75 )
COMPONENT1
AV1
COMPONENT2
AV2
Power on/off button.
AC power input terminal.
Component video & audio input terminals (COMPONENT1).
Component video input terminals (COMPONENT2).
S-VIDEO input.
Composite video & audio input terminals (AV1).
Composite video & audio input terminals (AV2).
9.
Coaxial audio signal out plug.
10.
11.
12.
13.
HDMI input.
USB1 input (Available for performing Media or PVR function).

YPbPr
AV
VGA use a common PC AUDIO in.
ON/OFF
AC IN
COAXIAL
S-VIDEO
PC AUDIO
Pr VIDEO RLRL VIDEO
PbPb YRPrLY
HDMI2
HDMI1
USB1 RF(75 )
COMPONENT1
AV1
COMPONENT2
AV2

If this is the first time switch on, the First time installation
menu will appear on the display.
Language
Press o/p/b/abutton to select the desired language,
then press OK button to enter the “Channel Tuning”
screen. The original language of this TV is English.
Channel Tuning
The TV will start searching channels automatically from
the lowest frequency. When it finds a station, it will store
this in the first location and move to the next. When auto
tuning is completed, the TV will display the first station
found.
Press MENU or EXIT button to skip or cancel the tuning
process.
Please select an OSD Language
OK
English Español Italiano
FrançaisDeutsch
TV :
DTV :
Radio :
0 %
Please press MENU key to exit
(TV)
0 Programme
0 Programme
0 Programme
Channel Tuning
8

1 CHANNEL MENU
The image on the left depicts the channel menu.
The definition of each option:
Auto Tuning: Press button to this position, then
press or OK button to enter auto tuning of both ATV
and DTV channels.
DTV Manual Tuning: Press button to this position,
then press or
OK button to enter DTV Manual Tuning.
It will scan current DTV (Digital TV) program within a
f
requency range accurately and store the result manually.
ATV Manual Tuning: Press button to this position,
then press or
OK button to enter ATV Manual Tuning.
Programme Edit:
Press button to this position, then
press or OK button to enter Programme Edit screen.
You can do such editing operations as delete, rename,
move, skip (sign/cancel the skip mark) and fav (add/
delete to the favorite program list) for the selected
channel in the available channel list when the “Programme
Edit” is selected.
Signal Information (For DTV only): Press button
to this position, then press or OK button to enter Signal
Information screen.
Auto Tuning:
It will auto scan the channels automatically,
and stop at the end of the channel search. The auto
scan result stores in the internal memory automatically.
DTV Manual Tuning:
Press b/abutton to select channel,
then press OK button to search programs.
CHANNEL
MENU Return
Move OK Select EXIT Exit
Auto Tuning
ATV Manual Tuning
DTV Manual Tuning
Programme Edit
Signal Information
Bad Freq: 205.50 Mhz Good
DTV Manual Tuning
VHF CH 9A
Press OK to search
TV :
DTV :
Radio :
0 %
Please press MENU key to exit
(TV)
0 Programme
0 Programme
0 Programme
Channel Tuning
9

ATV Manual Tuning:
Current CH: Press b/abutton to select the channel
number you want to store.
Color System: Press b/abutton to change the color
system as Auto, SECAM, PAL.
Sound System: Press b/abutton to change the sound
system as DK, I, BG.
Fine-Tune: Press b/abutton to scan current program
within a frequency range accurately and store the result
manually.
AFC: Press b/abutton to set the Automatic Frequency
Control to On or Off.
Search: Press b/abutton to start search.
10
Current CH
Color System
Sound System
Fine-Tune
AFC
Search
1
PAL
BG
44.00 MHz
Off
ATV Manual Tuning
Menu
Programme Edit: Press o/pbutton to move the high-
lighted bar. Press the colored short-cut keys to do the
editing operations, and press MENU button to stop the
editing work.
Note:
Before doing editing operations, make sure the channel
list is not an empty one.
This option has five functions:
1. Press Red button to delete the current channel.
2. Press Green button to rename the current channel
(For ATV only).
3. Press Yellow button and o/pbutton to move the
current channel.
4. Press Blue button to skip the current channel.
5. Press FAV button to set the current channel to your
favorite channel, there will be a red heart at the behind
of the channel selected. If the current channel is already
be one of your favorite channel, press it again will set it
to a normal one.
You can call out the channels from the “Favorite List”
by pressing FAV button while enjoying TV program.
Signal Information (For DTV only): This menu displays
signal details, including Channel, Frequency, Quality
and Strength.
MenuFav
FAV
Delete
Programme Edit
ATV
ATV
ATV
ATV
OK
Rename Move Skip
1 S-43
2 S-09
3 S-11
4 S-14
Signal Information
Channel 154
Frequency 205.50 Mhz
Quality 99
Strength 22

Sound Mode: Changes the sound mode in sequence:
Standard Music Movie Sports Personal. You may
select the sound mode by pressing S.MODE button repeatedly.
Treble: Changes the value of treble with the key
in the range of 0 to 100.
Bass: Changes the value of bass with the key in
the range of 0 to 100.
Balance: Changes the value of balance with the key
in the range of -50 to +50.
Auto Volume: Changes the auto volume mode to “On”
or “Off”.
SPDIF Mode: Changes the SPDIF mode in sequence:
Auto Off PCM.
AD Switch (For DTV only): Press button to this
position, then press or OK button to enter. Press b/a
button to select the audio descriptor to On or Off as well
as adjust the volume of the AD.
11
2 PICTURE MENU
The image on the left depicts the picture menu.
The definition of each option:
Picture Mode: Changes the picture mode in sequence:
Dynamic Standard Mild Personal. You may select
the picture mode by pressing P.MODE button repeatedly.
Contrast: Changes the value of contrast with the key
in the range of 0 to 100.
Brightness: Changes the value of brightness with the
key in the range of 0 to 100.
Colour: Changes the value of colour with the key
in the range of 0 to 100.
Tint: Changes the value of tint with the key in the
range of 0 to 100 (For NTSC signal only).
Sharpness: Changes the value of sharpness with the
key in the range of 0 to 100.
Colour Temp: Changes the colour temperature
in sequence: Cold Normal Warm.
Noise Reduction: Changes the picture noise reduction
in sequence: Off Low Middle Default.
3 SOUND MENU
The image on the left depicts the sound menu.
The definition of each option:
MENU Return
Move OK Select EXIT Exit
Picture Mode
Contrast
Brightness
Colour
Tint
Sharpness
Colour Temp
Noise Reduction
Personal
50
50
50
50
30
Normal
Middle
SOUND
MENU Return
Move OK Select EXIT Exit
Sound Mode
Treble
Bass
Balance
Auto Volume
SPDIF Mode
AD Switch
Standard
50
50
0
Off
Auto
Off
AD Switch
AD Volume 30
Menu
On

12
4 TIME MENU
The image on the left depicts the time menu.
The definition of each option:
Clock (For DTV only): Display the current system time.
It’s not available.
Time Zone (For DTV only): Press p/o/b/abutton to
set the proper time zone according to your region.
Sleep Timer: Set the sleep timer to put automatically
the TV in standby mode. Timer can be selected as 10,
20, 30, 60, 90, 120, 180, 240 and 0 Min(Off). You may
select the sleep timer by pressing SLEEP button
repeatedly.
Auto Standby: The options are Off, 3 H, 4 H, 5 H. You
can set the main unit to turn off automatically when there
is no signal in a preset time (1 minute while the input
source is "PC").
OSD Timer: Changes the OSD timer as 5 S, 10 S,
15 S, 20 S, 25 S, 30 S.
TIME
MENU Return
Move OK Select EXIT Exit
Sleep Timer
Auto Standby
OSD Timer
Off
Off
Clock -- -- -- --
15 S
Time Zone NSW/ACT
5 LOCK MENU
The image on the left depicts the lock menu.
The definition of each option:
Lock System: Press o/pbutton to select Lock System,
then press aor OK button to select On or Off which
enables or disables below lock functions.
Password: Enter the default password “0000” to go to
the LOCK function menu if you have set Lock System
to On.
Set Password: Set a new password.
Block Program: Add or release a lock to some special
program. When watch a locked program, a dialogue box
appears. You should
enter the correct password. The
initial password is “0000”.
Parental Guidance (For DTV program only):
Set the parental guidance level.
Key Lock: Set to On, the keypad on the main unit except
POWER button cannot work.
Hotel Mode: Set the hotel mode function.
LOCK
MENU Return
Move OK Select EXIT Exit
Lock System
Set Password
Block Program
Parental Guidance
Key Lock
Hotel Mode
Off
NO BLOCK
Off

13
Set Password: You can change the password by entering
the old and a new password and then re-entering it to
confirm the new one.
Block Program:
Press Green button to lock the desired
channel, press it again to unlock it.
Parental Guidance (For DTV program only): Press
o/pbutton to set the parental guidance level.
Please enter old password
Please enter new password
Confirm new password
Clear Cancel
350 DVB-4-1
351 DVB-4-1
352 DVB-4-1
353 DVB-4-1
Menu
Lock
Block Program
DTV
DTV
DTV
DTV
OK
BLOCK ALL
G
PG
M
MA
AV
Parental Guidance
OK Menu

14
Hotel Mode: Have the priority than other options below.
To set below options, this item must be set to “On” firstly.
Source Lock: To set the input source item which you
want to be locked.
Default Source: To set the default input source when
you open the TV main unit.
Default Prog: To set the default ATV channel program
when you power on the TV.
Max Volume: To set the maximum volume value.
Clear Lock: To clear all the locks.
HOTEL
MENU Return
Move OK Select EXIT Exit
Hotel Mode
Source Lock
Default Source
Off
Off
1
Default Prog
Max Volume
Clear Lock
100
6 SETUP MENU
The image on the left depicts the setup menu.
The definition of each option:
SETUP
MENU Return
Move OK Select EXIT Exit
OSD Language
TT Language
Hearing Impaired
PVR File System
Aspect Ratio
Blue Screen
First Time Installation
Reset
Software Update (USB)
English
West
Off
16:9
On
OSD Language: Changes the OSD language as
English Spanish French Italian German.
TT Language: Set the teletext language.
Hearing Impaired (For DTV only): Changes the
hearing impaired mode to “On” or “Off”.
PVR File System (For DTV only): To check the USB
connected and provide with the recording function.
Aspect Ratio: Changes the aspect ratio in sequence:
Auto 4:3 16:9 Zoom 1 Zoom 2 Just Scan.
(“Just Scan” is panoramic display, so black edging
may appear according to the data rate. “Auto” and
“Just Scan” may be not available in some sources.)
Blue Screen:
Set to “On”, blue screen displays; set
to “Off”, blue screen disappears.
First Time Installation: Set relevant options including
OSD Language and Channel Tuning. Please refer to P8
for concrete operations.
Reset: To set all the options to factory setting
(Set this option only when it is necessary).
Software Update (USB): To update software by using
USB.
PVR File System (For DTV only): Firstly insert USB
device to the USB1/2 port, and press o/pbutton to choose
“Check PVR File System”, then press OK button to start
checking. This process needs some seconds. If it finishes,
the word “SUCCESS” will be shown after “Check PVR
File System”, and the speed will be shown on the menu
as well. Now you can record and save the DTV programme.
Note: Hard disk with self-contained power is suggested to
be used.
Select Disk
Check PVR File System Start
USB Disk
Format
Time Shift Size
Free Record Limit 6 Hr.
Speed
Menu
C:
OK

15
Press button on the remote control to start recording
the programme. “ ” mark appears at the top left corner
of the TV screen, and the title bar appears at the bottom
which includes the recording information. You can press
b/abutton to select one function you want to run, then
press OK button to operate.
Press EXIT button to hide the title bar.
You can press relevant buttons on the remote control
to perform such functions directly.
Press REC.LIST button to display the recorded list.
Press o/pbutton to select the desired one, then press
OK button to play the recorded programme.
Press Red button to delete the current list.
Press Green button to show the list’s information.
Press INDEX button to sort all the programs according
to Programme, Channel or Time.
1. Press SOURCE button to change from ATV to other
available inputs.
2. Press button to select signal source.
3. Press OK or button to confirm.
4. Press EXIT button to exit signal souce menu.
Play FB FF Prev. Next Pause Stop
9 Nine Digital 15:51
[00:00:59]
(0000:23:40)
Delete
Recorded List Programme
OK Index
INFO
HI-1
HI-2
HI-3
HI-4
HI-5
Input Source
ATV
DTV
Media
AV1
AV2
S-Video
PC
Componet1
Componet2
HDMI1
OK
Input Source
HDMI2
OK

17

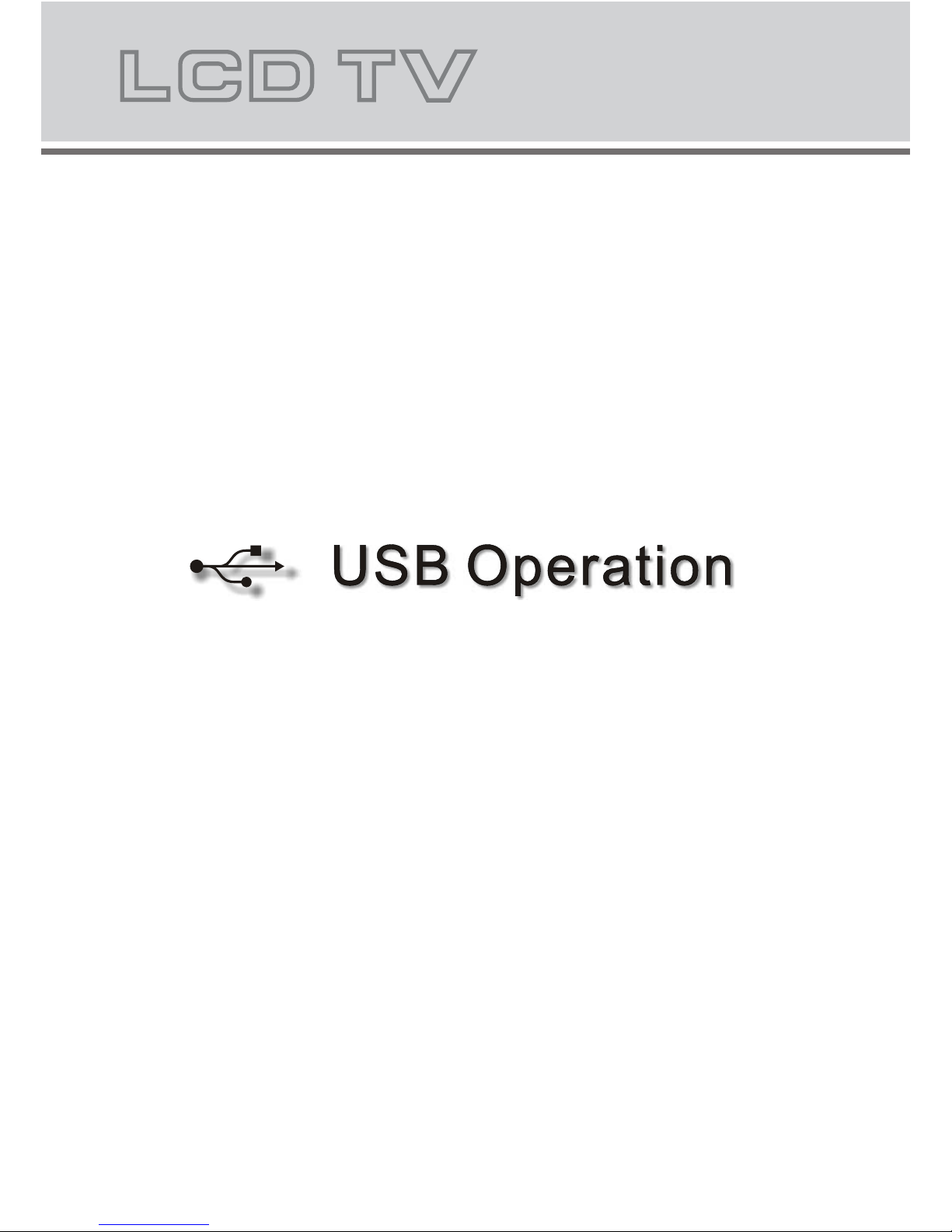

Before operating Media menu, plug in USB device in USB1/2 port, then press SOURCE
button to set the input source to Media.
Press o/pbutton to select Media in the source menu. then press OK or abutton to enter.
Press b/abutton to select the submenu: PHOTO, MUSIC, MOVIE or TEXT, and press OK
button to confirm.
This product can play the following formats of USB.
MUSIC
MOVIE
TEXT
Mode Type Supported Format
Basic operation
Supported USB format
PNG / JPEG / BMP
WMA / MP3
AVI / DAT / MP4 / MPG
TXT
USB menu
Press b/abutton to select “PHOTO”, then
press OK button to enter.
Press b/abutton to select “Return” option to
back to the previous menu. Select “C” option
to enter.

18
Press b/abutton to select the file you want
to watch in the file selecting menu.
When highlighting the option you select, the
file information will appear on the right and
picture will be previewed in the center.
Press OK button to start a slideshow.
Press Red button then select “Yes” or press
OK button to delete the file selected.
Press INFO button to show the menu in the
bottom, and you can press b/abutton to
select one function you want to run, then press
OK button to operate.
Press EXIT button to return to the main menu.
You can press relevant buttons on the remote
control to perform such functions directly.
lbutton: Pause or resume playing.
f/ebutton: Skip to previous or next picture.
nbutton: Stop playing and return to the main
menu.
MUSIC
Press b/abutton to select “MUSIC”, then
press OK button to enter.
Press b/abutton to select the file you want
to listen in the file selecting menu.
When highlighting the option you select, the
file information will appear on the right and
song will be played automatically.
EXIT Exit EXIT Exit
EXIT Exit
