Kogan SMARTERHOME G60 User manual

KOGAN SMARTERHOME™
G60 ROBOT VACUUM
WITH MOPPING FUNCTION
KAVACRBG60A

Attention
Although children over the age of 8 and those with physical, sensory or mental dysfunction
or those without relevant experience can use this product, but they need to be used in a safe
manner under supervision or guidance and understand the hazards involved. Children
should not play with this product. Children should not clean and maintain this product
without supervision.
WARNING!
Do not touch the robot's electronics, battery or cradle. Users do not maintain internal groups
of products pieces. Repair of the product requires authorised service personnel to operate.
Please ensure that the power supply rated voltage of the charging stand meets the standard
socket power pressure.
Safety instructions
•Read the safety precautions and operating instructions before operating the robot.
•Please pay attention to the battery, power adapter, robot and all warnings in the
instruction manual.
•Please follow all instructions and instructions for use.
•Please note that seller is responsible for all non-routine maintenance.
•The damage caused by the wrong operation and the degree of damage are as
follows.
Warning
Indicates a potentially hazardous situation that, if not avoided,
could result in death or serious injury.
Attention
Indicates a potential hazard that could result in minor or
moderate injury if not avoided.
Label
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
SAFETY & WARNINGS

Product safety matters
Warning
•This product is limited to the original battery cradle
and adapter.
•Do not use this product if the host and accessories
of the product are found to be damaged.
•Do not touch the power plug or product when your
hands are wet.
•Do not use in a suspended environment without a
guard bar.
•Do not use the power cord to drag or move the
product.
•Do not allow the product to be near fire or near
flammable, explosive and corrosive materials.
•Do not let clothes or any part of the body (hair,
fingers, etc.) to touch the device when in use.
Attention
Only use for inside
Prevent inhalation of water,
oil or other Liquid.
Finishing the ground before
use. Remove disordered
wires to avoid interference.

Remove all consumables
before use.
Grasping the front shell and
lifting the robot is prohibited.
Please hold the body with
both hands to lift vacuum
cleaner.
Non-original adaptation is
strictly prohibited the
charging base is used to
charge the machine or will
cause damage to the
machine.
Children Safety
•Do not allow child to use alone.
•Children are not allowed to play with the product's packaging, otherwise it may
cause suffocation.
Battery
•This product is limited to the manufacturer's battery;
•The battery must be taken out when discarding.
•If you need to replace the main battery, please contact
after-sales service department if you use the wrong
type of battery.
•If the battery leaks and accidentally let the liquid stick
to the skin or clothing, immediately wipe it with a dry
cloth.

Main Unit x1
Charge base x1
Power Adapter x1
Water tank x1
Manual x1
Side brush x4
Mop for robot x1
Remote control x1
Mid brush x1
Tip:The battery has been installed in the robot.
COMPONENTS LIST

OVERVIEW
Spot Clean
Turn ON (Press 2
second)/Automatic
Clean (Press once)
Bumper
Cover Switch
Auto Charging
Front
Sensor
Left Brush
Air Outlet
Left Wheel
Brush
Main Wheel
Right Brush
Right Brush
Water Tank
Outlet
Bottom

Dust Box Press Button
Cover
Filter
Dust Box
Cover
Box
Charging
Charge Light
Chip Pole Piece
Input
Adaptor
Chip Pole Piece

Dust Box Installation
•Take out with the handler, put in right place
Mop Install
1. The back of the machine shall be
placed upside down.
2. Open the fixed switch and replace the
middle brush.
3. Tear the protective pastes and reveal
the magic paste’s rubber surface
4. Let the rubber surface downward and
keep the back of the machine clean
and free of dust as well as water.
5. As shown in the figure, paste the
magic paste.
6. Be careful that the magic paste shall
not block the water outlet.
7. Install the mop.
8. After cleaning the mop, it can be used
repeatedly. Paste the flagship magic
paste on the machine and don’t pick it
off.
INSTALLATION
Handler

Install App
Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS).

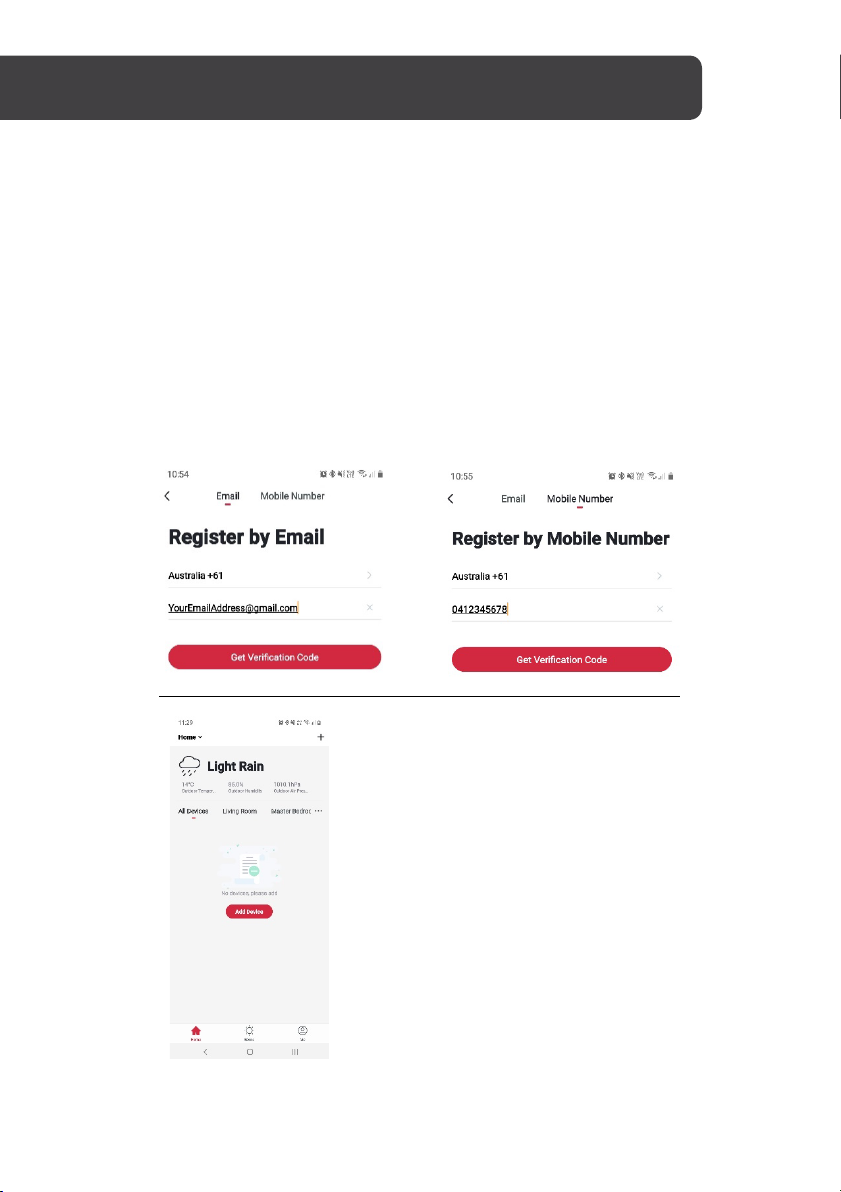

Register
If you do not have a Kogan SmarterHome™ account, register or sign in with a verification
code sent by SMS.
To register:
1. Tap to enter registration page.
2. The system automatically recognises your country/area. You can also select your
country code manually. Enter your email address and tap ‘Next.’
3. Alternatively, you can select ‘Register by mobile number’ and enter the verification
code sent to you by SMS.
4. Create a profile on the next page to define your location and room.
5. Once registered, tap “+” in the
upper right corner of the app’s
home page to add a new
device through the network.
CONNECT TO SMARTERHOME™ APP

Set device in pairing mode
When the device is first turned on, it may automatically enter pairing mode (the indicator
light will be continuously flashing).
If not, you can manually set the device in pairing mode while the sweeping robot is in
standby mode by long-presssing “hold” and “auto” buttons simultaneously for 5 seconds.
The buzzer will sound as it enters the network configuration mode, and the indicator light will
begin flashing.

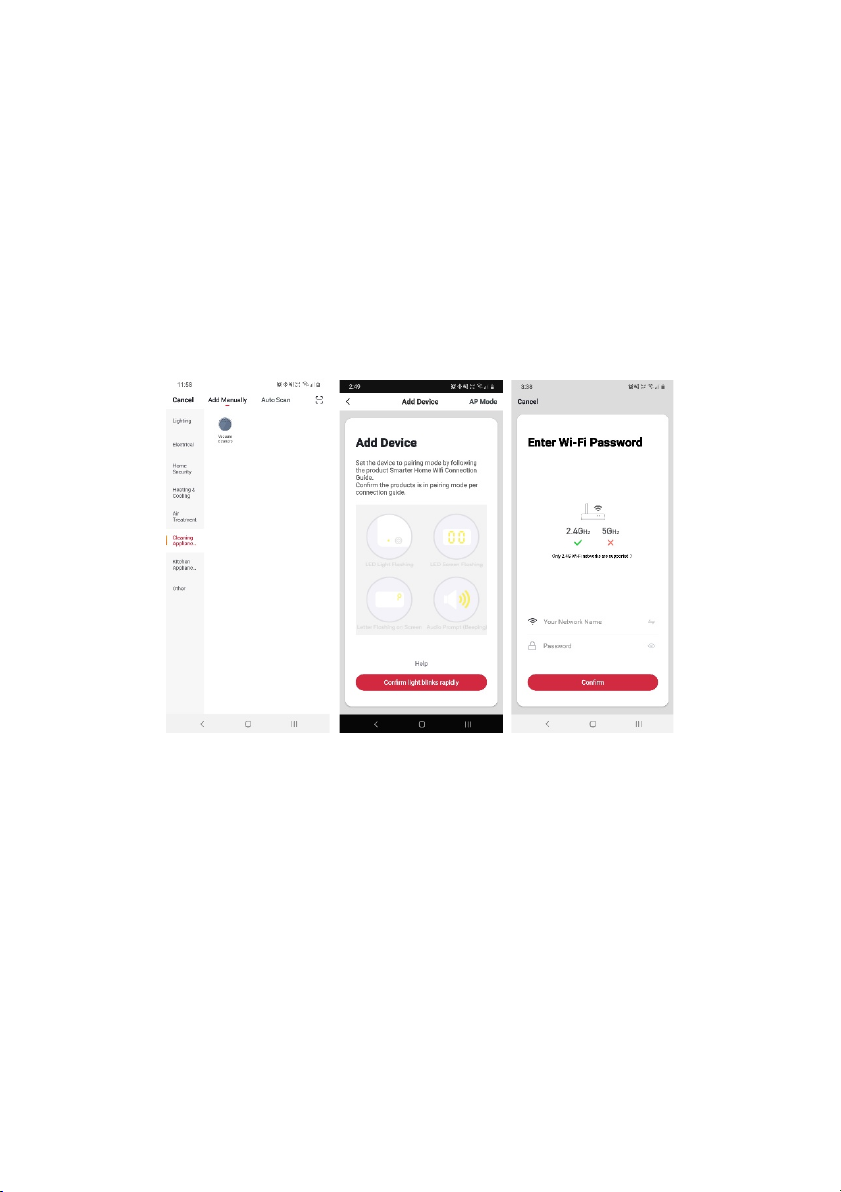

Add device through network
5. Ensure that the device is in pairing mode, with the indicator light rapidly flashing,
and tap “Confirm light is rapidly flashing”.
6. Select Wi-Fi network (note: network must be 2.4GHz band) and enter the
password. The device will commence the pairing process and connect to the app.
7. After successfully adding the device, it will be shown on the home page. Tap to
enter its control page.

Please take out the foam strip and clean the area around the robot.
Ground for Use
OPERATION
Foam
Foam
Scope of application Products are applicable to the
following ground environment:
Wood Marble

Inapplicable Scope
•Not suitable for use in extremely hot (+60°C or
higher) or extremely cold (-5°C or lower)
environments.
•Only use for indoor.
•Cannot be used in a suspended environment
without a protective fence.
•Do not use in wet or flammable, explosive or
corrosive environments.
•Do not allow the product to absorb unburned
cigarettes or matches.
•It cannot be used to absorb toner and toner
used in laser printers and copiers.
•Do not use to absorb sharp objects, such as
glass sheets, nails, etc.

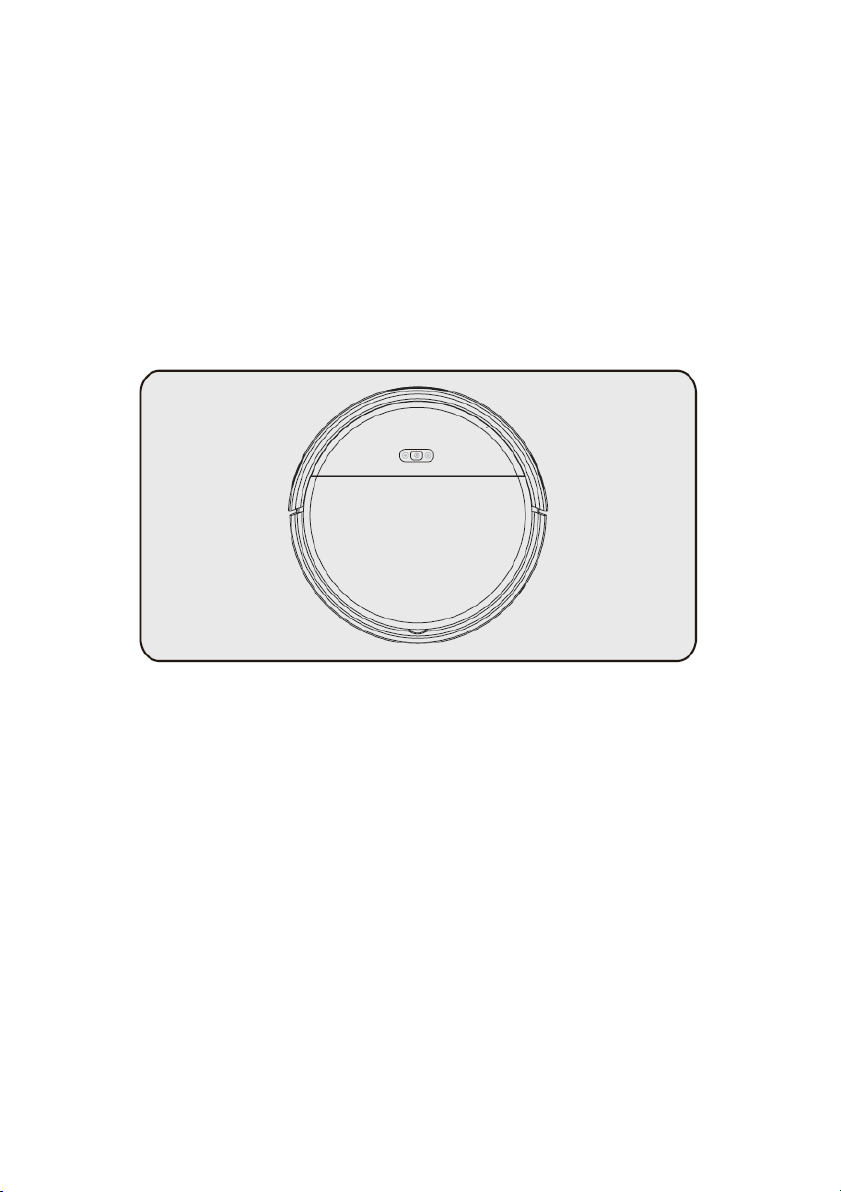

Working State
1. Power off
When the machine is off, please press and hold the "auto" button. The LED stops flashing
and goes into standby state.

2. Standing by
The machine is in standby mode and both LEDs are on at the same time. State change:
1. If the machine is not operated, the machine will automatically shut down after 5
minutes in standby.
2. Short press the auto button once, the buzzer will sound once and the automatic
cleaning mode will be entered after a delay of 3 seconds.
3. Press the "fixed-time" button for a short time, the buzzer will sound and enter the
fixed-time cleaning mode.
4. Press and hold the auto button for 3 seconds, the buzzer will sound and the
machine will shut down.
5. Plug in the charger and the buzzer will sound and enter charging mode.
3. Automatic Cleaning
The machine is in the automatic cleaning state and the automatic cleaning LED lights up.
State change:
1. Press the automatic or fixed-time button on the machine, the buzzer will sound and
enter the standby mode.
2. Press the spot button, buzzer sounds 3 times and enters the automatic spot
cleaning mode.
3. The fault is detected, the error mode is entered and the machine alarms.
4. When the charger is plugged in, the buzzer will sound and enter the charging
mode.

4. Cleaning at fixed time
In cleaning state at fixed time, LED light will be on when it cleans at a fixed time. Cleaning
at fixed time mode is suitable for cleaning a small dirty area at home. The machine cleans
this area in a bow shape, stops after the cleaning and enters the automatic recharging
mode.
State change:
1. Press the automatic or fixed-time buttons on the machine, with the buzzer sounds,
it enters the standby mode.
2. When the battery power is low, buzzer will sound 3 times, then the machine will
enter automatic recharge mode.
3. If it detects the fault, it will enter the wrong mode and the machine will alarm.
Auto cleaning route

5. Charging mode
In charging state, automatic cleaning mode, LED light will flash, indicating charging. When
it is full of electricity, automatic cleaning LED light will be on.
The following functions are available while robot is charging.
Press the auto button or the spot button on the top of the machine, the buzzer will sound
once and the machine will enter the automatic cleaning mode or the spot cleaning mode
after exiting the charging stand.

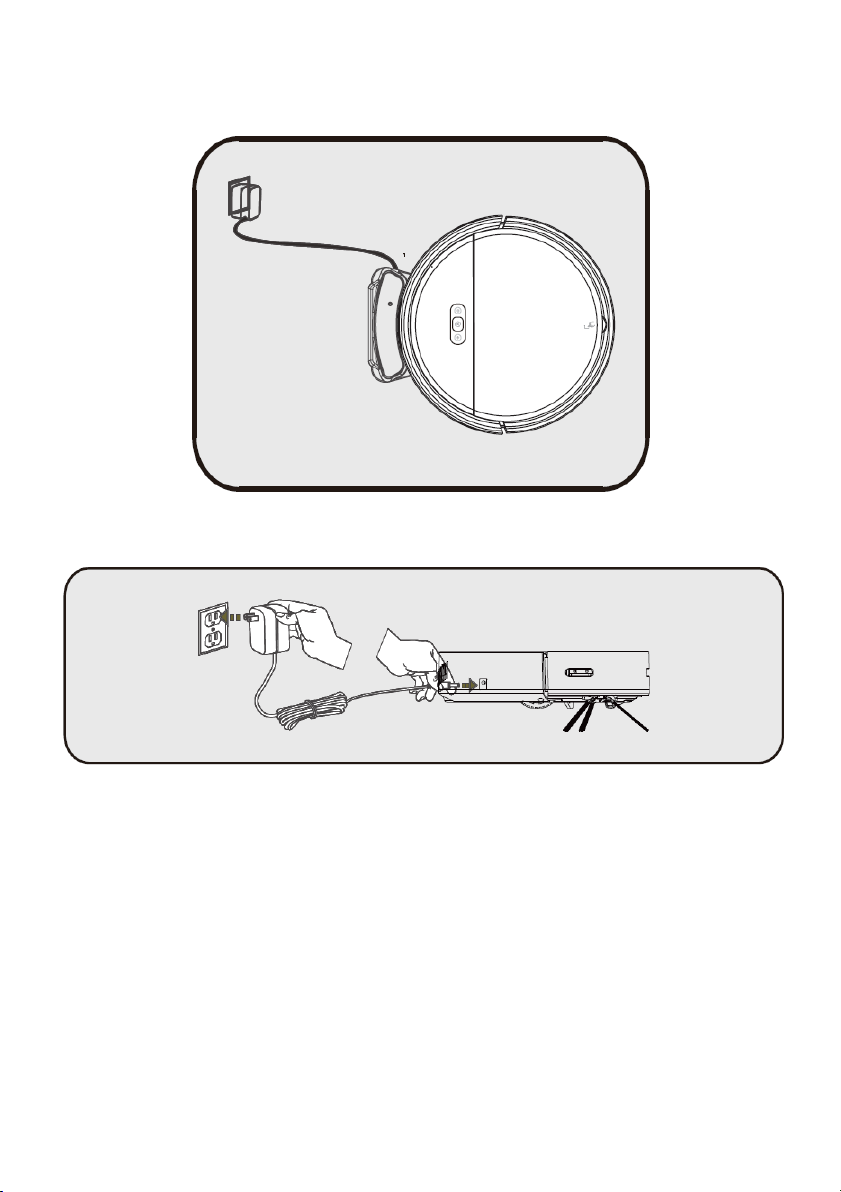

Charging Operation

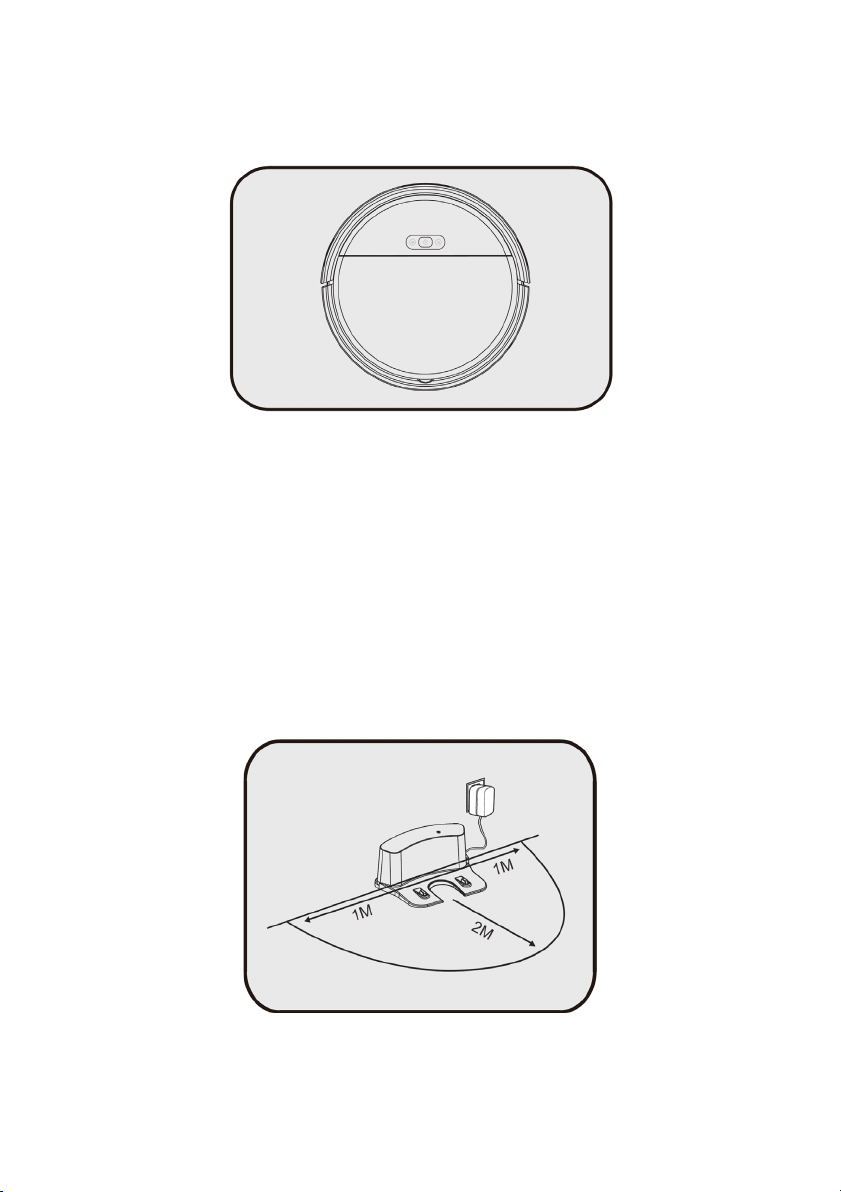

1. Put charger in right place
In order to help the machine to find the charging base in time, it is recommended to place
charge base smoothly on the side of the wall and do not place any obstacles around the
base within the area of 2 metres at front and within 1 metre to the left and right.

2. Self-Charging
When the battery is lower it will automatically start searching for charge base around the
machine.
3. Manual charging
Connect the power adapter directly to the machine and output.
1. Fill the robot for 12 hours when charging for the first time.
2. For daily using, store the machine on the charging stand and ensure that the
charging stand is powered on.
3. If the machine is not used for a long time, charge the machine fully, turn off the
machine and store it in a dry and ventilated place.

App Control Operation
Tips: App transmission distance depends on your Wi-Fi signal
Power off Button
•Press "Power Off" Button, to turn off the robot.
Stand By
•Press the "standby", pause the robot into standby mode
Auto Button
•Press "Auto", buzzer rings once, the robot will enter to auto cleaning mode.
Edge Button
•Press "Edge", buzzer rings once, the robot will enter to edge cleaning mode to clean
along the edges of the wall.
Spot Button
•Press "Spot" button, buzzer rings once, the robot will enter to spot cleaning mode to
start cleaning specific areas.
Auto Charging Button
•Press "Auto Charging", buzzer rings once, enter to auto recharging mode.
Manual mode (You can choose to withdraw)
•Press manual button to enter human operation mode.
Start/Pause
•To start cleaning.
•To stop current cleaning mode.
Direction button
•The robot will move according to selected direction. (Press the left/right for once,
choose the direction you want robot to move, then press the forward/back)

Schedule Button
•Press "Add Schedule", enter schedule page to set a cleaning time.
•Select a time you wanted and save it.
•Click "save" on the top right corner.
•Click "√"to cancel the schedule.
Remote Control
Power button
In the standby mode, press the button to enter the sleep state, press twice to enter standby
mode.
In any working mode of the machine, press once to enter standby mode. Press twice to go to
sleep.
Note: The power button can't turn on/off the robot cleaner, currently only supports manual
turn on/off.
Auto charging
When the machine is in standby or working state, press the button to enter the automatic
recharge mode.

Spot clean
In standby or other working state, press to enter the spot cleaning mode, which is suitable for
areas where garbage is concentrated and the robot performs cleaning for 3-5 minutes in the
designated area.
Auto clean
In standby mode or other working state, press the button to enter the automatic cleaning
mode. Robot will automatically clean the room.
Edge clean
In standby or other working state, press to enter the edge cleaning mode, which is suitable
for cleaning the garbage on the edges of the room.
Manual clean
Tu r n l e f t
Forward
Turn right
Backward
Pause/Start
