Kogan SMARTERHOME LX6 User manual

KOGAN SMARTERHOME™ LX6
ROBOT VACUUM CLEANER
KAVACRBL06A & KAVACACL06A

Usage Limitations
•This product is designed for floor cleaning in a home environment only and cannot
be used:
oOutdoors, such as open terraces.
oOn irregular or soft surfaces, such as a sofa.
oCommercial or industrial environments.
•Do not use the product in elevated areas such as a penthouse, an open terrace or
furniture top that does not have a protective fence at the robot's height.
•Do not use the product at a temperature of above 40°C or below 0°C or when
there are liquids or sticky substances on the ground.
•Remove cables from the ground before use to prevent damage to the robot and
other items.
•Clear fragile objects such as vases, plastic bags, etc. from the ground to avoid
damaging items and the vacuum.
•People with a physical or mental impairment should not use or operate the product
unless they have been given instruction to do so safely and understand the
products manual entirely.
•Children should not use the product. Please keep children and pets away when the
device is working.
•Keep the main brush and other cleaning tools out of reach of children.
•Do not place objects, including children and pets, on the machine.
•Please keep hair, fingers and other parts of the human body or pets away from the
suction inlet when the machine is working.
•Never allow the vacuum to come into contact with hot or burning items such as
cigarette butts.
•Do not use the product to clean long-haired carpet (some dark carpets may not be
cleaned normally).
•Prevent the vacuum from suctioning hard or sharp objects (broken glass, iron nails,
etc).
•Do not move the machine by holding the protective cover of the laser distance
sensor or collision bumper.
•Only clean or maintain the vacuum and the charging base while it is in a power-off
state.
SAFETY & WARNINGS

•Do not wipe any part of the product using a wet cloth or any liquid.
•Only use the product as outlined in this User Guide.
Battery and Charging
•Only use batteries, charging bases or chargers provided by Kogan.com.
•Do not dismantle, repair or modify the battery or charging base.
•Keep the charging base away from heat sources.
•Do not wipe or clean the charging base contacts using a wet cloth or wet hand.
Please do not abandon used batteries arbitrarily. Used batteries should be
disposed of by a professional recycling agency.
•If the power cable is damaged or broken, please stop using it immediately and
contact Kogan.com for support.
•Ensure the vacuum is powered off during transportation. The product should be
transported in original packaging where possible.
•If the machine is left unused for a long period, it should be fully charged and then
placed in a cool and dry place. Charge the machine at least every 3 months so as
to avoid damaging batteries due to excessive discharge.
Laser Safety Information
•The laser distance sensor of the product does not produce dangerous laser
radiation.

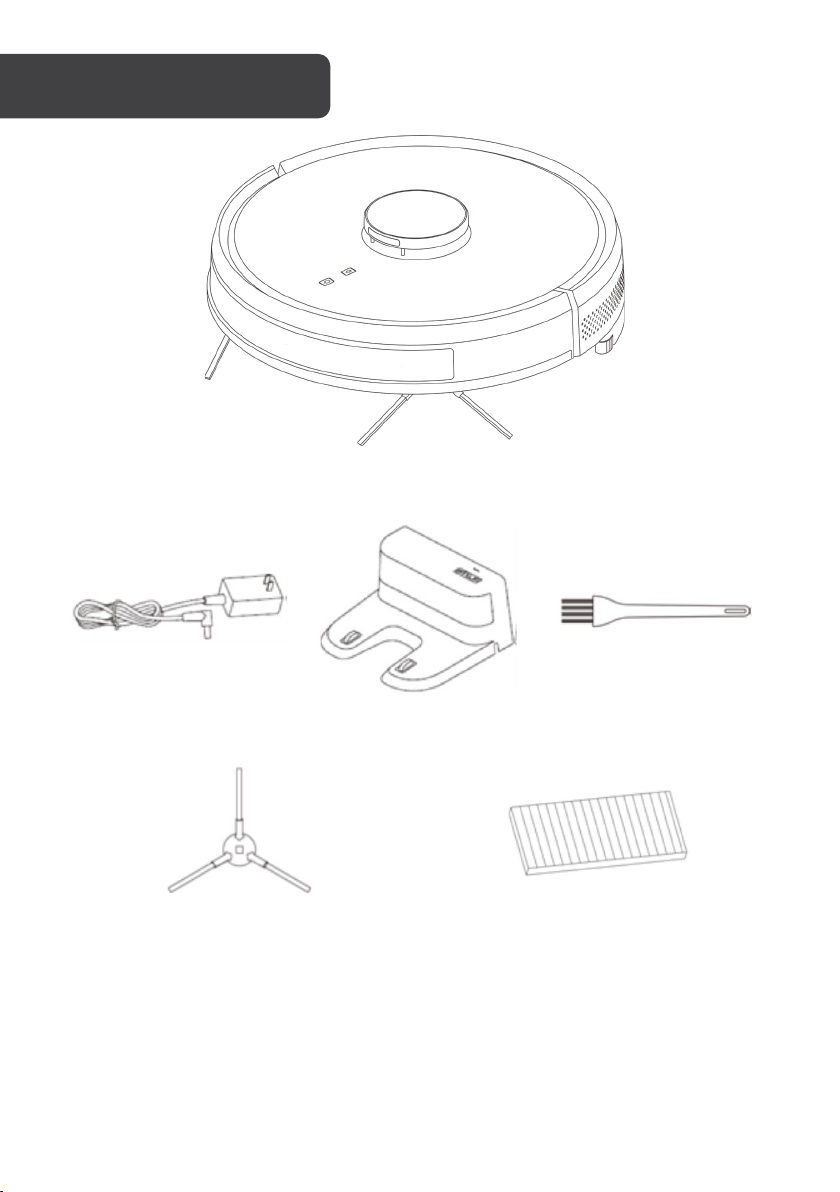

Kogan Smarterhome™ LX6 Robot Vacuum Cleaner (x1)
Power Adaptor (x1) Charging Base (x1) Dusting Brush (x1)
Left Side Brush (x2)
Right Side Brush (x2) HEPA Filter Screen (x1)
COMPONENTS

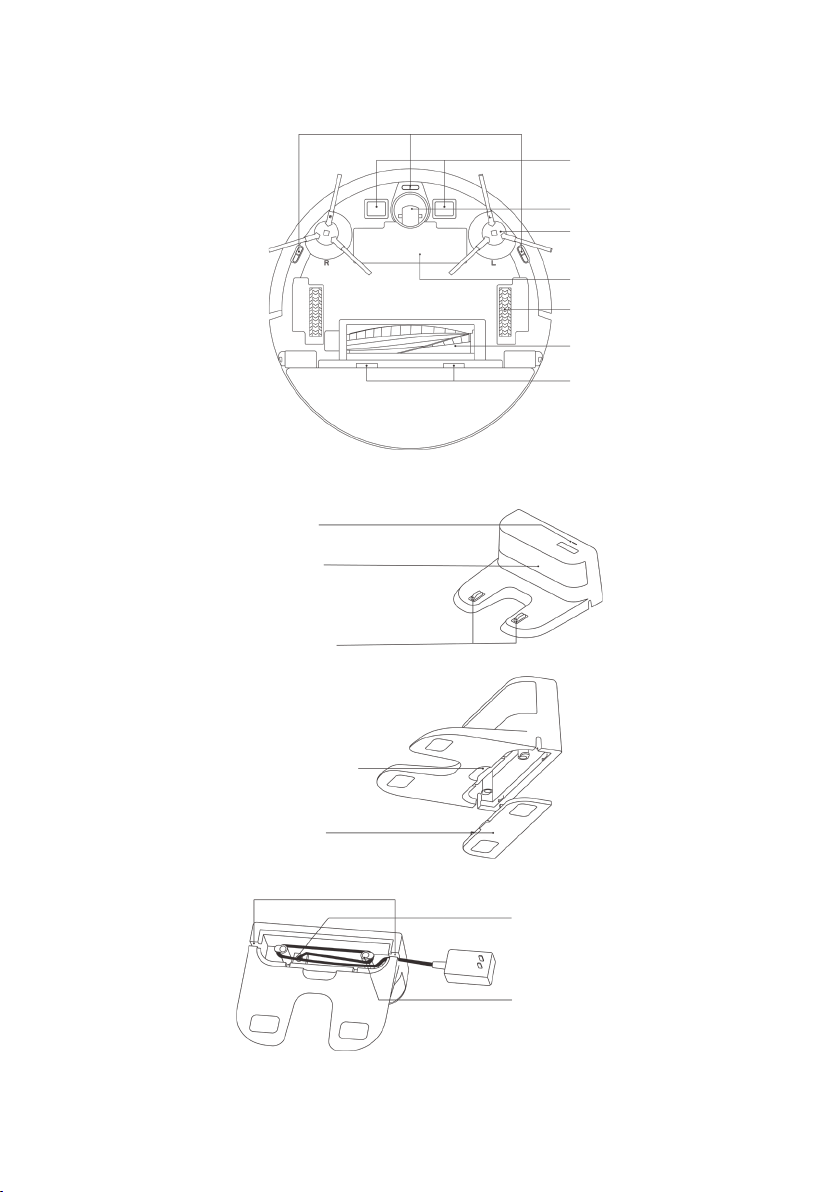

Vacuum
Sensors and Body
OVERVIEW
Filter Cover
Dust Box
Button
Firmware
Update Port
Reset
Button
Wall Sensor
Laser Distance
Sensor
Radar Avoidance
Sensor
Infrared
Avoidance Sensor
Charging Sensor

Sensors and Body (cont’d)
Charging Base
Charging
Contacts
Cliff Sensor
Omni-Wheel
Side Brush
Battery Cover
Wheels
Rolling Brush
Rolling Brush
Cover Latch
Power Indicator
Data Transmitter
Charging Contacts
Cover Plate Notch
Cover Plate
Power Port
Cable Organiser
Cable Groove

Connect the power adapter and wrap any surplus cable onto the cable organising posts in
the wiring duct.

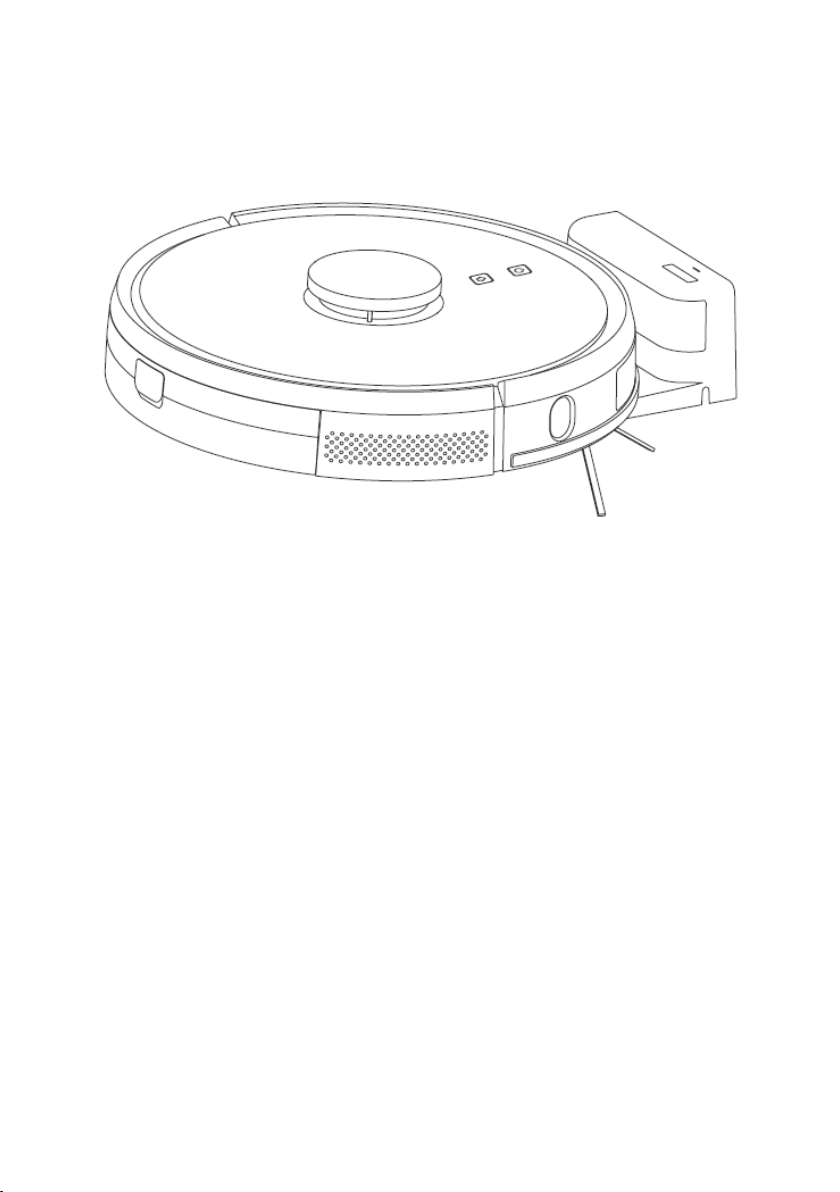

Place the charging base against the wall on a flat surface and connect the power.
Note:
•Ensure a space of at least 0.5m on both sides of the charging base and a space of
at least 1.5m in front.
•If the power cord is in a spot that may interfere with the operation of the vacuum, it
may be dragged by the vacuum, causing the charging base to lose power.
•The charging indicator is normally on when powered on and off when charged.
INSTALLATION

Avoid keeping the charging base in a location that will receive an excess of direct sunlight.
Note:
•If the charging base is relocated, the vacuum may lose its position and the map will
be lost. When the vacuum is restarted, the vacuum will rebuild the map. The new
map may lose data about out-of-limit areas.
•Direct sunlight will interfere with the recharging signal and consequently, the
vacuum may be unable to return to the charging base.
Installation of the Side Brush

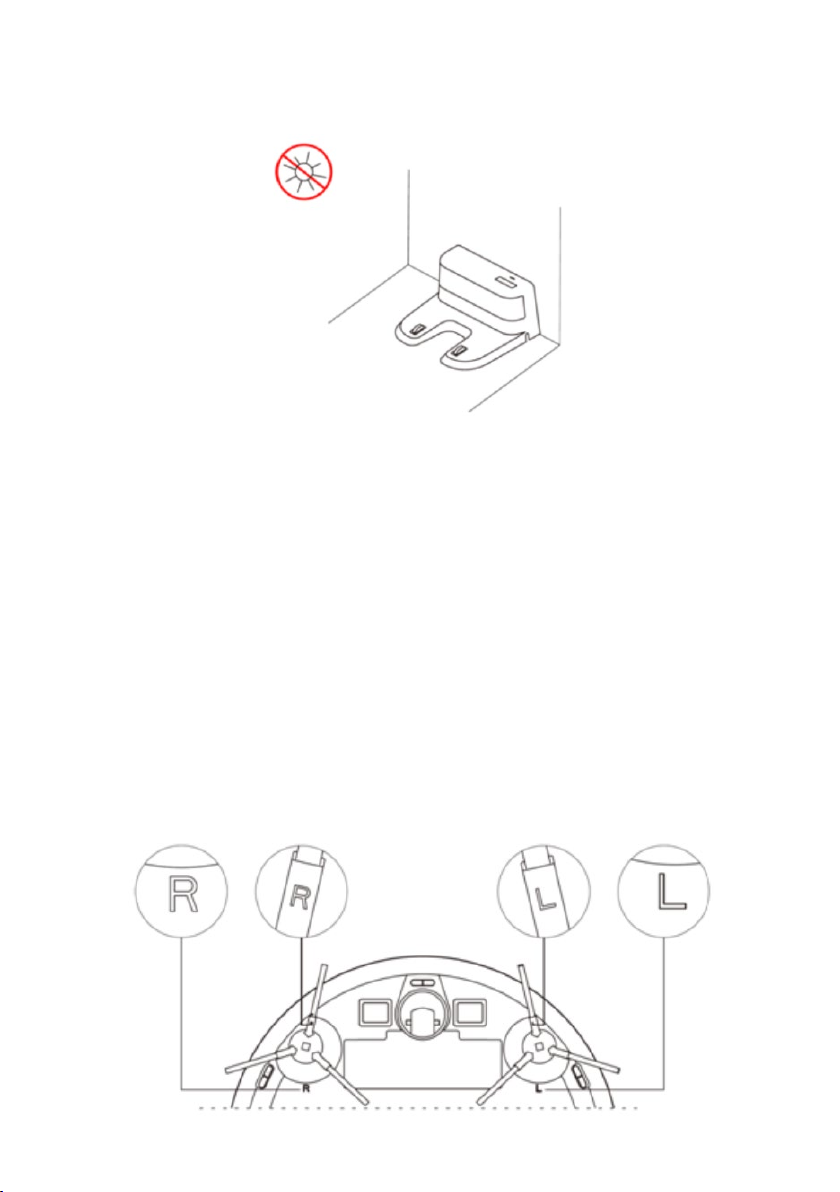

Match the left side brush ‘L’ and the right side brush ‘R’ with the ‘L’ and ‘R’ symbols on the
bottom casing. Press both brushes into their corresponding positions until you hear a click.

Start-up and Charge
Press and hold the “Power” button to start the robot. Charge the vacuum on the charging
base, and the indicator light will illuminate.
Note: If the device does not start due to low battery, manually move the robot and charge
the vacuum on the charging base for some time. The robot will only work normally when the
battery level is reaches 30%.
Cleaning
After the machine has charged, press the “Power” button on the vacuum, or use the mobile
app. Press any button to pause when in use.
Note:
•The robot cannot be used to remove liquids.
•If the battery level is less than 20%, the vacuum will not work. Please charge it.
•The machine will return to the charging base automatically if the battery level is
less than 20% when in use. The robot will power on and start cleaning
automatically after the battery level reaches 80%.
•Clear any cables, including the power cable, from the ground before use to avoid
damage or injuries.

Install App
Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS).
Register
If you do not have a Kogan SmarterHome™ account, register or sign in with a verification
code sent by SMS.
To register:
1. Tap to enter registration page.
2. The system automatically recognises your country/area. You can also select your
country code manually. Enter your email address and tap ‘Next.’
3. Alternatively, you can select ‘Register by mobile number’ and enter the verification
code sent to you by SMS.
4. Create a profile on the next page to define your location and room.
CONNECT TO SMARTERHOME™ APP

Set device in pairing mode
When the device is first turned on, it may automatically enter pairing mode (the indicator
light will be continuously flashing).
If not automatically in pairing mode when powered on, you can manually set the device in
pairing mode by holding down the Spot Clean button until the light begins flashing.
Using AP Mode to add device

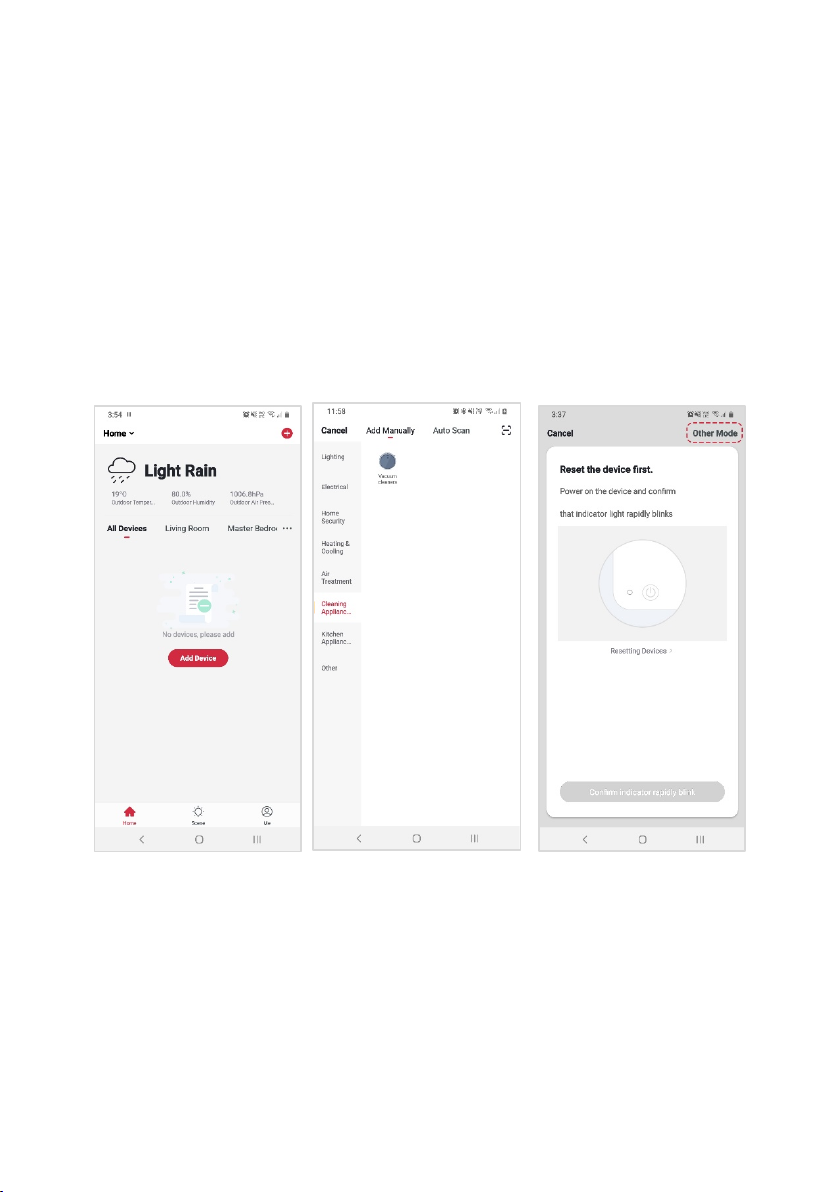

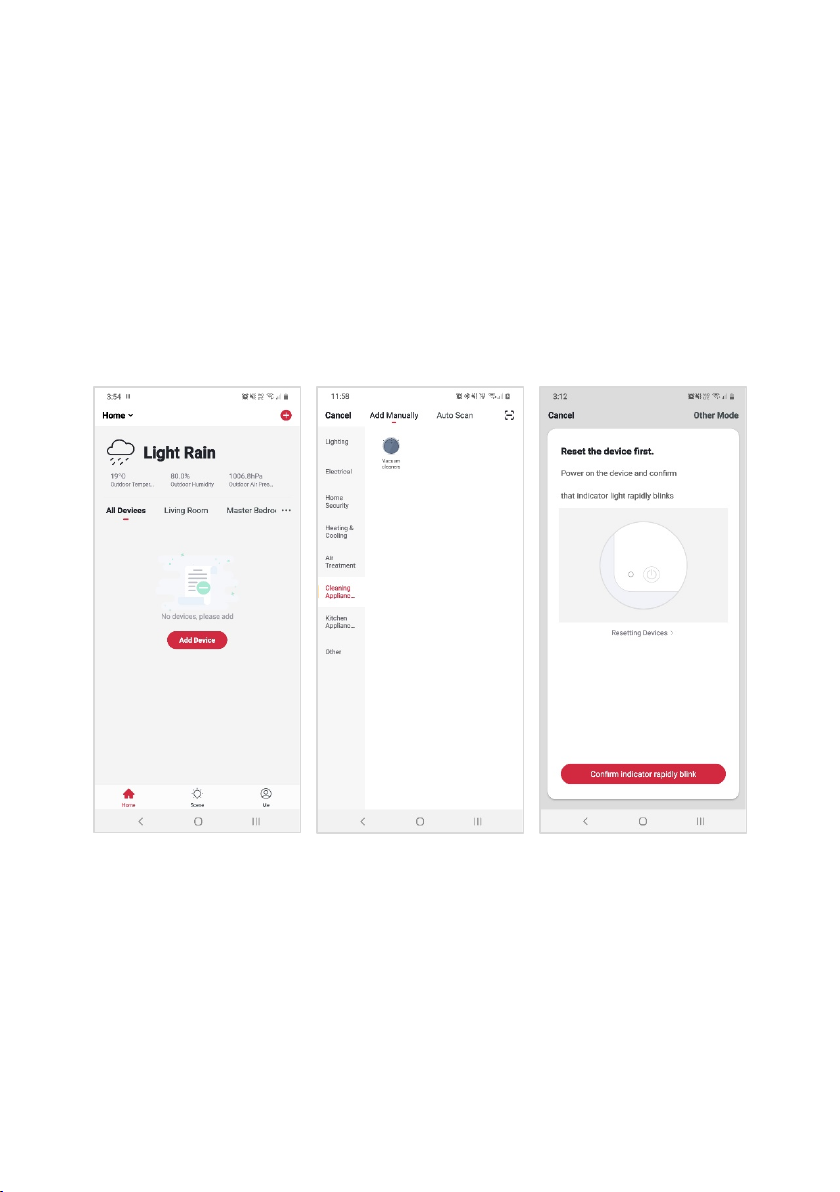

5. Once registered, tap “+” in the upper right corner of the app’s home page to add a
new device through the network.
6. Select the product type from the list of options in the app (Cleaning Appliances >
Vacuum Cleaners), and then select “Other Mode” from the top-right corner when
asked to reset the device.

7. Select “AP Mode” for the set-up type.
8. Ensure that the device is in pairing mode, with the light flashing, and tap “Confirm
light is slowly flashing”.

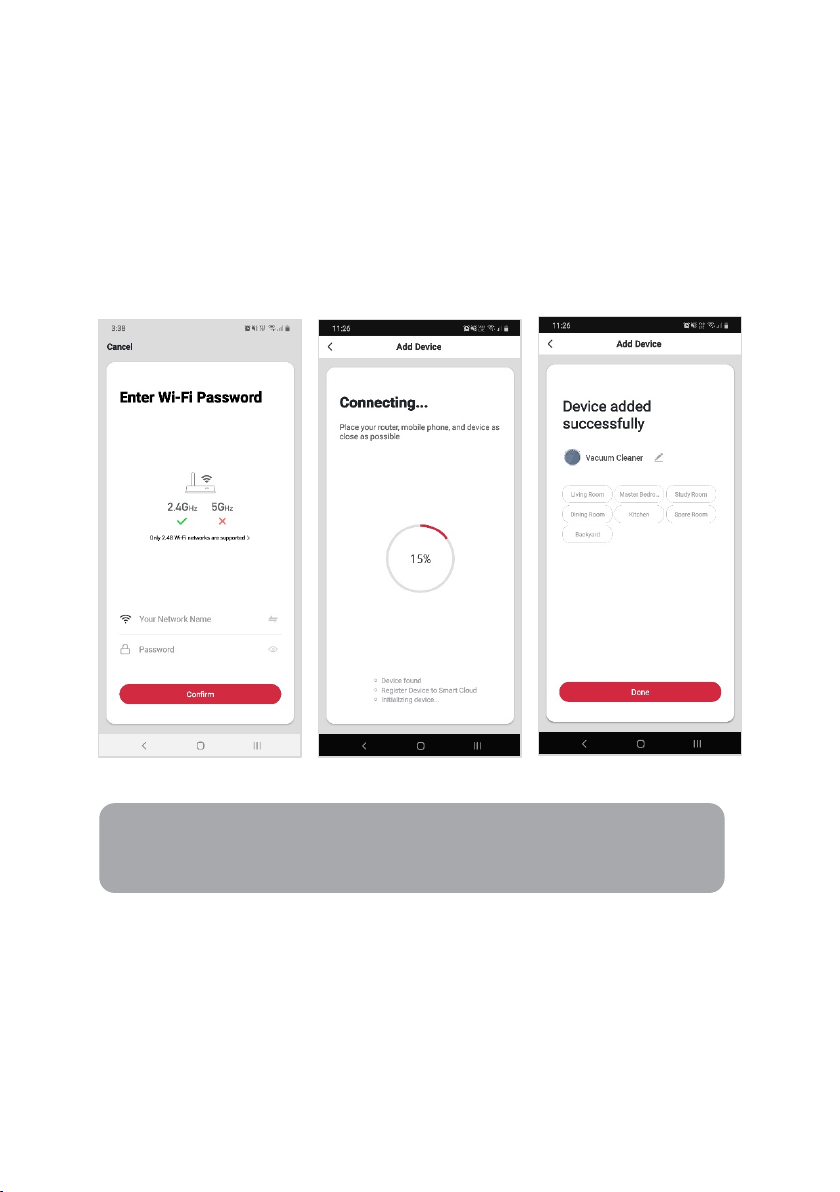

9. Enter your Wi-Fi details. It is important that your SmarterHome™ device and the
app are connected to the same Wi-Fi network during setup.

10. Follow the in-app prompts to continue AP Mode connection, which will pair your
mobile phone to the device’s Wi-Fi hotspot to ensure a connection.
11. The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
12. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
Updating the firmware
When you enter the device interface page for the first time, you may receive a “New device
firmware found” prompt. Select “Upgrade Now” and the device will download and install
the latest firmware.
Notes:
•The device and the app have to use the same Wi-Fi network.
•
The device is only compatible with 2.4Ghz networks.
Note:
If the Wi-Fi hotspot does not appear on your phone in the list of available
networks, your device may not be set in AP Pairing Mode correctly. Try repeating
the steps outlined above to ensure your device is ready for connection.

Having trouble connecting?
The prior steps detail the process for “AP Mode” connection. If that does not work for your
connection, we suggest trying it again, and if still no success, attempting the following
method for Standard (non-AP Mode) connection.
Add device through network
5. Once registered, tap “+” in the upper right corner of the app’s home page to add a
new device through the network.
6. Select the product type from the list of options in the app (Cleaning Appliances >
Vacuum Cleaners).
7. Ensure that the device is in pairing mode, with the indicator light flashing, and tap
“Confirm light is rapidly flashing”. In Standard mode, it will refer to rapid flashing,
not slow flashing.

8. Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important
that your SmarterHome™ device and the app are connected to the same Wi-Fi
network during setup.
9. The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
10. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
If neither Standard or AP Mode methods are successful, please contact kogan.com for
assistance.
Updating the firmware
When you enter the device interface page for the first time, you may receive a “New device
firmware found” prompt. Select “Upgrade Now” and the device will download and install
the latest firmware.
Notes:
•The device and the app have to use the same Wi-Fi network.
•The device is only compatible with 2.4Ghz networks.

Button Functions
Power Button
•Press to start vacuuming or pause.
•Press for 3 seconds to turn on or off.
•Press for 15 seconds for forced shutdown under abnormal circumstances.
Home Button
•Press to charge or pause.
•Long press to start spot cleaning.
Indicator light:
•Blue: Normal operation or charging.
•Red: Abnormal condition or low battery.
•Purple: Equipment is not connected to the network.
Reset Wi-Fi:
•Press the “Power” and “Home” buttons simultaneously for 3 seconds.
OPERATION
Power Button
Home Button

Turning ON/OFF
•Press “Power” button for 3 seconds, the indicator light will turn on and the machine
will start.
•Press “Power” button for 3 seconds when the machine is in standby mode, the
indicator light will turn off and the vacuum will shut down.
Sweep/Pause:
•After the machine has started, press the “Power” button on the vacuum or start the
machine using the mobile app, press any button to pause whilst in use.
Charging
•Automatic mode: The vacuum will return to the charging base automatically after
it is finished.
•Manual mode: Press the “Home” button to start charging. The indicator will
illuminate and slowly flash.
Fixed-Point Cleaning
•If a specific area requires deep cleaning, and you select a point on the map in the
app, the robot will move near to the area automatically and sweep the floor in a 2m
square. By default, it will clean the area twice, but the number of times can be set
in the app.
Note: The robot cannot shut down when it is being charged.
Note: If the vacuum fails to locate the charging base, it will return to its original position
automatically. Please put the vacuum back to the charging base manually.

Cleaning Mode

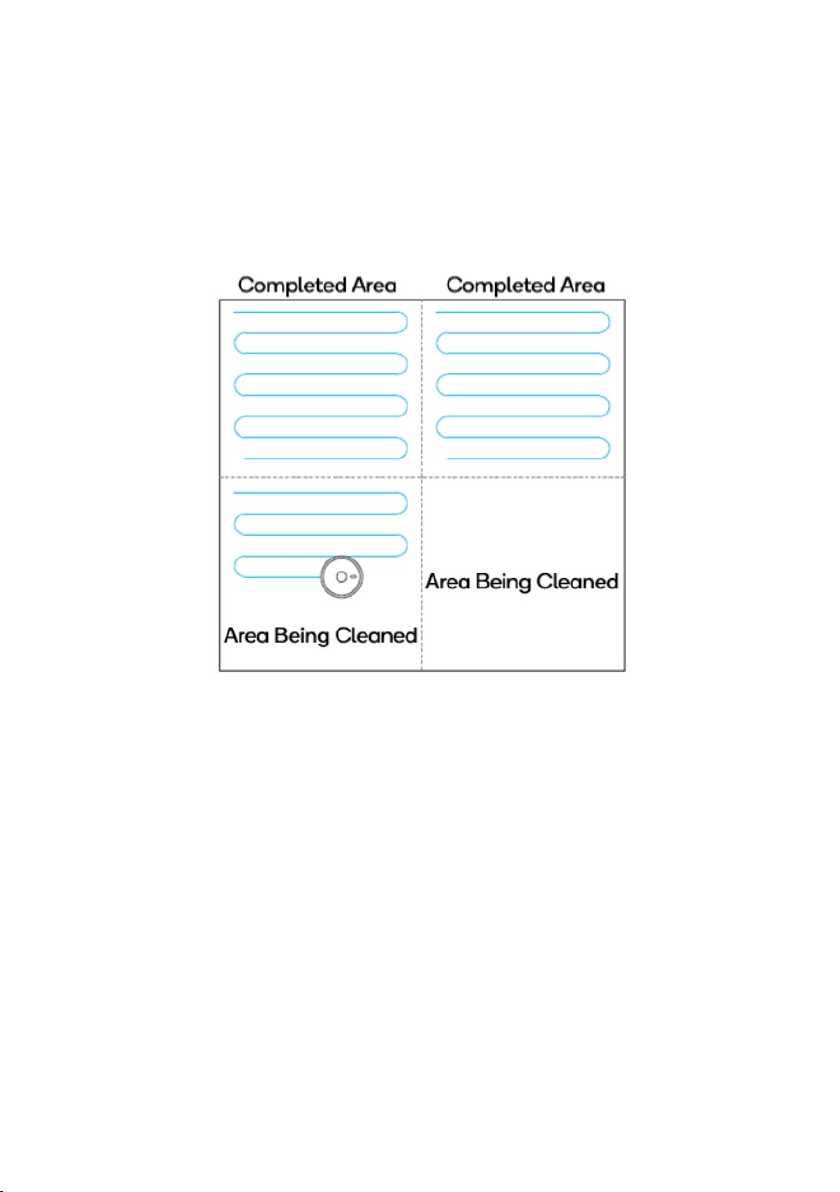

•After the robot starts, it will scan and generate a map and divide it into areas
automatically. The robot vacuum will vacuum areas one-by-one in an efficient
pattern. The machine will return to the charging base automatically after it is
finished, or if it is low in battery.
Do not move the machine during use. If the machine is moved, please put it back in the
position it was in and it will attempt to reposition itself when it restarts. If it is relocated
successfully, the vacuum will continue working according to the planned route. If it is not
successfully relocated, the robot will rebuild the map, but may not be able to be charged
without manual intervention.
Spot Cleaning
As an alternative to using the app, you can manually move the robot to an area for spot
cleaning. To activate spot cleaning press and hold the “Home” button for 3 seconds and the
robot will vacuum the floor twice in a 1.5 x 1.5m area.

Set Cleaning Area
•In the app, you can set the size and location of one or more areas to be vacuumed.
The robot will vacuum the set area twice by default, but this number can be
changed within the app.
Out-of-Bounds Area
•The app can be used to set one or more out-of-bounds areas. The robot vacuum
will not attempt to enter these areas. These areas can also be made permanent so
that the robot will never attempt to enter these areas during normal operation.
Note:
•Do not rely on set out-of-bounds areas to prevent damage or danger. On rare
occasion, the vacuum may enter these areas if it is moved during use, or if there is a
sensor or positioning error. Any areas that could be dangerous for the robot to go
should be blocked off as a precaution.
•Permanently forbidden areas may be lost if the robots base, or the surrounding
furniture, is moved during use. Please try not to move or interfere with the machine
during use.
•Permanently out-of-bounds areas will be lost if the map is rebuilt.
