Kohlbrat & Bunz RollUP RL2000RP Manual

Issue / Version V01-2021
This edition replaces all
previous versions and instructions
Operation & maintenance manual
RollUP Rescue Stretcher
Emergency & Rescue Systems
Made in Austria
KOHLBRAT & BUNZ GMBH
A-5550 Radstadt
http://www.kohlbrat-bunz.com/

Operation and maintenance manual RollUP - A02 01-2021
Page 2to 50
Valid for the following variants of the RollUP:
RL2000RP-V01/V02/V03
RL2000RS-V01/V02/V03
RL200RX-V01/V02/V03
RL2000RP-V11/V12/V13
RL2000RS-V11/V12/V13
RL2000RX-V11/V12/V13
RL2000RP-V21, RL2000RS-V21, RL2000RX-V21
RL3000RP-V01/V02/V03
RL3000RS-V01/V02/V03
RL300RX-V01/V02/V03
RL3000RP-V11/V12/V13
RL3000RS-V11/V12/V13
RL3000RX-V11/V12/V13
RL3000RP-V21, RL3000RS-V21, RL3000RX-V21
RL4000RP-V01/V02/V03
RL4000RS-V01/V02/V03
RL4000RX-V01/V02/V03
RL4000RP-V11/V12/V13
RL4000RS-V11/V12/V13
RL4000RX-V11/V12/V13
RL4000RP-V21, RL4000RS-V21, RL4000RX-V21

Operation and maintenance manual RollUP - A02 01-2021
Page 3to 50
Content
1INTRODUCTION .............................................................................................................................6
1.1 Important warnings...................................................................................................................................... 6
1.2 Explanation of terms / interpretations .........................................................................................................6
1.3 Introduction / Product description ...............................................................................................................7
1.4 Intended use ................................................................................................................................................7
1.5 Application possibilities................................................................................................................................8
1.5.1 Pulling on the ground (Straight terrain)..................................................................................................... 8
1.5.2 Transport by means of carrying handles .................................................................................................. 8
1.5.3 Horizontal salvage..................................................................................................................................... 8
1.5.4 Vertical salvage.......................................................................................................................................... 9
1.5.5 Adjustable rescue lifting bridle Balance................................................................................................... 9
1.6 Approvals: .................................................................................................................................................. 10
1.7 Identification.............................................................................................................................................. 10
2TECHNICAL DATA ROLLUP ..................................................................................................... 12
2.1 Modells ...................................................................................................................................................... 12
2.2 Lifting bridles.............................................................................................................................................. 13
3TESTS BEFORE COMMISSIONING - BY THE USER ............................................................ 17
3.1 Tests before use ......................................................................................................................................... 17
3.2 Safety regulations during operation ........................................................................................................... 17
4HANDLING DURING OPERATION .......................................................................................... 18
4.1 Preparing RollUP / Storing Patient ............................................................................................................. 18
4.2 Unroll ......................................................................................................................................................... 19
4.2.1 Assemble the cross braces and the footrest (Detail)............................................................................... 20
4.2.2 Installing the longitudinal strut................................................................................................................ 20
4.2.3 ................................................................................................................................................................. 20
4.2.4 Roll up...................................................................................................................................................... 20
............................................................................................................................................................................... 21
4.3 Patient positioning ..................................................................................................................................... 21
4.3.1 Additional information on patient storage.............................................................................................. 23

Operation and maintenance manual RollUP - A02 01-2021
Page 4to 50
5RESCUE OPERATION–TECHNICAL RESCUE....................................................................... 26
5.1 Notes for cableway operation and removal with helicopter....................................................................... 26
5.2 Helicopter rescue ....................................................................................................................................... 26
5.3 Pulling oft he RollUP.................................................................................................................................. 28
5.4 Vertical rescue............................................................................................................................................ 29
5.5 Horizontal rescue ....................................................................................................................................... 30
5.6 Implementation of the assembly................................................................................................................ 32
5.7 Water application accessories .................................................................................................................... 35
5.8 Use as ackja................................................................................................................................................ 36
5.9 Winter use.................................................................................................................................................. 36
6MAINTENANCE AND CARE....................................................................................................... 37
6.1 Cleaning and disinfection............................................................................................................................... 37
6.1 Drying......................................................................................................................................................... 37
6.2 Contact with salt water .............................................................................................................................. 38
7STORAGE ....................................................................................................................................... 38
8REPAIR WORK / EXCHANGE OF COMPONENTS ............................................................... 38
9TESTS / MAXIMUM SERVICE LIFE......................................................................................... 39
10 SERVICE LIFE: .............................................................................................................................. 39
10.1 Examination dates / occasions ................................................................................................................... 39
10.2 Testing before first use............................................................................................................................... 40
10.2.1 Periods of the periodical tests ............................................................................................................ 40
10.3 Extraordinary tests of the RollUP ............................................................................................................... 41
10.4 Documentation of the quality inspection / periodic inspection / other inspections ................................... 41
10.5 Sorting out ................................................................................................................................................. 41
10.6 Test points RollUP -- Before/after each use/application............................................................................. 42
11 PERIODIC REVIEW ROLLUP - ANNUAL REVIEW .............................................................. 42

Operation and maintenance manual RollUP - A02 01-2021
Page 5to 50
11.1 General (to be checked for all components) ............................................................................................... 42
11.2 Webbing..................................................................................................................................................... 42
11.2.1 Seams.................................................................................................................................................. 43
11.2.2 Metallic components .......................................................................................................................... 43
11.2.3 The material of the lying surface / struts............................................................................................ 44
11.2.4 Transportation backpack .................................................................................................................... 44
11.3 Antirotation set.......................................................................................................................................... 44
12 ERSATZTEILE............................................................................................................................... 45
13 - ANNEX 1- WEAR PATTERN ................................................................................................... 45
14 1 APPENDIX 2 - WARRANTY CARD....................................................................................... 47
15 CHECK CARD ................................................................................................................................ 48

Operation and maintenance manual RollUP - A02 01-2021
Page 6to 50
1Introduction
Thank you for choosing a high-quality rescue device from Kohlbrat & Bunz.
Before using it for the first time, please read this manual carefully. We expressly point
out that we assume no liability for damages resulting from improper use or disregard of
our instructions / guidelines.
It is not allowed to be used until the user has familiarized himself with the correct and
safe handling. We recommend that you regularly exercise the various possibilities of
use of this rescue device in order to ensure an absolutely safe handling in the
application.
1.1 Important warnings
For safety reasons, the RollUP must be withdrawn immediately from use if:
•there are doubts about safe use, or
•the equipment has been claimed by a crash, and that this equipment may only be
used again if a competent person has given a written consent;
•the Rollup is not suitable for as a safety harness / fall arrest
1.2 Explanation of terms / interpretations
User
Person who has been instructed to handle the product.
Specialist
person who is familiar with the product regarding application / maintenance and repair -
This expert takes decisions by means of his technical expertise. The expert is
responsible for the maintenance and annual inspection.

Operation and maintenance manual RollUP - A02 01-2021
Page 7to 50
1.3 Introduction / Product description
The RollUp is a lightweight universal rescue stretcher, which can also be used as a
technical rescue device.
Field of application: Horizontal as well as vertical salvage.(rescue)
Please pay attention to the correct choice of lifting bridle.
The various rescue situations can only managed with correctly selected lifting bridle.
The light, compact and robust rescue stretcher, rolled about 92 cm x 20 cm, with
mounted struts (Thorax / Pelvis / Leg protection and foot plate) approx. 92 cm x 30 cm,
protects the patient and also allows the rescue from extreme situations.
The RollUP consists of a flexible, rollable hard plastic shell PE –HD (lying surface).
The RollUp is not intended for the transport of material - which is not directly used for
the rescue or rescue of the patient.
Please note that sharp edges can damage the RollUp material.
Only the buckles / belts approved by us the manufacturer may be used.
Self-securing slings used by rescuers for personal protection may only be connected to
a central attachment point - such as a rigging plate or central carabiner - but not to the
device itself.
The maximum load (patient incl. luggage / accessories) is 150kg
1.4 Intended use
The RollUP is used exclusively for transporting injured / wounded persons.
Operating temperature: -30 ° C to + 50 ° C
Usable weight max. 150.0kg
Before use, the necessity of the transport must always be weighed against any further
damage to the patient caused by the transport.

Operation and maintenance manual RollUP - A02 01-2021
Page 8to 50
The RollUP is intended for the following operations:
The RollUP is designed for the following applications:
•In any terrain, especially difficult to access terrain.
•In urban terrain, even very narrow spaces as well as tubes.
•Transport over stairs.
However, the RollUP rescue stretcher is not designed as a
spinal rescue device. If a spinal injury is suspected, the
patient, before being placed in the RollUP carrier, is to be
placed in an approved immobilization device, e.g. A vacuum
mattress.
1.5 Application possibilities
1.5.1 Pulling on the ground (Straight terrain)
The patient can be pulled on grass or snow without any problems
However, please note the increased wear of the lying surface, resp.
possible damage due to contact with sharp objects
1.5.2 Transport by means of carrying handles
Sturdy and ergonomic carrying handles,
4 pcs on each side
1.5.3 Horizontal salvage
6 pcs. Suspension straps, suspended in 2 open rings,
Are integrated into the carrying handles.

Operation and maintenance manual RollUP - A02 01-2021
Page 9to 50
1.5.4 Vertical salvage
The vertical suspension straps, RLP2217, are inserted into the
reinforcing plates

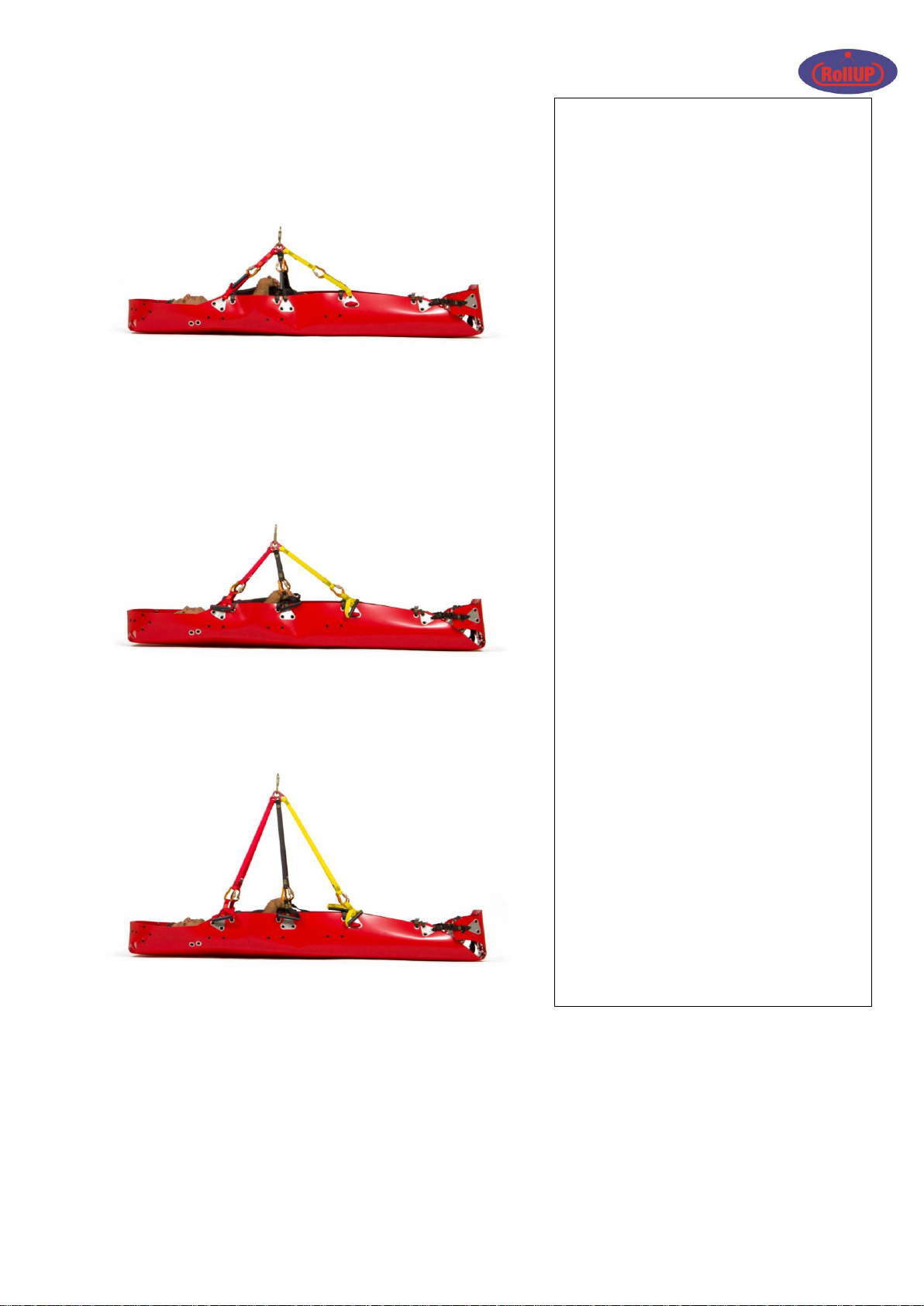

1.5.5 Adjustable rescue lifting bridle Balance
Balance lifting bridle: Variable adjustment between vertical / horizontal
Any angle between vertical and horizontal can be set.

Operation and maintenance manual RollUP - A02 01-2021
Page 10 to 50
1.6 Approvals:
The "RollUP" was tested by TÜV Austria regarding product safety.
Test Report No. FT15-115
The following standards were used as a basis for the test procedure:
•EN 813: 2008 Seat belts
•EN 1497: 2007 Rescue harnesses
•EN354: 2010 lanyards for fall arrest
•EN 358: 2000 Restraining straps and fasteners
•EN 12277: 2007 Mountaineering equipment
•DIN 23400: 2008 Rescue stretcher for mining (grinding basket)
1.7 Identification
Identification plate with part number, serial number, year of manufacture / quarter
The device has been approved as a European medical device and complies with the
applicable MDR specifications.
The CE marking, part identification area, article number, inscription: manufacturer's
declaration www.kohlbrat-bunz.com is marked on the lying surface

Operation and maintenance manual RollUP - A02 01-2021
Page 11 to 50
On all belts a label with part number, production year / quarter is sewn.
Belt identification (sample)
All components (carabiner, rigging plates, etc.) which are included in the scope of
delivery are marked.

Operation and maintenance manual RollUP - A02 01-2021
Page 12 to 50
2Technical data Rollup
2.1 Modells
RollUP RL2000RP, RL2000RS & RL2000RX
Diameter rolled up
Ø 27 cm
Weight (without bag and accessories)
Min 5,4 kg –7,8kg
Maximum permitted load
Max 150 kg
Minimum permissible body measurements
50 kg / 160 cm
Maximum permissible body measurements
130 kg / 195 cm
Temperature range
-30°C bis +50°C
dimensions
Length / Width: Ca.248 cm / ca. 92 cm
RollUP RL3000RP, RL3000RS RL3000RX
Diameter rolled up
Ø 27 cm
Weight (without bag and accessories)
Min 5,4 kg –8,8kg
Maximum permitted load
Max 150 kg
Minimum permissible body
50 kg / 160 cm
Maximum permissible body measurements
130 kg / 195 cm
Temperature range
-30°C bis +50°C
dimensions
Length / Width: Ca.254 cm / ca. 92 cm
RollUP RL4000RP, RL4000RS RL4000RX
Diameter rolled up
Ø 27 cm
Weight (without bag and accessories)
Min 5,4 kg –8,8kg
Maximum permitted load
Max 150 kg
Minimum permissible body
50 kg / 160 cm
Maximum permissible body measurements
130 kg / 195 cm
Temperature range
-30°C bis +50°C
dimensions
Length / Width: Ca.254 cm / ca. 92 cm

Operation and maintenance manual RollUP - A02 01-2021
Page 13 to 50
2.2 Lifting bridles
fixed integrated with fixed length
RLP2228R/RLP2228B/RLP2228Y
Mounting height: 76cm
Fixed integrated with adjustable length
RLP2228R/ RLP2069B/ RLP2069Y
Mounting height: 76cm
BALANCE –Lifting Bridle
RLPBAX01
Mounting height: 140cm

Operation and maintenance manual RollUP - A02 01-2021
Page 14 to 50
suspension standard with fixed length
RLP2008
Mounting height: 54cm
can be removed and hooked into the
handle loops
suspension standard with fixed length
RLP2034
Mounting height: 63cm
can be removed and hooked into the
handle loops
suspension standard with fixed length
RLP2046
Mounting height: 100cm
can be removed and hooked into the
handle loops

Operation and maintenance manual RollUP - A02 01-2021
Page 15 to 50
Designation
Handles with integrated lifting bridle with variable length
Use:
Horizontal & vertical salvage
Inclination adjustable:
yes
Designation
Handles with integrated lifting bridle with fixed length
Use:
Horizontal salvage
Inclination adjustable:
no
Designation
Head strap with integrated strap for vertical salvage
Use:
Vertical salvage
Inclination adjustable:
no
Designation
Lifting bridle Standard
Use:
Horizontal salvage
Inclination adjustable:
no
Designation
Strap for vertical salvage
Use:
Vertical
Inclination adjustable:
no
Designation
BALANCE –Lifting Bridle
Use:
Horizontal & vertical salvage
Inclination adjustable:
yes

Operation and maintenance manual RollUP - A02 01-2021
Page 16 to 50
Lifting bridles:
•Are weather-independent and can be used in all climatic zones
•Suitable for winding operation
In principle, only to be used for the intended application.
Depending on the rescue situation the various lifting bridles can be used.
Only the intended anchor points may be used.
Always use the central anchor point
as a safeguard for the rescuer.
•If the original application situation changes - the suitability of the selected lifting
bridle must be checked or possibly exchanged for another variant.
•Depending on the expected rescue situation, there are different bridles.
•The most universal rescue possibilities are obtained only by using the balance
lifting bridle - (adjustment between vertical / horizontal is possible under load)
You will find an overview of the various lifting bridles under point 2.2.
After an extended period of time in direct sunshine, more than 200 hours, the RollUP
must not be used for lifting of patients.
For use on waterways, the floats, head pillow inflatable and accessories must be
provided in accordance with section 5.4.

Operation and maintenance manual RollUP - A02 01-2021
Page 17 to 50
3Tests before commissioning - by the user
3.1 Tests before use
The RollUP must be checked for completeness and ready for use before and after each
use. A defective or objected RollUP is no longer permitted for use and is to be marked
accordingly with a blocking certificate. The device must be handed over immediately to
the responsible test personnel.
Devices that have been blocked must not be used;
they must be sent for repair immediately.
It is recommended that the RollUp be stuck or sealed in the transport bag after use and
testing. Depending on the company's internal regulations, a re-examination before use
may possibly be omitted.
Examinations after use
•After completion of the deployment, the RollUP is, as required, to be cleaned
•It must be checked for externally recognizable damage.
•Defective equipment must be returned to the manufacturer for repairs, stating the
complaint.
3.2 Safety regulations during operation
The following points must be observed:
•Use only by trained personnel.
•When transporting suspicious persons, taking into account the medical
necessities, appropriate precautions must be taken to ensure that the safety of

Operation and maintenance manual RollUP - A02 01-2021
Page 18 to 50
the person during transport is ensured. (Additional securing of the patient in the
rollup)
•In the case of obvious, recognizable damage, the RollUp must not be used and
must be returned immediately to the inspection.
•The additional struts are not absolutely necessary for the transport of injured
persons, but they increase the lying comfort and contribute to the stress
reduction of the patient. (Exception - winch operation) The same applies to
vacuum mattresses.
•The use of vacuum mattresses is recommended.
4Handling during operation
4.1 Preparing RollUP / Storing Patient
•Remove the RollUP from the transport bag
•Loosen the retainer strap
•Unroll the RollUP and bend it into shape.
•Open all patient belts.
•Bring all straps to maximum length.
•Insert the spinal protector.
•If no in place, insert cross struts.
•Place the RollUP next to the patient
•Slide the patient / lift the patient / onto the RollUP
•Close and clamp the patient's belt (in small patients the chest and waist belt are to be
cross-wise closed due to the risk of strangulation)

Operation and maintenance manual RollUP - A02 01-2021
Page 19 to 50
4.2 Unroll
In order to be able to place the RollUP flat, it must first be bent back.
Transport the RollUp in the provided bag
Open the bag - remove all necessary
components
Shaping the base plate
Insert middle strut
Depending on the model - fix the headboard
RollUP is ready for use

Operation and maintenance manual RollUP - A02 01-2021
Page 20 to 50
4.2.1 Assemble the cross braces and the footrest (Detail)
Normally, the cross braces and the foot plate can always remain mounted. With these
parts mounted, the RollUP can be easily stowed in the bag.
4.2.2 Installing the longitudinal strut
Push it under the crossbars through the two tabs as far as they will go.
In order to roll up the RollUP, only the longitudinal brace must be removed. This is then simply
pushed back into the tabs during assembly.
4.2.3 Roll up
The cross braces and the footrest can remain mounted. The longitudinal strut must be
dismantled. Place the RollUP flat. Start rolling up at the head of the head. Firmly roll up and
tension the roll belt around the rolled up carrier.
RL2022-1R-2R-3R
RL2028R
RL2037R
