Kohler K-1143 Assembly instructions

Homeowners Guide
Vibro-Acoustic Baths
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”

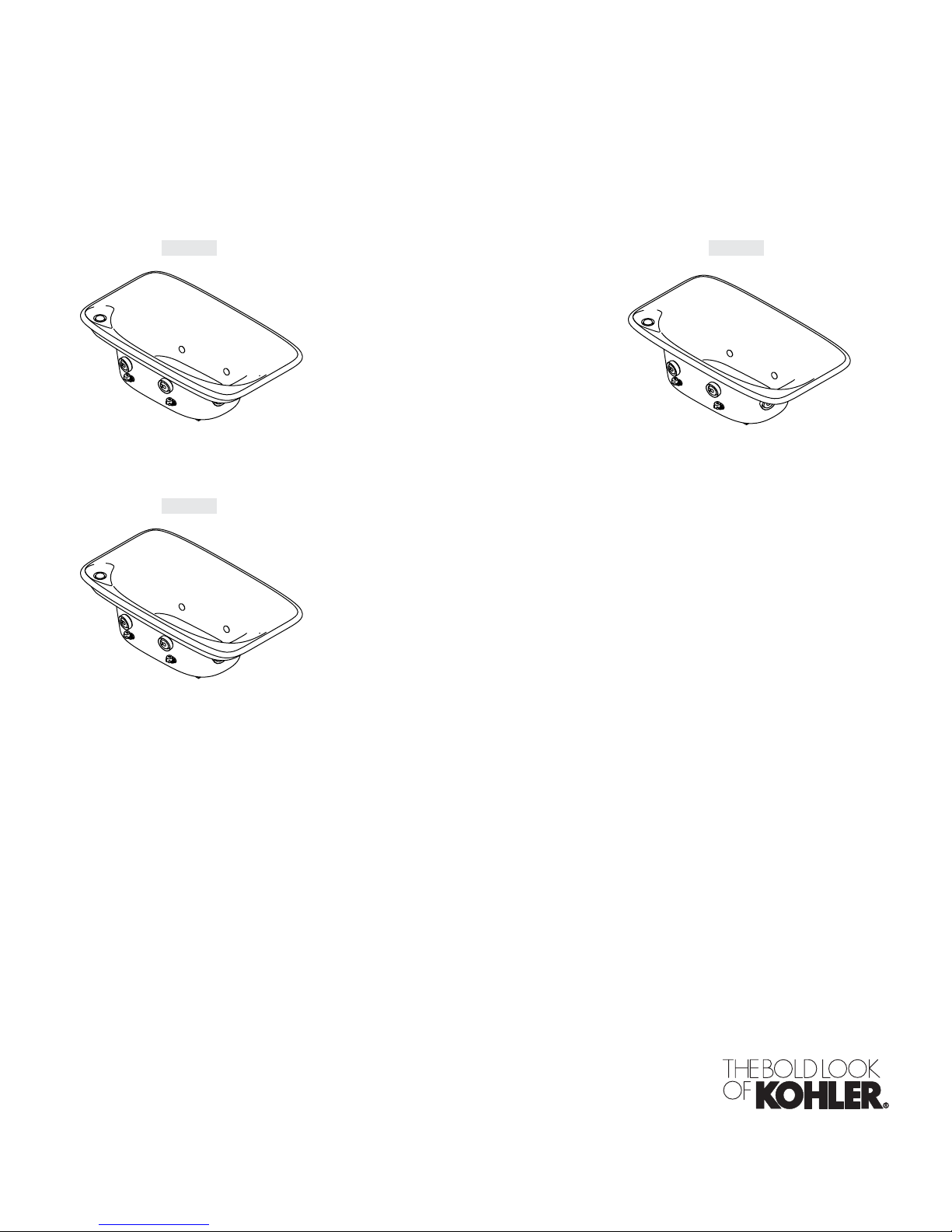

K-1143 K-1152
K-1153
1078022-5-B

Thank You For Choosing Kohler
Thank you for choosing Kohler Company. Your Kohler Company product reflects the true passion for design,
craftsmanship, artistry, and innovation Kohler Company stands for. We are confident its dependability and
beauty will surpass your highest expectations, satisfying you for years to come.
All information in this guide is based upon the latest product information available at the time of
publication. At Kohler Company, we strive to fulfill our mission of improving the level of gracious living for
each person who is touched by our products and services. We reserve the right to make changes in product
characteristics, packaging, or availability at any time without notice.
Please take a few minutes to review this guide. Pay special attention to the care and cleaning instructions.
Your Kohler Bath
CAUTION: Risk of personal injury. Always exercise caution when entering or exiting your bath.
Acrylic surfaces can be slippery when wet.
Your new vibro-acoustic bath is made to provide superior resistance against chipping, cracking, and flexing.
Your new bath is very easy to care for and is exceptionally durable as well.
Your bath is part of a system of other required components. For detailed information on these components,
refer to the Homeowners Guide packed with the K-176 User Interface. This user interface controls your
preferences for sound, vibration, and chromatherapy lighting. This user interface may be used by itself, or it
may be used in conjunction with the remote control included with this vibro-acoustic bath.
Remote Control Compliance
FCC ID: N82-KOHLER002 – Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Interference Statement (Part 15.105 (b))
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Warning
This portable transmitter with its antenna complies with FCC’s RF exposure limits for general
population/uncontrolled exposure.
This device must not be co-located or operating in conjunction with any other antenna or transmitter.
1078022-5-B 2 Kohler Co.

Using Your Remote Control
NOTE: Your remote control requires two AAA batteries. To install or replace them: Unthread the bottom
cap from the remote. Insert the batteries. Resecure the bottom cap to the remote.
NOTICE: You must synchronize the remote control before initial use.

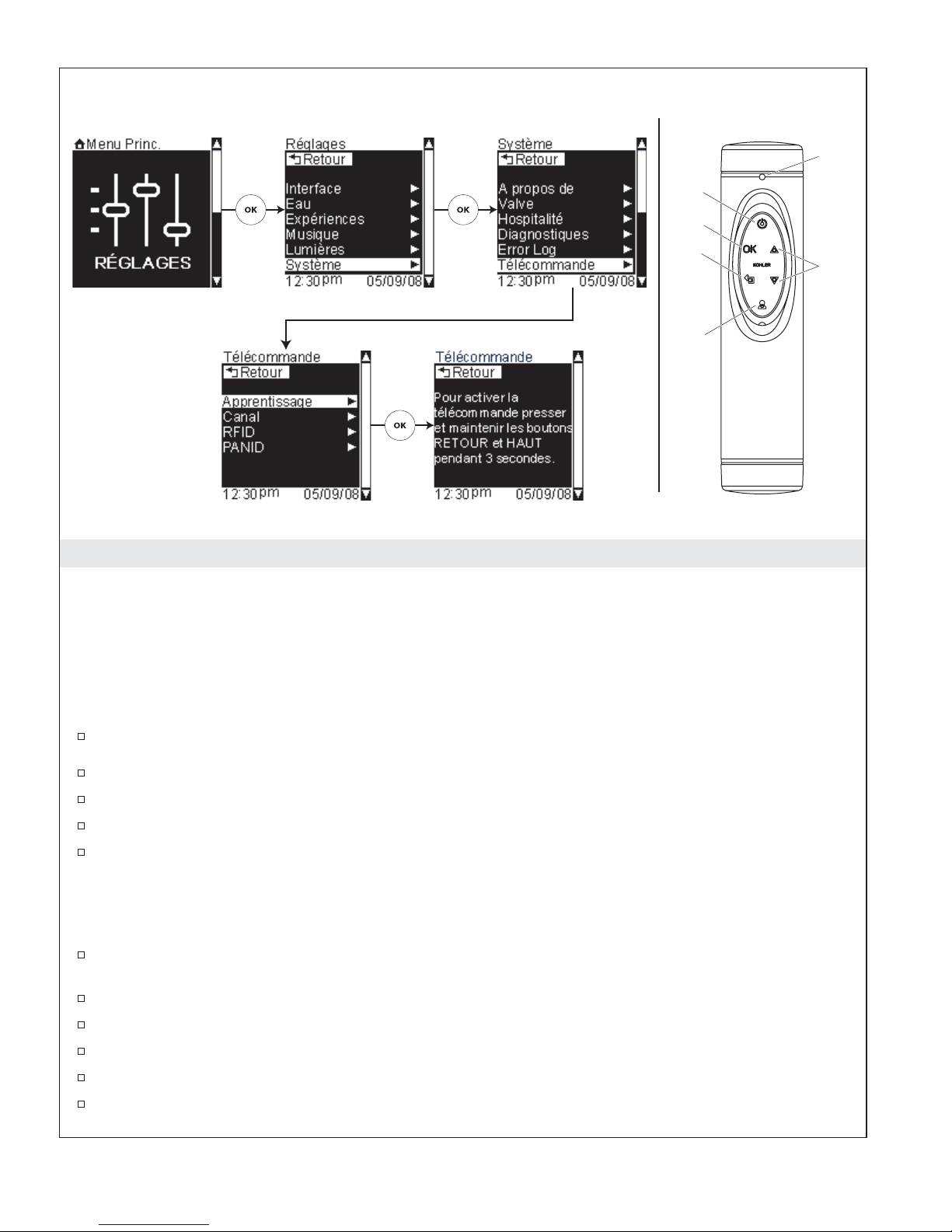

Programming
NOTE: Perform the following at the user interface.
Press the [OK Icon] at the Main Menu on the user interface.
Scroll down to ″System″at the Settings Menu, then press the [OK Icon].
Scroll down to ″Remote″at the System Menu, then press the [OK Icon].
At the ″Learn″field, press the [OK Icon].
As instructed on the Remote Menu, simultaneously press and hold the [Back Icon] and [Up Icon] on
the remote control for 3 seconds. The remote LED will blink while in programming mode. To exit
programming mode, press the remote Power button.
Operating
Once the remote control is synchronized, you may use it to navigate through the user interface
menus while bathing.
[On/Off Icon]: Powers the user interface ″ON″or ″OFF.″(1)
[Select Icon]: Selects the action the cursor is on within a menu. (2)
[Back Icon]: Prompts the previous menu. (3)
[User Icon]: Prompts the User Menu to appear. (4)
[Up/Down Icon]: Scrolls the cursor up or down on the current menu. (5)
Programming Operating
1
5
6
3
4
2
1078022-5-B 4 Kohler Co.

Using Your Remote Control (cont.)
[LED]: Provides visual feedback when signals are transmitted. If the remote LED does not blink
when a button is pushed or blinks several times, this is an indication that the batteries are low and
need to be replaced. (6)
Cleaning Your Acrylic Bath
For best results, keep the following in mind when caring for your KOHLER product:
•Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
•Wipe surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and
dry any overspray that lands on nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
For detailed cleaning information and products to consider, visit www.kohler.com/clean. To order Care &
Cleaning information, call 1-800-456-4537.
One-Year Limited Warranty
KOHLER plumbing products are warranted to be free of defects in material and workmanship for one year
from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection
discloses any such defects occurring in normal usage within one (1) year after installation. Kohler Co. is not
responsible for removal or installation costs. Use of in-tank toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your Dealer, Plumbing Contractor, Home
Center or E-tailer, or by writing Kohler Co., Attn.: Customer Service Department, 444 Highland Drive,
Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER from within the USA, 1-800-964-5590 from within
Canada and 001-877-680-1310 from within Mexico.
Implied warranties including that of merchantability and fitness for a particular purpose are expressly
limited in duration to the duration of this warranty. Kohler Co. and/or seller disclaims any liability for
special, incidental or consequential damages.
Some states/provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of special, incidental or consequential damages so these limitations and exclusions may not apply
to you. This warranty gives you specific legal rights. You may also have other rights which vary from
state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
One-Year Warranty
KOHLER CO.
It is recommended that at the time of purchase, you verify that all accessories and components are complete
in this package.
This Kohler product is warranted to be free of defects in material and workmanship for one (1) year from the
date of purchase as shown on the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its authorized distributors.
2. To obtain warranty service, please present the invoice and corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair the defective product or provide a new
replacement or an equivalent model (in those cases that the model has been discontinued) when the product
is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the date the product is received.
5. It is recommended that the consumer save the invoice or receipt as additional protection, as it may
Kohler Co. 5 1078022-5-B

One-Year Warranty (cont.)
substitute the warranty in the case that there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the instructions concerning use and operation set
forth in the owner’s manual or installation instructions, and when the recommendations and warnings
included are not observed.
2. When the product has been modified or dismantled partially or totally; or has been used in a negligent
fashion and as a consequence has suffered damages attributable to the consumer, individual, or hardware not
authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster such as fire or acts of God, including
flooding, earthquake, or electric storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Troubleshooting
CAUTION: Risk of personal injury. The valve (if installed) may contain hot water; be careful when
draining any residual water.
IMPORTANT! Turn off the power and water supply to all components before performing any
maintenance.
It is recommended that any valve maintenance should be performed by a Kohler Co. Authorized Service
Representative.
This troubleshooting guide is for general aid only. For service and installation issues or concerns, call
1-800-4-KOHLER.
Interface Troubleshooting Table
Symptoms Probable Cause Recommended Action
1. Digital interface is not lit. A. Media module is not plugged
into the outlet. A. Plug the media module into the outlet.
B. Power supply connection to the
media module may be loose or
disconnected.
B. Check power supply connections to
the media module and reconnect if
needed.
C. Interface cable connections may
be loose or disconnected. C. Check all interface cable connections, connect if needed.
D. Circuit breaker has been
tripped. D. Reset the circuit breaker.
E. The media module may require
resetting. E. Disconnect and reconnect the power supply from the media
module.
F. If none of the recommended
actions for the above issues
correct the symptom, the media
module or interface requires
servicing.
F. Contact your Kohler Co.
Authorized Service Representative.
1078022-5-B 6 Kohler Co.

Troubleshooting (cont.)
Interface Troubleshooting Table
Symptoms Probable Cause Recommended Action
2. The interface power
indicator pulses but does
not turn on.
A. Interface cable connections may
be loose or disconnected. A. Check all interface cable connections, connect if needed.
B. The media module requires
resetting. B. Disconnect and reconnect the media module power supply.
C. If the above recommended
action does not correct the
symptom, the interface or media
module requires servicing.
C. Contact your Kohler Co.
Authorized Service Representative.
3. The interface functions
normally but no water
flows from the spout or
handshower.
A. Inlet/outlet fittings may be
blocked. A. Check the inlets and outlets for blockage or debris. Clean the inlet
screens. Refer to the ″Clean the
Inlet Screens″section in the Valve
Homeowners Guide.
B. Outlets are not plumbed
correctly. B. Reroute plumbing as needed.
C. Hot and cold water supplies are
not turned on. C. Turn on the water supply to the valve.
D. The valve or media module
memory may require resetting. D. Disconnect and reconnect the power supply from the valve and
media module.
E. System error. E. Check the user interface for an
error code. Refer to the
″Diagnostics″section in the Digital
Interface Homeowners Guide.
F. If none of the recommended
actions for the above issues
correct the symptom, the media
module requires servicing.
F. Contact your Kohler Co.
Authorized Service Representative.
4. Display is difficult to read. A. Contrast is not optimized. A. Adjust contrast in the user interface
setting menu.
B. Brightness is not optimized. B. Adjust the brightness in the user
interface setting menu.
Valve Troubleshooting Table
Symptoms Probable Cause Recommended Action
1. Maximum blend
temperature too hot or
too cold.
A. Incorrect maximum temperature
setting. A. Refer to the ″Set the Maximum Temperature″section in the Digital
Interface User Guide.
B. Inlet/outlet fittings may be
blocked. B. Check the inlets and outlets for blockage or debris. Clean the inlet
screens. Refer to the ″Clean the
Inlet Screens″section in the Valve
Homeowners Guide.
C. If the above recommended
action does not correct the
symptom, the interface or valve
requires servicing.
C. Contact your Kohler Co.
Authorized Service Representative.
2. Continuous flow. A. System will not switch off. A. Turn off the water and power
supply and contact your Kohler Co.
Authorized Service Representative.
3. Handshower does not
work. A. Handshower is not enabled. A. Enable the handshower option in the settings menu. Refer to the
Digital Interface User Guide.
Kohler Co. 7 1078022-5-B

Troubleshooting (cont.)
Valve Troubleshooting Table
Symptoms Probable Cause Recommended Action
4. Only cold water flows
from the outlets. A. Hot water supply is either not turned on or not connected to
the valve inlet.
A. Check the hot water supply is
turned on and connected to the
valve inlet.
B. Hot water inlet is blocked. B. Check the hot water inlet screen for
blockage. Clean or replace the inlet
screen. Refer to the Valve
Homeowners Guide.
C. If none of the recommended
actions for the above issues
correct the symptom, the valve
requires servicing.
C. Contact your Kohler Co.
Authorized Service Representative.
5. Fluctuating or reduced
flow rate. Valve is
functioning properly.
A. Inlet/outlet fittings may be
blocked. A. Check the inlets and outlets for blockage or debris. Clean the inlet
screens. Refer to the ″Clean the
Inlet Screens″section in the Valve
Homeowners Guide.
B. Water outlet pressure is low. B. Check that the flow rate is at or
above the minimum rate required.
Refer to ″Specifications″section in
the Valve Homeowners Guide.
C. Fluctuating flow. C. Verify that the dynamic inlet
pressures are within specifications.
Refer to ″Specifications″section in
the Valve Homeowners Guide.
D. If none of the recommended
actions for the above issues
correct the symptom, the valve
requires servicing.
D. Contact your Kohler Co.
Authorized Service Representative.
6. Blend temperature drift or
temperature cycling. A. Fluctuating water temperature. A. Check the inlet temperature differentials and verify they are
sufficient. Refer to ″Specifications″
section in the Valve Homeowners
Guide.
B. Hot water supply temperature
fluctuation. B. Check and make adjustments as needed.
C. Pressure difference greater than
5 psi (34.5 kPa) between the hot
and cold supply lines.
C. Install pressure regulators to bring
the supplies within 5 psi (34.5 kPa)
of each other.
D. If none of the recommended
actions for the above issues
correct the symptom, the valve
requires servicing.
D. Contact your Kohler Co.
Authorized Service Representative.
7. Water leaking from the
valve.
CAUTION: Risk of
personal injury or
product damage. Turn off
the main power and
water supply.
A. Connections are not secure. A. Check all connections. Make
adjustments as needed.
B. Seals are worn or damaged. B. Order a seal service pack and
replace all seals.
C. Internal leak. C. Unit requires overhaul. Contact
your Kohler Co. authorized service
representative.
8. Hot water only, the valve
shuts down. A. Hot and cold lines are reversed. A. Switch hot and cold water supply connections. Verify the hot water
supply is connected to the inlet
marked ″H″and the cold water
supply is connected to the inlet
marked ″C.″
1078022-5-B 8 Kohler Co.

Troubleshooting (cont.)
Music Troubleshooting Table
Symptoms Probable Cause Recommended Action
1. Bath transducers do not
produce sound. A. Transducer cables are not connected properly. A. Make sure the cables are properly installed into the Media Module
connections and to the bath
transducers.
2. After playing music
loudly, the music stops
even though a song is
properly selected.
A. Thermal shut down. A. Shut down the system for 1 hour to
allow the unit to cool. Make sure
the area where the unit is installed
does not exceed 104°F (40°C).
3. Library menu is not
available. A. The Roku agreement was declined. A. Enter the settings menu, select ″System,″select ″Music Software,″
select ″Roku Agreement″and select
″YES.″
4. Music server is not
available. A. Wireless connection out of range. A1. Move router closer or install a wireless access point.
A2. Connect via Ethernet cable.
B. Wireless network is not
configured properly. B. Enter the settings menu, select ″System,″select ″WiFi Security,″
select ″Network Name,″select
″WEP/WPA Key″and enter the
security key.
C. The network cable is not
connected to the correct
router/switch input.
C. Connect the Media Module to the
router’s/switch’s Ethernet ports.
D. A compatible media server is
not installed/running on your
home computer.
D. Install/open one of the supported
media servers such as Firefly
Media Server, iTunes
®
, Microsoft
®
Windows
®
Media Connect,
RhapsodyTM, Yahoo! or
Musicmatch
®
on your computer
and load your favorite music into
the server’s library.
E. The media server on your home
computer is not configured to
share files.
E. Reference the media server’s help
menu to properly configure file
sharing.
F. The incorrect Wi-Fi region was
selected. F. Enter the settings menu, select ″System,″select ″Music Software,″
select ″Region″and select the
appropriate geographical region
that matches your Wi-Fi router.
5. I have a wireless network
but my Media Module is
unable to connect to the
network.
A. Ethernet cable is plugged in. A. Unplug the Ethernet cable.
B. Media Module is not within
Wi-Fi range. B. Make sure the Media Module is within range of your Wi-Fi
network.
C. A WEP or WPA key was not
entered for your secured
network.
C. Enter the settings menu, select
″System,″select ″WiFi Security,″
select ″Network Name,″select
″WEP/WPA Key″and enter the
security key.
D. The router is not set up for
802.11b. D. Make sure the access point/router is configured to allow 802.11b
clients.
Kohler Co. 9 1078022-5-B

Troubleshooting (cont.)
Music Troubleshooting Table
Symptoms Probable Cause Recommended Action
6. The Media Module cannot
connect to an iTunes
server with firewall
software running.
A. The firewall is not configured
correctly to allow iTunes music
sharing.
A. Make sure your firewall software is
configured to allow iTunes music
sharing. For a Mac: Open System
Preferences. Select the Sharing icon
and click on the firewall tab. Select
the option ″iTunes Music Sharing.″
For a PC: Refer to your
documentation for changing
firewall settings. If running
Windows XP service pack 2, open
″Security Center,″select ″Windows
Firewall,″click on the ″Exceptions″
tab, and check to see that iTunes is
enabled. If not, use ″Add
Programs″to enable it. After these
changes have been made, restart
the Media Module by
disconnecting and reconnecting the
AC power.
7. The Media Module cannot
access the iTunes library. A. iTunes is not running. A. Make sure the computer containing your iTunes library is turned on
and iTunes is running.
B. iTunes is not configured for
sharing. B. In iTunes, be sure to turn on the ″music sharing″option. Go to the
iTunes>Preferences menu or Edit>
Preferences for PC users. In the
dialog box that appears, click the
″Sharing″icon, then check the
option ″Share my music″to enable
sharing on your local network.
C. iTunes is not responding to
commands from the Media
Module.
C. Close and restart iTunes on your
computer.
8. I can see my iTunes
library in the list of
libraries, but when I try to
connect, the connection
fails.
A. iTunes is not configured for
sharing. A. In iTunes, be sure to turn on the ″music sharing″option. Go to the
iTunes>Preferences menu or Edit>
Preferences for PC users. In the
dialog box that appears, click the
″Sharing″icon, then check the
option ″Share my music″to enable
sharing on your local network.
1078022-5-B 10 Kohler Co.

Troubleshooting (cont.)
Music Troubleshooting Table
Symptoms Probable Cause Recommended Action
B. No IP address assigned to the
Media Module. B. The Media Module was not assigned an IP address via DHCP,
but the PC was. In this situation,
the Media Module is able to see the
library via Rendezvous, but is not
able to connect to the library. Here
is how to check your Media
Module’s address: Enter the
settings menu, select ″System,″
select ″Music,″select ″Roku IP
Address.″If your IP address is of
the form 169.254.xxx.xxx, the Media
Module did not get a
DHCP-assigned address. Check the
configuration of your router to
ensure it is set up to assign DHCP
addresses. Reboot the Media
Module by disconnecting and
reconnecting the AC power.
9. The Media Module can
not access Windows
Media Connect library.
A. Windows Media Connect is not
configured for sharing. A. Make sure that your computer containing your music library is
powered ON and Windows Media
Connect is running (icon should be
visible in the task tray). With the
Media Module powered ON and
connected to your network, make
sure that the Media Module is an
authorized device. Launch
Windows Media Connect through
your Control Panel. On the wizard
screen, scroll down the list of
devices. If the Media Module is not
listed, click the ″Add″button at the
bottom of the list. Click on Media
Module, then click ″OK.″It should
show up on the list of authorized
devices. Click ″Done.″Reboot the
Media Module by disconnecting
and reconnecting the AC power.
10. The Media Module can
not access the Musicmatch
library.
A. Musicmatch is not running. A. Make sure the computer containing
your music library is powered ON.
B. Musicmatch is not configured
for sharing. B. Make sure music sharing is enabled in Musicmatch. From the main
Musicmatch menu, click on
Options/Settings. Click on the tab
″CD Lookup/Connectivity.″Click
the buttons next to ″Enable music
server″as well as ″Universal Plug
and Play.″Musicmatch does not
need to be running while using the
Media Module; once enabled, the
UPnP server runs in the
background. Reboot the Media
Module by disconnecting and
reconnecting the AC power.
Kohler Co. 11 1078022-5-B

Troubleshooting (cont.)
Music Troubleshooting Table
Symptoms Probable Cause Recommended Action
11. The Media Module is
connected to my network
via wired ethernet, but is
unable to play Internet
radio and may sometimes
fail to locate, connect to,
or play music from my
music servers.
A. No IP address assigned to the
Media Module. A. Determine the Media Module’s address by entering the settings
menu, select ″System,″select
″Music,″select ″Roku IP Address.″
If your IP address is of the form
169.254.xxx.xxx, the Media Module
did not get a DHCP-assigned
address. Check the configuration of
your router to ensure it is set up to
assign DHCP addresses. Reboot the
Media Module by disconnecting
and reconnecting the AC power.
B. Ethernet cable is damaged. B. Replace the Ethernet cable.
12. No sound plays through
the bath transducers. A. The song is paused. A. Make sure a song is playing. If the song is paused, press the OK
button to continue playback.
B. The volume is too low. B. Make sure the volume is turned up
high enough for proper enjoyment.
13. Some of my music files
do not display while
browsing.
A. Missing ID3 tag info. A. ID3 data tags may be missing.
Information about your music,
including Song Name, Artist,
Composer, Album, and Genre is
usually created automatically by
the software you used to save your
audio CD files on your computer’s
hard drive. This process creates
data called ″ID3 tags″to describe
each track. If this data is missing
from your music files, they will not
appear when you browse by that
data category. You can edit this
information in music jukebox
software such as iTunes.
14. A music file will not play. A. Unsupported file format. A. Make sure your file is a supported
format: iTunes Music Server: MP3,
AAC, ALAC, AIFF and WAV
Windows Media Player 11 /
Windows Media Connect: MP3,
WMA (including DRM WMA) and
WAV.
15. Songs purchased through
the iTunes music store
will not play.
A. Song is not supported because
of DRM. A. This is normal. DRM AAC files (i.e., files purchased on Apple’s
music store) are not supported.
Those files will be detected but will
be skipped during playback.
16. I cannot find playlists that
I saved on my computer. A. Some playlists may not be supported. A. iTunes users: Make sure your playlist was created in iTunes and
is visible in your iTunes
application. Windows Media
Connect users: Make sure your
playlists are saved in the My
Documents\My Music\My
Playlists or other shared folder.
Musicmatch users: Musicmatch
exports playlists in a manner that is
not supported. Slimserver users:
Make sure your playlist is a
Slimserver-supported playlist
format.
1078022-5-B 12 Kohler Co.

Troubleshooting (cont.)
Music Troubleshooting Table
Symptoms Probable Cause Recommended Action
17. I am experiencing
undesirable noise or
resonance.
A. Apron is vibrating against the
deck. A. Verify rubber isolator mounts are contacting the deck and insulating
the apron from the deck.
B. Transducers resonate with deck. B. Make sure bath is centered in deck
cutout. Transducers should not
contact the framing or deck.
Lights Troubleshooting Table
Symptoms Probable Cause Recommended Action
1. The bath lights do not
turn on. A. Cable connections are loose or disconnected. A. Make sure the cables are properly connected to the media module.
B. Light cables connected to wrong
media module connectors. B. Verify cables and connections, reconnect as needed.
C. Chroma light string damaged. C. Replace chroma light string.
D. Media module is
malfunctioning. D. Media module may need to be replaced. Contact your Kohler Co.
Authorized Service Representative.
Media Module Troubleshooting Table
Symptoms Probable Cause Recommended Action
1. System stops working and
the status LED is a solid
red.
A. System failure. A. Reboot the Media Module by
disconnecting the AC power from
the wall outlet. If the status LED
remains a solid red after reboot,
replace the Media Module.
2. System stops working and
the Status LED is a OFF. A. Power supply failure. A. Reboot the Media Module by disconnecting the AC power from
the wall outlet. If there is no
change after reboot, replace the
Media Module.
B. Incorrect wiring of the AC
power supply. B. Verify that the Media Module was installed per the installation
manual. Make sure AC power is
present at the outlet the Media
Module is plugged into.
3. Music stops playing and I
get a music error. A. Thermal shutdown. A. Shut down the system for 1 hour to allow the unit to cool. Make sure
the area where the unit is installed
does not exceed 104°F (40°C).
B. Incorrect speaker load. B. Verify the speaker load is 4 to 8
ohms.
4. Water level sensor does
not detect water. A. Level sensor cable is damaged. A. Replace the level sensor cable.
B. Level sensor cable is loose or
disconnected. B. Make sure the cable is properly connected to the media module.
C. Water is too pure. C. Add bath salts to your bathing
water.
5. No display on the user
interface. A. The interface cable is damaged. A. Replace the interface cable.
B. The interface cable is not
plugged in. B. Verify the interface cable is properly plugged into the interface
at all locations.
C. The interface or Media Module
requires servicing. C. Contact your Kohler Co. Authorized Service Representative.
Kohler Co. 13 1078022-5-B

Troubleshooting (cont.)
Media Module Troubleshooting Table
Symptoms Probable Cause Recommended Action
6. Experiences are not
functioning. A. SD card is dislodged. A. Contact your Kohler Co. Authorized Service Representative.
Remote Control Troubleshooting Table
Symptoms Probable Cause Recommended Action
1. Intermittent or erratic
operation. A. Frequency/channel interference. A. Set RFID, PANID, and channel by following screen prompts on the
digital interface for the remote.
Then re-sync the remote as
instructed in the Bath Homeowners
Guide.
2. LED on remote does not
blink or constantly blinks. A. Batteries are low. A. Replace batteries (2 AA).
3. One or more buttons on
remote do not function
and LED does not light
up.
A. Batteries are low. A. Replace batteries (2 AA).
B. Remote program lost. B. Re-sync the remote to the interface.
C. Remote is damaged. C. Replace remote.
4. One or more buttons on
remote do not function
but LED lights up.
A. Digital interface is
malfunctioning. A. Digital interface may need to be replaced. Contact your Kohler Co.
Authorized Representative.
1078022-5-B 14 Kohler Co.

Service Parts
1057479-A
Back/FootCable
**Finish/color code must be specified when ordering.
1064867
Transducer
73519
LevelProbe
Transducer
1064867
Transducer
1086239
AudioCable
1057479-B
Knee/ElbowCable
1064867
Transducer
1064867
Transducer
1064867
Transducer
1083005-B
K-1033-NA
Pillow
1064867
Transducer
1064867
Transducer
1064867
Transducer
1083005-A
1055594
ShieldAssembly
withBracket(K-1143,K-1153 only)
1055594
1064867
Transducer
63270
Washer
1078002
90023
Bumper
1010618
Elbow
1012821
Light Housing
Chromatherapy Elbow
60129
Nut
1064867
91225-D
Screw
Remote w/Stand
1013822-F**
Remote
1022253-F**
Stand
1013471**
Cap
1023091** Decal
1013464-F
Elbow
Chromatherapy
Cablewith2Lights
Shield AssemblywithBracket
(K-1143,K-1153 only)
KneeChromatherapy
Cablewith2Lights 60129
Nut
LevelProbeWire
63270
Washer
Kohler Co. 15 1078022-5-B

Guide du propriétaire
Baignoires vibro-acoustiques
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la compagnie Kohler. Votre produit de la compagnie Kohler reflète la véritable passion
du design, d’artisanat, d’art et d’innovation représentant la compagnie Kohler. Nous sommes confiants que
sa fiabilité et beauté surpasseront vos exigences les plus élevées, vous satisfaisant pendant les années à venir.
Toute information contenue dans ce guide est basée sur l’information la plus récente du produit disponible
au moment de la publication. A la compagnie Kohler, nous aspirons à remplir notre mission d’améliorer le
niveau de vie gracieux pour chaque individu affecté par nos produits et services. Nous nous réservons le
droit d’apporter des modifications aux caractéristiques, emballages et disponibilités des produits à tout
moment, et ce sans préavis.
Veuillez prendre s’il vous plaît quelques minutes pour étudier ce guide. Prêter une attention toute
particulière aux instructions d’entretien et de nettoyage.
Votre baignoire Kohler
ATTENTION : Risque de blessures corporelles. Toujours faire attention lors de l’entrée et de la
sortie de la baignoire. Les surfaces en acrylique peuvent être glissantes lorsqu’humides.
Votre nouvelle baignoire vibro-acoustique est conçue pour offrir une résistance supérieure contre écaillages,
craquelures et flexions. Votre nouvelle baignoire est très facile à entretenir et aussi exceptionnellement
résistante.
La baignoire fait partie d’un système d’autre composants requis. Pour une information détaillée sur ces
composants, se référer au guide du propriétaire emballé avec l’interface de l’utilisateur K-176. Cette interface
de l’utilisateur contrôle les préférences de son, vibration et lumières de chromathérapie. Cette interface de
l’utilisateur peut-être utilisée seule ou en conjonction avec la télécommande incluse avec la baignoire
vibro-acoustique.
Conformité de la télécommande
FCC ID : N82-KOHLER002 – Déclaration de conformité (Partie 15.19)
Cet appareil est conforme aux exigences de la section 15 du réglement de FCC. L’opération est sujette aux
deux conditions suivantes:
1. Cet appareil ne devrait pas causer d’interférences dangereuses, et
2. Cet appareil doit recevoir les toutes interférences reçues, ainsi que celles qui pourraient causer des
opérations non désirées.
Danger (Partie 15.21)
Tous changements et/ou modifications non expressément approuvés par la partie responsable garantissant la
conformité, pourrait annuler le droit à l’utilisateur d’opérer l’équipement.
Déclaration de conformité FCC (Partie 15.105 (b))
Cet équipement a été testé et considéré conforme aux limitations d’un dispositif digital de Classe B, selon la
Partie 15 des règlements FCC Ces limites sont conçues pour fournir une protection raisonnable contre toute
interférence néfaste lors d’une installation résidentielle. Cet équipement génère, utilise et peut émettre des
fréquences radio et, s’il n’est pas installé et utilisé conformément aux instructions, pourrait causer des
interférences radio. Cependant, il n’y a pas de garantie que l’interférence n’aura pas lieu dans une
installation particulière. Si cet équipement cause des interférences radio néfastes ou une réception de
télévision, ce qui peut être déterminé en éteignant l’équipement et le rallumant, l’utilisateur est encouragé
d’essayer de rectifier cette interférence par l’un des moyens suivants:
Kohler Co. Français-1 1078022-5-B

Conformité de la télécommande (cont.)
•Réorienter ou relocaliser l’antenne de réception.
•Augmenter la séparation entre l’équipement et le récepteur.
•Brancher l’équipement dans une prise d’un circuit électrique différent de celui du récepteur.
•Consulter un revendeur ou un technicien radio/TV expérimenté pour de l’assistance.
Avertissement d’exposition RF
Ce transmitteur portable avec son antenne est conforme aux limitates d’exposition RF de la FCC pour le
public général/exposition non contrôlée.
Cet appareil ne doit pas être co-localisé ou opéré avec toute autre antenne ou autre transmitteur.
CANADA IC: 4554A-KOHLER002 – Déclaration Industrielle Canada par Section 4.0 du RSP-100
Le terme ″IC:″avant le numéro de certification/enregistrement signifie que les spécifications techniques
canadiennes ont été satisfaites.
Section 7.1.5 du RSS-GEN
L’opération est sujette aux deux conditions suivantes:
1. Cet appareil ne devrait pas causer d’interférences dangereuses, et
2. Cet appareil doit recevoir les toutes interférences reçues, ainsi que celles qui pourraient causer des
opérations non désirées de l’appareil.
Section 2.6 du RSS-102
Ce transmitteur portable avec son antenne est conforme aux limitates d’exposition RF de la FCC pour le
public général/exposition non contrôlée.
Kohler Co. Français-2 1078022-5-B

Utiliser votre télécommande
REMARQUE : Votre télécommande nécessite deux piles AAA. Pour les installer ou les remplacer: Dévisser
le couvercle inférieur de la télécommande. Insérer les piles. Revisser le couvercle inférieur de la
télécommande.
AVIS : Vous devez synchroniser la télécommande avant l’utilisation.
Programmation
REMARQUE : Procéder à ce qui suit sur l’interface de l’utilisateur.
Presser l’ [icône OK] du menu principal de l’interface de l’utilisateur.
Défiller à ″Système au menu de réglages, puis presser sur l’[icône OK].
Défiller à ″Télécommande″au menu de réglages, puis presser sur l’[icône OK].
Au champs ″Apprentissage″, presser sur l’[icône OK].
Tel qu’instruit dans le menu de télécommande, presser et maintenir simultanément l’[icône Retour]
et [Dessus] de la télécommande pendant 3 secondes. la LED de la télécommande clignotera en mode
de programmation. Pour sortir du mode de programmation, presser le bouton Marche de la
télécommande.
Opération
Une fois la télécommande synchronisée, elle peut être utilisée pour naviguer à travers les menus de
l’interface lors du bain.
[icône Marcche/Arrêt]: Alimente l’interface de l’utilisateur en ″MARCHE’ ou ″ARRÊT″. (1)
[Icône sélection]: Sélectionne l’action du curseur dans le menu. (2)
[Icône retour]: Affiche le menu précédant. (3)
[Icône utilisateur]: Affiche le menu de l’utilisateur. (4)
[Icône Haut/Bas]: Défille le curseur vers le haut ou le bas dans le menu courant. (5)
Programmation Opération
1
5
6
3
4
2
1078022-5-B Français-3 Kohler Co.

Utiliser votre télécommande (cont.)
[LED]: Fournit un feedback visuel lorsque les signaux sont transmis. Si la LED de la télécommande
ne clignote pas lorsqu’un bouton est pressé ou clignote plusieurs fois, ceci est une indication que les
piles sont faibles et doivent être remplacées. (6)
Nettoyage de la baignoire en acrylique
Pour de meilleurs résultats, prendre ce qui suit en considération lors de l’entretien de votre produit
KOHLER:
•Toujours tester la solution de nettoyage sur une surface la moins évidente avant de l’appliquer sur
la totalité de la surface.
•Éssuyer les surfaces et rincer complètement avec de l’eau immédiatement après l’application de
nettoyant. Rincer et sécher tout éclaboussement sur les surfaces avoisinantes.
•Ne pas laisser les nettoyants sur les surfaces.
•Utiliser une éponge ou un chiffon doux et humide. Ne jamais utiliser de matériau abrasif tel que
brosse ou éponges à récurer pour nettoyer les surfaces.
Pour l’information détaillée de nettoyage et des produits à considérer, visiter www.kohler.com/clean. Pour
commander des informations d’entretien et de nettoyage, composer le 1-800-456-4537.
Garantie limitée d’un an
Les produits de plomberie KOHLER sont garantis contre tout défaut matériel et de fabrication pour un an, à
partir de la date de l’installation.
Kohler Co. jugera à sa discrétion, de la réparation, du remplacement ou du réglage approprié et ceci après
toute inspection faite par Kohler Co. de tous défauts dûs à une utilisation normale et ceci pendant un (1) an
à partir de la date d’installation. Kohler Co. n’est pas responsable des coûts de démontage ou d’installation.
L’utilisation de nettoyants à l’intérieur du réservoir annulera la garantie.
Pour obtenir un service-garantie, contacter Kohler Co. par l’intermédiaire de votre vendeur, plombier, centre
de rénovation, revendeur par internet ou par écrit à Kohler Co. à l’attention de: Département du service
clientèle, 444 Highland Drive, Kohler, Wisconsin 53044, USA, ou en composant le 1-800-4-KOHLER à partir
des É.U., le 1-800-964-5590 à partir du Canada et le 001-877-680-1310 depuis le Mexique.
Les garanties implicites, y compris celles de qualité marchande et d’aptitude à un emploi particulier, se
limitent expressément à la durée de la présente garantie. Kohler Co. et/ou le vendeur déclinent toutes
responsabilités contre tous dommages occasionnés, imprévisibles ou corrélatifs.
Certains états/provinces ne permettent pas la limitation sur la durée de la garantie, ou l’exclusion ou la
limitation spéciale, de dommages occasionnés, ou corrélatifs à un accident, ainsi ces limitations ou exclusions
pourraient ne pas s’appliquer dans votre cas. Cette garantie vous donne des droits légaux spécifiques. Vous
pouvez également avoir d’autres droits qui varient d’un état/province à l’autre.
Ceci constitue la garantie écrite exclusive de Kohler Co.
Dépannage
ATTENTION : Risque de blessures corporelles. La valve (si installée) peut contenir de l’eau
chaude; faire attention lors de la purge de toute eau résiduelle.
IMPORTANT ! Couper le courant et l’alimentation d’eau à tous les composants avant de procéder à toute
maintenance.
Il est recommandé que toute maintenance de valve devrait être effectuée par un technicien représentant de
Kohler Co.
Ce guide de dépannage est seulement destiné à une aide générale. Pour des problèmes ou questions
concernant le dépannage et l’installation, composer le 1-800-4-KOHLER.
Kohler Co. Français-4 1078022-5-B

Dépannage (cont.)
Table de dépannage d’interface
Symptômes Cause probable Action recommandée
1. L’interface digitale n’est
pas illuminée. A. Le module média n’est pas branché dans la prise. A. Brancher module média à la prise.
B. La connexion de l’alimentation
au module média peut être
desserrée ou déconnectée.
B. Vérifier les connexions
d’alimentation électrique au
module média et reconnecter si
besoin.
C. Les connexions de câble
d’interface sont peut être
desserrés ou déconnectés.
C. Vérifier toutes les connexions de
câble d’interface, connecter si
besoin.
D. Le disjoncteur a été déclenché. D. Réinitialiser le disjoncteur.
E. Le module média peut
nécessiter une réinitialisation. E. Déconnecter et reconnecter l’alimentation électrique du module
média.
F. Si aucune de ces actions
recommandées ne rectifient le
symptôme, le module média ou
l’interface nécessitent un
dépannage.
F. Contacter un représentant de
service agréé Kohler Co.
2. L’indicateur de courant de
l’interface clignote mais
ne s’allume pas.
A. Les connexions de câble
d’interface sont peut être
desserrés ou déconnectés.
A. Vérifier toutes les connexions de
câble d’interface, connecter si
besoin.
B. Le module média nécessite une
réinitialisation. B. Déconnecter et reconnecter l’alimentation électrique du module
média.
C. Si l’action recommandée
ci-dessus ne rectifie pas le
problème, l’interface ou le
module média nécessitent un
dépannage.
C. Contacter un représentant de
service agréé Kohler Co.
3. L’interface fonctionne
normalement mais il n’y a
pas de débit d’eau du bec
ou de la douchette.
A. Les raccords entrée/sortie sont
peut-être bouchés. A. Vérifier les entrées et sorties de tout blocage ou débris. Nettoyer les
grilles d’entrée. Se référer à la
section ″Nettoyer les grilles
d’entrée″du guide du propriétaire
de la valve.
B. Les sorties ne sont pas
correctement alignées. B. Aligner la plomberie selon le besoin.
C. Les alimentations d’eau chaude
et froide ne sont pas ouvertes. C. Ouvrir l’alimentation d’eau à la valve.
D. La valve ou la mémoire du
module média peut nécessiter
une réinitialisation.
D. Déconnecter et reconnecter
l’alimentation électrique de la valve
et du module média.
E. Erreur de système. E. Vérifier l’interface de tout code
d’erreur. Se référer à la section
″Diagnostics″du guide du
propriétaire de l’interface digitale.
F. Si aucune de ces actions
recommandées ne rectifient le
symptôme, le module média
nécessite un dépannage.
F. Contacter un représentant de
service agréé Kohler Co.
4. L’écran n’est pas très
lisible. A. Le contraste n’est pas optimisé. A. Ajuster le contraste à partir du menu de réglage de l’interface de
l’utilisateur.
B. La luminosité n’est pas
optimisée. B. Ajuster la luminosité à partir du menu de réglage de l’interface de
l’utilisateur.
1078022-5-B Français-5 Kohler Co.
