Kohler STERLING Whirlpool 7626 Series User manual

Installation Guide
Whirlpool Bath
Français, page “Français-1”
Español, página “Español-1”
7626 Series 7627 Series 7628 Series
7630 Series 7631 Series
1105582-2-F

INSTALLATION INSTRUCTIONS
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
DANGER: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI)*.
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
Install to permit access for servicing.
A pressure wire connector marked ″Earth/Ground″is provided within the wiring compartment. To reduce
the risk of electric shock, connect this connector to the grounding terminal of your electric service or supply
panel with copper wire equivalent in size to the circuit conductor supplying this equipment.
Pressure wire connectors are provided on the exterior of the junction box, pump or control within this unit to
permit connection of a bonding conductor between this unit and all other exposed metal in the vicinity, as
needed to comply with local requirements.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
WARNING: Risk of electric shock. A qualified electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
NOTICE: Follow all local plumbing and electrical codes. In Canada, install this unit in accordance with
the Canadian Electrical Code, Part 1.
*Outside North America, this device may be known as a Residual Current Device (RCD).
Product Information
Electrical Requirements
NOTE: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a hazard.
The installation must include a Class A Ground-Fault Circuit-Interrupter (GFCI). The GFCI protects
against line-to-ground shock hazard. Use a 120 V, 15 A, 60 Hz dedicated service for the whirlpool.
Product Notices
WARNING: Unauthorized modification of the pump or blower may cause unsafe operation and
poor performance of the product. Do not relocate the pump or blower, or make other modifications
to the system, as this could adversely affect the performance and safe operation of the product.
Sterling shall not be liable under its warranty or otherwise for personal injury or damage caused by
any such unauthorized modification.
Factory-Assembled Features

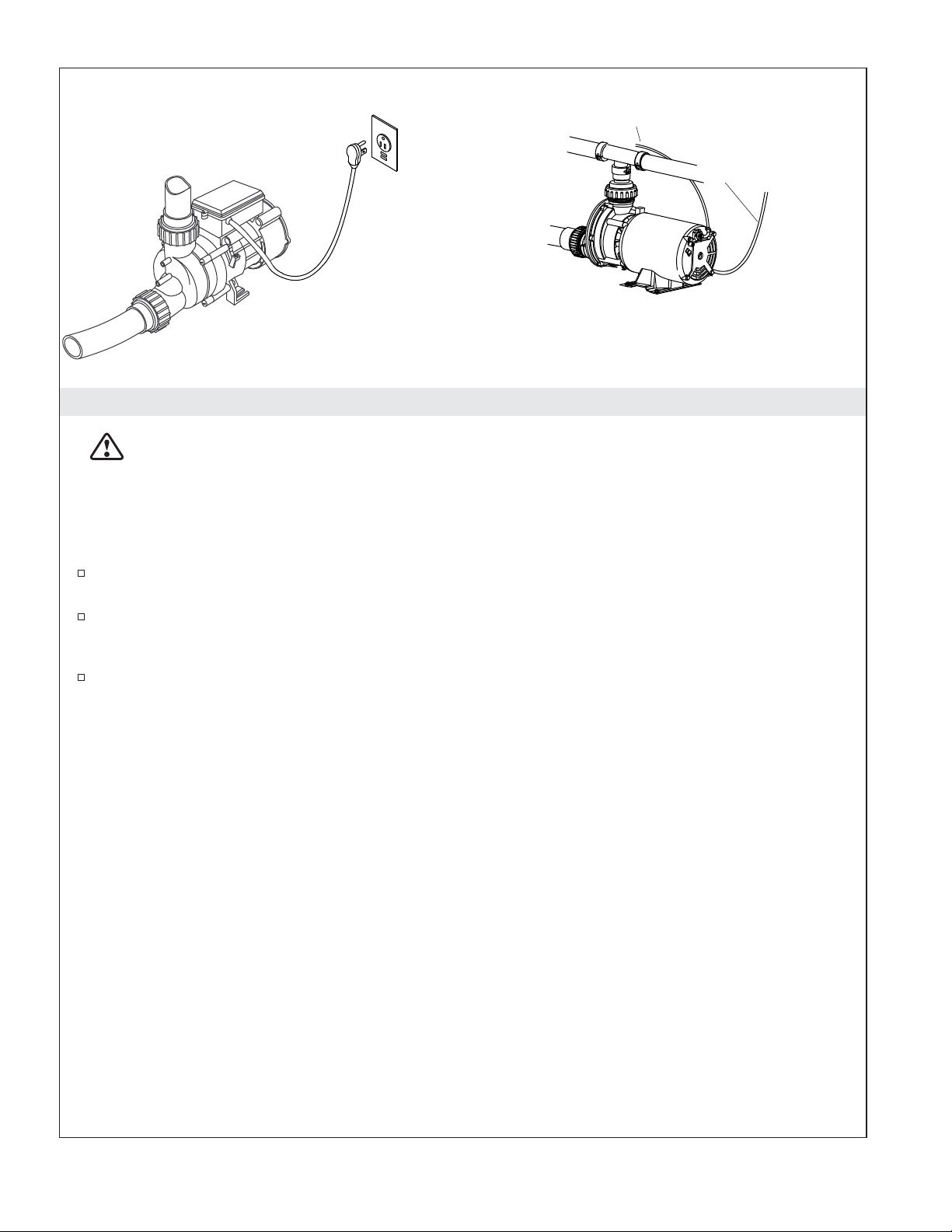

Factory installed components include: pump with power supply cord, air switch transmitter, and
whirlpool jets with suction fitting.
Connections and Service Access
Before installation, verify proper access to the final connections.
1105582-2-F 2 Sterling

Tools and Materials
Before You Begin
CAUTION: Risk of personal injury. Do not select a large rim-mount faucet or large deck-mount
faucet for this product. These faucets may be inadvertently used as a means of support and are not
appropriate or safe for this installation. Select a wall-mount faucet or alternative deck-mount faucet.
CAUTION: Risk of product damage. Lift the whirlpool by the rim at multiple points.
CAUTION: Risk of product damage. To avoid rust marks on your product, ensure the roofing nails or
non-tapered flathead screws are galvanized or plated. If using galvanized or plated non-tapered flathead
screws, do not overtighten the screws. Excessive tightening can damage the wall flange. Consult local
building codes to determine if the screws or nails must be galvanized or plated.
NOTICE: Risk of product damage. Do not install the whirlpool over open floor joists. The basin area
requires no additional support when the subfloor is level and square with the stud framing. Install the
whirlpool on an adequately supported, level subfloor. Use shims for additional support if the subfloor is
uneven.
Observe all applicable plumbing, electrical, and building codes.
This whirlpool is designed for drop-in installations. Alcove installations require ledger strips.
An optional apron is available for the 60″(1524 mm) long (7626, 7627, and 7628 Series) models.
Upon receipt, check for shortages or damage. Report any shortages or damage immediately.
Do not remove the old fixture before you unpack and inspect the new unit.
Store the whirlpool in a safe place until you begin installation to avoid damage.
If remodeling, measure the existing framework before removing the old whirlpool to make sure that
the new whirlpool will fit. Make sure that the drain is in the correct location.
Confirm adequate mounting and connection space for the water supply and drain installation.
If your whirlpool is shipped with a liner, keep the liner in place until construction is complete. If a
liner is not available, position a clean drop cloth or similar material in the bottom of the whirlpool.
If you encounter any installation or performance problems, please do not hesitate to contact Sterling
at 1-888-STERLING in the USA or 001-877-680-1310 in Mexico.
Plus:
Tin Snips
Clear 100%
Silicone Sealant
• Conventional woodworking
tools and materials
• Drop cloth
• Mortar cement (recommended)
• 1x4s, and 2x4s or 2x6s
• Hole saw
• Galvanized or plated non-tapered
flathead screws
• Furring Strips
Sterling 3 1105582-2-F

Roughing-In
ABCDE FG
7626 32″
(813 mm) 32-1/4″ (819 mm) 16″ (406 mm) 10″ (254 mm) 22″ (559 mm) 31-1/4″ (794 mm) 30-1/4″ (768 mm)
18-3/4"
(476 mm)
G
C
F
Ø 2" (51 mm) Drain
11-3/4"
(298 mm)
43-3/8" (1102 mm)
28-3/4" (730 mm)
57-3/8" (1457 mm)
14-3/4" (375 mm)
Drain Cutout
72-1/8" (1832 mm) Min
72-1/4" (1835 mm) Max
4"
(102 mm)
8"
(203 mm)
E
D11-3/4"
(298 mm)
72" (1829 mm)
Without
Apron
C
3/16"
(5 mm)
20-5/16"
(516 mm)
A
Overflow Centerline
17"
(432 mm)
Ledger Strip
Recommended Support Clip or Roofing Nail Location (5 Total)
D
Without Apron
With Apron
B
C
3/16"
(5 mm)
20-5/16"
(516 mm)
18-3/4" (476 mm)
8-3/4"
(222 mm)
A
60" (1524 mm)
30" (762 mm)
44" (1118 mm)
16" (406 mm)
Overflow Centerline
Drain Cutout
60-1/8" (1527 mm) Min
60-1/4" (1530 mm) Max
4" (102 mm)
8"
(203 mm)
E
F
G
C
8-3/4"
(222 mm)
17"
(432 mm)
7626, 7627, 7628
CB
Ø 2" (51 mm)
Drain
7630, 7631
1105582-2-F 4 Sterling

Roughing-In
(cont.)
7627 36″
(914 mm) 36-1/4″ (921 mm) 18″ (457 mm) 12″ (305 mm) 24″ (610 mm) 35-1/4″ (895 mm) 34-1/4″ (870 mm)
7628 42″
(1067 mm) 42-1/4″ (1073 mm) 21″ (533 mm) 15″ (381 mm) 27″ (686 mm) 41-1/4″ (1048 mm) 40-1/4″ (1022 mm)
7630 36″
(914 mm) N/A 18″ (457 mm) 12″ (305 mm) 24″ (610 mm) 35-1/4″ (895 mm) 34-1/4″ (870 mm)
7631 42″
(1067 mm) N/A 21″ (533 mm) 15″ (381 mm) 27″ (686 mm) 41-1/4″ (1048 mm) 40-1/4″ (1022 mm)
IMPORTANT! All dimensions are nominal. The stud opening tolerance is +1/8″(3 mm)/-0. Carefully
measure your fixture before determining enclosure size. Some shimming between the stud frame and the
fixture may be required. If a firewall is required, the roughing-in dimensions will have to increase
according to the thickness of the firewall material. Stud opening dimensions must be measured toward the
exposed side of the wall material. Dimensions given in the roughing-in information are crucial for proper
installation. Construct the framing and plumbing accurately.
If installing this whirlpool with a shower door, refer to the shower door manufacturer’s instructions for any
special framing considerations.
1. New Framing Construction
NOTE: Refer to the ″Roughing-In″section for dimensions.
IMPORTANT! The whirlpool must be supported by a subfloor. Do not install directly to open floor joists.
Framing Provisions

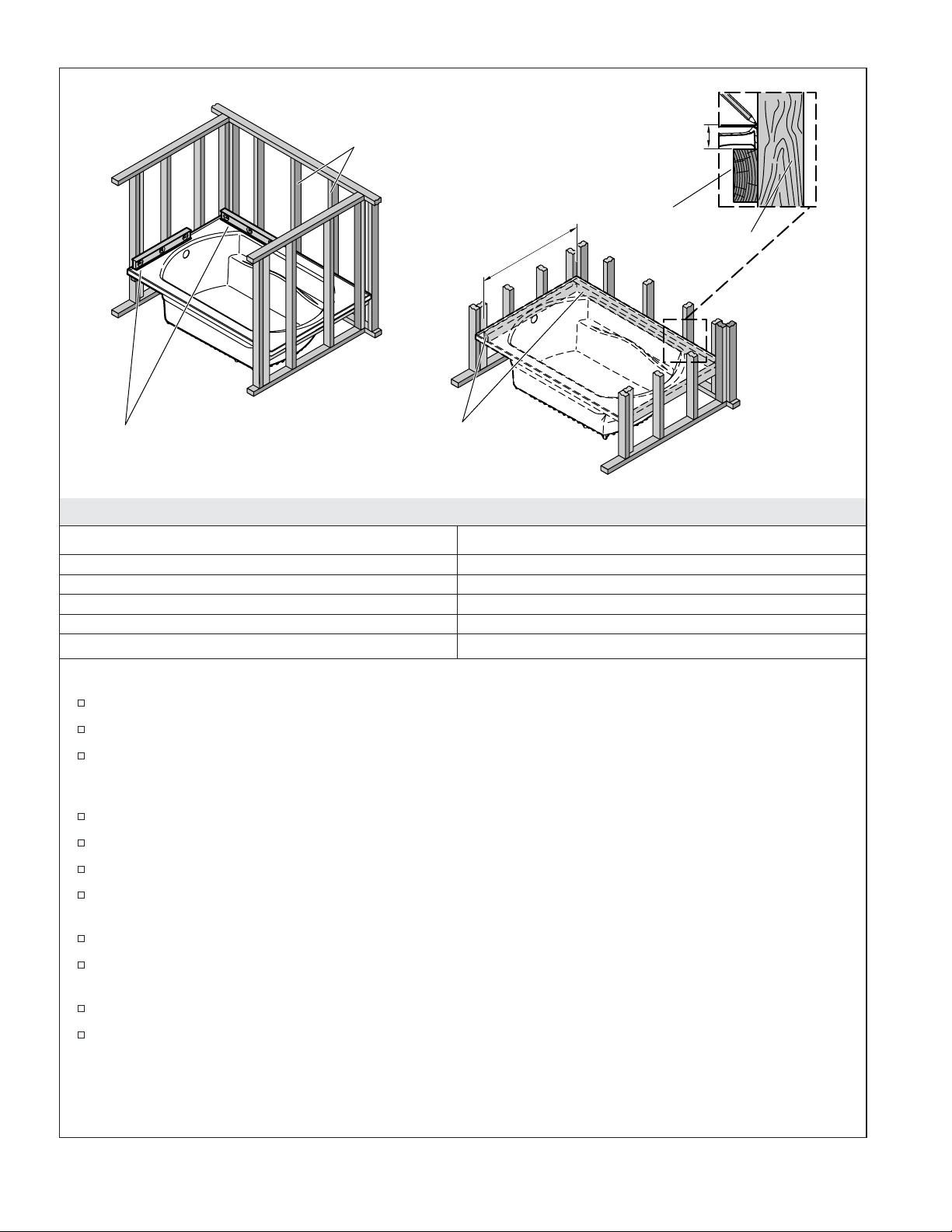

A subfloor must be installed. The whirlpool must be positioned to allow clearance for drainage
through the floor joists or slab and to allow convenient plumbing installation.
IMPORTANT! Accessories that require backing or support are not recommended for this installation.
If installing this unit with a shower door, refer to the shower door manufacturer’s instructions for
any special framing considerations. It may be appropriate to add studs for pivot shower door
support.
IMPORTANT! Construct the floor of plywood. If whirlpool is installed over material other than plywood,
friction may cause squeaking over time.
Sterling 5 1105582-2-F

2. Install the Rough Plumbing
CAUTION: Risk of personal injury. Do not select a large rim-mount faucet or large deck-mount
faucet for this product. These faucets may be inadvertently used as a means of support and are not
appropriate or safe for this installation. Select a wall-mount faucet or alternative deck-mount faucet.
NOTE: Provide access to all plumbing connections to simplify future maintenance. Include access at the
back of the plumbing wall whenever possible.
NOTE: Do not install the trim at this time.
Before installing a rim- or deck-mount faucet, measure and cut a piece of 3/4″exterior grade
plywood to act as a support under the bath rim. Cut a piece of plywood large enough to support
the faucet components and extend beyond the area where the faucet will be installed.
Install the water supply pipes at one of the specified faucet locations. Refer to the faucet
manufacturer’s instructions for proper installation.
Strap the supply lines to the stud framing.
Install the valves according to the faucet manufacturer’s instructions.
3. Prepare the Site
IMPORTANT! The whirlpool supports must rest directly on a level subfloor.
IMPORTANT! Squeaking may develop between the bath and the subfloor. If your bath was shipped with
a pad, place the pad between the bath and the subfloor. If your bath was not shipped with a pad, we
recommend installing it in a bed of mortar cement. See ″Install a Mortar Cement Bed″section. Do not use
roofing felt or polyester materials.
IMPORTANT! The drain line must be installed in accordance with the drain manufacturer’s instructions.
Locate the drain line and trap using the dimensions given in the ″Roughing-In″section.
For above-the-floor drain installations, cut the hole in the floor for the drain line.
For through-the-floor drain installations, cut the hole in the floor for the drain assembly. The drain
connection should be made directly under the overflow drain. Leave room to connect the piping.
Verify the subfloor is level.
60" (1524 mm) x
32" (813 mm)
4" (102 mm)
3-1/8"
(79 mm)
3-1/8" (79 mm)
6-1/2"
(165 mm)
17-1/4"
(438 mm)
13"
(330 mm)
12"
(305 mm)
12"
(305 mm)
60" (1524 mm)
x 42" (1067 mm)
60" (1524 mm) x
36" (914 mm)
Install the faucet
to the rim and
plywood according
to the faucet
manufacturer's
instructions.
Faucet Location
Rim
72" (1829 mm) x
42" (1067 mm)
3"
(76 mm)
16"
(406 mm)
27" (686 mm)
72" (1829 mm) x
36" (914 mm)
14-1/2"
(368 mm)
23" (584 mm) 3"
(76 mm)
4" (102 mm)
3-1/8"
(79 mm)
1105582-2-F 6 Sterling

Prepare the Site (cont.)
Install a Mortar Cement Bed (Optional)
NOTE: The whirlpool supports must rest directly on the subfloor.
Build a dam to keep the flooring material clear of the drain area.
Spread a 2″(51 mm) layer of mortar cement on the subfloor, spreading it so that each area of the
whirlpool that will contact the subfloor has mortar cement. Do not spread the mortar cement
around the drain area. Allow room for the mortar cement to expand from the weight of the
whirlpool.
Immediately move the whirlpool into position.
Verify that the whirlpool is level and resting on all supports.
Clean the whirlpool to reduce the risk of damaging the surface.
Sterling 7 1105582-2-F

4. Prepare the Whirlpool - Alcove Installations
Series G
7626 30-1/4″(768 mm)
7627 34-1/4″(870 mm)
7628 40-1/4″(1022 mm)
7630 34-1/4″(870 mm)
7631 40-1/4″(1022 mm)

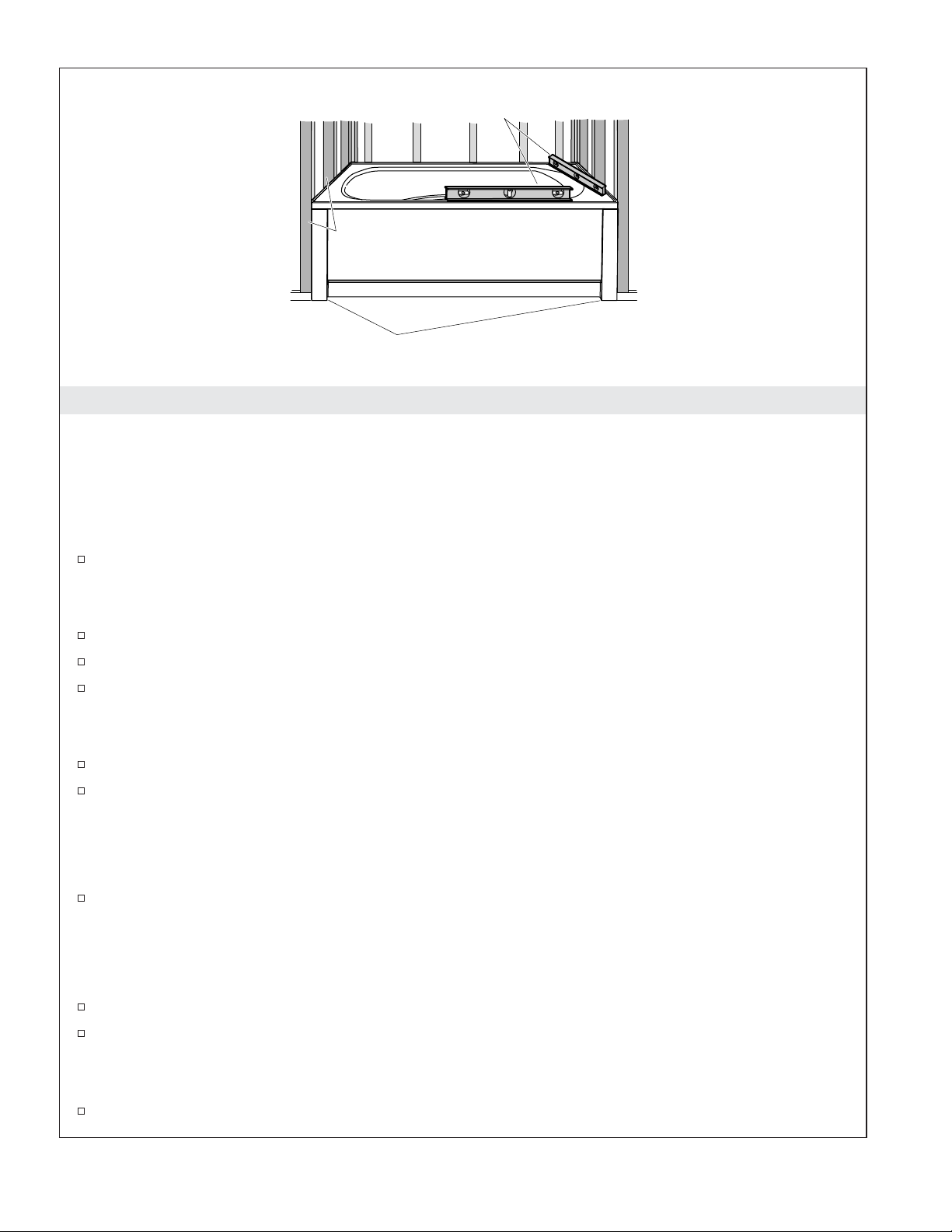

NOTE: Keep a liner or drop cloth in place in the bottom of the whirlpool until construction is complete.
Dry fit the whirlpool.
Verify that the whirlpool is level and well supported by the subfloor.
If the whirlpool is not level, level using mortar cement following the ″Install a Mortar Cement Bed″
steps, or shim with metal, hardwood, or other durable material. Reposition and shim the whirlpool
until it is aligned with the framing and level.
Mark the height of the whirlpool flange on each walled side.
Remove the whirlpool.
Measure and mark 1-9/16″(40 mm) down from the first mark.
Cut two ledger strips from 1x4 material to the length specified in dimension ″G.″Cut a third ledger
strip to fit the remaining width of the stud pocket.
Install the ledger strips.
Dry fit the whirlpool and make sure the rim of the whirlpool does not support its weight. Lower
the ledger strips slightly if the weight of the whirlpool rests on the ledger strips.
Remove the whirlpool.
Install the drain and overflow assembly to the whirlpool according to the drain manufacturer’s
instructions.
Stud
Studs
Verify level.
Ledger Strip
Ledger Strips
G
1-9/16" (40 mm)
1105582-2-F 8 Sterling

5. Install the Optional Apron
Series 7626, 7627, and 7628 Only
Place a protective barrier on the floor so the whirlpool will not be scratched.
Turn the whirlpool over.
Determine the correct side for the apron installation.
Position the apron, and align the three bath tabs and clips with the underside of the whirlpool rim.
Press the bath clips onto the bath rim fittings. If necessary, gently tap the apron into place using a
rubber mallet.
Install the apron braces to the apron brace tabs.
Install the access panels onto the apron frame.
12
Slot
Apron Brace Tab
Access Panels Apron
Apron
Apron Braces
Bath Tab
and Clip
Bath Rim Fitting
Sterling 9 1105582-2-F

6. Prepare the Site - Recessed and Island Installations
NOTICE: Do not support the whirlpool by the rim.
Recessed Installation
NOTE: A recessed installation requires a cutout in the floor with decking on all four sides. A framework
and subfloor must be added below the deck. The deck positions the whirlpool while the framework and
subfloor support the whirlpool.
Carefully lay out and cut the rough deck material. Use the cut-out template, if one is provided, or
refer to the applicable diagram in the ″Roughing-In″section.
Allow clearance to install the drain assembly and the water supply piping.
Construct an 18″(457 mm) x 15″(381 mm) access panel at the pump end of the fixture.
NOTE: The subfloor must be no lower than 18-3/4″(476 mm) below the rough deck. The subfloor
installation should allow 1/16″(2 mm) clearance for sealant between the rough deck and the lower rim of
the empty whirlpool.
Construct 2x4 or 2x6 framework and a level subfloor.
Island Installation
NOTE: An island installation requires a built-up, four-sided surround typically made of brick or concrete.
The floor that the built-up surround rests on supports the whirlpool. The surround only positions the
whirlpool.
Carefully lay out the masonry work. Consider whether the finished tile will be flush with the
whirlpool or installed under the rim.
Make sure that the subfloor is flat and level.
Allow clearance to install the drain assembly and the water supply piping.
Construct an 18″(457 mm) x 15″(381 mm) access panel at the pump end of the fixture.
NOTE: The subfloor must be no lower than 18-3/4″(476 mm) below the masonry island. The subfloor
installation should allow 1/16″(2 mm) clearance for sealant between the island and the lower rim of the
empty whirlpool.
Construct the island of brick or concrete.
Add tile or other finishing material, leaving a 1/16″(2 mm) clearance for sealant between the island
and the rim of the whirlpool.
Island Installation
Construct opening to be 1" (25 mm)
smaller than the bath in both directions. Construct according to the
roughing-in illustration.
Recessed Installation
18-3/4" (476 mm) Max 18-3/4" (476 mm) Max
1/16"
(2 mm) Gap
1/16"
(2 mm) Gap
1105582-2-F 10 Sterling

7. Install the Rough Plumbing
C
7626 16″(406 mm)
7627 18″(457 mm)
7628 21″(533 mm)
7630 18″(457 mm)
7631 21″(533 mm)
NOTE: Provide access to all plumbing connections to simplify further maintenance.
NOTE: The drain line should be located before the unit is installed. The overflow and drain must be
installed according to the manufacturer’s instructions. Locate the drain line and trap using the dimensions
given in the ″Roughing-In″section of this guide.
Locate the rough plumbing for the drain according to the roughing-in dimensions.
NOTE: If plumbing will be installed on the unfinished stud wall, install the supplies after the whirlpool is
installed.
Position the plumbing according to the roughing-in information. Cap the supplies and check for
leaks.
For above-the-floor drain installations: Cut the hole in the floor for the drain line. For
through-the-floor drain installations: Cut the hole in the floor for the drain assembly. The drain
connection should be made directly under the overflow drain. Leave room to connect the piping.
Install the water supplies according to the faucet manufacturer’s instructions. Cap the supplies and
check for leaks.
Strap the water supply connections to the stud framing.
Provide an access panel at the back of the plumbing wall for servicing the supply and waste piping,
if possible.
Install the shower valving according to the manufacturer’s instructions. Do not install the trim at
this time.
Optional
Optional
Blocking
Blocking
Supply Valves
Water Supply
Shower Elbow
24"
(610 mm)
Min
8-3/4" (222 mm) for series 7626, 7627 and 7628
11-3/4" (298 mm) for series 7630 and 7631
C
Sterling 11 1105582-2-F

8. Install the Electrical Outlet
CAUTION: Risk of personal injury. Do not turn on the power until instructed to do so.
NOTE: The whirlpool is equipped with a cord and plug. All pump and control wiring has been
completed at the factory.
NOTE: Refer to the label near the pump. This label identifies the electrical rating and model number of
the whirlpool.
Install a GFCI-protected, 120 V, 15 A grounded outlet behind the whirlpool and within 24″(610 mm)
of the pump location. No other load should be on this circuit.
If the whirlpool is equipped with a heater (not shown), install a second GFCI-protected, 120 V, 15 A
grounded outlet behind the whirlpool and within 24″(610 mm) of the pump location. No other load
should be on this circuit.
Install a bonding (grounding) conductor at the future location of the pump in accordance with any
applicable local codes.
Install a GFCI-protected 120 V, 15 A grounded outlet.
Bond in accordance
with applicable codes.
Pump Electrical Cord
Make sure air actuator tubing
is securely attached to the pump.
Bond in accordance with applicable codes.
Pump model illustrated may
differ from your actual product.
NOTE:
1105582-2-F 12 Sterling

9. Position the Whirlpool - Alcove Installations
Alcove Installations
CAUTION: Risk of product damage. Do not lift or move the whirlpool by the apron or apron braces.
Verify that the apron braces are attached before installing the whirlpool, then lift the whirlpool by the rim
at multiple points.
NOTE: 6’ (1.8 m) bath models require construction of an apron for alcove installations.
Install the drain and overflow assembly to the whirlpool according to the drain manufacturer’s
instructions. Do not connect the trap at this time.
NOTICE: Verify that the apron braces are attached before installing the whirlpool.
If a mortar cement bed will not be used, position the felt pad under the whirlpool supports.
Position and adjust the whirlpool until its outside edge is flush with the framing.
Verify that the whirlpool is level and well supported by the subfloor. If whirlpool is not level, shim
the whirlpool using metal, hardwood, or other durable material.
NOTE: The maximum distance between shimmed feet is 22″(559 mm).
Reposition and shim the whirlpool until it is aligned with the finished wall and is level.
Position the supplied liner in the whirlpool to protect the finish. If the protective liner is not
available, add a drop cloth or other protective liner.
Install a Mortar Cement Bed (Optional)
NOTE: If a mortar cement bed will be installed, the pad is not required.
Remove the whirlpool and pad from the alcove.
NOTE: Do not use plaster, gypsum cement, or drywall compound for this application, as they will not
provide adequate structural support.
NOTE: The whirlpool supports must rest directly on the subfloor.
Build a dam to keep the flooring material clear of the drain area.
Spread a 2″(51 mm) layer of mortar cement on the subfloor, spreading it so that each area of the
whirlpool that will contact the subfloor has mortar cement. Do not spread the mortar cement
around the drain area. Allow room for the mortar cement to expand from the weight of the
whirlpool.
Immediately move the whirlpool into position.
Shim if necessary.
Studs
Verify level.
Sterling 13 1105582-2-F

Position the Whirlpool - Alcove Installations (cont.)
Verify that the whirlpool is level and resting on all supports.
Clean the whirlpool to reduce the risk of damaging the surface.
10. Position the Whirlpool - Drop-In/Island Installations
Install the drain and overflow assembly to the whirlpool according to the drain manufacturer’s
instructions. Do not connect the trap at this time.
Position the whirlpool in the recess.
Verify that the whirlpool is level and well supported by the floor.
If the whirlpool is not level or well supported, remove the whirlpool and place shims under the
whirlpool feet. Use metal, hardwood, or other durable material for the shims.
NOTE: The maximum distance between shimmed feet is 22″(559 mm).
Position the whirlpool in the recess and retest for level. Repeat until the whirlpool is level.
Make sure there is a 1/16″(2 mm) gap between the deck and whirlpool rim.
1105582-2-F 14 Sterling

11. Secure the Whirlpool - Alcove Installations
NOTE: The whirlpool should be secured using the metal attachment clips (provided).
Refer to the ″Roughing-In″section for recommended clip locations.
Verify the studs are within 1/8″(3 mm) of the whirlpool at the recommended clip locations. Shim if
necessary.
Slide the bottom of each clip into the space between the whirlpool flange and stud until the tab
touches the whirlpool.
Secure the attachment clips with galvanized or plated flathead screws.
Subfloor
8-3/4" (222 mm) for series 7626, 7627 and 7628
11-3/4" (298 mm) for series 7630 and 7631
5-1/4" (133 mm) for series 7626, 7627 and 7628
5-15/16" (151 mm) for series 7630 and 7631
Attachment Clip
Ledger Strip
Stud Wall
Attachment Clip
Ø 2" (51 mm)
Drain
18-3/4"
(476 mm) 3/16"
(5 mm)
Flange
Ø 2-1/2" (64 mm) Overflow
17" (42 mm)
Overflow Height
Tab
Sterling 15 1105582-2-F

12. Place the Whirlpool Bath on the Subfloor
Make sure there is a drop cloth or other protective liner in the whirlpool.
Verify that the studs are within 1/8″(3 mm) of the whirlpool at the recommended support clip
locations. Shim if necessary.
Position the bottom lip of the attachment clip under the edge of the whirlpool and place the tab
against the bath flange.
Drill pilot holes through the flange at the attachment clip locations to protect the flange from
cracking when the fasteners are installed.
Slide the attachment clip into place between the center of the stud and the whirlpool.
NOTE: If galvanized roofing nails will be used, use caution when hammering to avoid striking the
whirlpool.
Secure the attachment clips with galvanized or plated non-tapered flathead screws.
5-1/4" (133 mm) for series 7626, 7627 and 7628
5-15/16" (135 mm) for series 7630 and 7631
Attachment Clip
Screw
Attachment Clip Flange
Flange
3/4" (19 mm) Plywood
Section at Drain End
Ø 2" (51 mm)
Drain
18-3/4"
(476 mm) 17"
(432 mm)
Ø 2-1/2" (64 mm) Overflow
16-1/2" (419 mm)
13/16" (21 mm)
1105582-2-F 16 Sterling

13. Make Electrical Connections - Dedicated Circuit Models
WARNING: Risk of electrical shock. To reduce the risk of electrical shock, connect the pump to a
properly grounded Ground-Fault Circuit-Interrupter (GFCI). This will provide additional protection
against line-to-ground shock hazard. A 120 V, 15 A dedicated circuit is required.
WARNING: Risk of electrical shock. Make sure the power has been disconnected before
performing the following procedures.
NOTE: Heater is optional. Some models will not have the heater.
Locate and secure the supplied junction box a minimum of 1-1/2″(38 mm) above the subfloor.
The whirlpool controls and system have been prewired at the factory. A qualified electrician should
make a routine service connection to the junction box.
Connect service to the junction box. The 60 Hz model junction box contains black and white wires
and a ground lug.
A 120 V, 15 A dedicated circuit is required. Provide a Class A Ground-Fault Circuit-Interrupter
(GFCI).
Provide a separate equipment grounding conductor for the inside ground or ground lug. The
conductor must not be connected to any current-carrying conductor.
Bond in accordance with national and local codes.
Repeat the procedures for the heater. All wiring of the heater has been completed at the factory.
Pump
Electrical
Cord
Bond in accordance with applicable codes.
NOTE:
Pump model illustrated may differ from your
actual product.
Make sure air actuator tubing is
securely attached to the pump.
Neutral
Neutral
(White)
Ground
Line
(Black)
From Pump
Line
Wire Connectors
Electrician to
provide suitable
strain relief.
Junction box should be
wired as shown.
Sterling 17 1105582-2-F

14. Cut the Pump Banding Straps
IMPORTANT! This step is necessary to make your whirlpool operate more quietly.
IMPORTANT! Do not raise the pump higher than it was before you cut the pump banding straps. If the
pump is raised too high, it will not prime properly.
Cut the two pump banding straps from the whirlpool pump with a pair of tin snips.
Make sure the pump is not in direct contact with the whirlpool harness.
15. Install the Drain
Connect the drain to the trap according to the manufacturer’s instructions.
Check the drain connections for leaks.
Drainage Suction Line
Pump
Cut the pump
banding straps.
NOTE:
Pump model illustrated may differ from your
actual product.
1105582-2-F 18 Sterling

16. Complete the Finished Wall - Alcove Installations
Alcove Installations
Brush all dust and debris from the whirlpool flange.
To ensure the finished wall material will be plumb, attach furring strips above the whirlpool flange
and against the studs, as shown.
Install the finished wall material over the water-resistant wall material. Maintain a 1/8″(3 mm) gap
between the finished wall material and the whirlpool surface.
Seal the 1/8″(3 mm) gap between the whirlpool surface and finished wall with 100% silicone
sealant. Allow the sealant to cure according to the sealant manufacturer’s instructions.
17. Complete the Finished Wall - Drop-in and Island Installations
For Drop-In/Island Installations (not shown)
Cover the framing with water-resistant wall/deck material. Apply the wall material over the
whirlpool flange, leaving a 1/16″(2 mm) gap between the whirlpool rim edge and the wall
material.
Seal the joints between the whirlpool rim edge and the finished deck material with 100% silicone
sealant.
Apply tape and mud to the water-resistant wall/deck material. Install the finished wall over the
water-resistant wall/deck material. Seal the joints between the whirlpool rim edge and the finished
wall material with 100% silicone sealant.
For Island Installations
If you have not already done so, carefully remove the protective tape from the whirlpool rim.
Install the finished wall material to any wall, deck, and surround material as needed.
Apply a continuous bead of 100% silicone sealant where the finished wall material meets the
whirlpool surface.
Finished Wall Material
Silicone Sealant
Water-Resistant Wall Material
1/8" (3 mm)
Sterling 19 1105582-2-F

18. Confirm Proper Operation
Installation Checkout
Verify all electrical connections.
Verify that the pump banding straps have been cut.
Fill the Whirlpool
Fill the whirlpool to at least 2″(51 mm) above the top of the highest jet.
Operating Sequence
Press the air switch to turn on the whirlpool jets.
Verify that the pump starts and operates without excessive noise or vibration.
Verify that water is circulating and flowing from each jet.
Adjust each jet for optimum flow. Turn the trim ring clockwise to decrease the flow, and
counterclockwise to increase the flow.
Press the air switch a second time to turn off the whirlpool.
Drain the whirlpool.
Fill with water at least 2" (51 mm)
above the highest jet.
Turn the jet trim ring
clockwise to
decrease the flow.
Position the jet
nozzles to direct
the water flow as
desired.
Turn the jet trim ring counterclockwise
to increase the flow.
Press the air switch to turn the
whirlpool on or off.
1105582-2-F 20 Sterling
