Kohler Mira Agile S Eco User manual

11285246-W2-D
Mira Agile S Eco, Mira Agile S, Mira Agile ERD+
Mira Agile Sense ERD+, Mira Agile Store EV+, Mira Agile EV+
These instructions must be left with the user
Installation and User Guide
For SPARES,
ADVICE or REPAIRS
please call us free
on 0800 001 4040
(UK only)

2
1285246-W2-D
Product Model
Number Colour Type 2 Designation
Mira Agile S
Mira Agile S Eco
Mira Agile EV+
B97C Chrome HP-S, HP-SE, LP-S
Mira Agile ERD+
Mira Agile Sense ERD+
Mira Agile Store EV+
B97D Chrome HP-S, HP-SE, LP-S
Introduction
Thank you for choosing a Mira shower. To enjoy the full potential of your new shower,
please take time to read this guide thoroughly, and keep it handy for future reference.
Products manufactured by Kohler Mira Ltd are designed to be safe, provided that they are
installed, used and maintained in good working order, in accordance with our instructions
and recommendations.
Follow all warnings, cautions and instructions contained in this guide, and on, or inside the
shower. This guide is also available in digital format from our website or by contacting our
customer services department.
This product should not be disposed of with your general household waste. When this product
has reached the end of its serviceable life please take it to a recognised facility such as your
local civic amenity site for recycling. Your local authority or retailer will be able to advise you
of your nearest recycling facility.
Type 2 Valves
This product has been certied as a Type 2 valve. It also complies with the Water Supply
(water ttings) regulations 1999. For further information on Type 2 Valves, refer to the TMV2
Requirements Manual (this is available to view or download from our website www.
mirashowers.com).
The approved designation for this product is listed in the table below.
Mira Mixer Showers covered by this guide:
Recommended Usage
Domestic Light Commercial 
Heavy Commercial Healthcare 
Recommended Usage
Guarantee
This product has been designed for domestic use only, Mira Showers guarantee this product
against any defect in materials or workmanship for a period of ve years from the date of
purchase (shower ttings for one year).
Failure to follow the instructions provided with the shower will invalidate the guarantee
For terms and conditions, refer to the back cover of this guide.

31285246-W2-D
Design Registration & Patents
Design Registration:
001312649-0001 to 001312649-0022
Patents:
GB 2 422 886, 2 491 044, 2 500 948, 2 544 770
Euro: 1 672 257, 2 710 194, DE, FR, GB, IT, NL, SE
USA: 8 167 215, 8 517 282

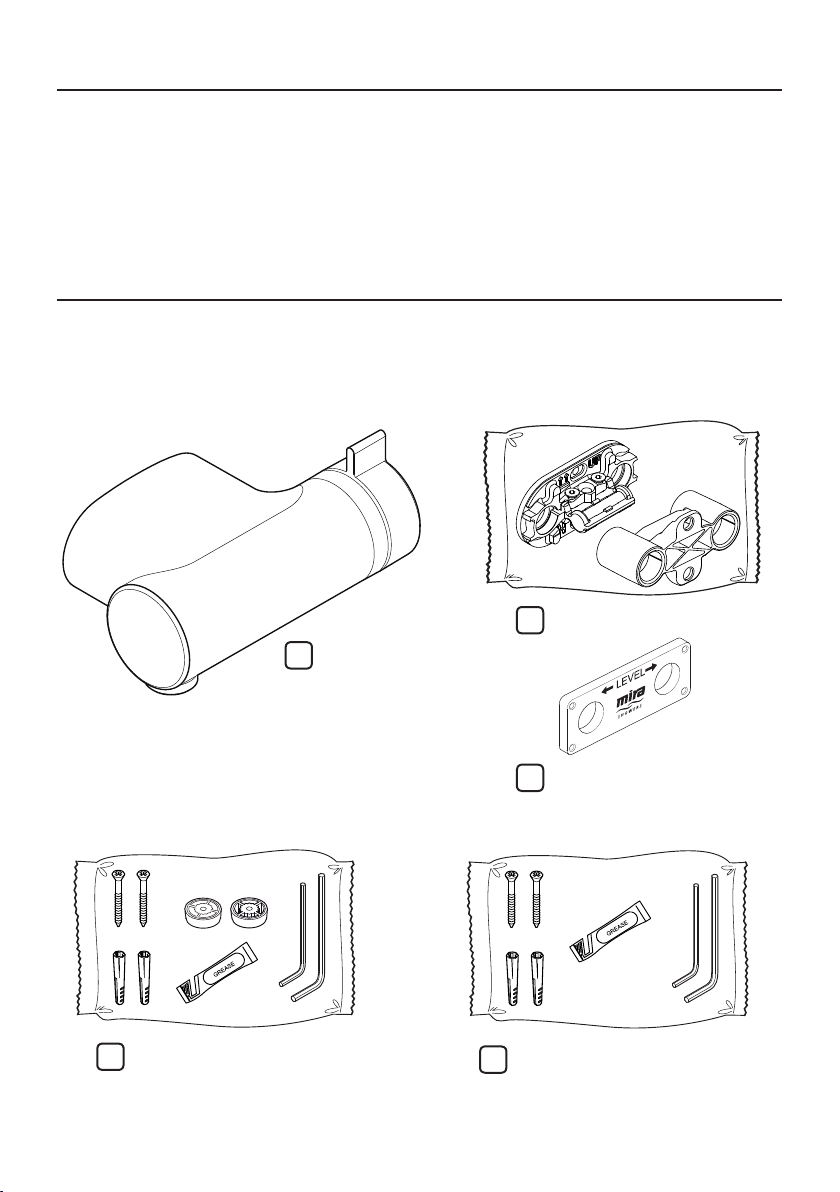

Pack Contents
(2 x Screws, 2 x Wall Plugs, 2 x Flow Reg,
2 x Hex Key, 1 x Grease Sachet)
1 x Shower Unit
Agile S
Agile S Eco
Agile EV+
1 x Wallplate Pack
1 x Component Pack
1 x First Fix Pipe Guide
(2 x Screws, 2 x Wall Plugs, 2 x Hex Key,
1 x Grease Sachet)
1 x Component Pack
Agile S & Agile EV+ Agile S Eco

4
1285246-W2-D
1 x Installation & User Guide
1 x Guarantee Card
Documents
1 x Shower Unit
1 x Wallplate Pack
(2 x Screws, 2 x Wall Plugs, 2 x Hex Key,
1 x Grease Sachet, 2 x Grubscrew - 1 as
a spare)
1 x Component Pack
1 x First Fix Pipe Guide
Agile ERD+
Agile Sense ERD+
Agile Store EV+
Pack Contents

51285246-W2-D
Important Safety Information
WARNING ! This shower can deliver scalding temperatures. For
continued safe operation, follow all instructions, warnings and
cautions contained in this guide and on or inside the shower.
Periodic maintenance may be required to keep the product in
good working order.
The function of a thermostatic mixing valve is to deliver water
consistently at a safe temperature. In keeping with every other
mechanism, it cannot be considered as functionally infallible and
as such, cannot totally replace a supervisor’s vigilance where that
is necessary. Provided it is installed, commissioned, operated and
maintained within manufacturers recommendations, the risk of
failure, if not eliminated, is reduced to the minimum achievable.
PLEASE OBSERVE THE FOLLOWING TO REDUCE THE RISK
OF INJURY:
INSTALLING THE SHOWER
1. I nstallation of the shower must be carried out in accordance with
these instructions by qualied, competent personnel. Read all
instructions before installing the shower.
2 . DO NOT install the shower where it may be exposed to freezing
conditions. Ensure that any pipework that could become frozen is
properly insulated.
3 . DO NOT perform any unspecied modications to the shower
or its accessories. When servicing only use genuine Kohler Mira
replacement parts.
4 . If the shower is dismantled during installation or servicing then, upon
completion, an inspection must be made to ensure all connections
are tight and that there are no leaks.
USING THE SHOWER
5 . The shower must be operated and maintained in accordance with
the requirements of this guide. Make sure you fully understand how
to operate the shower before use, read all instructions and retain
this guide for future reference.

6
1285246-W2-D
6. DO NOT switch the shower on if there is a possibility that the water
in the shower unit or ttings is frozen.
7 . The shower can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children must not be
allowed to play with the shower.
8 . Anyone who may have di󰀩culty understanding or operating the
controls of any shower should be attended whilst showering.
Particular consideration should be given to the young, the elderly,
the inrm or anyone inexperienced in the correct operation of the
controls.
9. DO NOT allow children to clean or perform any user maintenance
to the shower unit without supervision.
10. Always check the water temperature is safe before entering the
shower.
1 1 . DO NOT adjust the temperature control rapidly while using the
shower.
12. Use caution when altering the water temperature while in use,
always check the temperature before continuing to shower.
13. DO NOT switch the shower o󰀨 and back on while standing in the
water ow.
14. DO NOT t any form of outlet ow control. Only Mira recommended
outlet ttings should be used.
1 5 . The showerhead must be descaled regularly. Any blockage of the
showerhead or hose may a󰀨ect showering performance.
1 6 . The water supplies to this product must be isolated if the product is
not to be used for a long period of time. If the product or pipework
is at risk of freezing during this period they should also be drained
of water.
1 7 . When this product has reached the end of its serviceable life, it
should be disposed of in a safe manner, in accordance with current
local authority recycling, or waste disposal policy.

71285246-W2-D
Specications
For Type 2 Valves, the supply conditions specied in the TMV2 Requirements Manual take
precedence over the operating parameters which follow.
Pressures
• Max Static Pressure: 10 Bar.
• Max Maintained Pressure: 5 Bar.
• Min Maintained Pressure (Gravity System): 0.1 Bar (0.5 Bar for models with Eco
Showerhead). (0.1 bar = 1 Metre head from cold tank base to showerhead outlet).
Note: For gravity fed or other low pressure systems (0.5 bar or below) do not t the outlet
ow regulator (where applicable).
• For optimum performance supplies should be nominally equal.
Temperatures
• Factory Pre-set (Blend) Shower: 43° C.
• Optimum Thermostatic Control Range: 35° C to 45° C (achieved with supplies of 15° C
cold, 65° C hot and nominally equal pressures).
• Recommended Hot Supply: 60° C to 65° C Note: The mixing valve can operate at higher
temperatures for short periods without damage, however this could detrimentally a󰀨ect
thermostatic performance. For safety and performance reasons it is recommended that
the maximum hot water temperature is limited to 65° C.
• Cold Water Range: up to 25° C.
• Minimum Recommended Di󰀨erential between Hot Supply and Outlet Temperature: 12° C.
Thermostatic Shut-down
• For safety and comfort the thermostat will shut o󰀨 the mixing valve within 2 Seconds if
either supply fails (achieved only if the blend temperature has a minimum di󰀨erential of
12° C from either supply temperature).
Connections
• Inlets: Mixing valve ONLY accepts 15mm OD copper pipe.
IMPORTANT This product is not suitable for use with any other pipe sizes
• Outlet: ½” BSP Flat Face
• Standard connections are:
• Hot - Left, Cold - Right
• Outlet - Bottom
WARNING! This product does not allow for reversed inlets and will deliver dangerously
unstable temperatures if tted incorrectly.
Suitable Plumbing Installations
Gravity Fed:
The thermostatic mixer must be fed from a cold water cistern (usually tted in the
loft space) and a hot water cylinder (usually tted in the airing cupboard) providing
nominally equal pressures.
Mains Pressurised Instantaneous Hot Water System (Combination Boiler):
The thermostatic mixer can be installed with systems of this type with balanced
pressures (Recommended Minimum Maintained Pressure: 1.0 Bar).

8
1285246-W2-D
Unvented Mains Pressure System:
The thermostatic mixer can be installed with an unvented, stored hot water system.
Pumped System:
The thermostatic mixer can be installed with an inlet pump (twin impeller). The pump
must be installed in a suitable location and in accordance with its instructions.
Installation
General
1. Installation of the shower must be carried out in accordance with these instructions
by qualied, competent personnel.
2. The plumbing installation must comply with all national or local water regulations
and all relevant building regulations, or any particular regulation or practice
specied by the local water supply company.
3. Make sure all pressures and temperatures comply with the requirements of the
shower. See ‘Specications’. For Type 2 Valves, refer to supply conditions given
in the TMV2 Requirements Manual (this is available to view or download from
our website www.mirashowers.com).
4. Full bore/non restrictive servicing valves must be tted in a readily accessible
position adjacent to the shower to facilitate maintenance of the shower.
DO NOT use a valve with a loose washer plate (jumper) as this can lead to a
build up of static pressure.
5. DO NOT apply excessive force to plumbing connections; always provide
mechanical support when making plumbing connections. Any soldered joints
should be made before connecting the shower.
6. Pipework dead-legs should be kept to a minimum.
7. DO NOT install the shower unit in a position where access for maintenance is
restricted.
8. The shower must be tted to a waterproof, at and even wall surface. The two
screws and wall plugs supplied are suitable for most solid wall installations. Alternative
xing screws for panel structures are not supplied. Use both xing points to secure
the shower, be sure to use xings appropriate for the chosen wall structure.
9. When pipework enters the product from the rear through a hole in the wall,
provision must be made to prevent water ingress back into the wall structure.
10.Position the shower unit where the controls are at a convenient height for the
user. Position the showerhead so that the water sprays in line with the bath or
across the opening of a shower cubicle. The installation must not cause the
shower hose to be kinked during normal use.
11. The water supplies to this product should be isolated if the product is not to be
used for a long period of time. If the product or pipework is at risk of freezing
during this period they should also be drained of water.

91285246-W2-D
Note ! There will be occasions when the hose retaining ring will not provide a suitable solution
for Fluid Category 3 installations. In these instances an outlet double checkvalve must be
tted, this will increase the required supply pressure typically by 10 kPa (0.1 bar). Double
checkvalves tted in the inlet supply to the appliance cause a pressure build up, which
a󰀨ects the maximum static inlet pressure for the appliance and must not be tted. For Fluid
Category 5, double checkvalves are not suitable.
12. The position of the shower and shower ttings must provide a minimum air
gap of 25 mm between the showerhead and the spill over level of any bath,
shower tray or basin. There must be a minimum distance of 30 mm between
the showerhead and the spill over lever of any toilet, bidet or other appliance
with a Fluid Category 5 backow risk.
6.0 mm
Tools Required
16 - 19 mm
Zone of
Backflow
Risk
30 mm
Minimum
Toilet or Bidet
FC5
Hand Basin
FC3
Bath or Shower
Tray FC3
Shower
Unit
25 mm
Minimum
25 mm Minimum

10
1285246-W2-D
Installation
Critical! The installation area must be carefully prepared and all tiles cut or
drilled accurately for a successful installation.
Note: This product DOES NOT allow for reversed inlets and will deliver dangerously
unstable temperatures if tted incorrectly. If the tile cutting area exceeds the
boundaries listed (step 6) below, the wall plate may not conceal drilled holes.
The shower ttings should be positioned at a convenient height for all the family.
Position the ttings to spray across rather then towards the opening of the cubicle
and also away from the shower control. Avoid layouts where the shower hose will
be sharply kinked. This may reduce the life of the hose.
Shower Positioning
To enable sufficient
clearance the valve must
be a minimum 1.1 m
from the ceiling.
Agile ERD+
Offset Valve
to suit

11 1285246-W2-D
Make sure that
the pipework is
level
Solid Wall Solid Wall
Pipe work installation viewed from above.
fig 1
30 mm
30 mm
Pipe Centres
(50 mm)
fig 2
Ø 16 - 19 mm
fig 3

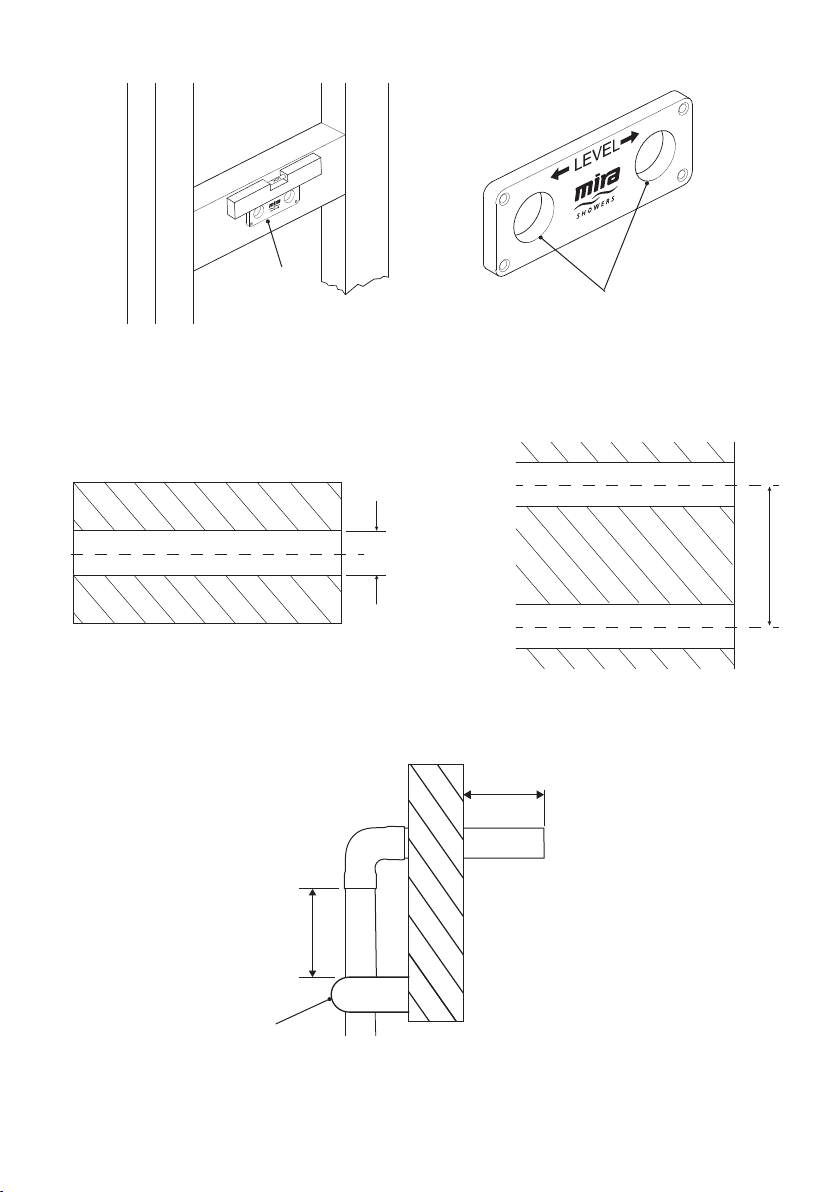

1. Pipework must be at 50 mm centres, level
and perpendicular to the finished wall
surface (see g 1).
2. It is recommended that the pipework is
secure but not rigidly xed at this stage,
in case of further adjustment when the
retaining wallplate is tted.
3. Only use Ø15 mm copper pipe for
connection to the valve.
DO NOT use any other pipe sizes.
4. Ensure you have enough pipework through
the wall to allow it to be cut to the specied
length when wall is nished (refer to the
instruction on page 10).
5. The drill holes for the central tting of the
wallplate screws must be into brick, wooden
noggin or similar sound wall structure.
We recommend the sound wall structure
should extend to an area approximately 30
mm around the pipe centres (see g 2).
6. This product does not have a shroud,
accurate drilling of the tiles is essential to
allow the wallplate to prevent water ingress
and seal correctly
Hole size for tile drilling (g 3)
Min - 16 mm Max - 19 mm

12
1285246-W2-D
7. For Stud Partition Walls
a. For stud partition wall installations make sure that a wooden noggin is in place
directly behind the nal valve position. The supplied First Fix Pipe Guide MUST
be used to mark the pipework centres, check that the pipe guide is level and
mark the pipework centres. DO NOT drill through the pipe guide.
Mark these two Holes
First Fix
Pipe Guide
b. Make sure the holes drilled through the noggin are square and level to the
mounting surface.
SIDE VIEW TOP VIEW
50 mm
Min: 19 mm Dia.
Max: 25 mm Dia.
c. Plumb supplies using 15 mm copper pipework, make sure a minimum 150
mm of pipe extends from the front surface of the noggin. We recommend the
use of a pipe clip to secure the pipework within the wall, this MUST be placed
a minimum of 150 mm from the elbow joint.
150 mm
150 mm
Pipe Clip

13 1285246-W2-D
Install the pipework for stud partition or solid
wall, making sure they are level, square
and secure. When tiling the wall t the Pipe
Shroud over the pipe stubs. This will prevent
damage to the to the pipe surface from tiling
and grout etc and assist with the correct pipe
centres and alignment.
Remove the pipe shroud and trim the pipe
stubs to 23 mm +/-5 mm from the wall
surface DO NOT use a hacksaw as the
sharp edges may damage the seals in the
mixer valve. Note: De-burr the pipework if
necessary.
IMPORTANT !
Use 15 mm
copper pipe to
valve
Min 18 mm to Max
28 mm from finished
wall surface
Plasterboard
1
5
m
m
1
5
m
m
2
Hacksaw Pipe Slice
Hot
Cold
Pipe
Shroud Tiles
Secured
Pipework
1
d. Once the pipework is in place, slide the First Fix Pipe Guide over the protruding
pipework.
Important! At this stage re-check the pipework is square and level*.
Mark and drill the pipe guide xing holes then attach directly to the noggin.
This can remain within the wall.
LEVEL LEVEL
* Pipework that is not level will make final assembly of
the valve very difficult

14
1285246-W2-D
For solid wall installations, t the supplied
wall plugs (alternative xings can be used
- countersunk head only) to allow xing of
the wallplate.
Fit the Pipe Shroud over the pipe stubs. Use
the two holes in the pipe shroud as a template
and drill through them into the nished wall
surface. Drill through the 2x holes in the
shroud.
34
Pipe Shroud
Drill holes
here
6 mm
Wall
Plug
Fit the wallplate over the pipes ensuring
they do not push back into the wall and are
within the cut length tolerance (Min 18 mm
to Max 28 mm).
Wallplate
5
Using the fixing screws provided, fix the
wallplate to the wall. Make sure that the
wallplate is level.
6
Integrated
Spirit Level
Screw
Seal the
pipework where
it comes through
the wall

15 1285246-W2-D
Loosen the screws and remove the spirit
level and ret the pipe shroud to ensure the
pipes are aligned. Make sure the pipes do
not push back into the wall.
78
Integrated
Spirit Level
Hex Key
Pipe
Shroud
Screw
Pipe
Retaining
Screws
Ensure the pipes do not
push back into the wall.
To prevent the possibility of property water
damage the screws MUST be tightened
YOU MUST FULLY TIGHTEN the pipe
retaining screws to clamp the pipes. Failure
to do so may result in water damage to your
property. Remove the pipe shroud.
Note: Only suitable for 15 mm pipe.
9
Retaining
Screw
Retaining
Screw
Backplate
Remove the two external retaining screws.
Use a suitable pair of pliers to remove the backplate from the valve, holding where shown.
Remove the retaining screw from the backplate.
Retaining
Screw

16
1285246-W2-D
Flush the water supplies thoroughly
before connecting the shower unit.
In retrofit installations (where you are
replacing an old valve), remove and discard
the old lters.
DO NOT USE POWER TOOLS TO TIGHTEN THE RETAINING SCREW
Push the valve over the backplate. Tighten the valve body retaining screws with the hexagonal
wrench. Tighten securely.
Retaining
Screw Retaining
Screw
11
12
Backplate
Retaining
Screw
Orientation markers
always on top
DO NOT USE POWER TOOLS TO TIGHTEN
THE RETAINING SCREW
Grease the pipes and push the backplate fully
home onto the wallplate and pipes, taking
care not to damage the seals. Fit and tighten
the retaining screw with the hex key. Tighten
securely.
10
To prevent the possibility of property
damage / personal injury the retaining
screw MUST be tightened.
Agile ERD+ / Sense ERD+ / Store EV+Agile S / S Eco / EV+

17 1285246-W2-D
Turn on the water supplies and check for leaks. Refer to separate guide for instructions on
how to t the shower ttings. Note: The shower must be commissioned before rst use, see
section ‘Commissioning’ and ‘Information on Flow Regulators’.
13

18
1285246-W2-D
Fit One Flow Regulator Per Outlet!
We highly recommend the tting of a ow regulator for optimum temperature control and
showering experience.
For maintained (running) water pressure greater than 0.5 bar, installing a ow regulator can
help to reduce:
• Excessive shower force
• Noise due to high or unequal water pressure
• Unstable supply temperature
• Cooler outlet temperatures due to the colder seasons
12 L/min (red) to reduce excessive shower force and stabilise temperatures.
6 L/min (black) for eco water conservation while showering.
Note: In some circumstances such as when the incoming cold water temperature supply is
very low to a combination boiler a 9 l/min ow regulator may be required to improve the hot
water performance. Contact Mira Customer Service.
Note: The 6 l/min ow regulator may a󰀨ect the performance of some combination boilers
while the shower is running. Check with the boiler’s manufacturer before tting.
DO NOT t a ow regulator if the maintained (running) water pressure is less than 0.5 bar or
the shower force is too low.
14 Information on Flow Regulators
Shower Spray
Handset*
Washer
Hose
*Subject to the tting’s ability to accept the ow regulator.

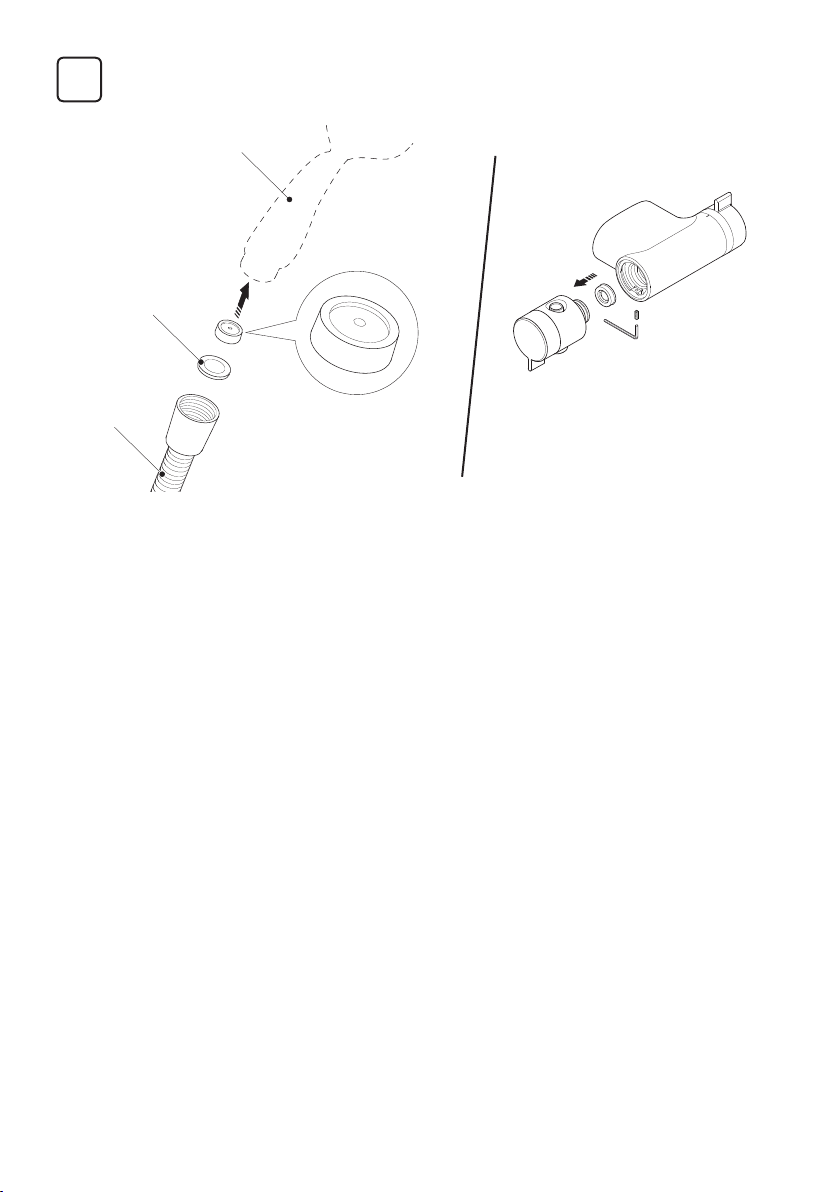

Note: For the S valves, fit
the 12 l/min flow regulator
or 6 l/min flow regulator
into the handset as shown.
Note: For the ERD or Store products the
12 l/min flow regulator is pre fitted. For low
pressure systems, if more flow is required,
remove the flow regulator as shown.

19 1285246-W2-D
Commissioning
21
Before using the shower, the maximum temperature must be checked to make sure that it is
at a safe level. It has been preset to a safe showering temperature under ideal conditions at
the factory, appropriate for most systems. However, site conditions and personal preference
may make it necessary to reset this temperature.
Note: Make sure that the hot water temperature is at least 55° C and that there is su󰀩cient
supply.
Make sure that all users are familiar with the operation of the shower. This guide is the
property of the homeowner.
Note: For Type 2 installations the maximum temperature is determined by application, refer
to the TMV2 Requirements Manual.
If you experience any di󰀩culty with the operation of your new shower, then please refer to
“Fault Diagnosis”, before contacting our customer services department.

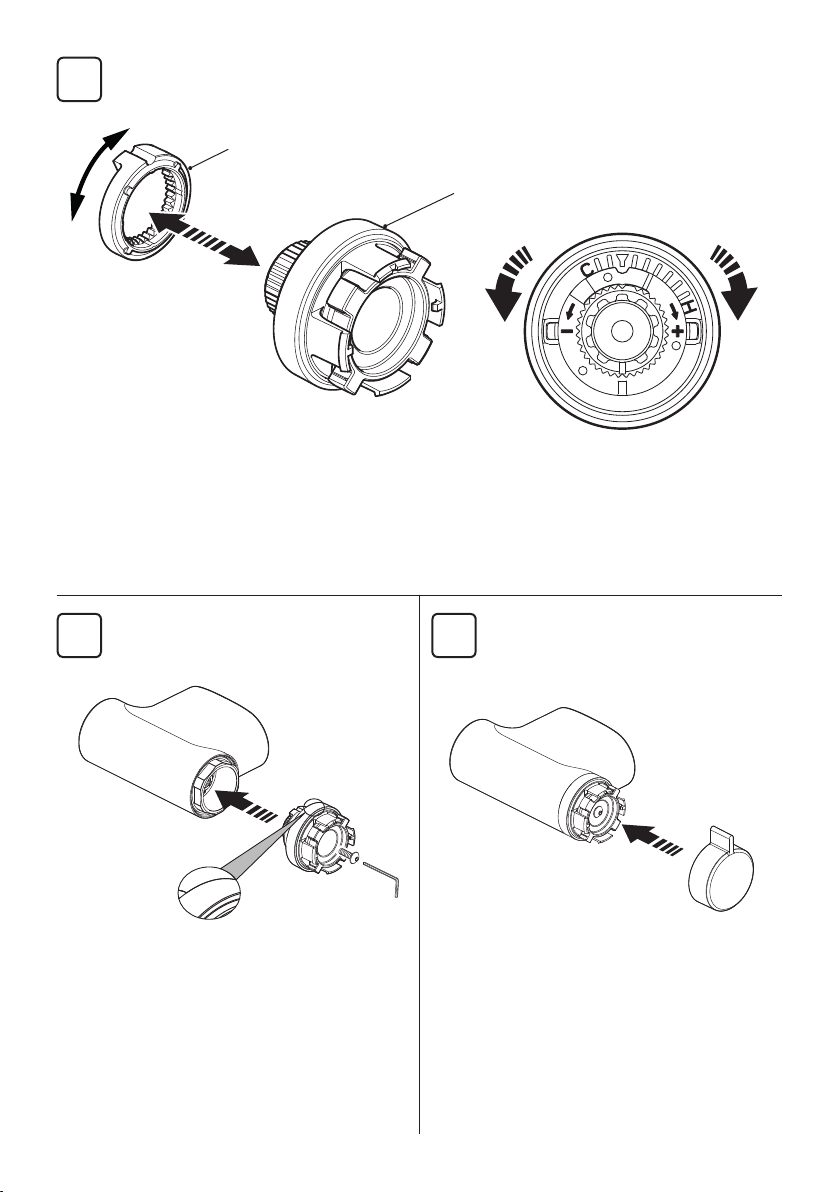

Pull the control lever from the body then
remove the retaining screw with a 2.5 mm
hexagonal key.
Pull the stop assembly from the body.
1. Turn the shower on and check the temperature adjustment operates correctly. (Allow a
few seconds for any temperature adjustment to take e󰀨ect.)
2. Turn to maximum temperature (full hot) and allow the temperature and ow to
stabilise.
3. Turn the shower o󰀨.
=
Flow and Temperature Check
Maximum Temperature Adjustment

20
1285246-W2-D
Lift and adjust the position of the red stopper on back of the handle drive.
Each serration will adjust the temperature approximately 1° C
+ = Warmer
- = Cooler
3
54
Turn the shower o󰀨 again. Ret the control
lever.
Red Stopper
Handle Drive
Ensuring correct orientation, “OFF” at
the top, ret the stop assembly and the
retaining screw to the body. Make sure the
stop assembly operates correctly and the
temperature is at the desired level.
WarmerCooler
O
F
F
O
F
F
