Kohler K-19537P-7 Assembly instructions

Homeowners Guide
Thermostatic Wall-Mount Valve
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-19537P-7
1084859-5-B

IMPORTANT INSTRUCTIONS
READ AND SAVE FOR THE
CONSUMER
WARNING: Risk of scalding or other severe injury.
•Before completing installation, the installer must set the
temperature limiting stop of this thermostatic control valve to
minimize the risks associated with scalding hazards according to
ASTM F 444.
•Do not install a shut-off device on the outlet of this valve. The
installation of any such device may create a cross-flow condition
at the valve and affect the water temperature.
NOTICE: Only apply silicone based lubricants to these valves. Do
not use petroleum based lubricants. Petroleum based lubricants will
harm the O-rings, seals, and plastic components.
This valve meets or exceeds ANSI A112.18.1 and ASSE 1016.
If you do not understand any of the installation or temperature
adjustment instructions in this document, in the United States please
contact our Customer Service Department at 1-800-4-KOHLER.
Outside the U.S., please contact your distributor.
IMPORTANT NOTICE TO INSTALLERS! Please fill in the blanks in
the adjacent box and on the valve label. Then insert these instructions
into the plastic bag included with the valve package, and attach the
plastic bag to the valve handle for the homeowner’s reference.
NOTICE TO HOMEOWNERS! This device has been preset by
_______________________ of _______________________________ to
ensure a safe maximum temperature. Any change in the setting may
raise the discharge temperature above the limit considered safe, and
lead to scalds.
Date: ______________
Thank You For Choosing Kohler Company
Thank you for choosing Kohler Company. Your Kohler Company
product reflects the true passion for design, craftsmanship, artistry, and
innovation Kohler Company stands for. We are confident its
dependability and beauty will surpass your highest expectations,
satisfying you for years to come.
1084859-5-B 2 Kohler Co.

Thank You For Choosing Kohler Company (cont.)
All information in this guide is based upon the latest product
information available at the time of publication. At Kohler Company,
we strive to fulfill our mission of improving the level of gracious living
for each person who is touched by our products and services. We
reserve the right to make changes in product characteristics, packaging,
or availability at any time without notice.
Please take a few minutes to review this guide. Pay special attention to
the care and cleaning instructions.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Wipe surfaces clean and rinse completely with water immediately
after applying cleaner. Rinse and dry any overspray that lands on
nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
•The ideal cleaning technique is to rinse thoroughly and blot dry
any water from the surface after each use.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.
Kohler Co. 3 1084859-5-B

Optional Temperature Limiting Adjustment
CAUTION: Risk of personal injury. To eliminate the risk of
scalding, the water temperature should never be set above
120°F (49°C).
NOTE: The detent position on the temperature control has been
calibrated to a shower temperature of approximately 104°F (40°C) to
105°F (41°C). If the temperature is not between 104°F (40°C) to 105°F
(41°C) at the detent position, follow the procedures below.
Turn the volume control on and turn the temperature control to
the full ″37″reference mark.
Let the water run for several minutes. Position a thermometer in
the water stream and check the maximum temperature.
Turn the temperature control to the full cold position, then slowly
turn the temperature selector toward you until the proper
maximum hot temperature is obtained.
NOTICE: Once the proper maximum temperature is obtained, do
not turn the temperature control.
NOTICE: Close the bath drain before removing the valve
components.
Using your fingers, remove the plug button.
Using a Phillips screwdriver, remove the screw.
Using your fingers, remove the washer.
Without rotating the temperature control, carefully remove the
temperature control from the spindle.
Reference Mark Reference Mark
Spindle
Temperature Control Screw
Plug Button
Washer
1084859-5-B 4 Kohler Co.

Optional Temperature Limiting Adjustment (cont.)
Without rotating the temperature control, reinstall the
temperature control onto the spindle, aligning the ″37″reference
mark with the reference mark on the valve.
Reinstall the washer, screw, and plug button into the temperature
control.
Recheck the maximum hot temperature.
Lifetime Limited Warranty
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
Kohler Co. 5 1084859-5-B

Lifetime Limited Warranty (cont.)
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
1084859-5-B 6 Kohler Co.

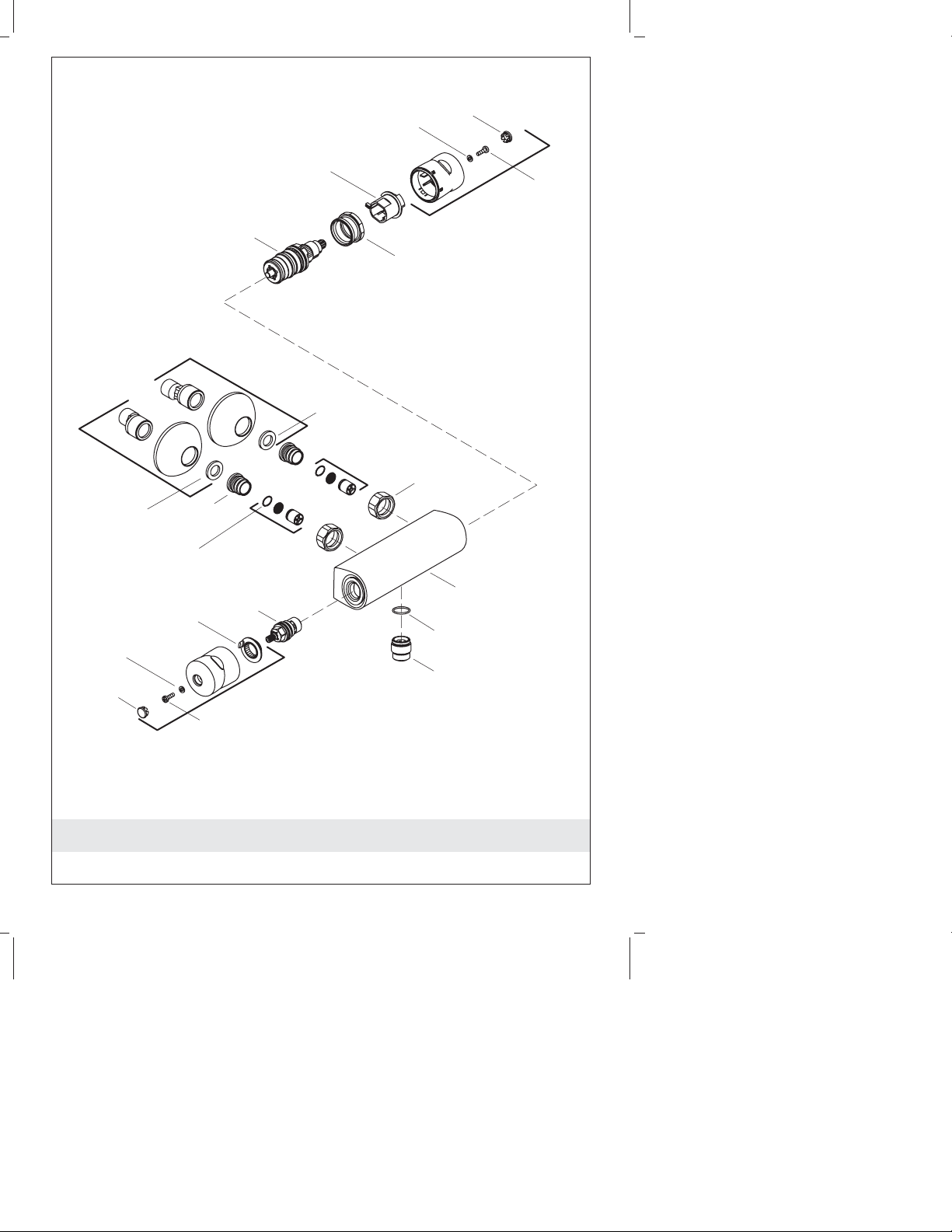

Service Parts
1083830**
830314
Connection
Washer
830314
Washer
864471
Bushing 1090865
Check Valve
1090865
Check Valve 864104**
Nut
870721
O-Ring
864922**
Outlet
1095586
Flow Valve Not Available as
a Service Part
834401**
Cap 1095584**
Flow Handle
837192
Screw
832940
Ring
871585
Adjustable Stopper
1083830**
Connection
1095585
Temperature Valve
865150
Nut
871584
Stopper
1095583**
Temperature Handle
834401**
Cap
837192
Screw
832940
Ring
**Finish/color code must be specified when ordering.
1086893
O-Ring
Kohler Co. 7 1084859-5-B

Guide du propriétaire
Valve thermostatique à montage mural
INSTRUCTIONS IMPORTANTES
À LIRE ET À CONSERVER POUR LE
CLIENT
AVERTISSEMENT : Risque de brûlures ou autres blessures
graves.
•Avant de commencer l’installation, l’installateur doit régler la
limitation de température de la valve thermostatique de contrôle
pour réduire au minimum les risques de brûlures, ceci
conformément à la norme ASTM F 444.
•Ne pas installer un dispositif d’arrêt sur la sortie de cette valve.
L’installation d’un tel dispositif peut créer une condition de débit
croisé au régulateur et modifier la température de l’eau.
AVIS : Seuls des lubrifiants à base de silicone devraient être
appliqués à ces valves. Ne pas utiliser de lubrifiants à base de
pétrole. Des lubrifiants à base de pétrole endommageront les joints
toriques, les joints et les composants en plastique.
Cette valve satisfait ou excède les exigences des normes ANSI
A112.18.1 et ASSE 1016.
S’il ne vous est pas possible de comprendre les instructions
d’installation ou de réglage de la température données par ce
document, veuillez contacter notre département du service clientèle
aux États-Unis.1-800-4-KOHLER. Hors des États-Unis, veuillez
contacter votre distributeur.
NOTICE IMPORTANTE AUX INSTALLATEURS! Veuillez remplir le
coupon sur la boîte adjacente ainsi que sur l’étiquette de la valve.
Ensuite, insérer ces instructions dans le sac en plastique inclus dans
l’emballage de la valve et attacher le sac au levier de la valve pour
servir de référence au propriétaire.
Kohler Co. Français-1 1084859-5-B

INSTRUCTIONS IMPORTANTES (cont.)
AVIS AUX PROPRIÉTAIRES! Ce dispositif a été pré-réglé par
_______________________ de _______________________________ pour
assurer une température maximale sécurisée. Toute modification de ce
réglage peut augmenter la température d’évacuation au-delà de la
limite considérée de sécurité et causer des brûlures.
Date: ______________
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la compagnie Kohler. Votre produit de la
compagnie Kohler reflète la véritable passion du design, d’artisanat,
d’art et d’innovation représentant la compagnie Kohler. Nous sommes
confiants que sa fiabilité et beauté surpasseront vos exigences les plus
élevées, vous satisfaisant pendant les années à venir.
Toute information contenue dans ce guide est basée sur l’information
la plus récente du produit disponible au moment de la publication. A
la compagnie Kohler, nous aspirons à remplir notre mission
d’améliorer le niveau de vie gracieux pour chaque individu affecté par
nos produits et services. Nous nous réservons le droit d’apporter des
modifications aux caractéristiques, emballages et disponibilités des
produits à tout moment, et ce sans préavis.
Veuillez prendre s’il vous plaît quelques minutes pour étudier ce
guide. Prêter une attention toute particulière aux instructions
d’entretien et de nettoyage.
Entretien et nettoyage
Pour de meilleurs résultats, prendre ce qui suit en considération lors de
l’entretien de votre produit KOHLER:
•Toujours tester la solution de nettoyage sur une surface la moins
évidente avant de l’appliquer sur la totalité de la surface.
•Éssuyer les surfaces et rincer complètement avec de l’eau
immédiatement après l’application de nettoyant. Rincer et sécher
tout éclaboussement sur les surfaces avoisinantes.
•Ne pas laisser les nettoyants sur les surfaces.
•Utiliser une éponge ou un chiffon doux et humide. Ne jamais
utiliser de matériau abrasif tel que brosse ou éponges à récurer
pour nettoyer les surfaces.
Kohler Co. Français-2 1084859-5-B

Entretien et nettoyage (cont.)
•La technique idéale de nettoyage est de bien rincer et de sécher
toute eau de la surface après chaque usage.
Pour l’information détaillée de nettoyage et des produits à considérer,
visiter www.kohler.com/clean. Pour commander des informations
d’entretien et de nettoyage, composer le 1-800-456-4537.
1084859-5-B Français-3 Kohler Co.
