Kohler Mira Moto User manual

1
Mira Moto, Mira Pace†, Mira Minilite†and Mira Miniduo†
(†including Eco Models)
Thermostatic Mixers
These instructions must be left with the user
Installation and User Guide
For SPARES, ADVICE
or REPAIRS
Please call us on
0844 571 5000
(UK Only)

2
CONTENTS
Introduction 2
Type 2 Valves 2
Guarantee 3
Recommended Usage 3
Patents and Design Registration 3
Safety Warnings 3
Pack Contents 4
Exposed Thermostatic Mixers 4
Built-in Thermostatic Mixers 5
Valve Combinations 6
Specications 7
Installation 9
Suitable Plumbing Systems 9
General 9
Exposed Thermostatic Mixers 10

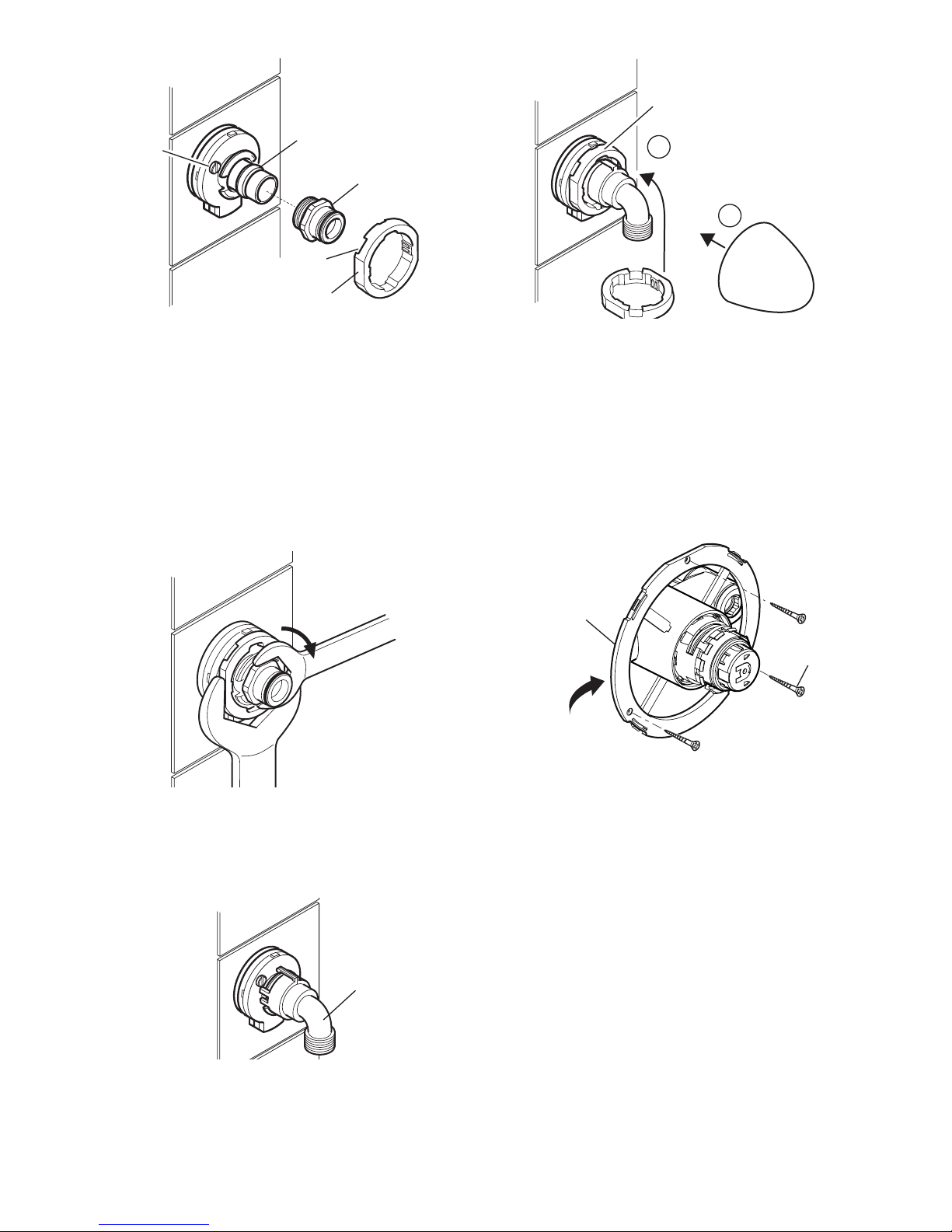

Adjustable Elbow Installation 13
Flow Regulators 19
Operation 22
Commissioning 23
Maximum Temperature Setting 23
Fault Diagnosis 24
User Maintenance 24
Filter Replacement 24
Lubricants 25
Cleaning 25
Accessories 25
Spare Parts 26
If you experience any difficulty with the
installation or operation of your new
thermostatic mixer, please refer to ‘Fault
Diagnosis’, before contacting Kohler Mira Ltd.
Our contact details can be found on the back
cover of this guide.
INTRODUCTION
Thank you for purchasing a quality Mira product. To
enjoy the full potential of your new product, please
take time to read this guide thoroughly, having
done so, keep it handy for future reference.
The Mira Moto, Mira Minilite and Mira Minilite Eco
are thermostatic mixers with a single control lever
for on/off and temperature control.
The Mira Pace, Mira Pace with Eco Showerhead,
Mira Pace with Adjustable Inlet Elbows, Mira
Miniduo and Mira Miniduo with Eco Showerhead
are thermostatic mixers with separate on/off and
temperature controls.
The thermostatic mixers incorporate a wax
capsule temperature sensing unit, which provides
an almost immediate response to changes in
pressures or temperature of the incoming water
supplies to maintain the selected temperature. An
adjustable maximum temperature stop is provided
which limits the temperature to a safe level.
Inlet lters are tted to protect the thermostatic
cartridge.
Type 2 Valves
These products have been certied as Type 2
valves under the BUILDCERT TMV2 scheme.
They also comply with the Water Supply (water
ttings) Regulations 1999.
For Type 2 Valves refer to the TMV2 Requirements
Manual.
Application
The approved designations for Type 2 Valves
are as follows:
Models Designation
Moto, Minilite LP-S, HP-S, HP-SE#
# the economy designation is achieved with the
tting of the outlet ow regulator.
Models Designation
Pace, Miniduo LP-S, HP-S
Important!Thettingofanyowregulatorto
Pace or Miniduo models will invalidate TMV2
compliance due to the minimum ow rate
requirements. Do not t ow regulators in
TMV2 applications to these models.

3
Guarantee
For domestic installations, Mira Showers
guarantee the products listed in this guide against
any defect in materials or workmanship for a
period of three years from the date of purchase
(shower ttings for one year).
For non-domestic installations, Mira Showers
guarantee the products listed in this guide against
any defect in materials or workmanship for a
period of one year from the date of purchase.
For terms and conditions refer to the back cover
of this guide.
Recommended Usage
Application Valve with
Fittings
Domestic ü
Light Commercial ü
Heavy Commercial û
Healthcare û
Patents and Design Registration
Patents:
GB: 2 291 693, 2 340 210, 2 392 225,
2 421 297
Euro: 1 672 257 DE, FR, GB, IT, NL, SE
USA: 7 240 850
Patent Applications:
Euro: 03254070.0
USA: 2006-0124758-A1, 2007-0221740-A1
Design Registration:
000793401-0005-00011
SAFETY WARNINGS
Mira thermostatic mixers are precision engineered
and should give continued safe and controlled
performance, provided:
1. They are installed, commissioned, operated and
maintained in accordance with manufacturer’s
recommendations.
2. Type 2 Valves are only used for applications
covered by their approved designations, refer
to the TMV2 Requirements Manual.
3. Periodic attention is given, when necessary,
to maintain the product in good functional
order.
Caution!
1. Read all of these instructions.
2. Retain this guide for later use.
3. Pass on this guide in the event of change of
ownership of the installation site.
4. Follow all warnings, cautions and instructions
contained in this guide.
5. Anyone who may have difculty understanding
or operating the controls of any shower should
be attended whilst showering. Particular
consideration should be given to the young,
the elderly, the inrm or anyone inexperienced
in the correct operation of the controls.
6. Rapid/Excessive movement of the ow and/
or temperature control levers may result in
momentary unstable blend temperatures.
7. Care is required when adjusting flow or
temperature, make sure that the temperature
has stabilised.
8. When this product has reached the end of its
serviceable life, it should be disposed of in a
safe manner, in accordance with current local
authority recycling, or waste disposal policy.

4

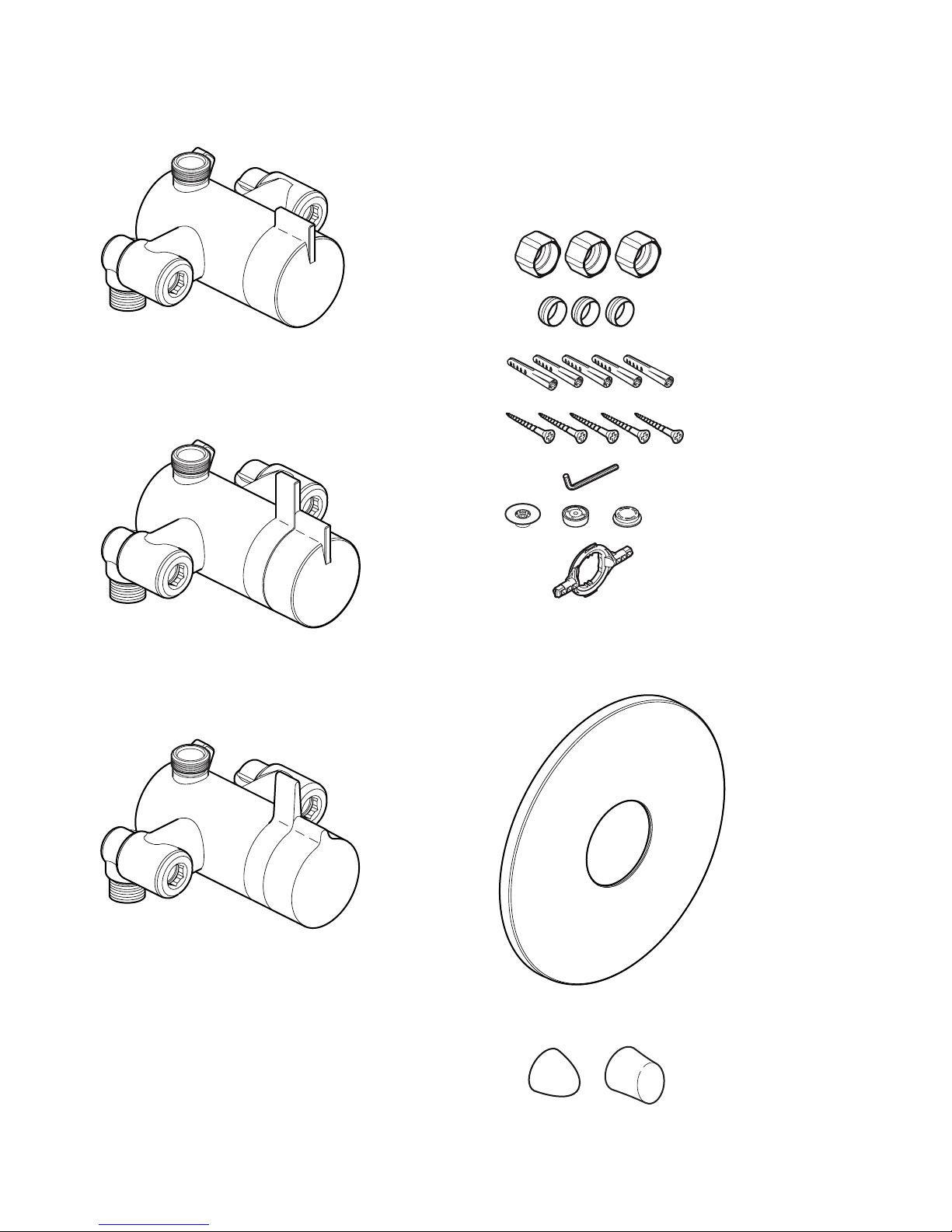

PACK CONTENTS
Tick the appropriate boxes to familiarise yourself
with the part names and to conrm that all of the
parts are included.
Exposed Thermostatic Mixers
q1 x Thermostatic Mixing Valve
Documentation
q1 x Guarantee Registration Document
q1 x Installation Template
q1 x TMV2 Requirements Manual
Component Pack
q2 x Concealing Plates
q2 x Compression Nuts
q2 x Olives
q2 x Wall Plugs
q2 x Fixing Screws
q1 x 2.5 mm Hexagonal Key
Mira Minilite EV or
Mira Minilite Eco EV
q1 x ‘O’ Key
q1 x Flow Regulator (refer to
section: ‘Flow Regulators’)
Mira Pace EV
Mira Pace with Adjustable Elbows
Mira Pace with Eco Showerhead EV
Mira Miniduo EV or
Mira Miniduo with Adjustable Elbows
Mira Miniduo with Eco Showerhead EV
Mira Moto EV

5
Component Pack
Mira Minilite BIV or
Mira Minilite Eco BIV
q3 x Compression Nuts
q3 x Olives
q5 x Wall Plugs
q5 x Fixing Screws
q1 x 2.5 mm Hexagonal Key
q1 x Concealing Plate
Assembly
Documentation
q1 x Guarantee Registration Document
q1 x Cardboard Building-in Shroud
q1 x TMV2 Requirements Manual
q1 x ‘O’ Key
q1 x Flow Regulator (refer to
section: ‘Flow Regulators’)
q1 x RAC Assembly
Mira Miniduo BIV or
Mira Miniduo with Eco Showerhead BIV or
Mira Miniduo with Eco Showerhead BIR
oror
or
Built-in Thermostatic Mixers
q1 x Thermostatic Mixing Valve
Mira Pace BIV

6
Valve Combinations
These thermostatic mixers are available with various shower ttings and water saving features, refer to
the table below to identify your mixer valve combination:
Mixer Valve Shower
Fittings
Flow Regulator
Flow Rate Colour Comments
Moto EV /
Minilite EV L14A 12 L/Min Red Supplied in the component pack, designed to
be tted in the shower valve outlet
Pace EV /
Miniduo EV L98B 12 L/Min Red Supplied in the component pack, designed to
be tted in the shower valve outlet
Minilite BIV L14A 12 L/Min Natural
Supplied in the component pack, designed
to be tted between the shower hose and
RAC assembly
Minilite Eco EV L14A 6 L/Min Black
Factory tted in the shower valve outlet
(optional 8 L/Min (white/natural) flow
regulator supplied separately in the
component pack)
Minilite Eco BIV L14A 6 L/Min Black
Factory tted in the RAC assembly (optional
8 L/Min (white/natural) flow regulator
supplied separately in the component pack)
Miniduo BIV L98B 12 L/Min Natural
Supplied in the component pack, designed
to be tted between the shower hose and
RAC assemblyPace BIV L14D
Pace EV with
Adjustable Elbows L14D 12 L/Min Red Supplied in the component pack, designed to be tted in the shower valve outlet
Pace with Eco
Showerhead EV
L98B with Eco
Showerhead 7.0 L/Min Olive Green
Supplied in the component pack, designed
to be tted between the shower hose and
shower valve outlet
Miniduo with Eco
Showerhead EV
L98B with Eco
Showerhead 7.0 L/Min Olive Green
Supplied in the component pack, designed
to be tted between the shower hose and
shower valve outlet
Miniduo with Eco
Showerhead BIV
L98B with Eco
Showerhead 7.0 L/Min Olive Green
Supplied in the component pack, designed
to be tted between the shower hose and
RAC assembly
Miniduo with Eco
Showerhead BIR
Eco BIR
Showerhead 7.3 L/Min Bright Green
Supplied with the Eco BIR shower head,
designed to be tted between the wall plate
and inlet nipple
Flow regulators are supplied for installation on high pressure systems (above 0.5 bar).
For gravity fed or other low pressure systems do not t the ow regulator.
The Mira Minilite Eco has a ow regulator factory tted in the shower valve outlet or RAC assembly,
on older combination boiler systems it may be necessary to replace this 6 L/Min ow regulator with the
8 L/Min ow regulator (supplied), in order to achieve the minimum ow rate required to ignite and run
the boiler.
Important! The tting of any ow regulator to Pace and Miniduo models will invalidate TMV2
compliance due to the minimum ow rate requirements. Do not t ow regulators in TMV2
applications to these models.
For further information on how and where to t the ow regulator, refer to section: ‘Flow Regulators’.

7
SPECIFICATIONS
For Type 2 Valves, the supply conditions
specified in the TMV2 Requirements Manual
take precedence over the operating parameters
which follow.
Pressures
• Max Static Pressure: 10 Bar.
• Max Maintained Pressure: 5 Bar.
• Min Maintained Pressure (Gravity System):
0.1 Bar (0.5 Bar for models with Eco
Showerhead). (0.1 bar = 1 Metre head from
cold tank base to showerhead outlet).
Note! For gravity fed or other low pressure
systems (0.5 bar or below) do not t the outlet
ow regulator (where applicable).
• For optimum performance supplies should be
nominally equal.
Temperatures
• Factory Pre-set (Blend) Shower: 41°C.
• Optimum Thermostatic Control Range: 35°C
to 43°C (achieved with supplies of 15°C cold,
65°C hot and nominally equal pressures).
• Recommended Hot Supply: 60°C to 65°C
Note! The mixing valve can operate at
higher temperatures for short periods without
damage, however this could detrimentally
affect thermostatic performance. For safety
and performance reasons it is recommended
that the maximum hot water temperature is
limited to 65°C.
• Cold Water Range: up to 25°C.
• Minimum Recommended Differential between
Hot Supply and Outlet Temperature: 12°C.
Thermostatic Shut-down
• For safety and comfort the thermostat will
shut off the mixing valve within 2 Seconds if
either supply fails (achieved only if the blend
temperature has a minimum differential of
12°C from either supply temperature).
Connections
• Inlets: 15 mm Compression.
• Outlet: ½” BSP Flat Face / 15 mm
Compression
• Standard connections are: hot - left, cold -
right, outlet - bottom (EV models), top (BIV
and BIR models).

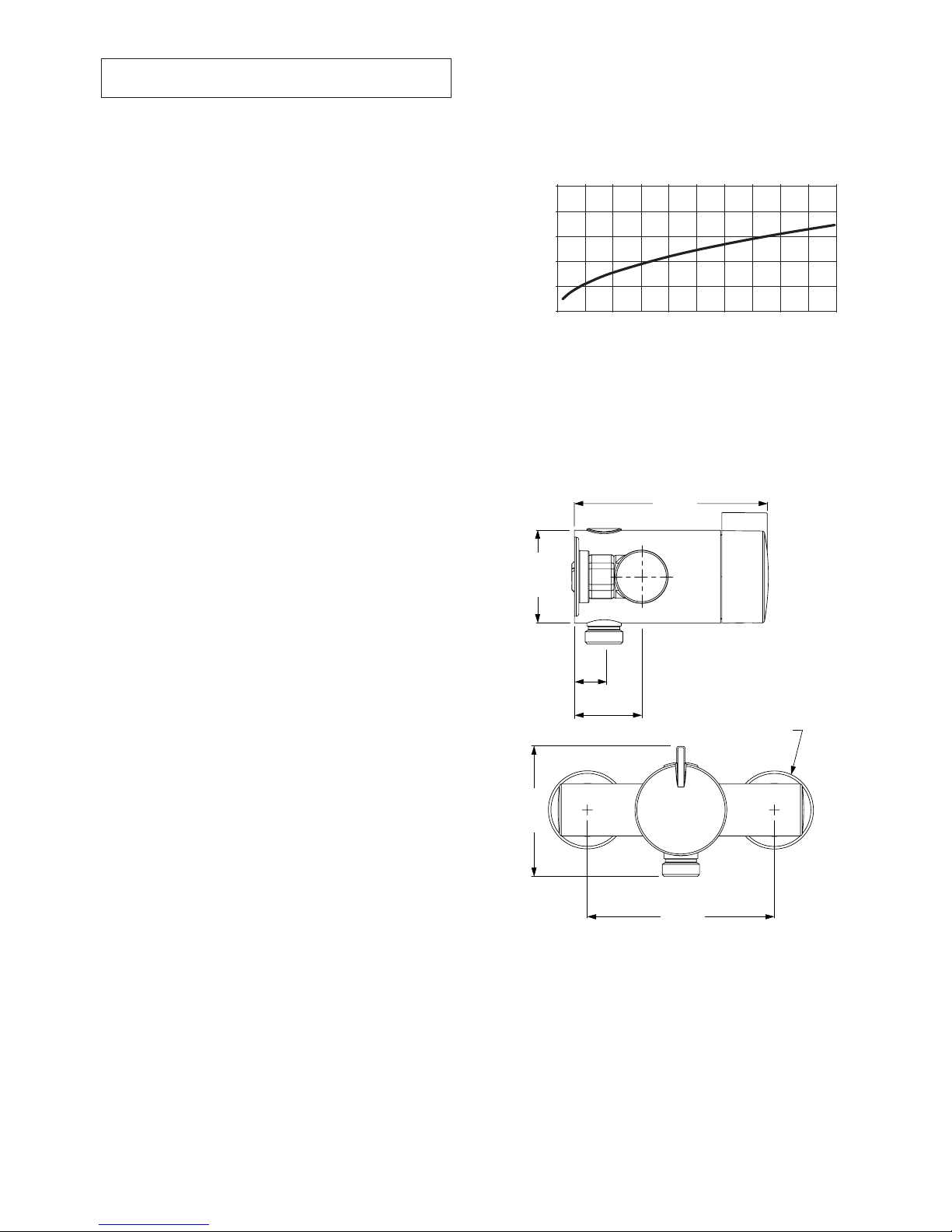

Dimensions
Moto, Minilite and Minilite Eco EV
Ø46
39
17
See Note! below
(All dimension in millimetres)
113
Ø54
76.5
110
Flow Rates
Typical Flow Rates
Mira Miniduo with Mira L98B Shower Fittings:
Supply Pressure (bar)
Flow Rate (L/Min)
0
10
20
30
40
50
01 23
45
0.5 1.5 2.5 3.5 4.5

8

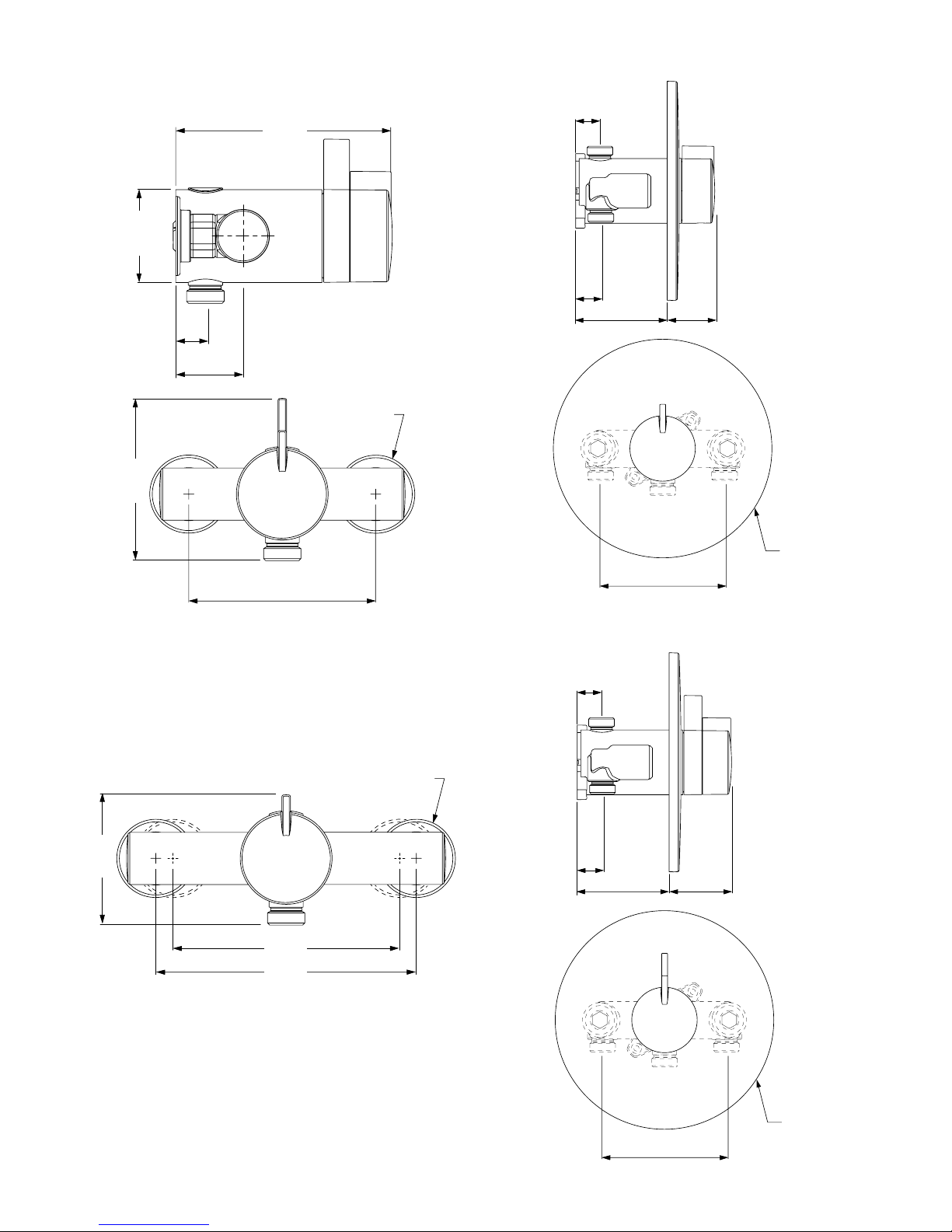

Minilite and Minilite Eco BIV
Pace, Miniduo BIV and Miniduo with Eco
Showerhead BIV / BIR
103
103
Ø183
56-76 39-59
21
20
56-76 53-73
21
20
Ø183
Miniduo and Pace with Adjustable Elbows
Ø46
76.5
133
153
Pipe Centres at extremes of elbow adjustment
Pace, Pace with Eco Showerhead, Miniduo and
Miniduo with Eco Showerhead EV
Note! If you are retro-tting your mixing valve onto
existing pipework, an Adjustable Elbow Pack is
available if required, refer to section: ‘Accessories’.
39
17
110
Ø46
See Note! below
125
Ø54
95

9
INSTALLATION
Suitable Plumbing Systems
Gravity Fed:
The thermostatic mixer must be fed from a cold
water cistern (usually tted in the loft space) and
a hot water cylinder (usually tted in the airing
cupboard) providing nominally equal pressures.
Mains Pressurised Instantaneous Hot Water
System (Combination Boiler):
The thermostatic mixer can be installed with
systems of this type with balanced pressures.
(Recommended Minimum Maintained Pressure:
1.0 Bar).
Note! On combination boiler systems we
recommend that the thermostatic mixer is
operated in the maximum ow position in order to
achieve the minimum ow rate required to ignite
and run the boiler.
Unvented Mains Pressure System:
The thermostatic mixer can be installed with an
unvented, stored hot water system.
Pumped System:
The thermostatic mixer can be installed with an
inlet pump (twin impeller). The pump must be
installed in a suitable location and in accordance
with its instructions.
General
Installation must be carried out in accordance
with these instructions, and must be conducted by
designated, qualied and competent personnel.
The installation must comply with the “Water
Supply Regulations 1999 (Water Fittings)” or any
particular regulations and practices, specied by
the local water company or water undertakers.
Note! Make sure that all site requirements
correspond to the information given in section:
‘Specications’. For Type 2 Valves see also
supply conditions in the TMV2 Requirements
Manual.
1. The Mixer must not be installed in an area
where it may freeze.
2. For stud partitions alternative xings may be
required.
3. Isolating valves must be installed close to the
Mixer for ease of maintenance.
4. Pipework must be rigidly supported and avoid
any strain on the connections.
5. Pipework dead-legs should be kept to a
minimum.
6. Decide on a suitable position for the Mixer.
The position of the Mixer and the Shower
Fittings must provide a minimum gap of 25 mm
between the spill-over level of the shower tray/
bath and the showerhead (refer to illustration).
This is to prevent back-siphonage. For further
information on the installation of your Shower
Fittings, refer to the Fittings Installation and
User Guide.
Note! Only use Shower Fittings recommended
by the manufacturer or supplier.
25 mm
Spill Over
Level

10
Exposed Thermostatic Mixers
For Built-in Thermostatic Mixers go to section:
‘Installation, Built-in Thermostatic Mixers’.
1. The thermostatic mixer can be installed with
rear, rising or falling supply inlets. Decide
on the most appropriate method for your
installation, and if necessary, loosen the
grubscrews and rotate the inlet elbows to
suit.
Important! Make sure that the elbows are
pushed fully onto the mixer before tightening
the grubscrews, do not overtighten.
2. Use the installation template to mark the
positions of the holes for the backplate and
the pipe centres.
For rising or falling supplies the pipe positions
should be set 39 mm from the centre of pipe
to the nished wall at 110 mm centres.
Note! If you are retro-tting your mixing valve
onto existing pipework, an Adjustable Elbow
Pack is available if required, refer to section:
‘Accessories’.
39 mm
3. For solid walls drill the holes for the backplate
with a 6 mm drill and insert the wall plugs
(supplied). For other types of wall structure
alternative fixings may be required (not
supplied).
6 mm Drill
Wall Plug
4. For Rear Entry Supplies Only:
a) Drill the holes for the supply pipes at
110 mm centres.
Note! Recess the inlet holes Ø19 mm x
2 mm deep to allow for the concealing
plates.
5. Fit the supply pipework: Hot - Left, Cold
- Right. The inlet pipework should extend
23 mm from the nished wall surface.
Note! If it is not possible to install the
mixer with this pipework conguration follow
instruction 6.
23 mm from nished
wall surface
Elbow
Recess Ø19 mm
x 2 mm deep
23 mm
110 mm
HOT
COLD

11
6. Reversed Inlet Supplies Only:
a) Using a suitable tool, carefully remove the
plug cap from the centre of sealing plug
to reveal keyway.
b) Remove the sealing plug using the ‘O’ key
(supplied) or a 12 mm hexagonal key.
c) Unscrew the outlet nipple using the
‘O’ key (supplied) or a 12 mm hexagonal
key.
Note! On Mira Minilite Eco models
carefully remove the ow regulator from
the outlet nipple rst.
d) Ret the sealing plug and outlet nipple in
the opposite outlets and tighten.
Note! Make sure that the ‘O’ seals are
correctly tted.
Note! On Mira Minilite Eco models ret
the ow regulator.
e) Rotate the mixer 180°.
f) The control knob(s) will have to be
realigned, this can be completed in
section: ‘Commissioning’.
Plug Cap
Sealing Plug
‘O’ Seal
7. Remove the backplate from the mixer by
loosening the grubscrews with a 2.5 mm
hexagonal key (supplied).
8. Secure the backplate to the wall using the
screws (supplied).
Screw
Backplate

12
9. For Rear Entry Supplies Only:
a) Fit the concealing plates over the inlet
pipes.
Note! Apply silicone sealant to the back
face of the ange.
Apply Silicone Sealant
Concealing Plate
10.Caution! It is essential at this point
that the supply pipework is thoroughly
ushedthroughbeforeconnectiontothe
mixer. Failure to do so may result in product
malfunction and will not be covered under the
guarantee.
11. Fit the compression nuts and olives onto the
pipework.
12. Align the mixer with the pipework and t onto
the backplate.
Important! Make sure that the hot and cold
inlets on the mixer correspond with the hot and
cold inlet supplies.
13.Tighten the compression nuts onto the mixer
with a suitable wrench.
Caution! Take care not to damage the chrome
surfaces.
14.Tighten the grubscrews to secure the mixer to
the backplate.
15. Fit the shower ttings, refer to your shower
fittings installation and user guide for
instructions.
Important! For high pressure systems (above
0.5 bar) make sure that the ow regulator
(supplied) is tted, refer to section: ‘Flow
Regulators’.
16.Turn on the hot and cold water supplies and
check for leaks.
17.Before using the shower, refer to section:
‘Commissioning’.
Compression Nut
Olive

13
Adjustable Elbow Installation
1. Unscrew the elbow grubscrews on the
thermostatic mixer with a 2.5 mm hexagonal
key (supplied with the thermostatic mixer), pull
off the inlet elbows and discard.
2. Using the ‘O’ key (supplied with the thermostatic
mixer) or a 12 mm hexagonal key, unscrew the
inlet nipples and discard.
3. Fit the new adjustable elbow inlet nipples and
tighten with the ‘O’ key.
4. Make sure that the ‘O’ seal is tted and push the
new elbow fully onto the inlet nipple. Tighten
the grubscrew with a 2.5 mm hexagonal key.
5. Remove the backplate from the mixer by
removing the grubscrew with a 2.5 mm
hexagonal key.
6. Draw a centre line between the inlet pipework
and, using the adjustable backplate as a
template, mark the position of the adjustable
backplate xing holes.
7. For solid walls drill the holes for the backplate
with a 6 mm drill and insert the wall plugs
(supplied). For other types of wall structure
alternative fixings may be required (not
supplied).
8. Secure the backplate to the wall using the
screws (supplied).
9. Align the mixer with the pipework and t onto
the backplate.
Note! Make sure that the pipes are pushed
fully into the inlet connectors.
10.Tighten the compression nuts onto the mixer
with a suitable wrench.
Caution! Take care not to damage the chrome
surfaces.
11. Tighten the adjustable backplate grubscrews
with a 2 mm hexagonal key (supplied) to
secure the mixer to the backplate.
Grubscrew
Inlet Elbow
‘O’ Key
Inlet Nipple
Backplate
Grubscrew
‘O’ Seal
Adjustable
Backplate
Adjustable
Elbow
11 mm
10 mm
Cutout

14
Built-in Thermostatic Mixers
1. Carefully remove the concealing cap from the
control knob.
2. Unscrew the grubscrew using a 2.5 mm
hexagonal key (supplied) and pull off the
control knob(s).
Note! The ow control knob must be in the off
position in order to remove it.
Flow Control Knob
Temperature
Control Knob
Grubscrew
Grubscrew
Concealing Cap
Concealing Cap
Control Knob
3. Carefully remove the concealing ring from the
concealing plate.
Concealing Ring
Concealing Plate
4. Determine the route for the hot and cold
supply pipework and for the outlet pipework.
When connecting to the BIV shower ttings it
is recommended that the outlet be positioned
to one side of the mixer. This is to prevent
the exible hose from obstructing the shower
controls (refer to illustration).
103 mm
Outlet Pipe BIV
Cold InletHot Inlet
Thermostatic
Mixer
Alternative Pipe layouts
Outlet Pipe BIV
5. Mark the routes for the hot and cold supply
pipework at 103 mm centres (Hot - Left, Cold
- Right).
Note! If it is not possible to install the
mixer with this pipework conguration follow
instruction 6.
Falling Supplies: For falling supplies loosen
the grubscrew on each elbow using the 2.5
mm hexagonal key (supplied). Remove the
elbows and install on opposite sides.
Important! Make sure that the elbows are
pushed fully onto the mixer before tightening
the grubscrews, do not overtighten.

15

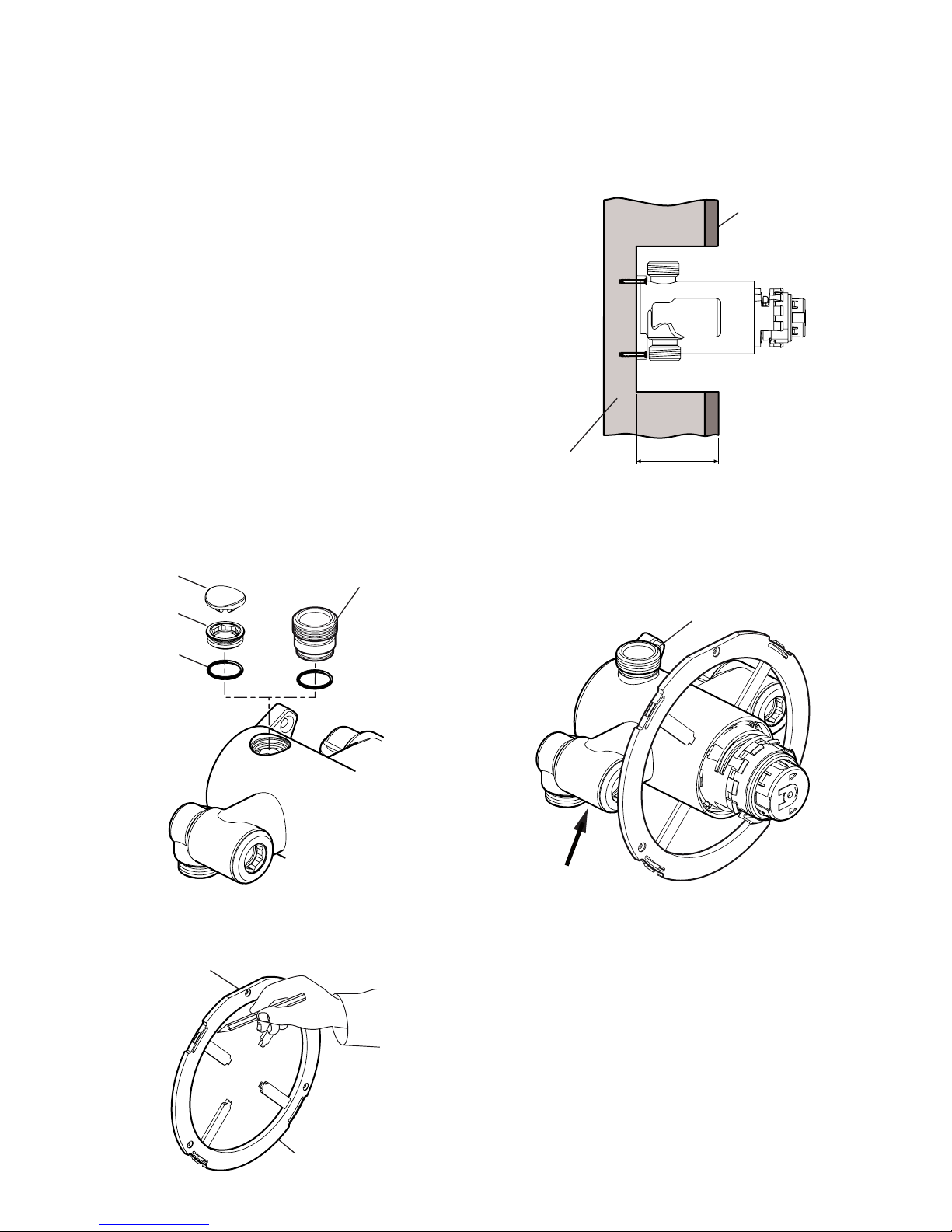

6. Reversed Inlet Supplies Only:
a) Remove the sealing plug using the ‘O’ key
(supplied) or a 12 mm hexagonal key.
b) Remove the outlet nipple using the ‘O’ key
(supplied) or a 12 mm hexagonal key.
c) Ret the sealing plug and outlet nipple in
the opposite outlets and tighten.
Note! Make sure that the ‘O’ seals are
correctly tted.
d) Rotate the mixer 180°.
e) If necessary, use the 2.5 mm hexagonal
key (supplied) to loosen the grubscrew in
each elbow.
Note! It is important to retract the
grubscrews sufciently to clear the ‘O’
seals and the inlet ange to avoid causing
damage to the seals.
f) Remove the elbows and install on
opposite sides. Make sure that the elbows
are pushed fully onto the inlet stubs then
retighten the grubscrews using the 2.5
mm hexagonal key.
Caution! Do not overtighten.
7. Determine the position of the mixer and draw
around the inside of the concealing ring.
8. Carefully cut away the plasterboard and/or
brick work to a depth of between 56 and 76 mm
from the nishedwallsurface.
Important! Take care to stay within the marked
out diameter otherwise the concealing ring will
not seal.
Finished Wall
Surface
56 - 76 mm
Rear Mounting
9. Fit the concealing ring over the mixer body,
then, holding the mixer level, central and
square in the hole, mark the positions of the
two backplate xing holes on the wall.
Backplate Fixing Hole
Backplate Fixing Hole
10.For solid walls drill two 6 mm holes for the
wall plugs. For other types of wall structure
alternative fixings may be required (not
supplied).
11. Caution! It is essential at this point
that the supply pipework is thoroughly
ushedthroughbeforeconnectiontothe
mixer. Failure to do so may result in product
malfunction and will not be covered under the
guarantee.
Top
Concealing Ring
Plug Cap
Sealing Plug
‘O’ Seal
Outlet Nipple

16
12.Insert the wall plugs (supplied) and attach the
mixer to the wall or to the timber noggin with
the screws provided.
13.Fit the compression nuts and olives onto the
pipework, connect the pipes and tighten the
compression nuts.
Important! Make sure that the outlet pipework
protrudes through a Ø25 mm hole in the wall
or stud partition by approximately 40 mm and
temporarily cap off.
Note! For stud partition installations where
access to the rear of the partition is possible,
t the RAC wallplate over the outlet pipework
on the inside of the partition.
For stud partition installations where access
to the rear of the wall is not possible, follow
instructions for solid wall installations, making
sure that suitable wall xings (not supplied) are
used to secure the wallplate to the outside of
the stud partition.
Screws
Outlet Pipe to Fittings
Hot Supply
Cold Supply
40 mm
RAC Wallplate
14.Turn on the water supplies and check for
leaks.
15.Determine the nished wall position (e.g. tile
thickness). Turn off the water supply, carefully
uncap the outlet pipe and cut to length, the
outlet pipe must protrude through the nished
wall surface by 21–23 mm.
Note! Remove any burrs from the pipes before
proceeding.
16.For solid wall installations or stud partition
installations without rear access go to
instruction 21.
For stud partition installations with access
to the rear of the partition continue with
instruction 17.
17.Finish the wall (e.g. tiles).
Important! Make sure that you use the
cardboard building-in shroud when nishing
the wall. This will protect the valve and make
sure that you tile up to the correct diameter.
Caution! Make sure that the nished wall is
within the maximum and minimum limits and to
an even depth (no greater than 2 mm variation)
or the controls will not t correctly.

17
21.Loosely attach the RAC backplate to the RAC
wallplate, using the two backplate screws
provided.
22.Place the RAC backplate/wallplate assembly
over the outlet pipe with the arrow pointing
vertically up. The screw holes should be at
40° to the horizontal.
23.Mark the positions of the two RAC wallplate
xing holes.
Wallplate
RAC Backplate
Backplate Screws
Arrow
40°
24.Remove the assembly from the wall and
separate the backplate from the wallplate.
25.For solid walls drill two 6 mm holes for the
wall plugs. For other types of wall structure
alternative fixings may be required (not
supplied). If necessary, make a recess 6 mm
deep to accept the wallplate for ush tting of
the outlet to the wall surface.
Caution! Make sure that you do not drill into
pipework in the wall.
26.Fit the two wall plugs supplied and secure
the wallplate to the wall with the two wallplate
screws.
27.Make sure that there is clearance behind the
wallplate and temporarily t the two backplate
screws into the wallplate. This will prevent
the xing holes from becoming blocked with
plaster or grout.
28.Finish the wall, e.g. tiles. then remove the two
backplate screws.
Important! Make sure that you use the
cardboard building-in shroud when nishing
the wall. This will protect the valve and make
sure that you tile up to the correct diameter.
Caution! Make sure that the nished wall is
within the maximum and minimum limits and to
an even depth (no greater than 2 mm variation)
or the controls will not t correctly.
Cardboard Building-in Shroud
29.Place the backplate over the outlet pipe with
the arrow pointing vertically up and tighten the
two backplate screws. Make sure that the foam
seal abuts the nished wall surface.
RAC Backplate
Backplate
Screws

18
30.Check that the blue ‘O’ seal is tted inside the
backplate nut. Fit the olive and the backplate
nut over the outlet pipe and loosely tighten
the nut.
31.To prevent the backplate from turning while
tightening the nut, t the retaining ring over the
backplate nut making sure the slots engage
with the screws on the backplate, hold the
retaining ring with a wrench while tightening
the backplate nut. Remove the retaining ring
after use.
32.Check that the second ‘O’ seal (black) is tted
to the outside of the backplate nut. Press the
elbow onto the backplate, make sure that the
clips on the elbow engage with the backplate.
33.Slide the retaining ring over the elbow and
engage with the elbow clips. Note! The
retaining ring must be engaged correctly to
lock the elbow to the backplate, rotate the
retaining ring to the postition illustrated.
34.Press the shroud over the elbow, make sure
that it engages with the lugs on the backplate.
35.Fit the concealing ring over the mixer and mark
the positions of the three xing holes.
36.For solid walls drill three 6 mm holes for the
wall plugs. For other types of wall structure
alternative fixings may be required (not
supplied).
Caution! Make sure that you do not drill into
pipework in the wall.
37.Insert the wall plugs (supplied) and attach the
concealing ring to the wall with the screws
provided.
Important! Apply silicone sealant to the
groove on the rear face of the concealing ring
38.Fit the concealing plate to the concealing ring.
39.Ret the control knobs.
40 Fit the shower ttings, refer to your shower
fittings installation and user guide for
instructions.
Important! For high pressure systems (above
0.5 bar) make sure that the ow regulator
(supplied) is tted, refer to section: ‘Flow
Regulators’.
41.Turn on the hot and cold water supplies and
check for leaks.
42.Before using the shower, refer to section:
‘Commissioning’.
Backplate Nut
Retaining Ring
Olive
Concealing Ring
Apply Silicone
Sealant
Screws
Retaining Ring shown
correctly engaged with
Elbow
Elbow
Slot
Screw

19
Mira Minilite EV, Mira Minilite Eco EV
Mira Moto EV

20
RAC Assembly (will vary
depending on model)
Hose Washer
Flow
Regulator
Hose
Mira Minilite BIV
A 12 L/Min ow regulator (natural) is supplied
separately in the component pack, designed to
be tted between the shower hose and RAC
assembly.
Mira Miniduo BIV, Pace BIV
A 12 L/Min ow regulator (natural) is supplied
separately in the component pack, designed to
be tted between the shower hose and RAC
assembly.
Mira Miniduo with Eco Showerhead BIV
A 7.0 L/Min ow regulator (olive green) is supplied
separately in the component pack, designed to
be tted between the shower hose and RAC
assembly.
