Komatsu GALEO WA250PTL-5 Owner's manual

.
1 - 1

.
FOREWORD
FOREWORD
FOREWORD
This manual provides rules and guidelines which will help you use this machine safely and effectively. The
precautions in this manual must be followed at all times when performing operation and maintenance. Most
accidents are caused by the failure to follow fundamental safety rules for the operation and maintenance of
machines. Accidents can be prevented by knowing beforehand conditions that may cause a hazard when
performing operation and maintenance.
WARNING
Before beginning operation or maintenance, operators and maintenance personnel must always observe the following points.
Read this manual thoroughly and understand its contents fully.
Read the safety messages and safety labels given in this manual carefully so that they should be understood fully.
Keep this manual at the storage location for the Operation and Maintenance Manual given below so that all personnel involved
in working on the machine can consult it periodically.
In case this manual should be lost or damaged, immediately contact Komatsu or your Komatsu distributor to obtain a new copy.
When you sell the machine, make sure that this manual should be provided to the new owner together with the machine.
In this manual, measurements are expressed in international standard units (SI). For the reference purpose, weight units used in
the past are also displayed in { }.
Storage location for the Operation and Maintenance Manual:
Pocket (1) at rear of operator's seat
1 - 2

.
FOREWORD
FOREWORD
1 - 3

.
FOREWORD
FOREWORD
1 - 4

.
FOREWORD
SAFETY INFORMATION
SAFETY INFORMATION
To enable you to use this machine safely, safety precautionsand labels are given in this manual and affixed to the
machine to give explanations of situations involving potential hazards and of the methods of avoiding such
situations.
Signal words
The following signal words are used to inform you that there is a potential hazardous situation that may lead to
personal injury or damage.
In this manual and on machine labels, the following signal words are used to express the potential level of hazard.
Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury. This word is used also to alert against unsafe practices that may cause
property damage.
Example of safety message using signal word
WARNING
When standing up from the operator's seat, always place the work equipment lock lever in the LOCK position.
If you accidentally touch the control levers when they are not locked, this may cause a serious injury or death.
Other signal words
In addition to the above, the following signal words are used to indicate precautions that should be followed to
protect the machine or to give information that is useful to know.
This word is used for precautions that must be taken to avoid actions which could shorten
the life of the machine.
This word is used for information that is useful to know.
1 - 5

.
FOREWORD
SAFETY INFORMATION
Safety labels
Safety labels areaffixed to the machineto informthe operator ormaintenance workeron the spotwhen carrying out
operation or maintenance of the machine that may involve hazard.
This machine uses "Safety labels using words" and "Safety labels using pictograms" to indicate safety procedures.
Example of safety label using words
Safety labels using pictogram
Safety pictograms use a picture to express a level of hazardous
condition equivalent to the signal word. These safety pictograms
use pictures in order to let the operator or maintenance worker
understand the level and type of hazardous condition at all times.
Safety pictograms show the type of hazardouscondition at the top
or left side, and the methodof avoiding the hazardousconditionat
thebottomorrightside.Inaddition,thetypeofhazardouscondition
is displayed inside a triangle and the method of avoiding the
hazardous condition is shown inside a circle.
Komatsu cannot predict every circumstance that might involve a potential hazard in operation and maintenance.
Therefore,the safety messages in this manual and on the machinemay not include all possible safety precautions.
Ifanyproceduresoractionsnotspecificallyrecommendedorallowedinthismanualareused,itisyourresponsibility
to take the necessary steps to ensure safety.
In no event should you engage in prohibited uses or actions described in this manual.
The explanations, values, and illustrations in this manual were prepared based on the latest information available
at that time. Continuing improvements in the design of this machine can lead to changes in detail which may not
be reflected inthis manual. Consult Komatsu or your Komatsu distributor forthe latest available informationof your
machine or for questions regarding information in this manual.
The numbers in circles in the illustrations correspond to the numbers in ( ) in the text. (For example: 1-> (1))
1 - 6

.
FOREWORD
INTRODUCTION
INTRODUCTION
This Komatsu machine is designed to be used mainly for the following work:
Digging work
Smoothing
Pushing work
Loading work
For details of the operating procedure, see "WORK POSSIBLE USING WHEEL LOADER (PAGE 3-98)".
FRONT/REAR, LEFT/RIGHT DIRECTIONS OF MACHINE

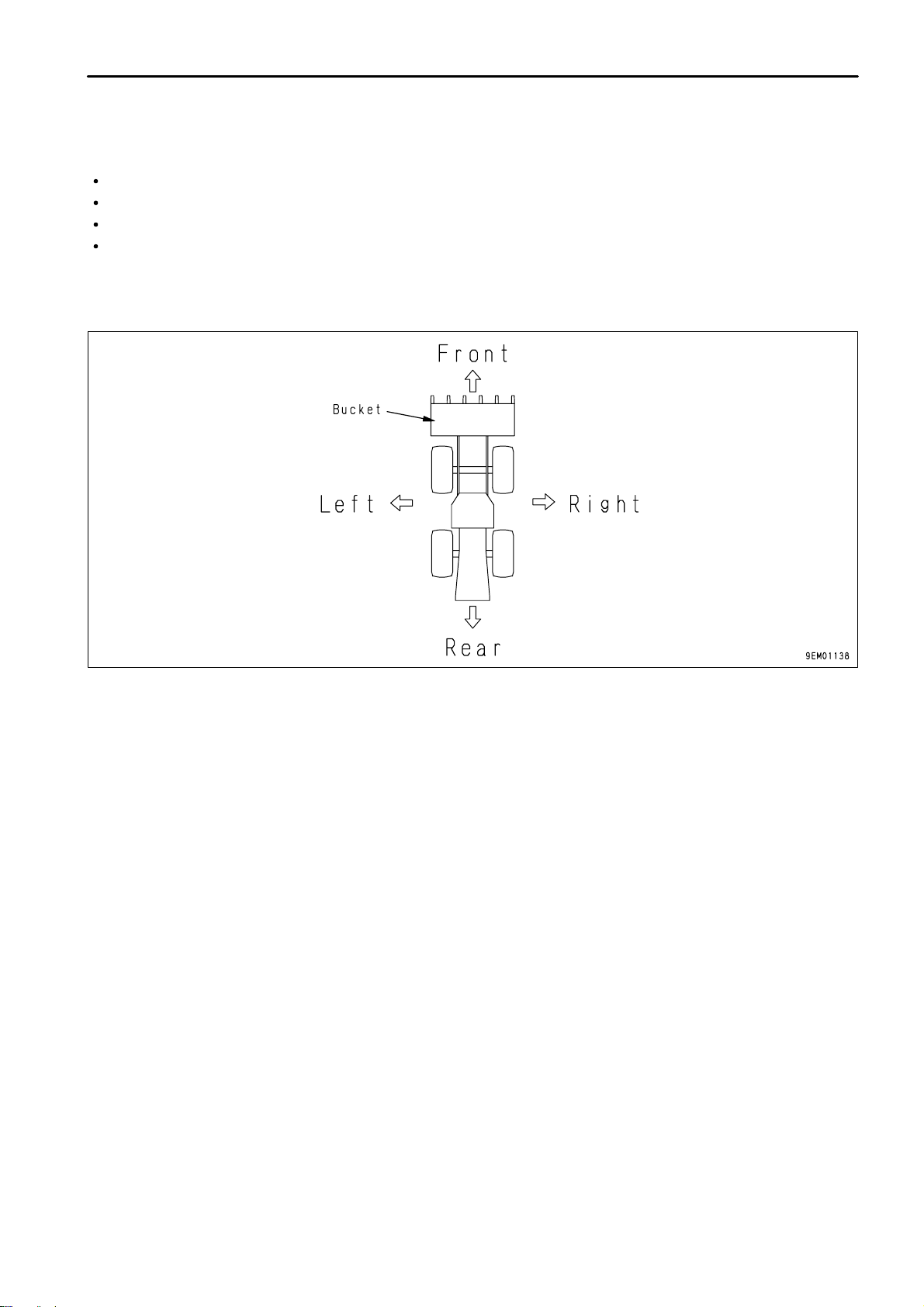

In this manual, the directions of the machine (front, rear, left, right) are determined according to the view from the
operator's seat in the direction of travel (front) of the machine.
1 - 7

.
FOREWORD
NECESSARY INFORMATION
NECESSARY INFORMATION
When requesting service or ordering replacement parts, please inform your Komatsu distributor of the following
items.
PRODUCT IDENTIFICATION NUMBER (PIN)/MACHINE SERIAL NO. PLATE
On the center right of the front frame.
The design of the nameplate differs according to the territory.
ENGINE SERIAL NO. PLATE
This is on the side face of the engine cover on the right side of the machine.
EPA: Environmental Protection Agency, U.S.A.
1 - 8

.
FOREWORD
NECESSARY INFORMATION
POSITION OF SERVICE METER
It is at the center bottom of the machine monitor.
TABLE TO ENTER SERIAL NO. AND DISTRIBUTOR
Machine serial No.
Engine serial No.
Product identification number (PIN)
Distributor name
Address
Service Personnel
Phone/Fax
1 - 9

.
FOREWORD
CONTENTS
CONTENTS
