Konig SEC-CAMIP30 User manual

SEC-CAMIP30
SEC-CAMIP40
SEC-CAMIP40EC
MANUAL (p. 2)
IP Cam System User’s Manual
Manual IPCAM V4.0.3 EN

2
Contents
1IPCAM system ........................................................................................................................................... 3
1.1 How to install .................................................................................................................................. 3
1.2 How to Add a device into IP Cam System ...................................................................................... 5
1.3 Video via Internet............................................................................................................................ 6
1.4 How to use IP Cam System............................................................................................................ 8
2Search Tool .............................................................................................................................................. 17
2.1 How to use Search Tool................................................................................................................ 17
2.2 Connect IP Cam and computer .................................................................................................... 19
3IP Cam Mobile.......................................................................................................................................... 21
3.1 Video monitoring on iPhone ......................................................................................................... 21

3
1. IPCAM system
1.1 How to install

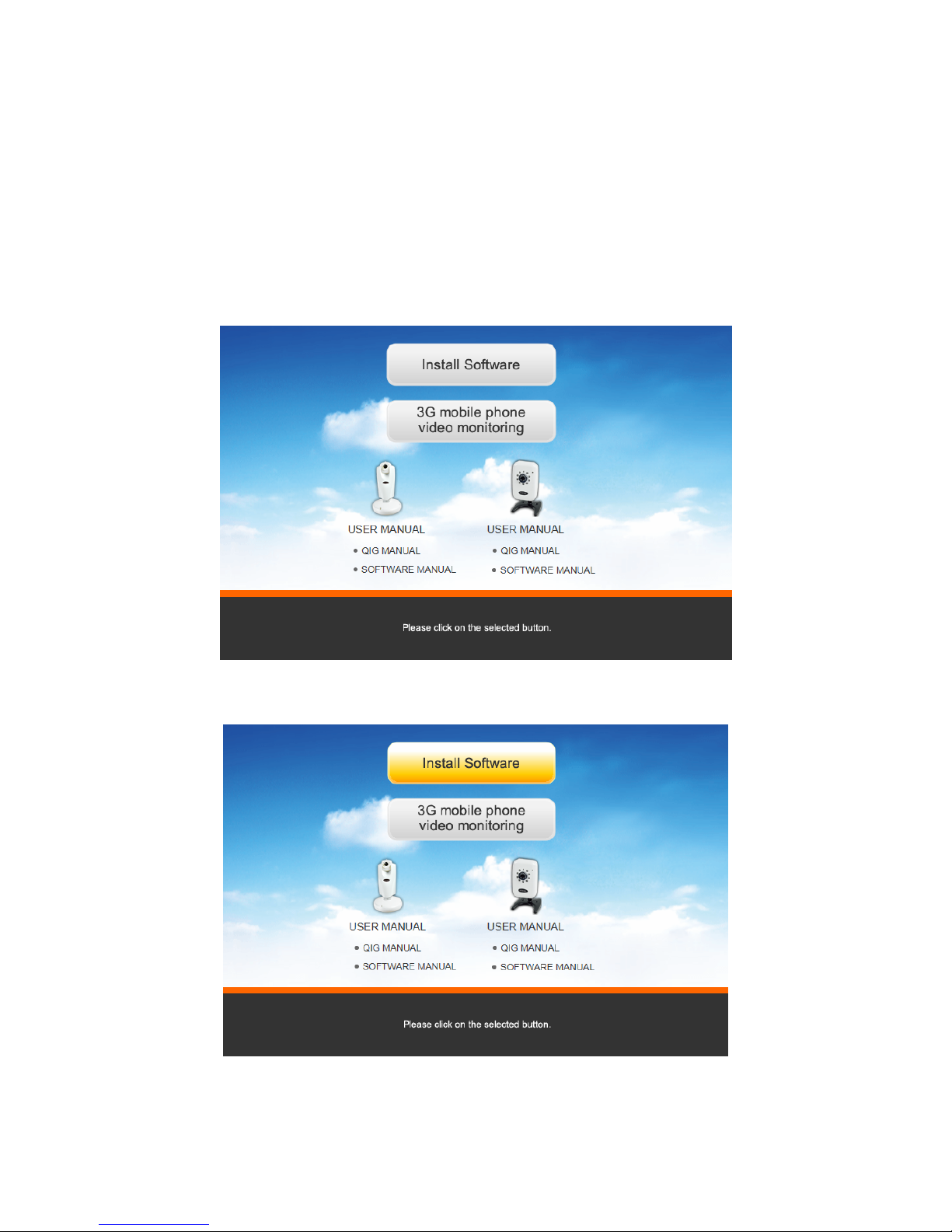

Insert the software CD in your CD-R device, start the installation. Choose Shelexec.exe to start installing
the software or check the disc contents and click the startup.html file to open the start up page. The
following starting screen appears.
Click "install software".

4
1.1.1 Click Next to start the installation.
1.1.2 Click Next.
1.1.3 Click Install.
1.1.4 Click Finish to complete IP Cam System installation.
Check the Finished box if you wish to run
User’s Manual automatically.
Note: Adobe Reader is needed
Run DB Upgrade Tool to check if your application is ready for an upgrade. Click Upgrade if it prompts
Incompatible database version as figure. Then close DB Upgrade Tool and restart IP Cam System.
Tips:
Start Menu →All Programs →IP Cam System →DBUpgrade Tool

5
1.2 How to Add a device into IP Cam System
1. Select an empty channel
2. Click Add a device
3. Press
Search or type in ID and Password of your device
(Note: Search function can be used under local network only)
4. Press
Save
5. Click
Start all cameras in IP Cam setting
Notice:
1. Device can be searched automatically. Please check the Home plug LED signal if no device found
(only SEC-CAMIP40, SEC-CAMIP40EC)
2. If the device is automatically searched, the User ID and User Password fields must be set before
saving. And, the specified ID & Password will update the original ID & Password.

6
1.3 Video via Internet
1. Select an empty channel
2. Select Add one device
3. Type in your Device ID / Password (Printed on the product body)
Type in your User ID / Password (Set up by user, can be edited, please refer to Search Tool )
4. Press Save
5. Click Start all cameras in IPCam setting
Notice:
Make sure the camera is connected to the internet if failed to load video.
If the problem still can’t be solved, follow the steps below and provide the information to your supplier.
1. Right click mouse on the display channel
2. Select TST
3. Provide the information to your supplier

7

8
1.4 How to use IP Cam System
A. IP Cam Setting
Edit Device Setting
Edit device Basic Info / Alarm Setting / Schedule recording
Add one device
Add a new device on display channel.
Delete selected device
Delete the selected device from display channel.
Start all cameras
Start all connection with camera device.
Stop all cameras
Stop all connection with camera device.
Edit Device Setting
Edit device Basic Info / Alarm Setting / Schedule recording

9
Basic Info
Device ID
Each individual ID shown on back of IP Cam
Device Password
Each individual password shown on back of IP Cam
Channel Name
Edit camera name.
User ID / User Password
Each user’s personal ID and password
Alarm Setting:
After selecting Enable Alarm, click Motion detection setting to
adjust the sensitivity and Email setting.
Enable Alarm
Set to Full time alerted or Schedule alert
Motion detection
Click Setting to adjust motion detection sensitivity
Alarm Methods
Alarm sound/Snap shot/Recording/Send Email
Email setting
Refer to your outlook account information of
SMTP/Account/Password.
Note:
Email alert can work properly only when Internet is connected.
Channel Name

10
Schedule Alert
Add one duration
Edit selected duration
Delete selected duration
Select Add one duration to schedule alarm
Set days and time or full time alarming
The icons below shows the status on this device
Alarm has been enabled
Alarm detected on channel
Schedule recording
