Konsung 408D User manual
1
Air Compressor Nebulizer
408D
User’s Manual
Please read this manual completely
before operating this unit.
Congratulations on having purchased Medical Air Compressor Nebulizer! We
warrant that this device has been produced using high quantity materials and it
complies with the safety rules in force both domestically and internationally.
2

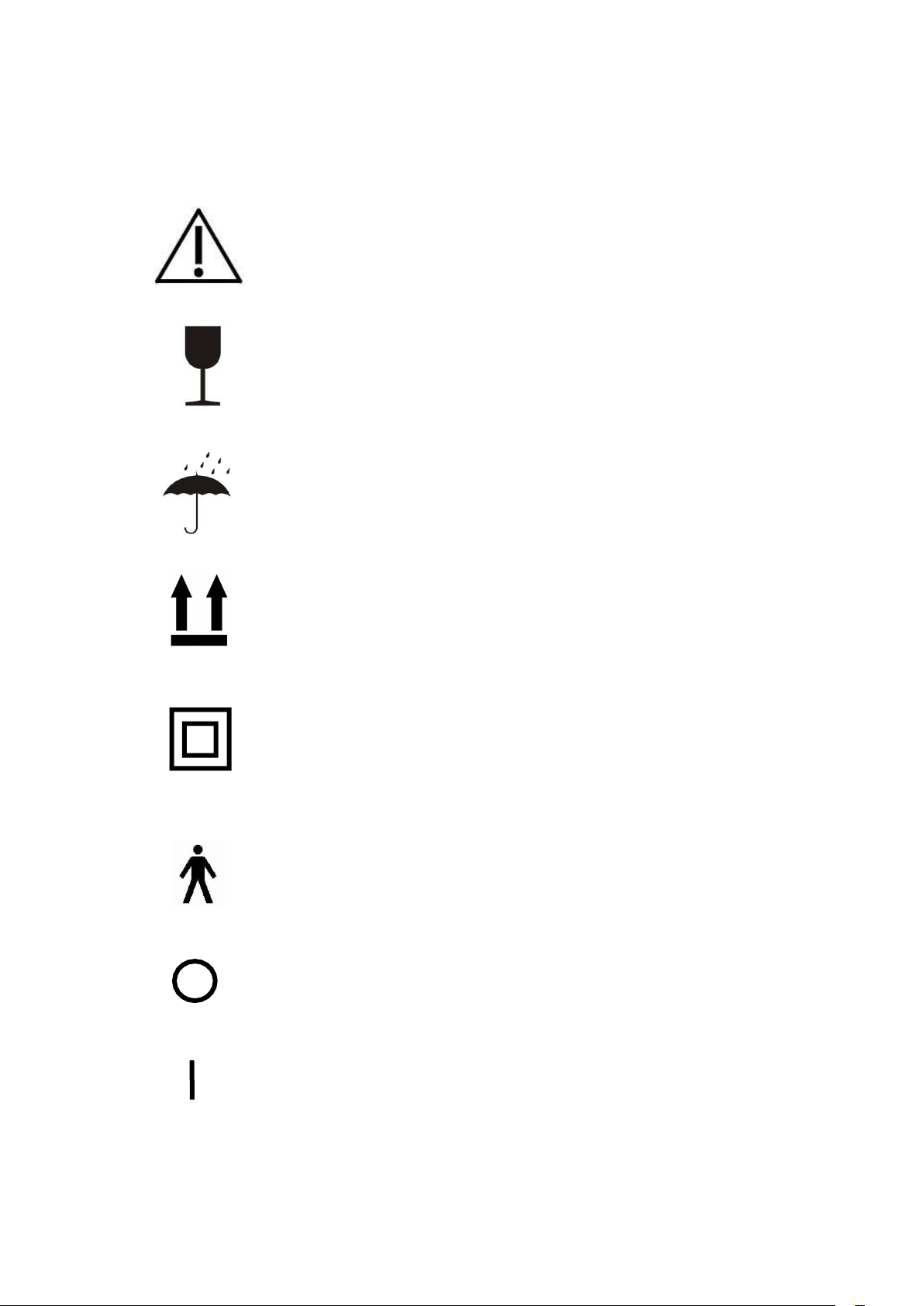

Drawing,Symbols,Abbreviation
Warning!
Fragile
Wet
Upper
II Type Equipment
B Type Applied Part
Power Off
Power On
3
Introduction
Your Compressor Nebulizer should be used under the supervision of a licensed
physician and/or a respiratory therapist.
Thank you for purchasing our Compressor Nebulizer. With proper care and use,
your Nebulizer will provide you with many years of reliable treatments.
This unit operates on standard AC power. Treatments are delivered quickly,
safely and conveniently making this unit ideal for all ages.
We encourage you to thoroughly read this manual to learn about the features of
your Nebulizer. Together with your physician and/or respiratory therapist,
you can feel comfortable and confident knowing that you are obtaining
the most effective inhalation treatments for your respiratory condition.
Productions Identification:
A. B. C. D.
A. Nebulizer mask
B. Switch
C. Nebulizer outlet
D. Filter
4
Key components:
primary structure
Making
filter system
Felt
compressor
ZL102 die-casting aluminum alloy
electrical system
Power cord, switch, fuse wire
Atomizing system
PVC, PP
shell
ABS
Cautions
Product Cautions:
Please use general safety precautions when operating your Nebulizer.
This unit should be used only for (1) its intended purpose as described in this
manual, and (2) with medications only under the supervision and
instruction of your physician.
Read The Following Before Using
To avoid electrical shock: Keep unit away from water. Do not handle the unit or
power cord with wet hands. Do not immerse the unit in liquid. Do not use
while bathing. Do not reach for a unit that has fallen into
water-immediately unplug the unit.
Do not use the unit if it has any damaged parts( including power cord or plug), if
it has been submersed in water or dropped. Promptly send unit for
examination and repair.
The unit should not be used where flammable gas, oxygen or aerosol spray
products are being used.
Keep the air vents open. Do not place the unit on a soft surface where the
openings can be blocked.
If the medicine cup is empty, do not attempt to operate the unit.
If any abnormality occurs, discontinue use until the unit has been examined and
repaired.
The unit should not be left unattended while plugged in.
Do not tilt or shake the unit when in operation.
Disconnect the unit from the electrical outlet before cleaning, filling and after
each use.
Do not use attachments unless recommended by the manufacturer.
Operating Cautions
Close adult supervision is highly recommended when this unit is used by children
or invalids.
5
Keep your eyes away from the output of medication mist.
The maximum capacity of the medicine cup is 13 cc and should not be overfilled.
Do not use this unit while operating a vehicle.
If any discomfort or abnormality occurs, stop using the unit immediately.
Storage Cautions
Do not store the unit in direct sunlight, high temperature or humidity.
Keep the unit out of reach of small children.
Always keep the unit unplugged while not in use.
Cleaning Cautions
Check the air filter, Nebulizer, mouthpiece, and any other optional components
before each use.
Dirty or worn parts should be replaced.
Do not immerse the unit in water. It may damage the unit.
Disconnect the unit from the electrical outlet before cleaning.
Clean all necessary parts after each use as instructed in this manual.
Cleaning Procedures
Please consult with your physician or therapist prior to cleaning regarding the
use of commercial disinfectants and appropriate cleaning methods.
Rinsing Technique ( Performed after each treatment)
1) Make sure that the POWER switch has been turned to the “off” position and
the unit has been disconnected from the power source.
2) Disconnect the air tube from the base of the Nebulizer.
3) Gently twist and pull up on the cover of the Nebulizer to open and operate.
4) Rinse the Nebulizer and components with hot tap water.
5) Dry with clean towels or allow to completely air dry.
6) Reassemble the Nebulizer and store the parts in the Compressor’s storage
compartment.
Cleaning Technique(Performed after the last treatment of the day or before first
time use):
1) Follow steps 1-4 under “Rinsing Technique”
2) Wash all Nebulizer parts, mouthpiece and other optional components in
warm water and a mild detergent. Rinse in hot tap water.
Note: For first time cleaning or after the unit has been stored for an extended
period of time, thoroughly clean all components, including the air tube. The
Nebulizer is dishwasher safe.
3) Prepare a vinegar/distilled water solution of one part white vinegar to three
parts distilled water.
4) Submerge the rinsed parts in the vinegar/distilled water solution for 30
minutes.
5) Follow steps 4-6 of “ Rinsing Technique”.
Cleaning the Compressor
Wipe the compressor daily using a soft, slightly water-moistened cloth.
6
Note: Any other form of cleaning or cleaning agents may damage the finish on
the unit.
Changing the Air Filter
It is important to change the air filter approximately every 30 days or when the
air filter turns gray.
1) Remove the air filter cover by gently pulling fowward
2) Discard the gray air filter.
3) Replace with a new, clean air filter
4) Securely reattach the air filter cover to the unit.
Note: Air filters cannot be cleaned or washed. Only Our air filters can be used.
Do not substitute alternate material such as cotton. Do not operate without an air
filter.
Assembling Your Nebulizer
Follow the cleaning instructions in this manual under “Cleaning Technique”
prior to using your nebulizer for the first time or after it has been stored for an
extended period of time.
Remember: Always unplug the Compressor and make sure the POWER switch
is turned to the “ off” position before cleaning, assembling and before and after
each use.
1) Place the Compressor on a flat, stable surface within reach, with the handle
facing toward you.
2) Open the storage compartment by lifting the lid. Remove the
contents( Nebulizer, mouthpiece and air tube).
3) Gently twist and pull straight up on the lid of the Nebulizer to separate into
two parts( medicine cup and cover)
4) Make sure that the orange jet is properly installed inside the medicine
cup( The stem inside the medicine cup inserts into the tube of the orange jet).
5) Add the prescribed amount of medication to the medication cup.
6) Reassemble the Nebulizer by carefully twisting the medicine cup and cover
together. Make sure that the two parts fit securely.
Operating Your Nebulizer
Note: The Nebulizer is operable at up to a 45 degree angle.
1) Attach one end of the air tube connector to the air stem.
2) Carefully attach the opposite end of the air tubing connector to the stem at
the base of the Nebulizer.
3) Attach the angled mouthpiece or optional mask to the top of the Nebulizer.
If using the optional tee adapter set,
a) Attach the tee adapter to the top of the Nebulizer
b) Connect one end of the tee adapter to the straight mouthpiece and the other
to the extension tube.
7
Note: The tee adapter is not needed when using a mask.
4) Check that the POWER switch is in the “off” position. Plug the power cord
into a main outlet.
5) Press the POWER switch to the “ ON” position.
6) Start your treatment according to your physician’s or therapist’s
instructions.
7) Once the treatment is complete, press the POWER switch to the “off”
position and unplug the power cord from the outlet.
IMPORTANT!
The Compressor will automatically shut off if it becomes overheated. If/When
this happens, immediately:
1) Press the POWER switch to the “ off” position.
2) Unplug the power cord from the outlet.
3) Allow the motor to cool for 30 minutes.
Before restarting the unit, make sure that the air vents are not obstructed.
After Every Use
1) Unplug the unit from the power source.
2) Allow the unit to completely cool.
3) Carefully detach the air tubing from the Nebulizer and pour out any
remaining medication.
4) Follow the cleaning procedures provided in this manual.
Trouble Shooting
If any abnormality occurs during use, please check and correct the following:
Condition
Correction
Remarks
Unit does not
operate when
POWER
switch is
pressed.
Check the AC connection to the outlet
8
No misting or
low rate of
misting
1. Check that there is medication in the
Nebulizer cup.
2. Check the Nebulizer for damage.
3. Check the position of the orange jet
inside the Nebulizer.
4. Make sure that air tube and other
components are properly attached.
5. Check the air filter and replace if
necessary.
6. Check the air tube and replace if
necessary.
Replacement Parts
Replacements parts are available through your local retailer or they can be
ordered by mail. See separate replacement part list for details.
Product Specification
Name and Model Number: Air Compressor Nebulizer, # 408D,
Power: AC 220V±22V, 50Hz±1Hz
AC 110V±11V, 60Hz±1Hz
Current 0.8A
Power Consumption 80W
Medicine Capacity 5mL
Sound Level ≤58 dB（A）
Compressor Pressure Range 210kPa to 250 kPa
Operating Pressure Range 50 kPa -100 kPa
Nebulization Rate ≥0.2 mL/min
Operating Temperature Range 10℃-40℃
Operating Humidity Range 10% RH-90% RH
Storage Temperature Range -20.0℃-70.0℃
Dimensions 220*140*245(mm3)
Weight 1.31KGS
Standard Accessories Nebulizer, Air Tube, Angled Mouthpiece, Air Filters,
Optional Accessories Tee Adapter set, Baby Pacifier Inhalator set, Child
Mask, Adult Mask, Child’ s Mask, Air Filters
Specification are subject to change without notice.
Warning:
There must be Protection against electric shock on Class II Equipment and
protection on Type B applied parts, such as mouthpiece, baby pacifier
inhaler & mask.
9
Protection against harmful ingressive of water- IPX0 (Ordinary)
Degree of safety in the presence of flammable anesthetics or oxygen –NO
AP/APG ( Not suitable for use in the presence of flammable anesthetics or
oxygen)
Model of operation- continuous
Warranty
Our Brand product is warranted to be free of defects in materials and
workmanship for the life time of the original consumer purchaser.
This device was built to exacting standards and carefully inspected prior to
shipment. This warranty is an expression of our confidence in the materials and
workmanship of our products and our assurance to the consumer of years of
dependable service.
In the event of a defect covered by this warranty, we will , at our option, repair
or replace the device.
This warranty does not cover device failure due to owner misuse or negligence,
or normal wear. The warranty does not extend to nondurable components, such
as film, which are subject to normal wear and need periodic replacement.
If you have a question about your device or this warranty, please contact an
authorized dealer.
