Konsung 608D User manual

Read this manual carefully before use.
Manufacture date: see the label
Product life: 5 years

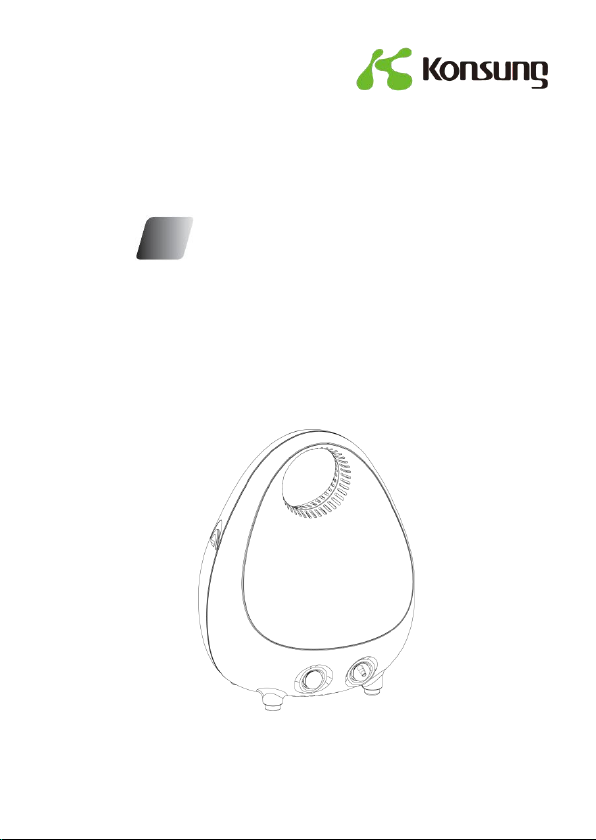

ir Compressing Nebulizer
Model: 608D
User's manual
Jiangsu Konsung Bio-Medical Science and Technology Co., Ltd
A

I
Statement
Thank you for purchasing 608D air compressing nebulizer
(hereinafter referred to as "nebulizer") from Jiangsu Konsung
Bio-Medical Science and Technology Co., Ltd. (hereinafter
referred to as "Konsung).
This manual will help you understand the operation and
maintenance of the product better. It is reminded that the
product shall be used strictly complying with this manual.
User’s operation failing to comply with this manual may result
in malfunction or accident for which Konsung cannot be held
liable.
Konsung owns the copyrights of this manual. Without prior
written consent of Konsung, any materials contained in this
manual shall not be photocopied, reproduced or translated
into other languages.
Materials protected by the copyright law, including but not
limited to confidential information such as technical
information and patent information are contained in this
manual, the user shall not disclose such information to any
irrelevant third party.
The user shall understand that nothing in this manual grants
him, expressly or implicitly, any right or license to use any of
the intellectual properties of Konsung.
Konsung holds the rights to modify, update, and ultimately
explain this manual.
All illustrations in this manual serve as examples only. They
may not necessarily reflect the setup or data displayed on your
equipment.

II
Responsibility of the Manufacturer
Konsung only considers itself responsible for any effect on
safety, reliability and performance of the equipment if:
Assembly operations, extensions, re-adjustments,
modifications or repairs are carried out by persons authorized
by Konsung, and The electrical installation of the relevant
room complies with national standards, and The instrument is
used in accordance with the instructions for use.
Upon request, Konsung may provide, with compensation,
necessary circuit diagrams, and other information to help
qualified technician to maintain and repair some parts, which
Konsung may define as user serviceable. Contents of this
manual are subject to changes without prior notice.
Conventions
Warning: Indicates a potential hazard or unsafe practice that,
if not avoided, could result in death or serious
injury.
Caution: Indicates a potential hazard or unsafe practice that,
if not avoided, could result in minor personal injury
or product/property damage.
Note: Provides application tips or other useful information
to ensure that you get the most from your product.

III
Table of Contents
1 Product Introduction.........................................................1
1.1 Intended use and Contraindication...........................1
1.2 Product specification.................................................1
1.3 Structure and working principle................................3
1.4 Product features........................................................5
1.5 Equipment symbol and description.......................... 7
2 Safety Precautions............................................................ 8
3 Operating and Maintenance...........................................11
3.1 Unpacking and Inspection.......................................11
3.2 Preparations............................................................ 11
3.3 Nebulizing................................................................13
3.4 Maintenance after use............................................ 15
4 Troubleshooting Guide................................................... 17
5 Warranty and Service......................................................18
5.1 Warranty..................................................................18
5.2 Contact information................................................ 19
6 EMC..................................................................................20
6.1 Electromagnetic emissions......................................20
6.2 Electromagnetic immunity......................................21
6.3 Electromagnetic Immunity: For non-life support
equipment and systems................................................. 23
6.4 Recommended Separation Distances..................... 25
7 Parts list...........................................................................26

1
1 Product Introduction
1.1 Intended use and Contraindication
Intended use: The 608D air compressor nebulizer is
intended to aerosolize medications for inhalation by the
patient for respiratory disorders.
Contraindications: This nebulizer cannot be used for
respiratory anesthesia and ventilator systems.
Theory of operation: the respiratory system is an open
system, the liquid medicine is atomized into particles, the
patient inhalation of these drug mists, the drug mist can be
directly absorbed in the patient's mouth, throat, trachea,
bronchi, alveoli, etc. Mucosal absorption and achieve the
purpose of treatment.
1.2 Product specification
1. Maximum nebulization rate ≥0.2mL/min
2. Residual volume ≤1.3mL
3. Median particle size of 4μm, error ±25%
4. Maximum pressure of compression pump: ≥0.15MPa
5. Free flow of compression pump: ≥10L/min
6. Degree of protection against ingress of liquid: IPX0
7. Net weight: about 1.5kg (main unit only)
8. Size: about 158mmX133mmX194mm (LXWXH)
9. Power supply: Input AC220V, 50Hz
10. Pressure range of nebulizer: 60kPa to 150kPa under
normal working conditions. When an abnormality
occurs, the maximum pressure range is 150kPa to
400kPa, and no tube rupture occurs.

2
11. Equivalent volume particle size distribution curve
(measured when the solution composition is pure
water, the ambient temperature is 23°C±2°C, relative
humidity ≤80%)
12. Noise ≤58dB(A)
13. Fuse: RF1φ5×20/1.0A
14. Input power: ≤175VA
15. Electrical safety type: Class II, type B applied part
16. Safety caution: do not use this unit in environment
where combustible anesthetic gases are mixed with air,
oxygen or nitro-monoxide
17. Working mode: Continuous
18. Normal working conditions:
Environmental temperature: 5°C~35°C
Relative humidity: ≤80%
Atmospheric pressure for storage: 86kPa~106kPa
19. Restrictions on transportation and storage:
Environmental temperature: -40°C~+55°C
Relative humidity: ≤93%(non-condensing)
Atmospheric pressure: 50kPa~106kPa
Note: V means the cumulative volume distribution, and N means the cumulative volume distribution
particle size

3
NOTE:
1 Avoid violent vibration, collision and fall in transportation.
Keep the unit up, and avoid rain and gently transport.
2 Store this product in a well-ventilated and non-corrosive
gas room.
3 If the storage temperature is below 5°C, apply the device
only when the temperature meets normal operating
conditions.
1.3 Structure and working principle
Air compressing nebulizer is composed by compressor,
housing and nebulizing kit (without mask and mouthpiece).
Users can purchase masks or mouthpieces manufactured by
qualified manufacturers.
Main unit
Front view Rear view
Filter cover
* Contains
filter sheet
Holder
Air outlet
Power cord
I/O power
switch
Air inlet

4
Nebulizing assembly
Key components:
Main Structure
Material
Filter system
Felt
Compressor
Cast aluminum alloys
Electrical system
Power cord, switch, fuse
Nebulizing system
Polypropylene
Housing
ABS resin
Working principle
The compressed air generated with the pump inside the
main unit, when pumping out from the nozzle, can suck up
the medication with the negative pressure between the
nozzle and the air tube. The pumped-up medication when
impacting on the top of the septum can turn into very fine
aerosol before ejecting to the outside.
Medication cup cap
Nebulizing Kit
Medication cup
Air tube
Mask
Mouthpiece

5
Working principle block diagram:
Power supply
Compressor
Nebulizing assembly
Output
Electrical schematic:
Electrical maintenance should be operated by professionals.
1.4 Product features
1. In normal use, the atomized air flow is 3L/min to 9L/min
(flow rate is not adjustable). The corresponding pressure
is 60kPa to 150kPa.
2. The atomization volume is 2mL to 8mL, and the
theoretical atomization rate is greater than 0.2mL/min.
The corresponding pressure range is 60kPa to 150kPa.

6
3. It is recommended that the user should use a minimum
solution carrying capacity of 2mL. The maximum solution
carrying capacity should not exceed the maximum scale
of medication cup to avoid overflow. In the case of the
maximum solution carrying capacity, the maximum
temperature in the medication cup is 50°C during normal
use.
4. There is no special requirement for the type of solution.
The medication has been prescribed by the physician.
Some high concentration solutions or suspensions may
affect the nebulization rate or they are difficult to
atomize.
5. The output air pressure and flow rate is 0 under the most
unfavorable conditions.
6. Main advantages of inhalation therapy:
Inhaled medication can reach the patient respiratory
tract and lungs and deposit, this therapy is more
effective than oral drugs. Inhalation therapy is
effective and rapid in relieving bronchial asthma and
is superior to other treatments; even can save
patients life in crisis time.
As the medication reaches the respiratory tract
directly, its dosage and the toxic and side effects are
significantly reduced, ensuring the principle of
economical, affordable, effective, and safe
medication.
Dilution of mucus and sputum can be used for a
variety of respiratory diseases.
Inhalation therapy can significantly reduce symptoms
and shorten the treatment course.

7
1.5 Equipment symbol and description
Symbol
Description
Symbol
Description
Note! Consult the
accompanying
documents
Do not expose
to open flames
Caution Against Wet
Fragile-handle
with care
This side up
Class II
equipment
ON (power switched
on)
Alternating
current
OFF(power switched
off)
Date of
manufacture
Type B applied part
Serial number
Consult instructions for
use
P/N
Part Number
Stacking limit by number

8
2 Safety Precautions
WARNING
1 Inspect the device and parts before using them each time,
and check that there are no problems.
2 Turn off the nebulizer if not use it. Unplug the plug cord
from the power outlet if long time no use of nebulizer. Do
not pull out the power cord when removing the plug.
3 Do not plug or unplug the AC adapter into the electrical
outlet with wet hands.
4 Do not use power outlets or wiring equipment that not
specified in this manual.
5 For type, dose, and regime of medication follow the
instructions of your physician or respiratory therapist.
Failure to do may cause symptoms to deteriorate.
6 Do not use only water in the nebulizer for inhaling
purposes.
7 Do not use the device where it may be exposed to
flammable gas.
8 Do not use or store the device in humid locations, such as
a bathroom.
9 Dispose of any remaining medication in the medication
cup after each use. Use fresh medication each time you
use the device.
10 After cleaning or disinfecting, all attachments must be
dried and then stored in a clean place. Do not store the air
tube when there is moisture or medication residue inside.
11 Do not immerse the nebulizer or power cord in water or
other liquids. Do not spill liquids on the equipment. When
spilling medication liquid, clean it immediately with
gauze.
12 Do not dissemble the main unit or attempt to repair,
modify the equipment.

9
13 Only use the accessories specified by Konsung. Do not use
damaged nebulizer.
14 This device is approved for human use only.
15 Operate the device only as intended. Do not use the
device for any other purposes.
16 Do not use the device at temperatures greater than +40°C.
17 Do not cover the compressor with a blanket, towel, or any
other type of cover during use. This could result in the
compressor overheating or malfunctioning
18 Do not use or store the device where it may be exposed to
noxious fumes or volatile substances.
19 Do not leave the device or its parts where it will be
exposed to extreme high or low temperature, or where it
will be exposed to humidity or direct sunlight.
20 Provide close supervision when this device is used by, on,
or near infants, children or invalids.
21 Do not put fingers or any other objects into the device.
Doing so may cause electric shock, malfunction, or injury.
22 Dispose of the device, components and optional
accessories according to applicable local regulations.
Unlawful disposal may cause environmental pollution.
NOTE:
1 Consult with physicians when purchasing or using this
device.
2 The device uses disposable filter sheet. Do not reuse the
filter sheet. Replace the dusted filter sheet according to the
using environment (recommended to check or replace the
filter sheet every 500 hours).
3 The provided nebulizing kit is disposable test sample. The
nebulizing kit should be used by one person to prevent
cross-infection. It is recommended to purchase and use

10
qualified nebulizing kit manufactured by qualified
manufacturers.
4 Keep the device out of the reach of unsupervised infants,
children or mental patient.
5 Do not carry or leave the nebulizing kit with medication in
the medication cup.
6 Turn off the nebulizer and unplug the AC adapter from the
electrical outlet after using the device or before cleaning.
7 The nebulizer uses oxygen gas with a concentration higher
than 23% as the driving gas, and the gas flow rate is 3 to
9L/min (flow rate is fixed). When using oxygen as the
driving gas, pay attention to:
Do not use the device near the heat resource or fire.
Do not use the device near flammable materials as
grease oil, detergent ect. Neither use such materials
and their analogue to the device.
Do not use the device in a confined space, Operate the
device at least 15cm away from the obstacles such as
the walls and windows that prevent the air circulation.
8 Too high or too low voltage may damage the power supply.
Do not use the device in a vehicle.
9 Do not use this product near the places with strong
electromagnetic interference sources, such as
walkie-talkies, CT, MRI and other equipment.
10 When using the device, the main unit may become hot.
When using this device, there will be some noise and
vibration caused by the pump in the compressor. There will
also be some noise caused by the emission of compressed
air from the nebulizing kit. This is normal and does not
indicate a malfunction.
11 Do not use a microwave oven, dish dryer or hair dryer to
dry the device or parts.

11
3 Operating and Maintenance
3.1 Unpacking and Inspection
Users, before installing and commissioning, shall first check
whether the appearance of the product is good, and
whether the variety and number of attachments is in line
with the list of accessories attached to the specifications. If
there is any defect, please contact the supplier or
manufacturer timely.
3.2 Preparations
1. Open the cap.
2. Add the correct amount of prescribed medication to
the medication cup.
3. Cover the cap and connect the mouthpiece or mask.

12
or
4. Turn the power switch to the off (O) position.
5. Plug the AC power supply to power outlet.
NOTE:
1 Cannot use suspension liquid or high concentration
medication. For type, dose, and regime of medication follow
the instructions of your physician
2 Pour the correct amount of prescribed medication into the
medication cup and do not exceed the maximum mark.
3 The scale on the medication cup is for reference only. Use the
scale on your syringe or vial for accurate measurement of
medication.
4 After the medication is added to the medication cup, please
properly place the cup and avoid the dumping of the cup and
the medication flowing outside.
5 There is no special requirement for the type of medication.
The medication must be prepared under the guidance of
physician. Do not add medication to the medication cup
more than the maximum mark to avoid liquid spillage.

13
Using holder
Use the holder when temporarily placing medication cup.
3.3 Nebulizing
1. Turn the power switch to the on ( ) position.
2. As the main unit starts, connect the air tube to the
connector of the main unit and the medication cup
respectively.
3. Hold the nebulizing kit for treatment.
Inhaling with the mouthpiece or mask

14
4. After treatment, turn the power switch to the off (O)
position.
5. Disconnect the nebulizing kit from the air tube.
6. Check the air tube. No condensation or moisture
should remain in the air tube.
7. Disconnect the air tube.
8. Unplug the adapter from the power outlet.
NOTE:
1 In nebulization, keep the mouthpiece in mouth and close
your mouth.
2 Do not tilt the nebulizing kit so the angle of the kit is
greater than 45 degrees. Medication may flow into the
mouth and the spraying may be ineffective.
3 If there is anything unusual in using, please stop using it
immediately.
4 In nebulization, check whether there is visible aerosol
discharging from the medication cup. In the event of
irregular spray, please immediately stop the treatment.
5 Be sure to wipe the face after using nebulizer mask, and
do not let the medication left in the face.
¤ Adjust aerosol quantity
Rotating the cap can properly adjust aerosol quantity.

15
3.4 Maintenance after use
The provided nebulizing kit is single use accessory, do not
re-use. It does not require cleaning, disinfection and
sterilization before use.
Users can purchase masks or mouthpieces manufactured by
qualified manufacturers. User can perform corresponding
cleaning according to the instructions of the user's manual.
Clean the main unit
Clean the casing of the main unit frequently by using a
clean and soft cloth moistened with water or mild
detergent (such as cleanser essence, laundry detergent etc.).
Wipe the casing softly to remove the dirty or oil and avoid
the liquid into main unit during cleaning.
The nebulizer should be dust-proof and moisture-proof
during deactivation. It is best cleaned every three months.
NOTE:
1 Dispose of the device and components according to
applicable local regulations. Unlawful disposal may cause
environmental pollution.
2 Do not use volatile oils, thinners to clean the main unit.
3 Keep the device out of the reach of unsupervised infants
and children. The device may contain small parts that can
be swallowed.
4 Unplug the AC adapter from the electrical outlet before
cleaning the device.
5 Do not let the main unit, nebulizing kit drop or subjected
to strong shocks.
6 Do not apply force to the nebulizing kit to deform.
7 Do not poke nebulizing kit with needles or sharp objects.

16
Disinfect the main unit
Disinfection may cause damage to the nebulizer. We
recommend that you disinfect the nebulizer only when
necessary.
Clean the nebulizer before disinfecting it.
Recommended disinfectants are Ethanol 75%, isopropanol
70%.
WARNING
Never use EtO or formaldehyde for disinfection.
Replace filter sheet
If the air filter sheet has changed color or has been used on
average for more than 500 hours, replace it with a new one.
1. Remove filter cover from the front side of nebulizer.
2. Remove the dirty filter sheet.
3. Insert a new filter sheet.
4. Put the filter cover back on the nebulizer.
NOTE:
1Use specified filter sheet, and do not use nebulizer
without filter sheet.
2Do not attempt to wash or clean the filter sheet. Damp
filter sheet can cause blockages. Do not substitute cotton
or any other material for the filter sheet.
3Before inserting the new filter sheet, make sure the filter
sheet is clean and free of dust.
