Kontron NotePAC A790 User manual

799001182017 R00
2
Getting Started
Welcome
Congratulations on your purchase of the
A770 Vehicle Docking. This manual
will describe the Mechanical installation
& hardware features of your vehicle
docking plus give you a basic overview of
the operation system and installed
applications.

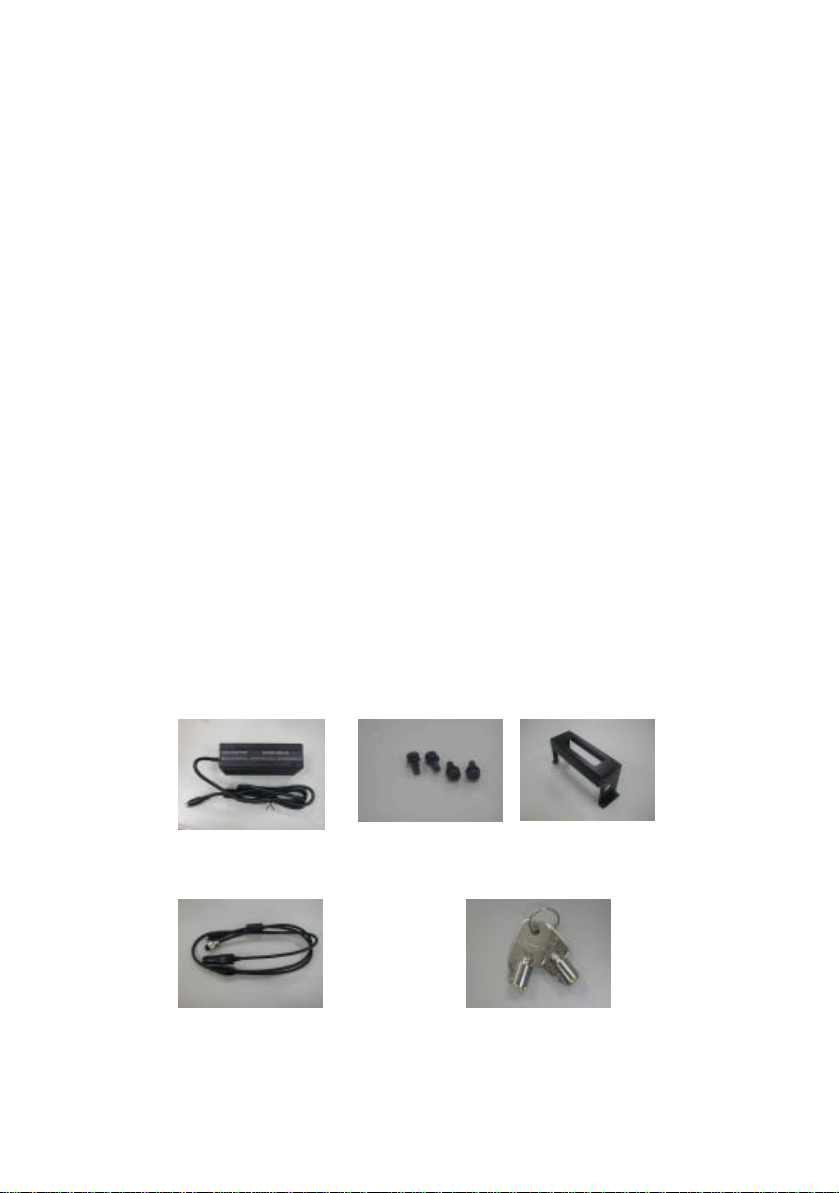

Unpacking
Check to be sure that your A770 Vehicle
Docking package contains the following
items:
Screw x 4 pcs
DC Adapter
Bracket x 1 pcsCar DC Adapter x 1 pcs
DC Power Cable x 1 pcs Key x 2 pcs

799001182017 R00
3
Taking a Look at the Vehicle
Docking
This section identifies the external
components of the Vehicle Docking and
briefly describes the function of each
component.
Front Components

799001182017 R00
4
Ref
Component Description
1Power Switch Turnsthe Vehicle Docking power ON and OFF
2External
PowerIndicator
Show the current status of the external DC
Power-in.
3System Power
Indictor
Show the current status of the System Power
conductivebetween Vehicle Docking and A770.
4Lock Security & Systemprotection Lock
5Fuse 16Amp Fuse

799001182017 R00
5

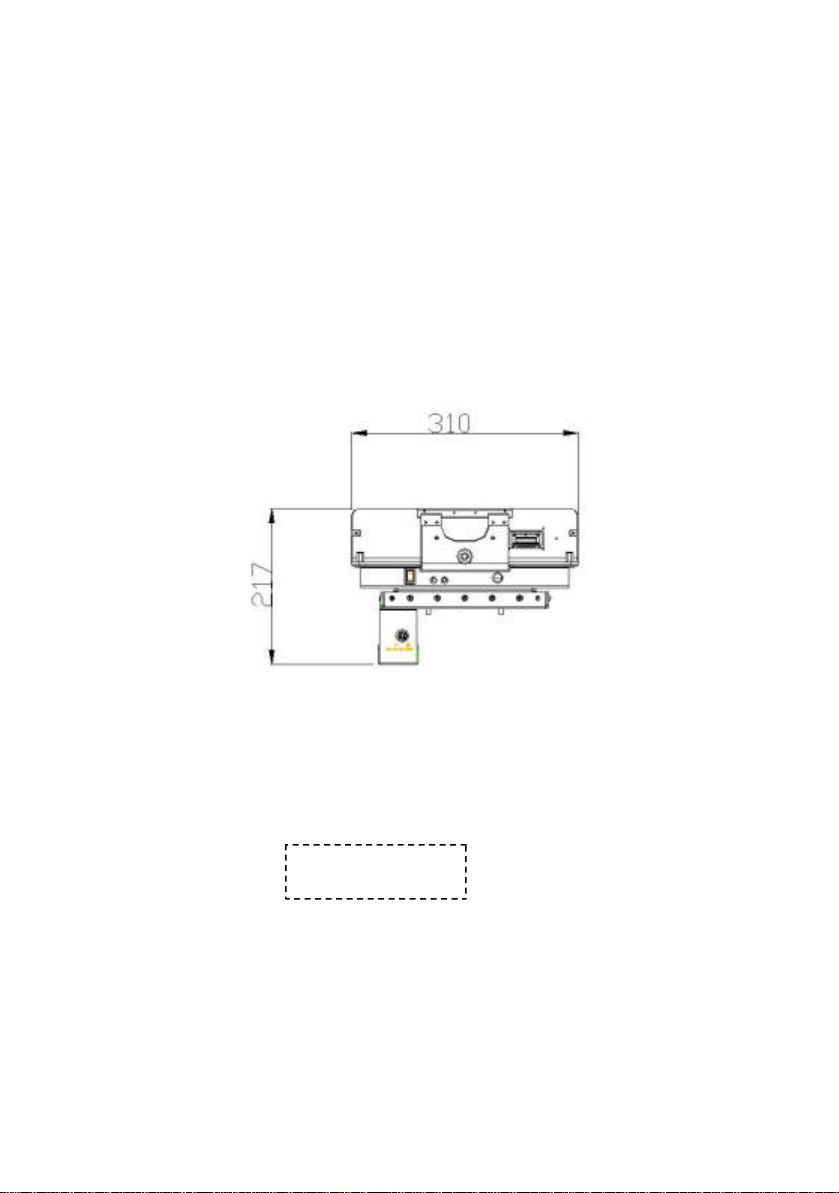

Front Side View Mechanical Diagram.
The Mechanical Diagram may provide a
basic construction idea for the further
installation with the vehicle pedestal.
(Metric: mm)

799001182017 R00
6
Rear Components
Ref
ComponentDescription
1 Power Connector Connects the DC Car
Adapter.
2 BNC Video
Capture Connector
Connects the Video
device with BNC
interface, such as CCD
Camera.
3 USB Ports Each of the two ports
connects a USB
device.
1 2 3 4 5 6 7

799001182017 R00
7
4 Parallel Port Connects a parallel
device, such as printer
5 Serial Port Connects a serial
device.
6 Serial Port Connects a serial
device.
7 VGA Port Connects the External
Monitor

799001182017 R00
8
Top Components
Ref
Component Description
1 Port Replicator
Connector
For connecting to
A770 System
2 Guide Pin For orientating and
engaging to A770.
2
1

799001182017 R00
9

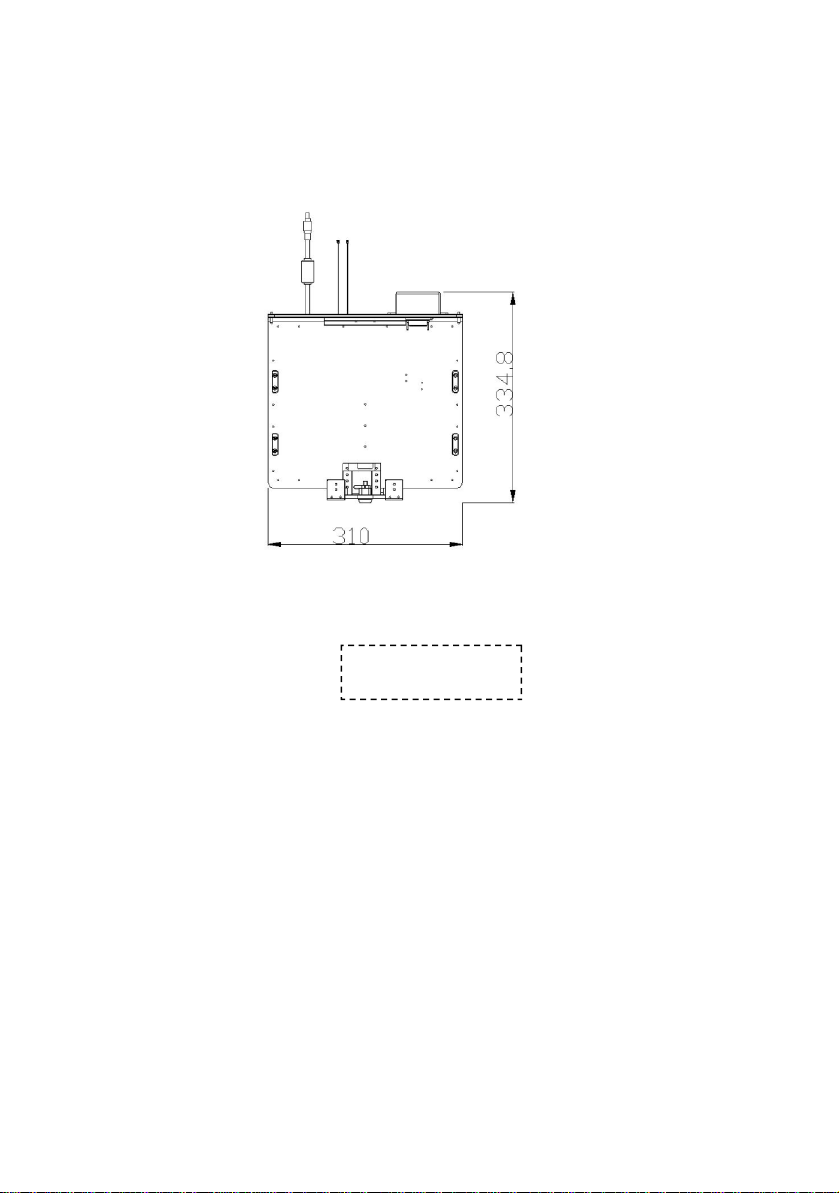

Top Side View Mechanical Diagram
(Metric: mm)

799001182017 R00
10

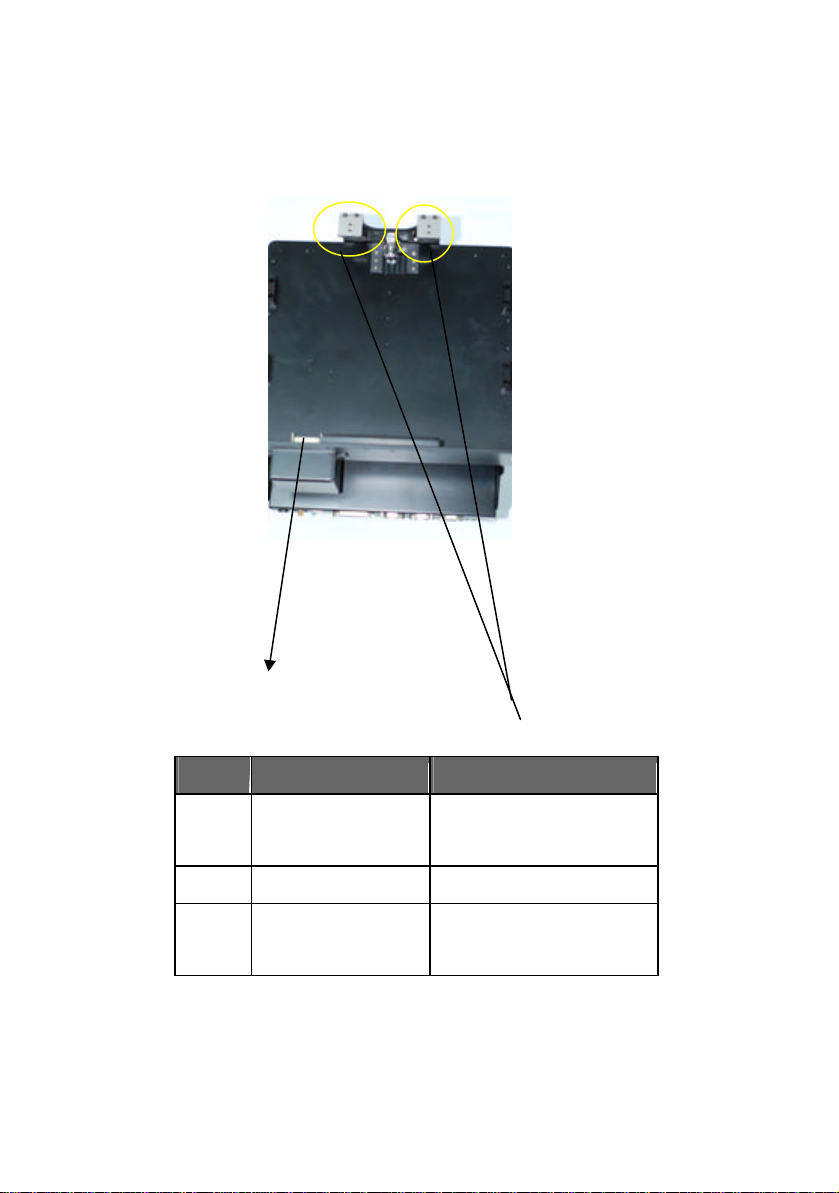

Bottom-Side Components
R
ef
Component Description
1 Port Replicator Combine whole the
External interface
connectors.
2 Mounting Screws For the fixing to the
pedestal.
3 Docking
Power-in
Connector
Connects the DC Car
Adapter.
2
1
3

799001182017 R00
11

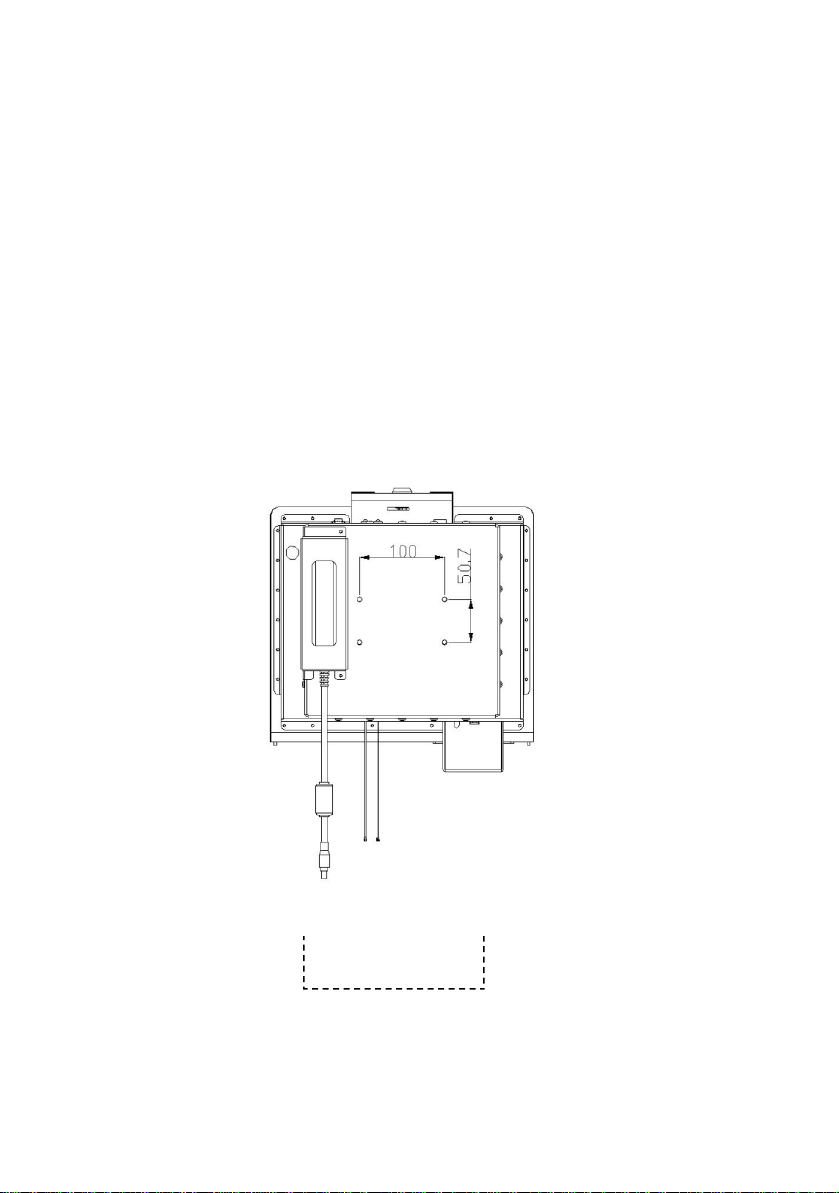

Bottom-side Mechanical Diagram
This mechanical diagram indicates the
correct dimension for the Docking
Adapter.
The dimension for the Pedestal Adapter
has to match the dimension of Docking
Adapter precisely.
(Metric: mm)

799001182017 R00
12
Left & Right Side Views
Ref
Component Description
1 Guide Pin For orientating and
engaging to A770
1
1

799001182017 R00
13
Installation Instructions
1. Installing the Car DC Adapter.
1-1. To install the Car DC Adapter with
DC Adapter Bracket.
Caution: The power indicator (Green Light) has to face the top,
Otherwise the power connector socket cannot match with socket hole:
Correct
Incorrect Correct Incorrect

799001182017 R00
14

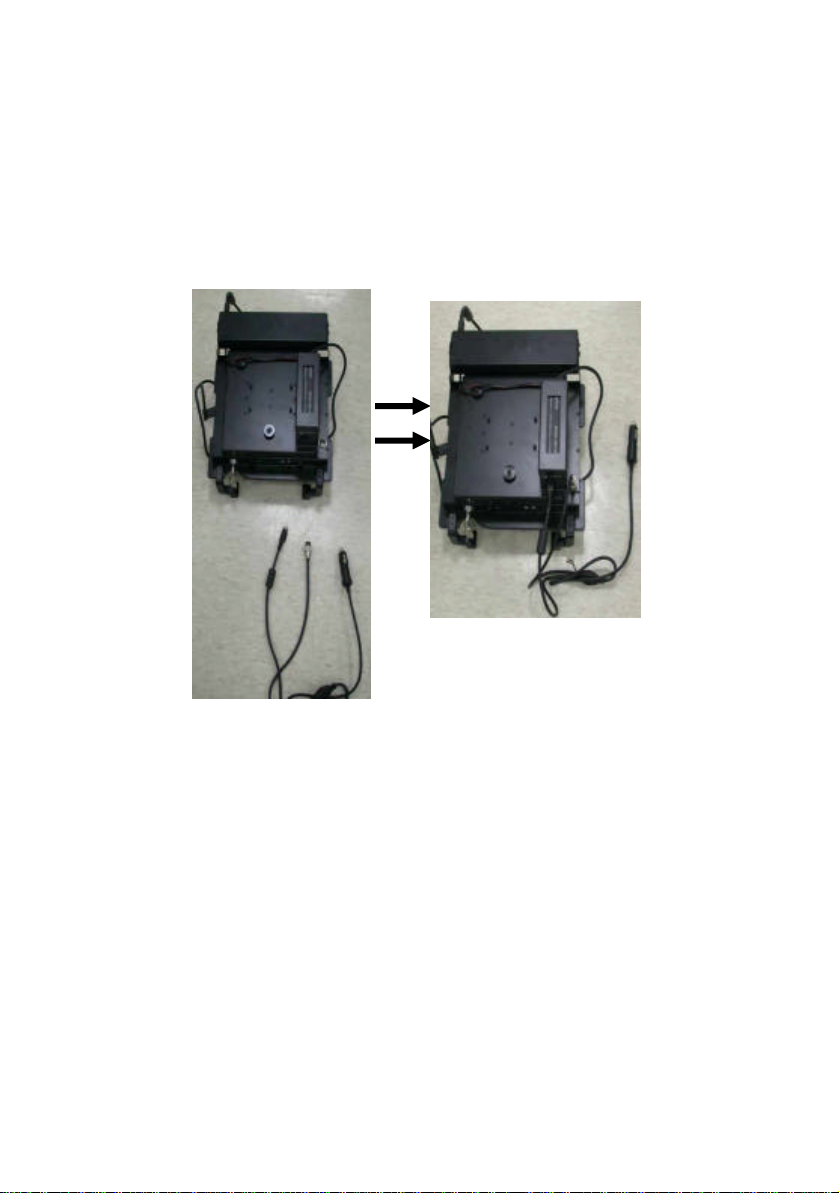

1-2. To install Car DC Adapter assembly
with Vehicle Docking by 4 Screws.

799001182017 R00
15
2. Electrical Guidelines
With the mechanical installation
complete, connect the power cables.
2-1. Plug the Car DC Adapter power
cable into Port Replicator.
Caution: “Port Replicator can only
connect the power from Car DC
Adapter”.

799001182017 R00
16

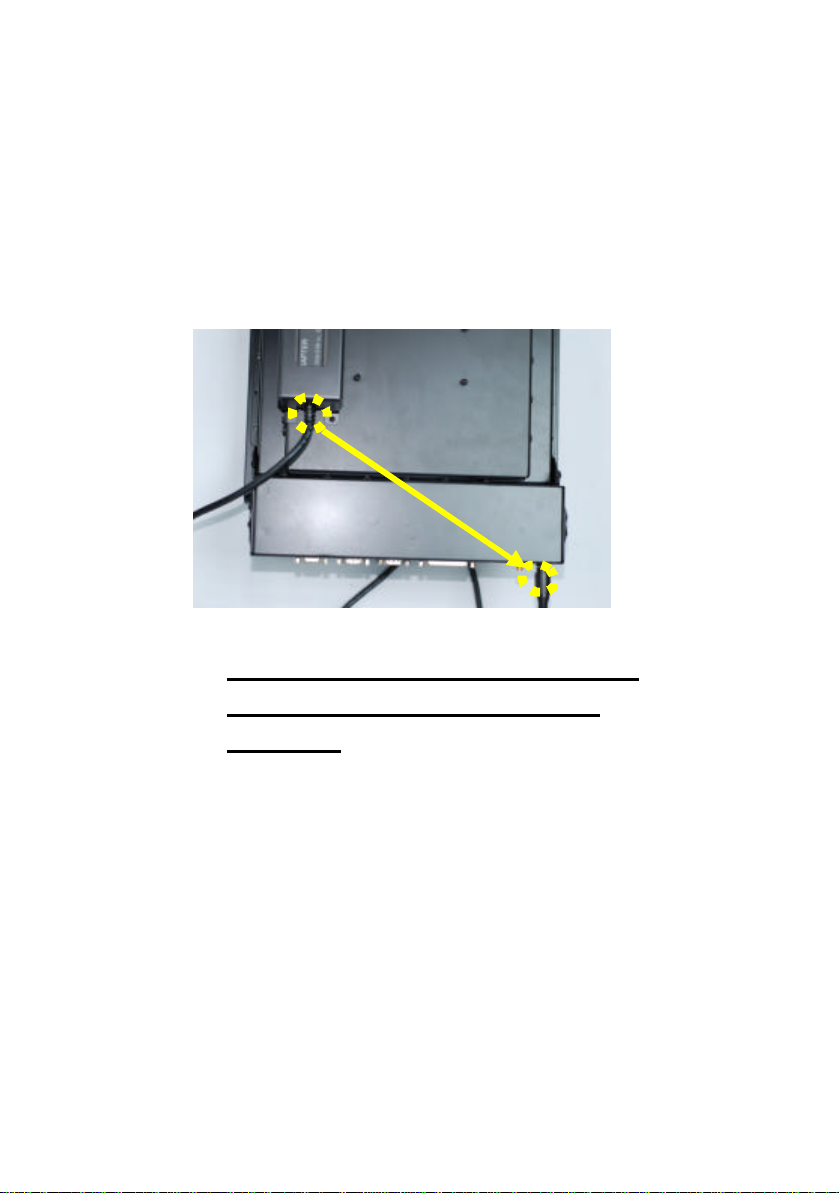

2-2. Plug the DC Power Cable into the
Car DC Adapter and Docking
Power-in.

799001182017 R00
17
Engaging A770 with Vehicle Docking
With assembled Vehicle Docking, the
A770 can engage with the Vehicle
Docking.
Caution: “The Software of Vehicle Docking
Driver has to be installed before engage the
computer with Vehicle Docking. Please refer
to the bundleDriver CD for the detail of the
Software installation”.
1. Plug the DC Power cable into the vehicle
internal power socket (Cigar-Lighter), and
turn on the Power switch then the External
Power Indicator (Red Light) glows.

799001182017 R00
18

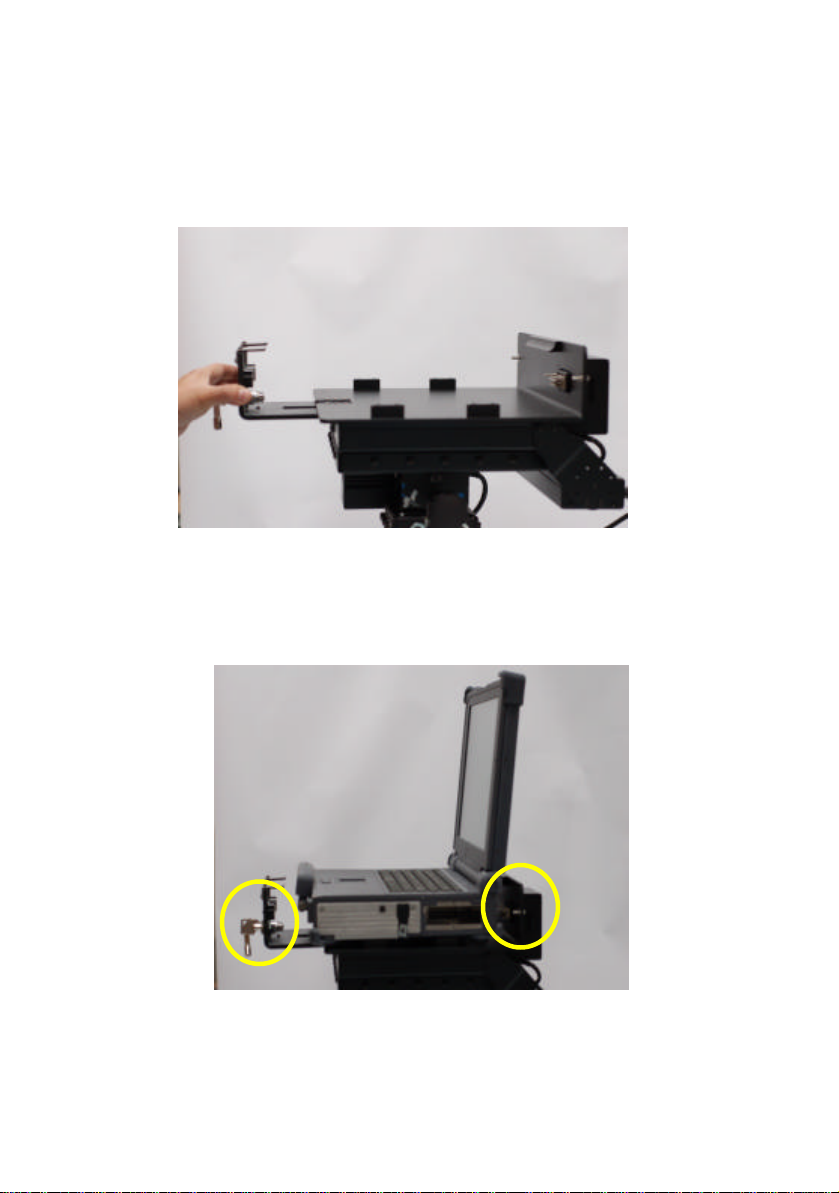

2. Pull the bracket front slide of he Vehicle
Docking all the way open.
3. Position A770 onto the Vehicle Docking
against the front Guide Pins.

799001182017 R00
19
4. Open the Port-Replicator Port’s Door.
Caution: Port-Replicator Port’s Door
MUST be held (as Figure below) while the
Vehicle Docking is engaging with
Computer.
Then the Port-Replicator Connector can
plug into the Port Replicator Port.
A770 align pin of the vehicle docking guide pin.

799001182017 R00
20
6. Push the bracket front slide into the
vehicle docking.
Lock key of the vehicle docking.
