KONVEKTA UL500EM Setup guide

Konvekta AG
Am Nordbahnhof 5
34613 Schwalmstadt
Germany
+49 ( 0 ) 66 91 / 76 –0
+49 ( 0 ) 66 91 / 76 - 200
[e-mail]
www.konvekta.com A
m
N
Maintenance- and Repair-
Instruction

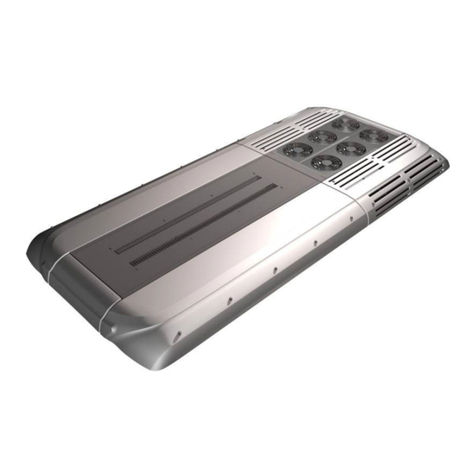

for KONVEKTA Air Conditioners
UL500 EM/ UL700 EM 2nd and 3rd Gen.
UL500 EM UL700EM
With Wabco control system
ID#: BWA-KL5N0802A
Version: A02

WAKL5N0802A Edition: 07.02.2022 Page: 2/18
Contents
Page:
Introduction ........................................................................................................................3
Information on the operating instructions.........................................................................4
Directives for Installation, Connection and Use................................................................5
1.Technical data......................................................................................................................5
1.1. Air conditioning units........................................................................................................5
1.2. Pressure Switches ...........................................................................................................5
2.Maintenance plan.................................................................................................................5
2.1. Overview of maintenance parts 2nd generation..................................................................6
2.2. Overview of maintenance parts 3rd generation...................................................................6
3.Maintenance of the refrigerant circuit .................................................................................7
3.1. Check of refrigerant level in the sight glass of the roof unit................................................7
3.2. Leakage test with an electronic leak detector....................................................................7
3.3. Cleaning of condenser coil ...............................................................................................7
3.4. Check of the refrigerant receiver for corrosion...................................................................8
3.5. Replacement of filter dryer –functional test of low pressure switch....................................8
3.6. Function check of high pressure switch (8)......................................................................10
3.7. Check of screw connections on compressor for tightness................................................11
3.8. Fresh air / recirculation air filter check for contamination, if necessary replace.................11
3.9. Oil level check of the compressor at the oil sight glass....................................................12
3.10. Compressor oil exchange...............................................................................................12
4. Maintenance work on the electrical installations.............................................................13
4.1. Function check of the condenser fans.............................................................................13
4.2. Function check of the evaporator blowers.......................................................................14
4.3. Visual check of safety fuses............................................................................................14
4.4. Plug connection check for tightness................................................................................14
4.5. Visual check of electrical cables for abrasion..................................................................14
4.6. Check the control...........................................................................................................15
5.Repair instructions for UL500 EM/ UL700 EM...................................................................15
5.1. Demounting and mounting of evaporator blowers............................................................15
5.1.1.Demounting evaporator blowers .....................................................................................15
5.1.2.Mounting evaporator blowers..........................................................................................16
5.2. Demounting and mounting of the flap servo-motors.........................................................16
5.4. Mounting and demounting of the condenser fans............................................................18
6.Warranty Conditions..........................................................................................................18
7.Waste disposal in accordance with legal provisions........................................................18
8.History of modification.......................................................................................................18
Appendix:
Maintenance Schedule Bus WP07050618

WAKL5N0802A Edition: 07.02.2022 Page: 3/18
Introduction
You will certainly understand that we will not recognize any warranty claims due to improper han-
dling, inadequate maintenance, applications that do not correspond with the determined use, utili-
zation of unadmitted fuels or the non-observance of safety provisions.
KONVEKTA will annul without prior notice all obligations concerning guarantee, service contracts
etc. regardless if granted by KONVEKTA or its distributors in case other than original KONVEKTA
spare parts or parts bought from KONVEKTA AG have been used for maintenanceand repair.
These operating instructions contain all necessary information to operate your air conditioning unit.
In case you need more explanations please contact the next KONVEKTA service station.
The machine is in accordance with the EC machinery directive 2006/42/EC.
The unit contains or needs fluorinated greenhouse gas for operation and is subject to iden-
tification requirements in accordance with F-Gas Regulation 517/2014.
In the course of further developments, we reserve the right to technical modifications without prior
notice. Guarantee and liability conditions of KONVEKTA AG’s general business conditions are not
enlarged by the above notes.
Indications and photos should neither be copied and circulated nor used for competitor’s purposes.
All rights according to the copyright remain expressly reserved.
Manufacturer KONVEKTA AG, P.O. Box 2280, D-34607 Schwalmstadt
Information on the operating instructions
This maintenance instruction is valid for the a/c unit types:
UL500EM
UL700EM
/ 2nd and 3rd Generation
and was exclusively written for maintenance personnel.
It contains:
Maintenance Plan
Maintenance Instructions
Operating Instructions
Repair Instructions
Maintenance and service works have to be carried out regularly, as described in the maintenance
schedule Bus No.: WP07050618, by a KONVEKTA service station according to our maintenance
plans. On our homepage www.konvekta.com you can find under the heading >Service< contact
data of service stations nearby. - Only qualified staff is allowed to carry out these works! -
For general instructions on repair –and maintenance works please contact via email:
[e-mail]
Danger of accidents!
Qualified staff in charge of installation and maintenance have to be trained in accordance
with EN 378-Part 4 and (EC) No.307/2008 and must strictly follow the legal provisions.
Any works or modifications at the air conditioner which are carried out improperly can lead
to malfunction and so endanger operational reliability. We recommend having all works and
modifications carried out at an authorized KONVEKTA Service Station. Before carrying out
any maintenance works at your air conditioning unit, carefully read the
KONVKETA safety provisions (TD00052A) in order to avoid any dangers and accidents!
Before carrying out any maintenance works read carefully the operation instructions:
Operation, including troubleshooting and disposal of operating materials.
Maintenance
The maintenance instruction has to be amended by instructions based on national rules for
accident prevention and environmental protection.

WAKL5N0802A Edition: 07.02.2022 Page: 4/18
Attention is to be paid to:
All screw connections have to be checked on leak tightness.
Tightening torques for O-ring connections according to work instruction AA07050122.
Tightening torques for screws and nuts A2/A4 AA090019
Country or regional specific rules for accident prevention have to be followed (for Germany
e.g. BGV 29).
Vehicles are only allowed to be maintained in compliance with the generally acknowledged
rules of technology and observance of the maintenance and operating instruction of the manu-
facturer. In addition, maintenance, conversion or retrofitting works that need specific technical
knowledge are to be carried out only by qualified companies.
Directives for Installation, Connection and Use
Please read carefully the following instructions before installing, connecting and operating the de-
vice. We assume no liability for incorrect handling and usage.
WARNING
CAUTION
MAKE THE CORRECT CONNECTIONS.
Failure to make the proper connections may result in fire
or product damage.
USE ONLY SUITABLE VOLTAGE.
The usage with a not suitable voltage may result in fire.
Furthermore, a not suitable voltage may result in failure
or product damage.
TAKE CARE THAT WIRES NOT CARRY CURRENT
WHILE CONNECTING.
Connecting wires which carry current may result in elec-
trical shorts or product damage.
ONLY USE WIRES WITH SUFFICIENT LARGE CROSS
SECTIONS.
Using wires with not sufficient large cross sections will
exceed the current carrying capacity of the wires and
result in fire or electric shock.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT
HINDER VEHICLE OPERATIONS.
Doing so may obstruct forward vision or hamper move-
ment and result in serious accident.
DO NOT BLOCK VENTS OR RADIATOR PANELS.
Doing so may cause heat to build up inside and may
result fire.
USE THE CORRECT AMPERE RATING WHEN RE-
PLACING FUSES.
Failure to do so may result in fire or electric shock.
DO NOT PLACE HANDS, FINGERS OR FOREIGN
OBJECTS IN INSERTION SLOTS OR GAPS.
Doing so may result in personal injury or damage to the
product.
AVOID HIGH FORCE EFFECTS.
Do not expose the device high force effects or strokes.
Doing so may result in product damage.
RANGE OF THESE DIRECTIVES.
These directives apply for all devices, on which this di-
rectives-sheet is added. One directives-sheet is sufficient
per box.
HAVE THE WIRING AND INSTALLATION DONE BY
EXPERTS.
The wiring and installation of this device requires special
technicalskilland experience and have to be done by ex-
perts.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR
PINCHED BY A SHARP METAL EDGE.
Arrange the wiring so it will not be damaged.
DO NOT INSTALL IN LOCATIONS WITH HIGH MOIS-
TURE OR DUST.
Avoid installing the device in locations with high incidence
of moisture or dust. Moisture or dust that penetrates into
this device may result in product failure or damage.
USE SPECIFIED ACCESSORY PARTS AND INSTALL
THEM SECURELY.
Be sure to use the specified accessory parts. Use of other
than designated parts may damage this device internally or
may not securely installthe device in place.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS.
Failure to do so may cause personal injury or damage to
the product. Return it to your authorized customer service.
TEMPERATURE.
Be sure the environment-temperature is in the allowed
range before turning the device on.
USE DEVICE ONLY FOR SPECIFIED APPLICATION
AREA.
Using the device for another purpose or in another applica-
tion area than the intended one, may result failure, product
damage or injury.
PRODUCT CLEANING.
Use a soft dry cloth for cleaning the device. For more se-
vere dirt, please dampen the cloth with water only. Any-
thing else has the chance of damage the product.
TRANSPORT TERMS
Handle the unit with care at any time. During transport
make sure that the unit is stored safely and cannot be
damaged. If more than one unit are transported, every unit
has to be packed singly to avoid that the unit’s damage one
another.
The forwarder is liable for all damages during transport.

WAKL5N0802A Edition: 07.02.2022 Page: 5/18
1. Technical data
1.1. Air conditioning units
2nd Gen.
3rd Gen.
Type
UL 500 EM
UL 700 EM
UL 500 EM
UL 700 EM
Refrigerant
R 134a
GWP
1.430
Refrigerant without Frontbox approx.
kg
7,0
8,0
2,8
3,5
Refrigerant quantity with Frontbox
approx.
kg
7,5
8,5
3,3
4,0
Operating voltage
Volt
DC
26
26 V
DC
Max. current draw
A
63
90
60
90
Current draw at regular mode
A
14
20
14
20
400 V
AC
Max. operating current
A
15
24
15
24
Starting current compressor
A
100
120
100
120
Cooling capacity
W
24.000
33.000
24.000
33.000
Heating capacity
W
30.000
38.000
30.000
38.000
Evaporator –air volume
m3/h
4.720
7.080
4.720
7.080
Weight
kg
171
196
162
192
1.2. Pressure Switches
Low pressure switch
BAR
0,3 bar (± 0,2) off
2,1 bar (± 0,3) on
High pressure switch
BAR
25,5 bar (± 1,0) off
18 bar (± 0,7) on
2. Maintenance plan
Pos.
Maintenance and repair schedule
3
Cooling cycle and components
A
B
C
D
3.1
Refrigerant level check at the inspection glass of the roof installation
X
3.2
Air tightness check with leakage detector
X
3.3
Condenser coil cleaning
X
3.4
Refrigerant receiver check for corrosion
X
3.5
Replacement of filter dryer - functional test of low pressure switch
X
3.6
Function check of high pressure switch
X
3.7
Check of screw connections on compressor for tightness
X
3.8
Fresh-/ recirculation air filter check for contamination, if necessary replace
(X)
X
3.9
Oil level check of the compressor at the oil sight glass
X
3.10
Compressor oil exchange
(X)
X
4
Electrical installations
A
B
C
D
4.1
Function check of the condenser fans
X
4.2
Function check of evaporator blowers
X
4.3
Visual check of safety fuses
X
4.4
Plug connection check for tightness
X
4.5
Visual check of electrical cables for abrasion
X
4.6
Check the control
X
The maintenance periods are as follows:
Maintenance type A: Monthly maintenance works
Maintenance type C: Annual
Maintenance type B: Half-yearly
Maintenance type D: Every 3 years

WAKL5N0802A Edition: 07.02.2022 Page: 6/18
2.1. Overview of maintenance parts 2nd generation
2.2. Overview of maintenance parts 3rd generation
Sight glass
Dryer
Condenser fan
Evaporator blower
Air filter
Air filter
Condenser coil
(UL500EM)
Condenser unit
Condenser fan
Evaporator blower
Air filter
Dryer
Sight glass
Air filter
(UL500EM)

WAKL5N0802A Edition: 07.02.2022 Page: 7/18
3. Maintenance of the refrigerant circuit
3.1. Check of refrigerant level in the sight glass of the roof unit
Start air conditioner.
The air conditioner is operated via the original controller of the vehicle (see original operating
manual)
Check the refrigerant level in the sight glass. To this, the cover must be opened to see the sight
glass.
The refrigerant should be bubble-free through the sight glass!
3.2. Leakage test with an electronic leak detector
If the unit performs insufficient due to lacking refrigerant or after interventions in the refrigerant cir-
cuit and maintenance the unit has to be tested for leaks.
This can be done during operation of the unit resp. at a system pressure of approx. 15 bar nitrogen
with refrigerant portion.
Use only electronic leak detectors! The usage of contrast agents for leak detection is
not permitted and can cause warranty rejection!
3.3. Cleaning of condenser coil
Clean the condenser coil only when the vehicle engine is stopped and the a/c unit is shut off!
Danger!
Cleaning of the condenser is only possible from the top of the roof. Safeguard the vehicle so that
no unauthorized person can move the vehicle. Protect against falling down the roof (safety belt,
scaffold, ladder, etc.)
Demount the condenser fans completely (see point 5.4 ) and blow compressed air through the
opening against the air flow direction.
Sight glass

WAKL5N0802A Edition: 07.02.2022 Page: 8/18
3.4. Check of the refrigerant receiver for corrosion
Demount the middle cover in the back.
The system may be also installed opposite to the driving direction.
2nd generation
3rd generation
Make a visual inspection of the refrigerant receiver.
If the receiver is corroded it has to be replaced!
3.5. Replacement of filter dryer –functional test of low pressure switch
Open the evaporator cover on the right. To get access to the filter dryer the left evaporator cover
has to be opened.
Risk of getting injured by down falling parts!
Filter dryer
Manual shut-off valve
Sight glass
Magnetic valve
Expansion valve
Pressure switch
Refrigerant receiver
Refrigerant receiver

WAKL5N0802A Edition: 07.02.2022 Page: 9/18
Manual shut-off valve: remove cap and bring into „shut off” position.
Connect the red manometer (to atmospheric pressure) to service connection (1) of the service
shut-off valve HD –high pressure –(2) and the blue manometer (to atmospheric pressure) to ser-
vice connection (5) of the service shut-off valve ND –low pressure –(6) of the refrigerant com-
pressor.
Set service shut-off valve ND (6) and HD (2) in “Service Position” (turn spindle clockwise ca. three
full circles), and then evacuate.
Switch on the air conditioner and start running the compressor until the manometer ND
shows „0 bar“ on the scale. The compressor is switched off when the low pressure switch
(7) gets activated. Depending on the pressure situation the compressor is switched on and
off again so that the refrigerant can evaporate.
Set service shut-off valve ND (6) in „Stop Position“ (turn spindle clockwise until stop).
The low pressure switch turns off the compressor when the pressure is < 0,3 bar. Restart-
ing of the air conditioning is possible, provided that the pressure at the low-pressure switch
is above 2.1 bar and the system is turned on.
Demount filter dryer. Please refer to the manual.
Demount filter dryer only immediately before mounting to ensurethat the refrigerant circuit
remains open only for a short time. If this is not possible, closethe refrigerant circuit (tubing)
with caps or stoppers to prevent entry of air and humidity into the system.
Mount a new filter dryer. Put filter dryer according to the flow direction (arrow) into seating and fas-
ten.
Filter dryer
Oil sight glass
2
1
3
6
5
7
4

WAKL5N0802A Edition: 07.02.2022 Page: 10/18
The filter dryer needs to be mounted as indicated (flow direction). The flow marker (arrow on the
filter dryer) points the direction of expansion valve. Remove the protective caps on both sides of
the filter dryer only immediately prior to mounting.
Evacuate the area between manual shut-off valve and magnetic valve
at the service connection.
With an ambient temperature of ca. 20°C, a vacuum of less than 20 mbar must be achieved in
order to ensure optimal evaporation of any humidity that may have entered the system with
humid air.
Manual shut-off valve to „bring normal position“ and mount cap.
Balance the pressure in the high and low pressure areas of the refrig-
erant circuit with the aid of the shut-off valves on the manometer com-
bination. For this purpose, open the “Red” and “Blue” shut-off valves of
the manometer combination for approx. 5 sec.
Pressure in the low pressure volume must exceed 2.1 bar, other-
wise the air conditioner does not operate (Low Pressure Malfunc-
tion).
Set the service shut-off valves ND (6) and HD
at the refrigerant compressor again to “Normal”
(turn spindle counter-clockwise until stop).
Start the air conditioner and check for any
leakage. Attach or close and secure service
flaps on the roof air conditioner.
3.6. Function check of high pressure switch (8)
Connect the blue manometer (to atmospheric pressure) to service connection (1) of the service
shut-off valve ND –low pressure - (6) and the red manometer (to atmospheric pressure) to service
connection (5) of the service shut-off valve ND –low pressure - (2) of the refrigerant compressor.
Set service shut-off valve ND (6) and HD (2) in “Service Position” (turn spindle clockwise ca. three
full circles) and then evacuate.
Interrupt operation of the condenser fan (e.g. disconnect plug connections or remove fuses of the
condenser fan).
1
3
4
2
Oil sight glass
5
7
6
8
Flow direction

WAKL5N0802A Edition: 07.02.2022 Page: 11/18
The high pressure switch (8) can alternatively be checked with the diagnostics device “Star
Diagnostics”. This method also requires prior connection of the pressure manometers (HD and
ND) to the refrigerant compressor, in order to read the switch-off and re-switch-on points.
Danger! Attention!
The service shut-off valve on the refrigerant compressor (ND and HD) must not be closed
(turned clockwise until stop) when the refrigerant compressor is running because the very rap-
id pressure increase on the high pressure side (HD) or the rapid pressure drop on the low
pressure side (ND) can damage the refrigerant compressor.
Return the service shut-off valves ND (6) and HD (2) to
their initial position (turn valve counter-clockwise until
stop). Evacuate manometer hoses and detach.
3.7. Check of screw connections on compressor for tightness
Check all fixing screws on the compressor, compressor mounting plate as well as the screws on
the flange valves High Pressure (2) and Low Pressure (6) for tightness.
Screw torque of fixing screws: 21 Nm
Screw torque of flange valves (2) and (6): 45 Nm
3.8. Fresh air / recirculation air filter check for contamination, if necessary replace
Danger!
Use an appropriate scaffold for carrying out maintenance works.
Loosen the quick fasteners of the evaporator cover and open it.
Take out the air filters (2 pieces UL500EM und 3 pieces UL700EM per
unit side).
Clean or exchange filters.
When mounting the filters, take care that the arrows on the upper side
of the filter point towards the vehicle’s outside.
Reassemble in reverse order!
1
2
3
4
5
6
7
8
Oil sight glass
Fixing screws
Compressor mounting plate
Quick fasteners
Air filter

WAKL5N0802A Edition: 07.02.2022 Page: 12/18
3.9. Oil level check of the compressor at the oil sight glass
Observe inspection glass at compressor for ca. 10-15 min while the
compressor is ON. Refrigerant oil must be visible. In the case of under-
or over-filling there is a risk of serious damage to the compressor.
The oil should be clear and clean.
Danger! Risk of injury!
Be particularly careful when working close to hot, rotating or energized parts.
Refrigerant oil is circulating together with the refrigerant in the entire cooling system. For this
reason, the oil level may be different for every reading
3.10. Compressor oil exchange
Whenever the refrigerant circulation system has been opened, the filter dryer must be re-
newed (see point 3.5).
Switch on ignition. Switch on the air conditioner into operation for approx. 10 min.
First check refrigerant oil level at the
sight glass.
Connect the blue manometer (to atmospheric
pressure) to service connection (5) of the ser-
vice shut-off valve ND –low pressure - (6) of
the refrigerant compressor and the red ma-
nometer (to atmospheric pressure) to service
connection (1) of the service shut-off valve HD
–high pressure –(2). Set service shut-off
valve ND (6) and HD (2) in “Service Position
Compressor” (turn clockwise until stop) and
then evacuate
Oil sight glass
1
5
2
6

WAKL5N0802A Edition: 07.02.2022 Page: 13/18
Unscrew the oil filler screw. Suck out the old cooling
machine oil with a suitable pump. Fill in new refrigerant
oil and then mount the oil filler screw.
Make sure you use the right sort of refrigerant oil and a new batch. After the refrigerant
oil has been drained, it must be replaced with new oil immediately. Refrigerant oil is
strongly hygroscopic.
Amount refrigerant oil: 1,3 Liter
Tightening torque: Oil filler screw for refrigerant oil 1/4“NPTF: 25 Nm
Evacuate the compressor via the service connections
(1) and (5) at the service shut-off valves HD –high
pressure - (2) and ND –low pressure - (6).
Refill the evacuated refrigerant amount. Set service
shut-off valves ND (6) and HD (2) of the refrigerant
compressor in „Original Position“ (turn valve counter-
clockwise until stop). Evacuate manometer and de-
mount.
4. Maintenance work on the electrical installations
4.1. Function check of the condenser fans
Switch on the ignition and start the engine.
Press button and take the air conditioner into operation.
Then check the functioning of the condenser fans.
Danger! Risk of injury!
Take special care near hot, rotating or live parts.
Oil filler screw
Oil sight glass
1
6
2
5
Condenser fans

WAKL5N0802A Edition: 07.02.2022 Page: 14/18
4.2. Function check of the evaporator blowers
Take the air conditioner into operation.
Open quick fasteners by rotating motion, open side covers.
Function check of all evaporator blowers.
4.3. Visual check of safety fuses
Open service cover in the passenger compartment below the right corner of the roof installation
with a square spanner.
Take fuses one-by-one out of their sockets, check and put back again.
Close cover when finished.
UL500 EM UL700 EM
4.4. Plug connection check for tightness
Open service cover in the passenger compartment below the right corner of the roof installation
with a square spanner.
Check tight fit of plugs and electric connections. Close Cover when finished.
4.5. Visual check of electrical cables for abrasion
Open quick fasteners and side covers.
Take fan plate of the condenser fans out and check all electrical
connections for correct placement and abrasion.
When finished, remount fans and close side cover.
.
Quick fasteners
Evaporator blowers
F1-F6 = 15A
F8 = 7,5A
F1-F11 = 15A
F15 = 7,5A
Danger! Risk of injury!
Take special care near hot, rotating or live parts.

WAKL5N0802A Edition: 07.02.2022 Page: 15/18
4.6. Check the control
See the original instructions of the control!
5. Repair instructions for UL500 EM/ UL700 EM
Because of its modular design the air conditioner UL500 EM / UL700 EM features a series of char-
acteristics in mounting and demounting of the components.
5.1. Demounting and mounting of evaporator blowers
Loosen the quick fasteners and
open the evaporator cover /hoods
and secure them against falling.
The blower is furnished with an insert (blower plate) that is fitted into the bottom part of the unit.
5.1.1. Demounting evaporator blowers
Remove the blower with the insert (blower plate) from the
bracket on the side facing the evaporator heat exchanger, as
shown by the arrow.
Disconnect the cable and replace it, if necessary.
Blower plate
Danger! Risk of injury!
Make sure that the device is turned off!
There is a risk of injuries caused by rotating parts (blower)

WAKL5N0802A Edition: 07.02.2022 Page: 16/18
5.1.2. Mounting evaporator blowers
Tilt the blower with the insert to the side facing the evaporator
heat exchanger and put it into the bracket.
Then fix the blower by slightly pressing the bracket.
5.2. Demounting and mounting of the flap servo-motors
Actuators of flaps are installed on the
right and left side of the evaporator,
near the filters installed with a servic-
ing element.
Actuators of flaps and servicing
element
Attention!
Do not pinch the cables and arrange them in
a manner eliminating the risk of chafing!

WAKL5N0802A Edition: 07.02.2022 Page: 17/18
The servicing element can be removed upward, in order to gain
access to the flap actuator.
The flap actuator is connected to the fresh air flap by a cap.
It facilitates its removal to the side.
Assembly instructions:
The shaft of the flap actuator and bracket of the flap are fitted to
each other and they can be properly installed only in a specified
position.
Therefore, during installation it is necessary to set the flap
properly on the actuator shaft.
To do this, the flap may be easily repositioned.
The reassembly is carried out in reverse order.
5.3. Mounting und demounting of control node ATC –CAN
The WABCO control node is located in the evaporator
part (in driving direction right side) and is mounted on
an electric PCB with a fastening screw.
Unscrew the fastening screw, remove the control unit
(Wabco) upward and disconnect plug connection.
The control node may be replaced with another, which
should be mounted in reverse order.
Servicing element
Flap actuator
Cap of the flap actuator
Servicing element
Cap of the flap actuator
Flap actuator
Air flap
Electric PCB
Wabco control node
Fastening screw

WAKL5N0802A Edition: 07.02.2022 Page: 18/18
5.4. Mounting and demounting of the condenser fans
Condenser fans are of UL series, installed in the square form.
This allows the individual components to be connected by
plug-in system, ensuring the structural stability.
Disassembly of the individual segments is performed in the
direction indicated by the arrow. In order to repair the conden-
ser fans, remove the central front cover.
After removing the central front cover, remove
the condenser cover. Pull the condenser fans
out of the guiding rails in direction of arrow.
Then, you can disconnect the plug connection
and replace the condenser fan. Perform the
assembly in reverse order.
6. Warranty Conditions
The current „General Warranty Conditions KONVEKTA AG“ will apply. A copy will be furnished by
the warranty department. Please contact: [e-mail].
7. Waste disposal in accordance with legal provisions
After the phase of use the last proprietor is responsible for the adequate waste manage-
ment. The environmental regulations in the exporting country must be observed. The follow-
ing list contains the most important regulating literature, valid for the Federal Rep. of Germany:
Resolution for dangerous substances
Resolution for used oil
Law for waste circulation (KRW/AfgG))
Law of water balance
Resolution for the proofs of utilization and
removal
Resolution for the waste management of old cars and
the adaptation of road prescriptions
Criminal Code (StGB) 28th section „criminal
acts against the environment” §326 - Envi-
ronment jeopardizing waste management
Resolution (EC) No. 2037/2000 of the European Par-
liament and of the Council for materials that affect the
ozone layer
Law of chemicals § 27 - penal prescriptions
Resolution to prohibit certain ozone destroying halo-
gen hydrocarbons.
The used refrigerant endangers the environment. When dealing with refrigerants the existing pre-
scriptions and regulations are to be followed. Only qualified staff is allowed to carry out these
works! Water endangering substances - acc. to §§19g-19l - are solid, liquid, and gaseous sub-
stances. e.g.: mineral and tar oils (cooling oils), halogen containing organic combinations (refriger-
ants).
 Source of supply: Bundesanzeiger, Beuth Verlag, dtv (Deutscher Taschenbuch Verlag
8. History of modification
Version
Date
Name
Remark
File
A00
23.04.2020
B. Keßler
Source file
WAKL5N0802A
A01
20.05.2020
B. Keßler
Technical data and maintenance schedule updated
WAKL5N0802A
A02
07.02.2022
B. Keßler
Added 3rd. generation, file cpl. revised
WAKL5N0802A
Condenser cover
Central front cover
