Konwin JHS-1000RS User manual

MODEL: JHS-1000RS
MADE IN CHINA
ELECTRICAL SPECIFICATION:
120 V~ 60 Hz 1 000 W

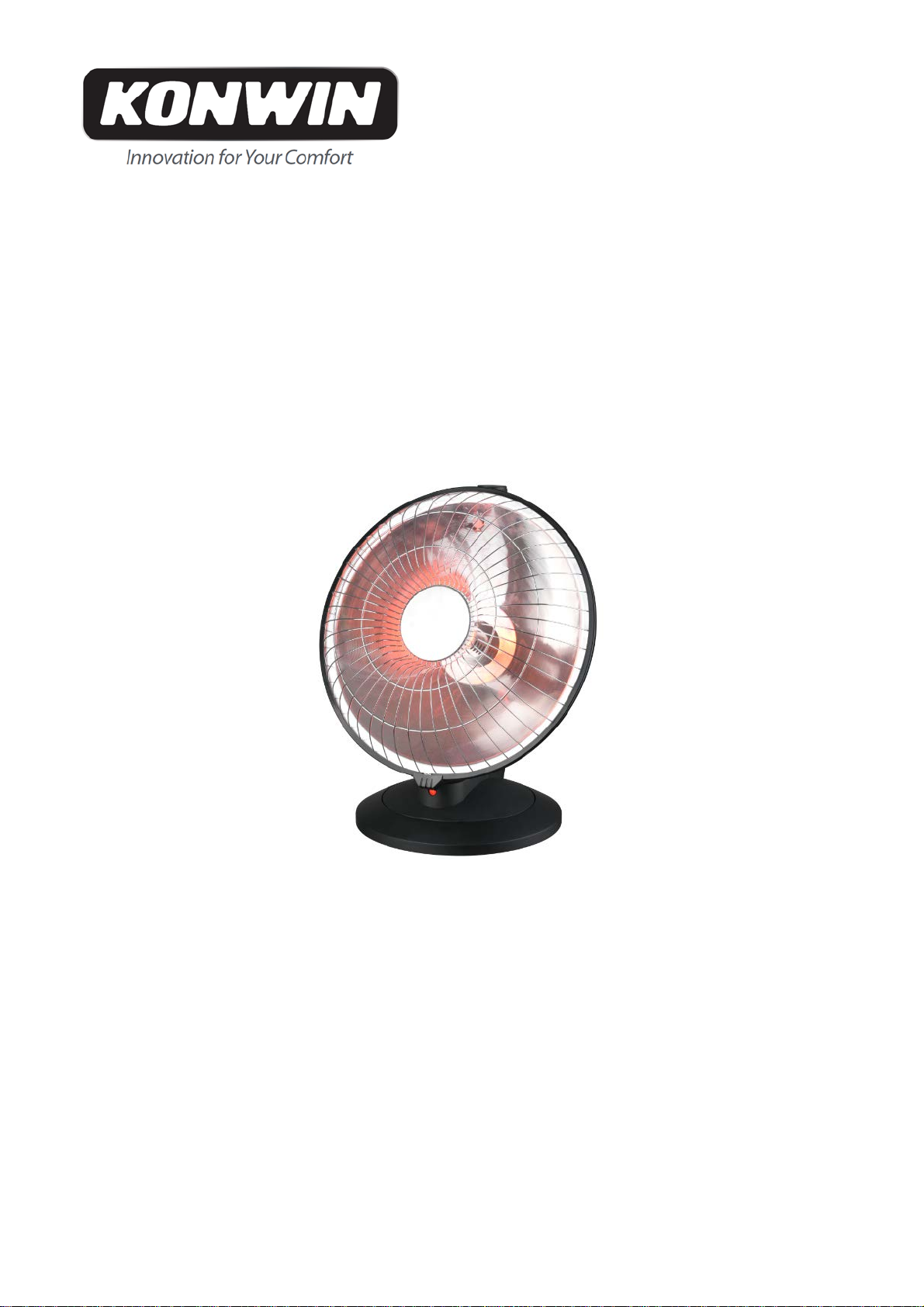

DISH HEATER
OWNER’S MANUAL
IMPORTANT INSTRUCTIONS
READ & SAVE
NOTE: FOR HOUSEHOLD USE ONLY. NOT INTENDED FOR
COMMERCIAL USE.
BEFORE USING YOUR NEW HEATER
READ THIS USE & CARE GUIDE CAREFULLY AND THOROUGHLY BEFORE
OPERATING YOUR HEATER.

RETAIN THIS USE & CARE GUIDE FOR FUTURE REFERENCE.
INPORTANT SAFEGUARDS
To prevent injury to the user or other people and property damage, the following
instructions must be followed.
•Use this appliance only as described in this owner’s manual. As with any
electrical appliance, the instructions aim to cover as many eventualities as
possible. Caution and common sense should be used when operating this
heater.
•This heater is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. Keep combustible materials, such as furniture, pillows, bedding,
papers, clothes and curtains at least 3 ft. (0.9m) from the front and top of the
heater and keep them away from the sides and rear. Keep the rear grille away
from walls or drapes so as not to block the air intake.
•Extreme caution and reasonable supervision are necessary when any heater
is used by or near children, invalids or pets and whenever the heater is left
operating and unattended.
•Always unplug heater when not in use. To disconnect, grip plug and pull from
wall outlet. Never yank on cord.
•Do not operate any heater with a damaged cord or plug or after the heater
malfunctions or has been dropped or damaged in any manner. Return heater
to an authorized service facility for examination, electrical or mechanical
adjustment or repair.
•Do not use outdoors. This product is intended for normal household use only
•This heater is not intended for use in bathrooms, laundry areas and similar
indoor locations. Never locate heater where it may fall into a bathtub or other
water container.
•Do not run cord under carpeting. Do not cover cord with throw rugs, runners or
the like. Arrange cord away from traffic area where it will not be tripped over.
Route the cord so that it will not be walked on, or pinched by furniture.
•To disconnect the heater, turn controls to “OFF”, then remove the plug from
outlet.
•Connect to properly polarized outlets only.
•Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock, fire or damage to the heater.
•To prevent a possible fire, do not block air intakes or exhaust in any manner.

Do not use on soft surfaces, like a bed, where openings may become blocked.
•A heater has hot or arcing or sparking pads inside. Do not use it areas where
gasoline, paint or flammable liquids are used or stored.
•Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, injury to
persons or other damage to property.
•To prevent overload and blown fuses, be sure that no other appliance is
plugged into the same outlet (receptacle) or into another outlet (receptacle)
wired into the same circuit.
•This appliance is equipped with a polarized plug: one blade is wider than the
other. The plug will fit into a polarized outlet only one way. If the plug does not
at first fit in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install a polarized outlet. Do not change the plug in any way.
WARNING: TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT OF OUTLET, AND FULLY INSERT.
•It is normal for the heater’s plug and cord to feel warm to the touch. A plug or
cord which becomes hot to the touch or becomes distorted in shape may be a
result of a worn electrical outlet. Worn outlets or receptacles should be
replaced prior to further use of the heater. Plugging heater into a worn outlet /
receptacle may result in overheating of the power cord or fire.
•Ensure the heater is on a stable, secure surface to eliminate the potential of
tipping it over.
•We do not recommend use of an extension cord as it may overheat and cause
a risk of fire. However, if you have to use an extension cord, the cord should
be No. 14 AWG minimum size and rated not less than 1875 watts, and has to
be used only for suppling power to this heater. The cord should be as short as
possible (long cords coiled up can overheat, as well as cause tripping
accidents) and not used to supply power with more than one appliance at a
time.
•Be sure that the plug is fully inserted into appropriate receptacle. Please
remember that receptacles also deteriorate due to aging and continuous use:
check periodically for signs of overheating or deformations evidenced by the
plug. Should this occur, do not use the receptacle and CALL your electrician.
•Check that neither the appliance nor the power cable has been damaged in
any way during transportation.
•Make sure that on pieces of polystyrene or other packaging material have

8
been left between one element of the appliance and another. It may be
necessary to pass over the appliance with a vacuum cleaner.
•When switching on the appliance for the first time, you may notice a slight
odor which is normal with new electrical appliances. Allow odor to dissipate by
running appliance at full power for about ten minutes. Make sure that the room
in which the appliance is located is well ventilated during this operation.
•This heater draws 8.4 amps during operation. To prevent overloading a circuit,
do not plug the heater into a circuit that already has other appliances working.
•Do not run in locations when the heater will be left unattended for long periods
of time. (For example – in an unoccupied summer cottage).
PARTS OF THE HEATER
1. Thermostat knob
2. Back grille
3. Base
4. Front grille
5. Heating element
6. Reflector
7. Power indicator
8. Oscillation
OPERATING INSTRUCTIONS
To operate, connect to a properly polarized outlet only. Match wide blade of plug
to wide slot and fully insert. Be sure to plug into a 120VAC, 60Hz outlet.
NOTE: THE HEATER WILL NOT OPERATE UNTIL THE POWER CORD OF THE UNIT IS
PROPERLY PLUGGED INTOAPOLARIZED OUTLETAND POWERED ON (SEE SECTION
ON POLARIED PLUGS UNDER IMPORTANT SAFEGUARDS).

YOUR HEATER IS EQUIPPED WITH ONE THERMOSTAT CONTROL.
HEAT SETTING CONTROL
THERMOSTAT
This heater is equipped with thermostat to control the room temperature. To increase room
temperature, turn the dial clockwise.
POWER INDICATOR LIGHT
When the power cord is plugged into the power outlet, the power indicator light will be
illuminated.
HEAT SETTING
Turn the dial towards symbol to set higher room temperature, turn the dial
completely to the right to get maximum heat setting. Use this heat setting for faster warm-up of
a room or during colder weather. Once the heating location is comfortable, slowly rotate the
thermostat dial counterclockwise until heating element turns off or dims. The thermostat will
now maintain the temperature by cycling the heater ON or OFF.
Turn the dial counterclockwise and completely to the symbol to power heater OFF.
HEATER SAFETY FEATURES
Safety grille: the heater is equipped with a safety grille at the front to protect the heating
element. This part of the heater can get extremely hot. Do not touch it, doing so could cause a
burn. Do not block this grille or place to close to flammable materials as it could cause fire.
See safeguards section.
Tip-over switch: the heater will be automatically shut off by an internal switch when it is
tipped over. If this occurs, turn the heater OFF, unplug it, put the heater back in an upright
position and plug it back in.
Overheat protection: in the case the heater is overheat, a thermal cut-off will shut the power

off. If this occurs, turn the heater OFF, unplug it, wait for 15-30 minutes.
SPECIFICATIONS
MODEL JHS-1000RS
VOLTAGE (V) 120V AC, 60Hz
WATTAGE (W) 1000W
WARNING: TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE OF PLUG TO
WIDE SLOT OF OUTLET, AND FULLY INSERT.
CLEANING AND MAINTENANCE
Before any cleaning, make sure that:
1 The heater is turned OFF.
2 Disconnect power supply at source by removing plug from power outlet.
3 Wait 30 minutes to let the heater cool down.
4 Once cooled down, your heater is now ready for cleaning.
Regular cleaning:
1 Do not use cleaning liquid or chemical sprays on the unit.
2 To clean the exterior, use a clean, soft and lightly damp cloth to gently wipe off the dirt from
the surface of the unit. Be sure not to wet the heating element and the switches.Allow the
unit to dry completely before using it.
WARNING: DO NOT ALLOW WATER TO RUN INTO THE INTERIOR OF THE HEATER AS
THIS COULD CREATE A FIRE OF ELECTIRC SHOCK HAZARD, OR DAMAGE THE UNIT.
STORAGE
1 Perform the cleaning procedures described in “CLEANING AND MAINTENANCE”
2 Wipe all parts dry.
3 Pack the heater in a plastic bag and store it in a cool, dry place.
TROUBLESHOOTING

If your heater fails to operate, follow these procedures before contacting customer service:
Problem Probable Cause Solution
Unit is not heating The room temperature has
warmed up to thermostat
setting.
Adjust the thermostat
control knob to a higher
setting. For more
information on using the
thermostat, refer to
“HEAT SETTING
CONTROL” section.
Tip-over switch has been
activated due to the unit
tipping over.
Put the unit back to
normal upright position
and plug back in.
Thermal cut-off has been
activated due to
overheating.
Do the reset follow the
instructions in the
“Overheat Protection”
section.
The heater is
creating a burning
smell
Adrop of oil may have fallen
on the heating element
during the manufacturing
process. It will quickly
evaporate and should not
occur again.
To eliminate oil smell if
it occurs, ensure room
in which heater is
situated is well
ventilated.
Check and ensure there are
no combustible materials
within 3 feet (0.9 meters) of
the heater.
Remove any
combustible items from
the vicinity of the
heater.
DO NOT ATTEMPT TO OPEN OR REPAIR THE HEATER YOURSELF. DOING SO WILL
VOID THE WARRANTY AND MAY CAUSE DAMAGE OR PERSONAL INJURY.
Customer Service and Support
To Obtain Warranty Support or Advice, Please Complete These Easy Steps:

Contact Konwin PRODUCTS Technical Support
E-mail
:[e-mail]
You will need to provide the unit's model number, serial number (located on the heater’s
front panel, rear panel, or on the box), date of purchase, retailer of purchase, a daytime
phone number, and possibly a copy of your receipt.
Be Patient, Clear, and Concise.
Describe the issue and symptoms you have for, and about the product. A certified Konwin
Technical Support agent will give you an evaluation of your issue and your resolution options.
If the answer is not available at that time, you will be referred to the appropriate channels, or
given a call back within 72 hours with an answer or resolution.
If after speaking with Konwin Technical Support, it is determined by one of our agents that your
unit may need to be sent in to us to be evaluated/repaired, our representative will provide you
with a reference number and provide you with details on how to send in your unit for repair.
