Kortex KX EASYBACKUP User manual

KX EASYBACKUP
Broadband Router
User Guide
Wireless Wan Mobile

Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored,
transcribed in an information retrieval system, translated into any language, or transmitted in any
form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or
otherwise, without the prior written permission.
Trademarks
All products, company, brand names are trademarks or registered trademarks of their respective
companies. They are used for identification purpose only. Specifications are subject to be changed
without prior notice.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against radio interference in a commercial environment. This equipment can generate, use and
radiate radio frequency energy and, if not installed and used in accordance with the instructions in
this manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause interference, in which case the user, at his own
expense, will be required to take whatever measures are necessary to correct the interference.
CE Declaration of Conformity
Thisequipmentcomplieswith therequirementsrelatingto electromagnetic compatibility,EN
55022/A1 ClassB.

Table of Contents
FCC Interference Statement .....................................................................................2
System Requirements for Configuration...............................................................4
1. Introduction..........................................................................................................4
1.1. Connections .........................................................................................4
1.1.1. Wireless WAN Mobile Broadband Router (Rear View).........4
1.1.2. LEDs–Wireless WAN Mobile Broadband Router (Front View)
........................................................................................................................5
1.2. Features ........................................................................................................6
2. Configuring Wireless WAN Mobile broadband Router...................................7
2.1. Installation Considerations.......................................................................7
2.1.1. Installation Instructions- Get Start Networking..........................7
2.1.2. Establish WiFi Connection.............................................................9
2.2. Using the Configuration Menu..................................................................9
2.2.1. Wizard setting .................................................................................10
2.2.2. Advanced Setup > Basic Setting.................................................16
3. Troubleshooting...................................................................................................43
4. Technical Specifications.....................................................................................46

Package Contents
Importance: Check your product package contents FIRST.
The Wireless WAN Mobile Broadband Router package should contain the items listed
below. If any of the items are missing, please contact your reseller.
Description
Quantity
Wireless WAN Mobile
Broadband Router
1
RJ-45 Cable
1
Power adapter 5V 3.0A
1
Quick Installation Guide
1
Cradle
1
Caution: Using a power supply with a different voltage rating than the one included with
the Wireless WAN Mobile Broadband Router will cause damage and void the warranty for
this product.
System Requirements for Configuration
• A compatible either 16-bit or 32-bit PCMCIA 3G modem card with service
Note: Subject to services and service terms available from your carrier.
• Computers with Windows, Macintosh, or Linux-based operating systems with an installed
Ethernet adapter.
• Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above.
WiFi System Requirements
• A 802.11b, or 802.11g Adapter
1. Introduction
The Wireless WAN Mobile Broadband Router is a high-performance tool that supports wireless
networking at home, work, or in a public place. The Wireless WAN Mobile Broadband Router
supports uses a 16-bit and 32-bit Type II mobile card, either WCDMA or EVDO and even
HSDPA as well, and supports wireless data transfers up to 54 Mbps, and wired data transfers up
to 100 Mbps.
The Wireless WAN Mobile Broadband Router is compatible with industry security features.
Connections
Wireless WAN Mobile Broadband Router (Rear
View)

Note:
Contains a reset button to restore the setting back to original factory defaulted setting as if
your convenience of forgetting your applicable setting
1.1.2. LEDs–Wireless WAN Mobile Broadband Router
(Front View)
Antenna
Auto MDI/MDIX RJ-45 Ports
Automatically sense the types of WAN
and LAN when connecting to Ethernet
Receptor for
Power adapter
Reset Button
Restore to Original factory
defaulted setting

1.2. Features
Automatic take over back up with 3G connection as Ethernet WAN failover.
Implementation within 3 minutes allows the network to go where wires cannot go –
even outside the home or office.
Fully compatible with the 802.11g standard to provide a wireless data transfer rate of
up to 54Mbps.
Backwards compatible with the 802.11b standard to provide a wireless data rate of up
to 11Mbps.
Utilizes OFDM technology (Orthogonal Frequency Division Multiplexing).
User-friendly configuration and diagnostic utilities.
Operates in the 2.4GHz frequency range.
Advanced Firewall features.
Supports NAT with VPN pass-through, providing added security.
MAC Filtering
IP Filtering
Port Scheduling
DHCP server enables all networked computers to automatically receive IP addresses.
Web-based interface for Managing and Configuring.
Access Control to manage users on the network.
Supports special applications that require multiple connections.
Equipped with 2*10/100 Ethernet ports, for LAN and WAN access, and a Type II PC
card ( for both 16-Bit and 32Bit )Slot for 3G network connection.
Power LED
Agreen light as
power is on and
ready
LAN LED
Agreen light as connected
to local Ethernet and blinks
during data is transmission
WAN LED
Agreen light as
WAN is connected
WiFi LED
Agreen light as
connection on
WLAN available
and
Type II PC card slot
Insert the 3G PC
card as 3G WAN
connection is
needed

Connects multiple computers to a Broadband either WCDMA or EV-DO even
HSDPA modem to share the Internet connection.
Note: The Wireless WAN Mobile Broadband Router is designed to work with either EVDO
or WCDMA (UMTS) even up to 3.5G HSDPA PC cards.
Please refer to your service provider for detailed feature information.
2. Configuring Wireless WAN Mobile broadband Router
2.1. Installation Considerations
The Wireless WAN Mobile Broadband Router allows you access your network using a
wireless connection, from virtually anywhere within its operating range. Keep in mind
however, that the number, thickness, and location of walls, ceilings, or other objects that the
wireless signals must pass through, may limit this range.
Typical ranges vary depending on the types of materials used, and background RF (radio
frequency) noise in your home or business.
To maximize your wireless range, please follow these guidelines:
1. Keep the number of walls and ceilings between the Wireless WAN Mobile Broadband
Router and other network devices to a minimum. Each wall or ceiling can reduce the
Wireless WAN Mobile Broadband Router’s range from 3-90 feet (1-30 meters).
Note: The same considerations apply to your broadband EVDO connection.
2. Keep your product aware from electrical devices (such as microwaves, air conditioners,
and televisions) that emit large quantities of RFI (Radio Frequency Interference).
2.1.1. Installation Instructions- Get Start Networking
Connect the Wireless Router to Your Network
Note: DO NOT connect Wireless WAN Mobile Broadband Router to power before
performing the installation steps below.
1. Attach the antenna.---picture 2.1
Picture 2.1

a. Screw the antenna in a clockwise direction to the back panel of the unit.
b. Once secured, position the antenna upward at its connecting joint. This will
ensure optimal reception.
2. Connect a compatible Type II 3G cards with service to the Wireless WAN Mobile
Broadband Router in one of the following ways:

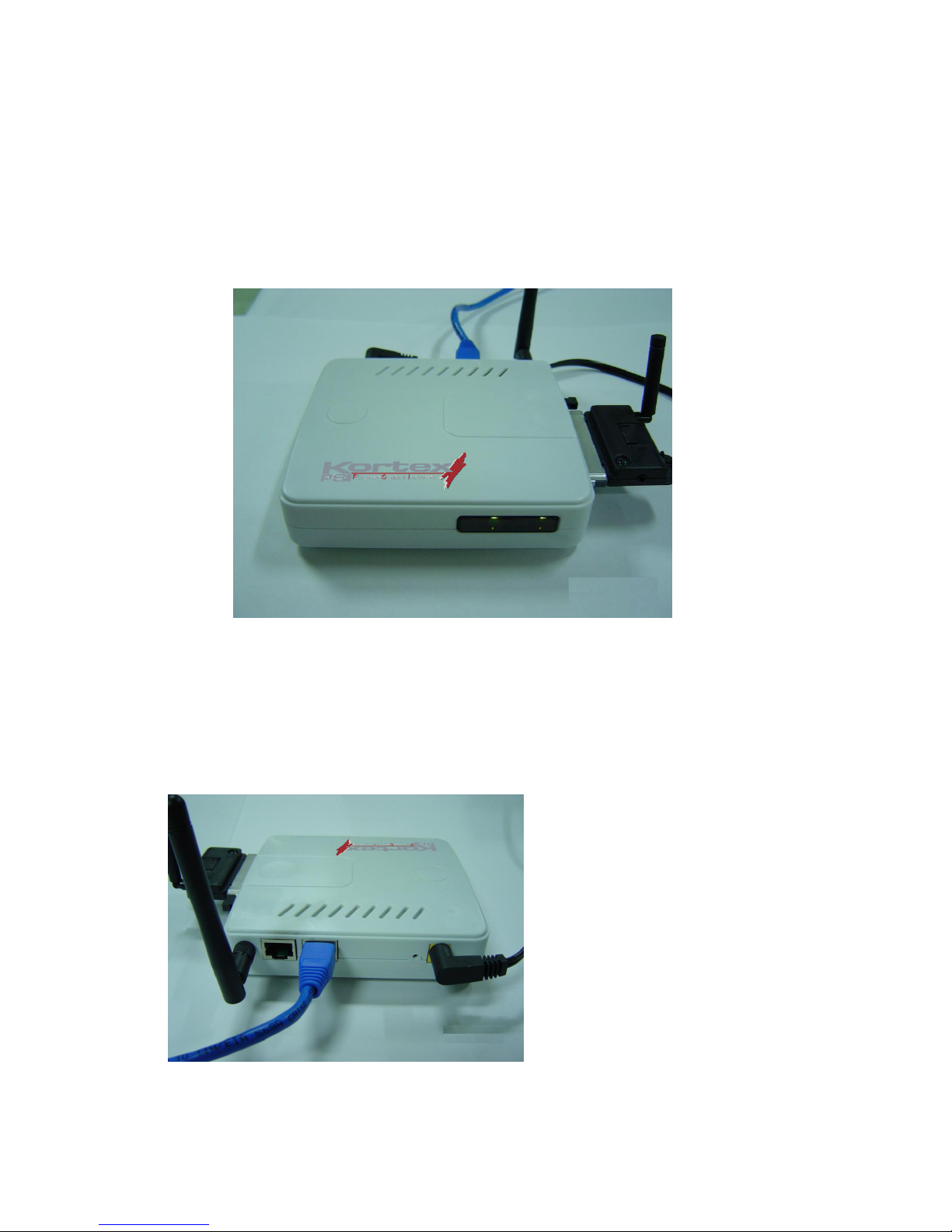

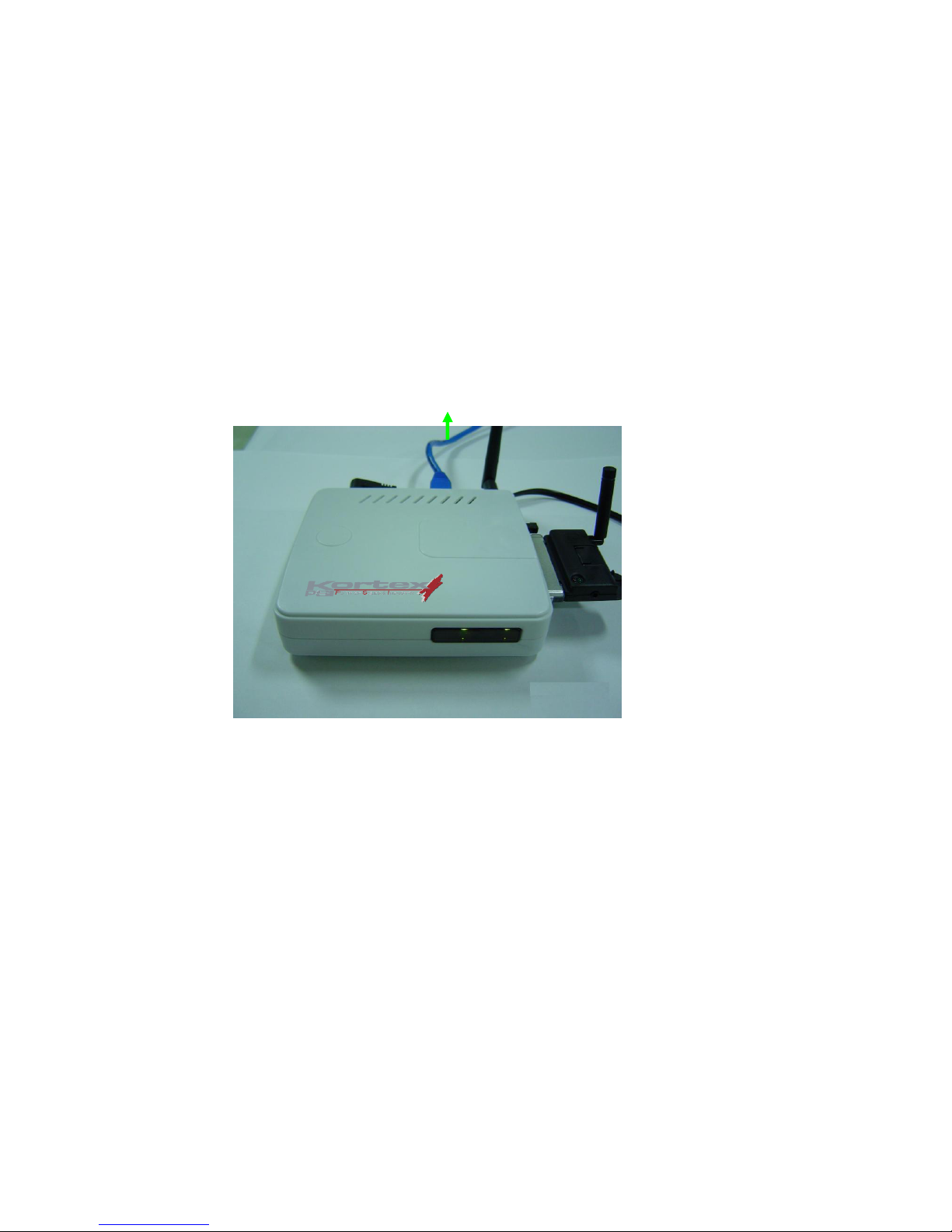

-Insert your wireless Type II 3G card (either 16-bit or 32-bit ) into the WAN
PCMCIA Card Slot.---see Picture 2.2
Picture 2.2
Note: The Wireless WAN Mobile Broadband Router is designed to work with
either UMTS or EV-DO and even HSDPA 3G card that can be used as a modem
(support tethered data). Please refer to your service provider for detailed feature
information.

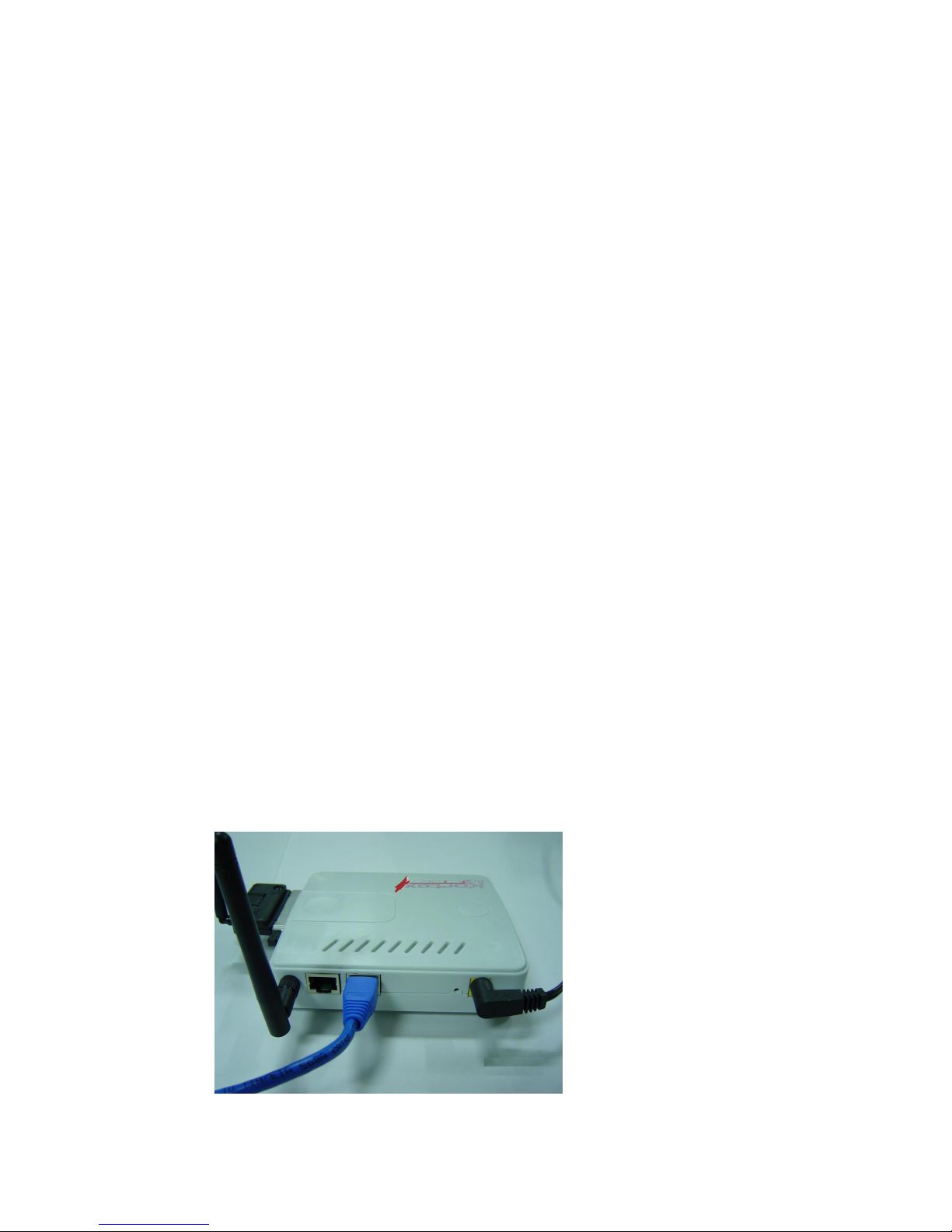

2. Insert the Ethernet patch cable into LAN Port on the back panel of the Wireless WAN Mobile
Broadband Router, and an available Ethernet port on the network adapter in the computer you
will use to configure the unit.-see Picture 2.3

Picture 2.3
Note: The Wireless WAN Mobile Broadband Router LAN Port is
“Auto-MDI/MDIX.” This provides patch Ethernet cable LAN Port access.
4. Connect the power adapter to the receptor on the back panel of your Wireless WAN
Mobile Broadband Router. Then plug the other end of the power adapter into a wall
outlet or power strip
a. The Power LED will turn ON to indicate power has been applied.
b. Other LEDs will flash ON and OFF as the Wireless WAN Mobile Broadband
Router performs initialization and Internet connection processes. This will take a
few minutes.
c. When complete, the following LEDs will illuminate green: M1, WAN, LAN, and
WiFi
2.1.2. Establish WiFi Connection
If you selected either WEP or WPA-PSK encryption, ensure these settings match your
WiFi adapter settings.
WiFi and encryption settings must match for access to the Wireless WAN Mobile
Broadband Router Configuration Menu, and the Internet. Please refer to your WiFi
adapter documentation for additional information.

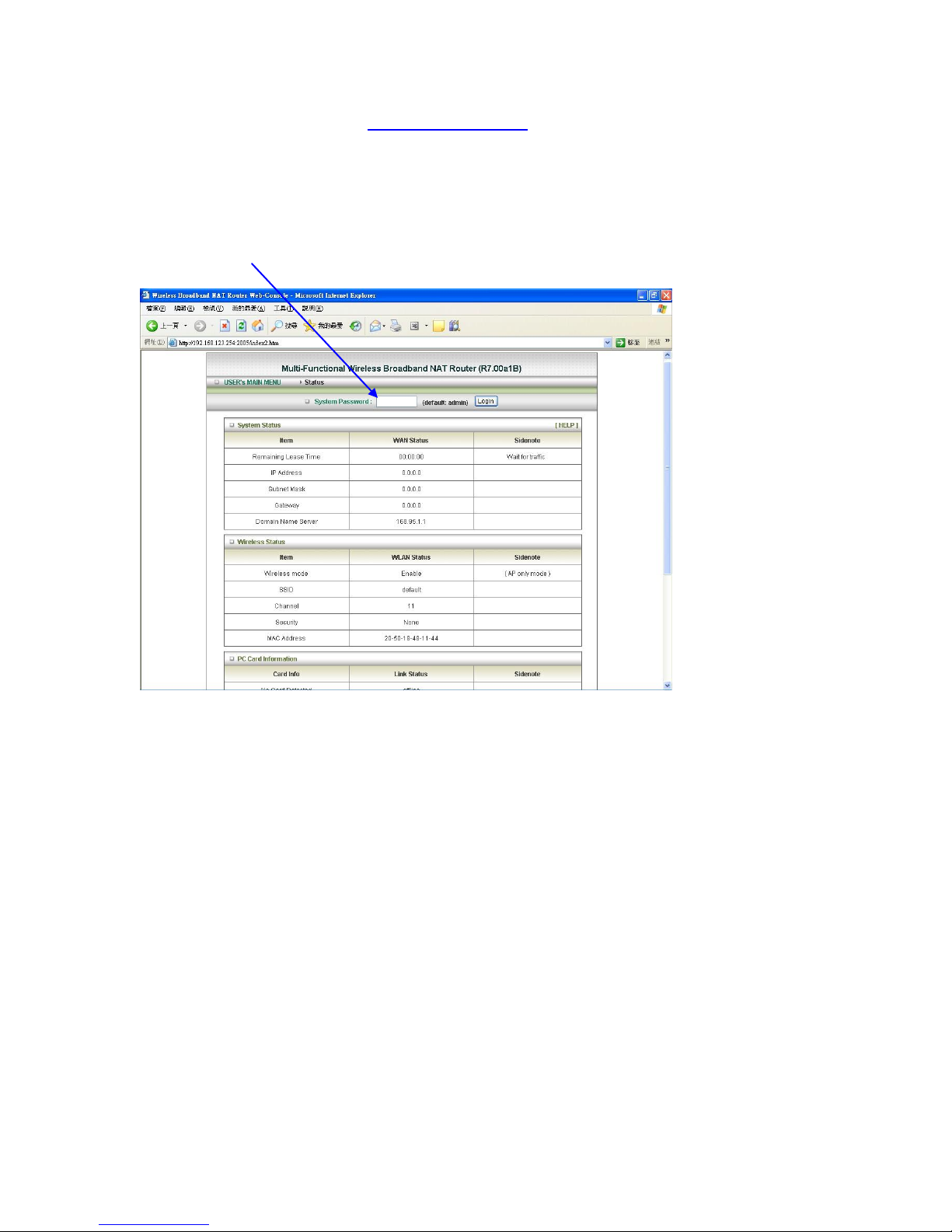

2.2. Using the Configuration Menu
Once properly configured, the Wireless WAN Mobile Broadband Router will obtain and
assign IP address information automatically. Configuration settings can be established
through the Wireless WAN Mobile Broadband Router Configuration Menu. You can access
this interface by performing the steps listed below:
1. Open a web-browser.

2. Type in the IP Address (http://192.168.123.254) of the Wireless WAN Mobile
Broadband Router
Note: If you have changed the default IP Address assigned to the Wireless WAN Mobile
Broadband Router, ensure you enter the correct IP Address
3. Type “admin”in the Password field.
3. Click “logon”button.

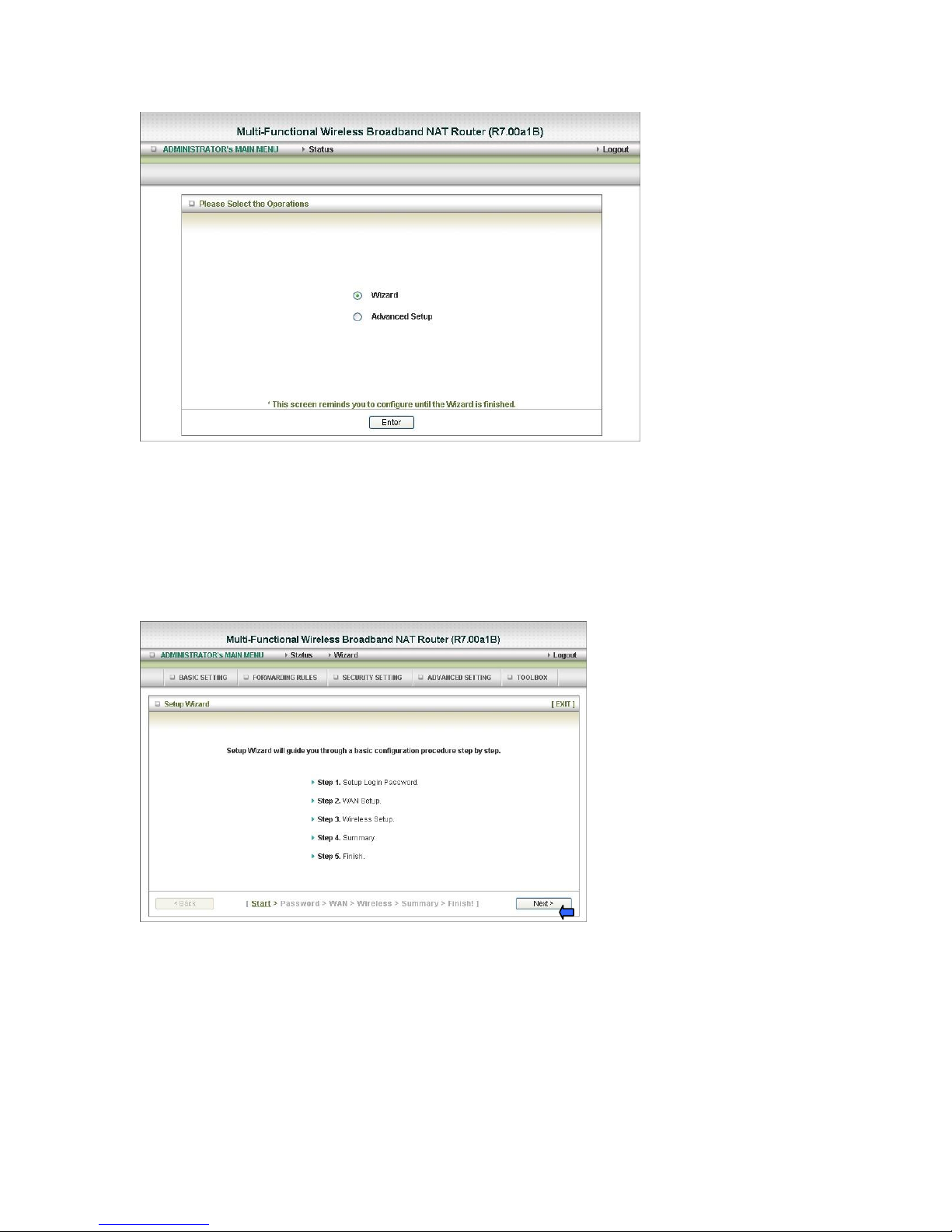

2.2.1. Wizard setting
Press “Wizard” button -for basic settings with simpler way. (Please check
section 2.2.1)
Or you may click on “Advanced Setup” -for advanced settings. (Please check
each item from section 2.2.2

Click on “Enter”button to get start.
With wizard setting steps, you could configure the router in a very simple way. This
configuration wizard includes settings of
a. Login Password,
b. WAN Setup

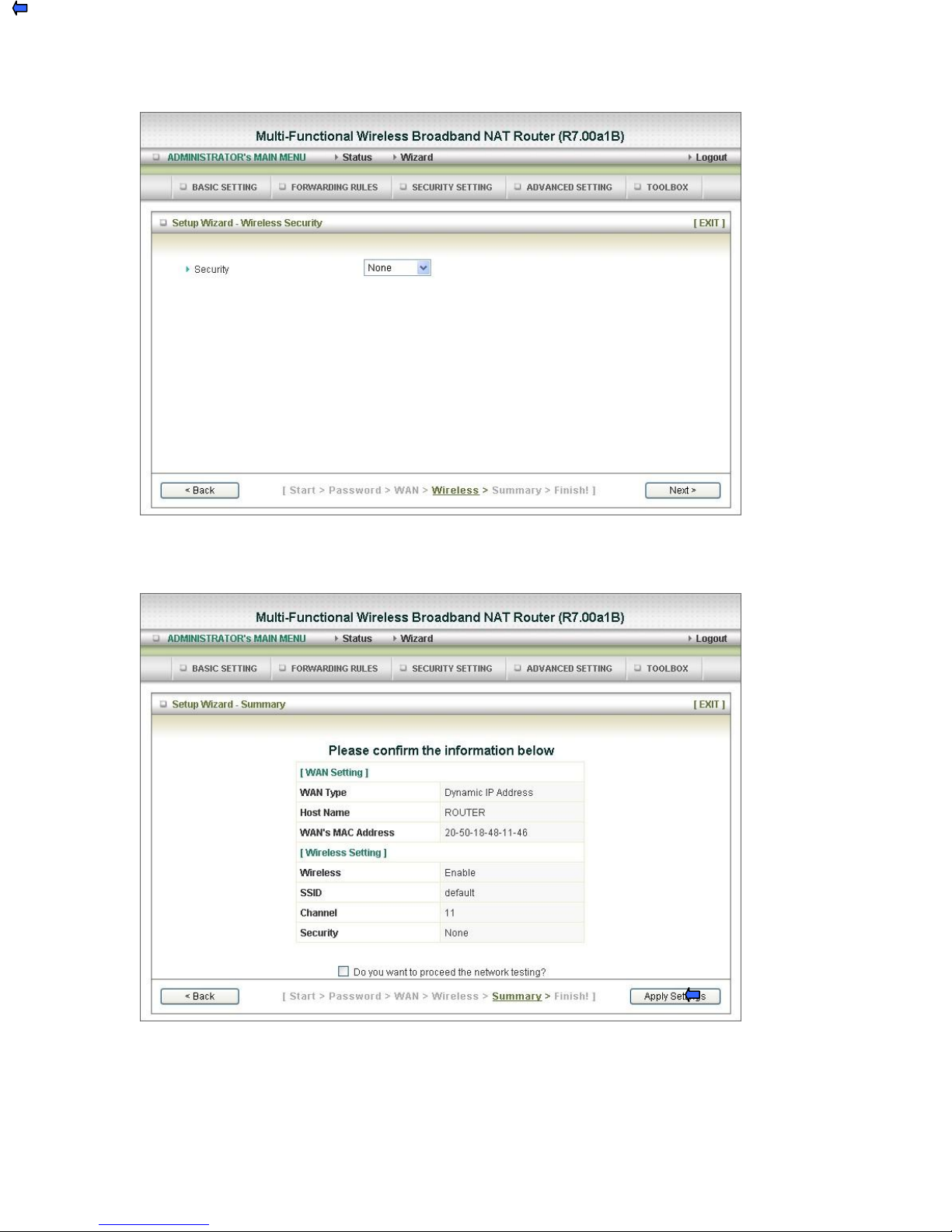

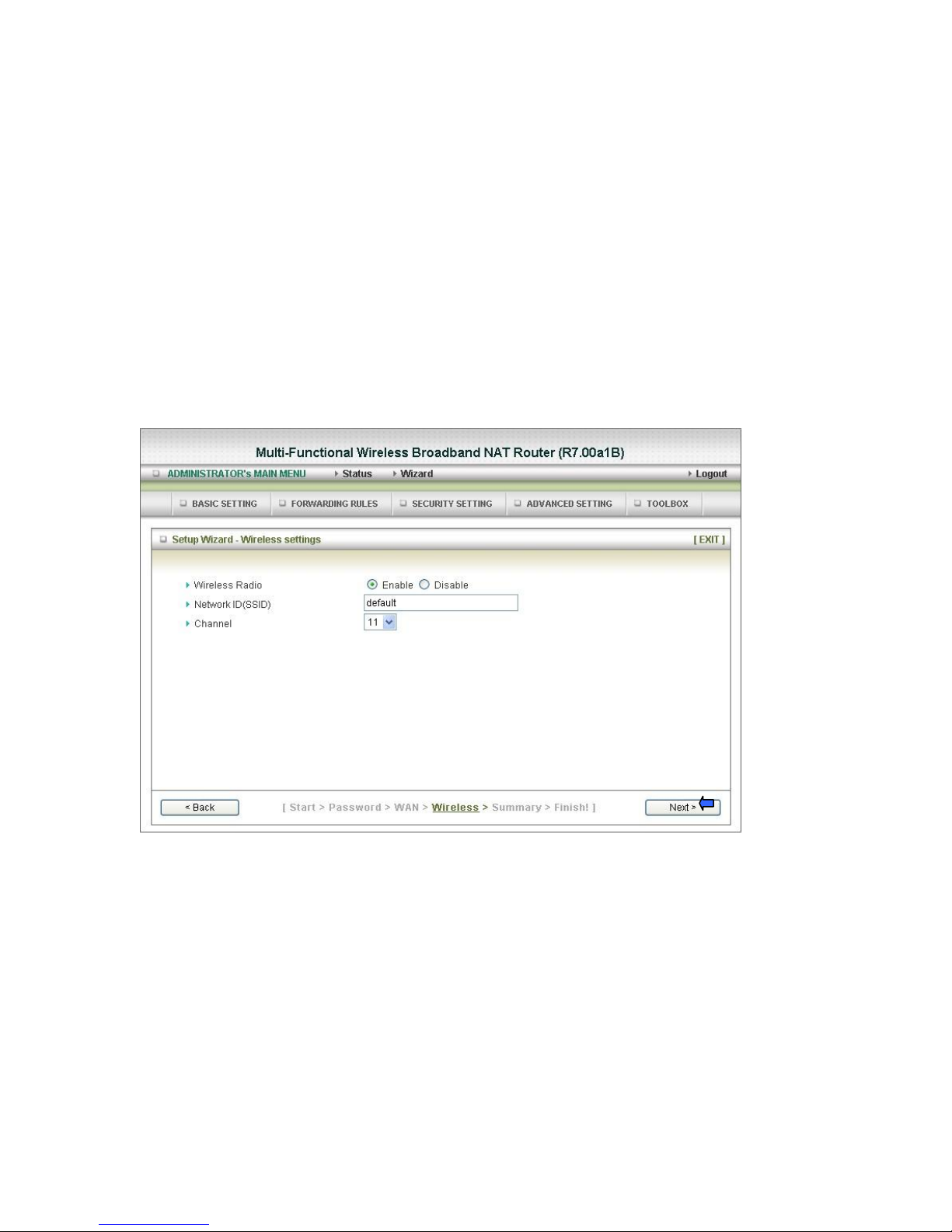

c. Wireless Setup,
Press “Next”button to start configuration.

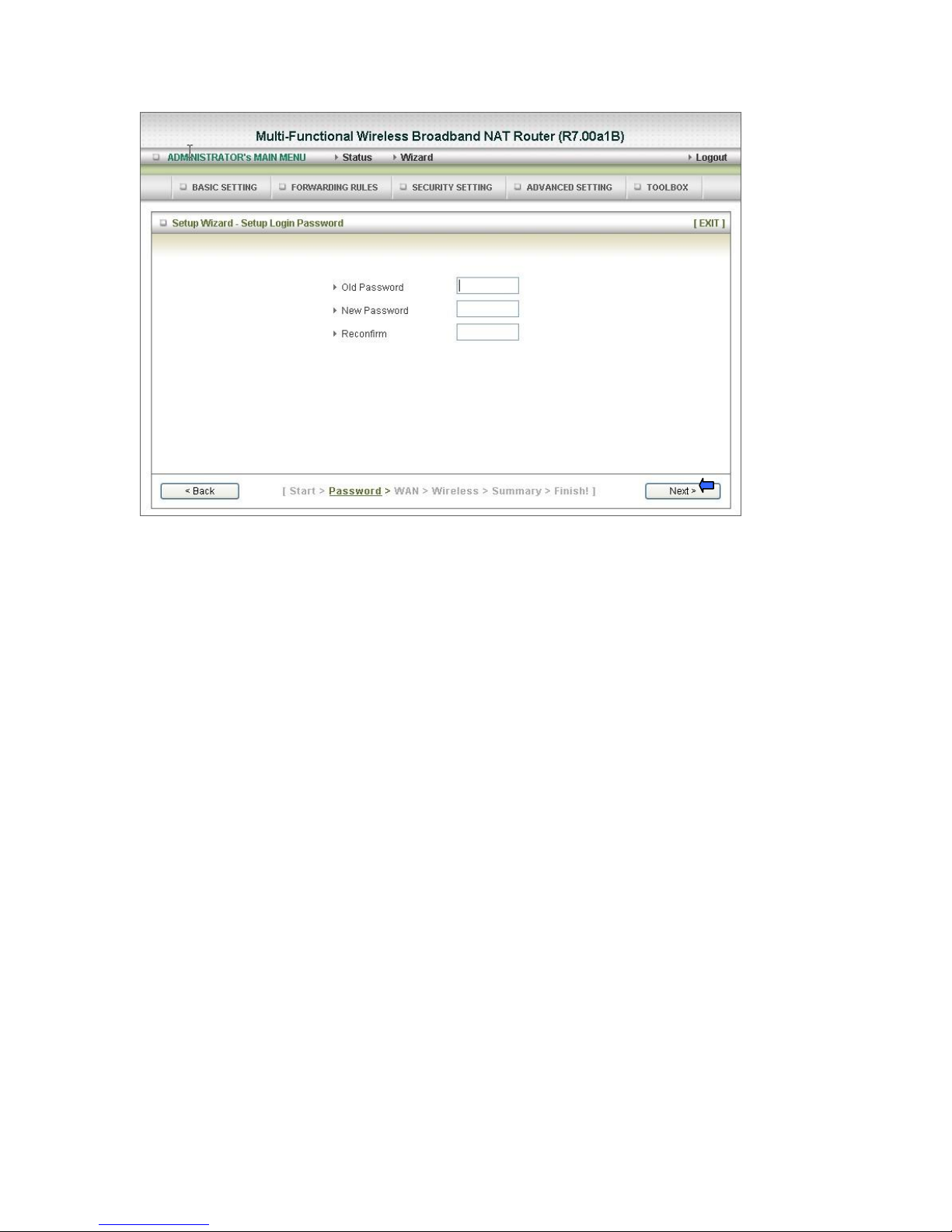

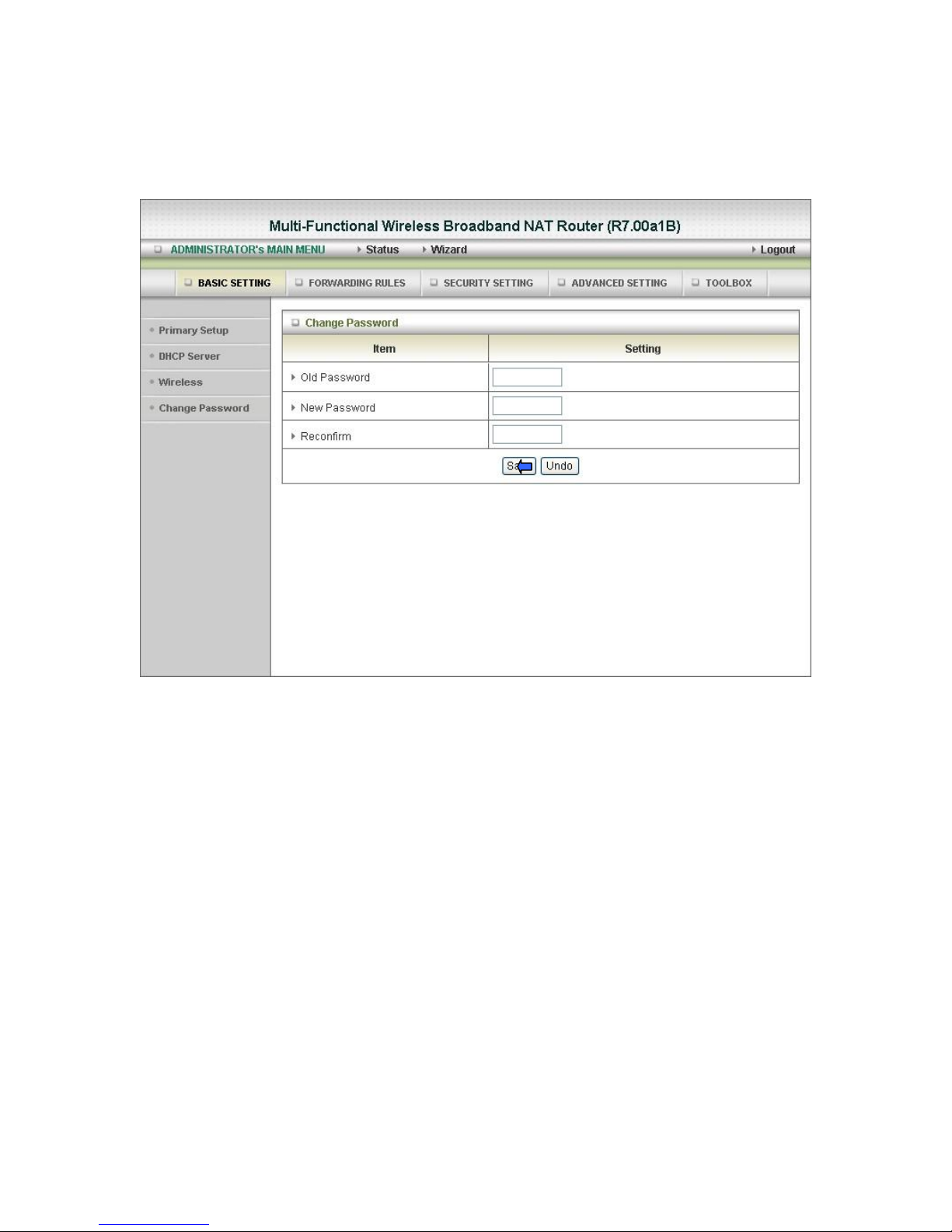

Step 1: Allow you to change the system password.

You can change Password here.
It is recommended that you change the system password into the one you prefer to on the basis
of security
1. Key in your Old Password ( if it is the first initiation, the “admin”will be the defaulted
one.
2: Enter your New Password
3: Enter your Password again for confirmation; it must be the same as the New Password.
4. Then click on “Next”to get into next installation.

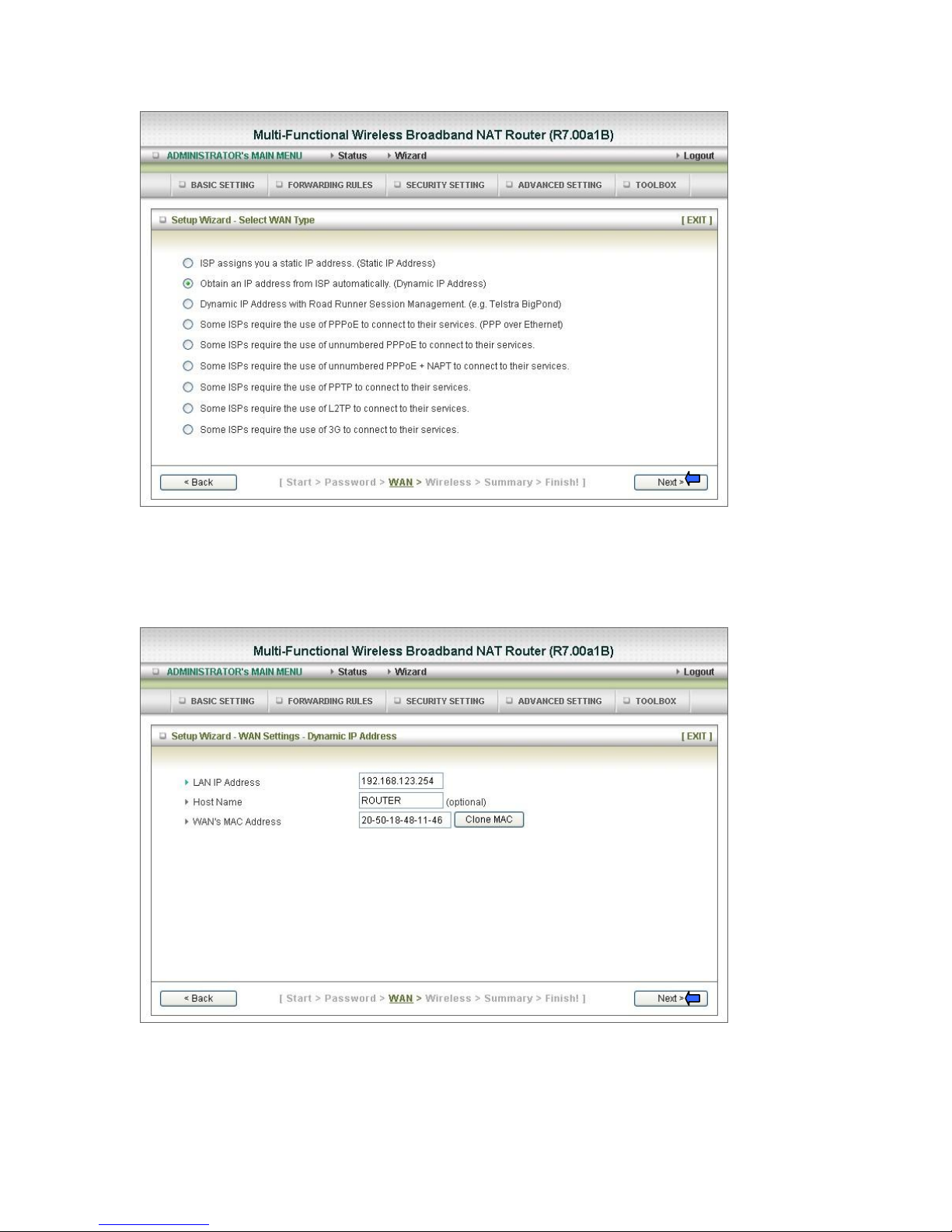

Step 2：Select WAN Types will be used for Internet connection

Pick up one of types you preferred to.
1. Click on “Next”button

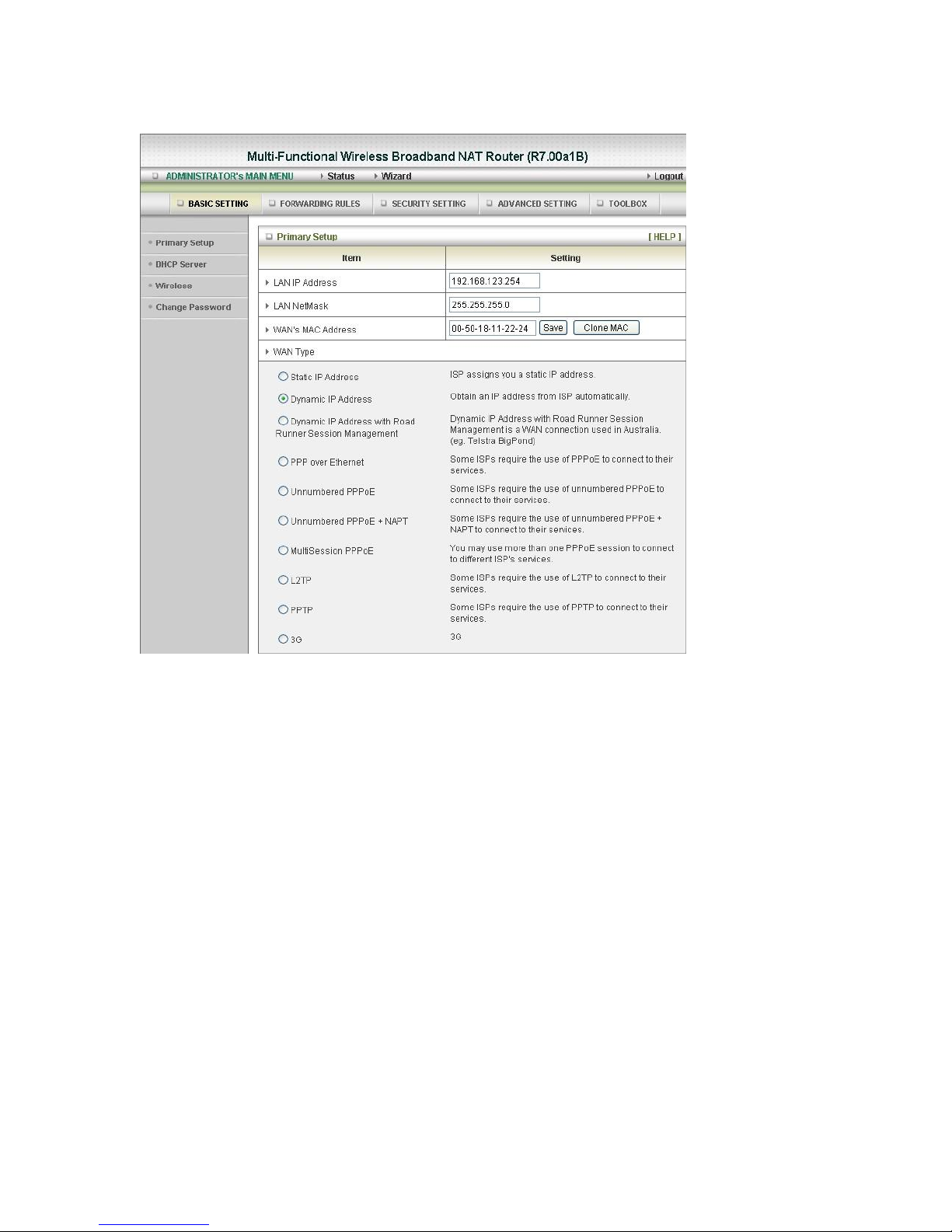

Step 3：Configure the LAN IP Address, Host Name and WAN MAC Address.
LAN is short for Local Area Network, and is considered your internal network. These
are the IP settings of the LAN interface for the Wireless WAN Mobile Broadband
Router, and they may be referred to as Private settings. You may change the LAN IP

address if needed. The LAN IP address is private to your internal network and cannot
be seen on the Internet.
Note: There are 254 addresses available on the Wireless WAN Mobile Broadband
Router when using a 255.255.255.0 (Class C) subnet. Example: The router's IP
address is 192.168.123.1. The available client IP range is 192.168.123.2 through
192.168.123.254.
1. LAN IP Address- The IP address of the LAN interface. The default IP address
is: 192.168.123.254
2. Host Name is optional
3. WAN’s MAC Address
If you click the Clone MAC button, you will find the MAC address of your NIC
shown in WAN's MAC Address
4. Click on ”Next”to continue.
Step 4: Configure the wireless settings.
1. Select Enabled or Disabled. The default setting is Enabled.
2. Network ID( SSID) will be defaulted
3: Channel-Select Wireless Channel matching to your local area for Wireless
connection
4: Click on ”Next”to continue.
Step 5: Select the Wireless security method of your wireless configuration.

Click on ”Next”to continue.
Step 6: Summary
Click on the “Apply Settings”button

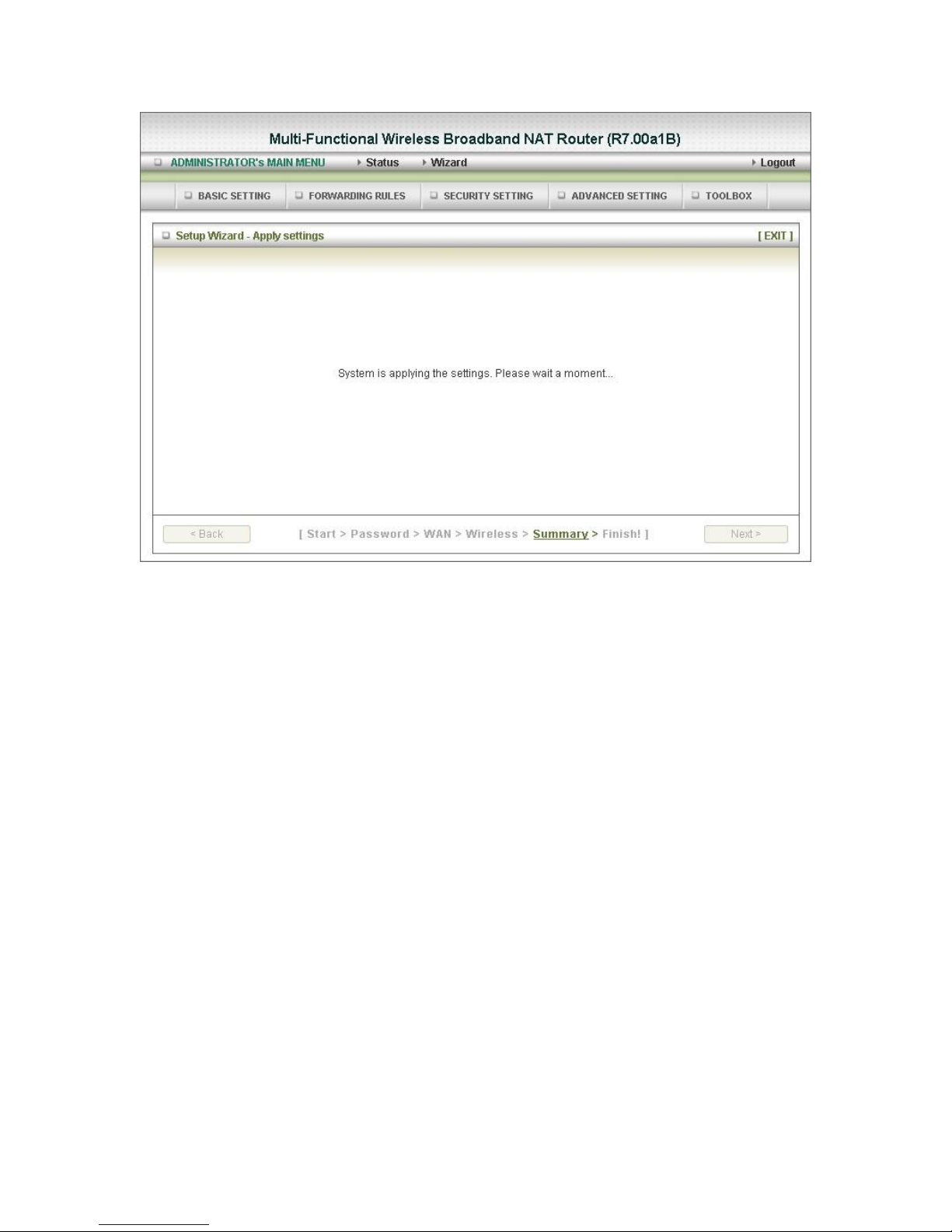

Step 7: System is applying.

Clicking “Finish”button to back to Status Page
2.2.2. Advanced Setup > Basic Setting
1. LAP IP Address: the local IP address of this device. The computers on your
network must use the LAN IP address of your product as their Default Gateway. You
can change it if necessary.
2. LAN Netmask: the Netmask of the local IP address
3. WAN’s MAC Address: The WAN’s MAC of this device. If you want to clone the
MAC address from your NIC, just click the Clone MAC and save
4. WAN Type: WAN connection type of your ISP. You can select a correct one
from the following options
Advanced Setup > Basic Setting > Primary Setup

Select the WAN types you prefer to get on the internet connection
Caution: For 3G WAN Networking. The WAN fields may not be necessary for
your connection. The information on this page will only be used when your
service provider requires you to enter a User Name and Password to connect to
the 3G network.
Please refer to your documentation or service provider for additional
information.
APN- Enter the APN for your PC card here.
Pin Code-Enter the Pin Code for your PC card
Dial-Number- This field should not be altered except when required by your
service provider.
User Name- Enter the new User Name for your PC card here.
Password- Enter the new Password for your PC card here.
Maximum Idle Time-The Connection will be broken when the idle time arrives.
1: Pick up one of the types you preferred to.
2: Click on “Next”button

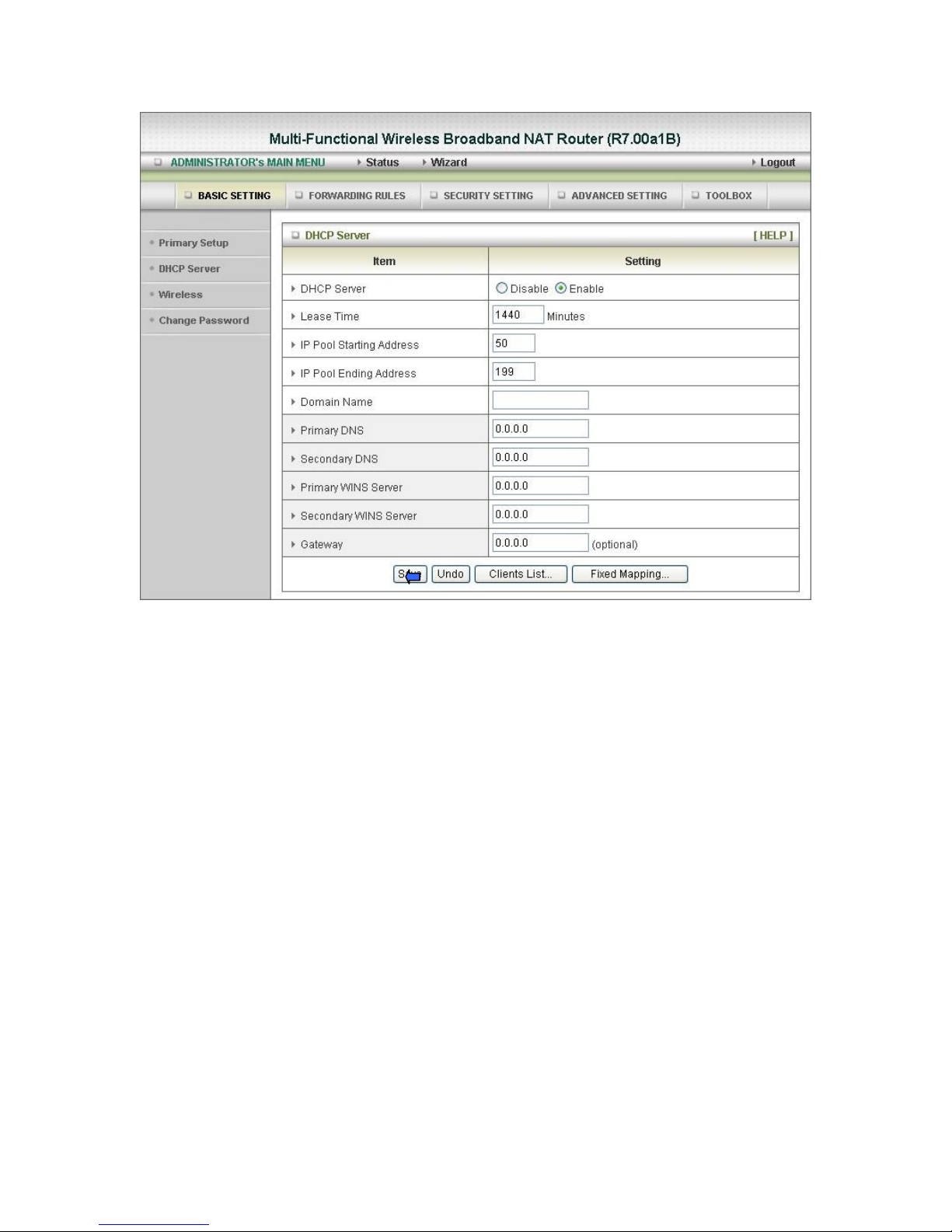

Advanced Setup > Basic Setting > DHCP Server

1. DHCP Server: Choose either Disable or Enable
2. Lease Time: DHCP lease time to the DHCP client
3. IP Pool Starting/Ending Address: Whenever there is a request, the DHCP server
will automatically allocate an unused IP address from the IP address pool to the
requesting computer. Youmust specify the starting / ending address of the IP address
pool
4. Domain: Optional, this information will be passed to the client
5. Primary DNS/Secondary DNS: This feature allows you to assign a DNS Servers
6. Primary WINS/Secondary WINS: This feature allows you to assign a WINS Servers
7. Gateway: The Gateway Address would be the IP address of an alternate Gateway.
This function enables you to assign another gateway to your PC, when DHCP server
offers an IP to your PC.
After you finish your selection then
Either Click on “Save”to store what you just pick or click “Undo”to give up
Advanced Setup > Basic Setting > Wireless

Wireless - Enabled is the default. Selecting this option will allow you to set
your Wireless Access Point (WAP) settings.
WMM Capable- Choose Enable or Disable WMM function
SSID- Service Set Identifier (SSID) is the name designated for a specific wireless
local area network (WLAN). The SSID's factory default setting is default. The
SSID can be easily changed to establish a new wireless network.( Note: SSID
names may contain up to 32 ASCII characters).
Channel- Channel 11 is the default. Devices on the network must share the
same channel. (Note: Wireless adapters automatically scan and match the
wireless settings. You may also select the channel you wish to use).
Security- You may select from three levels of encryption to secure your wireless
network:
No Encryption, WEP.802.1x, WPA-PSK, WPA, WPA2-PSK, or WPA2.
Security- No Encryption is the default (as shown in the screen above).
1. WEP Security: Select the data privacy algorithm you want. Enabling the
security can protect your data while it is transferred from one station to another.
The standardized IEEE 802.11 WEP (128 or 64-bit) is used here.
2. WEP Key 1, 2, 3 & 4: When you enable the 128 or 64 bit WEP key security,
please select one WEP key to be used and input 26 or 10 hexadecimal (0, 1,
2…8, 9, A, B…F) digits.
3. 802.1X: Check Box was used to switch the function of the 802.1X. When the
802.1X function is enable
4. WPA-PSK/WPA-PSK2 : Another encryption options for WPA-PSK-TKIP and
WPA-PSK2-ADE . Enter a password in theWPA-PSK /WPA-PSK2 field between 8
and 63 characters long forASCII.64 characters(0~9,a~f) for HEX.
WPA/WPA2 :The uses have to get a access form RADIUS server by performing
user authentication. Enter the IP address of Radius server and RADIUS Shared

Key.
5: Click on “Save”to store you just select
Advanced Setup > Basic Setting > Change Password
You can change Password here. We strongly recommend you to change the system password for security
reason.
Click on “Save”to store what you just select or “Undo”to give up
Advanced Setup > Forwarding Rules > Virtual Server
