Koso BA053001 User manual

Inner waterproof O-Ring X 1
Oil level and temperature
dipstick X 1
●Thermometer
●Oil meter
●Low battery warning
●Battery specification
●Effective
temperature
●Meter standard
●Meter size
●Meter weight
Engine oil level is full
(The image shows the positive LCD display mode)
Engine oil level is 0.24L from full
Engine oil level is 0.47L from full
Engine oil level is 0.71L from full
wh053ba01a
Low engine oil level warning symbol appears, please check the engine oil level as soon as possible to refill or replace.
Design and specifications are subject to change without notice.
CAUTION!
2-1
2-2
1Accessories
1 2
Basic Function Instruction
Engine Oil Level Display
Low engine oil level warning
symbol
Low battery warning symbol
Light on steady
Engine oil level display
Temperature display
Display range: 1 ~ 4 level
Display range: 0 ~ 150°C
-10~+60°C
CR2032
JIS D 0203(S2)
217x48 mm
273g
Display unit : 1 °C(°F)
(32 ~ 302°F)
The screen can be moderately changed
to adjust your angle. Please keep
adjustments to a minimal rotation as it
could potentially cause damage to
wires on the interior or the head.
Display unit : 1 °C(°F)
Display range :
0~150 °C( 32 ~302 °F)
Display range: 1 ~ 4 level
When low battery warning appears,
battery replacement is needed to
keep the dipstick accurate.
Attention!
● For installation, please follow the steps described. Any damage caused by wrong installation shall be imputed to the users.
● To avoid a short circuit from occuring do not pull or modify the wires during installation.
● Do not disassemble or change any parts. Opening and dissassembling this unit will void any warranty.
● Maintenance and repairs should be executed by our professionals only.
◎ Symbol description:
NOTE
WARNING!
Some procedures must be followed to avoid damages to the instrument.
Certain procedures must be followed to avoid damages to yourself, to the vehicle or others.
LIGHT ONFLASH
HOLD THE
BUTTON 3
SECONDS
HOLD THE
BUTTON ONE
SECONDS
Thank you for purchasing our product. This product is a multifunction meter and is easy to install. Before using, please read the instructions
carefully and retain them for future reference.
●

wh053ba01a
4. Notes for assembling the aluminum alloy lid :
Step 1. Ensure
❷ the o-ring is inside ❶ the
aluminum alloy lid is placed at the
groove on the front end , confirm the
surface and the lid are correctly aligned to
prevent displacement of the o-ring, then press
and fix the lid onto the main body.
Step 2 . To ensure that the previous step is done
properly, wait for a few seconds for the standby
mode. When the LCD is off, fasten the inner
hexagonal screw. You have now successfully
replaced the battery.
The meter does not display properly.
Engine oil display error.
●Maybe the problem is caused due to insufficient power.
→Please change the internal battery.
●Maybe the problem is caused by incorrect battery installation.
→Please check is the battery direction is correct.
●Wrong bike model of motorcycle.
→Please check if the bike fits the dipstick.
※ If the problems still can’t be solved, please contact our techinical department.
.
The following situation do not indicate malfunction of the meter.Please check the following points,before contacting us.
Trouble Check item
Trouble shooting
●Maybe the wire is not correctly connected,
→Please check if the wire is correctly connected.
●Incorrect reading caused by vibration.
→Due to engine vibration after starting, it can cause the oil surface to jump.
Thus the oil level may be incorrect.

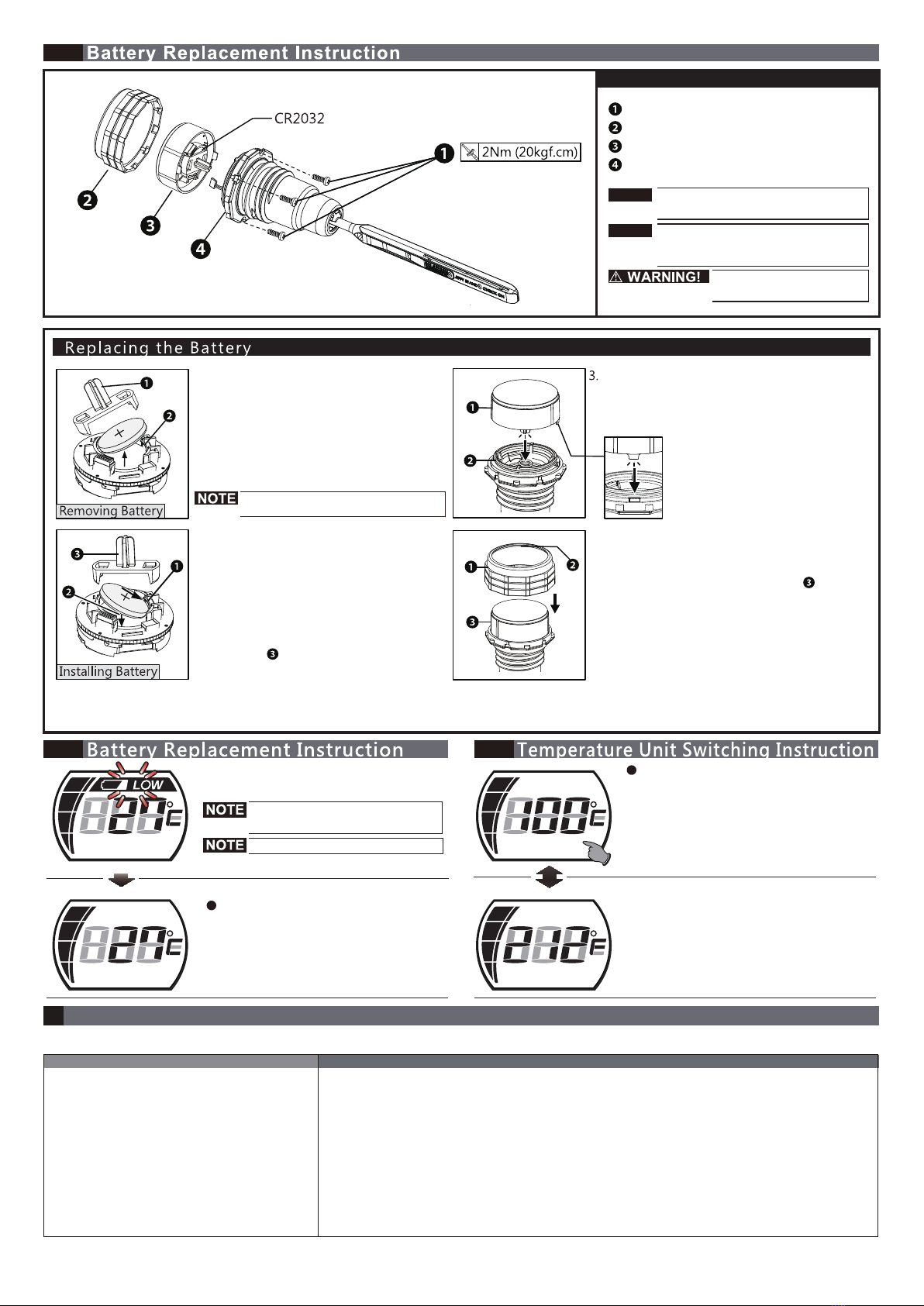

M2 Socket Head Cap Screws
Aluminum alloy lid
Display panel and LCD assembly
Main body assembly
NOTE
Please refer to the diagram to disassemble.
And install according to the reverse order
of disassembly.
Do not use high-pressure water
stream to wash directly.
NOTE
While disassembling ❸&❹. Do not
pull the wire, to prevent damage.
When fitting ❶ the LCD mirror surface lid with
❷ the main body and inner cap,please insert
the spring into the bracket and align it with the
sticking point for a firm structure.
2. Please follow the steps below to install
the battery.
Step 1. Tilting the battery and place it
below
❶ the tab .
Step 2. Press the battery downwards to
❷ the battery space, until the "click"
sound appear to settle the battery.
Step 3. Snap thespringbracketwiththe
battery.
When low battery warning sy.bol appears,
battery replacement is needed immediately.
Please refer to the replacing
battery instruction above.
The warning symbol is illuminated.
The low battery warning symbols will
disappear after battery replacement.
1. Please follow the steps below to remove
the battery (CR2032).
Step 1. Remove ❶ the spring bracket.
Step 2. Use flat head screwdriver push
❷
shrapnel  backwards.
Step 3. Whenthe tab is loose, remove
the battery.
3-1
3-2 3-3
4
4
Please, follow the steps below
Carefully remove the battery to prevent
breaking the tab.
Press and hold the main screen for 3
seconds to change the temperature unit.
