Follow these instructions to properly install your new KOZI Pellet Stove Auger Chute Gasket Kit.
KOZI PELLET STOVE
AUGER CHUTE GASKET
KIT INSTALLATION
XL 100, KSH 120 BayWin

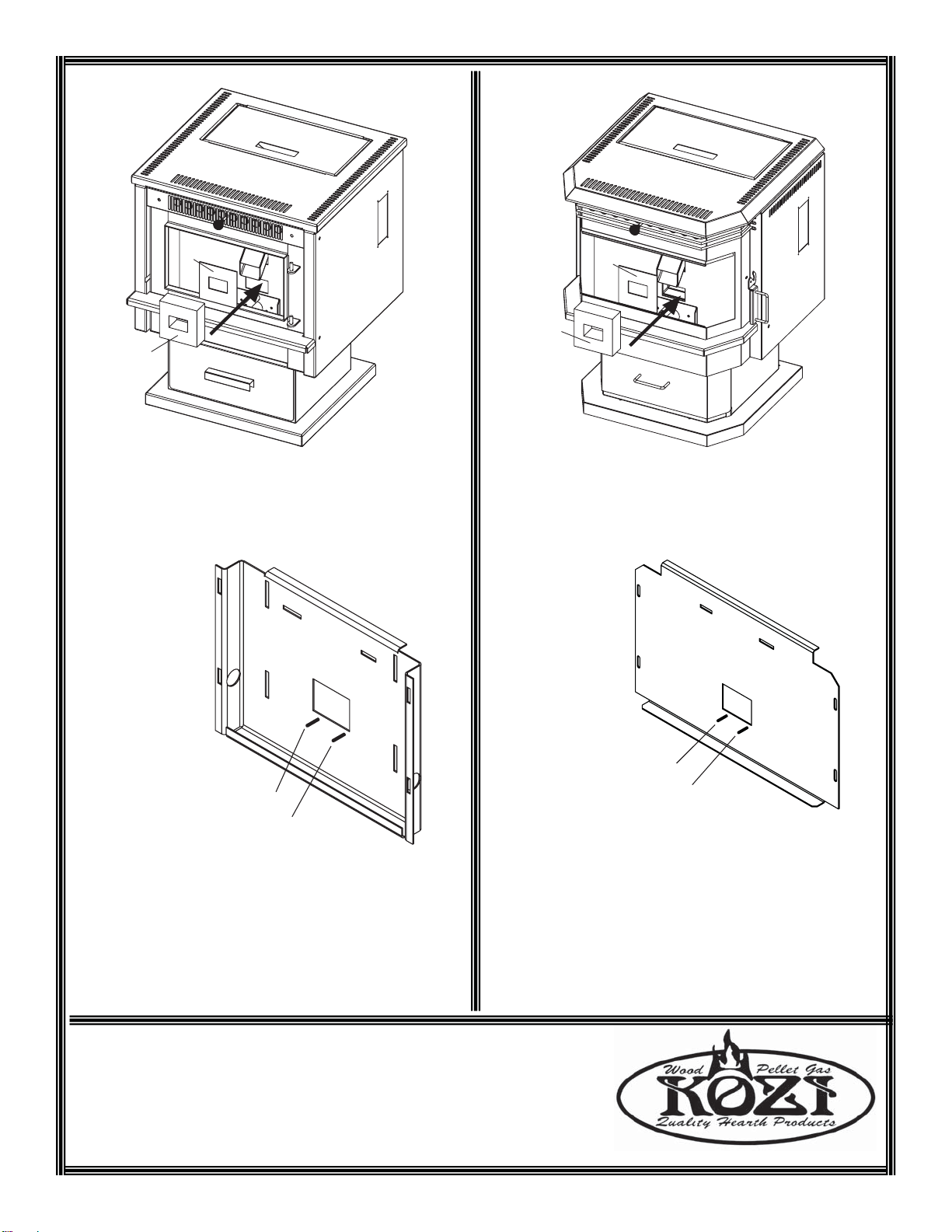

1. Remove splash guard, burn pot and burn
pot stand from the pellet stove. 1. Remove splash guard, burn pot and burn pot stand from the pellet stove.
REMOVE SPLASH
GUARD, BURN POT
AND BURN POT STAND
REMOVE SPLASH
GUARD, BURN POT
AND BURN POT STAND
2. Remove interior heat shields. Remove in
order:
1 - Top Heat Shield
2 - Side Heat Shields
3 - Back Heat Shield
2. Remove back heat shield from stove.
1
3
22
1
Revised Nov 2013
Printed In Canada

3. Install the auger chute gasket as shown.
Place the thin gasket (1) first and the thicker
gasket (2) second.
3. Install the auger chute gasket as shown.
Place the thin gasket (1) first and the thicker
gasket (2) second.
1
2
1
2
4. When placing the back heat shield back
in place, ensure that the bottom edge of the
thick auger chute gasket sits on top of these 2
screws.
4. When placing the back heat shield back
in place, ensure that the bottom edge of the
thick auger chute gasket sits on top of these 2
screws.
BOTTOM EDGE
OF AUGER CHUTE
GASKET SITS ON
TOP OF THESE SCREWS
BOTTOM EDGE
OF AUGER CHUTE
GASKET SITS ON
TOP OF THESE SCREWS
